National Institute of Engineering, Mysuru

Department of Electronics and Communication Engineering

INTERNET OF THINGS LAB-3

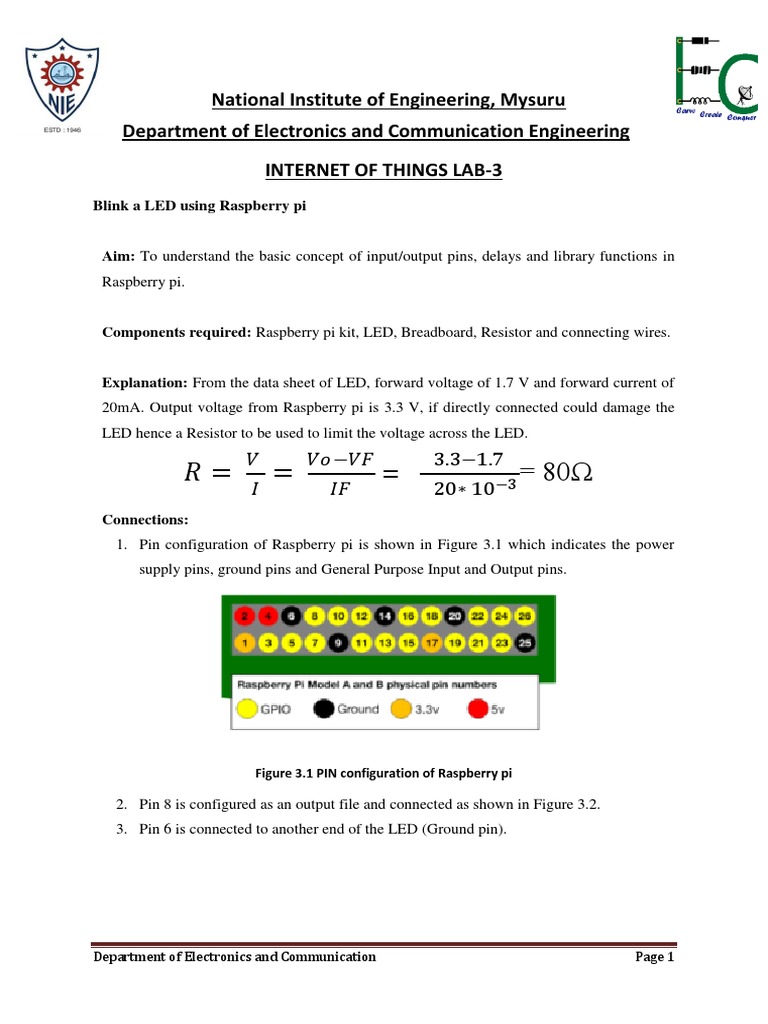

Blink a LED using Raspberry pi

Aim: To understand the basic concept of input/output pins, delays and library functions in
Raspberry pi.

Components required: Raspberry pi kit, LED, Breadboard, Resistor and connecting wires.

Explanation: From the data sheet of LED, forward voltage of 1.7 V and forward current of
20mA. Output voltage from Raspberry pi is 3.3 V, if directly connected could damage the
LED hence a Resistor to be used to limit the voltage across the LED.
𝑉 𝑉𝑜 −𝑉𝐹 3.3−1.7
𝑅= = = = 80Ω
𝐼 𝐼𝐹 20∗ 10 −3
Connections:
1. Pin configuration of Raspberry pi is shown in Figure 3.1 which indicates the power
supply pins, ground pins and General Purpose Input and Output pins.

Figure 3.1 PIN configuration of Raspberry pi

2. Pin 8 is configured as an output file and connected as shown in Figure 3.2.

3. Pin 6 is connected to another end of the LED (Ground pin).

Department of Electronics and Communication Page 1

 Figure 3.2 LED connection to pi

Program:

import RPi.GPIO as GPIO # Import Raspberry pi GPIO library

import time #Import time module
GPIO.setmode(GPIO.BOARD) # Use physical pin numbering
GPIO.setup(8, GPIO.OUT) # Setup GPIO Pin 8 as output pin
while True: #Run Infinitely
GPIO.output(8,True) # Turn on LED (True= High)
time.sleep(1) #Wait for one second (ON time)
GPIO.output(8,False) #Turn off LED
time.sleep(1) # Wait for one second (OFF time)
Program to blink series of LED
4. Configure Pins 11 and 12 as Output and assign the delay and order of the
pins according to blink the LED in series.

Department of Electronics and Communication Page 2

Program:
import RPi.GPIO as GPIO
import time
GPIO.setmode(GPIO.BOARD)
GPIO.setup(8, GPIO.OUT) # Setup GPIO Pin 8 as output pin
GPIO.setup(11, GPIO.OUT)
GPIO.setup(12, GPIO.OUT)
while True:
GPIO.output(8,True)
time.sleep(1)
GPIO.output(8,False)
time.sleep(1)
GPIO.output(11,True)
time.sleep(1)
GPIO.output(11,False)
time.sleep(1)
GPIO.output(12,True)
time.sleep(1)
GPIO.output(12,False)
time.sleep(1)
Department of Electronics and Communication
# Import Raspberry pi GPIO library
#Import time module
# Use physical pin numbering
# Setup GPIO Pin 11 as output pin
# Setup GPIO Pin 12 as output pin
#Run Infinitely
# Turn on LED (True= High)
#Wait for one second (ON time)
#Turn off LED
# Wait for one second (OFF time)
# Turn on LED (True= High)
#Wait for one second (ON time)
#Turn off LED
# Wait for one second (OFF time)
# Turn on LED (True= High)
#Wait for one second (ON time)
#Turn off LED
# Wait for one second (OFF time)
Page 3
