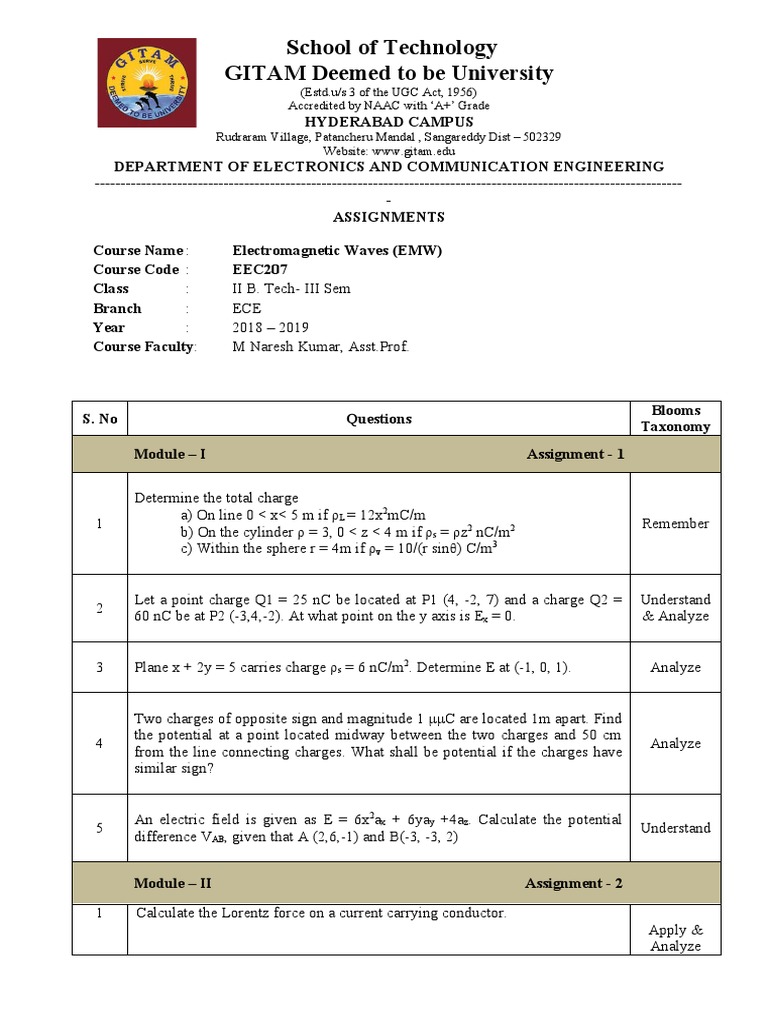

School of Technology

GITAM Deemed to be University

(Estd.u/s 3 of the UGC Act, 1956)
Accredited by NAAC with ‘A+’ Grade
HYDERABAD CAMPUS
Rudraram Village, Patancheru Mandal , Sangareddy Dist – 502329
Website: www.gitam.edu
DEPARTMENT OF ELECTRONICS AND COMMUNICATION ENGINEERING
------------------------------------------------------------------------------------------------------------------
-
ASSIGNMENTS

Course Name : Electromagnetic Waves (EMW)

Course Code : EEC207
Class : II B. Tech- III Sem
Branch : ECE
Year : 2018 – 2019
Course Faculty: M Naresh Kumar, Asst.Prof.

Blooms
S. No Questions
Taxonomy
Module – I Assignment - 1

Determine the total charge

a) On line 0 < x< 5 m if ρL = 12x2mC/m
1 Remember
b) On the cylinder ρ = 3, 0 < z < 4 m if ρs = ρz2 nC/m2
c) Within the sphere r = 4m if ρv = 10/(r sinθ) C/m3

Let a point charge Q1 = 25 nC be located at P1 (4, -2, 7) and a charge Q2 = Understand

2
60 nC be at P2 (-3,4,-2). At what point on the y axis is Ex = 0. & Analyze

3 Plane x + 2y = 5 carries charge ρs = 6 nC/m2. Determine E at (-1, 0, 1). Analyze

Two charges of opposite sign and magnitude 1 μμC are located 1m apart. Find
the potential at a point located midway between the two charges and 50 cm
4 Analyze
from the line connecting charges. What shall be potential if the charges have
similar sign?

An electric field is given as E = 6x2ax + 6yay +4az. Calculate the potential

5 Understand
difference VAB, given that A (2,6,-1) and B(-3, -3, 2)

Module – II Assignment - 2

1 Calculate the Lorentz force on a current carrying conductor.

Apply &
Analyze
 A charge of 12C has a velocity of 5ax + 2ay -3az m/s. Determine F on the Remember
2 &
charge in the field of B = 4ax + 4ay + 3az wb/m2. Understand

Find H at the centre of a square current loop of side ‘l’ by using Biot-Savart’s Understand
3
law? & Analyze

In the cylindrical region 0 < r < 0.8m, J=3e-5r az A/m2. Determine H=Hϕaϕ
4 Analyze
everywhere

5 Explain the classifications of magnetic materials & their characteristics? Knowledge

Module – III Assignment - 3

Give the physical interpretation of conduction current and displacement

1 Knowledge
current

2 Explain “Inconsistency of Ampere’s law”? Remember

A dielectric medium is kept in variable field. Show that the value of

3 Analyze
displacement current is equal to the conduction current.
Remember
State Maxwell’s Equations in differential form & Integral form? And write &
4
their word statements? Understand

5 Given, H = Hm ej(ωt+βz)ax A/m in free space. Find E. Analyze

Module – IV Assignment - 4

Explain the significances of poynting theorem & poynting vector? And its
1 Knowledge
applications?

What is Polarization of an EM Wave? Explain different types of

2 Remember
Polarizations?

The constitution parameter of aluminum are given by μr = 1, Ɛr = 1 and

3 Analyze
σ = 3.54*107 mho/m. Find the frequency for which the skin depth of
aluminum is 0.01 mm.
4 Analyze
 Calculate α, β, γ and velocity of propagation for conducting medium in which
σ = 58 MS/m, μr = 1 and frequency f = 100MHz.

Find the velocity of a plane wave in a lossless medium having a relative Knowledge
5
permittivity of 4 and a relative permeability of 1.2 & Analyze
