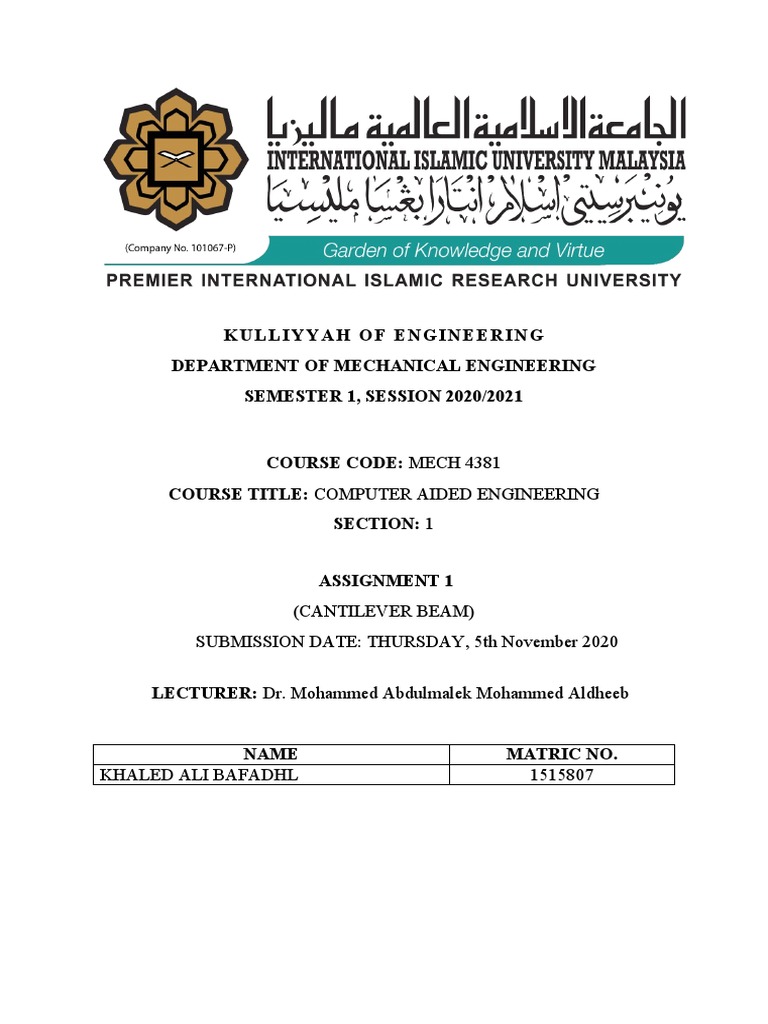

ASSIGNMENT 1
(CANTILEVER BEAM)
SUBMISSION DATE: THURSDAY, 5th November 2020
W 17mm
H1 207mm
F (Force) 1515.8 kN
Introduction:
Cantilever beam which is a beam which is supported only with one end, and
cantilever beam transfer the load to the support at fixed end with the moment and
shear forces. Cantilever beam is constructed for Balcony and other bridge
constructions. It goes through a strong deflection compared to other beams with 2 end
fixed support. Cantilever beams contains more moments and the stiffness is also high.
Objectives:
The geometry was developed using Ansys software with the dimensions shown on the
table above:
The mesh type is the general type which is the coarse one with normal number of
divisions,
Boundary Conditions:
The boundary conditions of the cantilever beam is fixed support at one end and end
b) Maximum allowable load on the cantilever beam for structural steel is 1300000N
Maximum allowable load on the cantilever beam for Aluminum alloy is 800000N
c) (a) Deflection of cantilever beam subjected to load using structural steel material:
Maximum deflection: 60.185mm
(b) Deflection of cantilever beam subjected to displacement and allowable load using
Structural steel:
P l3
Maximum deflection = .
3 EI
P= 1515807N.
L= 107cm.
E= 200000MPa
1 1
I= (0.107) (0.241)3 – 2(( ¿ (0.045)(0.207)3) = 5.828×10-5 m4 .
12 12
Aluminum alloy:
P l3
Maximum deflection = .
3 EI
P= 1515807N.
L= 107cm.
E= 71000MPa
1 1
I= (0.107) (0.241)3 – 2(( ¿ (0.045)(0.207)3) = 5.828×10-5 m4 .
12 12
P= 1300000N.
L= 107cm.
E= 200000MPa
1 1
I= (0.107) (0.241)3 – 2(( ¿ (0.045)(0.207)3) = 5.828×10-5 m4 .
12 12
Aluminum alloy:
P l3
Maximum deflection = .
3 EI
P= 800000N.
L= 107cm.
E= 71000MPa
1 1
I= (0.107) (0.241)3 – 2(( ¿ (0.045)(0.207)3) = 5.828×10-5 m4 .
12 12
The analysis part of the cantilever beam was analyzed and the error in the
analytical with the software is quite big but it is due to the mesh type which was not accurate
due to computational power of the laptop and due to time constraints which was analyzed in 3
seconds.
The error percentage of the deflection due to load applied at the end of the
As it is mentioned above that due to mesh type and the time to run the cantilever
beam has contributed to the difference of values of both calculations, this will be avoided for
the future analysis and calculations by applying accurate mesh types with mesh independent
The analysis of the cantilever beam was observed closely, and it was very close to the
analytical result which indicates that our analysis using the Ansys software was
correct. There was a lot of advantages which have been obtained and understood by
according to your design and structure for almost accurate results. It was a great
practice of using Ansys software and I was able to obtain the result needed and
comparing these results with analytical results to make sure the steps are correct.
References:
https://www.engineeringtoolbox.com/cantilever-beams-d_1848.html
https://www.youtube.com/watch?v=HOWKZr-d4pk
https://www.youtube.com/watch?v=hO4PHUS9IH4
