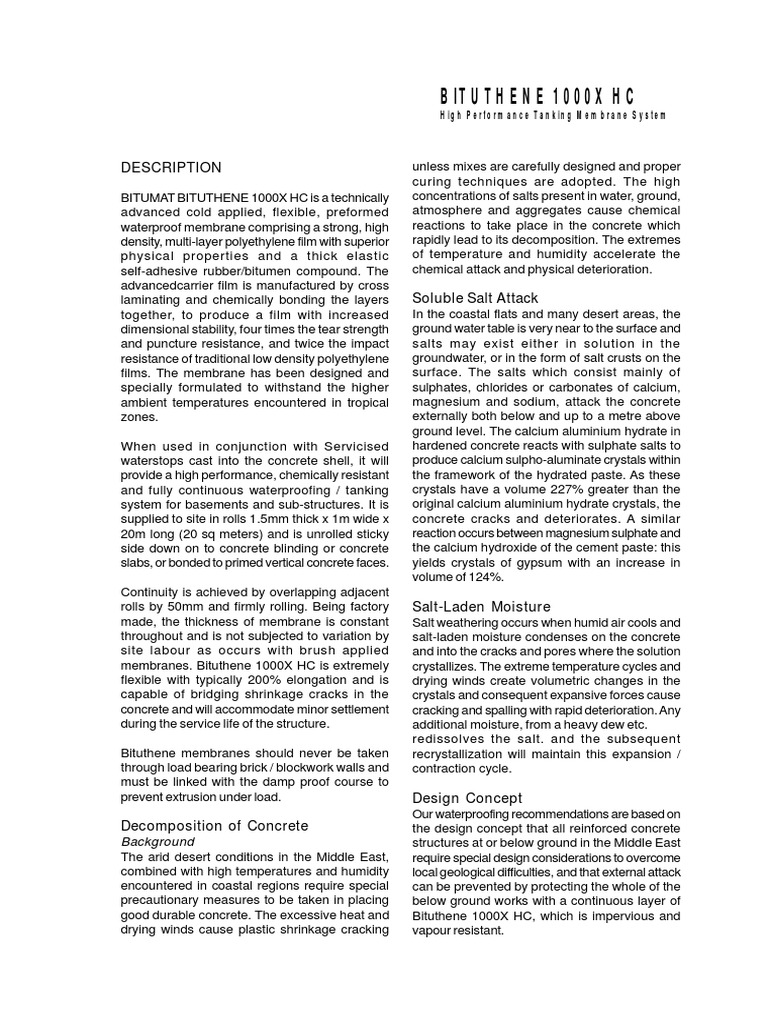

BITUTHENE 1000X HC
High Performance Tanking Membrane System
DESCRIPTION
BITUMAT BITUTHENE 1000X HC is a technically
advanced cold applied, flexible, preformed
waterproof membrane comprising a strong, high
density, multi-layer polyethylene film with superior
physical properties and a thick elastic
self-adhesive rubber/bitumen compound. The
advancedcarrier film is manufactured by cross
laminating and chemically bonding the layers
together, to produce a film with increased
dimensional stability, four times the tear strength
and puncture resistance, and twice the impact
resistance of traditional low density polyethylene
films. The membrane has been designed and
specially formulated to withstand the higher
ambient temperatures encountered in tropical
zones.
When used in conjunction with Servicised
waterstops cast into the concrete shell, it will
provide a high performance, chemically resistant
and fully continuous waterproofing / tanking
system for basements and sub-structures. It is
supplied to site in rolls 1.5mm thick x 1m wide x
20m long (20 sq meters) and is unrolled sticky
side down on to concrete blinding or concrete
slabs, or bonded to primed vertical concrete faces.
Continuity is achieved by overlapping adjacent
rolls by 50mm and firmly rolling. Being factory
made, the thickness of membrane is constant
throughout and is not subjected to variation by
site labour as occurs with brush applied
membranes. Bituthene 1000X HC is extremely
flexible with typically 200% elongation and is
capable of bridging shrinkage cracks in the
concrete and will accommodate minor settlement
during the service life of the structure.
Bituthene membranes should never be taken
through load bearing brick / blockwork walls and
must be linked with the damp proof course to
prevent extrusion under load.
Decomposition of Concrete
Background
The arid desert conditions in the Middle East,
combined with high temperatures and humidity
encountered in coastal regions require special
precautionary measures to be taken in placing
good durable concrete. The excessive heat and
drying winds cause plastic shrinkage cracking
unless mixes are carefully designed and proper
curing techniques are adopted. The high
concentrations of salts present in water, ground,
atmosphere and aggregates cause chemical
reactions to take place in the concrete which
rapidly lead to its decomposition. The extremes
of temperature and humidity accelerate the
chemical attack and physical deterioration.
Soluble Salt Attack
In the coastal flats and many desert areas, the
ground water table is very near to the surface and
salts may exist either in solution in the
groundwater, or in the form of salt crusts on the
surface. The salts which consist mainly of
sulphates, chlorides or carbonates of calcium,
magnesium and sodium, attack the concrete
externally both below and up to a metre above
ground level. The calcium aluminium hydrate in
hardened concrete reacts with sulphate salts to
produce calcium sulpho-aluminate crystals within
the framework of the hydrated paste. As these
crystals have a volume 227% greater than the
original calcium aluminium hydrate crystals, the
concrete cracks and deteriorates. A similar
reaction occurs between magnesium sulphate and
the calcium hydroxide of the cement paste: this
yields crystals of gypsum with an increase in
volume of 124%.
Salt-Laden Moisture
Salt weathering occurs when humid air cools and
salt-laden moisture condenses on the concrete
and into the cracks and pores where the solution
crystallizes. The extreme temperature cycles and
drying winds create volumetric changes in the
crystals and consequent expansive forces cause
cracking and spalling with rapid deterioration. Any
additional moisture, from a heavy dew etc.
redissolves the salt. and the subsequent
recrystallization will maintain this expansion /
contraction cycle.
Design Concept
Our waterproofing recommendations are based on
the design concept that all reinforced concrete
structures at or below ground in the Middle East
require special design considerations to overcome
local geological difficulties, and that external attack
can be prevented by protecting the whole of the
below ground works with a continuous layer of
Bituthene 1000X HC, which is impervious and
vapour resistant.
 SVD04 MAY04 R-00 00

Roll length : 20 metre Servicised B Primer HC is flammable with a Flash

Roll width : 1 metre (20 sq m) Point 25°C-30°C and should be used in well
Thickness : 1.5mm overall ventilated areas away from sources of ignition.
Weight per roll : 32 kg gross Inhalation should be avoided and undried material
Minimum overlaps 50mm side and end prevented from coming into contact with skin. The
Recommended application 4°C to 55°C use of protective clothing, goggles, barrier creams
temperature (see notes below) and rubber gloves is required. At the end of each
Storage : Store upright in dry working period the skin should be thoroughly
conditions below cleansed with soap and warm water or a resin
40°C removing cream. The use of solvents for cleaning
Equipment by Others skin is to be avoided. If any irritation or redness
Soft broom, Stanley knife, brush or roller for is apparent obtain medical advice immediately.
priming, stiff broom and airline for cleaning In case of accidental eye or mouth contact flush
surfaces. with water and obtain medical advice immediately.

Application Health and Safety

Measures should be taken to ensure that all For further information and handling precautions
surfaces are free from ice. frost or condensation. refer to the following company material health and
Concrete blinding under base slab should be safety data sheets:
surface dry, free from standing water, and laid to Servicised B Primer HC TSO/HS 1
a regular surface free from sharp protrusions and Bituthene Mastic HC TSD/HS18
hollows. Horizontal surfaces under base slabs do Pak Adhesive TSD/HS 4
not usually require priming before applying the
membrane. Specification
Bituthene 1000X HC preformed, self-adhesive membrane shall be
laid on to smooth concrete blinding and on to walls primed with
Vertical faces shall be smooth, regular, dry and Servicised B Primer HC and applying the preformed membrane,
free from nails and primed with one coat of sticky side downwards, to give well rolled 50mm overlaps, laid
strictly in accordance with the manufacturer’s instructions and
Servicised B Primer HC applied by brush or roller, supplied by Servicised Ltd., Ajax Avenue, Slough, Berkshire SL1
at a rate of 10-12 sq m/litre depending on the 4BH, United Kingdom. Tel. Nos: 0753-692929. Telex: 846966 SERVCD
G. Fax: 0753-691623.
porosity of the surface, and allowed to completely
dry before the application of the Bituthene 1000X Performance & Testing Compliance.
HC. Brickwork shall be flush pointed or rendered
to provide a smooth surface before priming.
Property Test Method Typical Results
Bituthene 1000X HC shall be laid by peeling back Tape Strength ASTM D638 Long 4.2 N/mm
the protective release paper and applying the Trans 4.8 N/mm
adhesive face on to the prepared surface. The Tensile Strength ASTM D638 Long 42 N/mm2
material should be brushed on to the surface to Trans 48 N/mm2
ensure good initial bond. Adjacent rolls are aligned
Elongation Film ASTM D638 Long 210%
and overlapped 50mm minimum at side and ends
and well rolled with a firm pressure using a Trans 160%
Servicised Lap Roller to ensure complete adhesion Tear Resistance ASTM D1004 Long 340 N/mm
and continuity between the layers. Trans 310 N/mm
Bituthene 1000X to extend 300mm beyond line of Adhesion to ASTM D1000 Long 340 N/mm
retaining walls to allow continuity with the vertical Primed Concrete Trans 310 N/mm
application. Anypunctures or damaged areas
Adhesion to Self ASTM D1000 1.8 N/mm
should be cleaned and patched using Bituthene
1000X with 50mm laps all round. Puncture ASTM E154 220 N 65 mm
Following the application care should be taken to Resistance
prevent damage by following trades by using a
25mm screed as horizontal protection or Servipak Water Resistance ASTM D570
boards spot bonded with Pak Adhesive. Vertical after 24 hrs 0.14%
faces to be protected if required against after 35 days 0.95N
damagefrom backfilling and fixing of reinforcement Environmental ASTM D543
by using Korkpak, Servipak or other boards Conforms
Resistance
recommended by Servicised Ltd. spot bonded with
Pak Adhesive. Moisture Vapour ASTM E96 0.3 g/m2/24 hrs
Transmission Rate
Handling Precautions BITUTHENE 1000X HC complies with the relevant section of the
Bituthene 1000X HC has no health hazard when following national standards: CP 102: 1973, CP8102: 1990 / Building
used in accordance with our standard application Regulations 1985 Clause C4 / Building Regulations (NI) 1985 clause
C6 / Building Standards (Scotland) Regulations 1981, 1982, 1984
instructions. Regulations B2, G8, G9.
