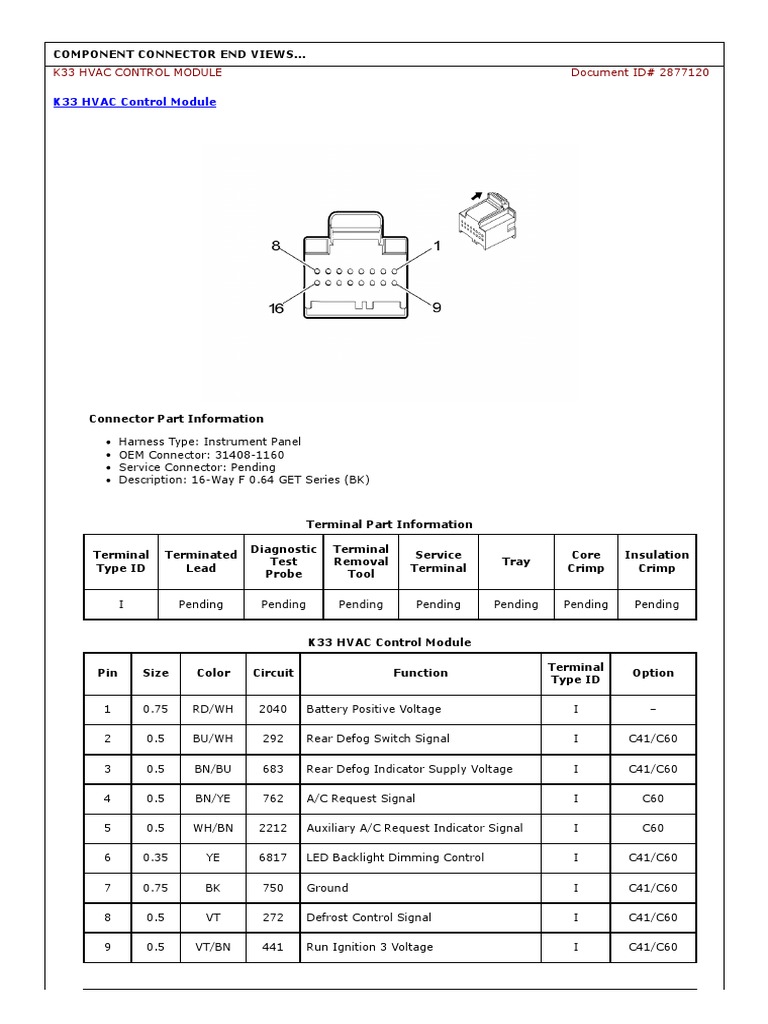

COMPONENT CONNECTOR END VIEWS...

K33 HVAC CONTROL MODULE Document ID# 2877120

K33 HVAC Control Module

Connector Part Information

Harness Type: Instrument Panel

OEM Connector: 31408-1160
Service Connector: Pending
Description: 16-Way F 0.64 GET Series (BK)

Terminal Part Information

Diagnostic Terminal
Terminal Terminated Service Core Insulation
Test Removal Tray
Type ID Lead Terminal Crimp Crimp
Probe Tool

I Pending Pending Pending Pending Pending Pending Pending

K33 HVAC Control Module

Terminal
Pin Size Color Circuit Function Option
Type ID

1 0.75 RD/WH 2040 Battery Positive Voltage I –

2 0.5 BU/WH 292 Rear Defog Switch Signal I C41/C60

3 0.5 BN/BU 683 Rear Defog Indicator Supply Voltage I C41/C60

4 0.5 BN/YE 762 A/C Request Signal I C60

5 0.5 WH/BN 2212 Auxiliary A/C Request Indicator Signal I C60

6 0.35 YE 6817 LED Backlight Dimming Control I C41/C60

7 0.75 BK 750 Ground I C41/C60

8 0.5 VT 272 Defrost Control Signal I C41/C60

9 0.5 VT/BN 441 Run Ignition 3 Voltage I C41/C60

 Terminal
Pin Size Color Circuit Function Option
Type ID

10 0.5 BN/WH 6816 Indicator Dimming Control I C41/C60

11 0.5 GY/GN 2210 Air Temperature Door Control I (C41/C60)

12 0.5 BU/BN 1199 Air Temperature Door Control I (C41/C60)

13-16 - - - Not Used - -
