Chapter - 17

Parts Manual
AF T-LAB Automatic Capsule Filling Machine
m R

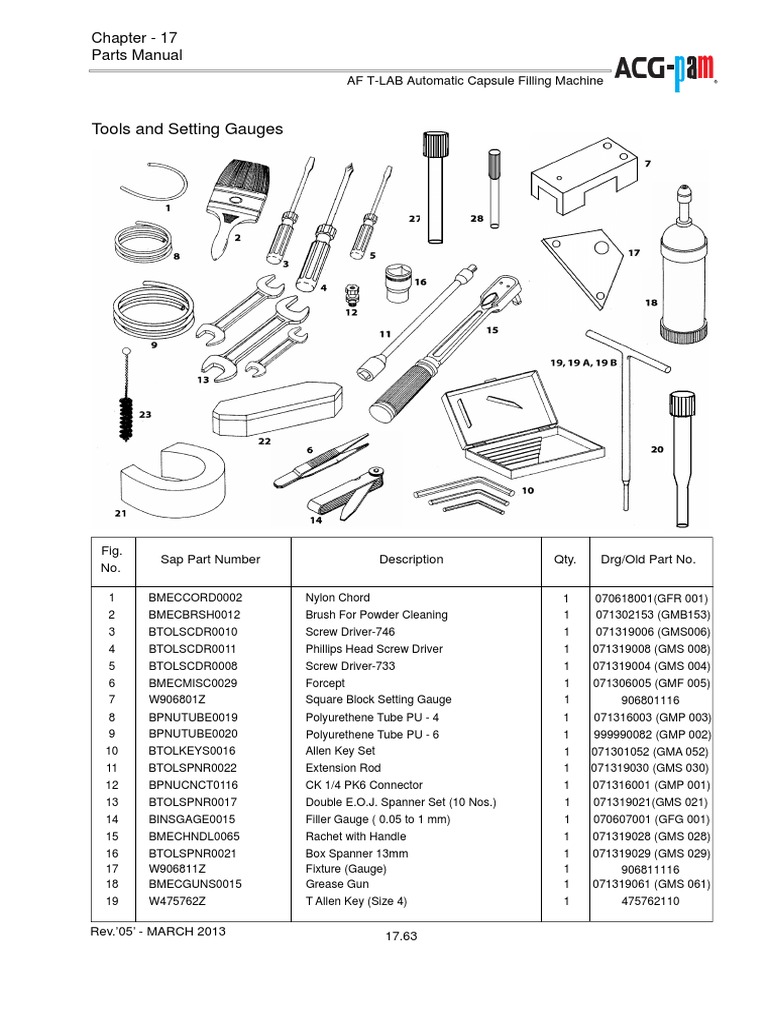

Tools and Setting Gauges

Fig.
Sap Part Number Description Qty. Drg/Old Part No.
No.

1 BMECCORD0002 Nylon Chord 1 070618001(GFR 001)


2 BMECBRSH0012 Brush For Powder Cleaning 1 071302153 (GMB153)
3 BTOLSCDR0010 Screw Driver-746 1 071319006 (GMS006)
4 BTOLSCDR0011 Phillips Head Screw Driver 1 071319008 (GMS 008)
5 BTOLSCDR0008 Screw Driver-733 1 071319004 (GMS 004)
6 BMECMISC0029 Forcept 1 071306005 (GMF 005)
7 W906801Z Square Block Setting Gauge 1 906801116
8 BPNUTUBE0019 Polyurethene Tube PU - 4 1 071316003 (GMP 003)
9 BPNUTUBE0020 Polyurethene Tube PU - 6 1 999990082 (GMP 002)
10 BTOLKEYS0016 Allen Key Set 1 071301052 (GMA 052)
11 BTOLSPNR0022 Extension Rod 1 071319030 (GMS 030)
12 BPNUCNCT0116 CK 1/4 PK6 Connector 1 071316001 (GMP 001)
13 BTOLSPNR0017 Double E.O.J. Spanner Set (10 Nos.) 1 071319021(GMS 021)
14 BINSGAGE0015 Filler Gauge ( 0.05 to 1 mm) 1 070607001 (GFG 001)
15 BMECHNDL0065 Rachet with Handle 1 071319028 (GMS 028)
16 BTOLSPNR0021 Box Spanner 13mm 1 071319029 (GMS 029)
17 W906811Z Fixture (Gauge) 1 906811116
18 BMECGUNS0015 Grease Gun 1 071319061 (GMS 061)
19 W475762Z T Allen Key (Size 4) 1 475762110

Rev.’05’ - MARCH 2013 17.63


Chapter - 17
Parts Manual
AF T-LAB Automatic Capsule Filling Machine
m R

Tools
s and Setting Gauges

Fig.
Sap Part Number Description Qty. Drg/Old Part No.
No.

19 A W474306Z T Allen Key (Size 5) 1 474306047


19 B W474307Z T Allen Key (Size 6) 1 474307047
20 W701616Z
Z Round Head Key 1 701616001
21 W788977Z Spacer for Piston Guide Plate Removal 1 788977001
22 W628997Z Wiper Plate to Remove Piston 1 628997002
23 W894610Z Brush for Bush Cleaning 1 894610079
27 W904716Z Gauge Pin 2 904716107
28 W906800Z Setting Gauge Pin 1 906800116

Rev.’05’ - MARCH 2013 17.64


Chapter - 17
Parts Manual
AF T-LAB Automatic Capsule Filling Machine
m R

GMP Filter Assembly and Capsule Collection Bin

Fig.
Sap Part Number Description Qty. Drg/Old Part No.
No.

XXXI W051342Z GMP Filter Assembly 1


24 W688945Z Dry Vacuum Filter Sub Assembly 1 688945001
25 BMECFLBG0049 Filter Bag 1 071606068
29 BPNUFLTR0010 Filter Cartridge 1
30 W388886Z Ring 1 388886001
31 W388885Z Seal 1 388885001
32 BPNUCLIP0024 Clip S.S. 4
33 W498873Z Lid For GMP Filter 1 498873002D

26 W388970Z Capsule Collection Bin 1 388970001

Rev.’05’ - MARCH 2013 17.65
