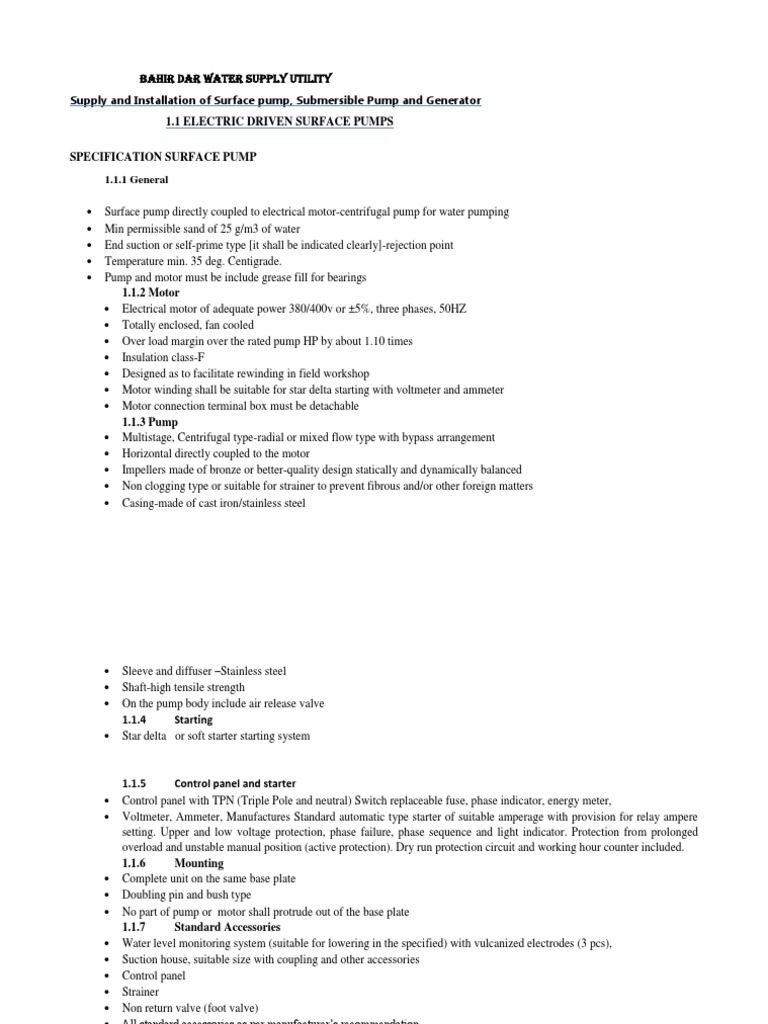

Bahir dar Water supply utility

Supply and Installation of Surface pump, Submersible Pump and Generator

1.1 ELECTRIC DRIVEN SURFACE PUMPS

SPECIFICATION SURFACE PUMP

1.1.1 General

 Surface pump directly coupled to electrical motor-centrifugal pump for water pumping
 Min permissible sand of 25 g/m3 of water
 End suction or self-prime type [it shall be indicated clearly]-rejection point
 Temperature min. 35 deg. Centigrade.
 Pump and motor must be include grease fill for bearings
1.1.2 Motor
 Electrical motor of adequate power 380/400v or ±5%, three phases, 50HZ
 Totally enclosed, fan cooled
 Over load margin over the rated pump HP by about 1.10 times
 Insulation class-F
 Designed as to facilitate rewinding in field workshop
 Motor winding shall be suitable for star delta starting with voltmeter and ammeter
 Motor connection terminal box must be detachable
1.1.3 Pump
 Multistage, Centrifugal type-radial or mixed flow type with bypass arrangement
 Horizontal directly coupled to the motor
 Impellers made of bronze or better-quality design statically and dynamically balanced
 Non clogging type or suitable for strainer to prevent fibrous and/or other foreign matters
 Casing-made of cast iron/stainless steel
 Sleeve and diffuser –Stainless steel
 Shaft-high tensile strength
 On the pump body include air release valve
1.1.4 Starting
 Star delta or soft starter starting system

1.1.5 Control panel and starter

 Control panel with TPN (Triple Pole and neutral) Switch replaceable fuse, phase indicator, energy meter,
 Voltmeter, Ammeter, Manufactures Standard automatic type starter of suitable amperage with provision for relay ampere
setting. Upper and low voltage protection, phase failure, phase sequence and light indicator. Protection from prolonged
overload and unstable manual position (active protection). Dry run protection circuit and working hour counter included.
1.1.6 Mounting
 Complete unit on the same base plate
 Doubling pin and bush type
 No part of pump or motor shall protrude out of the base plate
1.1.7 Standard Accessories
 Water level monitoring system (suitable for lowering in the specified) with vulcanized electrodes (3 pcs),
 Suction house, suitable size with coupling and other accessories
 Control panel
 Strainer
 Non return valve (foot valve)
 All standard accessories as per manufacturer’s recommendation.
 Tool kit
 1.1.8 Technical Information

Two copies to include:

 Pump discharge and total head
 Complete pump performance at duty point and at different heads and discharge
 Pump HP/KW Number of stages total length of pump and motor
 Outlet connection diameter (suction and discharge port)
 Type of impeller
 Impeller pump shaft, motor and pump casing material
 Make and type or starter
 Control panel box full detail
 Other relevant information

Additional requirements

Bidders are strictly required to meet the following requirements:

1. Supplier shall submit authorization letter issued by the manufacturer for the offer items.
2. Supplier must indicate the brand and origin of the items
3. Eligibility documents shall be attached to the technical offer.
4. The suppliers shall submit original technical brochures that can support/ confirm the technical information provided in the
technical proposal.
5. All pages of the documents shall be signed and sealed.
6. Un-priced BOQ shall be attached in the technical document for the offered items.
7. The bidder shall quote for items listed in a lot or sub lots he wishes to offer.
 8. The bidders shall submit clause by clause commentary on technical specification and should clearly indicate its deviations; the
bidder is requested to indicate the pages of the technical documents where the relevant data are shown.
9. Deviation of the offered items in quantity, dimension (e.g. length, diameter).
10. Financial information not included in the technical offers. If any financial information included in the technical offers of the
bidders it leads to rejection.
No Item description Unit Qty Unit Peirce Total
unit

Supply and installation of Arekie spearing pump and with

their accessories
Supply and installation of end suction & top discharge multistage horizontal
surface pump (which install @1800masl) suitable for clear water with a

1 capacity of Q = 40l/s, H = 66m, duty point NPSHR should be < 1m, having
3phase squirrel cage induction type star delta starting motor (rated power P2
<55kw), 380/400v, 50hz,1450rpm, pump efficiency at duty point =>70%
Set 03
including temperature sensor, (Imported) appropriate factory assembled
floor standing star delta starting control panel board and all other
accessories necessary for the complete installation and operation of the pump
including appropriate company manufactured pump seat base plate.
2 A floor standing standard galvanized metal body & lockable door.4 pole 3
phase main switch gear consisting power factor corrector with compatible
capacity for all 6 pumps mention in item 1.1 which should have enough
Set 01
terminals for the connection of cable sizes and including all accessories to make
the cable connections and board installation

Supply of Lomé spearing pump and with their accessories

Supply and installation of end suction & top discharge multistage horizontal
3
surface pump suitable for clear water with a capacity of Q = 40 l/s, H = 72m,
duty point NPSHR should be < 1m, having 3phase squirrel cage induction type
star delta starting motor (rated power P2 <55kw), 380/400v, 50hz,1450rpm,
pump efficiency at duty point >=70% including temperature sensor ,
Set 03
(Imported) appropriate factory assembled floor standing star delta
starting control panel board and all other accessories necessary for the
complete installation and operation of the pump @1800m above sea level. This
includes appropriate company manufactured pump seat base plate.

A floor standing standard galvanized metal body & lockable door.4 pole switch
4
gear consisting of 3 phase power factor corrector with compatible capacity for 3
pumps mentioned above which should have enough terminals for the
Set 01
connection of cable sizes and including all accessories to make the cable
connections and board installation
5 Copper Power cable from control panel board to motor, size 3x 50mm2
Mtr 120
Copper Power cable from changeover switch EEPCO Power meter generator to
6
control panel board, size 4x 120mm2 Mtr 20
Cable tray, cable tie, cable support and cable lags etc. as required with in of the
7
spearing compound Set 02

8 Anchor Nuts and Bolts Pcs

40
Total

15%VAT

Grand Total

Rejection points
1. If the satisfactory original and copy brusher is not attached.

2. If the discharge of the pump is less than or greater than 5% of bahir dar water supply utility requirement.

3. If the construction materials are not as per specified

4. Delivery date will significantly take in consideration

Note that: The control board must be imported type

2.1 Specification submersible pump
2.2.1General

 Submersible pump directly coupled to wet submersible motor for pumping ground water from deep wells.
 Water Temperature Minimum 35oc (degree Centigrade)
 Min permissible sand of 25 g/m3 of water
 Max. external diameter of pump including motor over the cable 138 mm-142 mm for rewind able motors of 6” well casing
diameters
 Max. external diameter of pump including motor over the cable 168 mm-192 mm for rewind able motors of 8” well casing
diameters
 Max. external diameter of pump including motor over the cable 2388 mm-242 mm for rewind able motors of 10” well casing
diameters
 The pump diameter less than the diameter specified on the BOQ are accepted.
 Head/discharge, efficiency/discharge and power/discharge curve shall be drawn and the pump set shall be free from
cavitation’s and vibration over the whole working range

 Pump castings shall be subject to a pressure test of 1.5 times of the maximum pressure obtained with delivery valve closed.
 STARTING system should be soft start or impedance
 Shall be one of the approved brands through BDWSSS

2.2.2 Motor:
Motor shall be three phase, squirrel cage, induction type, continuously rated heaviest specified duty, the two-pole submersible motor
easily rewind able and the winding of the stator are made of special water proof wire of pure electrolytic copper sheathed with special
non hydroscopic thermoplastic material. Motors shall comply in all respects with the relevant parts of BS 4999 and BS 5000 standered
or equivalent, designed to run at high power factor and efficiency. In addition to the requirements it shall be capable of satisfactory
operation with frequency of + 5% above or below the nominal.

 Electrical motor of adequate power 380/400v, three phases, 50HZ

 Over load margin over the rated pump HP by about 1.15 times
  Designed as to facilitate rewinding in field workshop
 Submersible wet type motor NEMA flange with stud
 Protection: IP 68
 Installation: vertical
 Motor lead: Pump-motor length plus 2meter
 Standard voltage; plus 6% of 415 Volt and minus of 10% of 380 volt
 Winding insulation: PE2/PA insulation with maximum ambient temperature of 50 degree centigrade with min. cooling
flow of 0.5m/s
 Three phase induction motor
 Squirrel cage rotor
 RPM ≈ 2900
 Painting approved for drinking water
 Motor shaft, bearing housing and sleeve shall be stainless steel

2.2.3 Pump
Type; Multistage centrifugal radial or semi radial impellers and direct coupled to submersible motor.
Shaft: shaft in stainless steel, protected by replaceable stain fewer steel bushes supported at the ends by bearings protected
against sand infiltration.
Impellers: In stainless steel or bronze key to the shaft by spines or Spilt cons or other means, other pump parts made of
stainless and water lubricated bearings. It should be welded to the standard.
Discharge chamber should be internal threaded for pipe connection or flange
Vertical directly coupled to the motor.
Balance: Statically and dynamically balanced
Non-return valve: built in with treaded port at the out let.
Stainless steel strainer at pump suction
Screwed connection for riser pipes conforming to ISO 65 and threaded to ISO 7 or equivalent.
Motor cable protection on the pump body.
 Painting approved for drinking water

Materials

Component Material
Shaft Stain less steel
Impeller Stain less steel/bronze
Bearing NBR/stain less steel
Diffuser Stainless
Cable guard Stain less steel
Coupling Stain less steel
Sleeve Stain less steel
Bottom and top casing Stain less steel
Spacing washer for stop ring Carbon/graphite
Valve guide Stain less steel
Spring for valve cup Stain less steel
Shaft key/cone/spine or others Stain less steel
Chambers Stain less steel
Upper valve seat Cast iron/Stain less steel
Starting
 Soft start or impedance starting system
 Control panel and starter
 3 phase 4/3 wires, 400V, 50 HZ, soft start/impedance starting depending on pump starting system
 Short-circuit protected with a fuse disconnection switch or circuit breaker a head of the contactor, usually a molded
type case a head of contractor.
 Systems over current protection relay which is adjustable time and load.
 Water level monitoring relay for dry running protection.
 Voltmeter with selection switch for phase voltage
 Ammeter for three phase current measurement and Ammeter selection switch
 Indicator lamps for pump running and shut down. (Green and yellow) red for faulty
 Phase failure relay.
 3 electrodes for water level control and float switch.
 Fuse holders and fuse for auxiliary and main circuit protection.
 Stop push button
 Manual or automatic selector switch
 Start push button.
 Hour counter
 Time relay 0.1 to 30 sec.
 Pressure switch for high and low pressure
 Control circuit voltage can be 380 v or 220v or 24v with transformer
 Interrupting capacity is not less than 35KA rms asymmetrical
 Energy meter

2.2.4 Additional Equipment

 3 vulcanized electrodes for water level monitoring system to prevent pump from running dry.
 1.5 mm2 x 1 control cable for electrodes equal length with pump’s position
 Cable clamp per 3-meter length for total power cable length
 Two pairs of pipe clamp at borehole mouth with bolts and nuts which is equal to pump out let diameter pipe diameter.
 one Pressure gauge [ its rating should equal to total head + 10 bar]
 jointing kit with quick drying epoxy resin one or two, according to a number of the cable core,
  standard tool kit depending on pump size

2.2.4 Technical Information

Two copies to include

 Pump discharge and total head
 Complete pump performance at duty point and at different heads and discharge
 Pump HP/KW
 Pump efficiency at 0.8 power factor
 Number of stages total length of pump and motor
 Outlet connection diameter
 Type of impeller
 Impeller pump shaft, motor and pump casing material
 Make and type or starter
 Control panel box full detail
 Best efficiency point
 Other relevant information
2. 2.8 Rejection point
 1. If the satisfactory original and copy brusher is not attached.
 2. If the discharge of the pump is less than or greater than 5% of BDWSSS.
 3. If the diameter of the pump is greater than specified in this bid
 4. Delivery date
 Note that: The control board must be imported type
BAHIR DAR TOWN WATER SUPPLY PROJECT DESIGN ELECTRO MECHANICAL BOQ
Supply &
Installation Rem
Item Description Unit Qty.
Unit total ark
rate amount
Bahir dar Tikur wuha spring New RM Line supply and installation electro
1 mechanical works
Supply and Installation of submersible sewage pump ( raw water pump)
with Q = 60l/s, H=78m , pump motor power <=75kw, 3phase, 380/400v,
50hz,2900rpm, pump efficiency at duty point>=70%, including 3pcs level
1.1 No. 2
control electrode, soft starting type control panel board and all other
accessories necessary for the complete installation and operation of the
pump @1800m above sea level.
Supply and Installation of submersible sewage pump ( raw water pump)
with Q = 80l/s, H=80m , pump motor power <=75kw, 3phase, 380/400v,
50hz,2900rpm, pump efficiency at duty point>=73%, including 3pcs level
1.2 No. 1
control electrode, soft starting type control panel board and all other
accessories necessary for the complete installation and operation of the
pump@1800m above sea level.
1.3 level control electrode copper wire size 1x1.5sqmm Roll 4
1.4 copper power cable from control panel board to motor size 3x50sqmm Mtr 120
1.5 copper power cable from generator to change over switch size Mtr. 20
BAHIR DAR TOWN WATER SUPPLY PROJECT DESIGN ELECTRO MECHANICAL BOQ
Supply &
Installation Rem
Item Description Unit Qty.
Unit total ark
rate amount
3x120+35sqmm
copper power cable from EEPCO power meter to change over switch size
1.6 Mtr. 20
3x120+50sqmm
copper power cable from changeover switch to control panel board size
1.7 Mtr 30
3x50sqmm
1.8 vulcanizing kit with chemical epoxy sufficient to cable size No 3
Earthing materials, including 50 sqmm earthing copper cable, 50sqmm,
1.9 1.2m length of copper rods, tape bonding straps etc. as necessary for the Set 1
earthing requirements
Cable tray, cable tie, cable supports & cable lags etc. as required within
1.10 LS 1
the compound
1.11 Manual change over switch with cable lag (Rating:600A ) NO 1
A floor standing standard galvanized metal body & lockable door.4 pole 3
phase main switch gear with 600A rated current capacity (internally
1.12 having two main circuit breaker with at least 600A,two 175A,one 250A set 1
,one 50A rated current carrying capacity) with all appropriate controlling
equipment’s including bus bars having enough terminals((main bus bar
BAHIR DAR TOWN WATER SUPPLY PROJECT DESIGN ELECTRO MECHANICAL BOQ
Supply &
Installation Rem
Item Description Unit Qty.
Unit total ark
rate amount
LTMAIN BUS BAR 3x400 V+N (3 x 4.7mm x 90mm) 800A,bus bar to
the LT BUS BAR A 3 X 400 V + N (3 x 4.7mm x 90mm) 200A, One
250A ) for the connection of the above cable sizes and all accessories to
make the cable connections and board installation(for both new &
existing system)
A floor standing standard galvanized metal body & lockable door.4 pole 3
phase power factor corrector with 150KVAr rated capacity which should
1.13 have enough terminals for the connection of cable sizes and including all Set 1
accessories to make the cable connections and board installation for both
new & existing RM line loads.
Total
15% VAT
Grand Total

Supply & Installation of electro-mechanical BOQ

 supply and
Item Description for on spot spring small submersible pump installation
Unit Qty.
total
Unit
1 Supply and installation of spring submersible Pump amount
rate
Supply and installation of Electric submersible Sewage pump ( raw water pump)
with a motor of 380V/400V, 50hz complete with non-return valve, 4" threaded or
1.1 flanged pump outlet(if the pump outlet is< or> 4" the reducer must be heavy duty Set 3
GS) Q= 40l/s, H = 8m, pump power <=7.5kw, pump efficiency at duty point
should be >= 50%.
7.5kw control panel board with Autotransformer, impedance type, soft starter or
1.2 pcs 3
equivalent starting type
1.3 copper wire size 1x1.5sqmm with copper electrodes roll 4
1.4 vulcanizing kit with chemical epoxy Set 3

1.5 Round type copper power cable from control panel board to motor size 4x16 sqmm mtr 120

1.6 copper power cable from generator to MTS 4x25sqmm mtr 20

1.7 copper power cable from EEPCO to MTS 4x25sqmm mtr 20
1.8 copper power cable from MTS to control panel board 4x25sqmm mtr 20
Cable tray, cable tie, cable supports & cable lags etc. as required within the system
1.9 Set 1
and as ordered by the engineer based on the drawing.
1.10 4" heavy duty GS pipe clamp pair 3
Supply & Installation of electro-mechanical BOQ
supply and
Item Description for on spot spring small submersible pump installation
Unit Qty.
total
Unit
1 Supply and installation of spring submersible Pump amount
rate
50A rated current three phase circuit breaker (wall mounted type with all
1.11 pcs 1
accessories)
2.12 Manual transfer switch 100A with cable lag pcs 1
Total
15% VAT
Grand Total
BOQ and performance specifications of submersible
Gudo bahir -4 Borehole supply of electromechanical work
Item Description Unit QTY
Unit price Total Amount
No.

1 Supply and installation of pump with their accessories

Supply and installation Electric submersible pump with a motor of 380V/400V,

50hz impedance type starting, complete with non-return valve, 4" threaded
outlet( if the pump outlet is > or < 4" the reducer must be heavy duty GS),the
total diameter of pump and motor to be <= 242mm(the pump will be installed in Set 1
10 inch casing diameter) including 3pcs level control electrode and (Imported)
appropriate factory assembled control panel board with Q=75l/s, H=80m,
1.1 motor power <= 110kw, pump efficiency at duty point >= 70%,

1.2 Copper Power cable from control panel board to motor, size 3x 70 mm2 M 80

Copper Power cable from changeover switch EEPCO Power meter generator to
M 30
1.3 control panel board, size 3 x 70 mm2

Cable tray, cable tie, cable support and cable lags etc. as required with in of the
Set 1
1.4 borehole compound.

1.5 4" medium class GS pipe clamp Pair 1

1.6 Vulcanizing kit with Chemical (GT-4) Set 1

1.7 Manual Change over switch with cable lag (rating 400A) Pcs 1

Earthling material, including 10sqmm earthling copper cable, 10sqmm 12m

1.8 length copper rods, tap bonding straps etc. as necessary for the earthling Set 1
requirements.

1.9 Anchor Nuts and Bolts No 8

1.10 Water level sensor electrode Pcs 3

1.11 Copper power cable Electrode cable ,size 1x1.5mm2 Roll 3

Total

15% VAT

Grand total
Madilebiya store Borehole supply of electromechanical work

Item Description Unit QTY Unit price Total Amount

No. (USD) (USD)

Supply and Installation of pump and with their accessories

1

Supply and installation Electric submersible pump with a motor of

380V/400V, 50hz impedance type starting, complete with non-return valve,
4" threaded outlet( if the pump outlet is > or < 4" the reducer must be heavy
duty GS),the total diameter of pump and motor to be 242mm(the pump will
Set 1
be installed in 10 inch casing diameter) including 3pcs level control electrode
and (Imported ) appropriate factory assembled control panel board with
Q=60l/s, H= 101m, motor power <= 120kw, pump position= ----m below
1.1 ground(OGL), casing ---m, pump efficiency at duty point >= 70%,

1.2 Copper Power cable from control panel board to motor, size 3 x 95mm2 M 120

Copper Power cable from changeover switch EEPCO Power meter generator
M 40
1.3 to control panel board, size 3x 95mm2

Cable tray, cable tie, cable support and cable lags etc. as required with in of
set 1
1.4 the borehole compound.

1.5 4" medium class GS pipe clamp pair 1

1.6 Vulcanizing kit with Chemical (GT-4) Set 1

1.7 Manual Change over switch with cable lag (rating 400A) pcs 1

Earthling material, including 10sqmm earthling copper cable, 10sqmm 12m

1.8 length copper rods, tap bonding straps etc. as necessary for the earthling set 1
requirements.

1.9 Anchor Nuts and Bolts No 8

1.10 Water level sensor electrode Pcs 3

1.11 Copper power cable Electrode cable ,size 1x1.5mm2 Roll 3

Sub Total

Grand total
Cherchera 6 Borehole supply and installation of electromechanical work
Item Description Unit QTY
Unit price Total Amount
No.

Supply and Installation of pump and with their accessories

1

Supply and installation Electric submersible pump with a motor of

380V/400V, 50hz impedance type starting, complete with non-return valve,
4" threaded outlet( if the pump outlet is > or < 4" the reducer must be heavy
duty GS),the total diameter of pump and motor to be 192 mm(the pump will
Set 1
be installed in 8 inch casing diameter) including 3pcs level control electrode
and (Imported) appropriate factory assembled control panel board with
Q= 75l/s, H= 81m, motor power <= 120 kw pump efficiency at duty point
1.1 >= 70%,

1.2 Copper Power cable from control panel board to motor, size 3x 95mm2 m 120

Copper Power cable from changeover switch EEPCO Power meter generator
m 40
1.3 to control panel board, size 3x 95mm2

Cable tray, cable tie, cable support and cable lags etc. as required with in of
set 1
1.4 the borehole compound.

1.5 4" medium class GS pipe clamp pair 1

1.6 Vulcanizing kit with Chemical (GT-4) Set 1

1.7 Manual Change over switch with cable lag (rating 400A) pcs 1

Earthling material, including 10sqmm earthling copper cable, 10sqmm 12m

1.8 length copper rods, tap bonding straps etc. as necessary for the earthling set 1
requirements.

1.9 Anchor Nuts and Bolts No 8

1.10 Water level sensor electrode Pcs 3

1.11 Copper flexible wire (electrode cable) size 1x1.5mm2 Roll 3

Sub Total

Grand total

The supplier must supply one of the listed brands bellow

Wilo surface , swage and submersible pump
Rovaty surface, swage and submersible pump
KSB surface , swage and submersible pump
Grundfos surface, swage and submersible pump
Caprari surface, swage and submersible pump
Etch with franklin motor submersible pump
 Additional requirements

Bidders are strictly required to meet the following requirements:

11. Supplier shall submit authorization letter issued by the manufacturer for the offer items.
12. Supplier must indicate the brand and origin of the items
13. Eligibility documents shall be attached to the technical offer.
14. The suppliers shall submit original technical brochures that can support/ confirm the technical information provided in the
technical proposal.
15. All pages of the documents shall be signed and sealed.
16. Un-priced BOQ shall be attached in the technical document for the offered items.
17. The bidder shall quote for items listed in a lot sub lots he wish to offer.
18. Deviation of the offered items in quantity, dimension(e.g. length, diameter)
19. Financial information not included in the technical offers. If any financial information included in the technical offers of the
bidders it leads to rejection.
20. All additional components and accessories should be quoted separately
 1.3. SPECIFICATIONS OF GENERATOR
1.3.1 Generating set specification
All equipment shall be supplied and delivered, designed, construction assembled and equipped in accordance with the operation
conditions specified.
General
 The desire generating sets shall consist of diesel engines and alternators mounted together on common base plates (skid mounted
with anti-vibration). It shall be rated for continues duty for operation under the climate conditions and altitude as specified and
shall be rated at speed of 1500 rpm.
 Temperature ………………...30 oC
 Altitude …………………….1800mm
 Humidity …………………arid desert
 Rating standard: prime and standby power rating conforms to ISO8528-1
 The base plate is of heavy-duty steel constructions with lifting points and daily fuel tank of welded steel plate.
 Continuous rating output at power factor 0.8 lagging and continuous duty cycle
 Insulation resistance between output terminal and earth should be greater than 5M ohms
 Control and main circuit should be protected from overvoltage and short circuit
 Radial/axial ventilated and provided with eye-bolt for lifting
Engine [ shall be Perkins, Cummins, deutz, Iveco, Isuzu or approved equivalent product]
Engine shall be industrial and designed for continues and standby power rating
Type: Diesel, vertical and suitable power
Power: continuous power 100% available at flywheel power output no time limitation plus 10% extra for governing
Engine overload: 10% over for 1hr in 12hrs or more
 Cycle: 4 strokes, vertical inline cylinder arrangement
Combustion systems: direct injection
Cooling systems: water cooling with mechanical radiator and pusher air fan, complete with protection guard and designed for
cooling the engine up to 50-degree centigrade ambient Temperature
Starting Systems:
 DC motor, solenoid and single wiring systems.
 AC generator and charging regulator.
 It must have heavy duty, dry charged and 12V, maintenance free battery which will be enough to start the engine with charger.
Lubrication system: Forced feed pump lubrication with constant pressure oil pump
Injection Systems: Single injection pump
Aspiration: Turbo charged/Naturally aspirated
Governor: Electronic/mechanical
Exhaust: high efficiency silencer with flexible exhaust muffler (9db)
Fuel System: High pressure fuel feed pump and fuel tank of adequate capacity for 24hrs of operation. The main storage fuel tank
shall be fitted with a level indicator and filling vent and drain connections.
Heavy duty dry type air cleaner, fuel and oil filter
Alternator: -[shall be Stamford, Linz, maccelte, leroysomer or approved equivalent]
The power ratings are in accordance with the provisions of standard compatible (with BS2613, 499 and 500,DIN or ISO)
The generator or alternator shall be the manufactures standard production model and shall be adequate to provide service under
normal operating conditions.
The alternator shall be effectively cooled by upon forced against ingress of small insects and rodents.
- 3 phase 4 wire, 50hz, 0.8 pf, 1500rpm, 400 5% volt synchronous generator,
 - drip proof, single or double bearing type with normal tropical insulation
- Single bearing of double bearing type, with normal tropical.
- Insulation Class H
- Self-regulated, AVR protected and screen protected, self-exited.
- Permissible over speed should not be greater than 1.25 times rated speed
- The voltage shall be settled by means of internal trimmers inside the AVR
- 10% overload for 1hr operation
- 1.5% rated voltage regulation under full load condition
- Phase ammeter and voltmeter with selection switch
- Pole circuit breaker
Control panel.
To include, but not limited to:-
- Microprocessor based engine control system with USB port for remote communication
- Engine lubrication oil pressure gauge and engine oil indicator light
- True RMS measuring
- AC voltmeter and AC ammeter for each phase or selector switches for both voltage and current meter.
- Oil pressure relief valve, Frequency meter
- DC Circuit protection, Main switch
- Automatic voltage regulator (AVR),Source lamp
- Key for start and stop, emergency stop button
- Auxiliary terminal board and protection fuse
- Automatic battery charger and charge indicator guage
 - Analogue type fuel indicator, temperature gauge, RPM meter and pressure guage
- Low oil level protection
- High temperature protection, Metal casing IP55
- Hour run meter
- AVR of the type which will maintain its adjustment for long period without attention
- Tripped indication,128*64 graphic LCD
- LED status and fault indication are: low oil pressure, high engine Temp, over speed, battery charge fail, common alarm, fail to
start
Additional Equipment’s
- Tool kit, Maintenance manual and parts list catalogue
Technical information
Certified engine and alternator data showing at least, net power frequent performance curves for engine and alternator, at specified site
altitude above sea level shall be submitted with the bid.
Copies to include
- Full details of engine rating (Continues, intermittent and maximum) fuel consumption.
- Full details of alternator wiring diagram, control box and instrumentation.
- Detail of the Generator set description
- Brand and origin of the Generator
- Mounting factors.
- De-rating factor
Spare parts
Manufacturers, service and maintenance manual
- Field kits of spare parts to be included
- Two sets of fuel, oil and air filters
- Fuses and bulbs , Circuit breaker
- Belts, AVR
- Positive and negative rectifier plate
The Required Tools to be supplied but not limited
 Adjustable Wrench = 1 ,.. Flitter Wrench = 1
 Knife = 1 , Monkey wrench = 1 and Plier = 1 , Side Cutter = 1
 Open wrench 6x7, 8x9, 10x11,12x13,14x15,16x17, 18x19,20x22,24x27 and 30x32=10
 Alen Key 17,12,10,8,7,6,5,4,3,2 and 1 = 11
 Hummer Small size = 1 and Flat Screw Driver different size = 5
 Philips Screw driver different size
No Item description Unit QTY Unit price Total
amount

Supply and installation of diesel generator set, continuous

rating, as per the technical specification, engine & alternator
1 pre-installed on a common rigid frame, switchgear panel, day
tank incorporated into the frame, exhaust piping system,
including manufacturer working, service &maintenance
manual, spare part catalogue and all accessories required for
Set 01
Supply prime power =400KVA, 3 phase, 400V, 50hz, 1500
RPM
 Remark :-(accessories are pairs of
 (fuel filter, oil filter and air cleaner ),
 operation and maintenance manual ,
 Spare part catalogue are very necessary.
Supply and installation of diesel generator set, continuous
rating, as per the technical specification, engine & alternator
pre-installed on a common rigid frame, switchgear panel, day
tank incorporated into the frame, exhaust piping system,
including manufacturer working, service &maintenance
manual, spare part catalogue and all accessories required for
Set 01
Supply prime power =250KVA, 3 phase, 400V, 50hz, 1500
RPM
 Remark :-(accessories are pairs of
 (fuel filter, oil filter and air cleaner ),
 operation and maintenance manual ,
Spare part catalogue are very necessary.
 The supplier must supply one of the listed brands bellow

CAT generator
Volvo generator
Joinder generator
Perkins generator
Iveco generator
Rejection Points
 If the prime power of the generator is greater than plus 10% of the required capacity.
 If the prime power of the generator is less than the required capacity
 If satisfactory brochure is not attached
 If the fuel consumption is greater than specified
 If the genset assembled parts (engine and alternator) are not original. Parts shall be from the original manufacturer.
 If the Temperature and altitude de-rate factors aren’t clearly indicated
 Delivery date

Additional requirements

Bidders are strictly required to meet the following requirements:

21. Supplier shall submit authorization letter issued by the manufacturer for the offer items.
22. Supplier must indicate the brand and origin of the items
23. Eligibility documents shall be attached to the technical offer.
24. The suppliers shall submit original technical brochures that can support/ confirm the technical information provided in the
technical proposal.
25. All pages of the documents shall be signed and sealed.
26. Un-priced BOQ shall be attached in the technical document for the offered items.
 27. The bidder shall quote for items listed in a lot sub lots he wishes to offer.
28. The bidders shall submit clause by clause commentary on technical specification and should clearly indicate its deviations; the
bidder is requested to indicate the pages of the technical documents where the relevant data are shown.
29. Deviation of the offered items in quantity, dimension (e.g. length, diameter)
30. Financial information not included in the technical offers. If any financial information included in the technical offers of the
bidders it leads to rejection.

Note that: The control board should be imported type and delivery time will remarkably take in consideration
