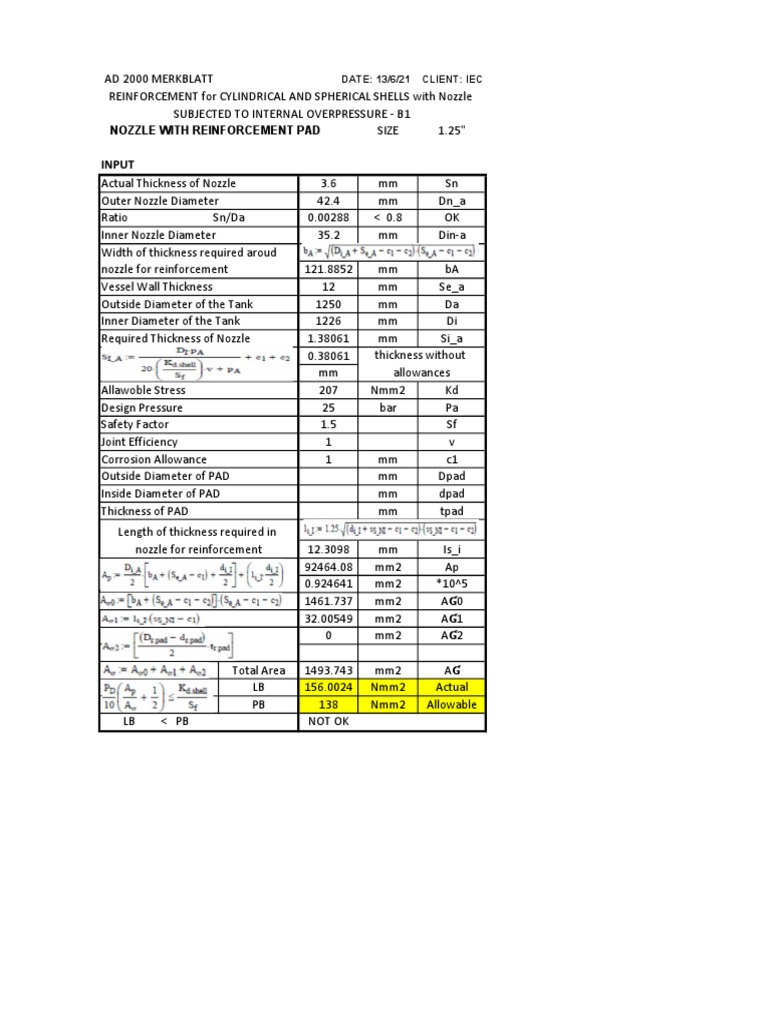

AD 2000 MERKBLATT DATE: 13/6/21 CLIENT: IEC

REINFORCEMENT for CYLINDRICAL AND SPHERICAL SHELLS with Nozzle


SUBJECTED TO INTERNAL OVERPRESSURE - B1
NOZZLE WITH REINFORCEMENT PAD SIZE 1.25"

INPUT
Actual Thickness of Nozzle 3.6 mm Sn
Outer Nozzle Diameter 42.4 mm Dn_a
Ratio Sn/Da 0.00288 < 0.8 OK
Inner Nozzle Diameter 35.2 mm Din-a
Width of thickness required aroud
nozzle for reinforcement 121.8852 mm bA
Vessel Wall Thickness 12 mm Se_a
Outside Diameter of the Tank 1250 mm Da
Inner Diameter of the Tank 1226 mm Di
Required Thickness of Nozzle 1.38061 mm Si_a
0.38061 thickness without
mm allowances
Allawoble Stress 207 Nmm2 Kd
Design Pressure 25 bar Pa
Safety Factor 1.5 Sf
Joint Efficiency 1 v
Corrosion Allowance 1 mm c1
Outside Diameter of PAD mm Dpad
Inside Diameter of PAD mm dpad
Thickness of PAD mm tpad
Length of thickness required in
nozzle for reinforcement 12.3098 mm Is_i
92464.08 mm2 Ap
0.924641 mm2 *10^5
1461.737 mm2 AƓ0
32.00549 mm2 AƓ1
0 mm2 AƓ2

Total Area 1493.743 mm2 AƓ


LB 156.0024 Nmm2 Actual
PB 138 Nmm2 Allowable
LB < PB NOT OK
