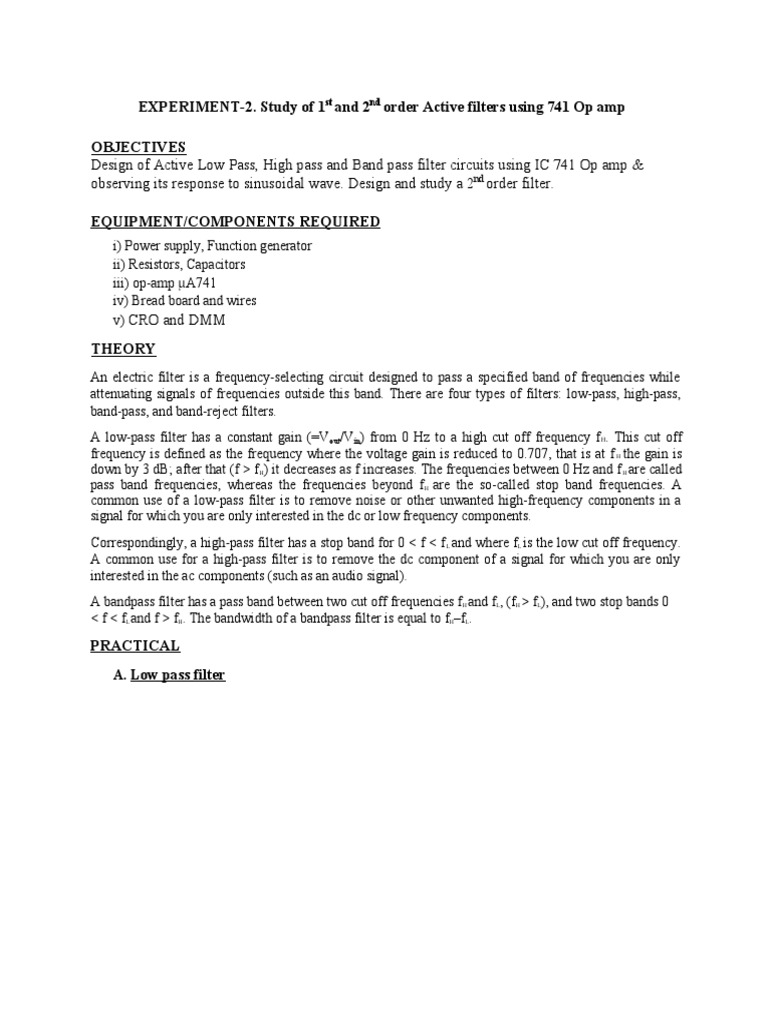

Study of 1st and 2nd order Active filters using 741 Op amp
OBJECTIVES
Design of Active Low Pass, High pass and Band pass filter circuits using IC 741 Op amp &
observing its response to sinusoidal wave. Design and study a 2nd order filter.
EQUIPMENT/COMPONENTS REQUIRED
i) Power supply, Function generator
ii) Resistors, Capacitors
iii) op-amp µA741
iv) Bread board and wires
v) CRO and DMM
THEORY
An electric filter is a frequency-selecting circuit designed to pass a specified band of frequencies while
attenuating signals of frequencies outside this band. There are four types of filters: low-pass, high-pass,
band-pass, and band-reject filters.
A low-pass filter has a constant gain (=V out/Vin) from 0 Hz to a high cut off frequency f H. This cut off
frequency is defined as the frequency where the voltage gain is reduced to 0.707, that is at f H the gain is
down by 3 dB; after that (f > f H) it decreases as f increases. The frequencies between 0 Hz and f H are called
pass band frequencies, whereas the frequencies beyond f H are the so-called stop band frequencies. A
common use of a low-pass filter is to remove noise or other unwanted high-frequency components in a
signal for which you are only interested in the dc or low frequency components.
Correspondingly, a high-pass filter has a stop band for 0 < f < f L and where fL is the low cut off frequency.
A common use for a high-pass filter is to remove the dc component of a signal for which you are only
interested in the ac components (such as an audio signal).
A bandpass filter has a pass band between two cut off frequencies f H and fL, (fH > fL), and two stop bands 0
< f < fL and f > fH. The bandwidth of a bandpass filter is equal to fH–fL.
PRACTICAL
A. Low pass filter
Fig.1.a. Low pass filter
200 1 1.99 6
1k 1 1.92 5.419
2k 1 1.76 4.75
5k 1 1.22 2.95
Fig 1.a shows a low pass filter. Note that the op-amp is used in its non-inverting mode here. For a
better measurement, make Vin less than 2V peak-to-peak. Use R = 3.9kΩ. Measure the frequency response
and plot the resulting gain (Vout/Vin) as a function of the operating frequency
B. High pass filter
The high-pass filter is formed by interchanging the resistor and capacitor in the low-pass filter circuit in
Fig. 1.a. Measure the frequency response, i.e. measure V out, and convert the data into dB as a function of
the operating frequency
1k 1 473.82m -9.72
2k 1 870m -4.25
5k 1 1.54 3.35
For the first-order low-pass and high-pass filters, the gain rolls off at
the rate of about 20dB/decade in the stop band. In critical applications
(such as digitization, which needs the flattest response possible in the pass
band and most sharply-defined stop band) a higher-order filter is a
necessity. The following diagram shows a second-order low-pass filter
(it’s second order because it contains two low-pass filters). Put it together
and measure its gain versus frequency. Use R2=R3≈3.9 kΩ
Fig. 1.b: 2nd order low pass filter
1k 1 1.935 5.53
2k 1 1.81 4.9
5k 1 1.44 2.55
1k 1 64.279m -19.7
2k 1 122.797m -13.9
5k 1 255.66m -6.09
