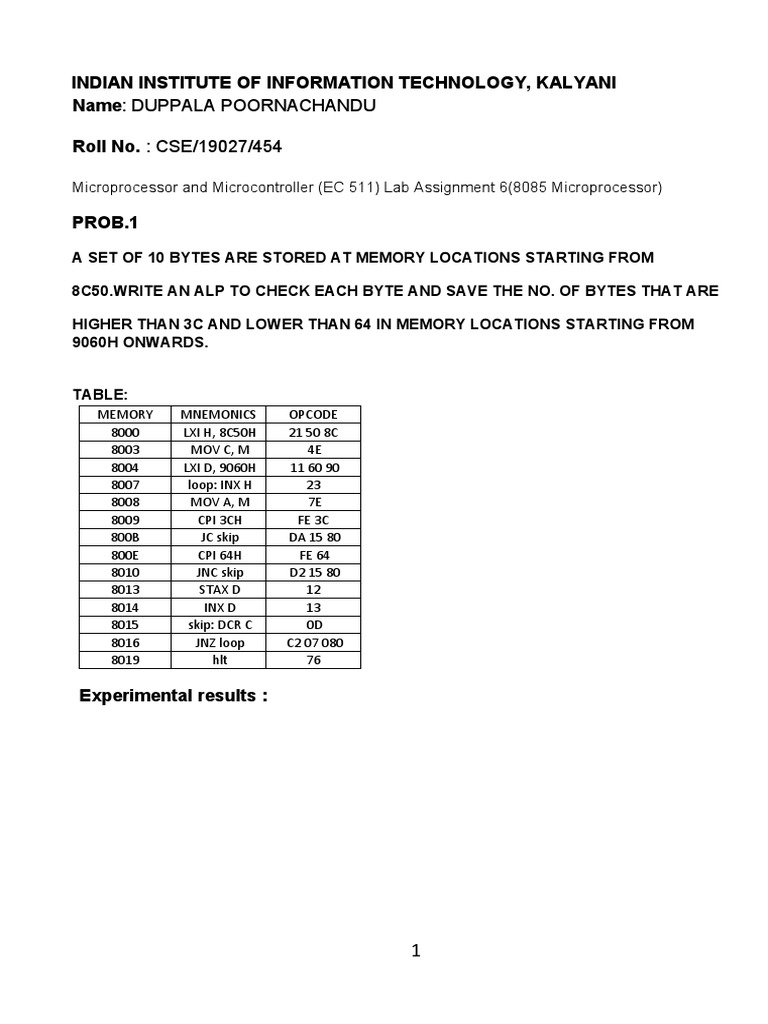

    INDIAN INSTITUTE OF INFORMATION TECHNOLOGY, KALYANI

    Name: DUPPALA POORNACHANDU

    Roll No. : CSE/19027/454

    Microprocessor and Microcontroller (EC 511) Lab Assignment 6(8085 Microprocessor)

    PROB.1

    A SET OF 10 BYTES ARE STORED AT MEMORY LOCATIONS STARTING FROM

    8C50.WRITE AN ALP TO CHECK EACH BYTE AND SAVE THE NO. OF BYTES THAT ARE

    HIGHER THAN 3C AND LOWER THAN 64 IN MEMORY LOCATIONS STARTING FROM


    9060H ONWARDS.

    TABLE:
    MEMORY MNEMONICS OPCODE
    8000 LXI H, 8C50H 21 50 8C
    8003 MOV C, M 4E
    8004 LXI D, 9060H 11 60 90
    8007 loop: INX H 23
    8008 MOV A, M 7E
    8009 CPI 3CH FE 3C
    800B JC skip DA 15 80
    800E CPI 64H FE 64
    8010 JNC skip D2 15 80
    8013 STAX D 12
    8014 INX D 13
    8015 skip: DCR C 0D
    8016 JNZ loop C2 07 080
    8019 hlt 76

    Experimental results :

    1
    2
    PROB.2
    ADDITION OF TWO NUMBERS GIVEN THROUGH PORTS. RESULT WILL ALSO BE

    STORED IN SOME PORT ADDRESS.

    TABLE:

    MEMORY MNEMONICS OPCODE


    8000 IN 02H DB 02
    8002 MOV B,A 47
    8003 IN 01H DB 01
    8005 ADD B 80
    8006 OUT 03H D3 03
    8008 hlt 76

    Experimental results :

    3
    4
    PROB.3
    SUBTRACTION OF TWO NUMBERS GIVEN THROUGH PORTS. RESULT WILL ALSO BE
    STORED IN SOME PORT ADDRESS.
    TABLE

    MEMORY MNEMONICS OPCODE


    8000 IN 02H DB 02
    8002 MOV B,A 47
    8003 IN 01H DB 01
    8005 SUB B 90
    8006 OUT 03H D3 03
    8008 hlt 76

    Experimental Results :

    5
    6
    PROB.4

    MULTIPLICATION OF TWO NUMBERS GIVEN THROUGH PORTS. RESULT WILL

    ALSO BE STORED IN SOME PORT ADDRESS.

    TABLE
    MEMORY MNEMONICS OPCODE
    8000 IN 10H DB 10
    8002 MOV B,A 47
    8003 IN 11H DB 11
    8005 MOV C,A 4F
    8006 SUB A 97
    8007 LOOP: ADD B 80
    JNC
    8008 NOCARRY D2 0C 080
    800B INR D 14
    NOCARRY: DCR
    800C C 0D
    800D JNZ LOOP C2 07 080
    8010 OUT 12H D3 12
    8012 MOV A,D 7A
    8013 OUT 13H D3 13
    8015 hlt 76

    Experimental Results

    7
    8
    PROB. 5
    DIVISION OF TWO NUMBERS GIVEN THROUGH PORTS. RESULT WILL ALSO BE
    STORED IN SOME PORT ADDRESS.
    TABLE:

    MEMORY MNEMONICS OPCODE


    8000 IN 02H DB 02
    8002 MOV B,A 47
    8003 IN 01H DB 01
    8005 LOOP: CMP B B8
    8006 JM EXIT FA 0E 080
    8009 SUB B 90
    800A INR C 0C
    800B JNZ LOOP C2 05 080
    800E EXIT: OUT 04H D3 04
    8010 MOV A,C 79
    8011 OUT 03H D3 03
    8013 hlt 76

    EXPERIMENTAL RESULTS:

    9
    10
