Course Name: (50769) Mach 212: Machining Tools

Course Schedule: TTH (5:30pm-7:30pm) TUESDAY (8:30am-9:30am)

Student's Name: GEOFFREY L. CASAÑA

Instructor's Name: ENGR. ORBERLY D. AGUSTINO

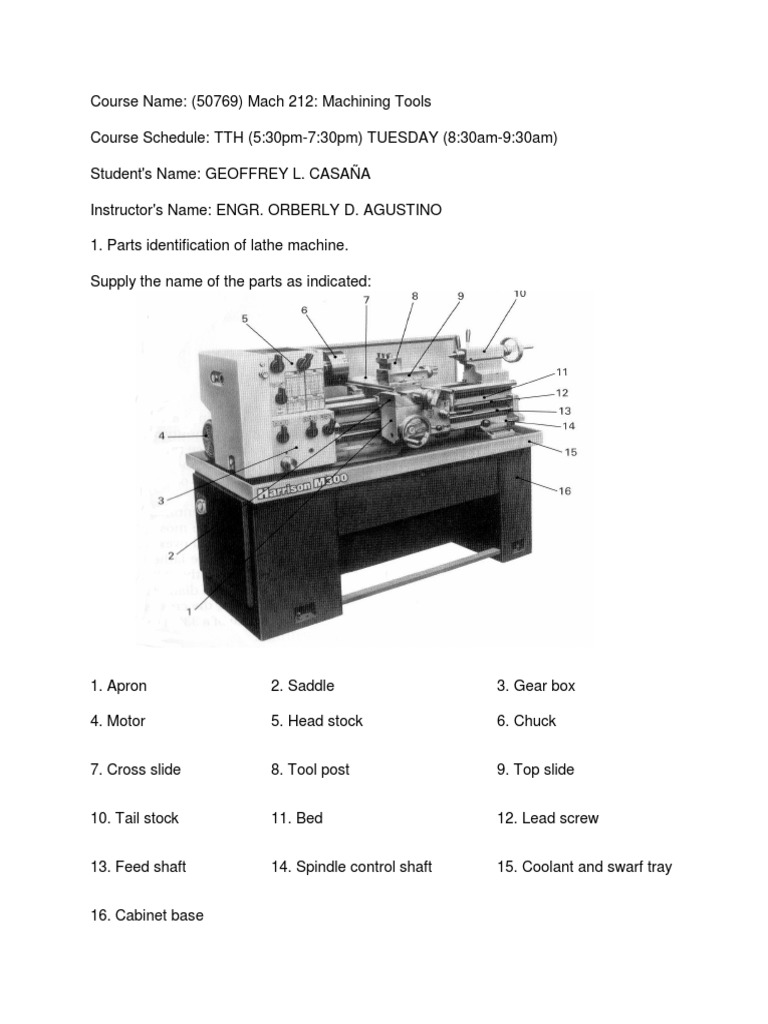

1. Parts identification of lathe machine.

Supply the name of the parts as indicated:

1. Apron 2. Saddle 3. Gear box

4. Motor 5. Head stock 6. Chuck

7. Cross slide 8. Tool post 9. Top slide

10. Tail stock 11. Bed 12. Lead screw

13. Feed shaft 14. Spindle control shaft 15. Coolant and swarf tray

16. Cabinet base

Course Name: (50769) Mach 212: Machining Tools

Course Schedule: TTH (5:30pm-7:30pm) TUESDAY (8:30am-9:30am)

Student's Name: GEOFFREY L. CASAÑA

Instructor's Name: ENGR. ORBERLY D. AGUSTINO

II. Controls identification of lathe machine.

Supply the controls as indicated.

1. Coolant and pump starter 12. Top-slide traverse handle

2. Mains isolator 13. Quill lock
3. Feed selector dial 14. Tailstock clamp
4. Feed selector handle 15. Quill-traverse hand wheel
5. Feed selector handle 16. Cross-traverse handle
6. Feed selector handle 17. Thread cutting engagement
7. Feed direction selector 18. Spindle control lever
8. Emergency stop 19. Feed axis selector
9. Supply on lamp 20. Feed-engage lever
10. Speed selector 21. Longitudinal traverse hand wheel
11. Speed selector 22. Emergency-stop and brake pedal
Course Name: (50769) Mach 212: Machining Tools

Course Schedule: TTH (5:30pm-7:30pm) TUESDAY (8:30am-9:30am)

Student's Name: GEOFFREY L. CASAÑA

Instructor's Name: ENGR. ORBERLY D. AGUSTINO

2. Lists the procedure for starting and stopping the lathe machine.

Starting the center lathe machine:

Before starting the machine, ensure that the feed engage lever (20) and the
thread cutting lever (17) are in disengage position. Select the feed engage required e.i.
longitudinal travel of carriage or cross slide by means of an apron pull push knob (19),
select the direction of feed by means of a selector handle (7).Select the feed rate
required by referring to the charts on the headstock and selecting the appropriate
position of selector dial (3) and handles (4), (5), and (6).

Select the spindle speed by means of selector handles (10) and (11). Switch on the
main electrical supply at the mains isolator (2). Start the spindle by lifting the spindle-
control lever (8) for reverse or lowering it for forward. The mid position is “stop”. Start
and stop the feed motion as require by means of the feed- engage lever (20). Do not
attempt to change speeds and feeds when the spindle is running always stop the
machine first.

Stopping the center lathe machine:

The machine can be stopped by returning the spindle- control lever (18) to its
central stop position. Alternatively, press the emergency—stop push button (8) or
depress the full-length foot brake pedal (22).
