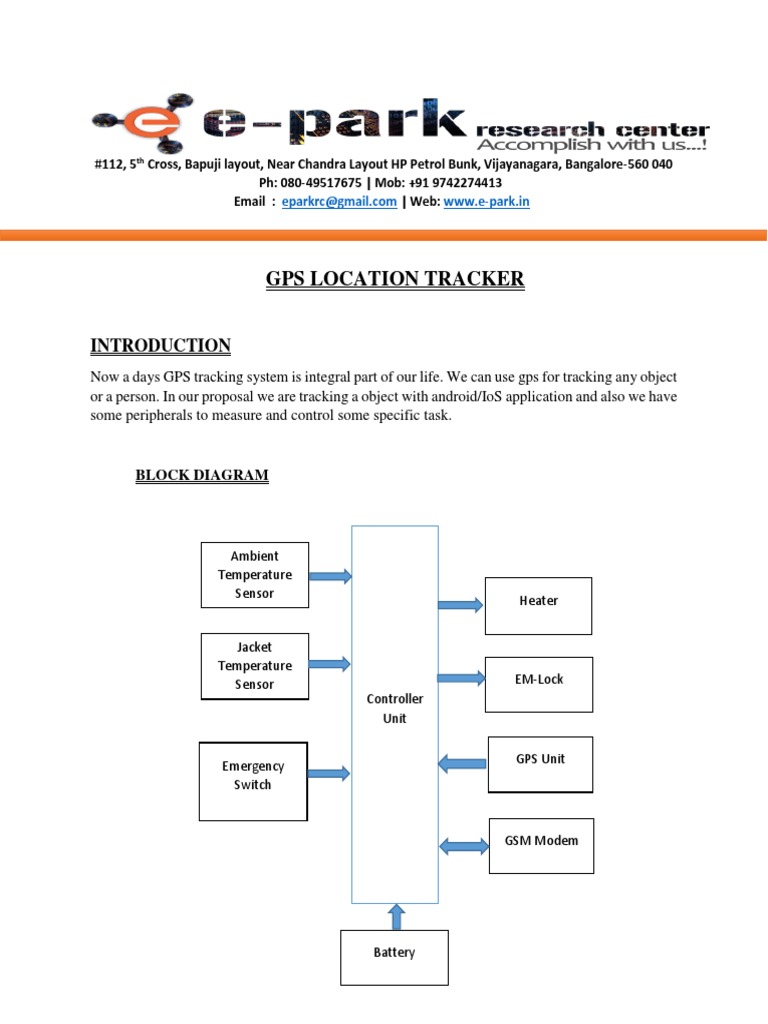

GPS LOCATION TRACKER

INTRODUCTION
Now a days GPS tracking system is integral part of our life. We can use gps for tracking any object
or a person. In our proposal we are tracking a object with android/IoS application and also we have
some peripherals to measure and control some specific task.

BLOCK DIAGRAM

Ambient
Temperature
Sensor Heater

Jacket
Temperature
Sensor EM-Lock
Controller
Unit

GPS Unit
Emergency
Switch

GSM Modem

Battery
PROJECT FLOW (GPS TRACKER SIDE)
Power on the
Device

Try to Connecting
with Application
through internet

If connection failed Send SMS to

stored mobile
number using GSM

If connection establish Waiting for

command from
application

If command is “Send location”

System will send
location info to
APP one time

If command is “Live location”

System will start
send live location
to application

If command is “Live location”

System will start

send live location
to application
 Send SMS alert to
If “Emergency switch
predefined
pressed”
number

Send alert to
Application

If command is “Heater on”

Heater will be on

Continuously
monitor ambient
and jacket
temperature
System will send both
ambient and jacket
temperature
Send measured
temperatures to
application

Heater will be on/off with

respect to temperature
Control the
temperature with
respect to preset
value

If command is “Lock open”

LOCK will be open

If command is “Lock close”

LOCK will be close Process Continues
APPLICATION MODULE (ANDROID/IOS)
LOGIN PAGE

DEVICE TRACKER

USER NAME

PASSWORD

LOGIN

SIGN UP

If user is already registered then validate the username and password and move on to home page.
If user wants to sign up/Register. Click on sign up button, it will redirect to signup page.

NAME: __________

Employee ID: _____

Device ID: ________

Language:”drop
down menu to
select language”

USER NAME: ______

PASSWORD: ______

Confirm
password_________
Submit

Once the registration is done again it will go to login page, user can login to application
HOME PAGE
Once the user get login, Home page will appear.

Jacket Ambient
temp temp

Device Connect
Battery

Lock Live
open/close tracking
se

Lock Emergency
open/close
se
Logout
Heater
on/off

 JACKET TEMPERATURE FIELD: This field will get information from the
embedded device. Received data will be display in this field.

 AMBIENT TEMPERATURE FIELD: This field will get information from the
embedded device. Received data will be display in this field.

 DEVICE BATTERY FIELD: This field will get information from the embedded
device. Here we display battery life.

 CONNECT BUTTON: if user wants to communicate with the device then they will
press switch, command ”CONNECT” will pass to the device. Button color must change
to indicate whether device is connect or not. If device failed to connect then it should
display warning message.
 LOCK OPEN/CLOSE BUTTON: If user press this switch application will send
“LOCK OPEN/LOCK CLOSE” command to the device. Button color must change to
indicate whether lock is open or close.
  HEATER ON/OFF BUTTON: If user press this switch application will send
“HEATER ON/HEATER OFF” command to the device. Button color must change to
indicate whether heater is on or off.

 LIVE TRACKING BUTTON: if user press live tracking button, application will
send command “LIVE TRACK” to the device and device will continuously send
longitude and latitude to application. Application will track and show the device based on
incoming data.

 EMERGENCY BUTTON: if user press this switch application will send command
“EMERGENCY”. When this button press all peripherals stop their operation. Device
will send SMS to the predefined number.

 LOGOUT BUTTON: If user press this switch, logout from operation and device
connection must disconnect and it must go back to login page.

Temperature ranges settings and controls.

Ambient Temperature Heater Cutoff /Jacket Temperature

0 to -5°C 25°C to 35°C

-5 to -10°C 35°C to 45°C

-10°C to - 30°C 45°C to 55°C.

Temperature will be control in Auto mode as well as Manual mode in application

 QUOTATION
Sl.No Particular Amount
1 Firmware Development charges 70000/-
2 Hardware modules, Hardware Design and 50000/-
development charges
3 PCB Designing, testing and fabrication charges 15000/-
4 Testing assembling and Prototyping charges 10000/-
5 Android and IoS app development 70000/-

Grand Total 2,15,000/-

Amount In Words: Two Lakh and Fifteen thousand Rupees Only

-:Payment terms and Conditions:-

 1st payment 35% has to be done at beginning of the project.
 2nd payment 35% has to be done once hardware demo is done.
 3rd payment 30% has to be while collecting source code hardware and
project. That is final sign off of the project.
 Extra charges will be applicable if any major changes in the project.
 We are liable to provide 3 working modules with all necessary accessories
with mentioned quality (Without any plastic cabinet part).
 We are liable to maintain confidentiality and technical data will not share to
any third party.
 Tenure of the project is 60 days from day of 1st payment. Project will be
delayed if the payment gets delay.
