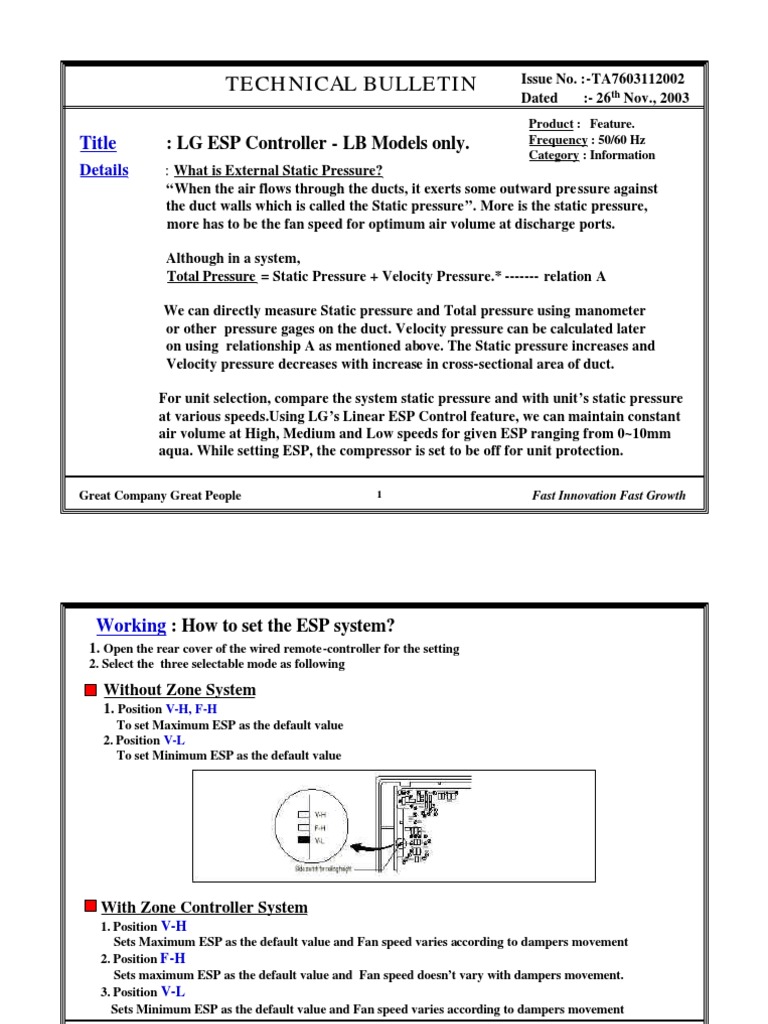

TECHNICAL BULLETIN Issue No.

:-TA7603112002
Dated :- 26th Nov., 2003
Product : Feature.
Title : LG ESP Controller - LB Models only. Frequency : 50/60 Hz
Category : Information
Details : What is External Static Pressure?
“When the air flows through the ducts, it exerts some outward pressure against
the duct walls which is called the Static pressure”. More is the static pressure,
more has to be the fan speed for optimum air volume at discharge ports.

Although in a system,
Total Pressure = Static Pressure + Velocity Pressure.* ------- relation A

We can directly measure Static pressure and Total pressure using manometer
or other pressure gages on the duct. Velocity pressure can be calculated later
on using relationship A as mentioned above. The Static pressure increases and
Velocity pressure decreases with increase in cross-sectional area of duct.

For unit selection, compare the system static pressure and with unit’s static pressure
at various speeds.Using LG’s Linear ESP Control feature, we can maintain constant
air volume at High, Medium and Low speeds for given ESP ranging from 0~10mm
aqua. While setting ESP, the compressor is set to be off for unit protection.

Great Company Great People 1 Fast Innovation Fast Growth

 Working : How to set the ESP system?
1. Open the rear cover of the wired remote-controller for the setting
2. Select the three selectable mode as following

Without Zone System

1. Position V-H, F-H
To set Maximum ESP as the default value
2. Position V-L
To set Minimum ESP as the default value

With Zone Controller System

1. Position V-H
Sets Maximum ESP as the default value and Fan speed varies according to dampers movement
2. Position F-H
Sets maximum ESP as the default value and Fan speed doesn’t vary with dampers movement.
3. Position V-L
Sets Minimum ESP as the default value and Fan speed varies according to dampers movement

Great Company Great People 2 Fast Innovation Fast Growth

 How to set the ESP value from Remote-Controller?
After completing the Duct work, calculate the ESP of the system. Let us suppose that it is 8mmAqua
As a reference, lets assume that ESP for unit LB-H1860HL is 8mmAq. To set the High/Medium
& Low speeds of unit corresponding to 8mmAq, check the matching values as given in the Table A.
This table shows the relation between Air Flow at three speed modes & desired ESP.

In this case, for 8mmAq,the following are the matches:-

Step CMM(CFM) Setting Value
HI 16.5(583) 180
MEDIUM 14.5(512) 215
LOW 13.0(459) 240
Now lets enter this data into system through Wired Remote Controller. Follow the following steps.

A. Push the “On/Off button. The unit will start.

B. Push the “Timer’and “Wind” button simultaneously for more than 3 seconds.

Great Company Great People 3 Fast Innovation Fast Growth

 C. Push the “Up” or “Down” buttons for ESP setting. The numbers would be displayed on the screen. Like
at “Hi” speed, the corresponding number is 180. So keep pressing “Up” button till you get 180 on the
screen.

D. Now change to “Medium” mode and set the number 215. Then to “Low’mode and set the number 240 as
explained in step C.

E. At the end push the “Timer” and “Speed” button again for 3 seconds and the data is stored in the system
So in this way, we can set ESP feature. This feature is available only for Ceiling Concealed Duct models

Great Company Great People 4 Fast Innovation Fast Growth

 Table A - 60Hz Models
Static Pressure (mmAq) 0 2 4 6 8
Model Name Step CMM Setting Value
LB-C182HSA0 Hi 16.5 185 175 165 155 140
LB-H182HSA0 Med 14.5 200 190 180 175 160
Lo 13 215 200 195 185 175
LB-C242HSA0 Hi 20 120 115 115 100 1
LB-H242HSA0 Med 18 145 140 140 130 120
Lo 16 165 160 155 155 145
LB-C302GSA0 Hi 28 95 95 90 90 85
LB-H302GSA0 Med 24 120 120 120 120 115
Lo 20 145 140 140 140 140
LB-C362GSA0 Hi 32 85 80 70 50 1
LB-H362GSA0 Med 28 110 110 108 108 105
Lo 24 132 132 130 130 125
LB-C422GSA0 Hi 38 110 105 100 40 1
LB-H422GSA0 Med 34 130 125 120 115 100
Lo 30 155 150 150 150 150

Great Company Great People 6 Fast Innovation Fast Growth

 Table A - 50Hz Models

Static Pressure (mmAq) 0 2 4 6 8

Model Name Step CMM(CFM) Setting Value
Hi 16.5(583) 235 230 225 215 180
Med 14.5(512) 245 238 235 230 215
LB-H1860FH/RH Lo 13.0(459) 254 252 248 245 240
Hi 18.0(636) 230 215 210 50
Med 16.5(583) 240 235 230 210
LB-H2460FH/RH Lo 14.0(494) 254 252 250 245
Hi 32.0(1130) 235 230 230 150 1
LB-G3680FH/RH Med 29.0(1024) 247 245 245 235 230
LB-G3660FH/RH Lo 26.5(936) 254 23 253 250 248
