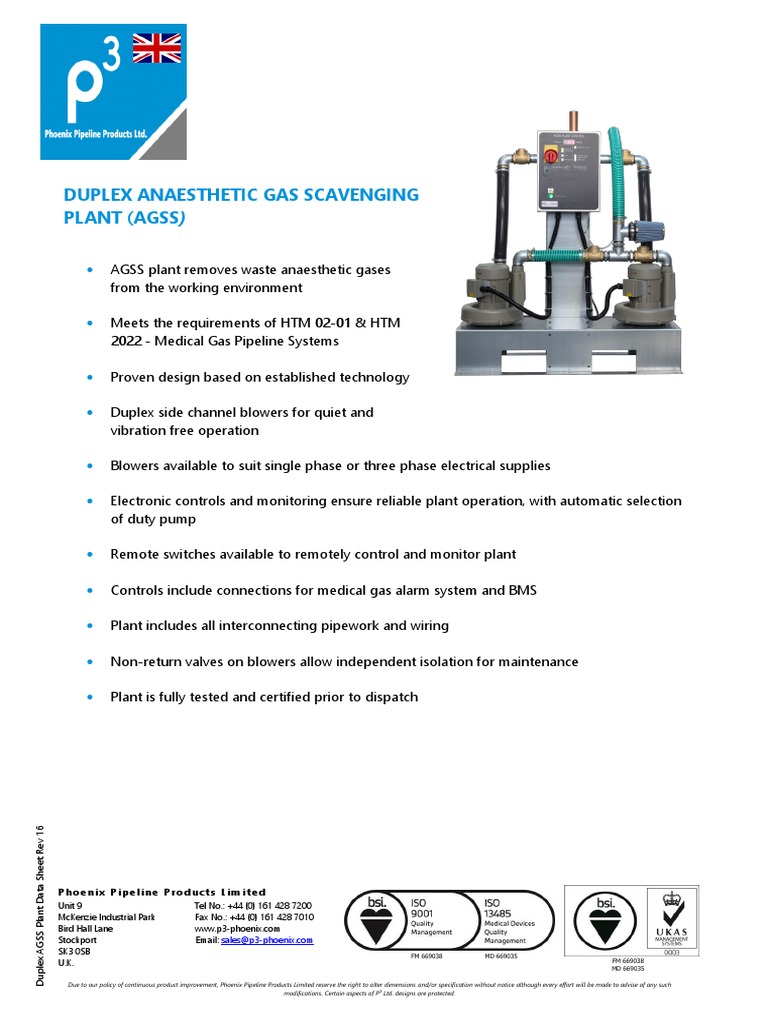

DUPLEX ANAESTHETIC GAS SCAVENGING

PLANT (AGSS)

• AGSS plant removes waste anaesthetic gases

from the working environment

• Meets the requirements of HTM 02-01 & HTM

2022 - Medical Gas Pipeline Systems

• Proven design based on established technology

• Duplex side channel blowers for quiet and

vibration free operation

• Blowers available to suit single phase or three phase electrical supplies

• Electronic controls and monitoring ensure reliable plant operation, with automatic selection
of duty pump

• Remote switches available to remotely control and monitor plant

• Controls include connections for medical gas alarm system and BMS

• Plant includes all interconnecting pipework and wiring

• Non-return valves on blowers allow independent isolation for maintenance

• Plant is fully tested and certified prior to dispatch

Duplex AGSS Plant Data Sheet Rev 16

Phoenix Pipeline Products Limi ted

Unit 9 Tel No.: +44 (0) 161 428 7200
McKenzie Industrial Park Fax No.: +44 (0) 161 428 7010
Bird Hall Lane www.p3-phoenix.com
Stockport Email: sales@p3-phoenix.com
SK3 0SB FM 669038 MD 669035
U.K. FM 669038
MD 669035

Due to our policy of continuous product improvement, Phoenix Pipeline Products Limited reserve the right to alter dimensions and/or specification without notice although every effort will be made to advise of any such
modifications. Certain aspects of P³ Ltd. designs are protected.
 Technical Data
50Hz Motor - Performance, Size & Weight Details

Flow Rate @ 150 mbar Max. No. of Outlets Preset Vacuum Dim A Dim B Dim C Weight
Model No.
(l/min) @ 150 mbar (mbar) (mm) (mm) (mm) (kg)
1-54100-07 130 4 150 1000 400 1200 80
1-54105-07 520 5 150 1000 400 1200 80
1-54104-07 780 6 150 1000 400 1200 80
1-54101-07 1300 10 150 1000 400 1200 80
1-54102-07 2210 17 150 1050 400 1200 100
1-54103-07 2860 22 150 1100 400 1200 120

50Hz Motor - Electrical Details - 3 Phase Supply (Single Phase available on request)

Motor Power
Model No. Typical Running Current (A) Starting Current (A) Starter Type Recommended Breaker (A)
(kW)
1-54100-07 0.75 2.3 13.8 D.O.L. 10
1-54105-07 0.75 2.3 13.8 D.O.L. 10
1-54104-07 1.75 3.4 20.4 D.O.L. 16
1-54101-07 1.75 3.4 20.4 D.O.L. 16
1-54102-07 2.2 5.5 33.0 D.O.L. 20
1-54103-07 3.7 7.5 45.0 D.O.L. 25

60Hz Motor - Performance, Size & Weight Details

Flow Rate @ 150 mbar Max. No. of Outlets Preset Vacuum Dim A Dim B Dim C Weight
Model No.
(l/min) @ 150 mbar (mbar) (mm) (mm) (mm) (kg)
1-54100-07 (60Hz) 470 4 150 1000 400 1200 80
1-54105-07 (60Hz) 625 5 150 1000 400 1200 80
1-54104-07 (60Hz) 940 7 150 1000 400 1200 80
1-54101-07 (60Hz) 1560 12 150 1000 400 1200 80
1-54102-07 (60Hz) 2650 20 150 1050 400 1200 100
1-54103-07 (60Hz) 3430 26 150 1100 400 1200 120

60Hz Motor - Electrical Details - 3 Phase Supply (Single Phase available on request)

Motor Power Typical Running Current Starting Current

Model No. Starter Type Recommended Breaker (A)
(kW) (A) (A)
1-54100-07 (60Hz) 0.85 2.1 12.6 D.O.L. 10
1-54105-07 (60Hz) 0.85 2.1 12.6 D.O.L. 10
1-54104-07 (60Hz) 1.9 4.2 25.2 D.O.L. 16
1-54101-07 (60Hz) 1.9 4.2 25.2 D.O.L. 16
Duplex AGSS Plant Data Sheet Rev 16

1-54102-07 (60Hz) 2.6 5.9 35.4 D.O.L. 20

1-54103-07 (60Hz) 4.0 8.2 49.2 D.O.L. 25

Phoenix Pipeline Products Limi ted

Unit 9 Tel No.: +44 (0) 161 428 7200
McKenzie Industrial Park Fax No.: +44 (0) 161 428 7010
Bird Hall Lane www.p3-phoenix.com
Stockport Email: sales@p3-phoenix.com
SK3 0SB FM 669038 MD 669035
U.K. FM 669038
MD 669035

Due to our policy of continuous product improvement, Phoenix Pipeline Products Limited reserve the right to alter dimensions and/or specification without notice although every effort will be made to advise of any such
modifications. Certain aspects of P³ Ltd. designs are protected.
 ANAEST
ANAES THETIC GAS SCAVENGING PLANT (AGSS) REMOTE SWITCH

• Remote switches remotely control and monitor AGSS plant

• Meets the requirements of HTM 02-01 & HTM 2022 - Medical Gas Pipeline
Systems

• Proven design based on established technology

• Remote switches are fully tested and certified prior to dispatch

Technical Data
• Power supply: 12Vdc
• Power cable required: 5 core, screened 16/0.2 0.5mm2 cable
• Maximum number of switches per AGSS plant: 20, connected in parallel
• Compatible backbox: British Standard deep drawn twin gang (not supplied)

Mounting Details
Duplex AGSS Plant Remote Switch Data Sheet Rev 2

Phoenix Pipeline Products Limited

Unit 9 Tel No.: +44 (0) 161 428 7200
McKenzie Industrial Park Fax No.: +44 (0) 161 428 7010
Bird Hall Lane www.p3-phoenix.com
Stockport Email: sales@p3-phoenix.com
SK3 0SB FM 669038 MD 669035
U.K. FM 669038
MD 669035

Due to our policy of continuous product improvement, Phoenix Pipeline Products Limited reserve the right to alter dimensions and/or specification without notice although every effort will be made to advise of any such modifications.
Certain aspects of P³ Ltd. designs are protected.
 ANAEST
ANAES THETIC GAS SCAVENGING PLANT (AGSS) REMOTE SWITCH
Connection Diagram

Remote Switches
Connect up to 20
5

Total
3 4

3 4
2

2
1

1
0

12V Remote switch Rear view

NOTE: On earlier Remote Switches terminal 0 is marked S

12V Remote switch front view

Emergency
Normal

Plant

Plant
Fault

5
3 4

3 4
Disposal
ON AGSS
System

2
1

1
OFF

0
BMS Board
Remote

0
1
2
5 4 3

AGSS/DENTAL VAC CONTROL PCB

Pressure Transducer
9 10 11 12
External
Stop

Motor starter units

Connections to
8
7
6
5

Plant Emergency
Internal

3 4
BMS

Plant Fault
2
1
Duplex AGSS Plant Remote Switch Data Sheet Rev 2

Ordering Information

Part No. Description

1-53110-07 AGSS Remote Switch
