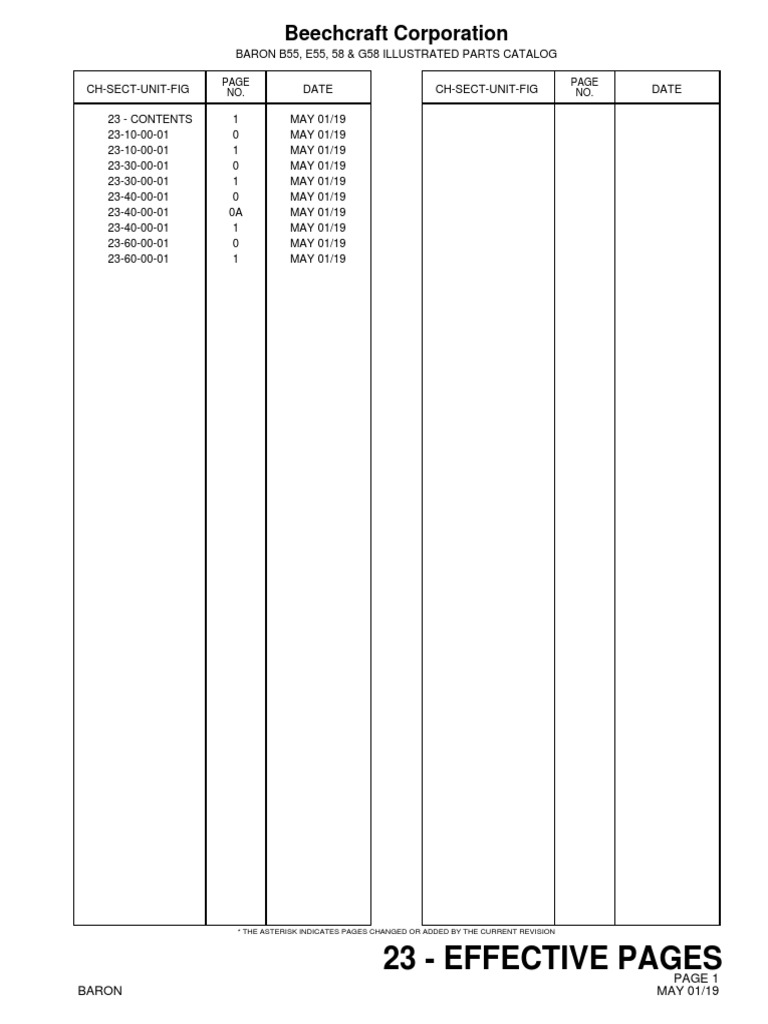

Beechcraft Corporation

BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE

23 - CONTENTS 1 MAY 01/19

23-10-00-01 0 MAY 01/19
23-10-00-01 1 MAY 01/19
23-30-00-01 0 MAY 01/19
23-30-00-01 1 MAY 01/19
23-40-00-01 0 MAY 01/19
23-40-00-01 0A MAY 01/19
23-40-00-01 1 MAY 01/19
23-60-00-01 0 MAY 01/19
23-60-00-01 1 MAY 01/19

* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION

23 - EFFECTIVE PAGES
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

CHAPTER 23 - COMMUNICATIONS

TABLE OF CONTENTS

CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT

SPEECH COMMUNICATION 23-10-00

COMMUNICATION AND XM SATELLITE ANTENNAS 23-10-00 01 H2125-H9999
PASSENGER ADDRESS AND ENTERTAINMENT 23-30-00
WIRELESS TRANSCEIVER 23-30-00 01 H2263-H2263
H2273-H2273
H2283-H9999
INTERPHONE 23-40-00
MIC AND AUDIO JACK INSTL 23-40-00 01 H2125-H9999
STATIC DISCHARGING 23-60-00
STATIC DISCHARGE WICKS 23-60-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999

23 - CONTENTS
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

23-10-00-01

COMMUNICATION AND XM SATELLITE ANTENNAS

23-10-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

COMMUNICATION AND XM SATELLITE ANTENNAS

23-10-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 COMMUNICATION AND XM SATELLITE ANTENNAS

-5 58-344225-0001 ANTENNA INSTL-COMM AND XM FE RF
SATELLITE
FOR NHA SEE:
34-20-00-02
-10 58-340446-1 . ANTENNA INSTL-VHF, FE RF
COMMUNICATION NO. 1
15 58-380112 . . ANTENNA FE 1
ATTACHING PARTS
-20 MS24694-S59 . . SCREW FE 4
U/W DORNE AND
MARGOLIN ANTENNA
-20 MS27039-1-15 . . SCREW FE 4
U/W TRIVEC
ANTENNA
-25 NAS1149D0332J . . WASHER FE 4
U/W TRIVEC
ANTENNA
-------*-------
-50 36-340427-1 . ANTENNA INSTL-VHF, FE RF
COMMUNICATION NO. 2
ATTACHING PARTS
55 36-380090 . . ANTENNA FE 1
-60 MS24694-S8 . . SCREW FE 4
-------*-------
-100 36-344202-0001 . ANTENNA INSTL-XM SATELLITE FE RF
105 NAS1149FN832P . . WASHER FE 4
-110 010-10600-01 . . KIT-ANTENNA, GA 55 FIS FE 1
115 210-10004-09 . . . NUT FE 4
ALTERNATE SPARE:
130909N28
115 130909N28 . . . NUT FE 4
ALTERNATE SPARE:
210-10004-09
120 011-01033-00 . . . ANTENNA FE 1

H2125-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

23-10-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

23-30-00-01

WIRELESS TRANSCEIVER

23-30-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

WIRELESS TRANSCEIVER

23-30-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 WIRELESS TRANSCEIVER
-5 36-344227-0001 TRANSCEIVER INSTL-WIRELESS, FE RF
GRT 10
10 011-01557-00 . TRANSCEIVER-WIRELESS, GRT 10 FE 1
ATTACHING PARTS
15 MS35206-230 . SCREW FE 4
20 NAS1149FN632P . WASHER FE 4
-------*-------
25 36-344310-0001 . BRACKET ASSY FE 1
ATTACHING PARTS
30 MS27039-0808 . SCREW FE 2
35 NAS1149FN832P . WASHER FE 2
-------*-------
40 MS35207-265 . . SCREW FE 1
45 MS35338-43 . . WASHER FE 1
50 NAS1149D0332J . . WASHER FE 2
55 MS35650-302 . . NUT FE 1

H2263-H2263,H2273-H2273,H2283-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

23-30-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

23-40-00-01

MIC AND AUDIO JACK INSTL

23-40-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

MIC AND AUDIO JACK INSTL

SHEET 1 OF 2

23-40-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

MIC AND AUDIO JACK INSTL

SHEET 2 OF 2

23-40-00-01
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 MIC AND AUDIO JACK INSTL

-5 58-344100-0001 AVIONICS INSTL-MIC AND FE RF
AUDIO JACKS
FOR ADDITIONAL DETAILS SEE:
22-10-00-01
31-10-00-03
34-20-00-02
34-40-00-01
-50 36-344207-0001 . JACK INSTL-PILOT AUDIO FE RF
55 MCOF38062-9 . . PLACARD ASSY FE 1
60 MS35214-25 . . SCREW FE 2
65 S-1028 . . WASHER FE 2
70 S-1029 . . WASHER FE 2
75 MOD008150-3 . . PLATE ASSY FE 2
-100 36-344208-0001 . JACK INSTL-CENTER AUDIO FE RF
105 MS35214-25 . . SCREW FE 4
110 S-1028 . . WASHER FE 2
115 S-1029 . . WASHER FE 2
120 MOD008151-3 . . PLATE ASSY FE 1
150 36-344209-0001 . JACK INSTL-COPILOT AUDIO FE RF
155 S-1029 . . WASHER FE 2
-200 36-340510-1 . ESCUTCHEON INSTL-MIC AND A RF
PHONE JACK
-200 36-340510-1 . ESCUTCHEON INSTL-MIC AND B RF
PHONE JACK
ALTERNATE SPARE:
36-340510-0033
-200 36-340510-0033 . ESCUTCHEON INSTL-MIC AND B RF
PHONE JACK
ALTERNATE SPARE:
36-340510-1
-205 NAS387-440-8P . . SCREW A 2
-205 NAS387-440-8P . . SCREW B 2
USED ON PART NUMBER:
36-340510-1
-207 NAS387-832-14P . . SCREW B 4
USED ON PART NUMBER:
36-340510-0033
210 NAS387-832-14P . . SCREW FE 16
215 36-340510-3 . . ESCUTCHEON ASSY-FWD, LH FE 1
220 101-340009-285 . . . PLACARD-MIC FE 1
225 101-340009-287 . . . PLACARD-PHONE FE 1
230 101-344097-19 . . . PLACARD-MUSIC INPUT FE 1
235 36-340510-11 . . ESCUTCHEON ASSY-FWD, RH FE 1
240 36-340510-7 . . ESCUTCHEON ASSY-AFT, LH FE 1
245 36-340510-13 . . ESCUTCHEON ASSY-AFT, RH FE 1
250 101-340009-285 . . . PLACARD-MIC FE 1
255 101-340009-287 . . . PLACARD-PHONE FE 1

H2125-H2172 A
H2173-H9999 B
H2125-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

23-40-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

23-60-00-01

STATIC DISCHARGE WICKS

23-60-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

STATIC DISCHARGE WICKS

23-60-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 STATIC DISCHARGE WICKS

-5 96-590007 WICK INSTL-STATIC A RF
-10 58-360029-3 WICK INSTL-STATIC B RF
DISCHARGE, STD FUEL SYSTEM
-15 58-360029-5 WICK INSTL-STATIC B RF
DISCHARGE, OPT FUEL SYSTEM
20 35-5010 . WICK ASSY-STATIC C 7
FOR SPARES ORDER:
35-5010-3
20 35-5010-3 . WICK ASSY-STATIC C 7
SPARES REPLACEMENT FOR:
35-5010
ATTACHING PARTS
-25 MS35206-229 . SCREW C 14
-30 MS21083C06 . NUT C 14
-35 105090D032-2M . WASHER-WING TIP WICK ONLY C 2
-40 105090-D-032-1M . WASHER C 2
-45 MS35333-37 . WASHER C 2
-50 NAS1329-A06-K75 . RIVNUT-STD FUEL SYSTEM C 2
ONLY
-------*-------
-55 58-360032-1 WICK INSTL-STATIC D RF
-60 58-360032-3 . WICK ASSY-STATIC D 1
-65 DD1W . . DISCHARGER D 1
-70 B1 . . MOUNTING BASE D 1
-75 58-360032-9 WICK INSTL-STATIC E RF
-80 58-360032-7 . WICK ASSY-LH E 6
-85 58-360032-8 . WICK ASSY-RH E 9
-90 DD1W . . DISCHARGER-LH AND RH E 15
-95 82B001-21 . . MOUNTING BASE-LH E 1
-100 82B001-31 . . MOUNTING BASE-RH E 1

C1608-C1909,E0938-E0938,E0943-E1069,H0001-H0649 A
C1910-C2420,E1070-E1195,H0650-H1297 B
C1608-C2420,E0938-E0938,E0943-E1195,H0001-H1297 C
C2421-C9999,E1196-E9999,H1298-H1407 D
H1408-H9999 E
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

23-60-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK
