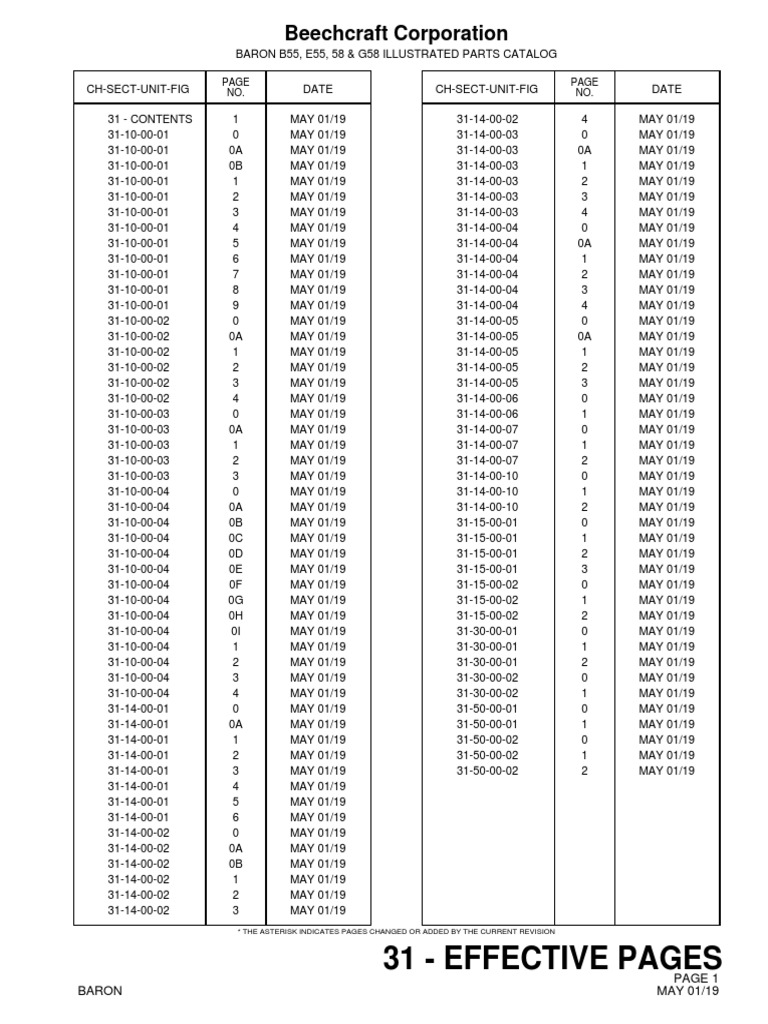

31 - Effective Pages: Beechcraft Corporation

Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
31 - CONTENTS 1 MAY 01/19 31-14-00-02 4 MAY 01/19

31-10-00-01 0 MAY 01/19 31-14-00-03 0 MAY 01/19
31-10-00-01 0A MAY 01/19 31-14-00-03 0A MAY 01/19
31-10-00-01 0B MAY 01/19 31-14-00-03 1 MAY 01/19
31-10-00-01 1 MAY 01/19 31-14-00-03 2 MAY 01/19
31-10-00-01 2 MAY 01/19 31-14-00-03 3 MAY 01/19
31-10-00-01 3 MAY 01/19 31-14-00-03 4 MAY 01/19
31-10-00-01 4 MAY 01/19 31-14-00-04 0 MAY 01/19
31-10-00-01 5 MAY 01/19 31-14-00-04 0A MAY 01/19
31-10-00-01 6 MAY 01/19 31-14-00-04 1 MAY 01/19
31-10-00-01 7 MAY 01/19 31-14-00-04 2 MAY 01/19
31-10-00-01 8 MAY 01/19 31-14-00-04 3 MAY 01/19
31-10-00-01 9 MAY 01/19 31-14-00-04 4 MAY 01/19
31-10-00-02 0 MAY 01/19 31-14-00-05 0 MAY 01/19
31-10-00-02 0A MAY 01/19 31-14-00-05 0A MAY 01/19
31-10-00-02 1 MAY 01/19 31-14-00-05 1 MAY 01/19
31-10-00-02 2 MAY 01/19 31-14-00-05 2 MAY 01/19
31-10-00-02 3 MAY 01/19 31-14-00-05 3 MAY 01/19
31-10-00-02 4 MAY 01/19 31-14-00-06 0 MAY 01/19
31-10-00-03 0 MAY 01/19 31-14-00-06 1 MAY 01/19
31-10-00-03 0A MAY 01/19 31-14-00-07 0 MAY 01/19
31-10-00-03 1 MAY 01/19 31-14-00-07 1 MAY 01/19
31-10-00-03 2 MAY 01/19 31-14-00-07 2 MAY 01/19
31-10-00-03 3 MAY 01/19 31-14-00-10 0 MAY 01/19
31-10-00-04 0 MAY 01/19 31-14-00-10 1 MAY 01/19
31-10-00-04 0A MAY 01/19 31-14-00-10 2 MAY 01/19
31-10-00-04 0B MAY 01/19 31-15-00-01 0 MAY 01/19
31-10-00-04 0C MAY 01/19 31-15-00-01 1 MAY 01/19
31-10-00-04 0D MAY 01/19 31-15-00-01 2 MAY 01/19
31-10-00-04 0E MAY 01/19 31-15-00-01 3 MAY 01/19
31-10-00-04 0F MAY 01/19 31-15-00-02 0 MAY 01/19
31-10-00-04 0G MAY 01/19 31-15-00-02 1 MAY 01/19
31-10-00-04 0H MAY 01/19 31-15-00-02 2 MAY 01/19
31-10-00-04 0I MAY 01/19 31-30-00-01 0 MAY 01/19
31-10-00-04 1 MAY 01/19 31-30-00-01 1 MAY 01/19
31-10-00-04 2 MAY 01/19 31-30-00-01 2 MAY 01/19
31-10-00-04 3 MAY 01/19 31-30-00-02 0 MAY 01/19
31-10-00-04 4 MAY 01/19 31-30-00-02 1 MAY 01/19
31-14-00-01 0 MAY 01/19 31-50-00-01 0 MAY 01/19
31-14-00-01 0A MAY 01/19 31-50-00-01 1 MAY 01/19
31-14-00-01 1 MAY 01/19 31-50-00-02 0 MAY 01/19
31-14-00-01 2 MAY 01/19 31-50-00-02 1 MAY 01/19
31-14-00-01 3 MAY 01/19 31-50-00-02 2 MAY 01/19
31-14-00-01 4 MAY 01/19
31-14-00-01 5 MAY 01/19
31-14-00-01 6 MAY 01/19
31-14-00-02 0 MAY 01/19
31-14-00-02 0A MAY 01/19
31-14-00-02 0B MAY 01/19
31-14-00-02 1 MAY 01/19
31-14-00-02 2 MAY 01/19
31-14-00-02 3 MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
31 - EFFECTIVE PAGES
PAGE 1
BARON MAY 01/19
PAGE INTENTIONALLY LEFT BLANK

CHAPTER 31 - INDICATING/RECORDING SYSTEMS
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
INSTRUMENT & CONTROL PANEL 31-10-00

FIXED INSTRUMENT PANEL 31-10-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H1388
H1390-H1395
INSTRUMENT PANEL 31-10-00 02 H1389-H1389
H1396-H2124
AVIONICS INSTRUMENT PANEL 31-10-00 03 H2125-H9999
INSTRUMENT PANEL INSTALLATION 31-10-00 04 H2125-H9999
FLOATING INSTRUMENT PANEL 31-14-00 01 C1608-C9999
FLOATING INSTRUMENT PANEL 31-14-00 02 E0938-E0938
E0943-E9999
H0001-H1388
H1390-H1395
INSTRUMENT SUBPANEL 31-14-00 03 C1608-C9999
INSTRUMENT SUBPANEL 31-14-00 04 E0938-E0938
E0943-E9999
H0001-H1388
H1390-H1395
INSTRUMENT SUBPANEL 31-14-00 05 H1389-H1389
H1396-H2124
IGNITION PANEL AND O.A.T. INDICATOR 31-14-00 06 C1608-C9999
INSTRUMENT SUBPANEL 31-14-00 07 H2125-H2475
SUBPANEL 31-14-00 10 H2476-H9999
CIRCUIT BREAKER PANEL, LH 31-15-00 01 H1389-H1389
H1396-H9999
OXYGEN AND RHEOSTAT PANEL 31-15-00 02 H0001-H0384
RECORDERS 31-30-00
ENGINE AND FLIGHT HOUR METER 31-30-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H1388
H1390-H1395
ENGINE AND FLIGHT HOUR METER 31-30-00 02 H1389-H1389
H1396-H9999
CENTRAL WARNING SYSTEM 31-50-00
ANNUNCIATOR LIGHTS 31-50-00 01 H1389-H1389
H1396-H9999
WARNING HORN 31-50-00 02 H0598-H0598
H0648-H9999
31 - CONTENTS
PAGE 1
BARON MAY 01/19

31-10-00-01
FIXED INSTRUMENT PANEL
31-10-00-01
BARON MAY 01/19

SHEET 1 OF 3
31-10-00-01
PAGE 0
MAY 01/19

SHEET 2 OF 3
31-10-00-01
PAGE 0A
MAY 01/19

SHEET 3 OF 3
31-10-00-01
PAGE 0B
MAY 01/19
FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 FIXED INSTRUMENT PANEL

-5 96-324029-17 PANEL INSTL-INSTRUMENT, A RF
WITH GENERATOR
FOR ADDITIONAL DETAILS SEE:
31-14-00-01
31-14-00-03
FOR NHA SEE:
34-15-00-01
-5 96-324029-19 PANEL INSTL-INSTRUMENT, A RF
WITH ALTERNATOR
31-14-00-01
31-14-00-03
FOR NHA SEE:
34-15-00-01
-5 58-324000-19 PANEL INSTL-INSTRUMENT, USE B RF
WITH 2 AND 3 BLADE PROP
31-14-00-02
31-14-00-04
FOR NHA SEE:
34-15-00-01
-5 58-324000-19 PANEL INSTL-INSTRUMENT, USE AR RF
WITH 2 BLADE PROP ONLY
31-14-00-02
31-14-00-04
FOR NHA SEE:
34-15-00-01
-5 58-324000-23 PANEL INSTL-INSTRUMENT, USE AR RF
31-14-00-02
31-14-00-04
FOR NHA SEE:
34-15-00-01
-5 58-324000-5 PANEL INSTL-INSTRUMENT, USE C RF
WITH 2 AND 3 BLADE PROP
31-14-00-02
31-14-00-04
FOR NHA SEE:
34-15-00-01
-5 58-324000-5 PANEL INSTL-INSTRUMENT, USE AS RF
31-14-00-02
31-14-00-04
FOR NHA SEE:
34-15-00-01
MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED
31-10-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-5 58-324000-25 PANEL INSTL-INSTRUMENT, USE AS RF
31-14-00-02
31-14-00-04
FOR NHA SEE:
34-15-00-01
20 96-324167-1 . BRACKET ASSY D 1
20 96-324167-3 . BRACKET ASSY AT 1
25 58-324037-1 . PANEL ASSY D 1
25 96-324030-55 . PANEL ASSY AF 1
25 96-324030-61 . PANEL ASSY AG 1
45 58-324037-23 . PANEL ASSY E 1
MISCELLANEOUS DATA:
USE 58-324037-41 PANEL,
58-324061-1 SUBPANEL AND
58-324062-1 BRACKET AS
SPARES WHEN USED
CONCURRENTLY
45 58-324037-41 . PANEL ASSY F 1
45 58-324037-53 . PANEL ASSY AE 1
-55 58-530253-1 . . PANEL-WOODGRAIN LAMINATE, AD 1
RH PANEL, 50TH ANNIVERSARY
-60 58-530253-3 . . PANEL-WOODGRAIN LAMINATE, AD 1
CENTER PANEL, 50TH ANNIVERSARY
-65 36-530064-63 . . SUPPORT FE 1
70 96-554024-1 . . PLACARD-COPILOT AIR FE 1
CONTROL
75 58-324061-1 . SUBPANEL ASSY-RH CIRCUIT V 1
BREAKER
80 58-324062-1 . BRACKET V 1
-83 58-530125-3 . COMPARTMENT INSTL-GLOVE W RF
-85 105774-C-ZE00328 . . PIN W 1
-87 58-530125-7 . . DOOR ASSY W 1
COMPARTMENT
ATTACHING PARTS
-90 AN530-6R6 . . SCREW W 5
FOR SPARES ORDER:
MS51861-24
-90 MS51861-24 . . SCREW W 5
SPARES REPLACEMENT FOR:
AN530-6R6
-------*-------
-95 2A12715 . . . HANDLE-GLOVE COMPARTMENT W 1
DOOR
-97 58-530125-15 . . . HINGE-HALF W 1
100 58-530125-11 . . BOX ASSY W 1
ATTACHING PARTS
-103 NAS384-6-6P . . SCREW W 6
-105 NAS391-B6P . . WASHER W 6
-------*-------
-107 58-530199-1 . COMPARTMENT INSTL-GLOVE X RF
-108 MS21207-6-8 . . SCREW X 2
FOR SPARES ORDER:
MS35214-27
31-10-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-108 MS35214-27 . . SCREW X 2
MS21207-6-8
-109 MS24693BB29 . . SCREW X 6
110 58-530201-5 . . BOX ASSY-GLOVE AH 1
COMPARTMENT
110 58-530201-21 . . COMPARTMENT ASSY-GLOVE AP 1
FOR SPARES ORDER:
58-530201-27
110 58-530201-27 . . COMPARTMENT ASSY-GLOVE AP 1
58-530201-21
-120 58-530201-13 . . . DOUBLER AH 1
-120 58-530201-25 . . . DOUBLER AP 1
-130 58-530201-15 . . . STRIKER X 1
135 58-530200-1 . . DOOR ASSY-GLOVE X 1
COMPARTMENT
140 H2622-1-090 . . LATCH X 1
FOR SPARES ORDER:
A23093-1
140 A23093-1 . . LATCH X 1
H2622-1-090
ATTACHING PARTS
-142 MS35207-261 . . SCREW X 2
USED WITH PART NUMBER:
A23093-1
-------*-------
-145 58-530220-3 . . PLACARD-CLEANING X 1
INSTRUCTIONS
-150 58-324064-601 . . BOX ASSY-GLOVE X 1
COMPARTMENT, OPT SMALL
-155 95-324038-59 . . DOOR ASSY-GLOVE X 1
COMPARTMENT, OPT SMALL
-160 35-324204 . . HANDLE-GLOVE COMPARTMENT X 1
DOOR, OPT SMALL
-165 5 . . CATCH AND ROLLER ASSY X 1
170 96-340025 . PANEL-RADIO FE 1
ATTACHING PARTS
-175 102933-D5ZM0190 . SPACER FE 7
-180 NAS387-1032 . SCREW FE 7
-------*-------
185 58-324041 . PCB ASSY-FUEL QUANTITY G 2
GAGE
185 58-364041-1 . PCB ASSY-FUEL QUANTITY H 2
GAGE
185 58-364041-9 . PCB ASSY-FUEL QUANTITY AL 2
GAGE
200 101-389017-5 . AMMETER-2 BLADE PROP FE 1
50-380086-11
90-380007-50

31-10-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
200 101-389017-7 . AMMETER-2 BLADE PROP, FE 1
WEDGE LIT
90-380007-7
96-384062-7
200 101-389017-9 . AMMETER-3 BLADE PROP FE 1
50-380086-7
90-380007-9
200 101-389017-11 . AMMETER-3 BLADE PROP, WEDGE FE 1
LIT
90-380007-11
96-384062-5
220 205-10A . INDICATOR-EXHAUST MIXTURE FE 1
220 205-10AL . INDICATOR-EXHAUST MIXTURE, FE 1
WEDGE LIT
230 50-384001-31 . GAGE-ALCOHOL ANTI-ICE FE 1
235 50-384052-5 . GAGE-INSTRUMENT PRESSURE AA 1
235 96-384013-1 . GAGE-INSTRUMENT PRESSURE R 1
235 96-384013-3 . INDICATOR-INSTRUMENT L 1
PRESSURE
235 50-384052-3 . GAGE-INSTRUMENT PRESSURE, AA 1
WEDGE LIT
235 58-380016-1 . GAGE-INSTRUMENT PRESSURE, S 1
WEDGE LIT
235 58-380016-3 . INDICATOR-INSTRUMENT, L 1
PRESSURE WEDGE LIT
265 58-380083-1 . GAGE-ENGINE, STANDARD K 2
96-380016-1
265 58-380083-3 . GAGE-ENGINE, STANDARD AJ 2
96-380016
265 58-380084-1 . GAGE-ENGINE, WEDGE LIT, OPT K 2
96-384058-1
265 58-380084-3 . GAGE-ENGINE, WEDGE LIT, OPT AJ 2
96-384058-3
285 96-380014-1 . TACHOMETER-STD Y 1
285 96-380014-11 . TACHOMETER-STD Z 1
285 96-380014-3 . TACHOMETER-STD T 1
285 96-380014-13 . TACHOMETER-STD 2 BLADE AK 1
PROP
285 96-380014-15 . TACHOMETER-STD 3 BLADE U 1
PROP
285 50-380010-21 . TACHOMETER-OPT WITH SYNCH Y 1
285 50-380010-37 . TACHOMETER-OPT WEDGE LIT Z 1
WITH SYNCH
285 50-380010-19 . TACHOMETER-OPT WITH SYNC T 1
285 50-380010-39 . TACHOMETER-OPT WITH SYNC AK 1
2 BLADE PROP
285 50-380010-41 . TACHOMETER-OPT WITH SYNC U 1
3 BLADE PROP
31-10-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-290 96-384057-1 . TACHOMETER-OPT, WEDGE LIT Y 1
-290 96-384057-11 . TACHOMETER-OPT, WEDGE LIT Z 1
-290 96-384057-3 . TACHOMETER-OPT, WEDGE LIT T 1
-290 96-384057-13 . TACHOMETER-OPT, WEDGE LIT, AK 1
2 BLADE PROP
-290 96-384057-15 . TACHOMETER-OPT, WEDGE LIT, U 1
3 BLADE PROP
-290 96-384059-1 . TACHOMETER-OPT, WEDGE LIT, Y 1
WITH SYNC
-290 96-384059-11 . TACHOMETER-OPT, WEDGE LIT, Z 1
WITH SYNC
-290 96-384059-3 . TACHOMETER-OPT, WEDGE LIT, T 1
WITH SYNC
-290 96-384059-13 . TACHOMETER-OPT, WEDGE LIT AK 1
WITH SYNC, 2 BLADE PROP
-290 96-384059-15 . TACHOMETER-OPT, WEDGE LIT U 1
WITH SYNC, 3 BLADE PROP
385 50-380011-17 . GAGE-MANIFOLD PRESSURE FE 1
385 96-384056-1 . GAGE-MANIFOLD PRESSURE, FE 1
WEDGE LIT
410 96-380015-5 . GAGE-FUEL FLOW PRESSURE N 1
410 58-380091-3 . GAGE-FUEL FLOW PRESSURE P 1
410 96-380024 . GAGE-FUEL FLOW PRESSURE AA 1
410 96-380015-7 . GAGE-FUEL FLOW PRESSURE AC 1
410 96-384073-3 . GAGE-FUEL FLOW PRESSURE AB 1
410 96-384069-1 . GAGE-FUEL FLOW PRESSURE N 1
410 58-380095-3 . GAGE-FUEL FLOW PRESSURE P 1
410 96-384055-1 . GAGE-FUEL FLOW PRESSURE AA 2
410 96-384069-3 . GAGE-FUEL FLOW PRESSURE AC 2
410 96-384072-3 . GAGE-FUEL FLOW PRESSURE AB 2
445 58-380048-1 . LOADMETER-STD ALTNTR FE 2
MISCELLANEOUS DATA:
MUST BE INSTALLED IN
MATCHED PAIRS, PARTS OF
SAME PART NUMBERS, FOR
APPEARANCE MATCH
ALTERNATE SPARE:
58-380076-1
445 58-380076-1 . LOADMETER-STD ALTNTR FE 2
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380048-1
445 58-380048-3 . LOADMETER-STD ALTNTR, FE 2
WEDGE LIT
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380076-3
31-10-00-01
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
445 58-380076-3 . LOADMETER-STD ALTNTR, FE 2
WEDGE LIT
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380048-3
445 58-380048-5 . LOADMETER-OPT ALTNTR J 2
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380076-5
445 58-380076-5 . LOADMETER-OPT ALTNTR J 2
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380048-5
445 58-380048-7 . LOADMETER-OPT ALTNTR, J 2
WEDGE LIT
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380076-7
445 58-380076-7 . LOADMETER-OPT ALTNTR, J 2
WEDGE LIT
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380048-7
485 58-380050-5 . GAGE-FUEL QTY, STD FE 2
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380074-5

31-10-00-01
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
485 58-380074-5 . GAGE-FUEL QTY, STD FE 2
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380050-5
485 58-380050-15 . GAGE-FUEL QTY, OPT AM 2
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380074-13
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380050-15
FOR SPARES ORDER:
58-380096-3
MISCELLANEOUS DATA:
APPEARANCE MATCH
58-380074-13
485 58-380051-23 . GAGE-FUEL QTY, STD, WEDGE FE 2
LIT
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380075-23
485 58-380075-23 . GAGE-FUEL QTY, STD, WEDGE FE 2
LIT
MISCELLANEOUS DATA:
APPEARANCE MATCH
ALTERNATE SPARE:
58-380051-23

31-10-00-01
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
485 58-380051-13 . GAGE-FUEL QTY, OPT, WEDGE AM 2
LIT
MISCELLANEOUS DATA:
APPEARANCE MATCH
OPT FUEL GAGES ARE USED
ON WET WING TIP
ALTERNATE SPARE:
58-380075-13
LIT
MISCELLANEOUS DATA:
APPEARANCE MATCH
ON WET WING TIP
ALTERNATE SPARE:
58-380051-13
FOR SPARES ORDER:
58-380097-3
LIT
MISCELLANEOUS DATA:
APPEARANCE MATCH
ON WET WING TIP
58-380075-13
535 204228-2 . BUSS BLOCK Q 4
540 AB970B2-327 . POST LIGHT FE AR
C1608-C9999 A
E1169-E1170 B
H1080-H1089 C
E0938-E0938,E0943-E1014,H0001-H0555 D
C1807-C2002,E1015-E1083,H0556-H0772 E
C2003-C2275,E1084-E1168,H0773-H1078 F
C1608-C1631,E0938-E0938,E0943-E0955,H0001-H0409 G
C1632-C1912,C1914-C1935,E0956-E1063,H0410-H1388, H
H1390-H1395
E1122-E9999,H0895-H1388,H1390-H1395 J
C2276-C9999 K
C2003-C9999,E0938-E0938,E0943-E9999,H0178-H1388, L
H1390-H1395
E0938-E0938,E0943-E1182,H0001-H1193 N
E1183-E9999,H1194-H1388,H1390-H1395 P
C1608-C2002,E0938-E0938,E0943-E1173,H0161-H1098 Q
(CONTINUED NEXT PAGE)
31-10-00-01
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
(CONTINUED)
H0001-H0186 R
H0001-H0177 S
E0938-E0938,E0943-E1151,E1153-E1170,H0001-H1089 T
E1152-E1152,E1171-E9999,H1090-H1388,H1390-H1395 U
C2003-C9999,E1084-E9999,H0773-H1388,H1390-H1395 V
C1608-C1795,E0938-E0938,E0943-E1014,H0001-H0555 W
C1796-C9999,E1015-E9999,H0556-H1388,H1390-H1395 X
C1608-C2284 Y
C2285-C9999 Z
C1608-C2002 AA
C2355-C9999 AB
C2003-C2354 AC
C2421-C2454,E1196-E1200,H1298-H1356 AD
C2276-C9999,E1169-E9999,H1079-H1388,H1390-H1395 AE
C1608-C1795,E0938-E0938,E0943-E1014 AF
C1796-C1806,E1015-E9999 AG
C1796-C2408,E1084-E1193,H0556-H1281 AH
E1169-E9999,H1079-H1388,H1390-H1395 AJ
H1194-H1388,H1390-H1395 AK
C1913-C1913,C1936-C9999,E1064-E9999 AL
H0001-H1190 AM
C2409-C9999,E1194-E9999,H1282-H1388,H1390-H1395 AP
E0938-E0938,E0943-E1168,E1171-E9999 AR
H0001-H1079,H1090-H1388,H1390-H1395 AS
C1807-C2014,E1015-E1085,H0556-H0768,H0770-H0782 AT
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1388, FE
H1390-H1395

31-10-00-01
PAGE 9
BARON MAY 01/19

31-10-00-02
INSTRUMENT PANEL
31-10-00-02
BARON MAY 01/19
INSTRUMENT PANEL
SHEET 1 OF 2
31-10-00-02
PAGE 0
MAY 01/19
INSTRUMENT PANEL
SHEET 2 OF 2
31-10-00-02
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 INSTRUMENT PANEL
-5 106-320016-5 PANEL INSTL-INSTRUMENT FE RF
10 106-320017-9 . PANEL ASSY-SHOCK MOUNTED FE 1
ATTACHING PARTS
15 MS24693-C273 . SCREW FE 3
20 MS24693C274 . SCREW FE 2
25 J6984-121 . MOUNT FE 1
-30 MS24693BB51 . SCREW FE 1
-35 MS35335-31 . WASHER FE 1
-40 MS35649-286 . NUT FE 1
-------*-------
45 36-324055-1 . SHOCKMOUNT INSTL-RH FE RF
-50 36-324055-3 . SHOCKMOUNT INSTL-LH FE RF
ATTACHING PARTS
55 130909B41 . BOLT FE 4
-60 130909N32 . NUT FE 4
-65 NAS1149F0432P . WASHER FE 4
-70 J2049-2D . WASHER FE 4
-------*-------
75 36-324083-1 . PANEL-RADIO FE 1
ATTACHING PARTS
-80 MS24693BB273 . SCREW FE 6
-85 NAS1149F0332P . WASHER-BONDING BETWEEN FE 2
MAIN AND REMOVABLE
PANELS
-------*-------
-90 342-640-0842-001 . SWITCH-GROUND FE 1
COMMUNICATION, AVIONICS
-95 102-364068-1 . COVER ASSY-GND COMM CB, FE 1
NOSE COMPARTMENT
100 36-380089-5 . PLACARD-ID, RADIO CALL FE 1
105 58-920001-1 . PLACARD F 1
ATTACHING PARTS
-110 MS51861-2 . SCREW F 2
-------*-------
115 58-380106-3 . INDICATOR-MANIFOLD FE 2
PRESSURE
120 102-380011-25 . INDICATOR-TACHOMETER D 2
FOR SPARES ORDER:
36-3018-3
120 36-3018-3 . INDICATOR-TACHOMETER D 2
102-380011-25
120 102-380011-31 . INDICATOR-TACHOMETER E 2
130 58-380118-3 . INDICATOR-FUEL FLOW, ELEC G 2
130 58-380120-3 . INDICATOR-FUEL FLOW, ELEC F 2
140 58-380104-3 . INDICATOR-CYL HD TEMP AND B 2
EGT
140 58-380104-5 . INDICATOR-CYL HD TEMP AND C 2
EGT
150 102-380014-3 . INDICATOR-OIL TEMP AND FE 2
PRESS, ELEC
ATTACHING PARTS
-155 MS28042-1A . CLAMP FE 10
-160 MS24693BB273 . SCREW FE 10

31-10-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-165 MS24693BB51 . SCREW FE 10
-------*-------
170 102-380024-1 . INDICATOR-PROP SYNC FE 1
ATTACHING PARTS
-175 MS24693BB28 . SCREW FE 2
-------*-------
180 106-320020-5 . PANEL ASSY-FLIGHT FE 1
INSTRUMENT
ATTACHING PARTS
-185 MS24693BB273 . SCREW FE 6
-------*-------
190 58-380092-17 . . INDICATOR-AIRSPEED, TRUE FE 1
KNOTS
ALTERNATE SPARE:
58-380093-17
60-384024-43
190 58-380093-17 . . INDICATOR-AIRSPEED, TRUE FE 1
KNOTS, WEDGE LIT
ALTERNATE SPARE:
58-380092-17
60-384024-43
190 60-384024-43 . . INDICATOR-AIRSPEED, POST FE 1
LIT
ALTERNATE SPARE:
58-380092-17
58-380093-17
205 102-380016-1 . . GYRO-HORIZON FE 1
ALTERNATE SPARE:
102-380016-3
205 102-380016-3 . . GYRO-HORIZON, WEDGE LIT FE 1
ALTERNATE SPARE:
102-380016-1
215 58-380069-1 . . ALTIMETER FE 1
ALTERNATE SPARE:
58-380069-3
215 58-380069-3 . . ALTIMETER-WEDGE LIT FE 1
ALTERNATE SPARE:
58-380069-1
225 96-384013-3 . . INDICATOR-INSTRUMENT AIR FE 1
PRESSURE
ALTERNATE SPARE:
58-380016-3
225 58-380016-3 . . INDICATOR-INSTRUMENT AIR FE 1
PRESSURE
ALTERNATE SPARE:
96-384013-3
235 58-380085-3 . . COORDINATOR-TURN FE 1
ALTERNATE SPARE:
58-380085-7
235 58-380085-7 . . TURN COORDINATOR-WEDGE FE 1
LIT
ALTERNATE SPARE:
58-380085-3
-245 58-380094-3 . . COORDINATOR-TURN, WEDGE H 1
LIT
31-10-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-245 58-380094-9 . . COORDINATOR-TURN, WEDGE J 1
LIT
250 50-384204 . . GYRO-DIRECTIONAL FE 1
ALTERNATE SPARE:
50-384205
250 50-384205 . . GYRO-DIRECTIONAL FE 1
ALTERNATE SPARE:
50-384204
-260 58-380014-1 . . GYRO-DIR, WEDGE LIT FE 1
ALTERNATE SPARE:
58-380014-3
-260 58-380014-3 . . GYRO-DIR, WEDGE LIT FE 1
ALTERNATE SPARE:
58-380014-1
270 50-384073 . . INDICATOR-VERTICAL SPEED FE 1
ALTERNATE SPARE:
58-380018-1
270 58-380018-1 . . INDICATOR-VERTICAL SPEED, FE 1
WEDGE LIT
ALTERNATE SPARE:
50-384073
ATTACHING PARTS
-280 MS24693BB28 . . SCREW FE AR
-285 MS24693BB32 . . SCREW FE AR
-290 MS33737-16C . . NUT FE AR
-------*-------
-295 58-380022-11 . . WEDGE LIGHT FE 7
ATTACHING PARTS
-300 MS35198-3 . . SCREW FE 7
-------*-------
-305 50-324103-1 . . BEZEL FE 3
ATTACHING PARTS
-310 MS24693BB26 . . SCREW FE 12
-315 MS21044B06 . . NUT FE 12
-320 NAS1149FN616P . . WASHER FE 12
-------*-------
-325 58-324060-1 INDICATOR-INSTANTANEOUS FE 1
VERTICAL SPEED, UNLIGHTED,
OPTIONAL
-330 58-324060-3 INDICATOR-INSTANTANEOUS FE 1
VERTICAL SPEED, LIGHTED,
OPTIONAL
-335 58-970011-1 PLACARD-INSTRUCTION FE 1
LIMITATION, WITH
WINDSHIELD ALCOHOL
ANTI-ICE, ON CENTER
SUBPANEL
-340 58-970011-3 PLACARD-INSTRUCTION FE 1
LIMITATION, WITH
WINDSHIELD ALCOHOL
ANTI-ICE AND SURFACE
DEICE, ON LOWER RH CORNER
OF MAIN INSTRUMENT PANEL

31-10-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
H1389-H1389,H1396-H1624 B
H1625-H2124 C
H1389-H1389,H1396-H1652 D
H1653-H2124 E
H1841-H2124 F
H1389-H1389,H1396-H1840 G
H1389-H1389,H1396-H1962 H
H1963-H2124 J
H1389-H1389,H1396-H2124 FE

31-10-00-02
PAGE 4
BARON MAY 01/19
31-10-00-03
AVIONICS INSTRUMENT PANEL
31-10-00-03
BARON MAY 01/19

SHEET 1 OF 2
31-10-00-03
PAGE 0
MAY 01/19

SHEET 2 OF 2
31-10-00-03
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 AVIONICS INSTRUMENT PANEL

-5 58-344100-0001 AVIONICS INSTL-INSTRUMENT FE RF
PANEL, GARMIN 1000
22-10-00-01
23-40-00-01
34-20-00-02
34-40-00-01
-10 36-344220-0003 . AVIONICS INSTL-INSTRUMENT FE RF
PANEL
15 011-00972-03 . . DATA UNIT-GDU 1040 FE 1
PRIMARY FLIGHT DISPLAY
20 011-01079-00 . . DATA UNIT-GDU 1043 G 1
MULTI-FUNCTION DISPLAY
20 011-N1079-00 . . DATA UNIT-GDU 1043 H 1
20 011-00819-04 . . DATA UNIT-GDU 1045 F 1
25 011-00809-00 . . PANEL-AUDIO, GMA 1347 FE 1
BEACON RECEIVER
30 58-380037-51 . . INDICATOR-AIRSPEED, KNOTS, FE 1
WEDGE LIT
ATTACHING PARTS
-35 130-340714-0015 . . SCREW FE 4
-40 MS33737-16 . . NUT FE 4
FOR SPARES ORDER:
MS33737-16C
-40 MS33737-16C . . NUT FE 4
MS33737-16
-------*-------
45 4300-205 . . INDICATOR-ATTITUDE, M RF
ELECTRIC
FOR SPARES ORDER:
4300-215
45 4300-215 . . INDICATOR-ATTITUDE, FE RF
ELECTRIC
4300-205
ATTACHING PARTS
-50 130-340714-0019 . . SCREW FE RF
-------*-------
1,000 TO 20,000 FEET
SERVICE BULLETIN:
34-4167
ATTACHING PARTS
-60 130-340714-0015 . . SCREW FE 3
-65 MS33737-16 . . NUT FE 3
FOR SPARES ORDER:
MS33737-16C
-65 MS33737-16C . . NUT FE 3
MS33737-16
-------*-------

31-10-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
70 58-380022-13 . . TRAY ASSY-LIGHT FE 1
AIRSPEED
ATTACHING PARTS
75 MS35198-3 . . SCREW FE 2
-------*-------
77 58-380022-13 . . TRAY ASSY-LIGHT FE 1
ALTIMETER
ATTACHING PARTS
80 MS35198-11 . . SCREW FE 2
-------*-------
85 011-00882-00 . . COMPUTER-AIR DATA SYSTEM E 1
GDC 74A
85 011-00882-10 . . COMPUTER-AIR DATA SYSTEM F 1
GDC 74A
90 011-00831-00 . . MICROPROCESSOR UNIT FE 1
GEA 71 ENGINE AIRFRAME
INTERFACE
95 013-00103-00 . . FAN ASSY-GCF 328, COOLING FE 2
BLOWER WITH STATUS OUTPUT
ATTACHING PARTS
-100 MS35206-234 . . SCREW FE 6
-------*-------
105 011-00987-00 . . RECEIVER-GDL 69A XM FE 1
WEATHER/AUDIO DATALINK
110 011-00779-10 . . TRANSPONDER-GTX 33 MODE S FE 1
115 011-00890-00 . . HARNESS ASSY-CHIPS CABLE FE 2
120 011-00781-01 . . RECEIVER-GIA 63 NAV/COM G 2
INTEGRATED AVIONICS
UNIT
120 011-N0781-01 . . RECEIVER-GIA 63 NAV/COM H 2
INTEGRATED AVIONICS
UNIT
120 011-01105-01 . . COMPUTER-GIA 63W F 2
INTEGRATED AVIONICS UNIT
-200 36-344205-0001 . FAN INSTL-AVIONICS COOLING FE RF
205 3608 . . CLAMP FE 4
210 TY25M . . TIE-CABLE FE 2
215 CEETS-2-A-64-4 . . DUCT-FLEXIBLE A 1
TO GTX 33
ALTERNATE SPARE:
CEETS-2A-144-4
215 CEETS-2A-144-4 . . DUCT A 1
ALTERNATE SPARE:
CEETS-2-A-64-4
215 CEETS-2-A-129-4 . . DUCT-FLEXIBLE B 1
TO GTX 33
TO GIA 63 NO.1
ALTERNATE SPARE:
CEETS-2A-144-4
220 CEETS-2A-144-4 . . DUCT A 1
ALTERNATE SPARE:
CEETS-2-A-32-4
TO GIA 63 NO.1
31-10-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
TO GIA 63 NO.2
TO GIA 63 NO.2
230 013-00103-00 . . FAN ASSY-BLOWER WITH FE 1
STATUS OUTPUT
REFERENCE DESIGNATOR NO.:
2150A3
ATTACHING PARTS
-235 MS35206-235 . . SCREW K 3
-235 MS24693-S34 . . SCREW L 3
-240 MS21044N06 . . NUT L 3
-------*-------
-350 36-324118-0001 ALTIMETER INSTL-FEET AND MILLIBARS D RF
OPTIONAL EQUIPMENT
355 58-380045-3 . ALTIMETER-FEET AND BARO MILLIBAR D 1
ATTACHING PARTS
360 130-340714-0015 . SCREW D 3
365 MS33737-16 . NUT D 3
-------*-------
370 58-380022-13 . TRAY ASSY D 1
ATTACHING PARTS
375 MS35198-11 . SCREW D 2
-------*-------
H2125-H2158 A
H2159-H9999 B
H2161-H9999 D
H2125-H2227,H2229-H2229,H2231-H2232 E
H2228-H2228,H2230-H2230,H2233-H9999 F
H2125-H2207,H2209-H2212,H2214-H2219 G
H2208-H2208,H2213-H2213,H2220-H2227,H2229-H2229, H
H2231-H2232
H2125-H2278 K
H2279-H9999 L
H2125-H2225 M
H2125-H9999 FE

31-10-00-03
PAGE 3
BARON MAY 01/19

31-10-00-04
INSTRUMENT PANEL INSTALLATION
31-10-00-04
BARON MAY 01/19

SHEET 1 OF 10
31-10-00-04
PAGE 0
MAY 01/19

SHEET 2 OF 10
31-10-00-04
PAGE 0A
MAY 01/19

SHEET 3 OF 10
31-10-00-04
PAGE 0B
MAY 01/19

SHEET 4 OF 10
31-10-00-04
PAGE 0C
MAY 01/19

SHEET 5 OF 10
31-10-00-04
PAGE 0D
MAY 01/19

SHEET 6 OF 10
31-10-00-04
PAGE 0E
MAY 01/19

SHEET 7 OF 10
31-10-00-04
PAGE 0F
MAY 01/19

SHEET 8 OF 10
31-10-00-04
PAGE 0G
MAY 01/19

SHEET 9 OF 10
31-10-00-04
PAGE 0H
MAY 01/19

SHEET 10 OF 10
31-10-00-04
PAGE 0I
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 INSTRUMENT PANEL INSTALLATION

-5 36-324100-0005 PANEL INSTL-INSTRUMENT, WITH AIR COND, G RF
OPTIONAL
-5 36-324100-0007 PANEL INSTL-INSTRUMENT, WITHOUT AIR COND G RF
-5 36-324100-0011 PANEL INSTL-INSTRUMENT, WITH AIR COND H RF
-5 36-324100-0019 PANEL INSTL-INSTRUMENT, WITH AIR COND J RF
-5 36-324100-0023 PANEL INSTL-INSTRUMENT, WITH AIR COND K RF
10 J6984-121 . MOUNT FE 1
ATTACHING PARTS
15 130-340714-0021 . SCREW FE 1
FOR SPARES ORDER:
130-340714-0023
15 130-340714-0023 . SCREW FE 1
SPARE REPLACEMENT FOR:
130-340714-0021
20 MS35335-31 . WASHER FE 1
25 MS35649-286 . NUT FE 1
-------*-------
30 130-340714-0009 . SCREW FE 5
35 AN525-10R10 . SCREW FE 3
-40 36-324055-3 . SHOCKMOUNT INSTL-LH FE RF
-45 36-324055-1 . SHOCKMOUNT INSTL-RH G RF
-45 36-324055-0005 . SHOCKMOUNT INSTL-RH H RF
50 130909B41 . . BOLT FE 2
55 NAS1149F0432P . . WASHER FE 2
60 J2049-2D . . WASHER FE 2
65 130909N32 . . NUT FE 2
70 36-324089-1 . . STRAP-RADIO, LH FE 1
75 MS35206-242 . . SCREW FE 4
80 NAS1149DN832H . . WASHER FE 4
85 130909N28 . . NUT FE 4
90 150-PL-14 . . SHOCKMOUNT FE 1
95 36-324057-5 . . HANGER ASSY-LH FE 1
100 36-324057-1 . . HANGER ASSY-RH FE 1
105 36-324057-9 . . . SHIM-LH FE 1
110 36-524114-1 . . BRACKET-LH FE 1
115 36-524114-3 . . ANGLE-LH FE 1
120 36-524114-5 . . BRACKET-RH FE 1
125 36-524114-7 . . CLIP-RH FE 1
130 36-324117-0005 . PANEL ASSY-SYSTEM RACK, WITH AIR COND B 1
130 36-324117-0009 . PANEL ASSY-SYSTEM RACK, WITH AIR COND C 1
130 36-324117-0015 . PANEL ASSY-SYSTEM RACK, WITH AIR COND F 1
130 36-324117-0007 . PANEL ASSY-SYSTEM RACK, WITHOUT AIR COND E 1
130 36-324117-0017 . PANEL ASSY-SYSTEM RACK, WITH AIR COND H 1
USED ON:
36-324100-0011
130 36-324117-0027 . PANEL ASSY-SYSTEM RACK, WITH AIR COND J 1
USED ON:
36-324100-0019
130 36-324117-0031 . PANEL ASSY-SYSTEM RACK, WITH AIR COND K 1
USED ON:
36-324100-0023
-135 011-01019-00 . . KIT-NUTPLATE FE 1
140 211-63207-10 . . . SCREW FE 4
145 130-340714-0013 . . SCREW FE 12
150 115-00427-00 . . RACK-GMA 1347 FE 1
31-10-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
155 36-324115-0015 . . PANEL ASSY-INSTRUMENT, WITH AIR COND B 1
155 36-324115-0019 . . PANEL ASSY-INSTRUMENT, WITH AIR COND D 1
155 36-324115-0017 . . PANEL ASSY-INSTRUMENT, WITH AIR COND L 1
USED ON:
36-324117-0007
155 36-324115-0027 . . PANEL ASSY-INSTRUMENT, WITH AIR COND M 1
G1000
USED ON:
36-324117-0027
36-324117-0031
160 36-555050-1 . . . PLACARD FE 1
165 36-380089-5 . . . PLACARD-RADIO CALL FE 1
ATTACHING PARTS
-170 MS51861-2 . . . SCREW-TAPPING FE 2
-------*-------
175 50-345296-955 . . . PLACARD FE 1
180 36-324115-0011 . . . PLACARD FE 1
FOR SPARES ORDER:
36-324115-0013
180 36-324115-0013 . . . PLACARD FE 1
36-324115-0011
187 36-530184-0001 . . . PLACARD-NO SMOKING A RF
FOR SPARES ORDER:
36-530184-0003
187 36-530184-0003 . . . PLACARD-NO SMOKING A RF
36-530184-0001
190 36-324115-0010 . . . CLIP FE 1
ATTACHING PARTS
-195 MS35206-228 . . . SCREW FE 1
-------*-------
200 36-324115-0010 . . . CLIP FE 1
ATTACHING PARTS
-202 MS35206-228 . . . SCREW FE 1
-------*-------
204 50-324104 . . . BEZEL-INSTRUMENT D 2
ATTACHING PARTS
206 MS24693-BB28 . . . SCREW D 8
208 NAS1149FN632P . . . WASHER D 8
210 MS21042L06 . . . NUT D 8
-------*-------
-212 011-01001-00 . . . KIT-BRACKET, GMA 1347 FE 1
215 115-00550-00 . . . . SMP-RACK BRACKET, FE 2
GMA 1347
-220 011-00821-00 . . . KIT-MOUNTING, GDU 104X FE 2
225 125-00062-00 . . . . SOCKET-1/4 TURN, REAR FE 4
MOUNT
230 36-324115-0005 . . . PANEL-INSTRUMENT, WITH AIR COND, WITH FE 1
CUTOUTS AND HOLES
USED ON:
36-324115-0015
36-324115-0019

31-10-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
230 36-324115-0007 . . . PANEL-INSTRUMENT, WITH OR WITHOUT AIR FE 1
COND, WITH CUTOUTS AND HOLES
USED ON:
36-324115-0017
230` 36-324115-0009 . . . PANEL ASSY-INSTRUMENT, WITH AIR COND, K 1
WITH CUTOUTS AND HOLES
USED ON:
36-324115-0027
235 AN363-420 . . NUT FE 8
FOR SPARES ORDER:
MS16228-4C
235 MS16228-4C . . NUT FE 8
AN363-420
240 NAS1149F0463P . . WASHER FE 8
245 SMB006-0100-9 . . MOUNT-VIBRATION ISOLATOR FE 4
250 36-344301-0001 . . BRACKET ASSY E 1
USED ON:
36-324117-0005
36-324117-0007
36-324117-0009
250 36-344301-0009 . . BRACKET ASSY F 1
USED ON:
36-324117-0015
36-324117-0017
36-324117-0027
250 36-344301-0017 . . BRACKET ASSY M 1
USED ON:
36324117-0031
255 131270-4 . . . STUD-GROUNDING, BLIND E 10
260 203540-1 . . . CONNECTOR-GROUNDING FE 2
BLOCK
265 36-324116-0003 . . RACK ASSY-PFD FE 1
-270 011-00915-00 . . . KIT-NUTPLATE, 2 POSITION FE 4
275 115-00657-00 . . . . NUTPLATE-SMP, G1000 FE 2
280 211-63207-10 . . . . SCREW FE 8
290 115-00657-01 . . . . NUTPLATE-SMP, G1000 FE 2
295 211-63207-10 . . . . SCREW FE 12
305 115-00511-01 . . . . NUTPLATE-G1000 SYSTEM, FE 2
RIGHT ANGLE
310 211-63207-10 . . . . SCREW FE 4
-315 011-01014-00 . . . KIT-ADAPTER PLATE FE 1
320 211-60207-08 . . . . SCREW FE 6
325 115-00575-00 . . . . PLATE-ADAPTER FE 1
330 36-324116-0017 . . . RACK ASSY FE 1
335 36-324116-0005 . . . . BRACKET FE 1
340 36-324116-0019 . . . . BRACKET ASSY FE 1
345 36-324116-0021 . . . . BRACKET ASSY FE 1
350 36-324116-0006 . . . . BRACKET FE 1
355 115-00635-00 . . . . RACK ASSY-MAIN SYSTEM, FE 1
G1000
360 011-01011-00 . . . KIT-REMOTE MOUNT FE 1
365 115-00411-00 . . . RACK-GEA FE 1
31-10-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
370 115-00649-00 . .
. RACK-SINGLE CLAM FE 1
375 115-00411-00 . .
. RACK-SINGLE CLAM FE 1
380 115-00438-00 . .
. RACK-GTX32/33 FE 1
385 115-00483-00 . .
. RACK-CHIPS FE 1
390 36-324116-0001 . .
RACK ASSY-MFD FE 1
-395 011-00915-01 . .
. KIT-NUTPLATE, 3 POSITION FE 4
400 115-00657-01 . .
. . NUTPLATE-SMP, G1000 FE 2
405 211-63207-10 . .
. . SCREW FE 12
-410 011-00915-00 . .
. KIT-NUTPLATE, 2 POSITION FE 1
415 115-00657-01 . .
. . NUTPLATE-SMP, G1000 FE 2
420 211-63207-10 . .
. . SCREW FE 8
425 36-324116-0015 . .
. RACK ASSY FE 1
430 36-324116-0005 . .
. . BRACKET FE 1
435 36-324116-0019 . .
. . BRACKET ASSY FE 2
440 36-324116-0006 . .
. . BRACKET FE 1
445 115-00413-00 . .
. . RACK ASSY-MAIN SYSTEM, FE 1
G1000
450 115-00426-00 . . . RACK-GIA FE 2
455 115-00649-00 . . . RACK-FAN FE 1
460 115-00483-00 . . . RACK-CHIPS FE 1
H2173-H9999 A
H2125-H2339 B
H2340-H2424 C
H2340-H9999 D
H2125-H2424 E
H2425-H9999 F
H2125-H2449 G
H2450-H2475 H
H2475-H2506 J
H2507-H9999 K
H2125-H2475 L
H2476-H9999 M
H2125-H9999 FE

31-10-00-04
PAGE 4
BARON MAY 01/19
31-14-00-01
FLOATING INSTRUMENT PANEL
31-14-00-01
BARON MAY 01/19

SHEET 1 OF 2
31-14-00-01
PAGE 0
MAY 01/19

SHEET 2 OF 2
31-14-00-01
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 FLOATING INSTRUMENT PANEL

-5 96-324029-17 PANEL INSTL-INSTRUMENT, FE RF
WITH GENERATOR
31-10-00-01
31-14-00-03
FOR NHA SEE:
34-15-00-01
-5 96-324029-19 PANEL INSTL-INSTRUMENT, FE RF
WITH ALTERNATOR
31-10-00-01
31-14-00-03
FOR NHA SEE:
34-15-00-01
-5 96-324194-7 INSTRUMENT INSTL-WEDGE LIT, M RF
WITH GENERATOR
31-14-00-03
-5 96-324194-15 INSTRUMENT INSTL-WEDGE LIT, N RF
WITH GENERATOR
31-14-00-03
-5 96-324194-11 INSTRUMENT INSTL-WEDGE LIT, M RF
WITH ALTERNATOR
31-14-00-03
-5 96-324194-17 INSTRUMENT INSTL-WEDGE LIT, N RF
WITH ALTERNATOR
31-14-00-03
-5 96-324006-9 INSTRUMENT INSTL-DUAL, FE RF
WITH GENERATOR
-5 96-324006-11 INSTRUMENT INSTL-DUAL, FE RF
WITH ALTERNATOR
-20 96-324122-11 . PANEL ASSY-FLOATING, D 1
WITH GENERATOR
USED ON PART NUMBER:
96-324006-9
96-324029-17
-20 96-324122-13 . PANEL ASSY-FLOATING, E 1
WITH GENERATOR
96-324006-9
96-324029-17
-20 96-324122-17 . PANEL ASSY-FLOATING, WITH L 1
GENERATOR AND STARTER
ENRGZ
96-324006-9
96-324029-17

31-14-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-20 96-324122-7 . PANEL ASSY-FLOATING, D 1
WITH ALTERNATOR
ALTERNATE SPARE:
96-324122-9
96-324006-11
96-324029-19
-20 96-324122-15 . PANEL ASSY-FLOATING, E 1
WITH ALTERNATOR
96-324006-11
96-324029-19
-20 96-324122-19 . PANEL ASSY-FLOATING, ALTNTR L 1
AND STARTER ENRGZ
96-324006-11
96-324029-19
ATTACHING PARTS
-50 J6984-121 . MOUNT-SHOCK, UPPER FE 1
-55 FH8C6CP-L05BN . SCREW-UPPER FE 1
-60 AN936B8 . WASHER-UPPER FE 1
FOR SPARES ORDER:
MS35335-31
-60 MS35335-31 . WASHER-UPPER FE 1
AN936B8
-65 MS35649-282 . NUT-UPPER FE 1
-70 130909B41 . BOLT FE 2
-75 AN8013D2 . WASHER FE 2
-80 AN365-428 . NUT FE 2
ALTERNATE SPARE:
MS21044N4
MS21042-4
MS20365-428
FOR SPARES ORDER:
130909N30
-80 MS21044N4 . NUT FE 2
ALTERNATE SPARE:
AN365-428
MS21042-4
MS20365-428
FOR SPARES ORDER:
130909N30
-80 MS21042-4 . NUT FE 2
ALTERNATE SPARE:
AN365-428
MS21044N4
MS20365-428
FOR SPARES ORDER:
130909N30

31-14-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-80 MS20365-428 . NUT FE 2
ALTERNATE SPARE:
AN365-428
MS21044N4
MS21042-4
FOR SPARES ORDER:
130909N30
-80 130909N30 . NUT FE 2
AN365-428
MS21044N4
MS21042-4
MS20365-428
-------*-------
85 96-324123-25 . . PANEL ASSY-WITH GENERATOR G 1
85 96-324123-51 . . PANEL ASSY-WITH GENERATOR H 1
85 96-324123-59 . . PANEL ASSY-WITH GENERATOR L 1
AND STARTER ENERGIZER
85 96-324123-13 . . PANEL ASSY-WITH G 1
ALTERNATOR
85 96-324123-47 . . PANEL ASSY-WITH H 1
ALTERNATOR
85 96-324123-55 . . PANEL ASSY-WITH ALTNTR L 1
AND STARTER ENERGIZER
115 96-324075 . . . SUPPORT ASSY FE 2
-120 96-324123-19 . . PANEL-FLOATING INST, BLANK FE 1
125 30-15 . . SWITCH-WARNING LIGHT TEST D 1
125 MST-205T . . SWITCH-WARNING LIGHT TEST P 1
ALTERNATE SPARE:
7207
125 7207 . . SWITCH-WARNING LIGHT TEST P 1
ALTERNATE SPARE:
MST205T
-140 30C1023 . . NUT-WARNING LIGHT SWITCH D 1
145 35-324470 . . PLACARD-WARNING LIGHT TEST D 1
SW, WITH GENERATOR
96-324122-11
145 96-324206-5 . . PLACARD-WARNING LIGHT TEST E 1
SW, WITH GENERATOR
96-324122-13
145 96-324209-5 . . PLACARD-WARNING SW, L 1
GENERATOR AND STARTER
ENERGIZER
96-324122-17
145 96-324200-5 . . PLACARD-WARNING LIGHT TEST D 1
SW, WITH ALTERNATOR
96-324122-7
145 96-324206-1 . . PLACARD-WARNING LIGHT TEST E 1
SW, WITH ALTERNATOR
96-324122-15
31-14-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
145 96-324209-1 . . PLACARD-WARNING SW, ALTNTR L 1
AND STARTER ENRGZ
96-324122-19
175 855291S1R2DSP6 . . LIGHT-ANNUNICIATOR, Q 2
-177 855291S1R2DSP6 . . LIGHT-ANNUNICIATOR, L 1
-180 327 . . LAMP Q 2
-182 327 . . LAMP L 1
185 50-324103-1 . . BEZEL FE 1
190 50-380013-5 . . CLOCK B 1
190 58-380077-3 . . CLOCK F 1
190 AT422001 . . CLOCK R 1
FOR SPARES ORDER:
AT422002
190 AT422002 . . CLOCK S 1
AT422001
190 58-380015-3 . . CLOCK-WEDGE LIT B 1
190 58-380077-7 . . CLOCK-WEDGE LIT C 1
215 50-384024-49 . . INDICATOR-AIRSPEED, D 1
POST LIT
215 102-380001-19 . . INDICATOR-AIRSPEED, J 1
POST LIT
215 102-380001-35 . . INDICATOR-AIRSPEED, K 1
POST LIT
215 60-384024-31 . . INDICATOR-AIRSPEED, L 1
POST LIT
215 58-380092-5 . . INDICATOR-AIRSPEED, FE 1
POST LIT, TRUE KNOTS
215 58-380093-5 . . INDICATOR-AIRSPEED, FE 1
215 58-380010-5 . . INDICATOR-AIRSPEED, D 1
WEDGE LIT
215 102-380002-19 . . INDICATOR-AIRSPEED, J 1
WEDGE LIT
215 102-380002-35 . . INDICATOR-AIRSPEED, K 1
WEDGE LIT
215 58-380037-39 . . INDICATOR-AIRSPEED, L 1
WEDGE LIT
265 601-009-980 . . COORDINATOR-TURN Q 1
FOR SPARES ORDER:
58-380085-3
265 58-380085-3 . . COORDINATOR-TURN FE 1
601-009-980
265 58-380094-3 . . COORDINATOR-TURN, FE 1
WEDGE LIT
58-380020-3
275 50-384202 . . GYRO-HORIZON FE 1
ALTERNATE SPARE:
50-384203
275 50-384203 . . GYRO-HORIZON FE 1
ALTERNATE SPARE:
50-384202
31-14-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
ALTERNATE SPARE:
58-380013-3
275 58-380013-3 . . INDICATOR-GYRO HORIZON, FE 1
WEDGE LIT
ALTERNATE SPARE:
58-380013-1
295 50-384204 . . GYRO-DIRECTION FE 1
ALTERNATE SPARE:
58-384205
295 50-384205 . . GYRO-DIRECTION FE 1
ALTERNATE SPARE:
58-384204
295 58-380014-1 . . GYRO-DIRECTION, WEDGE LIT FE 1
ALTERNATE SPARE:
58-380014-3
295 58-380014-3 . . GYRO-DIRECTION, WEDGE LIT FE 1
ALTERNATE SPARE:
58-380014-1
315 58-380069-1 . . ALTIMETER FE 1
58-380041-1
315 58-380041-1 . . ALTIMETER T 1
FOR SPARES ORDER:
58-380069-1
58-380041-3
325 50-384073 . . INDICATOR-VERTICAL SPEED FE 1
WEDGE LIT
ATTACHING PARTS
-335 FH6C16CP-L05BN . . SCREW FE 28
ALTERNATE SPARE:
FH6C6CPL05BN
FH6C8CPL05BN
FH6C20CPL05BN
-------*-------
C1608-C2015 B
C2016-C9999 C
C1608-C2002 D
C2003-C2339,C2341-C2354 E
C2016-C2236 F
C1608-C2236 G
C2237-C2339,C2341-C2354 H
C2003-C2275 J
C2276-C2339,C2341-C2354 K
C2340-C2340,C2355-C9999 L
C1608-C2275 M
C2276-C9999 N
C2003-C9999 P
C1608-C2339,C2341-C2354 Q
C2237-C2270 R
31-14-00-01
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
(CONTINUED)
C2237-C9999 S
C1608-C1694,C1696-C1709,C1711-C1765,C1767-C1775, T
C1777-C1779,C1781-C1782,C1784-C1801,C1803-C1807,
C1809-C1810,C1812-C1813,C1815-C1819,C1822-C1822,
C1824-C1824
C1608-C9999 FE

31-14-00-01
PAGE 6
BARON MAY 01/19
31-14-00-02
31-14-00-02
BARON MAY 01/19

SHEET 1 OF 3
31-14-00-02
PAGE 0
MAY 01/19

SHEET 2 OF 3
31-14-00-02
PAGE 0A
MAY 01/19

SHEET 3 OF 3
31-14-00-02
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 FLOATING INSTRUMENT PANEL

-5 58-324000-19 PANEL INSTL-LH FLOATING B RF
INSTRUMENT, POST LIT
-5 58-324000-5 PANEL INSTL-LH FLOATING C RF
INSTRUMENT, POST LIT
-15 58-324039-17 PANEL INSTL-LH FLOATING B RF
INSTRUMENT, WEDGE LIT
-15 58-324039-9 PANEL INSTL-LH FLOATING C RF
INSTRUMENT, WEDGE LIT
25 96-324175-13 . PANEL ASSY-FLOATING D 1
INSTRUMENT
25 96-324175-17 . PANEL ASSY-FLOATING E 1
INSTRUMENT
25 96-324175-7 . PANEL ASSY-FLOATING F 1
INSTRUMENT
25 96-324175-11 . PANEL ASSY-FLOATING G 1
INSTRUMENT
25 96-324175-15 . PANEL ASSY-FLOATING H 1
INSTRUMENT
25 96-324175-19 . PANEL ASSY-FLOATING J 1
INSTRUMENT
ATTACHING PARTS
-55 T6984-121 . MOUNT SHOCK FE 1
-------*-------
-60 96-324156-11 . SHIM FE AR
ATTACHING PARTS
-65 FH866CPL05BN . SCREW FE 5
-70 AN963B8 . WASHER FE 1
-75 MS35649-282 . NUT FE 1
-80 130909B15 . BOLT FE 2
-85 AN960-10 . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-90 130909N29 . NUT FE 2
-95 MS35207-263 . SCREW FE 2
-100 130909N29 . NUT FE 2
-------*-------
105 96-324075 . . SUPPORT ASSY-FLOATING FE 1
INST PANEL
110 35-324470 . . PLACARD-ANNUNCIATOR LIGHTS F 1
110 96-324206 . . PLACARD-ANNUNCIATOR LIGHTS D 1
110 96-324200-7 . . PLACARD-ANNUNCIATOR LIGHTS E 1
110 58-324045-3 . . PLACARD-ANNUNCIATOR LIGHTS G 1
110 58-324050-3 . . PLACARD-ANNUNCIATOR LIGHTS H 1
110 58-324071-3 . . PLACARD-ANNUNCIATOR LIGHTS J 1
140 30-15 . . SWITCH-TEST, ANNUNCIATOR K 1
LIGHTS
140 MST-205T . . SWITCH-ANNUNCIATOR TEST L 1
ALTERNATE SPARE:
7207
140 7207 . . SWITCH-ANNUNCIATOR TEST L 1
ALTERNATE SPARE:
MST205T
31-14-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-155 30C123 . . NUT-SWITCH ATTACH FE 1
-160 96-324185-7 . . LIGHT ASSY-ANNUNCIATOR F 1
165 85551R2DSP6 . . LIGHT-ANNUNCIATOR, G AR
AJAR OR OUT
165 855291S1R2DSP6 . . LIGHT-ANNUNCIATOR, M AR
AJAR OR OUT
175 855S1A4DSP6 . . LIGHT-ANNUNCIATOR, OPEN G 1
-180 327 . . LAMP M AR
185 50-324103-1 . . BEZEL FE 1
190 50-380015-5 . . CLOCK-POST LIT N 1
190 58-380077-3 . . CLOCK-POST LIT P 1
190 AT42202 . . CLOCK-POST LIT Q 1
190 58-380015-3 . . CLOCK-WEDGE LIT N 1
190 58-380077-7 . . CLOCK-WEDGE LIT R 1
215 50-384024-19 . . INDICATOR-AIR SPEED, D 1
POST LIT
215 102-380001-21 . . INDICATOR-AIR SPEED, V 1
POST LIT
215 102-380001-37 . . INDICATOR-AIR SPEED, W 1
POST LIT
215 50-384024-63 . . INDICATOR-AIR SPEED, U 1
POST LIT
215 102-380001-23 . . INDICATOR-AIR SPEED, T 1
POST LIT
215 102-380001-39 . . INDICATOR-AIR SPEED, S 1
POST LIT
215 60-384024-33 . . INDICATOR-AIR SPEED, Y 1
POST LIT
215 60-384024-35 . . INDICATOR-AIR SPEED, X 1
POST LIT
215 58-380092-7 . . INDICATOR-AIR SPEED, B 1
-260 58-380092-9 . . INDICATOR-AIR SPEED, C 1
WEDGE LIT, TRUE KNOTS
-260 58-380010-1 . . INDICATOR-AIR SPEED, D 1
WEDGE LIT
-260 102-380002-21 . . INDICATOR-AIR SPEED, V 1
WEDGE LIT
-260 58-380010-7 . . INDICATOR-AIR SPEED, U 1
WEDGE LIT
-260 102-380002-23 . . INDICATOR-AIR SPEED, T 1
WEDGE LIT
-260 102-380002-37 . . INDICATOR-AIR SPEED, W 1
WEDGE LIT
-260 102-380002-39 . . INDICATOR-AIR SPEED, S 1
WEDGE LIT
-260 58-380037-41 . . INDICATOR-AIR SPEED, Y 1
WEDGE LIT
-260 58-380037-43 . . INDICATOR-AIR SPEED, X 1
WEDGE LIT
-260 58-380093-7 . . INDICATOR-AIR SPEED, B 1
-260 58-380093-9 . . INDICATOR-AIR SPEED, C 1
WEDGE LIT, TRUE KNOTS
315 601-009-980TC100 . . COORDINATOR-TURN, POST LIT FE 1
31-14-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
315 58-380085-3 . . COORDINATOR FE 1
WEDGE LIT
325 50-384202 . . GYRO-HORIZON, POST LIT FE 1
ALTERNATE SPARE:
50-384203
325 50-384203 . . GYRO-HORIZON, POST LIT FE 1
ALTERNATE SPARE:
50-384202
ALTERNATE SPARE:
58-380013-3
325 58-380013-3 . . INDICATOR-GYRO HORIZON FE 1
WEDGE LIT
ALTERNATE SPARE:
58-380013-1
345 50-384204 . . GYRO-DIR, POST LIT FE 1
ALTERNATE SPARE:
50-384205
345 50-384205 . . GYRO-DIR, POST LIT FE 1
ALTERNATE SPARE:
50-384204
345 58-380014-1 . . GYRO-DIR, WEDGE LIT FE 1
ALTERNATE SPARE:
58-380014-3
345 58-380014-3 . . GYRO-DIR, WEDGE LIT FE 1
ALTERNATE SPARE:
58-380014-1
365 58-380069-1 . . ALTIMETER-POST LIT FE 1
375 50-384073 . . INDICATOR-VERTICAL SPEED, FE 1
POST LIT
WEDGE LIT
385 60-324075-11 . . PLACARD-DC FE 1
390 60-324075-7 . . PLACARD-AIR FE 1
-395 100-384054-1 INDICATOR-I.V.S., UNLIGHTED, FE 1
OPTIONAL
-395 100-384054-3 INDICATOR-I.V.S., LIGHTED, FE 1
OPTIONAL
E0938-E0938,E0943-E9999 B
H0001-H1388,H1390-H1395 C
E0938-E0938,E0943-E1083 D
E1084-E9999 E
H0001-H0253 F
H0254-H0384 G
H0385-H0772 H
H0773-H1388,H1390-H1395 J
E0938-E0938,E0943-E1083,H0001-H0772 K
E1084-E9999,H0773-H1388,H1390-H1395 L
E0938-E0938,E0943-E9999,H0254-H1388,H1390-H1395 M
E0938-E0938,E0943-E1085,H0001-H0783 N
E1086-E1181,H0784-H1134 P
E1182-E9999,H1135-H1388,H1390-H1395 Q
31-14-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
(CONTINUED)
E1086-E9999,H0784-H1388,H1390-H1395 R
H0001-H0772 S
H0773-H1079 T
H1080-H1193 U
E1084-E1151,E1153-E1168 V
E1169-E1182 W
H1194-H1388,H1390-H1395 X
E1152-E1152,E1183-E9999 Y
E0938-E0938,E0943-E9999,H0001-H1388,H1390-H1395 FE

31-14-00-02
PAGE 4
BARON MAY 01/19
31-14-00-03
INSTRUMENT SUBPANEL
31-14-00-03
BARON MAY 01/19
INSTRUMENT SUBPANEL
SHEET 1 OF 2
31-14-00-03
PAGE 0
MAY 01/19
INSTRUMENT SUBPANEL
SHEET 2 OF 2
31-14-00-03
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 INSTRUMENT SUBPANEL
-5 96-324029-17 PANEL INSTL-WITH GENERATOR L RF
-10 96-324029-19 PANEL INSTL-WITH ALTERNATOR FE RF
-15 96-324194-7 INSTRUMENT INSTL-WEDGE LIT, E RF
WITH GEN
-20 96-324194-15 INSTRUMENT INSTL-WEDGE LIT, D RF
WITH GEN
-25 96-324194-11 INSTRUMENT INSTL-WEDGE LIT, E RF
WITH ALTNTR
-30 96-324194-17 INSTRUMENT INSTL-WEDGE LIT, D RF
WITH ALTNTR
-35 96-324039-9 . SUBPANEL ASSY-POST LIT, B 1
WITH GEN
-40 96-324039-13 . SUBPANEL ASSY-POST LIT, B 1
WITH ALTNTR
-45 96-324039-11 . SUBPANEL ASSY-WEDGE LIT, B 1
WITH GEN
-50 96-324039-15 . SUBPANEL ASSY-WEDGE LIT, B 1
WITH ALTNTR
-55 96-324204-1 . SUBPANEL ASSY-POST LIT C 1
-60 96-324204-3 . SUBPANEL ASSY-WEDGE LIT C 1
-65 96-324204-7 . SUBPANEL ASSY-WITHOUT D 1
ENGINE GAGE
ATTACHING PARTS
-70 AN520-10RM . BOLT FE 3
-75 AN509-1032M . BOLT FE 3
-80 AN960-1032M . WASHER FE 3
-85 AN365-1032 . NUT FE 3
ALTERNATE SPARE:
MS21044N3
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-85 MS21044N3 . NUT FE 3
ALTERNATE SPARE:
AN365-1032
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-85 MS21042-3 . NUT FE 3
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS20365-1032
FOR SPARES ORDER:
130909N29
-85 MS20365-1032 . NUT FE 3
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29

31-14-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-85 130909N29 . NUT FE 3
AN365-1032
MS21044N3
MS21042-3
MS20365-1032
-------*-------
-90 58-530253-11 . . PANEL-WOODGRAIN LAMINATE, M 1
50TH ANNIVERSARY
95 96-324201-7 . . PANEL-EDGELITE CB SW, F 1
WITH GENERATOR
-100 96-324201-9 . . PANEL-EDGELITE CB SW, F 1
WITH ALTERNATOR
-105 96-324201-13 . . PANEL-EDGELITE CB SW, G 1
WITH GENERATOR
-110 96-324201-15 . . PANEL-EDGELITE CB SW, G 1
WITH ALTERNATOR
-115 96-324201-17 . . PANEL-EDGELITE CB SW, H 1
WITH GENERATOR
-120 96-324201-19 . . PANEL-EDGELITE CB SW, H 1
WITH ALTERNATOR
-125 96-324203-1 . . PANEL-EDGELITE CB SW, J 1
WITH GENERATOR
-130 96-324203-3 . . PANEL-EDGELITE CB SW, J 1
WITH ALTERNATOR
-135 96-324203-5 . . PANEL-EDGELITE CB SW, WITH J 1
GENERATOR, PROPELLER AND
WINDSHIELD ALCOHOL
DEICE
ALTERNATOR, WINDSHIELD
ALCOHOL DEICE
ALTERNATOR, PROPELLER
AND WINDSHIELD ALCOHOL
DEICE
ALTERNATOR WINDSHIELD
ALCOHOL DEICE
-155 96-324203-15 . . PANEL-EDGELITE, ALTERNATOR K 1
AND AEROSONIC FUEL
-160 96-324203-19 . . PANEL-EDGELITE, ALTERNATOR K 1
AND AEROSONIC FUEL,
PROPELLER AND
WINDSHIELD ALCOHOL
DEICE
-165 96-324203-23 . . PANEL-EDGELITE,ALTERNATOR K 1
AND AEROSONIC FUEL,
WINDSHIELD ALCOHOL
DEICE
170 150-PL-8 . . MOUNT-SHOCK FE 2
ATTACHING PARTS
-175 AN520-8RM . . BOLT FE 8
-180 130909N28 . . NUT FE 8
-------*-------
31-14-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
185 50-324103-1 . . BEZEL FE 2
ATTACHING PARTS
-190 MS24693-632R . . SCREW FE 4
-195 MS21044B06 . . NUT FE 4
-------*-------
-200 109-205-104 . . CIRCUIT BREAKER-OIL TEMP, FE 6
TURN AND SLIP, LDG RELAY,
STALL AND THROTTLE WARNING, FUEL
-205 109-205-104 . . CIRCUIT BREAKER-CABIN G 2
LIGHTS, INSTR LIGHTS
-210 109-230-104 . . CIRCUIT BREAKER-CABIN H 2
LIGHTS, INSTR LIGHTS
-215 109-230-104 . . CIRCUIT BREAKER-GENERATOR G 1
-220 109-250-104 . . CIRCUIT BREAKER FE 1
ALTERNATOR
-225 109-210-104 . . CIRCUIT BREAKER-FUEL FE 2
BOOST, FUEL PUMP
-230 109-215-104 . . CIRCUIT BREAKER-FLAP FE 1
MOTOR
-235 109-230-104 . . CIRCUIT BREAKER-LANDING FE 1
GEAR MOTOR
-240 100-384054-1 . . INDICATOR-FUEL VENT, FE 1
NAV LIGHT SWITCH
-245 113-210-102 . . CIRCUIT BREAKER-LANDING FE 2
LIGHT SW, PITOT HEAT
FOR SPARES ORDER:
MS24509-A-10
W31-X1007-10
-245 MS24509-A-10 . . CIRCUIT BREAKER-LANDING FE 2
113-210-102
-245 W31-X1007-10 . . CIRCUIT BREAKER-LANDING FE 2
113-210-102
-250 35-380053-3 . . SWITCH-AUX FUEL PUMP, FE 2
HEAT AND BLOWER
-255 35-380053-5 . . SWITCH-SURFACE DEICE FE 1
-260 35-380052 . . KNOB-SWITCH FE 2
ATTACHING PARTS
-265 MS25082-8 . . NUT-SWITCH FE AR
-270 AN936A716S . . WASHER FE AR
-275 55-001D . . NUT-CIRCUIT BREAKER FE AR
-------*-------
280 58-380083-1 . . GAGE-ENGINE E 2
MUST BE USED IN PAIRS
FOR SPARES ORDER:
96-380016
280 96-380016 . . GAGE-ENGINE FE 2
58-380083-1

31-14-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-285 58-380084-1 . . GAGE-ENG, WEDGE LIT E 2
FOR SPARES ORDER:
96-384058-1
-285 96-384058-1 . . GAGE-ENG, WEDGE LIT FE 2
58-380084-1
ATTACHING PARTS
-290 MS24693-632R . . SCREW FE 4
-------*-------
-295 A7165-4 . . EDGELITE FE AR
-300 327 . . LAMP FE AR
305 A8970B2-327 . . LIGHT-POST FE AR
C1608-C2002 B
C2003-C2275 C
C2276-C9999 D
C1608-C2275 E
C1608-C1817 F
C1818-C1912,C1914-C1935 G
C1913-C1913,C1936-C2002 H
C2003-C9999 J
C2355-C9999 K
C1608-C2354 L
C2421-C9999 M
C1608-C9999 FE

31-14-00-03
PAGE 4
BARON MAY 01/19
31-14-00-04
INSTRUMENT SUBPANEL
31-14-00-04
BARON MAY 01/19
INSTRUMENT SUBPANEL
SHEET 1 OF 2
31-14-00-04
PAGE 0
MAY 01/19
INSTRUMENT SUBPANEL
SHEET 2 OF 2
31-14-00-04
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
-5 58-324000-19 PANEL INSTL-INSTRUMENT A RF
-5 58-324000-5 PANEL INSTL-INSTRUMENT B RF
-15 58-324039-17 PANEL INSTL-INTERNALLY A RF
LIGHTED
-15 58-324039-3 INSTRUMENT INSTL-INTERNALLY B RF
LIGHTED
25 58-324052-1 . SUB PANEL ASSY-POST LIT J 1
25 58-324052-3 . SUB PANEL ASSY-WEDGE LIT J 1
25 58-324052-7 . SUB PANEL ASSY-WEDGE LIT K 1
ATTACHING PARTS
-40 130909B14 . BOLT FE 6
-50 130909B41 . BOLT FE 2
-60 130909N32 . NUT FE 2
-65 NAS696A06 . NUTPLATE FE 5
-------*-------
75 150-PL-8 . . MOUNT-SHOCK FE 2
-80 MS25083-1BC6 . . JUMPER-BONDING FE 1
ATTACHING PARTS
-85 130909N28 . . NUT FE 8
-90 NAS1149FN816P . . WASHER FE 8
-------*-------
-95 58-530253-13 . . PANEL-WOODGRAIN LAMINATE, L 1
50TH ANNIVERSARY
100 96-380016-1 . . GAGE-ENGINE, POST LIT J 2
FOR SPARES ORDER:
58-380083-3
100 58-380083-3 . . GAGE-ENGINE, POST LIT FE 2
96-380016-1
100 96-384058-3 . . GAGE-ENGINE, WEDGE LIT K 2
MISCELLANEOUS DATA:
ENGINE GAGES MOVED TO
EFFECTIVE TE-1169 AND
TH-1079.
FOR SPARES ORDER:
58-380084-3
100 58-380084-3 . . GAGE-ENGINE, WEDGE LIT FE 2
MISCELLANEOUS DATA:
ENGINE GAGES MOVED TO
EFFECTIVE TE-1169 AND
TH-1079.
96-384058-3
110 A8970B2-327 . . LIGHT-POST J 4
-115 NAS487-17 . . NUT-POST LIGHT J 4
120 35-380132-3 . . CIRCUIT BREAKER-PITOT M 1
HEAT

31-14-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
120 35-380132-3 . . CIRCUIT BREAKER-PITOT N 1
HEAT
FOR SPARES ORDER:
35-380132-63
PRE SERVICE BULLETIN:
SB24-3735
120 35-380132-63 . . CIRCUIT BREAKER-PITOT N 1
HEAT
35-380132-3
SERVICE BULLETIN:
SB24-3735
-125 35-380132-1 . . CIRCUIT BREAKER-PROPELLER M 1
-125 35-380132-1 . . CIRCUIT BREAKER-PROPELLER N 1
FOR SPARES ORDER:
35-380132-61
SB24-3735
-125 35-380132-61 . . CIRCUIT BREAKER-PROPELLER N 1
35-380132-1
SERVICE BULLETIN:
SB24-3735
-130 35-380132-41 . . CIRCUIT BREAKER M 1
NAVIGATION LIGHTS
-130 35-380132-41 . . CIRCUIT BREAKER N 1
NAVIGATION LIGHTS
FOR SPARES ORDER:
35-380132-101
SB24-3735
-130 35-380132-101 . . CIRCUIT BREAKER N 1
NAVIGATION LIGHTS
35-380132-41
SERVICE BULLETIN:
SB24-3735
-135 35-380132-43 . . CIRCUIT BREAKER-LANDING M 2
GEAR
-135 35-380132-43 . . CIRCUIT BREAKER-LANDING N 2
GEAR
FOR SPARES ORDER:
35-380132-103
SB24-3735
-135 35-380132-103 . . CIRCUIT BREAKER-LANDING N 2
GEAR
35-380132-43
SERVICE BULLETIN:
SB24-3735
140 10-357230-1A . . SWITCH-ENGINE START AND FE 2
OFF
-145 35-380053-3 . . SWITCH-HEATER BLOWER FE 1
-150 35-380053-23 . . SWITCH-HEATER IGNITION D 1
31-14-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-155 96-384050-7 . . KNOB-BLACK, HEATER AND FE AR
BLOWER SWITCH
-160 35-380053-27 . . SWITCH-AUX FUEL PUMP FE 2
-165 96-384050-9 . . KNOB-GREEN,AUX FUEL PUMP FE 2
SWITCH
-170 35-380053-1 . . SWITCH-VOLTAGE REGULATOR FE 1
-175 35-380053-21 . . SWITCH-BATTERY AND FE 3
ALTERNATOR
-180 96-384050-5 . . KNOB-BLUE,VOLTAGE REG, FE 4
BATTERY AND ALTERNATOR
-185 NAS5451-43 . . BUTTON-PLUG FE 9
190 96-384043-25 . . PANEL-ELECTROLUMINESCENT D 1
MISCELLANEOUS DATA:
WHEN ORDERING
REPLACEMENT
ELECTROLUMINESCENT
PANELS, ORDER THE SAME
PART NUMBER AS THAT
STAMPED ON THE BACK OF
THE EXISTING PANEL.
-195 96-384043-27 . . PANEL-ELECTROLUMINESCENT E 1
MISCELLANEOUS DATA:
WHEN ORDERING
REPLACEMENT
ELECTROLUMINESCENT
PART NUMBER AS THAT
THE EXISTING PANEL.
-200 96-384043-29 . . PANEL-ELECTROLUMINESCENT F 1
MISCELLANEOUS DATA:
WHEN ORDERING
REPLACEMENT
ELECTROLUMINESCENT
PART NUMBER AS THAT
THE EXISTING PANEL.
-205 96-384043-33 . . PANEL-ELECTROLUMINESCENT G 1
MISCELLANEOUS DATA:
WHEN ORDERING
REPLACEMENT
ELECTROLUMINESCENT
PART NUMBER AS THAT
THE EXISTING PANEL.

31-14-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-210 96-384043-37 . . PANEL-ELECTROLUMINESCENT H 1
MISCELLANEOUS DATA:
WHEN ORDERING
REPLACEMENT
ELECTROLUMINESCENT
PART NUMBER AS THAT
THE EXISTING PANEL.
ATTACHING PARTS
215 AN515B632R . . SCREW FE 5
220 MS35214-24 . . SCREW FE 1
MISCELLANEOUS DATA:
WARNING.IT IS
IMPERATIVE THAT THE
MS35214-24 SCREW IS
INSTALLED AS SHOWN ON
THE ILLUSTRATION.
IMPROPER INSTALLATION
MAY CAUSE AN ELECTRICAL
SHORT.
-------*-------
E0938-E0938,E0943-E9999 A
H0001-H1388,H1390-H1395 B
E0938-E0938,E0943-E0958,E0960-E0967,H0001-H0436 D
E0959-E0959,E0968-E1006,H0437-H0533 E
E1007-E1118,E1120-E1124,H0534-H0872,H0874-H0894 F
E1119-E1119,E1125-E1168,H0873-H0873,H0895-H1079 G
E1169-E9999,H1080-H1388,H1390-H1395 H
E0938-E0938,E0948-E1168,H0001-H1078 J
E1169-E9999,H1079-H1388,H1390-H1395 K
E1196-E9999,H1298-H1355 L
E1202-E9999 M
E0938-E0938,E0943-E1201,H0001-H1388,H1390-H1395 N
E0938-E0938,E0943-E9999,H0001-H1388,H1390-H1395 FE

31-14-00-04
PAGE 4
BARON MAY 01/19
31-14-00-05
INSTRUMENT SUBPANEL
31-14-00-05
BARON MAY 01/19
INSTRUMENT SUBPANEL
SHEET 1 OF 2
31-14-00-05
PAGE 0
MAY 01/19
INSTRUMENT SUBPANEL
SHEET 2 OF 2
31-14-00-05
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
-5 106-320018-3 SUBPANEL INSTL FE RF
10 106-320019-1 . SUBPANEL ASSY FE 1
-15 106-320019-5 . SUBPANEL ASSY-WITH ALCOHOL B 1
ANTI-ICER
-20 36-324050-9 . PLATE ASSY FE 1
ATTACHING PARTS
-25 MS24694-S50 . SCREW FE 9
-------*-------
-30 36-324050-13 . SUPPORT ASSY FE 1
ATTACHING PARTS
-35 MS27039-1-07 . SCREW FE 4
FOR SPARES ORDER:
NAS1149D0363H
-40 NAS1149D0363H . WASHER FE 4
AN960D10
-------*-------
-45 36-324050-17 . SUPPORT ASSY FE 1
-50 36-324050-21 . PLATE-SUPPORT FE 1
55 150-PL-14 . SHOCKMOUNT FE 2
ATTACHING PARTS
-60 MS27039-0810 . SCREW FE 4
FOR SPARES ORDER:
NAS1149DN832H
-65 NAS1149DN832H . WASHER FE 4
AN960D8
-------*-------
70 106-320021-1 . SUBPANEL ASSY-CIRCUIT FE 1
BREAKER, RH
MISCELLANEOUS DATA:
FOR ID PLATE AND
PLACARD SEE AVIONICS
ATTACHING PARTS
-75 MS27039-1-08 . SCREW FE 4
FOR SPARES ORDER:
NAS1149D0363H
AN960D10
-------*-------
85 58-324062-1 . BRACKET-PUSH PULL CONTROL, FE 1
COPILOT AIR
ATTACHING PARTS
-90 MS27039-1-08 . SCREW FE 2
FOR SPARES ORDER:
NAS1149D0363H
AN960D10
-------*-------
31-14-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-100 96-554024-1 . . PLACARD-ID, COPILOT AIR FE 1
105 58-530199-1 . COMPARTMENT INSTL-GLOVE FE RF
-110 58-530200-1 . . DOOR ASSY-GLOVE FE 1
COMPARTMENT
-115 58-530201-21 . . COMPARTMENT ASSY-GLOVE A 1
-115 58-530201-27 . . COMPARTMENT ASSY-GLOVE C 1
120 106-384013-1 . PANEL-ELECTROLUMINESCENT, FE 1
RH
ATTACHING PARTS
-125 MS35214-27 . SCREW FE 5
-------*-------
130 106-384012-1 . PANEL-EDGE LIGHTED, CENTER FE 1
ATTACHING PARTS
-135 MS35214-28 . SCREW FE 5
-------*-------
140 102-380019-1 . INDICATOR-VOLT FE 1
ATTACHING PARTS
-145 MS24693S27 . SCREW FE 2
-150 130290-4 . NUT-CLIP FE 2
-------*-------
160 102-380018-1 . INDICATOR-LOAD, 60 AMP, STD FE 1
-165 102-380020-1 . INDICATOR-LOAD, 100 AMP, OPT FE 1
ATTACHING PARTS
-170 MS24693S27 . SCREW FE 2
-175 130290-4 . NUT-CLIP FE 2
-------*-------
185 58-380051-23 . GAGE-FUEL QTY FE 2
ALTERNATE SPARE:
58-380075-23
185 58-380075-23 . GAGE-FUEL QTY FE 2
ALTERNATE SPARE:
58-380051-23
ATTACHING PARTS
-195 MS24693BB32 . SCREW FE 4
-200 MS33737-16 . NUT FE 4
FOR SPARES ORDER:
MS33737-16C
-200 MS33737-16C . NUT FE 4
MS33737-16
-------*-------
-210 106-320024-9 . PLACARD-83 GALLONS USABLE FE 2
-215 NAS620-6 . WASHER FE AR
-220 58-380022-13 . TRAY ASSY-LIGHT FE 2
ATTACHING PARTS
-225 MS35198-11 . SCREW FE 2
-------*-------
230 SS-51142K2915 . BUTTON-PLUG FE 1
235 SS-48152K2915 . BUTTON-PLUG FE 13
240 SS51003K2915 . BUTTON-PLUG FE 5
245 106-384011-3 . PANEL-ELECTROLUMINESCENT FE 1
SWITCH, LH
ATTACHING PARTS
-250 MS35214-27 . SCREW FE 7
-------*-------
31-14-00-05
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-255 58-380116-1 INDICATOR-ALCOHOL QUANTITY B 1
-260 35-380132-1 CIRCUIT BREAKER-ALCOHOL B 1
QUANTITY INDICATOR
FOR SPARES ORDER:
35-380132-61
SB24-3735
-260 35-380132-61 CIRCUIT BREAKER-ALCOHOL B 1
QUANTITY INDICATOR
35-380132-1
SERVICE BULLETIN:
SB24-3735
265 36-380050-1 SWITCH ASSY-LANDING GEAR FE 1
CONTROL
270 855SI-GL-5-QB-P6 LIGHT ASSY-LANDING GEAR FE 3
DOWN AND LOCKED
-275 MS25237-327 . LAMP FE 1
280 855SIRL2QB-P6 LIGHT ASSY-LANDING GEAR IN FE 1
TRANSIT
-285 MS25237-327 . LAMP FE 1
FOR SPARES ORDER:
M6363/8-5
-285 M6363/8-5 . LAMP FE 1
MS25237-327
H1389-H1389,H1396-H2007 A
H1389-H1389,H1396-H1471 B
H2008-H2124 C
H1389-H1389,H1396-H2124 FE

31-14-00-05
PAGE 3
BARON MAY 01/19

31-14-00-06
IGNITION PANEL AND O.A.T. INDICATOR
31-14-00-06
BARON MAY 01/19
IGNITION PANEL AND O.A.T. INDICATOR
31-14-00-06
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06 IGNITION PANEL AND O.A.T. INDICATOR

-5 96-364060-603 PANEL-ALTERNATOR IGNITION FE 1
-10 96-364060-605 PANEL-GENERATOR IGNITION FE 1
15 96-364060-13 . ESCUTCHEON-IGNITION PANEL B 1
-20 96-364060-15 . ESCUTCHEON-IGNITION PANEL C 1
25 96-364052 . PLACARD-ALTERNATOR B 1
-30 96-364095-3 . PLATE-ALTERNATOR C 1
-35 96-364038-1 . PLACARD-GENERATOR FE 1
-40 96-364095-1 . PLATE-GENERATOR C 1
45 95-364029-3 . BRACKET FE 1
50 10-357230-1 . SWITCH-IGNITION FE 2
55 10-126676 . PLACARD-IGNITION SWITCH FE 2
60 96-364030 . PLACARD FE 1
65 96-380025 . SWITCH FE 1
70 35-380052 . KNOB FE 2
-75 35-380053-7 . SWITCH FE 2
80 96-324131-9 INDICATOR INSTL-OUTSIDE AIR FE 1
TEMPERATURE
34-15-00-01
85 96-324131-7 . SHIELD-SUN FE 1
90 A8970B1-327 LIGHT-POST FE 1
C1608-C1897 B
C1898-C9999 C
C1608-C9999 FE

31-14-00-06
PAGE 1
BARON MAY 01/19

31-14-00-07
INSTRUMENT SUBPANEL
31-14-00-07
BARON MAY 01/19
INSTRUMENT SUBPANEL
31-14-00-07
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
-5 58-324105-0001 SUBPANEL INSTL-GARMIN 1000 FE RF
10 130-340714-0011 . SCREW FE 6
15 MS35214-27 . SCREW FE 12
20 MS24694-S50 . SCREW FE 3
25 NAS451-43 . BUTTON-PLUG FE 7
ALTERNATE SPARE:
SS48152K2915
25 SS48152K2915 . BUTTON-PLUG FE 7
ALTERNATE SPARE:
NAS451-43
30 106-384011-15 . PANEL-ELECTROLUMINESCENT FE 1
SWITCH, LH
-32 MS1608 . DECAL MATERIAL-PLACARD AND PANEL COVER-UP B AR
35 71553-5 . PANEL-ELECTROLUMINESCENT FE 1
SWITCH, RH
REF DRAWING:
106-384013-5
-40 58-530199-1 . COMPARTMENT INSTL-GLOVE FE RF
45 MS21207-6-8 . . SCREW FE 2
50 MS21207-6-10 . . SCREW FE 6
55 58-530200-1 . . DOOR ASSY-GLOVE FE 1
COMPARTMENT
60 58-530220-3 . . . PLACARD-CLEANING FE 1
INSTRUCTIONS
65 H2622-1-090 . . . LATCH FE 1
FOR SPARES ORDER:
A23093-1
65 A23093-1 . . . LATCH FE 1
H2622-1-090
ATTACHING PARTS
-70 MS35207-261 . . . SCREW FE 2
-------*-------
75 58-530200-13 . . . HINGE-HALF FE 1
80 58-530200-15 . . . HINGE-HALF FE 1
85 58-530201-27 . . COMPARTMENT ASSY-GLOVE FE 1
90 MS35206-229 . . . SCREW FE 2
95 58-530201-13 . . . DOUBLER FE 1
100 58-530201-25 . . . DOUBLER FE 6
105 58-530201-15 . . . STRIKER FE 1
110 50-324104BSC . BEZEL FE 2
ATTACHING PARTS
-115 MS24693BB28 . SCREW FE 8
-120 NAS1149FN632P . WASHER FE 8
-125 MS21042L06 . NUT FE 8
-------*-------
130 36-324105-0003 . BEZEL A 3
FOR SPARES ORDER:
36-324105-0005
130 36-324105-0005 . BEZEL FE 3
36-324105-0003
ATTACHING PARTS
-135 MS24693BB28 . SCREW FE 12
31-14-00-07
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
-145 MS21042L06 . NUT FE 12
-------*-------
150 MS27039-1-08 . SCREW FE 4
155 NAS1149D0363K . WASHER FE 4
160 MS27039-1-10 . SCREW FE 2
165 NAS1149D0363H . WASHER FE 2
170 MCOF51216-9 . BRACKET ASSY FE 1
175 MOD008152-5 . BRACKET FE 1
180 106-320021-1 . SUBPANEL ASSY-CIRCUIT FE 1
BREAKER, RH
185 102-364001-45 . BRACKET FE 1
ATTACHING PARTS
-190 MS24693-BB25 . SCREW FE 2
-195 130290-4 . NUT-CLIP FE 2
-------*-------
200 MS27039-0810 . SCREW FE 8
205 NAS1149DN832K . WASHER FE 8
210 150-PL-14 . SHOCKMOUNT FE 2
215 36-324050-9 . PLATE ASSY FE 1
220 36-324050-13 . SUPPORT ASSY FE 1
225 36-324050-21 . PLATE FE 1
230 36-324050-17 . SUPPORT ASSY FE 1
235 58-324110-0001 . SUBPANEL ASSY FE 1
FOR SPARES ORDER:
58-324110-0005
235 58-324110-0005 . SUBPANEL ASSY FE 1
58-324110-0001
240 AN743-13 . . BRACKET FE 1
245 36-324050-29 . . BRACKET FE 1
H2125-H2229 A
H2478-H2475 B
H2125-H2475 FE

31-14-00-07
PAGE 2
BARON MAY 01/19
31-14-00-10
SUBPANEL
31-14-00-10
BARON MAY 01/19
SUBPANEL
31-14-00-10
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10 SUBPANEL
-5 58-324105-0007 SUBPANEL INSTL FE RF
10 106-384011-0017 . PANEL-ELECTROLUMINESCENT, SWITCH, LH FE 1
VENDOR PART NUMBER:
71555-17
ATTACHING PARTS
15 MS35214-27 . SCREW FE 7
-------*-------
20 NAS-451-43 . BUTTON-PLUG FE 1
25 50-324104 . BEZEL FE 2
ATTACHING PARTS
30 MS24693-BB28 . SCREW FE 8
35 NAS1149FN632P . WASHER FE 8
40 MS21042L06 . NUT FE 8
-------*-------
45 106-384013-0005 . PANEL-ELECTROLUMINESCENT, RH FE 1
VENDOR PART NUMBER:
71553-5
ATTACHING PARTS
50 MS35214-27 . SCREW FE 5
-------*-------
-55 58-530199-1 . COMPARTMENT INSTL-GLOVE FE RF
60 MS21207-6-8 . . SCREW FE 2
65 58-530200-1 . . DOOR ASSY FE 1
70 58-530220-3 . . . PLACARD FE 1
PLACARD CONTENT:
CAUTION: CLEAN INTERIOR PLASTICS WITH
SOAP AND WATER OR ISOPROPYL ALCOHOL
ONLY
75 105774-C-ZE00328 . . . PIN FE 1
80 58-530200-13 . . . HINGE-HALF FE 1
85 58-530200-15 . . . HINGE-HALF FE 1
90 H2622-1-090 . . . LATCH FE 1
ALTERNATE SPARE:
A23093-1
90 A23093-1 . . . LATCH FE 1
ALTERNATE SPARE:
H2622-1-090
ATTACHING PARTS
95 MS35207-261 . . . SCREW FE 2
-------*-------
100 58-530201-27 . . COMPARTMENT ASSY FE 1
ATTACHING PARTS
105 MS21207-6-10 . . SCREW FE 6
-------*-------
110 58-530201-7 . . . DOUBLER FE 1
115 58-530201-15 . . . STRIKER FE 1
ATTACHING PARTS
120 MS35206-229 . . . SCREW FE 2
-------*-------
125 58-530201-25 . . . DOUBLER FE 6
130 102-364001-0045 . BRACKET FE 1
ATTACHING PARTS
135 MS24693-BB25 . SCREW FE 2
140 130290-4 . NUT-CLIP FE 2
-------*-------
31-14-00-10
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10
145 MS27039-1-10 . SCREW FE 2
155 MOD008152-7 . BRACKET FE 1
160 MCOF34006-9 . BRACKET ASSY FE 1
165 106-320021-0009 . SUBPANEL ASSY-CIRCUIT BREAKER, RH FE 1
ATTACHING PARTS
170 MS27039-1-08 . SCREW FE 4
-------*-------
180 58-324110-0017 . SUBPANEL ASSY FE 1
182 36-324110-0027 . . BRACKET-UPPER, SUBPANEL ATTACH FE 1
185 130-340714-0011 . SCREW FE 6
190 150PL-14 . MOUNTING FE 1
195 MS27039-0810 . SCREW FE 8
200 NAS1149DN832K . WASHER FE 8
205 36-324050-13 . SUPPORT ASSY FE 1
ATTACHING PARTS
210 MS27039-1-08 . SCREW FE 4
-------*-------
220 36-324050-9 . PLATE ASSY FE 1
ATTACHING PARTS
225 MS24694-S50 . SCREW FE 3
-------*-------
230 36-324050-0017 . SUPPORT ASSY FE 1
235 36-324050-0021 . PLATE ASSY FE 1
H2476-H9999 FE

31-14-00-10
PAGE 2
BARON MAY 01/19
31-15-00-01
CIRCUIT BREAKER PANEL, LH
31-15-00-01
BARON MAY 01/19
CIRCUIT BREAKER PANEL, LH
31-15-00-01
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 CIRCUIT BREAKER PANEL, LH

-5 102-364057-5 PANEL INSTL-CIRCUIT FE RF
BREAKER, LH
10 102-364057-19 . PANEL ASSY C 1
15 102-530040-15 . . ESCUTCHEON C 1
20 SJ3204 . . FASTENER C 1
25 60-324144-7 . . PLUG-ENGINE AND FLIGHT C 2
HOUR METER
ATTACHING PARTS
30 MS35214-27 . . SCREW C 4
-35 AN960-6L . . WASHER C 4
FOR SPARES ORDER:
NAS1149FN616P
-35 NAS1149FN616P . . WASHER C 4
AN960-6L
-40 MS21042L06 . . NUT C 4
-------*-------
45 102-384036-1 . . PANEL-ELECTROLUMINSCENT C 1
CB, TOP
50 102-384036-3 . . PANEL-ELECTROLUMINSCENT C 1
CB, CENTER
55 102-384036-11 . . PANEL-ELECTROLUMINSCENT, C 1
CB, LOWER
60 M81714/2AB1 . . BLOCK-TERMINAL C 1
63 101-364084-73 . . BAR-BUS A 2
FOR SPARES ORDER:
101-364084-343
63 101-364084-343 . . BAR-BUS C 2
101-364084-73
65 114931-1-9 . . BAR-BUS C 2
70 114931-1-8 . . BAR-BUS C 1
75 35-360011-9 . . CLIP-BUS C 5
-80 NAS451-11 . . PLUG BUTTON C 9
FOR SPARES ORDER:
SS51051K2915
-80 SS51051K2915 . . PLUG BUTTON C 9
NAS451-11
85 102-364057-31 . . BRACKET ASSY C 1
-90 102-364057-29 . . . BRACKET C 1
95 SJ3204 . . . FASTENER C 1
-100 AN960-4L . . . WASHER C 4
ALTERNATE SPARE:
NAS1149FN416P
-100 NAS1149FN416P . . . WASHER C 4
ALTERNATE SPARE:
AN960-4L
-115 7277-2-5 . . CIRCUIT BREAKER C 17
-130 MS24510-20 . . CIRCUIT BREAKER C 1
-140 102-364057-45 . PANEL ASSY D 1

31-15-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
145 102-530040-29 . . ESCUTCHEON ASSY G 1
FOR SPARES ORDER:
102-530040-33
145 102-530040-33 . . ESCUTCHEON ASSY D 1
102-530040-29
150 106-550011-1 . . . PLACARD D 1
-150 MS1608 . . . DECAL MATERIAL-PLACARD COVER-UP H AR
155 102-384036-49 . . PANEL-ELECTROLUMINESCENT E 1
CB, TOP
155 102-384036-53 . . PANEL-ELECTROLUMINESCENT F 1
CB, TOP
CB, CENTER
CB, LOWER
170 114931-1-3 . . STRIP D 2
175 101-364084-343 . . BAR-BUS D 1
180 101-364084-287 . . BAR-BUS D 1
185 114931-1-2 . . STRIP D 2
190 101-364084-0359 . . BAR-BUS D 2
195 114931-1-11 . . BUS BAR D 1
200 002-361016-19 . . CLIP D 2
ATTACHING PARTS
-205 130909B12 . . BOLT D 2
-210 NAS1149F0332P . . WASHER D 2
-215 MS35338-43 . . WASHER-LOCK D 2
-220 130909N29 . . NUT D 2
-------*-------
225 7277-2-1 . . CIRCUIT BREAKER D 1
240 10164-1 . . CIRCUIT BREAKER-EXTENSION D 1
265 SS-51051K2915 . . PLUG BUTTON D 12
270 102-364057-39 . . BRACKET ASSY D 1
ATTACHING PARTS
-275 NAS1096-2-8 . . SCREW D 2
-280 AN525-10R32 . . SCREW-PAINT HEAD BLACK D 2
-285 NAS1149FN816P . . WASHER D 2
-------*-------
290 M81714/2AB1 . . BLOCK-TERMINAL D 1
295 MS35214-27 . . SCREW D 4
300 NAS1149FN616P . . WASHER D 4
305 MS21042L06 . . NUT D 4
310 102-320070-1 . PLACARD FE 1
315 102-320070-3 . PLACARD FE 1
320 MS27039-1-10 . SCREW FE 2
330 102-364057-23 . SUPPORT ASSY FE 1
335 102-364057-21 . . CHANNEL FE 1
-400 58-380116-1 INDICATOR-ALCOHOL QUANTITY B 1
31-15-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
H1389-H1389,H1396-H1875 A
H1389-H1389,H1396-H1471 B
H1389-H1389,H1396-H2124 C
H2125-H9999 D
H2125-H2205,H2207-H2217,H2219-H220 E
H2206-H2206,H2218-H2218,H2221-H9999 F
H2125-H2359 G
H2476-H9999 H
H1389-H1389,H1396-H9999 FE

31-15-00-01
PAGE 3
BARON MAY 01/19

31-15-00-02
OXYGEN AND RHEOSTAT PANEL
31-15-00-02
BARON MAY 01/19
OXYGEN AND RHEOSTAT PANEL
31-15-00-02
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 OXYGEN AND RHEOSTAT PANEL

5 58-364034-7 ESCUTCHEON ASSY-OXYGEN AND A 1
RHEOSTAT
10 R12 1/2 5000 RHEOSTAT-DIMMING, SUB-PANEL A 1
LIGHTING
15 XR7145 RHEOSTAT-DIMMING, INSTRUMENT B 1
FLOOD
ALTERNATE SPARE:
E3500RI451
15 E3500RI451 RHEOSTAT-DIMMING, INSTRUMENT B 1
FLOOD
ALTERNATE SPARE:
XR7145
25 XR7145 RHEOSTAT-DIMMING, FLIGHT A 2
INSTRUMENT, CONSOLE AND
AVIONICS, ENG INSTR
ALTERNATE SPARE:
E3500RI451
25 E3500RI451 RHEOSTAT-DIMMING, INSTRUMENT A 2
FLOOD
ALTERNATE SPARE:
XR7145
30 96-364085-3 WHEEL-RHEOSTAT DIMMING A 4
FOR SPARES ORDER:
96-364085-11
30 96-364085-11 WHEEL-RHEOSTAT DIMMING A 4
96-364085-3
35 58-530114-3 COVER-OAT AND DIMMER C 1
RHEOSTAT
40 R12 1/2 5000 RHEOSTAT-DIMMING, SUB-PANEL D 1
LIGHTING
-45 VW1KSP8 RHEOSTAT-DIMMING, SUB-PANEL E 1
LIGHTING
50 XR7145 RHEOSTAT-DIMMING, INSTRUMENT D 3
FLOOD, FLIGHT INSTR,
RADIO AND ENG INSTR
ALTERNATE SPARE:
E3500RI451
50 E3500RI451 RHEOSTAT-DIMMING, INSTRUMENT D 3
FLOOD, FLIGHT INSTR, RADIO
AND ENG INSTRUMENT
ALTERNATE SPARE:
XR7145
60 96-364085-3 WHEEL-RHEOSTAT DIMMING D 4
FOR SPARES ORDER:
96-364085-11
60 96-364085-11 WHEEL-RHEOSTAT DIMMING FE 4
96-364085-3
H0001-H0174 A
H0141-H0174 B
H0175-H0384 C
H0175-H0318 D
31-15-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
(CONTINUED)
H0319-H0401 E
H0001-H0384 FE

31-15-00-02
PAGE 2
BARON MAY 01/19
31-30-00-01
ENGINE AND FLIGHT HOUR METER
31-30-00-01
BARON MAY 01/19
31-30-00-01
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 ENGINE AND FLIGHT HOUR METER

-5 96-324023-17 METER INSTL-ENGINE HOUR A 1
-5 96-324023-11 METER INSTL-ENGINE HOUR B 1
-5 96-324023-13 METER INSTL-ENGINE HOUR C 1
-20 58-324027-7 METER INSTL-FLIGHT HOUR A 1
-20 58-324027-1 METER INSTL-FLIGHT HOUR D 1
30 58-380043-1 . INDICATOR-FLIGHT HOUR FE 1
FOR SPARES ORDER:
56499-05
30 56499-05 INDICATOR-FLIGHT HOUR FE 1
58-380043-1
35 58-380042-1 . INDICATOR-ENGINE HOUR FE 1
ATTACHING PARTS
40 MS24693BB31 . SCREW FE 6
-------*-------
45 2962447 . TERMINAL-FLIGHT HOUR FE 1
-50 AN8970B2-327 . POST LIGHT FE 1
-55 58-324027-5 . COVER ASSY-CONSOLE G 1
-55 58-324027-9 . COVER ASSY-CONSOLE E 1
-55 58-324027-11 . COVER ASSY-CONSOLE H 1
-55 58-324027-19 . COVER ASSY-CONSOLE F 1
-55 58-324027-23 . COVER ASSY-CONSOLE J 1
80 M4006-4 . PRESSURE SWITCH-ENGINE FE 1
HOUR
85 AN911-1D . NIPPLE-RH ENGINE GAGE OIL FE 1
PRESSURE PORT
90 AN917-1D . TEE-RH ENGINE GAGE OIL FE 1
PRESSURE PORT
FOR SPARES ORDER:
AS4857D01
90 AS4857D01 . TEE-RH ENGINE GAGE OIL FE 1
PRESSURE PORT
AN917-1D
95 AN816-4D . ADAPTER-RH ENGINE GAGE OIL FE 1
PRESSURE PORT
ALTERNATE SPARE:
AS5194D0402
95 AS5194D0402 . ADAPTER-RH ENGINE GAGE OIL FE 1
PRESSURE PORT
ALTERNATE SPARE:
AN816-4D
-100 96-324023-5 . TUBE ASSY-WITH ENG GAGE ON FE 1
LH SIDE OF PANEL
105 96-324023-7 . TUBE ASSY-WITH ENG GAGE ON K 1
RH SIDE OF PANEL
ATTACHING PARTS
105 96-324023-15 . TUBE ASSY-WITH ENG GAGE ON C 1
RH SIDE OF PANEL
-------*-------
115 7277-2-5 . CIRCUIT BREAKER M 1
115 MS24510-5 . CIRCUIT BREAKER L 1
C1608-C9999 A
31-30-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
(CONTINUED)
E0938-E0938,E0943-E9999 B
H0001-H1388,H1390-H1395 C
E0938-E0938,E0943-E9999,H0001-H1388,H1390-H1395 D
C1608-C2180 E
C2181-C9999 F
H0001-H0384 G
E0938-E0938,E0943-E1142,H0385-H0972 H
E1143-E9999,H0973-H1388,H1390-H1395 J
C1608-C9999,E0938-E0938,E0943-E9999 K
H0001-H0165 L
C1608-C9999,E0938-E0938,E0943-E9999,H0166-H1388, M
H1390-H1395
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1388, FE
H1390-H1395

31-30-00-01
PAGE 2
BARON MAY 01/19
31-30-00-02
31-30-00-02
BARON MAY 01/19
31-30-00-02
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 ENGINE AND FLIGHT HOUR METER

-5 102-364063-3 METER INSTL-FLIGHT HOUR FE RF
-10 102-364063-7 METER INSTL-ENGINE HOUR FE RF
15 7277-2-5 . CIRCUIT BREAKER FE 1
20 35-380138-5 . METER-ENGINE AND FLIGHT FE 1
HOUR
ATTACHING PARTS
-25 MS35214-27 . SCREW FE 4
-30 AN960-6L . WASHER FE 4
FOR SPARES ORDER:
NAS1149FN616P
AN960-6L
-35 MS21042L06 . NUT FE 4
-------*-------
40 102-389017-3 . TRANSDUCER-OIL PRESSURE FE 1
45 102-320070-3 PLACARD-FLIGHT FE 1
50 102-320070-1 PLACARD-ENGINE FE 1
-55 60-324144-7 PLUG-WHEN HOUR METER IS NOT FE 1
INSTALLED
H1389-H1389,H1396-H9999 FE

31-30-00-02
PAGE 1
BARON MAY 01/19

31-50-00-01
ANNUNCIATOR LIGHTS
31-50-00-01
BARON MAY 01/19
ANNUNCIATOR LIGHTS
31-50-00-01
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 ANNUNCIATOR LIGHTS
-5 102-364064-5 LIGHT ASSY-CAUTION AND A RF
ADVISORY LIGHT ASSY
FOR NHA SEE:
24-00-00-03
ATTACHING PARTS
10 MS35198-40 . SCREW A 4
-------*-------
15 654-0931-009 . LENS ASSY-LEFT ALTERNATOR A 1
20 654-0931-010 . LENS ASSY-RIGHT ALTERNATOR A 1
25 654-0931-008 . LENS ASSY-AFT DOOR A 1
30 654-0931-002 . LENS ASSY-START A 1
-35 207440-1 . HOUSING-PIN A 1
-40 66103-2 . PIN A AR
-45 102-364064-27 LIGHT ASSY-CAUTION AND B RF
ADVISORY LIGHT ASSY
MISCELLANEOUS DATA:
THE LENSES IN THE
102-364064-27
ANNUNCIATOR LIGHT ASSY
WILL EITHER BE ALL
654-0931 NUMBERS OR
ALL 90-42200 NUMBERS.
THE TWO TYPES OF LENSES
ARE NOT INTERCHANGABLE.
FOR NHA SEE:
24-00-00-03
ATTACHING PARTS
50 MS35198-40 . SCREW B 4
-------*-------
55 654-0931XXX . LENS ASSY-GEAR UP B 1
-60 90-42200-001 . LENS ASSY-GEAR UP B 1
65 654-0931-009 . LENS ASSY-LEFT ALTR B 1
-70 90-42200-002 . LENS ASSY-LEFT ALTR B 1
75 654-0931-010 . LENS ASSY-RIGHT ALTR B 1
-80 90-42200-003 . LENS ASSY-RIGHT ALTR B 1
85 654-0931-002 . LENS ASSY-START B 1
-90 90-42200-004 . LENS ASSY-START B 1
95 654-0931-008 . LENS ASSY-AFT DOOR B 1
-100 90-42200-005 . LENS ASSY-AFT DOOR B 1
105 654-0931-039 . LENS ASSY-SPARE B 2
-110 90-42200-010 . LENS ASSY-SPARE B 2
-115 58-364064-3 PRINTED CIRCUIT BOARD ASSY FE 1
-120 58-364064-5 PRINTED CIRCUIT BOARD ASSY B 1
ANNUNCIATOR
H1389-H1389,H1396-H1542,H1544-H1544 A
H1543-H1543,H1545-H9999 B
H1389-H1389,H1396-H9999 FE

31-50-00-01
PAGE 1
BARON MAY 01/19

31-50-00-02
WARNING HORN
31-50-00-02
BARON MAY 01/19
WARNING HORN
31-50-00-02
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 WARNING HORN
-5 102-384040-1 HORN ASSY-ELECTRONIC A 1
WARNING
ATTACHING PARTS
10 MS35207-264 SCREW A 4
-15 AN960-10L WASHER A 4
ALTERNATE SPARE:
NAS1149F0332P
-15 NAS1149F0332P WASHER A 4
ALTERNATE SPARE:
AN960-10L
-------*-------
-20 36-364002-15 HORN ASSY-WARNING B 1
25 36-364002-17 . BRACKET-WARNING HORN B 1
ATTACHING PARTS
-30 MS35207-264 . SCREW B 4
-35 AN960-10L . WASHER B 4
ALTERNATE SPARE:
NAS1149F0332P
-35 NAS1149F0332P . WASHER B 4
ALTERNATE SPARE:
AN960-10L
-------*-------
40 169-380021-9 . HORN-LANDING GEAR WARNING B 1
45 169-380021-11 . HORN-STALL WARNING B 1
ATTACHING PARTS
50 MS35207-261 . SCREW B 3
-55 AN960-10L . WASHER B 3
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-60 130909N29 . NUT B 3
-------*-------
65 MS21919DG2 . CLAMP B 1
FOR SPARES ORDER:
AS21919WDG2
65 AS21919WDG2 . CLAMP B 1
MS21919DG2
ATTACHING PARTS
70 MS35207-263 . SCREW B 1
-75 AN960-10L . WASHER B 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-------*-------
-80 1 3/4-D-48-F-40 . RESISTOR B 1
ATTACHING PARTS
-85 MS35206-255 . SCREW B 1
-90 AN960-8L . WASHER B 1
FOR SPARES ORDER:
NAS1149FN816P
31-50-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-90 NAS1149FN816P . WASHER B 1
AN960-8L
-95 2-155 . WASHER-FIBER B 2
-------*-------
-100 MS35338-40 . LOCKWASHER B 3
105 R102 . RELAY-FLASHER B 1
110 MS35206-230 . SCREW B 1
-115 AN960-6L . WASHER B 1
FOR SPARES ORDER:
NAS1149FN616P
-115 NAS1149FN616P . WASHER B 1
AN960-6L
120 MS35206-213 . SCREW B 3
-125 MS35649-242 . NUT B 3
H1389-H1389,H1396-H9999 A
H0598-H0598,H0648-H1388,H1390-H1395 B
H0598-H0598,H0648-H9999 FE

31-50-00-02
PAGE 2
BARON MAY 01/19

31 - Effective Pages: Beechcraft Corporation

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

31 - Effective Pages: Beechcraft Corporation

Uploaded by

Copyright:

Available Formats

Beechcraft Corporation

BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

31 - CONTENTS 1 MAY 01/19 31-14-00-02 4 MAY 01/19

PAGE INTENTIONALLY LEFT BLANK

CHAPTER 31 - INDICATING/RECORDING SYSTEMS

INSTRUMENT & CONTROL PANEL 31-10-00

PAGE INTENTIONALLY LEFT BLANK

FIXED INSTRUMENT PANEL

FIXED INSTRUMENT PANEL

FIXED INSTRUMENT PANEL

FIXED INSTRUMENT PANEL

01 FIXED INSTRUMENT PANEL

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

AVIONICS INSTRUMENT PANEL

AVIONICS INSTRUMENT PANEL

AVIONICS INSTRUMENT PANEL

PAGE INTENTIONALLY LEFT BLANK

03 AVIONICS INSTRUMENT PANEL

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

INSTRUMENT PANEL INSTALLATION

PAGE INTENTIONALLY LEFT BLANK

04 INSTRUMENT PANEL INSTALLATION

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

FLOATING INSTRUMENT PANEL

FLOATING INSTRUMENT PANEL

FLOATING INSTRUMENT PANEL

PAGE INTENTIONALLY LEFT BLANK

01 FLOATING INSTRUMENT PANEL

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

FLOATING INSTRUMENT PANEL

FLOATING INSTRUMENT PANEL

FLOATING INSTRUMENT PANEL

FLOATING INSTRUMENT PANEL

02 FLOATING INSTRUMENT PANEL

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE
