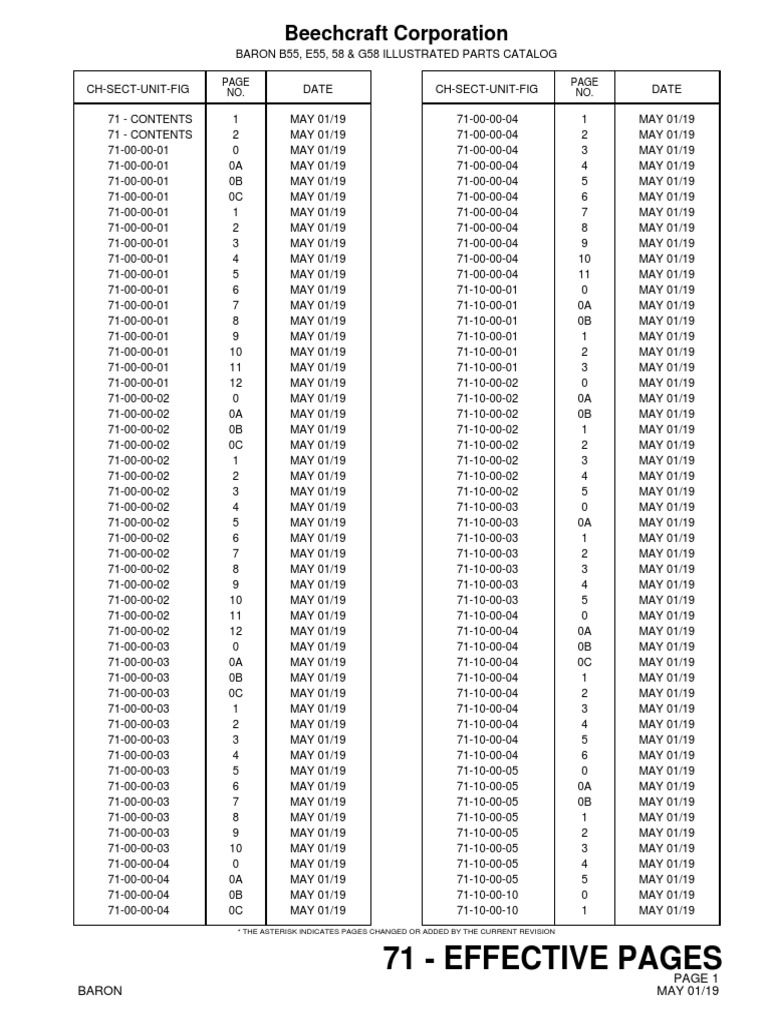

71 - Effective Pages: Beechcraft Corporation

Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
71 - CONTENTS 1 MAY 01/19 71-00-00-04 1 MAY 01/19

71 - CONTENTS 2 MAY 01/19 71-00-00-04 2 MAY 01/19
71-00-00-01 0 MAY 01/19 71-00-00-04 3 MAY 01/19
71-00-00-01 0A MAY 01/19 71-00-00-04 4 MAY 01/19
71-00-00-01 0B MAY 01/19 71-00-00-04 5 MAY 01/19
71-00-00-01 0C MAY 01/19 71-00-00-04 6 MAY 01/19
71-00-00-01 1 MAY 01/19 71-00-00-04 7 MAY 01/19
71-00-00-01 2 MAY 01/19 71-00-00-04 8 MAY 01/19
71-00-00-01 3 MAY 01/19 71-00-00-04 9 MAY 01/19
71-00-00-01 4 MAY 01/19 71-00-00-04 10 MAY 01/19
71-00-00-01 5 MAY 01/19 71-00-00-04 11 MAY 01/19
71-00-00-01 6 MAY 01/19 71-10-00-01 0 MAY 01/19
71-00-00-01 7 MAY 01/19 71-10-00-01 0A MAY 01/19
71-00-00-01 8 MAY 01/19 71-10-00-01 0B MAY 01/19
71-00-00-01 9 MAY 01/19 71-10-00-01 1 MAY 01/19
71-00-00-01 10 MAY 01/19 71-10-00-01 2 MAY 01/19
71-00-00-01 11 MAY 01/19 71-10-00-01 3 MAY 01/19
71-00-00-01 12 MAY 01/19 71-10-00-02 0 MAY 01/19
71-00-00-02 0 MAY 01/19 71-10-00-02 0A MAY 01/19
71-00-00-02 0A MAY 01/19 71-10-00-02 0B MAY 01/19
71-00-00-02 0B MAY 01/19 71-10-00-02 1 MAY 01/19
71-00-00-02 0C MAY 01/19 71-10-00-02 2 MAY 01/19
71-00-00-02 1 MAY 01/19 71-10-00-02 3 MAY 01/19
71-00-00-02 2 MAY 01/19 71-10-00-02 4 MAY 01/19
71-00-00-02 3 MAY 01/19 71-10-00-02 5 MAY 01/19
71-00-00-02 4 MAY 01/19 71-10-00-03 0 MAY 01/19
71-00-00-02 5 MAY 01/19 71-10-00-03 0A MAY 01/19
71-00-00-02 6 MAY 01/19 71-10-00-03 1 MAY 01/19
71-00-00-02 7 MAY 01/19 71-10-00-03 2 MAY 01/19
71-00-00-02 8 MAY 01/19 71-10-00-03 3 MAY 01/19
71-00-00-02 9 MAY 01/19 71-10-00-03 4 MAY 01/19
71-00-00-02 10 MAY 01/19 71-10-00-03 5 MAY 01/19
71-00-00-02 11 MAY 01/19 71-10-00-04 0 MAY 01/19
71-00-00-02 12 MAY 01/19 71-10-00-04 0A MAY 01/19
71-00-00-03 0 MAY 01/19 71-10-00-04 0B MAY 01/19
71-00-00-03 0A MAY 01/19 71-10-00-04 0C MAY 01/19
71-00-00-03 0B MAY 01/19 71-10-00-04 1 MAY 01/19
71-00-00-03 0C MAY 01/19 71-10-00-04 2 MAY 01/19
71-00-00-03 1 MAY 01/19 71-10-00-04 3 MAY 01/19
71-00-00-03 2 MAY 01/19 71-10-00-04 4 MAY 01/19
71-00-00-03 3 MAY 01/19 71-10-00-04 5 MAY 01/19
71-00-00-03 4 MAY 01/19 71-10-00-04 6 MAY 01/19
71-00-00-03 5 MAY 01/19 71-10-00-05 0 MAY 01/19
71-00-00-03 6 MAY 01/19 71-10-00-05 0A MAY 01/19
71-00-00-03 7 MAY 01/19 71-10-00-05 0B MAY 01/19
71-00-00-03 8 MAY 01/19 71-10-00-05 1 MAY 01/19
71-00-00-03 9 MAY 01/19 71-10-00-05 2 MAY 01/19
71-00-00-03 10 MAY 01/19 71-10-00-05 3 MAY 01/19
71-00-00-04 0 MAY 01/19 71-10-00-05 4 MAY 01/19
71-00-00-04 0A MAY 01/19 71-10-00-05 5 MAY 01/19
71-00-00-04 0B MAY 01/19 71-10-00-10 0 MAY 01/19
71-00-00-04 0C MAY 01/19 71-10-00-10 1 MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
71 - EFFECTIVE PAGES
PAGE 1
BARON MAY 01/19
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
71-10-00-10 2 MAY 01/19 71-60-00-06 3 MAY 01/19

71-60-00-01 0 MAY 01/19 71-60-00-06 4 MAY 01/19
71-60-00-01 0A MAY 01/19 71-60-00-06 5 MAY 01/19
71-60-00-01 1 MAY 01/19 71-60-00-06 6 MAY 01/19
71-60-00-01 2 MAY 01/19 71-60-00-06 7 MAY 01/19
71-60-00-01 3 MAY 01/19 71-70-00-01 0 MAY 01/19
71-60-00-02 0 MAY 01/19 71-70-00-01 0A MAY 01/19
71-60-00-02 0A MAY 01/19 71-70-00-01 1 MAY 01/19
71-60-00-02 0B MAY 01/19 71-70-00-01 2 MAY 01/19
71-60-00-02 1 MAY 01/19 71-70-00-01 3 MAY 01/19
71-60-00-02 2 MAY 01/19 71-70-00-01 4 MAY 01/19
71-60-00-02 3 MAY 01/19 71-70-00-02 0 MAY 01/19
71-60-00-02 4 MAY 01/19 71-70-00-02 1 MAY 01/19
71-60-00-02 5 MAY 01/19 71-70-00-02 2 MAY 01/19
71-60-00-02 6 MAY 01/19 71-70-00-02 3 MAY 01/19
71-60-00-03 0 MAY 01/19 71-70-00-03 0 MAY 01/19
71-60-00-03 0A MAY 01/19 71-70-00-03 1 MAY 01/19
71-60-00-03 0B MAY 01/19 71-70-00-03 2 MAY 01/19
71-60-00-03 1 MAY 01/19 71-70-00-03 3 MAY 01/19
71-60-00-03 2 MAY 01/19 71-70-00-04 0 MAY 01/19
71-60-00-03 3 MAY 01/19 71-70-00-04 0A MAY 01/19
71-60-00-03 4 MAY 01/19 71-70-00-04 1 MAY 01/19
71-60-00-03 5 MAY 01/19 71-70-00-04 2 MAY 01/19
71-60-00-03 6 MAY 01/19 71-70-00-04 3 MAY 01/19
71-60-00-03 7 MAY 01/19 71-70-00-05 0 MAY 01/19
71-60-00-03 8 MAY 01/19 71-70-00-05 0A MAY 01/19
71-60-00-04 0 MAY 01/19 71-70-00-05 1 MAY 01/19
71-60-00-04 0A MAY 01/19 71-70-00-05 2 MAY 01/19
71-60-00-04 0B MAY 01/19 71-70-00-05 3 MAY 01/19
71-60-00-04 0C MAY 01/19 71-70-00-05 4 MAY 01/19
71-60-00-04 1 MAY 01/19 71-70-00-05 5 MAY 01/19
71-60-00-04 2 MAY 01/19
71-60-00-04 3 MAY 01/19
71-60-00-04 4 MAY 01/19
71-60-00-04 5 MAY 01/19
71-60-00-04 6 MAY 01/19
71-60-00-04 7 MAY 01/19
71-60-00-05 0 MAY 01/19
71-60-00-05 0A MAY 01/19
71-60-00-05 0B MAY 01/19
71-60-00-05 1 MAY 01/19
71-60-00-05 2 MAY 01/19
71-60-00-05 3 MAY 01/19
71-60-00-05 4 MAY 01/19
71-60-00-05 5 MAY 01/19
71-60-00-05 6 MAY 01/19
71-60-00-06 0 MAY 01/19
71-60-00-06 0A MAY 01/19
71-60-00-06 0B MAY 01/19
71-60-00-06 0C MAY 01/19
71-60-00-06 1 MAY 01/19
71-60-00-06 2 MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
71 - EFFECTIVE PAGES
PAGE 2
BARON MAY 01/19
CHAPTER 71 - POWER PLANT
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
GENERAL 71-00-00
POWER PLANT 71-00-00 01 C1608-C9999
POWER PLANT 71-00-00 02 E0938-E0938
E0943-E9999
POWER PLANT 71-00-00 03 H0001-H1388
H1390-H1395
POWER PLANT 71-00-00 04 H1389-H1389
H1396-H9999
COWLING 71-10-00
ENGINE COWLING 71-10-00 01 C1608-C9999
ENGINE COWLING 71-10-00 02 E0938-E0938
E0943-E9999
ENGINE COWLING 71-10-00 03 H0001-H0872
H0874-H0894
ENGINE COWLING WITH AIR CONDITIONING 71-10-00 04 H0873-H0873
H0895-H9999
ENGINE COWLING WITHOUT AIR CONDITIONING 71-10-00 05 H0873-H0873
H0895-H9999
ENGINE MANUAL COWLING FLAP 71-10-00 10 E0938-E0938
E0943-E9999
H0385-H9999
AIR INTAKES 71-60-00
INDUCTION AIR SYSTEM 71-60-00 01 C1608-C9999
INDUCTION AIR SYSTEM 71-60-00 02 E0938-E0938
E0943-E9999
H0001-H9999
ENGINE BAFFLES 71-60-00 03 C1608-C9999
ENGINE BAFFLES 71-60-00 04 E0938-E0938
E0943-E9999
H0001-H1388
H1390-H1395
ENGINE BAFFLES, WITH AIR COND 71-60-00 05 E1119-E1119
E1125-E9999
H0873-H0873
H0895-H1388
H1390-H1395
ENGINE BAFFLES 71-60-00 06 H1389-H1389
H1396-H9999
ENGINE DRAINS 71-70-00
ENGINE DRAINS 71-70-00 01 C1608-C9999
ENGINE DRAINS 71-70-00 02 E0938-E0938
E0943-E9999
ENGINE DRAINS 71-70-00 03 H0001-H0200
H0202-H0212
ENGINE DRAINS 71-70-00 04 H0201-H0201
H0213-H1388
H1390-H1395
71 - CONTENTS
PAGE 1
BARON MAY 01/19
CHAPTER 71 - POWER PLANT
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
ENGINE DRAINS 71-70-00 05 H1389-H1389

H1396-H9999
71 - CONTENTS
PAGE 2
BARON MAY 01/19
71-00-00-01
POWER PLANT
71-00-00-01
BARON MAY 01/19
POWER PLANT
SHEET 1 OF 4
71-00-00-01
PAGE 0
MAY 01/19
POWER PLANT
SHEET 2 OF 4
71-00-00-01
PAGE 0A
MAY 01/19
POWER PLANT
SHEET 3 OF 4
71-00-00-01
PAGE 0B
MAY 01/19
POWER PLANT
SHEET 4 OF 4
71-00-00-01
PAGE 0C
MAY 01/19
PAGE INTENTIONALLY LEFT BLANK

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 POWER PLANT
-5 96-910001-153 POWER PLANT INSTL-LH, STD C RF
GENERATOR 2 BLADE PROP
FOR OTHER SYS DETAILS SEE:
36-10-00-01
37-10-00-01
61-10-00-01
-5 96-910001-155 POWER PLANT INSTL-LH, OPT C RF
ALTERNATOR 2 BLADE PROP
36-10-00-01
37-10-00-01
61-10-00-01
-5 96-910001-157 POWER PLANT INSTL-LH, STD C RF
36-10-00-01
37-10-00-01
61-10-00-02
-5 96-910001-159 POWER PLANT INSTL-LH, OPT C RF
36-10-00-01
37-10-00-01
61-10-00-02
-5 96-910014-1 POWER PLANT INSTL-LH, STD F RF
ALTERNATOR 2 AND 3 BLADE
PROP
-10 96-910001-154 POWER PLANT INSTL-RH, STD C RF
36-10-00-01
37-10-00-01
61-10-00-01
-10 96-910001-156 POWER PLANT INSTL-RH, OPT C RF
36-10-00-01
37-10-00-01
61-10-00-01
-10 96-910001-158 POWER PLANT INSTL-RH, STD C RF
36-10-00-01
37-10-00-01
61-10-00-02
-10 96-910001-160 POWER PLANT INSTL-RH, OPT C RF
36-10-00-01
37-10-00-01
61-10-00-02
-10 96-910014-3 POWER PLT INSTL-RH, STD F RF
ALTR 2 AND 3 BLADE PROP
-55 96-910001-601 . POWER PLANT ASSY-LH FE 1
-60 96-910001-602 . POWER PLANT ASSY-RH FE 1
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED
71-00-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
65 I0470L . . ENGINE-TCM SPEC 21 C 1
65 I0470L . . ENGINE-TCM SPEC 22 F 1
ATTACHING PARTS
75 J9613-5 . . MOUNT ASSY-ENGINE SHOCK FE 4
BONDED
80 AN7-41AM . . BOLT FE 4
-85 AN960-716 . . WASHER FE 4
FOR SPARES ORDER:
NAS1149F0763P
-85 NAS1149F0763P . . WASHER FE 4
SPARES REPLACEMENT FOR:
AN960-716
-------*-------
90 RHB-36W . . . SPARK PLUG FE 12
ALTERNATE SPARE:
AC271
AC273
AC281
AC283
RHB32E
RHB32P
RHB32W
RHB36P
90 RHB-36P . . . SPARK PLUG FE 12
ALTERNATE SPARE:
RHB36W
90 RHB32P . . . SPARK PLUG FE 12
ALTERNATE SPARE:
RHB36W
90 RHB-32W . . . SPARK PLUG FE 12
ALTERNATE SPARE:
RHB36W
90 RHB-32E . . . SPARK PLUG FE 12
ALTERNATE SPARE:
RHB36W
90 AC271 . . . SPARK PLUG FE 12
ALTERNATE SPARE:
RHB36W
ALTERNATE SPARE:
RHB36W
ALTERNATE SPARE:
RHB36W
ALTERNATE SPARE:
RHB36W
135 640030 . . . MAGNETO FE 1
140 640031 . . . HARNESS-MAGNETO WIRE FE 1
-145 638156-3A16 . . . PUMP ASSY-ENGINE DRIVE FUEL FE 1
150 MHJ4002 . . . STARTER ASSY FE 1
FOR DETAILS SEE:
80-10-00-01
155 629327-1 . . . DIP STICK-LH ENGINE OIL FE 1
-160 629327-2 . . . DIP STICK-RH ENGINE OIL FE 1
71-00-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
165 639151 . . . COOLER-ENGINE OIL FE 1
170 1101911 . . . GENERATOR-25 AMP C 1
FOR DETAILS SEE:
24-30-00-06
170 1105056 . . . GENERATOR-40 AMP C 1
-180 627377 . . . PULLEY-GENERATOR, 25 AMP C 1
-180 628005 . . . PULLEY-GENERATOR, 40 AMP C 1
-182 634657 . . . BOLT FE 1
KIT 637831
-185 22786 . . . WASHER FE 1
KIT 637831
-187 634673 . . . BRACKET-ALTERNATOR MOUNT FE 1
KIT 637831
-190 641658 . . . ALTERNATOR-50 AMP 24V FE 1
ALTERNATE SPARE:
ALT8420
-190 ALT8420 . . . ALTERNATOR-50 AMP 24V FE 1
ALTERNATE SPARE:
641658
-195 634571 . . . PULLEY-ALTERNATOR FE 1
-200 539547 . . . BELT-GENERATOR OR FE 1
ALTERNATOR DRIVE
-205 534862 . . . SCREEN ASSY-OIL FILTER FE 1
210 96-910005-75 . . MOUNT ASSY-ENGINE FE 1
ATTACHING PARTS
-215 NAS146-22 . . BOLT-LOWER FITTING FE 2
FOR SPARES ORDER:
MS20006-22
MS20006-11
-215 MS20006-22 . . BOLT-LOWER FITTING FE 2
FOR SPARES ORDER:
MS20006-11
-215 MS20006-11 . . BOLT-LOWER FITTING FE 2
NAS146-22
MS20006-22
-220 AN4076-2 . . BOLT-UPPER FITTING FE 2
-225 NAS143-6C . . WASHER FE 4
FOR SPARES ORDER:
MS20002-6
-225 MS20002-6 . . WASHER FE 4
NAS143-6C
-230 AN960-616 . . WASHER FE AR
MISCELLANEOUS DATA:
MAXIMUM OF 12
ALTERNATE SPARE:
NAS1149F0663P
-230 NAS1149F0663P . . WASHER FE AR
MISCELLANEOUS DATA:
MAXIMUM OF 12
ALTERNATE SPARE:
AN960-616
-235 130909N52 . . NUT FE 4
-------*-------
71-00-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
240 96-380031-1 . . GOVERNOR ASSY-PROP, STD FE 1
WITHOUT SYNCHRONIZER
FOR DETAILS SEE:
61-20-00-01
240 96-380031-3 . . GOVERNOR ASSY-PROP, OPT B 1
WITH SYNCHRONIZER
FOR DETAILS SEE:
61-20-00-03
250 MS28034-1 . . BULB-OIL TEMPERATURE FE 1
-255 AN4076-1 . . FITTING-CYLINDER HEAD FE 1
TEMPERATURE BULB
260 102-00007 . . BULB-CYLINDER HEAD FE 1
TEMPERATURE
ALTERNATE SPARE:
MS24482-1
260 MS24482-1 . . BULB-CYLINDER HEAD FE 1
TEMPERATURE
ALTERNATE SPARE:
102-00007
-270 96-389000-3 . . GENERATOR-TACHOMETER FE 1
275 G455 . . PUMP-VACUUM D 1
275 212CW . . PUMP-DRY AIR, PNEUMATIC E 1
MISCELLANEOUS DATA:
SEE CHAP 30 FOR PUMP
WITH DEICE SYS
FOR SPARES ORDER:
216CW
275 216CW . . PUMP-DRY AIR, PNEUMATIC E 1
MISCELLANEOUS DATA:
SEE CHAP 30 FOR PUMP
WITH DEICE SYS
212CW
-285 AN840-8 . . ADAPTER-VACUUM PUMP HOSE FE 1
LOWER PORT
290 AN840-9 . . ADAPTER-VACUUM PUMP HOSE FE 1
UPPER PORT
295 96-919100 . . BOX ASSY-INDUCTION AIR, FE RF
SEE CHAP 71-60-00-01
-300 WAITS-6-62-5 . . DUCT-COOLING INDUCTION FE 1
AIR TO FUEL PUMP
ALTERNATE SPARE:
BEE1026-12-62-5
-300 BEE1026-12-62-5 . . DUCT-COOLING INDUCTION FE 1
AIR TO FUEL PUMP
ALTERNATE SPARE:
WAITS6-62-5
310 96-910045 . . BREATHER INSTL-ENGINE FE RF
-315 N0NUMBER5 . . DRAIN INSTL-ENGINE FE RF
320 96-950002-75 . . EXHAUST SYSTEM INSTL-LH FE RF
FOR DETAILS SEE:
78-10-00-01
-325 96-950002-77 . . EXHAUST SYSTEM INSTL-RH FE RF
FOR DETAILS SEE:
78-10-00-01
71-00-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-330 1E12G . . JUMPER FE 1
335 AN822-4 . . ELBOW-MANIFOLD PRESSURE FE 1
FOR SPARES ORDER:
MS20822-4
335 MS20822-4 . . ELBOW-MANIFOLD PRESSURE FE 1
AN822-4
340 AN6270-4-10 . . HOSE ASSY-MANIFOLD PRESSURE FE 1
345 AN833-4D . . ELBOW-MANIFOLD PRESSURE FE 1
LINE, RH ONLY
FOR SPARES ORDER:
MS24394D4
345 MS24394D4 . . ELBOW-MANIFOLD PRESSURE FE 1
LINE, RH ONLY
AN833-4D
ATTACHING PARTS
-350 AN960-716L . . WASHER FE 1
FOR SPARES ORDER:
NAS1149F0732P
-350 NAS1149F0732P . . WASHER FE 1
AN960-716L
-355 AN924-4D . . NUT-BULKHEAD FITTING FE 1
ALTERNATE SPARE:
AS5178D04
-355 AS5178D04 . . NUT-BULDHEAD FITTING FE 1
ALTERNATE SPARE:
AN924-4D
-------*-------
360 96-910001-130 . . TUBE ASSY-MANIFOLD FE 1
PRESSURE, RH ONLY
365 MS21919DG4 . . CLAMP- RH ONLY, TUBE TO FE 2
FIREWALL
FOR SPARES ORDER:
MS21919WDG4
AS21919WDG4
365 MS21919WDG4 . . CLAMP-RH ONLY, TUBE TO FE 2
FIREWALL
FOR SPARES ORDER:
AS21919WDG4
365 AS21919WDG4 . . CLAMP-RH ONLY, TUBE TO FE 2
FIREWALL
MS21919DG4
MS21919WDG4
ATTACHING PARTS
-370 AN520-10 . . SCREW FE 1
-375 AN960-10 . . WASHER FE AR
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-------*-------
71-00-00-01
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
380 106200H10-84 . . HOSE-VACUUM PUMP INTAKE FE 1
385 AN838-10D . . ELBOW-RH ENGINE HOSE TO FE 1
TUBE, BULKHEAD
ATTACHING PARTS
-390 AN960-1416L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F1432P
-390 NAS1149F1432P . . WASHER FE 1
ALTERNATE SPARE:
AN960-1416L
-395 AN924-10D . . NUT-BULKHEAD FE 1
-------*-------
400 96-910001-133 . . TUBE ASSY-VACUUM LINE FE 1
ACROSS RH FIREWALL
405 MS20822-10D . . ELBOW-VACUUM TUBE TO FE 1
FIREWALL RH
FOR SPARES ORDER:
AS5195D1008
405 AS5195D1008 . . ELBOW-VACUUM TUBE TO FE 1
FIREWALL RH
MS20822-10D
-410 AN842-10D . . ELBOW-VACUUM TUBE TO FE 1
FIREWALL LH
415 106200G8-40 . . HOSE-AIR DISCHARGE, FE 1
VACUUM PUMP
ATTACHING PARTS
-420 AN737TW26-30 . . CLAMP FE 2
-------*-------
425 5042-1 . . SEPARATOR-VACUUM FE 1
SYSTEM OIL
ATTACHING PARTS
-430 130909B14 . . BOLT FE 4
-435 AN960-10L . . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
-435 NAS1149F0332P . . WASHER FE 4
ALTERNATE SPARE:
AN960-10L
-440 MS21044N3 . . NUT FE 4
-------*-------
445 AN844-4 . . ELBOW-45 DEGREE FE 1
PIPE TO HOSE
450 96-910001-161 . . BRACKET-OIL SEPARATOR FE 1
MOUNTING
455 96-910001-57 . . TUBE-GENERATOR BLAST FE 1
-460 115167CXX040384 . . TUBE-ALTERNATOR BLAST FE 1
ATTACHING PARTS
465 AN737RM38 . . CLAMP-ALTERNATOR FE 2
BLAST TUBE
FOR SPARES ORDER:
132742-38L

71-00-00-01
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
465 132742-38L . . CLAMP-ALTERNATOR FE 2
BLAST TUBE
AN737RM38
-------*-------
470 106200G4-92 . . HOSE-OIL RETURN, FE 1
SEPARATOR TO ENGINE
ATTACHING PARTS
-475 AN737TW22 . . CLAMP FE 2
FOR SPARES ORDER:
132742-22TL
-475 132742-22TL . . CLAMP FE 2
AN737TW22
-------*-------
480 96-910001-31 . . TUBE ASSY-OIL PRESSURE, FE 1
LH FIREWALL ONLY
485 MS28741-4-0260 . . HOSE ASSY-OIL PRESSURE FE 1
490 AN837-4D . . ELBOW-OIL PRESSURE HOSE FE 1
FOR SPARES ORDER:
MS24396D4
490 MS24396D4 . . ELBOW-OIL PRESSURE HOSE FE 1
AN837-4D
ATTACHING PARTS
-495 AN924-4D . . NUT FE 1
ALTERNATE SPARE:
AS5178D04
-495 AS5178D04 . . NUT FE 1
ALTERNATE SPARE:
AN924-4D
-500 AN960-716 . . WASHER FE 2
FOR SPARES ORDER:
NAS1149F0763P
-500 NAS1149F0763P . . WASHER FE 2
AN960-716
-------*-------
-505 AN912-3 . . REDUCER-OIL PRESSURE FE 1
RESTRICTOR
510 45-939120 . . RESTRICTOR ASSY FE 1
515 96-910001-29 . . BRACKET-TUBE SUPPORT, FE 1
LH ONLY
-520 MS21919DG15 . . CLAMP-PROP GOVERNOR FE 1
ACCUMULATOR LINE
FOR SPARES ORDER:
MS21919WDG15
AS21919WDG15
-520 MS21919WDG15 . . CLAMP-PROP GOVERNOR FE 1
ACCUMULATOR LINE
FOR SPARES ORDER:
AS21919WDG15

71-00-00-01
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-520 AS21919WDG15 . . CLAMP-PROP GOVERNOR FE 1
ACCUMULATOR LINE
MS21919DG15
MS21919WDG15
525 MS21919DG8 . . CLAMP FE 1
FOR SPARES ORDER:
MS21919WDG8
AS21919WDG8
525 MS21919WDG8 . . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG8
525 AS21919WDG8 . . CLAMP FE 1
MS21919DG8
MS21919WDG8
ATTACHING PARTS
-530 AN3 . . BOLT FE 1
-535 130909N29 . . NUT FE 1
-------*-------
540 96-910001-134 . . CLIP-CLAMP SUPPORT FE 1
ATTACHING PARTS
-545 AN3 . . BOLT FE 1
-550 130909N29 . . NUT FE 1
-------*-------
-555 96-910001-51 . . BRACKET-OIL AND CYLINDER FE 4
TEMP WIRE SUPPORT
560 M1779 . . CLAMP-MAGNETO WIRE FE 2
FOR SPARES ORDER:
M2755
M1779
565 115167CXZ060505 . . TUBE-FUEL METERING UNIT FE 1
BLAST
-570 35-910004-7 . . WASHER-TUBE FLANGE FE 1
SUPPORT
ATTACHING PARTS
-575 AN515-8R . . SCREW FE 4
-580 AN960-8 . . WASHER FE 4
FOR SPARES ORDER:
NAS1149FN832P
-580 NAS1149FN832P . . WASHER FE 4
AN960-8
-585 130909N29 . . NUT FE 4
-------*-------
-590 MS21919DG7 . . CLAMP-STARTER LEAD SUPPORT FE 1
FOR SPARES ORDER:
MS21919WDG7
AS21919WDG7
-590 MS21919WDG7 . . CLAMP-STARTER LEAD SUPPORT FE 1
AS21919WDG7

71-00-00-01
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-590 AS21919WDG7 . . CLAMP-STARTER LEAD SUPPORT FE 1
MS21919DG7
MS21919WDG7
ATTACHING PARTS
-595 AN520-10R . . SCREW FE 1
-600 130909N29 . . NUT FE 1
-------*-------
-605 96-910001-79 . . CLIP-CLAMP SUPPORT FE 1
-610 6041H190 . . RELAY-STARTER FE 1
ATTACHING PARTS
-615 AN4-4M . . BOLT FE 2
-620 AN936B416 . . WASHER FE 2
FOR SPARES ORDER:
MS35335-33
-620 MS35335-33 . . WASHER FE 2
AN936B416
-625 WAITS-6-62-5 . . DUCT-AIR FLEXIBLE FE 1
ALTERNATE SPARE:
BEE1026-1262-5
-625 BEE1026-12-62-5 . . DUCT-AIR FLEXIBLE FE 1
ALTERNATE SPARE:
WAITS6-62-5
-------*-------
-630 N0NUMBER6 . . FUEL INJECTION SYSTEM C RF
SEE TCM MANUAL X30023A
-635 MS28741-4-0340 . . HOSE ASSY-FUEL FE 1
DISTRIBUTION, ENGINE
-640 102-389034-1 . . TRANSDUCER-FUEL FLOW F 1
-645 105798-8 . . CLAMP-FUEL FLOW TRANSDUCER F 2
-650 96-910050-1 . . BRACKET ASSY-FUEL FLOW F 1
TRANSDUCER
-655 96-910051-1 . . HOSE ASSY-FUEL TRANSDUCER F 1
TO DISTRIBUTOR
660 MS21919D68 . . CLAMP-FUEL LINE SUPPORT FE 1
ATTACHING PARTS
-665 AN520-10R . . SCREW FE 1
-670 AN960-10 . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
-670 NAS1149F0363P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10
-675 130909N29 . . NUT FE 1
-------*-------
-680 AN743-12 . . BRACKET FE 1
-685 MS35489-17 . . GROMMET FE 1
690 MS28741-4-0376 . . HOSE ASSY-FUEL PRESSURE C 1
695 96-920014 . . RESTRICTOR FE 1
-700 MS21919DG8 . . CLAMP-FUEL LINE SUPPORT FE 1
FOR SPARES ORDER:
MS21919WDG8
AS21919WDG8

71-00-00-01
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-700 MS21919WDG8 . . CLAMP-FUEL LINE SUPPORT FE 1
FOR SPARES ORDER:
AS21919WDG8
-700 AS21919WDG8 . . CLAMP-FUEL LINE SUPPORT FE 1
MS21919DG8
MS21919WDG8
ATTACHING PARTS
-705 MS35207-268 . . SCREW FE 1
-710 100696-D-ZC018 . . SPACER FE 1
-715 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-715 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-720 130909N29 . . NUT FE 1
-------*-------
-725 MS35489-16 . . GROMMET FE 1
-730 MS21919DG8 . . CLAMP-FUEL LINE SUPPORT FE 1
FOR SPARES ORDER:
AS21919WDG8
-730 MS21919WDG8 . . CLAMP-FUEL LINE SUPPORT FE 1
FOR SPARES ORDER:
AS21919WDG8
-730 AS21919WDG8 . . CLAMP-FUEL LINE SUPPORT FE 1
MS21919DG8
MS21919WDG8
ATTACHING PARTS
-735 AN520-10R . . SCREW FE 1
-740 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-740 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-745 MS20365-1032C . . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-745 MS21044N3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-745 MS21042-3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-745 130909N29 . . NUT FE 1
FOR SPARES ORDER:
MS20365-1032C
-------*-------
-750 AN743-12 . . BRACKET-CLAMP SUPPORT FE 1

71-00-00-01
PAGE 10
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
ATTACHING PARTS
-755 AN520-10R . . SCREW FE 1
-760 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-760 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-765 MS20365-1032C . . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-765 MS21044N3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-765 MS21042-3 . . NUT 1
ALTERNATE SPARE:
MS20365-1032C
-765 130909N29 . . NUT FE 1
MS20365-1032C
-------*-------
770 MS28741-8-0184 . . HOSE ASSY-FIREWALL TO FE 1
PUMP
-775 AN837-8 . . ELBOW FE 1
-780 AN924-8D . . NUT-BULKHEAD FE 1
ALTERNATE SPARE:
AS5178D08
-780 AS5178D08 . . NUT-BULKHEAD FE 1
ALTERNATE SPARE:
AN924-8D
-785 AN960-1216 . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F1290P
-785 NAS1149F1290P . . WASHER FE 1
ALTERNATE SPARE:
AN960-1216
790 MS28741-4-0222 . . HOSE ASSY-FUEL AND FE 1
VAPOR RETURN
-795 AN837-4D . . ELBOW FE 1
FOR SPARES ORDER:
MS24396D4
-795 MS24396D4 . . ELBOW FE 1
AN837-4D
-800 AN924-4D . . NUT FE 1
ALTERNATE SPARE:
AS5178D04
-800 AS5178D04 . . NUT FE 1
ALTERNATE SPARE:
AN924-4D

71-00-00-01
PAGE 11
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-805 AN960-716 . . WASHER FE 1
FOR SPARES ORDER:
NAS1149F0763P
-805 NAS1149F0763P . . WASHER FE 1
AN960-716
810 96-910015 . . BAFFLE INSTL-ENGINE FE RF
FOR DETAILS SEE:
71-60-00-03
835 96-960006-608 . PROPELLER ASSY-2 BLADED FE 1
ANTI-ICE EQUIPPED
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ANTI-ICE COMPONENTS
ANTI-ICE EQUIPPED
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ANTI-ICE COMPONENTS
ELECTROTHERMAL DEICE
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
DEICE COMPONENTS
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
DEICE COMPONENTS
835 BHCC2YF2CHFFC84656 . PROPELLER ASSY-2 BLADE FE 1
835 PHCC3YF21C76632R . PROPELLER-3 BLADE FE 1
845 C2285-1P . . SPINNER-2 BLADE FE 1
ANTI-ICE PROPELLER
845 C3567-1P . . SPINNER-3 BLADE FE 1
ANTI-ICE PROPELLER
845 96-960022-25 . . SPINNER ASSY-2 BLADE FE 1
PROP.
845 96-960022-27 . . SPINNER ASSY-3 BLADE FE 1
PROP.
C1710-C9999 B
C1608-C2354 C
C1608-C2002 D
C2003-C9999 E
C2355-C9999 F
C1608-C9999 FE

71-00-00-01
PAGE 12
BARON MAY 01/19
71-00-00-02
POWER PLANT
71-00-00-02
BARON MAY 01/19
POWER PLANT
SHEET 1 OF 4
71-00-00-02
PAGE 0
MAY 01/19
POWER PLANT
SHEET 2 OF 4
71-00-00-02
PAGE 0A
MAY 01/19
POWER PLANT
SHEET 3 OF 4
71-00-00-02
PAGE 0B
MAY 01/19
POWER PLANT
SHEET 4 OF 4
71-00-00-02
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 POWER PLANT
-15 58-910000-17 POWER PLANT INSTL-LH, D RF
2 BLADE PROP, WITH A/C
21-50-00-01
-15 96-910002-79 POWER PLANT INSTL-LH, FE RF
2 BLADE PROP
36-10-00-02
61-10-00-03
21-50-00-01
61-10-00-04
-15 96-910002-81 POWER PLANT INSTL-LH, FE RF
3 BLADE PROP
36-10-00-02
61-10-00-04
-20 58-910000-18 POWER PLANT INSTL-RH, D RF
-20 96-910002-80 POWER PLANT INSTL-RH, FE RF
2 BLADE PROP
36-10-00-02
61-10-00-03
61-10-00-04
-20 96-910002-82 POWER PLANT INSTL-RH, FE RF
3 BLADE PROP
36-10-00-02
61-10-00-04
-55 102-389006-5 . . COMPRESSOR ASSY-AIR D 1
CONDITIONER
60 I0520CB . . ENGINE-TCM SPEC 8 N 1
SPARE REPLACEMENT:
IO520C SPEC 7
IO520CB SPEC 7 TCM
ENGINES
60 I0520CB . . ENGINE-TCM SPEC 9 Q 1
ATTACHING PARTS
70 J-10778-16 . . MOUNT-SHOCK FE 4
75 AN7-37M . . BOLT-UPPER ENGINE MOUNT FE 2
-------*-------
80 96-910023 . . BOLT-LOWER ENGINE MOUNT FE 2
ATTACHING PARTS
-85 AN960-716 . . WASHER-UPPER FE 2
UNDER BOLT HEAD
FOR SPARES ORDER:
NAS1149F0763P
71-00-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-85 NAS1149F0763P . . WASHER-UPPER FE 2
UNDER BOLT HEAD
AN960-716
-90 130909N39 . . NUT-UPPER FE 2
-------*-------
95 641668 . . . ALTERNATOR ASSY-24V N 1
50 AMP
FOR DETAILS SEE:
24-30-00-02
95 642055 . . . ALTERNATOR ASSY-24V Q 1
60 AMP
FOR DETAILS SEE:
24-30-00-03
95 640789 . . . ALTERNATOR-24V T 1
85 AMP
FOR DETAILS SEE:
24-30-00-04
95 642056A2 . . . ALTERNATOR ASSY-24V, U 1
100 AMP
FOR DETAILS SEE:
24-30-00-05
FOR DETAILS SEE:
80-10-00-01
120 635996 . . . COOLER-OIL FE 1
125 638154-2A4 . . . PUMP-FUEL, USED WITH P 1
10520C SPEC 7 ENGINE
125 638154-16A3 . . . PUMP-FUEL, USED WITH FE 1
IO520CB SPEC 7, 8, 9 ENG
135 640030 . . . MAGNETO FE 1
-140 636603 . . . HARNESS-MAGNETO WIRE FE 2
-145 641583 . . . FILTER ASSY-OIL GOLD, FE 1
SEE TCM S.B.M76-20
-150 641584 . . . ADAPTER ASSY-FILTER FE 1
SEETCM S.B.M76-20
-155 632881 . . . ADAPTER ASSY-OIL FILTER FE 1
160 RHB-32N . . . SPARK PLUG-MASSIVE FE 12
160 RHB-36P . . . SPARK PLUG-FINE WIRE FE 12
160 AC271 . . . SPARK PLUG-MASSIVE FE 12
160 AC281 . . . SPARK PLUG-FINE WIRE FE 12
-180 EQ5966C . . . INJECTOR EQUIPMENT-FUEL FE 1
COMPLETE
185 631970-3L . . . DIPSTICK-LH ENGINE OIL FE 1
ALTERNATE SPARE:
633233-5
185 633233-5 . . . DIPSTICK-LH ENGINE OIL FE 1
ALTERNATE SPARE:
631970-3L
-195 631970-4R . . . DIPSTICK-RH ENGINE OIL FE 1
ALTERNATE SPARE:
633233-6
-195 633233-6 . . . DIPSTICK-RH ENGINE OIL FE 1
ALTERNATE SPARE:
631970-4R
71-00-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ATTACHING PARTS
-210 NAS146-57M . . BOLT FE 4
ALTERNATE SPARE:
MS20006-46M
-210 MS20006-46M . . BOLT FE 4
ALTERNATE SPARE:
NAS146-57M
-220 MS20002-C6 . . WASHER FE 4
UNDER BOLT HEAD
ALTERNATE SPARE:
NAS143-6C
UNDER BOLT HEAD
ALTERNATE SPARE:
MS20002-C6
-225 AN960-616 . . WASHER FE AR
MISCELLANEOUS DATA:
MAX. OF 2 UNDER
NUT
ALTERNATE SPARE:
NAS1149F0663P
MISCELLANEOUS DATA:
MAX. OF 2 UNDER
NUT
ALTERNATE SPARE:
AN960-616
-230 EB064M . . NUT FE 4
-------*-------
240 AN900-10 . . GASKET-OIL TEMPERATURE BULB FE 1
FOR SPARES ORDER:
MS35769-11
240 MS35769-11 . . GASKET-OIL TEMPERATURE BULB FE 1
AN900-10
245 AN4076-1 . . FITTING-CYLINDER HEAD FE 1
TEMPERATURE BULB
250 102-00007 . . BULB-CYL HEAD TEMP FE 1
ALTERNATE SPARE:
MS24482-1
250 MS24482-1 . . BULB-CYL HEAD TEMP FE 1
ALTERNATE SPARE:
102-00007
260 96-380030-1 . . GOVERNOR ASSY-PROP, FE 1
WITHOUT SYNC
FOR SPARES ORDER:
96-380030-11
FOR DETAILS SEE:
61-20-00-01

71-00-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
WITHOUT SYNC
96-380030-1
FOR DETAILS SEE:
61-20-00-02
260 96-380030-3 . . GOVERNOR ASSY-PROP, C 1
WITH SYNC
FOR SPARES ORDER:
96-380030-13
FOR DETAILS SEE:
61-20-00-03
260 96-380030-13 . . GOVERNOR ASSY-PROP, C 1
WITH SYNC
96-380030-3
FOR DETAILS SEE:
61-20-00-04
FOR SPARES ORDER:
M2755
M1779
275 96-389000-3 . . GENERATOR-TACHOMETER FE 1
-280 MS3108B10SL35 . . CONNECTOR-TACHOMETER FE 1
GENERATOR
-285 MS3057-4A . . CLAMP-CABLE FE 1
FOR SPARES ORDER:
M85049/42-4DW
-285 M85049/42-4DW . . CLAMP-CABLE FE 1
MS3057-4A
-287 MS3057-4B . . CLAMP-CABLE FE 1
FOR SPARES ORDER:
M85049/1-4W
-287 M85049/1-4W . . CLAMP-CABLE FE 1
MS3057-4B
-290 96-389006-3 . . SEPARATOR-SCREEN FE 1
295 96-910002-19 . . TUBE-ENGINE BREATHER FE 1
-300 35-9013-3 . . KIT-AIR PUMP COOLING DUCT E 1
305 242CW . . PUMP-INST AIR, WITHOUT G 1
SURFACE DEICE
305 442CW12 . . PUMP-INST AIR, WITHOUT G 1
SURFACE DEICE
305 212CW . . PUMP-INST AIR, WITH OR H 1
WITHOUT SURFACE DEICE
FOR SPARES PROCURE:
216CW
305 216CW . . PUMP-INST AIR, WITH OR H 1
212CW

71-00-00-02
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-320 58-910024-1 . . DUCT INSTL-AIR PUMP F RF
COOLING
325 58-910024-3 . . . TUBE F 2
330 BE350-1 . . . DUCT F 1
ATTACHING PARTS
335 MS21919DG20 . . . CLAMP FE 2
FOR SPARES ORDER:
MS21919WDG20
AS21919WDG20
335 MS21919WDG20 . . . CLAMP FE 2
FOR SPARES ORDER:
AS21919WDG20
335 AS21919WDG20 . . . CLAMP FE 2
MS21919DG20
MS21919WDG20
340 AN743-12 . . . BRACKET FE 1
-------*-------
345 58-910024-7 . . . CLIP FE 1
ATTACHING PARTS
-350 MS35207-263 . . . SCREW FE 4
-355 AN960-10L . . . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
-355 NAS1149F0332P . . . WASHER FE 4
ALTERNATE SPARE:
AN960-10L
-360 130909N31 . . . NUT FE 4
-------*-------
365 58-910024-5 . . . BRACKET F 1
370 1K10-6-12 . . FITTING-HOSE FE 2
375 106200G12-10 . . HOSE FE 3
-380 CS18A . . CLAMP-HOSE FE 3
385 96-910002-87 . . TUBE FE 1
390 AN742-14C . . CLAMP-TUBE SUPPORT FE 1
ATTACHING PARTS
-395 MS35206-244 . . SCREW FE 1
-400 AN960-8 . . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-405 130909N28 . . NUT FE 1
-------*-------
410 106200G12-68 . . HOSE FE 1
415 1K43-12-12 . . FITTING-HOSE FE 1
-420 AN960PD1716 . . WASHER-HOSE FITTING FE 1
425 96-910002-83 . . TUBE FE 1
430 1J2-5 . . FILTER-AIR PUMP INTAKE FE 1
-435 AN960PD1716 . . WASHER-AIR FILTER FITTING FE 1
440 58-910021-1 . . COVER-AIR FILTER FE 1
ATTACHING PARTS
-445 100696A-ZC008 . . SPACER FE 1
-450 AN970-3 . . WASHER FE 2
71-00-00-02
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-455 AN936A10 . . WASHER FE 1
FOR SPARES ORDER:
MS35333-39
-455 MS35333-39 . . WASHER FE 1
AN936A10
-460 AN315-3R . . NUT FE 1
-------*-------
465 MS21919DG11 . . CLAMP-MAG WIRE HARNESS FE 1
AND FUEL LINE SUPPORT
FOR SPARES ORDER:
MS21919WDG11
AS21919WDG11
465 MS21919WDG11 . . CLAMP-MAG WIRE HARNESS FE 1
FOR SPARES ORDER:
AS21919WDG11
465 AS21919WDG11 . . CLAMP-MAG WIRE HARNESS FE 1
MS21919DG11
MS21919WDG8
-470 MS21919DG8 . . CLAMP-MAG WIRE HARNESS FE 1
FOR SPARES ORDER:
MS21919WDG8
AS21919WDG8
-470 MS21919WDG8 . . CLAMP-MAG WIRE HARNESS FE 1
FOR SPARES ORDER:
AS21919WDG8
-470 AS21919WDG8 . . CLAMP-MAG WIRE HARNESS FE 1
MS21919DG8
MS21919WDG8
ATTACHING PARTS
-475 AN520-10R . . SCREW FE 1
-480 MS20365-1032C . . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-480 MS21044N3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-480 MS21042-3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-480 130909N29 . . NUT FE 1
FOR SPARES ORDER:
MS20365-1032C
-------*-------

71-00-00-02
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
485 AN743-6 . . BRACKET-FUEL LINE CLAMP FE 1
SUPPORT
490 MS21919DG8 . . CLAMP-FUEL LINE SUPPORT FE 1
FOR SPARES ORDER:
MS21919WDG8
AS21919WDG8
490 MS21919WDG8 . . CLAMP-FUEL LINE SUPPORT FE 1
FOR SPARES ORDER:
AS21919DG8
490 AS21919WDG8 . . CLAMP-FUEL LINE SUPPORT FE 1
MS21919DG8
MS21919WDG8
ATTACHING PARTS
-495 AN520-10R . . SCREW FE 1
-500 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-500 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-505 MS20365-1032C . . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-505 MS21044N3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-505 MS21042-3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-505 130909N29 . . NUT FE 1
FOR SPARES ORDER:
130909N29
-------*-------
510 35-910004-7 . . WASHER-FLEX DUCT FLANGE FE 1
BACK UP
ATTACHING PARTS
-515 AN515-8R . . SCREW FE 5
-520 AN960-8 . . WASHER FE 5
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-525 130909N28 . . NUT FE 5
-------*-------
-530 N0NUMBER6 . . FUEL INJECTION SYSTEM FE RF
SEE TCM MANUAL X30040A
-535 635158-40 00 . . . HOSE ASSY-FUEL METERING FE 1
TO DISTRIBUTION
540 115167CXZ060845 . . DUCT-FUEL METERING UNIT FE 1
BLAST
71-00-00-02
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-545 TY28M . . TIE-BLAST DUCT CABLE FE 1
550 58-910019-1 . . ANGLE-MAG WIRE HARNESS FE 1
SUPPORT, LH ONLY
ATTACHING PARTS
-555 AN520-10R . . SCREW FE 1
-560 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-560 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-565 130909N29 . . NUT FE 1
-------*-------
-570 MS21919DG11 . . CLAMP-MAG WIRES ON LH FE 1
FUEL LINE ON RH
FOR SPARES ORDER:
MS21919WDG11
AS21919WDG11
-570 MS21919WDG11 . . CLAMP-MAG WIRES ON LH FE 1
FUEL LINE ON RH
FOR SPARES ORDER:
AS21919WDG11
-570 AS21919WDG11 . . CLAMP-MAG WIRES ON LH FE 1
FUEL LINE ON RH
MS21919DG11
MS21919WDG11
-575 MS21919DG8 . . CLAMP-FUEL LINE, RH ONLY FE 1
FOR SPARES ORDER:
MS21919WDG8
AS21919WDG8
-575 MS21919WDG8 . . CLAMP-FUEL LINE, RH ONLY FE 1
FOR SPARES ORDER:
AS21919DG8
-575 AS21919WDG8 . . CLAMP-FUEL LINE, RH ONLY FE 1
MS21919DG8
MS21919WDG8
ATTACHING PARTS
-580 AN520-10R . . SCREW FE 1
-585 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-585 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-590 MS20365-1032C . . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-590 MS21044N3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
71-00-00-02
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-590 MS21042-3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-590 130909N29 . . NUT FE 1
MS20365-1032C
-------*-------
595 96-919101-137 . . INDUCTION SYSTEM INSTL-LH FE RF
FOR DETAILS SEE:
71-60-00-02
-600 96-919101-153 . . INDUCTION SYSTEM INSTL-RH FE RF
FOR DETAILS SEE:
71-60-00-02
605 96-910024 . . INDUCTION AIR INSTL FE RF
FOR DETAILS SEE:
71-60-00-02
610 96-910020 . . BAFFLE INSTL-ENGINE FE RF
FOR DETAILS SEE:
71-60-00-04
615 96-950002-79 . . EXHAUST SYSTEM INSTL-LH FE RF
FOR DETAILS SEE:
78-10-00-02
-620 96-950002-81 . . EXHAUST SYSTEM INSTL-RH FE RF
FOR DETAILS SEE:
78-10-00-02
630 LOT-6A10 . . DUCT-ALTERNATOR COOLING FE 1
ATTACHING PARTS
-635 NAS397-24 . . CLAMP FE 1
ALTERNATE SPARE:
3616
-635 3616 . . CLAMP FE 1
ALTERNATE SPARE:
NAS397-24
-------*-------
-640 96-910030 . . THROTTLE WARNING INSTL FE RF
-645 96-910030-1 . . . CAM-THROTTLE WARNING FE 1
-650 NAS561P4-10 . . . PIN-THROTTLE WARNING FE 1
655 MS25253-2 . . . SWITCH-THROTTLE WARNING FE 1
-660 JV-20 . . . ACTUATOR R 1
FOR SPARES ORDER:
JV5
-660 JV5 . . . ACTUATOR-THROTTLE FE 1
WARNING SWITCH
JV20
670 96-910030-7 . . . PLATE-SWITCH MOUNTING S 1
FOR SPARES ORDER:
96-910030-13
670 96-910030-13 . . . PLATE-SWITCH MOUNTING A 1
96-910030-7
672 96-910030-3 . . . BRACKET B 1
FOR SPARES ORDER:
96-910030-9
71-00-00-02
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
672 96-910030-9 . . . BRACKET FE 1
96-910030-3
675 MS20822-4D . . ELBOW-RH ENGINE ONLY FE 1
FOR SPARES ORDER:
AS5195D0402
675 AS5195D0402 . . ELBOW-RH ENGINE ONLY FE 1
MS20822-4D
680 AN6270-4-11 . . HOSE ASSY-RH ENGINE ONLY FE 1
685 MS28741-4-0386 . . HOSE ASSY-FUEL PRESSURE N 1
-690 102-389034-1 . . TRANSDUCER-FUEL FLOW Q 1
-695 96-910002-91 . . TUBE ASSY-FUEL TRANSDUCER Q 1
TO DISTRIBUTOR
-700 96-910050-1 . . BRACKET ASSY-FUEL FLOW Q 1
TRANSDUCER
-705 105798-8 . . CLAMP-FUEL FLOW Q 2
TRANSDUCER
710 MS35489-16 . . GROMMET FE 1
715 MS21919DG8 . . CLAMP-HOSE SUPPORT FE 1
FOR SPARES ORDER:
MS21919WDG8
715 MS21919WDG8 . . CLAMP-HOSE SUPPORT FE 1
MS21919DG8
720 AN743-12 . . BRACKET-LH CLAMP SUPPORT FE 1
-725 100-920035-17 . . BRACKET-RH CLAMP SUPPORT FE 1
730 330995F4-0126 . . HOSE ASSY-LH ENGINE OIL FE 1
PRESSURE
-735 330995F4-0180 . . HOSE ASSY-RH ENGINE OIL FE 1
PRESSURE
740 AN833-4 . . ELBOW-LH OIL PRESSURE FE 1
-745 AN924-4D . . NUT FE 1
ALTERNATE SPARE:
AS5178D04
745 AS5178D04 . . NUT FE 1
ALTERNATE SPARE:
AN924-4D
-750 AN960-716L . . WASHER FE 1
FOR SPARES ORDER:
NAS1149F0732P
-750 NAS1149F0732P . . WASHER FE 1
AN960-716L
755 96-910002-9 . . TUBE ASSY-LH OIL PRESSURE FE 1
760 AN822-4D . . ELBOW-LH MANIFOLD PRESSURE FE 1
FOR SPARES ORDER:
MS20822-4D
760 MS20822-4D . . ELBOW-LH MANIFOLD PRESSURE FE 1
AN822-4D
-765 AN816-4D . . ADAPTER-RH MANIFOLD PRESSURE FE 1
ALTERNATE SPARE:
AS5194D0402

71-00-00-02
PAGE 10
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-765 AS5194D0402 . . ADAPTER-RH MANIFOLD PRESSURE FE 1
ALTERNATE SPARE:
AN816-4D
770 AN6270-4-11 . . HOSE ASSY-LH MANIFOLD PRESSURE FE 1
-775 AN6270-4-28 . . HOSE ASSY-RH MANIFOLD PRESSURE FE 1
780 BHCC2YF2CHFFC84756 . . PROPELLER-2 BLADE, J 1
HARTZELL
780 BHCC2YF2CHUFFC84756 . . PROPELLER ASSY-2 BLADE, K 1
HARTZELL
MISCELLANEOUS DATA:
SPARE REPLACEMENT
BHCC2YF2CHFFC84756 IN
PAIRS
-790 PHCC3YF2FFC76632R . . PROPELLER ASSY-3 BLADE, L 1
HARTZELL
-790 PHCC3YF2FUFC76632R . . PROPELLER-3 BLADE, M 1
HARTZELL
MISCELLANEOUS DATA:
SPARES REPLACEMENT
PHCC3YF2FFC76632R IN
PAIRS. SEE CHAPTER 30 FOR
ANTI-ICE, DEICE EQUIPPED
PROPELLERS AND SPINNER
ASSY
800 C-2285-6P . . SPINNER-2 BL PROP, FE 1
HARTZELL, WITHOUT A/C
800 C2285-5P . . SPINNER-2 BL PROP, D 1
HARTZELL, WITH A/C
-810 C3567-1P . . SPINNER-3 BL PROP, FE 1
-810 C3567-4P . . SPINNER-3 BL PROP, D 1
HARTZELL, WITH A/C
-815 58-910028-35 . AIR SYSTEM INSTL-INDUCTION, LH D RF
FOR DETAILS SEE:
71-60-00-02
-815 58-910028-39 . AIR SYSTEM INSTL-INDUCTION, LH D RF
WITH AIR CONDITION
FOR DETAILS SEE:
71-60-00-02
-818 58-910028-41 . AIR SYSTEM INSTL-INDUCTION, RH D RF
FOR DETAILS SEE:
71-60-00-02
820 96-910012 COWLING INSTL-ENGINE FE RF
E1165-E9999 A
E0938-E0938,E0943-E1194 B
E0992-E9999 C
E1119-E1119,E1125-E9999 D
E0938-E0938,E0943-E0968 E
E0969-E9999 F
E0938-E0938,E0943-E1113 G
E1114-E9999 H
E0938-E0938,E0943-E1091 J
E1092-E9999 K
(CONTINUED NEXT PAGE)
71-00-00-02
PAGE 11
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
(CONTINUED)
E0938-E0938,E0943-E1077 L
E1078-E9999 M
E0938-E0938,E0943-E1182 N
E0938-E0938,E0943-E1142 P
E1183-E9999 Q
E0938-E0938,E0943-E1164 R
E1165-E1194 S
E1122-E1162 T
E1163-E9999 U
E0938-E0938,E0943-E9999 FE

71-00-00-02
PAGE 12
BARON MAY 01/19
71-00-00-03
POWER PLANT
71-00-00-03
BARON MAY 01/19
POWER PLANT
SHEET 1 OF 4
71-00-00-03
PAGE 0
MAY 01/19
POWER PLANT
SHEET 2 OF 4
71-00-00-03
PAGE 0A
MAY 01/19
POWER PLANT
SHEET 3 OF 4
71-00-00-03
PAGE 0B
MAY 01/19
POWER PLANT
SHEET 4 OF 4
71-00-00-03
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 POWER PLANT
-5 58-910000-1 POWER PLANT INSTL-LH, B RF
2 BLADE MCCAULEY PROP
61-10-00-05
FOR ADDITIONAL DETAILS SEE:
71-70-00-03
2 BLADE HARTZELL PROP
36-10-00-02
61-10-00-06
-5 58-910000-17 POWER PLANT INSTL-LH, F RF
21-50-00-01
61-10-00-06
-5 58-910000-9 POWER PLANT INSTL-LH, C RF
61-10-00-07
-5 58-910000-15 POWER PLANT INSTL-LH, E RF
36-10-00-02
61-10-00-08
-5 58-910000-19 POWER PLANT INSTL-LH, F RF
3 BLADE HARTZELL PROP,
WITH AIR CONDITIONING
21-50-00-01
61-10-00-08
-10 58-910000-2 POWER PLANT INSTL-RH, B RF
61-10-00-05
71-70-00-03
36-10-00-02
61-10-00-06
-10 58-910000-18 POWER PLANT INSTL-RH, F RF
61-10-00-06
-10 58-910000-10 POWER PLANT INSTL-RH, C RF
61-10-00-07

71-00-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-10 58-910000-16 POWER PLANT INSTL-RH, E RF
36-10-00-02
61-10-00-08
-10 58-910000-20 POWER PLANT INSTL-RH, F RF
61-10-00-08
80 I0520CB . . ENGINE-TCM SPEC 8 R 1
SPARES REPLACEMENT:
IO520C
IO520CB
SPEC 7 ENGINES
80 I0520CB . . ENGINE-TCM G 1
SPEC 5
SPARES REPLACEMENT
IO520C SPEC 5
80 I0520CB . . ENGINE-TCM SPEC 9 T 1
90 J-10778-16 . . MOUNT-SHOCK FE 4
ATTACHING PARTS
95 AN7-37AM . . BOLT-UPPER ENGINE MOUNT FE 2
100 96-910023 . . BOLT-LOWER ENGINE MOUNT FE 2
-105 NAS1149F0732P . . WASHER FE 4
UNDER BOLT HEAD
-110 NAS1149F0763P . . WASHER-UPPER FE 2
UNDER NUT
-115 130909N39 . . NUT-UPPER FE 2
-------*-------
120 641668 . . . ALTERNATOR ASSY-24V, S 1
50 AMP
FOR DETAILS SEE:
24-30-00-02
120 642055 . . . ALTERNATOR ASSY-24V, T 1
60 AMP
FOR DETAILS SEE:
24-30-00-03
120 640789 . . . ALTERNATOR-24V, 85 AMP W 1
FOR DETAILS SEE:
24-30-00-04
120 642056A1 . . . ALTERNATOR-24V, 100 AMP X 1
FOR DETAILS SEE:
80-10-00-01
145 635996 . . . COOLER-OIL FE 1
150 638154-2A4 . . . PUMP-FUEL, USED IO520C Y 1
SPEC 5 AND 7 ENG.
150 638154-16A3 . . . PUMP-FUEL, USED IO520CB FE 1
SPEC 5, 8 AND 9 ENG.
165 1200 . . . MAGNETO AA 1
165 680 . . . MAGNETO G 1
-170 636603 . . . HARNESS-MAGNETO WIRE FE 2
71-00-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-175 632399 . . . FILTER ASSY-OIL FE 1
-180 632266 . . . GASKET-OIL FILTER FE 1
-185 632881 . . . ADAPTER ASSY-OIL FILTER FE 1
190 RHB-32N . . . SPARK PLUG-MASSIVE FE 12
190 RHB-36P . . . SPARK PLUG-FINE WIRE FE 12
190 AC271 . . . SPARK PLUG-MASSIVE FE 12
190 AC281 . . . SPARK PLUG-FINE WIRE FE 12
-210 EQ5966C . . . INJECTOR EQUIPMENT-FUEL FE 1
COMPLETE
215 631970-3L . . . DIPSTICK-LH ENGINE OIL FE 1
ALTERNATE SPARE:
633233-5
215 633233-5 . . . DIPSTICK-LH ENGINE OIL FE 1
ALTERNATE SPARE:
631970-3L
-225 631970-4R . . . DIPSTICK-RH ENGINE OIL FE 1
ALTERNATE SPARE:
633233-6
225 633233-6 . . . DIPSTICK-RH ENGINE OIL FE 1
ALTERNATE SPARE:
631970-4R
ATTACHING PARTS
-240 NAS146-57M . . BOLT FE 4
ALTERNATE SPARE:
MS20006-46M
FOR SPARES ORDER:
130909B225
-240 MS20006-46M . . BOLT FE 4
ALTERNATE SPARE:
NAS146-57M
FOR SPARES ORDER:
130909B225
-240 130909B225 . . BOLT FE 4
NAS146-57M
MS20006-46
UNDER BOLT HEAD
-255 AN960-616 . . WASHER FE AR
MISCELLANEOUS DATA:
MAX. OF 2 UNDER NUT
ALTERNATE SPARE:
NAS1149F0663P
MISCELLANEOUS DATA:
MAX. OF 2 UNDER NUT
ALTERNATE SPARE:
AN960-616
-260 130909N52 . . NUT-AFT SIDE FE 4
-------*-------
270 MS35769-11 . . GASKET-OIL TEMPERATURE FE 1
BULB

71-00-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
275 AN4076-1 . . FITTING-CYLINDER HEAD FE 1
TEMPERATURE BULB
280 MS24482-1 . . BULB-CYLINDER HEAD FE 1
TEMPERATURE
ALTERNATE SPARE:
102-00007
280 102-00007 . . BULB-CYLINDER HEAD FE 1
TEMPERATURE
ALTERNATE SPARE:
MS24482-1
WITHOUT SYNC
FOR SPARES ORDER:
96-380030-11
FOR DETAILS SEE:
61-20-00-01
WITHOUT SYNC
96-380030-1
FOR DETAILS SEE:
61-20-00-02
290 96-380030-3 . . GOVERNOR ASSY-PROP, H 1
WITH SYNC
FOR SPARES ORDER:
96-380030-13
FOR DETAILS SEE:
61-20-00-03
290 96-380030-13 . . GOVERNOR ASSY-PROP, H 1
WITH SYNC
96-380030-3
FOR DETAILS SEE:
61-20-00-04
305 96-389000 . . GENERATOR-TACHOMETER FE 1
-310 102-389006-5 . . COMPRESSOR ASSY-AIR F 1
CONDITIONER
-315 96-389006-3 . . SEPARATOR-SCREEN FE 1
320 96-910002-19 . . TUBE-ENGINE BREATHER FE 1
-325 35-9013-3 . . KIT-AIR PUMP COOLING DUCT J 1
330 242CW . . PUMP-INSTRUMENT AIR, Q 1
330 442CW12 . . PUMP-INSTRUMENT AIR, Q 1
WITH SURFACE DEICE
330 212CW . . PUMP-INST AIR, WITH OR V 1
FOR SPARES ORDER:
216CW
330 216CW . . PUMP-INST AIR, WITH OR V 1
212CW
-345 58-910024-1 . . DUCT INSTL-AIR PUMP K RF
COOLING
71-00-00-03
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
350 58-910024-3 . . . TUBE K 2
355 BE350-1 . . . DUCT K 1
360 MS21919WDG20 . . . CLAMP FE 2
FOR SPARES ORDER:
AS21919WDG20
360 AS21919WDG20 . . . CLAMP FE 2
MS21919WDG20
365 AN743-12 . . . BRACKET FE 1
370 58-910024-7 . . . CLIP FE 1
ATTACHING PARTS
-375 MS35207-263 . . . SCREW FE 4
-380 NAS1149F0332P . . . WASHER FE 4
-385 130909N31 . . . NUT FE 4
-------*-------
390 58-910024-5 . . . BRACKET K 1
395 1K10-6-12 . . FITTING-HOSE FE 2
400 106200G12-10 . . HOSE FE 3
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR HOSES
AND FITTINGS USED WITH
SURFACE DEICER.
-405 130292-A-18 . . CLAMP-HOSE FE 8
410 96-910002-87 . . TUBE FE 1
415 MS21919WDG12 . . CLAMP-TUBE SUPPORT FE 1
FOR SPARES ORDER:
AS21919WDG12
415 AS21919WDG12 . . CLAMP-TUBE SUPPORT FE 1
MS21919WDG12
ATTACHING PARTS
-420 MS35206-244 . . SCREW FE 1
-430 130909N28 . . NUT FE 1
-------*-------
435 106200G12-64 . . HOSE FE 1
-440 AN960PD1716 . . WASHER-FITTING FE 2
445 1K43-12-12 . . FITTING FE 1
450 96-910002-83 . . TUBE FE 1
452 96-910022-19 . . TUBE ASSY-BLAST, FE 1
FUEL PUMP
455 1J2-5 . . FILTER-AIR PUMP INTAKE FE 1
-460 AN960PD1716 . . WASHER-AIR FILTER FITTING FE 1
465 58-910021-1 . . COVER-AIR FILTER FE 1
ATTACHING PARTS
-470 100696AZC012 . . SPACER FE 1
-475 AN970-3 . . WASHER FE 2
-480 MS35333-39 . . WASHER FE 1
-485 AN315-3R . . NUT FE 1
-------*-------
490 MS21919WDG11 . . CLAMP-MAG WIRE HARNESS FE 1
FOR SPARES ORDER:
AS21919WDG11

71-00-00-03
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
490 AS21919WDG11 . . CLAMP-MAG WIRE HARNESS FE 1
AS21919WDG11
-495 MS21919WDG8 . . CLAMP-MAG WIRE HARNESS FE 1
ATTACHING PARTS
-500 AN520-10R . . SCREW FE 1
-505 130909N29 . . NUT FE 1
-------*-------
510 AN743-6 . . BRACKET FE 1
515 MS21919WDG8 . . CLAMP-FUEL LINE SUPPORT FE 1
ATTACHING PARTS
-520 AN520-10R . . SCREW FE 1
-525 NAS1149F0332P . . WASHER FE 1
-530 130909N29 . . NUT FE 1
-------*-------
535 35-910004-7 . . WASHER-FLEX DUCT FLANGE FE 1
BACK UP
ATTACHING PARTS
-540 AN515-8R . . SCREW FE 5
-550 130909N28 . . NUT FE 5
-------*-------
555 115167CXZ060845 . . DUCT-FUEL METERING UNIT FE 1
BLAST
-560 TY28M . . TIE-BLAST DUCT CABLE FE 1
565 58-910019-1 . . ANGLE-MAG WIRE HARNESS FE 1
SUPPORT LH ONLY
ATTACHING PARTS
-570 AN520-10R . . SCREW FE 2
-575 NAS1149F0332P . . WASHER FE 2
-580 130909N29 . . NUT FE 2
-------*-------
585 96-919101-137 . . INDUCTION SYSTEM INSTL-LH N RF
-590 96-919101-153 . . INDUCTION SYSTEM INSTL-RH N RF
595 96-910024 . . INDUCTION AIR INSTL M RF
FOR DETAILS SEE:
71-60-00-02
600 58-910011 . . COWLING INSTL-SEE FE RF
71-10-00-03
605 96-910020-301 . . BAFFLE INSTL-ENGINE FE RF
FOR DETAILS SEE:
71-60-00-04
71-60-00-05
610 96-950002-79 . . EXHAUST SYSTEM INSTL-LH Z RF
FOR DETAILS SEE:
78-10-00-02
-615 96-950002-81 . . EXHAUST SYSTEM INSTL-RH Z RF
FOR DETAILS SEE:
78-10-00-02
625 LOT-6A10 . . DUCT-ALTERNATOR COOLING FE 1

71-00-00-03
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-630 NAS397-24 . . CLAMP FE 1
ALTERNATE SPARE:
3616
-630 3616 . . CLAMP FE 1
ALTERNATE SPARE:
NAS397-24
-635 96-910030 . . THROTTLE WARNING INSTL FE RF
-640 96-910030-1 . . . CAM-THROTTLE WARNING FE 1
-645 NAS561P4-10 . . . PIN-THROTTLE WARNING FE 1
650 MS25253-2 . . . SWITCH-THROTTLE WARNING FE 1
655 96-910030-7 . . . PLATE-SWITCH MOUNTING U 1
FOR SPARES PROCURE:
96-910030-13
655 96-910030-13 . . . PLATE-SWITCH MOUNTING A 1
96-910030-7
660 96-910030-3 . . . BRACKET AB 1
FOR SPARES ORDER:
96-910030-9
660 96-910030-9 . . . BRACKET FE 1
96-910030-3
-665 JV5 . . . ACTUATOR FE 1
670 AS5195D0402 . . ELBOW-RH ENGINE ONLY FE 1
675 AN6270-4-11 . . HOSE ASSY-RH ENGINE ONLY FE 1
680 MS28741-4-0386 . . HOSE ASSY-FUEL PRESSURE FE 1
685 MS35489-16 . . GROMMET FE 1
690 MS21919WDG8 . . CLAMP-HOSE SUPPORT FE 1
695 AN743-12 . . BRACKET-LH CLAMP SUPPORT FE 1
-700 100-920035-17 . . BRACKET-RH CLAMP SUPPORT FE 1
705 MS28741-4-0126 . . HOSE ASSY-LH ENGINE OIL FE 1
PRESSURE
-710 MS28741-4-0180 . . HOSE ASSY-RH ENGINE OIL FE 1
PRESSURE
715 AN833-4 . . ELBOW-LH OIL PRESSURE FE 1
-720 AN924-4D . . NUT FE 1
ALTERNATE SPARE:
AS5178D04
-720 AS5178D04 . . NUT FE 1
ALTERNATE SPARE:
AN924-4D
-725 NAS1149F0732P . . WASHER FE 1
730 96-910002-9 . . TUBE ASSY-LH OIL PRESSURE FE 1
735 MS20822-4D . . ELBOW-LH MANIFOLD FE 1
PRESSURE
FOR SPARES ORDER:
AS5195D0402
735 AS5195D0402 . . ELBOW-LH MANIFOLD FE 1
PRESSURE
MS20822-4D
-740 AS5194D0402 . . ADAPTER-RH MANIFOLD FE 1
PRESSURE
ALTERNATE SPARE:
AN816-4D
71-00-00-03
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-740 AN816-4D . . ADAPTER-RH MANIFOLD FE 1
PRESSURE
ALTERNATE SPARE:
AS5194D0402
745 AN6270-4-11 . . HOSE ASSY-LH MANIFOLD PRE FE 1
-750 AN6270-4-28 . . HOSE ASSY-RH MANIFOLD FE 1
PRESSURE
765 BHCJ2YF2CFFC84756 . . PROPELLER ASSY-2 BLADE, N 1
HARTZELL
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
765 D2AF34C3078FF0 . . PROPELLER-2 BLADE, B 1
MCCAULEY
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
765 D3AF32C3582NB6 . . PROPELLER ASSY-3 BLADE, C 1
MCCAULEY
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
765 BHCJ2YF2UCFFC84756 . . PROPELLER-2 BLADE, L 1
HARTZELL
MISCELLANEOUS DATA:
SPARE REPLACEMENT FOR
BHCJ2YF2CFFC84756 PROP IN
ASSY
765 PHCJ3YF2FFC76632R . . PROPELLER ASSY-3 BLADE, P 1
HARTZELL
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
765 PHCJ3YF2UFFC76632R . . PROPELLER ASSY-3 BLADE, M 1
HARTZELL
MISCELLANEOUS DATA:
SPARE REPLACEMENT FOR
BHCJ2YF2CFFC84756 PROP IN
ASSY

71-00-00-03
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
795 C-2285-6P . . SPINNER-2 BL PROP, D 1
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
795 58-910000-3 . . SPINNER ASSY-2 BL PROP, B 1
MCCAULEY
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
795 58-910000-11 . . SPINNER ASSY-3 BL PROP, B 1
MCCAULEY
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
795 C2285-5P . . SPINNER-2 BL PROP, F 1
HARTZELL,WITH A/C
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
795 C3567-1P . . SPINNER-3 BL PROP, E 1
HARTZELL,WITHOUT A/C
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
795 C3567-4P . . SPINNER-3 BL PROP F 1
HARTZELL,WITH A/C
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
ASSY
-800 58-910028-35 . AIR SYSTEM INSTL-INDUCTION, LH F RF
FOR DETAILS SEE:
71-60-00-02
-800 58-910028-39 . AIR SYSTEM INSTL-INDUCTION, LH F RF
WITH AIR CONDITION
FOR DETAILS SEE:
71-60-00-02
-805 58-910028-41 . AIR SYSTEM INSTL-INDUCTION, RH F RF
FOR DETAILS SEE:
71-60-00-02
H1064-H1388,H1390-H1395 A
71-00-00-03
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
(CONTINUED)
H0001-H0194,H0210-H0210 B
H0001-H0181 C
H0195-H0209,H0211-H1388,H1390-H1395 D
H0182-H1388,H1390-H1395 E
H0873-H0873,H0895-H1388,H1390-H1395 F
H0001-H0244 G
H0467-H0472,H0475-H1388,H1390-H1395 H
H0001-H0443 J
H0444-H1388,H1390-H1395 K
H0576-H1388,H1390-H1395 L
H0737-H1388,H1390-H1395 M
H0195-H0755 N
H0182-H0736 P
H0001-H0873 Q
H0245-H1193 R
H0001-H1193 S
H1194-H1388,H1390-H1395 T
H1064-H1290 U
H0874-H1388,H1390-H1395 V
H0895-H1053,H1056-H1388 W
H1054-H1388,H1390-H1395 X
H0001-H1021 Y
H0001-H0740 Z
H0245-H1388,H1390-H1395 AA
H0001-H1290 AB
H0001-H1388,H1390-H1395 FE

71-00-00-03
PAGE 10
BARON MAY 01/19
71-00-00-04
POWER PLANT
71-00-00-04
BARON MAY 01/19
POWER PLANT
SHEET 1 OF 4
71-00-00-04
PAGE 0
MAY 01/19
POWER PLANT
SHEET 2 OF 4
71-00-00-04
PAGE 0A
MAY 01/19
POWER PLANT
SHEET 3 OF 4
71-00-00-04
PAGE 0B
MAY 01/19
POWER PLANT
SHEET 4 OF 4
71-00-00-04
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 POWER PLANT
-5 58-910001-1 POWER PLANT INSTL-LH AA RF
21-50-00-01
71-70-00-05
-5 58-910001-5 POWER PLANT INSTL-LH, AA RF
WITH AIR CONDITION
21-50-00-01
71-70-00-05
-5 58-910001-33 POWER PLANT INSTL-LH AB RF
ALTERNATE SPARE:
58-910001-37
21-50-00-01
71-70-00-05
-5 58-910001-37 POWER PLANT INSTL-LH, AB RF
WITH AIR CONDITION
ALTERNATE SPARE:
58-910001-33
21-50-00-01
71-70-00-05
-5 58-910001-0047 POWER PLANT INSTL-LH AC RF
21-50-00-01
71-70-00-05
-10 58-910001-3 POWER PLANT INSTL-RH AA RF
21-50-00-01
71-70-00-05
-10 58-910001-7 POWER PLANT INSTL-RH, AA RF
WITH AIR CONDITION
21-50-00-01
71-70-00-05
-10 58-910001-35 POWER PLANT INSTL-RH AB RF
ALTERNATE SPARE:
58-910001-39
21-50-00-01
71-70-00-05
-10 58-910001-39 POWER PLANT INSTL-RH, AB RF
WITH AIR CONDITION
ALTERNATE SPARE:
58-910001-35
21-50-00-01
71-70-00-05
-10 58-910001-0049 POWER PLANT INSTL-RH AC RF
21-50-00-01
71-70-00-05
25 IO-550-C2 . ENGINE ASSY-SPEC 2 B 1
25 IO-550-C25 . ENGINE ASSY-SPEC 25 T 1
25 IO-550-C30 . ENGINE ASSY-SPEC 30 U 1
71-00-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
25 IO-550-C31 . ENGINE ASSY-SPEC 31 V 1
IO-550-C30
ALTERNATE SPARE:
IO-550-C72
25 IO-550-C72 . ENGINE ASSY-SPEC 72 V 1
ALTERNATE SPARE:
IO-550-C31
25 IO-550-C72 . ENGINE ASSY-SPEC 72 Z 1
-40 S6RN1225 . . MAGNETO B 1
-40 6310 . . MAGNETO C 1
50 J-10778-16 . MOUNT-SHOCK FE 4
55 130909B77 . BOLT-UPPER ENGINE MOUNT FE 2
60 96-910023 . BOLT-LOWER ENGINE MOUNT FE 2
-65 NAS1149F0732P . WASHER FE 4
UNDER BOLT HEAD
-70 NAS1149F0763P . WASHER-UPPER FE 2
UNDER NUT
-75 130909N39 . NUT-UPPER FE 2
80 633233-39 . DIPSTICK-LH OIL F 1
FOR SPARES ORDER:
652171-5
80 635275-5 . DIPSTICK-LH OIL F 1
FOR SPARES ORDER:
652171-5
80 652171-5 . DIPSTICK-LH ENGINE OIL FE 1
633233-39
635275-5
-95 633233-40 . DIPSTICK-RH OIL F 1
FOR SPARES ORDER:
652171-6
-95 635235-6 . DIPSTICK-RH OIL F 1
FOR SPARES ORDER:
652171-6
-95 652171-6 . DIPSTICK-RH ENGINE OIL FE 1
633233-40
635235-6
110 96-910010-61 . MOUNT ASSY-ENGINE M 1
FOR SPARES ORDER:
96-910010-85
110 96-910010-67 . MOUNT ASSY-ENGINE N 1
FOR SPARES ORDER:
96-910010-85
110 96-910010-85 . MOUNT ASSY-ENGINE FE 1
96-910010-61
96-910010-67
ATTACHING PARTS
-125 NAS146-57M . BOLT P 4
ALTERNATE SPARE:
MS20006-46M
FOR SPARES ORDER:
130909B225
71-00-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-125 MS20006-46M . BOLT P 4
ALTERNATE SPARE:
NAS146-57M
FOR SPARES ORDER:
130909B225
-125 130909B225 . BOLT FE 4
NAS146-57M
MS20006-46M
-135 NAS143-6C . WASHER FE 4
UNDER BOLT HEAD
-140 NAS1149F0663P . WASHER FE AR
MAX. OF 2 UNDER NUT
-145 130909N52 . NUT-AFT SIDE FE 4
-------*-------
150 MS28034-1 . BULB-OIL TEMPERATURE FE 1
155 MS35769-11 . GASKET-OIL TEMPERATURE FE 1
SENSOR
160 AN4076-1 . FITTING-CYLINDER HEAD Q 1
TEMPERATURE SENSOR
165 MS24482-1 . BULB-CYL HEAD TEMP Q 1
ALTERNATE SPARE:
102-00007
165 102-00007 . BULB-CYL HEAD TEMP Q 1
ALTERNATE SPARE:
MS24482-1
168 86245 . PROBE-EGT R 6
170 86252 . PROBE-CHT R 6
172 AN4076-1 . FITTING-CYLINDER HEAD R 6
TEMPERATURE SENSOR
175 96-380030-1 . GOVERNOR ASSY-PROP, D 1
WITHOUT SYNC
FOR SPARES ORDER:
96-380030-11
FOR DETAILS SEE:
61-20-00-01
61-20-00-02
175 96-380030-11 . GOVERNOR ASSY-PROP, FE 1
WITHOUT SYNC
96-380030-1
FOR DETAILS SEE:
61-20-00-01
61-20-00-02
175 96-380030-3 . GOVERNOR ASSY-PROP, D 1
WITH SYNC
FOR SPARES ORDER:
96-380030-13
FOR DETAILS SEE:
61-20-00-03
61-20-00-04

71-00-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
175 96-380030-13 . GOVERNOR ASSY-PROP, FE 1
WITH SYNC
96-380030-3
FOR DETAILS SEE:
61-20-00-03
61-20-00-04
-195 AN929-6J . CAP-ON GOVERNOR FE 1
UNFEATHERING FITTING
200 M1779 . CLAMP-MAGNETO WIRE FE 2
205 102-389015-3 . TRANSDUCER-TACHOMETER E 1
FOR SPARES ORDER:
102-389015-5
205 102-389015-5 . TRANSDUCER-TACHOMETER FE 1
102-389015-3
-210 102-389006-5 . COMPRESSOR ASSY-AIR K 1
CONDITIONER
USED ON PART NUMBER:
58-910001-5
-210 36-555003-3 . COMPRESSOR ASSY-AIR L 1
CONDITIONER
USED ON PART NUMBER:
58-910001-5
58-910001-37
-220 58-910035-1 . TUBE INSTL-LH ENGINE FE RF
BREATHER
FOR DETAILS SEE:
71-70-00-05
-225 58-910035-3 . TUBE INSTL-RH ENGINE FE RF
BREATHER
FOR DETAILS SEE:
71-70-00-05
230 212CW . PUMP-INSTRUMENT AIR A 1
FOR SPARES ORDER:
AA3216CW
230 216CW . PUMP-INSTRUMENT AIR S 1
FOR SPARES ORDER:
AA3216CW
230 AA216CW . PUMP-INSTRUMENT AIR Q 1
FOR SPARES ORDER:
AA3216CW
230 AA3216CW . PUMP-INSTRUMENT AIR Q 1
212CW
216CW
AA216CW
ATTACHING PARTS
-232 AN125964 . STUD FE 1
MISCELLANEOUS DATA:
ADDITIONAL STUDS, WASHERS
AND NUTS FURNISHED WITH ENGINE
-------*-------
-235 58-910024-1 . DUCT INSTL-AIR PUMP FE RF
COOLING
71-00-00-04
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
240 58-910024-3 . . TUBE-AIR PUMP COOLING FE 2
245 BE350-1 . . DUCT-AIR PUMP COOLING FE 1
250 MS21919WDG20 . . CLAMP FE 2
FOR SPARES ORDER:
AS21919WDG20
250 AS21919WDG20 . . CLAMP FE 2
MS21919WDG20
255 AN743-12 . . BRACKET FE 1
260 58-910024-7 . . CLIP FE 1
ATTACHING PARTS
-265 AN520-10R8 . . SCREW FE 4
-270 NAS1149F0332P . . WASHER FE 4
-275 130909N31 . . NUT FE 4
-------*-------
280 58-910024-5 . . BRACKET FE 1
285 1K10-6-12 . FITTING-INSTRUMENT AIR FE 2
HOSE
290 106200G12-10 . HOSE-INSTRUMENT AIR FE 3
-295 CS-18A . CLAMP-HOSE FE 6
300 96-910002-87 . TUBE-INSTRUMENT AIR FE 1
305 MS21919WDG12 . CLAMP-INSTRUMENT AIR TUBE FE 1
SUPPORT
FOR SPARES ORDER:
AS21919WDG12
305 AS21919WDG12 . CLAMP-INSTRUMENT AIR TUBE FE 1
SUPPORT
MS21919WDG12
ATTACHING PARTS
-310 MS35207-262 . SCREW FE 1
-320 130909N29 . NUT FE 1
-------*-------
325 106200G12-64 . HOSE-INSTRUMENT AIR FE 1
ATTACHING PARTS
-330 CS-18A . CLAMP FE 2
-------*-------
335 1K43-12-12 . FITTING FE 1
ONE EACH SIDE OF
FIREWALL
345 96-910002-83 . TUBE-INSTRUMENT AIR FE 1
350 1J2-5 . FILTER-AIR PUMP INTAKE FE 1
360 58-910021-1 . COVER-AIR FILTER FE 1
ATTACHING PARTS
-365 NAS43DD3-16 . SPACER FE 1
-370 AN970-3 . WASHER FE 2
-375 130909N29 . NUT FE 1
-------*-------
380 AN742D16C . CLAMP-FUEL LINE SUPPORT FE 1
FOR SPARES ORDER:
AS5587D16C

71-00-00-04
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
380 AS5587D16C . CLAMP FE 1
AN742D16C
ATTACHING PARTS
-385 MS35207-268 . SCREW FE 1
-400 130909N29 . NUT FE 1
-------*-------
405 AN743-6 . BRACKET FE 1
410 AN742D16C . CLAMP-FUEL LINE SUPPORT FE 1
FOR SPARES ORDER:
AS5587D16C
410 AS5587D16C . CLAMP FE 1
AN742D16C
ATTACHING PARTS
-415 MS35207-263 . SCREW FE 1
-425 130909N29 . NUT FE 1
-------*-------
430 35-910004-7 . WASHER-FLEX DUCT FLANGE FE 1
BACKUP
ATTACHING PARTS
-435 MS35206-243 . SCREW FE 4
-440 NAS1149FN832P . WASHER FE 4
-445 130909N28 . NUT FE 4
-------*-------
450 115167CXZ060845 . DUCT-FLEX FE 1
-455 TYZ-28M . TIE-FLEX DUCT FE AR
ALTERNATE SPARE:
TYZ25M
-455 TYZ25M . TIE-FLEX DUCT FE AR
ALTERNATE SPARE:
TYZ-28M
460 MS35207-267 . SCREW-MAG HARNESS SUPPORT FE 1
CLAMP, CLAMP FURNISHED
WITH ENGINE
-475 130909N29 . NUT FE 1
-480 58-910028-35 . AIR SYSTEM INSTL-INDUCTION FE RF
LH
FOR DETAILS SEE:
71-60-00-02
-480 58-910028-39 . AIR SYSTEM INSTL-INDUCTION FE RF
LH, WITH AIR CONDITION
FOR DETAILS SEE:
71-60-00-02
-490 58-910028-41 . AIR SYSTEM INSTL-INDUCTION, RH FE RF
FOR DETAILS SEE:
71-60-00-02
-495 96-910024-49 . INDUCTION AIR INSTL FE RF
FOR DETAILS SEE:
71-60-00-02
71-00-00-04
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-500 58-910011-245 . COWLING INSTL-LH FE RF
FOR DETAILS SEE:
71-10-00-04
-500 58-910011-249 . COWLING INSTL-LH, FE RF
WITH AIR COND
FOR DETAILS SEE:
71-10-00-04
-505 58-910011-247 . COWLING INSTL-RH FE RF
FOR DETAILS SEE:
71-10-00-04
-505 58-910011-251 . COWLING INSTL-RH, FE RF
WITH AIR COND
FOR DETAILS SEE:
71-10-00-04
-520 96-910020-413 . BAFFLE INSTL-LH FE RF
FOR DETAILS SEE:
71-60-00-06
-520 96-910020-415 . BAFFLE INSTL-LH, FE RF
WITH AIR COND
FOR DETAILS SEE:
71-60-00-06
-525 96-910020-413 . BAFFLE INSTL-RH, FE RF
WITH AND WITHOUT
AIR COND
FOR DETAILS SEE:
71-60-00-06
-530 96-950004-1 . EXHAUST SYSTEM INSTL-LH Q RF
FOR DETAILS SEE:
78-10-00-04
-530 96-950004-137 . EXHAUST SYSTEM INSTL-LH R RF
FOR DETAILS SEE:
78-10-00-04
-535 96-950004-3 . EXHAUST SYSTEM INSTL-RH Q RF
FOR DETAILS SEE:
78-10-00-04
-535 96-950004-139 . EXHAUST SYSTEM INSTL-RH R RF
FOR DETAILS SEE:
78-10-00-04
540 LOT-6A10 . DUCT-ALTERNATOR COOLING FE 1
ATTACHING PARTS
-545 NAS397-24 . CLAMP FE 1
ALTERNATE SPARE:
3616
-545 3616 . CLAMP FE 1
ALTERNATE SPARE:
NAS397-24
-------*-------
550 102-389012-5 . TRANSDUCER-FUEL FLOW FE 1
ALTERNATE SPARE:
102-389034-1
102-389012-11
ALTERNATE SPARE:
102-389012-5
102-389012-11
71-00-00-04
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
ALTERNATE SPARE:
102-389012-5
102-389034-1
560 28KS3 . CLAMP-TRANSDUCER FE 2
FOR SPARES ORDER:
9428
560 9428 . CLAMP-TRANSDUCER FE 2
28KS3
565 96-910050-1 . BRACKET ASSY-TRANSDUCER FE 1
SUPPORT
570 96-910051-1 . HOSE ASSY-FUEL FE 1
575 96-910022 . TUBE-BLAST, FUEL PUMP H 1
FOR SPARES ORDER:
96-910022-19
575 96-910022-19 . TUBE ASSY-BLAST, FUEL PUMP FE 1
96-910022
-585 BJ-1000AH-3DO . VALVE-OIL DRAIN FE 1
590 96-910001-79 . CLIP-STARTER WIRE CLAMP FE 1
SUPPORT
595 MS21919WH10 . CLAMP-STARTER WIRE FE 1
ATTACHING PARTS
-600 130909B14 . BOLT FE 1
-610 130909N29 . NUT FE 1
-------*-------
-615 MS35489-11 . GROMMET-MAG WIRES, FE 1
ON BAFFLE
620 102-389017-1 . TRANSMITTER-OIL PRESSURE Q 1
ALTERNATE SPARE:
102-389017-3
620 102-389017-3 . TRANSDUCER-OIL PRESSURE Q 1
ALTERNATE SPARE:
102-389017-1
620 APT-20G-1000-150G . TRANSDUCER-OIL PRESSURE R 1
-625 4GTX-B . COUPLING FE 1
630 MS21919WDG25 . CLAMP-TRANSMITTER SUPPORT Q 1
FOR SPARES ORDER:
AS21919WDG25
630 AS21919WDG25 . CLAMP-TRANSMITTER SUPPORT Q 1
MS21919WDG25
630 MS21919WDG16 . CLAMP-TRANSDUCER SUPPORT R 1
FOR SPARES ORDER:
AS21919WDG16
630 AS21919WDG16 . CLAMP-TRANSDUCER SUPPORT R 1
MS21919WDG16
ATTACHING PARTS
-635 MS35207-263 . SCREW FE 1
-645 MS21059L3K . NUTPLATE Q 1
-------*-------
71-00-00-04
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
650 330997F4-0150 . HOSE ASSY-OIL PRESSURE FE 1
655 AN837-4 . ELBOW FE 1
-657 AN924-4 . NUT FE 1
ALTERNATE SPARE:
AS5178-04
-657 AS5178-04 . NUT FE 1
ALTERNATE SPARE:
AN924-4
660 58-910000-51 . TUBE ASSY-OIL PRESSURE Q 1
660 58-910001-31 . TUBE ASSY-OIL PRESSURE R 1
665 AN6270-4D-0110 . HOSE ASSY-LH ENGINE FE 1
667 AN833-4 . ELBOW-LH R 1
-668 AN960-716 . WASHER-LH R 1
-669 AN924-4 . NUT-LH R 1
ALTERNATE SPARE:
AS5178-04
-669 AS5178-04 . NUT-LH R 1
ALTERNATE SPARE:
AN924-4
-672 AN6270-4D-0280 . HOSE ASSY-RH ENGINE FE 1
-674 AN837-4 . ELBOW-RH R 1
-675 AN960-716 . WASHER-RH R 1
-676 AN924-4 . NUT-RH R 1
ALTERNATE SPARE:
AS5178-04
-676 AS5178-04 . NUT-RH R 1
ALTERNATE SPARE:
AN924-4
679 MS21919WDG8 . CLAMP Y 1
680 MS21919WDG10 . CLAMP Y 1
FOR SPARES ORDER:
AS21919WDG10
680 AS21919WDG10 . CLAMP Y 1
MS21919WDG10
ATTACHING PARTS
681 AN3-4A . BOLT Y 1
682 AN960-10 . WASHER Y 1
ALTERNATE SPARE:
NAS1149F0363P
682 NAS1149F0363P . WASHER Y 1
ALTERNATE SPARE:
AN960-10
683 MS21042-3 . NUT Y 1
-------*-------
685 MS20822-4D . ELBOW-LH ENGINE FE 1
-690 AN816-4D . ADAPTER-RH ENGINE FE 1
ALTERNATE SPARE:
AS5194D0402
-690 AS5194D0402 . ADAPTER-RH ENGINE FE 1
ALTERNATE SPARE:
AN816-4D
695 112436-4 . RETAINER-EGT WIRE,LH Q 1
ENGINE
71-00-00-04
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-700 112149-7 . GROMMET-EGT WIRE, Q 2
LH ENGINE
-705 49338 . STUD-RETAINER Q 2
FOR SPARES ORDER:
XX49338-K1105
-705 XX49338-K1105 . STUD-RETAINER Q 2
49338
-710 NAS1149FN832P . WASHER-RETAINER FE 2
715 MS24392-4 . UNION FE 1
720 96-910002-93 . TUBE ASSY-OIL PRESSURE FE 1
-725 96-910001-51 . BRACKET-OIL PRESSURE TUBE G 3
SUPPORT
-727 96-910001-51 . BRACKET-OIL PRESSURE TUBE J 6
SUPPORT
730 MS21919WH4 . CLAMP-OIL PRESSURE TUBE FE 3
SUPPORT
735 36-930014-1 . RESTRICTION ASSY-OIL FE 1
PRESSURE TUBE
740 MS24692-S57 . SCREW W 1
740 MS24693S282 . SCREW X 1
742 MS35338-43 . WASHER X 1
745 NAS1149F0363P . WASHER R 1
750 NAS43DD3-26FC . SPACER R 1
755 MS21042L3 . NUT R 1
757 MS35650-302 . NUT X 2
760 MS21919WDG16 . CLAMP R 1
FOR SPARES ORDER:
AS21919WDG16
760 AS21919WDG16 . CLAMP R 1
MS21919WDG16
765 58-910001-43 . TUBE ASSY-MANIFOLD R 1
PRESSURE, LH
770 58-910001-41 . TUBE ASSY-MANIFOLD R 1
PRESSURE, RH
775 AN818-4D . . NUT R 2
780 AS3220-04 . . SLEEVE R 2
H1389-H1389,H1396-H1941 A
H1389-H1389,H1396-H1507 B
H1508-H9999 C
H1389-H1389,H1396-H1577 D
H1389-H1389,H1396-H1506 E
H1389-H1389,H1396-H1579 F
H1389-H1389,H1396-H1598 G
H1389-H1389,H1396-H1759 H
H1599-H9999 J
H1389-H1389,H1396-H1744 K
H1745-H9999 L
H1389-H1389,H1396-H1610 M
H1611-H1647 N
H1389-H1389,H1396-H1968 P
H1389-H1389,H1396-H2124 Q
71-00-00-04
PAGE 10
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
(CONTINUED)
H2125-H9999 R
H1942-H2035 S
H1508-H1840 T
H1841-H1883 U
H1841-H2319 V
H2125-H2149 W
H2150-H9999 X
H2097-H2150 Y
H2320-H9999 Z
H1389-H1389,H1396-H2380 AA
H2381-H2477 AB
H2478-H9999 AC
H1389-H1389,H1396-H9999 FE

71-00-00-04
PAGE 11
BARON MAY 01/19

71-10-00-01
ENGINE COWLING
71-10-00-01
BARON MAY 01/19
ENGINE COWLING
SHEET 1 OF 3
71-10-00-01
PAGE 0
MAY 01/19
ENGINE COWLING
SHEET 2 OF 3
71-10-00-01
PAGE 0A
MAY 01/19
ENGINE COWLING
SHEET 3 OF 3
71-10-00-01
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 ENGINE COWLING
-5 96-910011-223 COWLING INSTL-LH ENGINE FE RF
-10 96-910011-224 COWLING INSTL-RH ENGINE FE RF
-15 96-910011-615 . COWL ASSY-ENGINE FE 1
-20 96-910011-626 . . BOTTOM ASSY-COWL FE 1
25 96-910011-7 . . . FORMER-LH FE 1
-30 96-910011-215 . . . FORMER-RH FE 1
-35 58-910011-103 . . . STIFFENER-LH FWD FE 1
40 58-910011-104 . . . STIFFENER-RH FWD FE 1
45 58-910011-93 . . . FORMER-FWD FE 1
-50 58-910011-99 . . . STIFFENER-LH FE 1
55 58-910011-100 . . . STIFFENER-RH FE 1
60 58-910011-95 . . . FORMER FE 1
-65 58-910011-101 . . . STIFFENER-LH FE 1
70 58-910011-102 . . . STIFFENER-RH FE 1
75 96-910011-5 . . . FORMER FE 1
80 96-910011-151 . . . STIFFENER FE 2
85 58-910011-97 . . . FORMER FE 1
90 96-910011-3 . . . FORMER FE 1
95 58-910011-105 . . . CHANNEL FE 1
100 58-910011-107 . . . FORMER-LH FE 1
-105 58-910011-98 . . . FORMER-RH FE 1
110 58-910011-71 . . . SKIN-BOTTOM FE 1
115 58-910011-121 . . . SKIN-LH FE 1
-120 58-910011-122 . . . SKIN-RH FE 1
125 96-910011-127 . . . SKIN-LH FWD FE 1
-130 96-910011-128 . . . SKIN-RH FWD FE 1
135 96-910011-9 . . . HINGE-LH COWL DOOR FE 1
-140 96-910011-10 . . . HINGE-RH COWL DOOR FE 1
145 96-910011-11 . . . STRINGER-LH FE 1
-150 96-910011-12 . . . STRINGER-RH FE 1
155 96-910016-39 . . . HINGE-COWL FLAP FE 1
-160 S5-325 . . . SPRING FE 12
165 96-910011-205 . . . REINFORCEMENT FE 2
170 96-910011-189 . . . BRACKET-LH FE 1
-175 96-910011-190 . . . BRACKET-RH FE 1
180 96-910011-211 . . . CLIP-LH FE 1
-185 96-910011-212 . . . CLIP-RH FE 1
-190 96-910011-623 . . TOP ASSY-ENGINE COWL FE 1
195 96-910011-55 . . . CHANNEL-LH FE 1
-200 96-910011-56 . . . CHANNEL-RH FE 1
205 96-910011-57 . . . ANGLE FE 1
210 96-910011-59 . . . ANGLE FE 1
215 96-910011-163 . . . ANGLE FE 2
220 96-910011-161 . . . ANGLE FE 2
225 96-910011-75 . . . CLIP FE 2
230 96-910011-79 . . . DOUBLER FE 1
235 96-910011-203 . . . REINFORCEMENT-OIL FILLER FE 1
-240 50-939118-12 . . . DOOR ASSY-OIL FILLER FE 1
ACCESS
ATTACHING PARTS
-245 105774-C-ZE00208 . . . PIN-HINGE FE 1
-------*-------
250 50-939118-2 . . . . HINGE-COWL HALF FE 1
255 50-939118-4 . . . . HINGE-FILLER DOOR HALF FE 1
260 50-939118-6 . . . . PLATE-DOOR FE 1
71-10-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
265 50-939118-10 . . . . REINFORCEMENT FE 1
270 H5000-2-032-040 . . . . LATCH ASSY-OIL FILLER DOOR FE 1
275 96-910011-165 . . . DOUBLER FE 1
280 96-910011-167 . . . SKIN FE 1
285 96-910011-169 . . . DOOR FE 1
290 F4-30 . . . FLUSH STUD FE 8
FOR SPARES ORDER:
FJ4-30
290 FJ4-30 . . . FLUSH STUD FE 8
F4-30
-295 S4-250 . . . SPRING FE 8
ALTERNATE SPARE:
1219-4250-Z3CT
-295 1219-4250-Z3CT . . . SPRING FE 8
ALTERNATE SPARE:
S4-250
-300 4 . . . RING-SNAP FE 8
305 96-910011-191 . . . FORMER FE 1
310 96-910011-193 . . . STRIP-LH CAP FE 1
-315 96-910011-194 . . . STRIP-RH CAP FE 1
320 96-910011-61 . . . ANGLE FE 1
325 96-910011-71 . . . SEAL FE 1
-330 214-16 . . . RECEPTACLE FE 14
FOR SPARES ORDER:
132752-1B
-330 132752-1B . . . RECEPTACLE FE 14
214-16
-335 40R8-16-1 . . . SHIM-RECEPTACLE FE 10
-340 96-910011-612 . . BUG ASSY-ENGINE COWL NOSE FE 1
345 96-910011-219 . . . BUG-NOSE UPPER, UNTRIMED FE 1
350 96-910011-217 . . . SPLICE-LH FE 2
-355 96-910011-218 . . . SPLICE-RH FE 2
360 96-910011-115 . . . BRACKET-LH FE 1
-365 96-910011-116 . . . BRACKET-RH FE 1
370 96-910011-129 . . . DOUBLER FE 1
375 96-910011-157 . . . BUG-NOSE LOWER FE 1
380 96-910011-121 . . . FORMER FE 1
385 96-910011-123 . . . ANGLE-LH FE 1
-390 96-910011-124 . . . ANGLE-RH FE 1
395 F5-35 . . . STUD FE 12
ALTERNATE SPARE:
FJ5-40
395 FJ5-40 . . . STUD FE 12
ALTERNATE SPARE:
F5-35
-400 GF-5-175 . . . GROMMET FE 12
-405 96-910011-624 . . DOOR ASSY-ENGINE COWL LH FE 1
-410 96-910011-625 . . DOOR ASSY-ENGINE COWL RH FE 1
ATTACHING PARTS
-415 MS20253-2-2650 . . PIN-HINGE FE 1
-------*-------
-420 96-910011-187 . . . DOOR ASSY-COWL LH FWD FE 1
-425 96-910011-188 . . . DOOR ASSY-COWL RH FWD FE 1
71-10-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
430 96-910011-185 . . .
. SKIN-LH FE 1
-435 96-910011-186 . . .
. SKIN-RH FE 1
440 96-910011-47 . . .
. HINGE-LH HALF FE 1
-445 96-910011-48 . . .
. HINGE-RH HALF FE 1
450 96-910011-33 . . .
. ANGLE-LH FE 1
-455 96-910011-34 . . .
. ANGLE-RH FE 1
460 96-910011-73 . . .
. SEAL FE 2
465 96-910011-45 . . .
. ANGLE-LH FE 1
-470 96-910011-46 . . .
. ANGLE-RH FE 1
475 96-910011-69 . . .
. SEAL-LH FE 1
-480 96-910011-113 . . .
. SEAL-RH FE 1
-485 96-910011-183 . . .
DOOR ASSY-COWL LH AFT FE 1
-490 96-910011-184 . . .
DOOR ASSY-COWL RH AFT FE 1
495 96-910011-181 . . .
. ANGLE-LH FE 1
-500 96-910011-182 . . .
. ANGLE-RH FE 1
505 96-910011-179 . . .
. SKIN-LH FE 1
-510 96-910011-180 . . .
. SKIN-RH FE 1
-515 214-16 . . .
. RECEPTACLE FE 4
FOR SPARES ORDER:
132752-1B
-515 132752-1B . . . . RECEPTACLE FE 4
214-16
-520 40R8-16-1 . . . . SHIM-RECEPTACLE FE 4
525 40S5-2 . . . STUD FE 8
-530 40S5-4 . . . STUD FE 2
-535 40S5-3 . . . STUD FE 12
-540 4002-G . . . GROMMET FE 20
-545 R4G . . . RING-SNAP FE 20
-550 96-910028-33 . . FLAP ASSY-COWL FE 1
ATTACHING PARTS
-555 MS20253-2-1788 . . PIN-HINGE FE 1
-------*-------
560 96-910016-7 . . . WELD ASSY-COWL FLAP FE 1
565 96-910016-55 . . . ANGLE-LH FE 1
-570 96-910016-56 . . . ANGLE-RH FE 1
580 96-910016-43 . . . DOUBLER FE 1
585 96-910028-35 . . . BRACKET-LH FE 1
-590 96-910028-36 . . . BRACKET-RH FE 1
-595 55-4853-2359 CONTROL-COWL FLAP, FE 1
89 INCH, LH
-600 55-4853-2010 CONTROL ASSY-COWL FLAP, FE 1
87.5 INCH, RH
C1608-C9999 FE

71-10-00-01
PAGE 3
BARON MAY 01/19

71-10-00-02
ENGINE COWLING
71-10-00-02
BARON MAY 01/19
ENGINE COWLING
SHEET 1 OF 3
71-10-00-02
PAGE 0
MAY 01/19
ENGINE COWLING
SHEET 2 OF 3
71-10-00-02
PAGE 0A
MAY 01/19
ENGINE COWLING
SHEET 3 OF 3
71-10-00-02
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 ENGINE COWLING
-5 96-910012-117 COWLING INSTL-LH ENGINE, FE RF
WITHOUT ELECTRIC DEICE
-10 96-910012-118 COWLING INSTL-RH ENGINE, FE RF
WITHOUT ELECTRIC DEICE
-15 96-910012-120 COWLING INSTL-LH ENGINE, FE RF
WITH ELECTRIC DEICE
-20 96-910012-119 COWLING INSTL-RH ENGINE, FE RF
WITH ELECTRIC DEICE
-25 96-910012-617 . COWL ASSY-ENGINE, WITHOUT FE 1
ELECTRIC DEICE
-30 96-910012-615 . COWL ASSY-ENGINE, WITH FE 1
ELECTRIC DEICE
-35 96-910011-628 . . BOTTOM ASSY-ENGINE COWL FE 1
40 96-910011-7 . . . FORMER-LH FWD FE 1
-45 96-910011-215 . . . FORMER-RH FWD FE 1
-50 58-910011-103 . . . STIFFENER-LH FWD FE 1
55 58-910011-104 . . . STIFFENER-RH FWD FE 1
60 58-910011-93 . . . FORMER-FWD FE 1
-65 58-910011-99 . . . STIFFENER-LH FE 1
70 58-910011-100 . . . STIFFENER-RH FE 1
75 58-910011-95 . . . FORMER FE 1
-80 58-910011-101 . . . STIFFENER-LH FE 1
85 58-910011-102 . . . STIFFENER-RH FE 1
90 96-910011-5 . . . FORMER FE 1
95 96-910011-151 . . . STIFFENER FE 2
100 58-910011-97 . . . FORMER FE 1
105 58-910011-71 . . . SKIN-CENTER BOTTOM FE 1
110 58-910011-121 . . . SKIN-LH BOTTOM FE 1
-115 58-910011-122 . . . SKIN-RH BOTTOM FE 1
120 96-910011-3 . . . FORMER FE 1
125 58-910011-105 . . . CHANNEL FE 1
130 58-910011-107 . . . FORMER-LH FE 1
-135 58-910011-108 . . . FORMER-RH FE 1
140 96-910011-11 . . . STRINGER-LH FE 1
-145 96-910011-12 . . . STRINGER-RH FE 1
150 96-910011-9 . . . HINGE-LH COWL DOOR FE 1
-155 96-910011-10 . . . HINGE-RH COWL DOOR FE 1
160 96-910011-205 . . . REINFORCEMENT FE 2
170 S5-325 . . . SPRING-FASTENER FE 12
175 96-910011-127 . . . SKIN-LH FE 1
-180 96-910011-128 . . . SKIN-RH FE 1
185 96-910011-189 . . . BRACKET-LH FE 1
-190 96-910011-190 . . . BRACKET-RH FE 1
-195 96-910012-613 . . COWL ASSY-UPPER ENGINE, FE 1
WITH ELECTRIC DEICE
-200 96-910012-619 . . COWL ASSY-UPPER ENGINE, FE 1
LESS ELECTRIC DEICE
205 96-910011-55 . . . CHANNEL-LH FE 1
-210 96-910011-56 . . . CHANNEL-RH FE 1
215 96-910011-191 . . . FORMER FE 1
220 96-910011-193 . . . STRIP-LH CAP FE 1
-225 96-910011-194 . . . STRIP-RH CAP FE 1
230 96-910012-15 . . . ANGLE FE 1
235 96-910012-17 . . . ANGLE FE 1
71-10-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
240 96-910012-11 . . . DOUBLER-OIL FILLER DOOR FE 1
245 96-910011-203 . . . REINFORCEMENT-OIL FILLER FE 1
DOOR HINGE
250 96-910012-69 . . . ANGLE-LH SEAL SUPPORT FE 1
-255 96-910012-71 . . . ANGLE-RH SEAL SUPPORT FE 1
260 96-910012-49 . . . ANGLE-LH SEAL SUPPORT FE 1
-265 96-910012-50 . . . ANGLE-RH SEAL SUPPORT FE 1
270 96-910012-55 . . . ANGLE-CENTER SEAL FE 1
SUPPORT
275 58-910011-77 . . . SEAL-LH OUTBD FE 1
280 96-910012-51 . . . SEAL-RH OUTBD FE 1
285 96-910012-57 . . . SEAL-CENTER FE 1
290 96-910012-45 . . . DOUBLER-INDUCTION AIR FE 1
SCOOP
295 96-910012-47 . . . ANGLE-LH FE 1
-300 96-910012-48 . . . ANGLE-RH FE 1
305 96-910012-13 . . . ANGLE-LH FE 1
-310 96-910012-14 . . . ANGLE-RH FE 1
315 96-910012-23 . . . DOUBLER-LH FE 1
-320 96-910012-24 . . . DOUBLER-RH FE 1
325 96-910011-115 . . . BRACKET-NOSE BUG LH FE 1
-330 96-910011-116 . . . BRACKET-NOSE BUG RH FE 1
335 96-910012-19 . . . SKIN-UPPER COWL FE 1
340 98265-2-180 . . . STUD-LESS ELECTRIC DEICE FE 8
FOR SPARES ORDER:
130176-5SF-18
340 130176-5SF-18 . . . STUD-LESS ELECTRIC DEICE FE 8
98265-2-180
-345 98265-2-190 . . . STUD-WITH ELECTRIC DEICE FE 8
350 98265-2-210 . . . STUD-LESS ELECTRIC DEICE FE 2
-355 98265-2-230 . . . STUD-WITH ELECTRIC DEICE FE 2
-360 99836 . . . PIN-STUD CROSS FE 10
365 214-16 . . . RECEPTACLE-COWL DOOR FE 14
STUD
FOR SPARES ORDER:
132752-1B
365 132752-1B . . . RECEPTACLE-COWL DOOR FE 14
STUD
214-16
-370 295250-5 . . . GROMMET FE 10
380 96-910012-87 . . . BRACKET-LESS ELECTRIC FE 1
DEICE
385 96-910012-91 . . . GUSSET-WITH ELECTRIC FE 1
DEICE
390 96-910012-109 . . . SPACER-LESS ELECTRIC FE 1
DEICE
-395 50-939118-12 . . . DOOR ASSY-OIL FILLER FE 1
400 50-939118-2 . . . . HINGE-COWL HALF FE 1
405 50-939118-4 . . . . HINGE-FILLER DOOR HALF FE 1
410 105744CZE00208 . . . . PIN-HINGE FE 1
415 50-939118-6 . . . . PLATE-DOOR FE 1
420 50-939118-10 . . . . REINFORCEMENT-DOOR FE 1
71-10-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
425 H5000-2-032-040 . . . . LATCH ASSY-OIL FILLER DOOR FE 1
-430 96-910012-612 . . BUG ASSY-NOSE,COWL FE 1
435 96-910011-219 . . . BUG-UPPER NOSE, FE 1
UNTRIMMED
440 96-910012-103 . . . BUG-LOWER NOSE, FE 1
UNTRIMMED
445 96-910012-101 . . . PLATE-LH SPLICE FE 1
-450 96-910012-102 . . . PLATE-RH SPLICE FE 1
455 96-910011-129 . . . DOUBLER FE 1
460 96-910011-123 . . . ANGLE-LH FE 1
-465 96-910011-124 . . . ANGLE-RH FE 1
470 F5-35 . . . STUD-NOSE BUG FE 12
ALTERNATE SPARE:
FJ5-40
470 FJ5-40 . . . STUD-NOSE BUG FE 12
ALTERNATE SPARE:
F5-35
-475 GF-5-175 . . . GROMMET-NOSE BUG FE 12
480 96-910012-125 . . . FORMER-LH FE 1
-485 96-910012-38 . . . FORMER-RH FE 1
490 96-910012-39 . . . REINFORCEMENT-NOSE BUG FE 1
-495 96-910012-610 . . DOOR ASSY-LH COWL, FE 1
FWD AND AFT
-500 96-910012-611 . . DOOR ASSY-RH COWL, FE 1
FWD AND AFT
ATTACHING PARTS
505 AN253-2-2650 . . PIN-HINGE FE 2
-------*-------
-510 96-910011-183 . . . DOOR ASSY-LH AFT COWL FE 1
-515 96-910011-184 . . . DOOR ASSY-RH AFT COWL FE 1
ATTACHING PARTS
-520 AN509-10R . . . SCREW FE 4
-525 MS24694-S50 . . . SCREW FE 5
-530 NAS1024A3K . . . NUTPLATE FE 4
-------*-------
535 96-910011-181 . . . . ANGLE-LH FE 1
-540 96-910011-182 . . . . ANGLE-RH FE 1
545 96-910011-179 . . . . SKIN-LH AFT DOOR FE 1
-550 96-910011-180 . . . . SKIN-RH AFT DOOR FE 1
555 214-16 . . . . RECEPTACLE-STUD FE 4
FOR SPARES ORDER:
132752-1B
555 132752-1B . . . . RECEPTACLE-STUD FE 4
214-16
-560 40R8-16-1 . . . . SHIM-RECEPTACLE FE 4
565 96-910011-47 . . . HINGE-LH HALF FE 1
-570 96-910011-48 . . . HINGE-RH HALF FE 1
575 96-910012-61 . . . ANGLE-LH FE 1
-580 96-910012-62 . . . ANGLE-RH FE 1
585 96-910012-63 . . . SEAL-LH FE 1
-590 96-910012-64 . . . SEAL-RH FE 1
595 96-910012-5 . . . SEAL-LH FE 1
-600 96-910012-68 . . . SEAL-RH FE 1
605 96-910012-41 . . . ANGLE-LH FE 1
71-10-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-610 96-910012-42 . . .
ANGLE-RH FE 1
615 96-910012-65 . . .
SKIN-LH FWD DOOR FE 1
-620 96-910012-66 . . .
SKIN-RH FWD DOOR FE 1
625 40S5-2 . . .
STUD FE 8
630 40S5-3 . . .
STUD FE 12
635 40S5-4 . . .
STUD-WITHOUT AIR B 2
CONDITIONING
-640 40S5-7 . . . STUD-WITH AIR C 2
CONDITIONING
-645 4002-G . . . GROMMET-STUD FE 20
-650 R4G . . . RING-STUD SNAP FE 20
-655 96-910028-33 . . FLAP ASSY-COWL FE 1
ATTACHING PARTS
-660 MS20253-2-1788 . . PIN-HINGE FE 1
-------*-------
665 96-910016-7 . . . WELD ASSY-COWL FLAP FE 1
670 96-910016-55 . . . ANGLE-LH FE 1
-675 96-910016-56 . . . ANGLE-RH FE 1
685 96-910016-43 . . . DOUBLER FE 1
690 96-910028-35 . . . BRACKET-LH FE 1
-695 96-910028-36 . . . BRACKET-RH FE 1
700 96-910012-123 . . PLATE D 1
-705 96-910012-129 . . PLATE E 2
-710 130909B15 . . BOLT FE 3
-715 AN960-10 . . WASHER FE 3
ALTERNATE SPARE:
NAS1149F0363P
-715 NAS1149F0363P . . WASHER FE 3
ALTERNATE SPARE:
AN960-10
-720 MS20365-1032C . . NUT FE 3
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-720 MS21044N3 . . NUT FE 3
ALTERNATE SPARE:
MS20365-1032C
MS21044N3
-720 MS21042-3 . . NUT 3
ALTERNATE SPARE:
MS20365-1032C
MS21044N3
-720 130909N29 . . NUT FE 3
MS20365-1032C
-725 55-4853-2341 CONTROL-LH COWL FLAP, FE 1
91 INCH
-730 55-4853-2010 CONTROL ASSY-RH COWL FLAP, FE 1
87.5 INCH
E0938-E0938,E0943-E1118,E1120-E1124 B
71-10-00-02
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
(CONTINUED)
E1119-E1119,E1125-E9999 C
E1119-E1119,E1125-E1169 D
E1170-E9999 E
E0938-E0938,E0943-E9999 FE

71-10-00-02
PAGE 5
BARON MAY 01/19

71-10-00-03
ENGINE COWLING
71-10-00-03
BARON MAY 01/19
ENGINE COWLING
SHEET 1 OF 2
71-10-00-03
PAGE 0
MAY 01/19
ENGINE COWLING
SHEET 2 OF 2
71-10-00-03
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 ENGINE COWLING
-5 58-910011-1 COWLING INSTL-LH B RF
ENGINE
FOR NHA SEE:
71-00-00-03
-5 58-910011-141 COWLING INSTL-LH ENGINE C RF
FOR NHA SEE:
71-00-00-03
-15 58-910011-1 COWLING INSTL-RH B RF
ENGINE
FOR NHA SEE:
71-00-00-03
-15 58-910011-142 COWLING INSTL-RH ENGINE C RF
FOR NHA SEE:
71-00-00-03
-20 58-910011-51 . COWLING ASSY-ENGINE D 1
-20 58-910011-91 . COWLING ASSY-ENGINE E 1
ATTACHING PARTS
-25 MS24694S52 . SCREW FE 12
-------*-------
35 96-910011-3 . . FORMER FE 1
40 96-910011-5 . . FORMER FE 1
55 96-910011-9 . . HINGE-LH COWL DOOR FE 1
-60 96-910011-10 . . HINGE-RH COWL DOOR FE 1
65 58-910011-75 . . STRINGER-LH FE 1
-70 58-910011-76 . . STRINGER-RH FE 1
85 58-910011-107 . . FORMER-LH E 1
85 96-910011-13 . . FORMER-LH D 1
-90 58-910011-108 . . FORMER-RH E 1
-90 96-910011-14 . . FORMER-RH D 1
95 58-910011-71 . . SKIN-CENTER BOTTOM FE 1
105 58-910011-121 . . SKIN-LH BOTTOM E 1
105 58-910011-69 . . SKIN-LH BOTTOM D 1
-110 58-910011-70 . . SKIN-RH BOTTOM D 1
-110 58-910011-122 . . SKIN-RH BOTTOM E 1
-120 96-910011-213 . . STIFFENER D 1
125 58-910011-123 . . FORMER E 1
125 96-910011-207 . . FORMER D 1
135 58-910011-125 . . FORMER E 1
140 58-910011-127 . . FORMER E 1
-155 58-910011-103 . . STIFFENER-LH E 1
-155 96-910011-149 . . STIFFENER-LH D 1
165 58-910011-104 . . STIFFENER-RH E 1
165 96-910011-150 . . STIFFENER-RH D 1
-170 58-910011-99 . . STIFFENER-LH E 1
175 58-910011-100 . . STIFFENER-RH E 1
-180 58-910011-101 . . STIFFENER-LH E 1
-185 58-910011-103 . . STIFFENER-LH E 1
190 58-910011-102 . . STIFFENER-RH E 1
-195 58-910011-104 . . STIFFENER-RH E 1
200 96-910011-151 . . STIFFENER-RH FE 1
205 58-910011-105 . . CHANNEL E 1
FOR SPARES ORDER:
58-910011-129

71-10-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
205 58-910011-129 . . CHANNEL E 1
58-910011-105
210 96-910011-205 . . REINFORCEMENT FE 2
215 58-910011-73 . . SKIN-LH FE 1
-220 58-910011-74 . . SKIN-RH FE 1
225 58-910011-89 . . BRACKET-LH D 1
225 96-910011-225 . . BRACKET-LH E 1
-230 58-910011-89 . . BRACKET-RH D 1
-230 96-910011-226 . . BRACKET-RH E 1
-235 40R8-16-1 . . SHIM-RECEPTACLE FE 12
ALTERNATE SPARE:
40R8-16-2
ALTERNATE SPARE:
40R8-16-1
-240 96-910011-183 . . DOOR ASSY-LH AFT COWL FE 1
-245 96-910011-184 . . DOOR ASSY-RH AFT COWL FE 1
ATTACHING PARTS
-250 AN509-10R . . SCREW FE 8
-255 MS24694-S50 . . SCREW FE 10
-260 NAS1024A3K . . NUTPLATE FE 8
-------*-------
265 96-910011-181 . . . ANGLE-LH FE 1
-270 96-910011-182 . . . ANGLE-RH FE 1
275 96-910011-179 . . . SKIN-LH AFT DOOR FE 1
-280 96-910011-180 . . . SKIN-RH AFT DOOR FE 1
285 214-16 . . . RECEPTACLE-STUD FE 4
ALTERNATE SPARE:
214-16D
FOR SPARES ORDER:
132752-1B
285 214-16D . . . RECEPTACLE-STUD FE 4
ALTERNATE SPARE:
214-16
FOR SPARES ORDER:
132752-1BC
285 132752-1B . . . RECEPTACLE-STUD FE 4
214-16
285 132752-1BC . . . RECEPTACLE-STUD FE 4
214-16D
-315 96-910016-59 . . FLAP INSTL-COWLING FE RF
-320 96-910016-57 . . . FLAP ASSY-COWL, ELECTRIC B 1
-320 96-910028-33 . . . FLAP ASSY-COWL, MANUAL C 1
ATTACHING PARTS
-325 MS253-2-1700 . . . PIN-HINGE FE 1
-------*-------
330 96-910016-7 . . . . WELD ASSY-COWL FLAP FE 1
335 96-910016-55 . . . . ANGLE-LH FE 1
ATTACHING PARTS
-340 96-910016-56 . . . . ANGLE-RH FE 1
-------*-------
71-10-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
345 96-910016-41 . . . . HINGE-COWL FLAP FE 1
350 96-910016-43 . . . . DOUBLER FE 1
-355 96-910016-19 . . . . BRACKET-ELEC COWL FLAP B 1
ACTUATOR
360 96-910028-35 . . . . BRACKET-LH, MANUAL COWL C 1
FLAP
-365 4002-G . . . . GROMMET-STUD FE 20
-370 96-380021-17 . . . . ACTUATOR-ELEC COWL FLAP B 1
ATTACHING PARTS
-375 AN380-2-2 . . . . PIN-COTTER FE 1
ALTERNATE SPARE:
MS24665-132
-375 MS24665-132 . . . . PIN-COTTER FE 1
ALTERNATE SPARE:
AN380-2-2
-380 AN3 . . . . BOLT FE 1
-385 AN960-10 . . . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
-385 NAS1149F0363P . . . . WASHER FE 1
ALTERNATE SPARE:
AN960-10
-390 130909N6 . . . . NUT FE 1
-------*-------
-397 58-910011-3 . COWLING ASSY-UPPER D 1
-397 58-910011-109 . COWLING ASSY-UPPER E 1
-400 50-939118-12 . . DOOR ASSY-OIL FILLER FE 1
-405 50-939118-14 . . . SPACER K 1
410 50-939118-2 . . . HINGE-COWL HALF FE 1
415 50-939118-4 . . . HINGE-FILLER DOOR HALF FE 1
420 105744CZE00208 . . . PIN-HINGE FE 1
425 50-939118-6 . . . PLATE-DOOR FE 1
430 50-939118-10 . . . REINFORCEMENT-DOOR FE 1
435 H5000-2-032-040 . . . LATCH ASSY-OIL FILLER DOOR FE 1
440 96-910011-55 . . CHANNEL-LH FE 1
-445 96-910011-56 . . CHANNEL-RH FE 1
455 96-910012-11 . . DOUBLER-OIL FILLER DOOR FE 1
460 96-910012-13 . . ANGLE-LH FE 1
-465 96-910012-14 . . ANGLE-RH FE 1
470 96-910012-15 . . ANGLE FE 1
475 96-910012-17 . . ANGLE FE 1
480 58-910011-67 . . SKIN-UPPER COWL FE 1
485 96-910012-23 . . DOUBLER-LH FE 1
-490 96-910012-24 . . DOUBLER-RH FE 1
495 96-910012-45 . . DOUBLER FE 2
500 96-910012-69 . . ANGLE-LH FE 1
-505 96-910012-71 . . ANGLE-RH FE 1
510 96-910012-49 . . ANGLE-LH SEAL SUPPORT FE 1
-515 96-910012-50 . . ANGLE-RH SEAL SUPPORT FE 1
520 96-910012-55 . . ANGLE-CENTER FE 1
525 96-910012-57 . . SEAL-CENTER FE 1
530 96-910012-51 . . SEAL-RH FE 1
535 58-910011-77 . . SEAL FE 1
540 96-910012-47 . . ANGLE-LH FE 1
71-10-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-545 96-910012-48 . . ANGLE-RH FE 1
550 58-910011-57 . . FORMER FE 1
555 58-910011-59 . . PLATE-CAP FE 1
560 58-910011-119 . . HAT SECTION E 1
565 58-910011-111 . . DOUBLER E 1
FOR SPARES ORDER:
58-910011-131
565 58-910011-131 . . DOUBLER E 1
58-910011-111
570 58-910011-7 . . SKIN-UPPER, UNTRIMMED FE 1
FOR SPARES ORDER:
58-910011-79
570 58-910011-79 . . SKIN-UPPER, UNTRIMMED FE 1
58-910011-7
575 58-910011-11 . . PLATE-NOSE BUG SPLICE LH FE 1
-580 58-910011-12 . . PLATE-NOSE BUG SPLICE RH FE 1
585 58-910011-83 . . PLATE-SPLICE FE 1
-590 58-910011-85 . . PLATE-SPLICE FE 1
595 58-910011-21 . . PLATE-LH SPLICE FE 1
-600 58-910011-22 . . PLATE-RH SPLICE FE 1
ATTACHING PARTS
-605 MS27039-1-09 . . SCREW FE 1
-610 NAS1031A3 . . NUTPLATE FE 1
-------*-------
-615 58-910011-29 . . BULKHEAD-LH D 1
-620 58-910011-30 . . BULKHEAD-RH D 1
625 58-910011-113 . . REINFORCEMENT-LH E 1
FOR SPARES ORDER:
58-910011-133
625 58-910011-133 . . REINFORCEMENT-LH E 1
58-910011-113
-630 58-910011-117 . . REINFORCEMENT-RH E 1
FOR SPARES ORDER:
58-910011-137
-630 58-910011-137 . . REINFORCEMENT-RH E 1
58-910011-117
635 58-910011-115 . . ANGLE-LH E 1
FOR SPARES ORDER:
58-910011-135
635 58-910011-135 . . ANGLE-LH E 1
58-910011-115
-637 58-910011-116 . . ANGLE-RH E 1
FOR SPARES ORDER:
58-910011-136
-637 58-910011-136 . . ANGLE-RH E 1
58-910011-116
640 96-910011-203 . REINFORCEMENT-HINGE FE 1
-643 58-910011-55 . NOSE ASSY-LOWER FE 1

71-10-00-03
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-645 58-910011-9 . . SKIN-NOSE, LOWER FE 1
FOR SPARES ORDER:
58-910011-81
-645 58-910011-81 . . SKIN-NOSE, LOWER FE 1
58-910011-9
650 58-910011-81 . . SKIN-LOWER, UNTRIMMED FE 1
655 58-910011-31 . . STIFFENER-LH FE 1
-657 58-910011-32 . . STIFFENER-RH FE 1
660 58-910011-239 . . ANGLE-CENTER BOTTOM FE 1
-665 96-910012-3 . DOOR ASSY-LH COWL, FE 1
FWD AND AFT
-667 96-910012-43 . DOOR ASSY-RH COWL, FE 1
FWD AND AFT
ATTACHING PARTS
670 AN253-2-2650 . PIN-HINGE FE 2
-------*-------
675 96-910011-47 . . HINGE-LH HALF FE 1
-680 96-910011-48 . . HINGE-RH HALF FE 1
685 96-910012-61 . . ANGLE-LH FE 1
-690 96-910012-62 . . ANGLE-RH FE 1
695 96-910012-63 . . SEAL-LH FE 1
-700 96-910012-64 . . SEAL-RH FE 1
-705 96-910012-5 . . SEAL-LH FE 1
-710 96-910012-68 . . SEAL-RH FE 1
715 96-910012-41 . . ANGLE-LH FE 1
-720 96-910012-42 . . ANGLE-RH FE 1
725 96-910012-65 . . SKIN-LH FWD DOOR FE 1
-730 96-910012-66 . . SKIN-RH FWD DOOR FE 1
735 40S5-2 . . STUD FE 8
740 40S5-3 . . STUD FE 12
745 40S5-4 . . STUD-WITHOUT AIR FE 2
CONDITIONING
-750 4002-G . . GROMMET-STUD FE 20
-753 R4G . . RING-STUD SNAP FE 20
755 58-910011-17 . . FORMER-LH FE 1
-757 58-910011-27 . . FORMER-RH FE 1
-760 55-4853-2242 CONTROL-LH MANUAL COWL FLAP FE 1
-765 55-4853-2234 CONTROL ASSY-RH MANUAL COWL FE 1
FLAP
H0001-H0384 B
H0385-H0872,H0874-H0894 C
H0001-H0242 D
H0243-H0872,H0874-H0894 E
H0001-H0120 K
H0001-H0872,H0874-H0894 FE

71-10-00-03
PAGE 5
BARON MAY 01/19

71-10-00-04
ENGINE COWLING WITH AIR CONDITIONING
71-10-00-04
BARON MAY 01/19

SHEET 1 OF 4
71-10-00-04
PAGE 0
MAY 01/19

SHEET 2 OF 4
71-10-00-04
PAGE 0A
MAY 01/19

SHEET 3 OF 4
71-10-00-04
PAGE 0B
MAY 01/19

SHEET 4 OF 4
71-10-00-04
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 ENGINE COWLING WITH AIR CONDITIONING

-5 58-910011-143 COWLING INSTL-ENGINE, WITH AIR COND, LH B RF
-5 58-910011-249 COWLING INSTL-ENGINE, WITH AIR COND, LH C RF
-10 58-910011-144 COWLING INSTL-ENGINE, WITH AIR COND, RH B RF
-10 58-910011-251 COWLING INSTL-ENGINE, WITH AIR COND, RH C RF
-15 58-910011-145 . COWLING ASSY-ENGINE, LOWER, LH B 1
-15 58-910011-263 . COWLING ASSY-ENGINE, LOWER, LH C 1
-20 58-910011-146 . COWLING ASSY-ENGINE, LOWER, RH B 1
-20 58-910011-265 . COWLING ASSY-ENGINE, LOWER, RH C 1
25 96-910011-3 . . FORMER FE 1
30 A6914-1024-1 . . PLATE-PATCH FE 2
35 96-910011-5 . . FORMER FE 1
40 96-910011-9 . . HINGE-COWL DOOR, LH FE 1
-45 96-910011-10 . . HINGE-COWL DOOR, RH FE 1
50 58-910011-75 . . STRINGER-LH FE 1
-55 58-910011-76 . . STRINGER-RH FE 1
60 58-910011-107 . . FORMER-LH FE 1
-65 58-910011-108 . . FORMER-RH FE 1
70 58-910011-71 . . SKIN-BOTTOM, CENTER FE 1
75 58-910011-121 . . SKIN-BOTTOM, LH FE 1
-80 58-910011-122 . . SKIN-BOTTOM, RH FE 1
85 58-910011-93 . . FORMER FE 1
FOR SPARES ORDER:
58-910011-123
85 58-910011-123 . . FORMER FE 1
58-910011-93
90 58-910011-95 . . FORMER FE 1
FOR SPARES ORDER:
58-910011-125
90 58-910011-125 . . FORMER FE 1
58-910011-95
95 58-910011-97 . . FORMER FE 1
FOR SPARES ORDER:
58-910011-127
95 58-910011-127 . . FORMER FE 1
58-910011-97
-100 58-910011-103 . . STIFFENER-LH FE 1
105 58-910011-104 . . STIFFENER-RH FE 1
-110 58-910011-99 . . STIFFENER-LH FE 1
115 58-910011-100 . . STIFFENER-RH FE 1
-120 58-910011-101 . . STIFFENER-LH FE 1
125 58-910011-102 . . STIFFENER-RH FE 1
130 96-910011-151 . . STIFFENER FE 1
135 58-910011-105 . . CHANNEL FE 1
FOR SPARES ORDER:
58-910011-129
135 58-910011-129 . . CHANNEL FE 1
58-910011-105
145 58-910011-73 . . SKIN-LH FE 1
-150 58-910011-74 . . SKIN-RH FE 1
155 96-910011-189 . . BRACKET-LH J 1
71-10-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
155 96-910011-225 . . BRACKET-LH K 1
-160 96-910011-190 . . BRACKET-RH J 1
-160 96-910011-226 . . BRACKET-RH K 1
-165 214-16 . . RECEPTACLE FE 2
ALTERNATE SPARE:
214-16D
FOR SPARES ORDER:
132752-1B
-165 214-16D . . RECEPTACLE FE 2
ALTERNATE SPARE:
214-16
FOR SPARES ORDER:
132752-1BC
-165 132752-1B . . RECEPTACLE FE 2
214-16
-165 132752-1BC . . RECEPTACLE FE 2
214-16D
ALTERNATE SPARE:
40R8-16-2
ALTERNATE SPARE:
40R8-16-1
175 96-910011-55 . . CHANNEL-LH FE 1
-180 96-910011-56 . . CHANNEL-RH FE 1
190 58-910011-57 . . FORMER FE 1
195 58-910011-59 . . PLATE FE 1
200 58-910011-119 . . HAT SECTION FE 1
205 58-910011-111 . . DOUBLER FE 1
FOR SPARES ORDER:
58-910011-131
205 58-910011-131 . . DOUBLER FE 1
58-910011-111
-210 58-910011-219 . COWLING INSTL-ENGINE, UPPER FE RF
220 105744CZE00208 . . . PIN-HINGE FE 1
235 50-939118-6 . . . PLATE-DOOR FE 1
-250 214-16 . . RECEPTACLE FE 7
ALTERNATE SPARE:
214-16D
FOR SPARES ORDER:
132752-1B
ALTERNATE SPARE:
214-16
FOR SPARES ORDER:
132752-1BC
71-10-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-250 132752-1B . . RECEPTACLE FE 7
214-16
214-16D
ALTERNATE SPARE:
40R8-16-2
ALTERNATE SPARE:
40R8-16-1
265 96-910012-13 . . ANGLE-LH FE 1
-270 96-910012-14 . . ANGLE-RH FE 1
275 96-910012-15 . . ANGLE FE 1
280 96-910012-17 . . ANGLE FE 1
-285 58-910011-189 . . SKIN-COWL, UPPER , LH FE 1
290 96-910012-23 . . DOUBLER-LH FE 1
-295 96-910012-24 . . DOUBLER-RH FE 1
300 96-910012-45 . . DOUBLER FE 1
305 96-910011-69 . . SEAL-LH FE 1
-310 96-910012-71 . . ANGLE-RH FE 1
315 96-910012-49 . . ANGLE-SEAL SUPPORT, LH FE 1
-320 96-910012-50 . . ANGLE-SEAL SUPPORT, RH FE 1
325 96-910012-55 . . ANGLE-CENTER FE 1
330 96-910012-57 . . SEAL-CENTER FE 1
FOR SPARES ORDER:
96-910012-139
330 96-910012-139 . . SEAL-CENTER FE 1
96-910012-57
335 58-910011-77 . . SEAL FE 2
FOR SPARES ORDER:
58-910011-287
335 58-910011-287 . . SEAL FE 1
58-910011-77
340 96-910012-51 . SEAL FE 2
FOR SPARES ORDER:
96-910012-137
340 96-910012-137 . . SEAL FE 2
96-910012-51
345 96-910012-47 . . ANGLE-LH FE 1
-350 96-910012-48 . . ANGLE-RH FE 1
-355 58-980011-181 . . FORMER-OUTBOARD, LH FE 1
-360 58-980011-185 . . FORMER-INBOARD, LH FE 1
-365 58-910011-153 . . FORMER-LH FE 1
-370 58-910011-155 . . DOUBLER-LH FE 1
-375 58-910011-179 . . PLATE-CAP, INBD FE 1
-380 58-910011-183 . . PLATE-CAP, OUTBOARD FE 1
-385 58-910011-113 . . REINFORCEMENT G 1
FOR SPARES ORDER:
58-910011-133
71-10-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-385 58-910011-133 . . REINFORCEMENT FE 1
58-910011-113
-390 58-910011-115 . . ANGLE FE 1
FOR SPARES ORDER:
58-910011-135
-390 58-910011-135 . . ANGLE FE 1
58-910011-115
-395 58-910011-116 . . ANGLE FE 1
FOR SPARES ORDER:
58-910011-136
-395 58-910011-136 . . ANGLE FE 1
58-910011-116
-400 58-910011-117 . . REINFORCEMENT G 1
FOR SPARES ORDER:
58-910011-137
FOR SPARES ORDER:
58-910011-117
-405 58-910011-195 . . CHANNEL-LH FE 1
-410 58-910011-196 . . CHANNEL-RH FE 1
415 58-910011-11 . . PLATE-LH FE 1
-420 58-910011-12 . . PLATE-RH FE 1
425 58-910011-21 . . PLATE-LH FE 1
-430 58-910011-22 . . PLATE-RH FE 1
435 58-910011-85 . . PLATE-SPLICE, LH G 1
FOR SPARES ORDER:
58-910011-235
435 58-910011-235 . . PLATE-SPLICE, LH FE 1
58-910011-85
-440 58-910011-151 . . ANGLE-LH FE 1
445 58-910011-163 . . FAIRING-UPPER, LH FE 1
-450 58-910011-169 . . ANGLE-LH FE 2
-455 58-910011-171 . . REINFORCEMENT-LH G 1
-455 58-910011-227 . . REINFORCEMENT-LH H 1
-460 58-910011-187 . . SKIN-UPPER INBD G 1
-460 58-910011-231 . . SKIN-UPPER INBD H 1
-465 58-910011-193 . . SKIN-UPPER OUTBOARD G 1
-465 58-910011-233 . . SKIN-UPPER OUTBOARD H 1
-470 58-910011-201 . . REINFORCEMENT-LH FE 1
-475 58-910011-203 . . REINFORCEMENT-LH FE 1
-480 58-910011-149 . . FAIRING ASSY-LH D 1
FOR SPARES ORDER:
58-910011-223
-480 58-910011-217 . . FAIRING ASSY-LH E 1
FOR SPARES ORDER:
58-910011-223

71-10-00-04
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-480 58-910011-223 . . FAIRING ASSY-LH S 1
58-910011-149
58-910011-217
FOR SPARES ORDER:
58-910011-291
-480 58-910011-291 . . FAIRING ASSY-LH FE 1
58-910011-223
-500 58-910011-177 . NOSE ASSY-LOWER, LH A 1
FOR SPARES ORDER:
58-910011-271
-500 58-910011-271 . NOSE ASSY-LOWER, LH F 1
58-910011-177
FOR SPARES ORDER:
58-910011-295
-500 58-910011-295 . NOSE ASSY-LOWER, LH FE 1
58-910011-177
58-910011-271
-505 58-910011-55 . NOSE ASSY-LOWER, RH FE 1
510 58-910011-7 . . SKIN-UPPER N 1
FOR SPARES ORDER:
58-910011-79
510 58-910011-79 . . SKIN-UPPER N 1
58-910011-7
510 58-910011-229 . . SKIN-UPPER P 1
515 58-910011-9 . . SKIN-LOWER, LH S 1
FOR SPARES ORDER:
58-910011-237
515 58-910011-237 . . SKIN-LOWER, LH S 1
58-910011-9
FOR SPARES ORDER:
58-910011-293
515 58-910011-293 . . SKIN-LOWER, LH FE 1
58-910011-9
58-910011-237
-520 58-910011-9 . . SKIN-LOWER, RH Q 1
FOR SPARES ORDER:
58-910011-81
-520 58-910011-81 . . SKIN-LOWER, RH Q 1
58-910011-9
-520 58-910011-289 . . SKIN-LOWER, RH R 1
525 58-910011-17 . . FORMER-LH FE 1
-530 58-910011-27 . . FORMER-RH FE 1
535 58-910011-31 . . STIFFENER-LH FE 1
-540 58-910011-32 . . STIFFENER-RH FE 1

71-10-00-04
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-545 58-910011-257 . DOOR ASSY-COWL, LH M 1
FOR SPARES ORDER:
58-910011-283
-545 58-910011-283 . DOOR ASSY-COWL, LH FE 1
58-910011-257
-550 58-910011-259 . DOOR ASSY-COWL, RH M 1
FOR SPARES ORDER:
58-910011-285
-550 58-910011-285 . DOOR ASSY-COWL, RH FE 1
58-910011-259
ATTACHING PARTS
555 AN253-2-2650 . PIN-HINGE FE 1
-------*-------
560 96-910011-47 . . HINGE-HALF, LH FE 1
-565 96-910011-48 . . HINGE-HALF, RH FE 1
570 96-910012-61 . . ANGLE-LH FE 1
-575 96-910012-62 . . ANGLE-RH FE 1
580 96-910012-41 . . ANGLE-LH FE 1
-585 96-910012-42 . . ANGLE-RH FE 1
590 96-910012-65 . . SKIN-DOOR, FWD, LH FE 1
-595 96-910012-66 . . SKIN-DOOR, FWD, RH FE 1
600 40S5-2 . . STUD FE 4
605 40S5-3 . . STUD FE 6
610 40S5-7 . . STUD FE 1
-615 4002-G . . GROMMET FE 10
-620 R4G . . RING-SNAP FE 1
H0873-H0873,H0895-H1731 A
H0873-H0873,H0895-H1388,H1390-H1395 B
H1389-H1389,H1396-H9999 C
H0873-H0873,H0895-H0962 D
H0963-H1046 E
H0873-H0873,H0895-H2424 F
H0873-H0873,H0895-H1053,H1056-H1057 G
H1054-H1055,H1058-H9999 H
H0873-H0873,H0895-H0928 J
H0929-H9999 K
H1389-H1389,H1396-H2023 M
H0873-H0873,H0895-H1153 N
H1154-H9999 P
H0873-H0873,H0895-H2021 Q
H2022-H9999 R
H0873-H0873,H0895-H2424 S
H0873-H0873,H0895-H9999 FE

71-10-00-04
PAGE 6
BARON MAY 01/19
71-10-00-05
ENGINE COWLING WITHOUT AIR CONDITIONING
71-10-00-05
BARON MAY 01/19

SHEET 1 OF 3
71-10-00-05
PAGE 0
MAY 01/19

SHEET 2 OF 3
71-10-00-05
PAGE 0A
MAY 01/19

SHEET 3 OF 3
71-10-00-05
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05 ENGINE COWLING WITHOUT AIR CONDITIONING

-5 58-910011-141 COWLING INSTL-ENGINE, WITHOUT AIR COND, LH A RF
-5 58-910011-245 COWLING INSTL-ENGINE, WITHOUT AIR COND, LH B RF
-10 58-910011-142 COWLING INSTL-ENGINE, WITHOUT AIR COND, RH A RF
-10 58-910011-247 COWLING INSTL-ENGINE, WITHOUT AIR COND, RH B RF
-15 58-910011-139 . COWLING ASSY-ENGINE, LOWER, LH A 1
-15 58-910011-261 . COWLING ASSY-ENGINE, LOWER, LH B 1
-20 58-910011-140 . COWLING ASSY-ENGINE, LOWER, RH A 1
-20 58-910011-262 . COWLING ASSY-ENGINE, LOWER, RH B 1
25 96-910011-3 . . FORMER FE 1
30 A6914-1024-1 . . PLATE-PATCH FE 2
35 96-910011-5 . . FORMER FE 1
40 96-910011-9 . . HINGE-COWL DOOR, LH FE 1
-45 96-910011-10 . . HINGE-COWL DOOR, RH FE 1
50 58-910011-75 . . STRINGER-LH FE 1
-55 58-910011-76 . . STRINGER-RH FE 1
60 58-910011-107 . . FORMER-LH FE 1
-65 58-910011-108 . . FORMER-RH FE 1
70 58-910011-71 . . SKIN-BOTTOM, CENTER FE 1
75 58-910011-121 . . SKIN-BOTTOM, LH FE 1
-80 58-910011-122 . . SKIN-BOTTOM, RH FE 1
85 58-910011-93 . . FORMER FE 1
FOR SPARES ORDER:
58-910011-123
85 58-910011-123 . . FORMER FE 1
58-910011-93
90 58-910011-95 . . FORMER FE 1
FOR SPARES ORDER:
58-910011-125
90 58-910011-125 . . FORMER FE 1
58-910011-95
95 58-910011-97 . . FORMER FE 1
FOR SPARES ORDER:
58-910011-127
95 58-910011-127 . . FORMER FE 1
58-910011-97
-100 58-910011-103 . . STIFFENER-LH FE 1
105 58-910011-104 . . STIFFENER-RH FE 1
-110 58-910011-99 . . STIFFENER-LH FE 1
115 58-910011-100 . . STIFFENER-RH FE 1
-120 58-910011-101 . . STIFFENER-LH FE 1
125 58-910011-102 . . STIFFENER-RH FE 1
130 96-910011-151 . . STIFFENER FE 1
135 58-910011-105 . . CHANNEL FE 1
FOR SPARES ORDER:
58-910011-129
135 58-910011-129 . . CHANNEL FE 1
58-910011-105
145 58-910011-73 . . SKIN-LH FE 1
-150 58-910011-74 . . SKIN-RH FE 1
155 96-910011-189 . . BRACKET-LH D 1
71-10-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
155 96-910011-225 . . BRACKET-LH E 1
-160 96-910011-190 . . BRACKET-RH D 1
-160 96-910011-226 . . BRACKET-RH E 1
-165 214-16 . . RECEPTACLE FE 2
ALTERNATE SPARE:
214-16D
FOR SPARES ORDER:
132752-1B
ALTERNATE SPARE:
214-16
FOR SPARES ORDER:
132752-1BC
-165 132752-1B . . RECEPTACLE FE 2
214-16
214-16D
ALTERNATE SPARE:
40R8-16-2
ALTERNATE SPARE:
40R8-16-1
-175 58-910011-109 . COWLING ASSY-ENGINE, UPPER FE 1
185 105744CZE00208 . . . PIN-HINGE FE 1
200 50-939118-6 . . . PLATE-DOOR FE 1
215 96-910011-55 . . CHANNEL FE 1
-220 96-910011-56 . . CHANNEL FE 1
-225 214-16 . . RECEPTACLE FE 7
ALTERNATE SPARE:
214-16D
FOR SPARES ORDER:
132752-1B
ALTERNATE SPARE:
214-16
FOR SPARES ORDER:
132752-1BC
-225 132752-1B . . RECEPTACLE FE 7
214-16
214-16D
ALTERNATE SPARE:
40R8-16-2

71-10-00-05
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
ALTERNATE SPARE:
40R8-16-1
240 96-910012-13 . . ANGLE-LH FE 1
-245 96-910012-14 . . ANGLE-RH FE 1
250 96-910012-15 . . ANGLE FE 1
255 96-910012-17 . . ANGLE FE 1
265 96-910012-23 . . DOUBLER-LH FE 1
-270 96-910012-24 . . DOUBLER-RH FE 1
275 96-910012-45 . . DOUBLER FE 1
-280 96-910012-71 . . ANGLE-RH FE 1
285 96-910012-49 . . ANGLE-LH SEAL SUPPORT FE 1
-290 96-910012-50 . . ANGLE-RH SEAL SUPPORT FE 1
295 96-910012-55 . . ANGLE-CENTER FE 1
300 96-910012-57 . . SEAL-CENTER FE 1
FOR SPARES ORDER:
96-910012-139
300 96-910012-139 . . SEAL-CENTER FE 1
96-910012-57
305 96-910012-51 . . SEAL FE 2
FOR SPARES ORDER:
96-910012-137
305 96-910012-137 . . SEAL FE 2
96-910012-51
310 58-910011-77 . . SEAL FE 1
FOR SPARES ORDER:
58-910011-287
310 58-910011-287 . . SEAL FE 1
58-910011-77
315 96-910012-47 . . ANGLE-LH FE 1
-320 96-910012-48 . . ANGLE-RH FE 1
325 58-910011-57 . . FORMER FE 1
330 58-910011-59 . . PLATE FE 1
-335 58-910011-115 . . ANGLE FE 1
FOR SPARES ORDER:
58-910011-135
-335 58-910011-135 . . ANGLE FE 1
58-910011-115
-340 58-910011-116 . . ANGLE FE 1
FOR SPARES ORDER:
58-910011-136
-340 58-910011-136 . . ANGLE FE 1
58-910011-116
-345 58-910011-117 . . REINFORCEMENT C 1
FOR SPARES ORDER:
58-910011-137

71-10-00-05
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
FOR SPARES ORDER:
58-910011-117
350 58-910011-119 . . HAT SECTION FE 1
355 58-910011-111 . . DOUBLER FE 1
FOR SPARES ORDER:
58-910011-131
355 58-910011-131 . . DOUBLER FE 1
58-910011-111
360 58-910011-11 . . PLATE-LH FE 1
-365 58-910011-12 . . PLATE-RH FE 1
370 58-910011-85 . . PLATE-LH FE 1
375 58-910011-21 . . PLATE-LH FE 1
-380 58-910011-22 . . PLATE FE 1
385 58-910011-115 . . ANGLE-LH FE 1
FOR SPARES ORDER:
58-910011-135
385 58-910011-135 . . ANGLE-LH FE 1
58-910011-115
-390 58-910011-116 . . ANGLE-RH FE 1
FOR SPARES ORDER:
58-910011-136
-390 58-910011-136 . . ANGLE-RH FE 1
58-910011-116
-400 58-910011-55 . NOSE ASSY-LOWER F 1
405 58-910011-7 . . SKIN-UPPER G 1
FOR SPARES ORDER:
58-910011-79
405 58-910011-79 . . SKIN-UPPER G 1
58-910011-7
405 58-910011-229 . . SKIN-UPPER H 1
410 58-910011-9 . . SKIN-LOWER J 1
FOR SPARES ORDER:
58-910011-81
410 58-910011-81 . . SKIN-LOWER J 1
58-910011-9
410 58-910011-289 . . SKIN-LOWER K 1
415 58-910011-17 . . FORMER-LH FE 1
-420 58-910011-27 . . FORMER-RH FE 1
-425 58-910011-253 . DOOR ASSY-LH F 1
FOR SPARES ORDER:
58-910011-279
-425 58-910011-279 . DOOR ASSY-LH FE 1
58-910011-253
-430 58-910011-255 . DOOR ASSY-RH F 1
FOR SPARES ORDER:
58-910011-281

71-10-00-05
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-430 58-910011-281 . DOOR ASSY-RH FE 1
58-910011-255
ATTACHING PARTS
435 AN253-2-2650 . PIN-HINGE FE 1
-------*-------
440 96-910011-47 . . HINGE-LH FE 1
-445 96-910011-48 . . HINGE-RH FE 1
450 96-910012-61 . . ANGLE-LH FE 1
-455 96-910012-62 . . ANGLE-RH FE 1
460 96-910012-41 . . ANGLE-LH FE 1
-465 96-910012-42 . . ANGLE-RH FE 1
470 96-910012-65 . . SKIN-LH FE 1
-475 96-910012-66 . . SKIN-RH FE 1
480 40S5-2 . . STUD FE 4
485 40S5-3 . . STUD FE 6
490 40S5-4 . . STUD FE 1
-495 4002-G . . GROMMET FE 10
-500 R4G . . RING-RETAINING FE 1
H0873-H0873,H0895-H1388,H1390-H1395 A
H1389-H1389,H1396-H9999 B
H0873-H0873,H0895-H1053,H1056-H1057 C
H0873-H0873,H0895-H0928 D
H0929-H9999 E
H1389-H1389,H1396-H2023 F
H0873-H0873,H0895-H1153 G
H1154-H9999 H
H0873-H0873,H0895-H2021 J
H2022-H9999 K
H0873-H0873,H0895-H9999 FE

71-10-00-05
PAGE 5
BARON MAY 01/19

71-10-00-10
ENGINE MANUAL COWLING FLAP
71-10-00-10
BARON MAY 01/19
ENGINE MANUAL COWLING FLAP
71-10-00-10
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10 ENGINE MANUAL COWLING FLAP

-5 96-910028-25 FLAP INSTL-COWLING, MANUAL, LH A RF
-5 96-910028-27 FLAP INSTL-COWLING, MANUAL, LH B RF
-5 96-910028-37 FLAP INSTL-COWLING, MANUAL, LH C RF
-10 96-910028-26 FLAP INSTL-COWLING, MANUAL, RH A RF
-10 96-910028-28 FLAP INSTL-COWLING, MANUAL, RH B RF
-10 96-910028-38 FLAP INSTL-COWLING, MANUAL, RH C RF
15 130909B17 . BOLT FE 2
20 NAS1149D0316H . WASHER FE 2
25 H10-3 . NUT FE 2
30 130909B20 . BOLT FE 1
35 NAS1149F0363P . WASHER FE 1
40 NAS43HT3-5 . SPACER C 2
45 130909N29 . NUT FE 1
50 AN316-4R . NUT-LOCKING FE 3
55 AN935-416L . WASHER-LOCK FE 3
60 F34-14 /M/ . BEARING FE 3
FOR SPARES ORDER:
131765-1F
60 131765-1F . ROD END FE 3
F34-14 /M/
65 96-910028-29 . PUSH ROD D 1
65 96-910028-31 . PUSH ROD B 1
70 MS27039-0808 . SCREW FE 4
75 AN960-8 . WASHER FE 4
ALTERNATE SPARE:
NAS1149FN832P
75 NAS1149FN832P . WASHER FE 4
ALTERNATE SPARE:
AN960-8
80 MS20365-832 . NUT FE 4
85 96-910028-35 . BRACKET J 1
90 96-910028-36 . BRACKET J 1
-95 96-910028-45 . FLAP ASSY K 1
100 96-910028-35 . . BRACKET K 1
105 96-910028-36 . . BRACKET K 1
-110 96-910028-11 . CRANK ASSY-LH E 1
-110 96-910028-39 . CRANK ASSY-LH C 1
-115 96-910028-12 . CRANK ASSY-RH E 1
-115 96-910028-40 . CRANK ASSY-RH C 1
ATTACHING PARTS
120 130909B38 . BOLT FE 1
125 100951CR016WB . WASHER FE 2
130 105739-X-YE0520 . BUSHING FE 1
-------*-------
135 6N8-D . . BUSHING FE 1
140 96-910028-9 . . WELD ASSY-LH E 1
140 96-910028-41 . . WELD ASSY-LH C 1
-145 96-910028-10 . . WELD ASSY-RH E 1
-145 96-910028-42 . . WELD ASSY-RH C 1
150 58-910025-1 . STOP-LH F 1
-155 58-910025-2 . STOP-RH F 1
160 96-910028-15 . BRACKET ASSY FE 1

71-10-00-10
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10
-165 22NA17A-048 . . NUTPLATE FE 1
FOR SPARES ORDER:
MS21051L4
-165 MS21051L4 . . NUTPLATE FE 1
22NA17A-048
170 MS21919WDG5 . CLAMP FE 1
ATTACHING PARTS
175 MS27039-1-10 . SCREW G 1
175 MS35207-264 . SCREW H 1
185 MS20365-1032 . NUT G 1
185 SS10K80 . RIVNUT H 1
-------*-------
190 M5 . CLAMP FE 1
ALTERNATE SPARE:
U5
190 U5 . CLAMP FE 1
ALTERNATE SPARE:
M5
E0938-E0938,E0943-E9999 A
H0385-H1388,H1390-H1395 B
H1389-H1389,H1396-H9999 C
E0938-E0938,E0943-E9999,H1389-H1389,H1396-H9999 D
E0938-E0938,E0943-E9999,H0385-H1388,H1390-H1395 E
E0974-E9999,H0452-H9999 F
H0385-H2289 G
E0938-E0938,E0943-E9999,H2290-H9999 H
E0938-E0938,E0943-E1083,H0385-H0770 J
E1084-E9999,H0771-H9999 K
E0938-E0938,E0943-E9999,H0385-H9999 FE

71-10-00-10
PAGE 2
BARON MAY 01/19
71-60-00-01
INDUCTION AIR SYSTEM
71-60-00-01
BARON MAY 01/19

SHEET 1 OF 2
71-60-00-01
PAGE 0
MAY 01/19

SHEET 2 OF 2
71-60-00-01
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 INDUCTION AIR SYSTEM

-5 96-919100-99 AIR BOX ASSY-LH ENGINE, WITH B RF
GENERATOR
-5 96-919100-169 AIR BOX ASSY-LH ENGINE, WITH C RF
GENERATOR
-15 96-919100-153 AIR BOX ASSY-RH ENGINE, WITH B RF
GENERATOR
-15 96-919100-179 AIR BOX ASSY-RH ENGINE, WITH C RF
GENERATOR
-25 96-919100-137 AIR BOX ASSY-LH ENGINE, WITH B RF
ALTERNATOR
-25 96-919100-159 AIR BOX ASSY-LH ENGINE, WITH C RF
ALTERNATOR
-35 96-919100-139 AIR BOX ASSY-RH ENGINE, WITH B RF
ALTERNATOR
-35 96-919100-161 AIR BOX ASSY-RH ENGINE, WITH C RF
ALTERNATOR
-45 96-919100-609 . AIR BOX ASSY-LH ENGINE, FE 1
WITH GENERATOR
-50 96-919100-615 . AIR BOX ASSY-RH ENGINE, FE 1
WITH GENERATOR
-55 96-919100-617 . AIR BOX ASSY-LH ENGINE, FE 1
WITH ALTERNATOR
-60 96-919100-618 . AIR BOX ASSY-RH ENGINE, FE 1
WITH ALTERNATOR
ATTACHING PARTS
65 AN125964 . STUD FE 4
-70 AN960-416 . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0463P
ALTERNATE SPARE:
AN960-416
-75 130909N32 . NUT FE 4
-------*-------
77 96-919113-1 . . PLACARD-INSTRUCTION, FE 1
AIR BOX INSTALLATION
80 96-919100-91 . . COVER-AIR BOX FILTER FE 1
ATTACHING PARTS
85 A4-30 . . FASTENER FE 4
FOR SPARES ORDER:
AJ4-30
85 AJ4-30 . . FASTENER FE 4
A4-30
-90 S4-250 . . SPRING FE 4
ALTERNATE SPARE:
1219-4250-Z3CT
-90 1219-4250-Z3CT . . SPRING FE 4
ALTERNATE SPARE:
S4-250
-95 GA4-250 . . GROMMET FE 4
-------*-------
100 122601 . . FILTER ASSY-AIR BOX FE 1
FOR SPARES ORDER:
P12-8219
71-60-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
100 P12-8219 . . FILTER ASSY-AIR BOX FE 1
122601
105 96-919100-65 . . DOOR FE 1
110 AN253-2-444 . . PIN-AIR BOX DOOR HINGE FE 1
115 35-910288 . . SPRING-AIR BOX DOOR FE 1
-120 96-919100-61 . . HINGE-AIR BOX DOOR HALF FE 1
125 96-919100-63 . . HINGE-AIR BOX DOOR HALF FE 1
130 96-919100-87 . . COVER-WITH GENERATOR FE 1
130 96-919100-127 . . COVER-WITH ALTERNATOR FE 1
ATTACHING PARTS
-140 130909B12 . . BOLT FE 2
-145 MK1000-3 . . NUTPLATE FE 2
ALTERNATE SPARE:
MS21069L3
ALTERNATE SPARE:
MK1000-3
-------*-------
-150 96-919100-129 . . DOUBLER-COVER, WITH FE 1
ALTERNATOR
155 96-919100-101 . . PLATE-AIR BOX FE 1
160 96-919100-97 . . COVER-AIR BOX FE 1
165 96-919100-11 . . BAFFLE-AIR BOX FE 1
170 96-919100-95 . . COVER-AIR BOX FE 1
175 96-919100-103 . . ANGLE-AIR BOX FE 1
180 96-919100-31 . . WELD ASSY-AIR BOX BASE FE 1
185 96-919100-73 . . BOTTOM-AIR BOX, WITH FE 1
GENERATOR
185 96-919100-131 . . BOTTOM-AIR BOX, WITH FE 1
ALTERNATOR
195 96-919100-71 . . PLATE-SIDE FE 1
200 96-919100-75 . . WELD ASSY-GENERATOR BLAST FE 1
TUBE
200 96-919100-147 . . WELD ASSY-ALTERNATOR FE 1
BLAST TUBE
210 96-919100-93 . . ANGLE FE 1
215 96-919100-51 . . WELD ASSY-TUBE FE 1
-220 SS48172 . . BUTTON-PLUG FE 2
FOR SPARES ORDER:
SS-48172K2215
-220 SS-48172K2215 . . BUTTON-PLUG FE 2
SS48172
FOR SPARES ORDER:
SS-48172K2915
-220 SS-48172K2915 . . BUTTON-PLUG FE 2
SS-48172K2215
225 96-919100-89 . . CLIP-AIR BOX, WITH FE 1
GENERATOR
225 96-919100-133 . . CLIP-AIR BOX, WITH FE 1
ALTERNATOR
235 96-919100-81 . . ANGLE FE 1
240 96-919100-83 . . SEAL-AIR BOX FE 1
71-60-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
245 96-919100-85 . . STRIP-AIR BOX FE 1
250 96-919100-39 . GASKET-AIR BOX B 1
-255 96-919112-1 . SEAL-AIR BOX C 1
260 96-919100-79 . BRACE-AIR BOX FE 1
265 MS21919DG36 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG36
265 AS21919WDG36 . CLAMP FE 1
MS21919DG36
ATTACHING PARTS
270 AN3 . BOLT FE 2
ATTACHES BRACE AND CLAMP
-275 AN960-10 . WASHER FE 2
MISCELLANEOUS DATA:
ALTERNATE SPARE:
NAS1149F0363P
MISCELLANEOUS DATA:
ALTERNATE SPARE:
AN960-10
-280 130909N29 . NUT FE 2
-------*-------
285 96-919100-29 . BASE-AIR BOX B 1
C1608-C1713,C1715-C1827 B
C1714-C1714,C1828-C9999 C
C1608-C9999 FE

71-60-00-01
PAGE 3
BARON MAY 01/19

71-60-00-02
71-60-00-02
BARON MAY 01/19

SHEET 1 OF 3
71-60-00-02
PAGE 0
MAY 01/19

SHEET 2 OF 3
71-60-00-02
PAGE 0A
MAY 01/19

SHEET 3 OF 3
71-60-00-02
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 INDUCTION AIR SYSTEM

-15 96-919101 INDUCTION SYSTEM INSTL-LH F RF
MISCELLANEOUS DATA:
FOR CONTROL CABLES EFF
TH-1 THRU TH-384, SEE
CHAPTER 76-10-00-02
-15 96-919101-137 INDUCTION SYSTEM INSTL-LH A RF
MISCELLANEOUS DATA:
CHAPTER 76-10-00-02
-20 96-919101-115 INDUCTION SYSTEM INSTL-RH F RF
MISCELLANEOUS DATA:
CHAPTER 76-10-00-02
-20 96-919101-153 INDUCTION SYSTEM INSTL-RH A RF
MISCELLANEOUS DATA:
CHAPTER 76-10-00-02
-35 96-919101-605 . DUCT ASSY-LH INDUCTION F 1
SYSTEM
-35 96-919101-611 . DUCT ASSY-LH INDUCTION A 1
SYSTEM
-40 96-919101-606 . DUCT ASSY-RH INDUCTION F 1
SYSTEM
-40 96-919101-612 . DUCT ASSY-RH INDUCTION A 1
SYSTEM
50 96-919101-607 . . DUCT ASSY-INDUCTION A 1
SYSTEM, BONDED
50 96-919101-609 . . DUCT ASSY-INDUCTION F 1
SYSTEM, BONDED
ATTACHING PARTS
55 98265-2-190 . . STUD-FASTENER G 8
-60 98265-2-230 . . STUD-FASTENER G 2
65 99947-P.130 . . RECEPTACLE G 10
FOR SPARES ORDER:
130175-6P130
65 130175-6P130 . . RECEPTACLE G 10
99947-P.130
-70 99836 . . PIN G 10
-75 295250-1 . . GROMMET G 10
-------*-------
80 96-919101-97 . . DUCT G 1
ATTACHING PARTS
85 AN509-10R . . SCREW G 9
-90 NAS1031-A3K . . NUTPLATE G 7
-95 NAS1024A3K . . NUTPLATE G 2
-100 NAS463XDD10M . . SHIM-NUTPLATE G 2
-------*-------
105 96-919101-37 . . DOUBLER G 1
-110 96-919101-13 . . ARM ASSY-FLAPPER F 1
-115 96-919101-79 . . FLAPPER ASSY F 1
-120 96-919101-87 . . BEARING ASSY F 1
71-60-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-125 96-919101-85 . . . BLOCK F 1
-130 8N8D . . . BEARING F 1
-135 96-919101-161 . . DOOR ASSY-FILTER ACCESS A 1
ATTACHING PARTS
140 98264-1-90 . . STUD A 6
-145 99871-P-098 . . RECEPTACLE A 6
FOR SPARES ORDER:
130175-2P098
-145 130175-2P098 . . RECEPTACLE A 6
99871-P-098
-150 99785-2 . . PIN A 6
FOR SPARES ORDER:
130177-2
-150 130177-2 . . PIN A 6
99785-2
-155 295846-1 . . GROMMET A 6
-------*-------
160 96-919101-41 . . . DOOR A 1
165 96-919101-43 . . . SPRING A 1
170 96-919101-63 . . CHANNEL-LH G 1
-175 96-919101-64 . . CHANNEL-RH G 1
ATTACHING PARTS
180 AN520-10 . . SCREW G 8
-185 AN366-F1032 . . NUTPLATE G 6
FOR SPARES ORDER:
MS21078-3
MS21047L3
130909N33
-185 MS21078-3 . . NUTPLATE G 6
AN366-F1032
-185 MS21047L3 . . NUTPLATE G 6
AN366-F1032
-185 130909N33 . . NUTPLATE G 6
AN366-F1032
-190 MK-2000-1032 . . NUTPLATE G 2
-------*-------
195 96-919101-107 . . CLIP G 2
205 96-919101-143 . . WELD ASSY-INDUCTION DUCT A 1
205 96-919101-603 . . WELD ASSY-INDUCTION DUCT F 1
210 AN865-1 . . FLANGE-FUEL VENT, RH ONLY A 1
215 96-919101-149 . . ANGLE-LH A 1
-220 96-919101-150 . . ANGLE-RH A 1
225 96-919101-151 . . FILLER-DUCT ASSY A 1
230 96-919101-147 . . SHELF-DUCT A 1
235 96-919101-81 . . COLLAR G 1
240 121128-2 . FILTER-INDUCTION AIR G 1
245 96-919111 . DUCT G 1

71-60-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ATTACHING PARTS
250 105798-12 . CLAMP G 1
FOR SPARES ORDER:
MS35842-14
250 MS35842-14 . CLAMP G 1
105798-12
-------*-------
255 96-919101-59 . PLATE G 1
ATTACHING PARTS
260 AN500-416-6 . SCREW G 4
-265 AN935-416L . WASHER G 4
-------*-------
-270 58-910028-33 AIR SYSTEM INSTL-INDUCTION, J RF
LH
-270 58-910028-45 AIR SYSTEM INSTL-INDUCTION, K RF
LH
-280 58-910028-3 AIR SYSTEM INSTL-INDUCTION, B RF
RH
-280 58-910028-37 AIR SYSTEM INSTL-INDUCTION, C RF
RH
-285 58-910028-35 AIR SYSTEM INSTL-INDUCTION, LH C RF
FOR NHA SEE:
71-00-00-02
71-00-00-03
71-00-00-04
-285 58-910028-39 AIR SYSTEM INSTL-INDUCTION, LH C RF
WITH AIR CONDITION
FOR NHA SEE:
71-00-00-02
71-00-00-03
71-00-00-04
-290 58-910028-41 AIR SYSTEM INSTL-INDUCTION, RH C RF
FOR NHA SEE:
71-00-00-02
71-00-00-03
71-00-00-04
-300 58-910028-601 . AIR SYSTEM ASSY-INDUCTION D 1
-305 58-910028-603 . AIR SYSTEM ASSY-INDUCTION D 1
-310 58-910028-5 . . SCOOP ASSY L 1
-310 58-910028-5 . . SCOOP ASSY H 1
ALTERNATE SPARE:
58-910028-55
-310 58-910028-55 . . SCOOP-ASSY N 1
ALTERNATE SPARE:
58-910028-5
ATTACHING PARTS
315 98265-2-200 . . STUD D 10
FOR SPARES ORDER:
130176-5SF-20
315 130176-5SF-20 . . STUD D 10
SPARES R:
98265-2-200
-320 130177-5 . . PIN D 10
-325 295250-1 . . GROMMET D 10
71-60-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
330 MS24694-S49 . . SCREW D 4
-335 MS21059L3 . . NUTPLATE D 2
-------*-------
340 58-910028-7 . . . DUCT ASSY-INLET L 1
340 58-910028-7 . . . DUCT ASSY-INLET H 1
ALTERNATE SPARE:
58-910028-57
340 58-910028-57 . . . DUCT ASSY-INLET M 1
ALTERNATE SPARE:
58-910028-7
FOR SPARES ORDER:
58-910028-61
340 58-910028-61 . . . DUCT ASSY-INLET N 1
58-910028-57
345 58-910028-17 . . . DOOR D 1
ATTACHING PARTS
350 MS24693-S270 . . . SCREW D 6
-------*-------
355 58-910028-29 . . FORMER ASSY D 1
ATTACHING PARTS
-360 AN525-832R7 . . SCREW D 4
-------*-------
-365 58-910028-21 . . FAIRING B 1
ATTACHING PARTS
-370 MS24693-S48 . . SCREW B 28
-375 MS21075L08 . . NUTPLATE B 8
FOR SPARES ORDER:
MS21075L08N
-375 MS21075L08N . . NUTPLATE B 8
MS21075L08
-------*-------
-380 58-555040-13 . . FAIRING ASSY-LH C 1
-385 58-555040-3 . . FAIRING ASSY-RH C 1
-390 58-555040-1 . . FAIRING ASSY-LH, S 1
WITH AIR CONDITION
-390 58-555040-17 . . FAIRING ASSY-LH, T 1
WITH AIR CONDITION
ATTACHING PARTS
-395 MS24693-S48 . . SCREW C AR
-400 MS21075L08 . . NUTPLATE C AR
FOR SPARES ORDER:
MS21075L08N
-400 MS21075L08N . . NUTPLATE C AR
MS21075L08
-------*-------
405 58-555040-15 . . . FAIRING-FWD LH C 1
-410 58-555040-7 . . . FAIRING-FWD RH C 1
-415 58-555040-5 . . . FAIRING-FWD LH, C 1
WITH AIR COND
420 58-555040-11 . . . DOUBLER C 1
425 58-555040-9 . . . FAIRING-AFT C 1

71-60-00-02
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ATTACHING PARTS
430 MS24694-S3 . . . SCREW C 5
-435 MS21049L08 . . . NUTPLATE C 5
-------*-------
440 58-910029-1 . . BOX ASSY-LH J 1
440 58-910029-1 . . BOX ASSY-LH P 1
FOR SPARES ORDER:
58-910029-23
440 58-910029-23 . . BOX ASSY-LH C 1
58-910029-1
-445 58-910029-3 . . BOX ASSY-RH D 1
-445 58-910029-21 . . BOX ASSY-RH Q 1
FOR SPARES ORDER:
58-910029-25
-445 58-910029-25 . . BOX ASSY-RH R 1
58-910029-21
ATTACHING PARTS
450 130909B12 . . BOLT D 3
455 MS35207-263 . . SCREW D 8
-------*-------
460 AN865-1 . . . FLANGE D 1
465 96-389005-1 . FILTER-AIR D 1
ATTACHING PARTS
470 MS27039-1-38 . SCREW D 2
-------*-------
475 105798-12 . CLAMP D 1
FOR SPARES ORDER:
MS35842-14
475 MS35842-14 . CLAMP D 1
105798-12
480 96-919111 . DUCT D 1
485 96-919101-59 . PLATE D 1
ATTACHING PARTS
490 MS20074-04-06 . BOLT D 4
-495 MS35338-44 . WASHER D 4
-------*-------
-500 96-910024 INDUCTION AIR INSTL A RF
ALTERNATE
FOR NHA SEE:
71-00-00-02
71-00-00-03
-500 96-910024-49 INDUCTION AIR INSTL D RF
ALTERNATE
FOR NHA SEE:
71-00-00-04
-510 96-910024-31 . BOX ASSY-ALTERNATE AIR A 1
FOR SPARES ORDER:
96-910024-51
-510 96-910024-51 . BOX ASSY-ALTERNATE AIR D 1
96-910024-31
525 96-910024-61 . . WRAPPER D 1
71-60-00-02
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
525 96-910024-602 . . WRAPPER ASSY-AIR BOX A 1
530 96-910024-13 . . TUBE D 1
535 96-910024-45 . . BOTTOM E 1
540 96-910024-43 . . ANGLE E 1
545 96-910024-41 . . ANGLE E 1
555 96-910024-53 . . HINGE HALF D 1
555 96-910024-15 . . HINGE HALF A 1
565 96-910024-55 . . HINGE HALF D 1
565 96-910024-17 . . HINGE HALF A 1
575 96-910024-59 . . DOOR D 1
575 96-910024-27 . . DOOR A 1
580 96-910024-39 . . SPACER A 1
585 105774C-ZE00226 . . PIN-HINGE E 1
595 96-919114-1 . . SPRING-DOOR D 1
595 35-910288 . . SPRING-DOOR A 1
600 96-910024-25 . BRACE-ALTERNATE AIR BOX E 1
ATTACHING PARTS
605 130909B17 . BOLT E 3
-610 AN960-10 . WASHER E 3
ALTERNATE SPARE:
NAS1149F0363P
-610 NAS1149F0363P . WASHER E 3
ALTERNATE SPARE:
AN960-10
-615 130909N29 . NUT E 3
-------*-------
620 111716AX6XX30 . DUCT-ALTERNATE AIR E 1
ATTACHING PARTS
625 AN737TW98-114 . CLAMP E 2
-------*-------
E0938-E0938,E0943-E1078,H0385-H0740 A
E1079-E1118,E1120-E1124,H0741-H0872,H0874-H0894 B
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H9999 C
E1079-E9999,H0741-H9999 D
E0938-E0938,E0943-E9999,H0385-H9999 E
H0001-H0384 F
E0938-E0938,E0943-E1078,H0001-H0740 G
H0741-H1760 H
H0873-H1388,H1390-H1395 J
H1389-H1389,H1396-H9999 K
E1079-E9999 L
H0741-H2275 M
H0741-H9999 N
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H2380 P
E1183-E9999,H1194-H2380 Q
E1183-E9999,H1194-H9999 R
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H1672 S
H1673-H9999 T
E0938-E0938,E0943-E9999,H0001-H9999 FE

71-60-00-02
PAGE 6
BARON MAY 01/19
71-60-00-03
ENGINE BAFFLES
71-60-00-03
BARON MAY 01/19
ENGINE BAFFLES
SHEET 1 OF 3
71-60-00-03
PAGE 0
MAY 01/19
ENGINE BAFFLES
SHEET 2 OF 3
71-60-00-03
PAGE 0A
MAY 01/19
ENGINE BAFFLES
SHEET 3 OF 3
71-60-00-03
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 ENGINE BAFFLES
-5 96-910015 BAFFLE INSTL-ENGINE FE RF
FOR NHA SEE:
71-00-00-01
10 35-910215 . SUPPORT-FRONT RH UPPER FE 1
BAFFLE
ATTACHING PARTS
15 AN515-6R7 . SCREW FE 1
FOR SPARES ORDER:
MS35206-229
15 MS35206-229 . SCREW FE 1
AN515-6R7
-20 AN960-8 . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-25 MS21042L06 . NUT FE 1
-------*-------
30 35-910216 . SUPPORT-INNER CYLINDER FE 2
BAFFLE
FOR SPARES ORDER:
35-910216-5
-35 35-910216-5 . SUPPORT-INNER CYLINDER FE 2
BAFFLE
35-910216
ATTACHING PARTS
40 AN3-36A . BOLT FE 1
-------*-------
45 45-910315-1 . CLIP-BAFFLE SUPPORT FE 4
50 45-910314 . PLATE-BAFFLE SUPPORT FE 4
ATTACHING PARTS
55 AN515-8R . SCREW FE 1
-60 AN960-8 . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-65 130909N28 . NUT FE 1
-------*-------
-70 96-910015-171 . BAFFLE ASSY-RH REAR UPPER B 1
-75 96-910015-175 . BAFFLE ASSY-RH REAR UPPER C 1
80 96-910015-167 . . BAFFLE-RH REAR B 1
-85 96-910015-177 . . BAFFLE-RH REAR C 1
90 96-910015-35 . . CLIP-BAFFLE FE 1
95 96-910015-37 . . SUPPORT-BAFFLE FE 1
100 96-910015-69 . . STRIP-CAP FE 1
105 96-910015-33 . . SEAL-RH REAR BAFFLE FE 1
110 96-970001-97 . . TUBE ASSY C 1
ATTACHING PARTS
-115 AN525-10R7 . . SCREW C 3

71-60-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-120 AN960-10 . . WASHER C 3
ALTERNATE SPARE:
NAS1149F0363P
-120 NAS1149F0363P . . WASHER C 3
ALTERNATE SPARE:
AN960-10
-125 130909N29 . . NUT C 3
-------*-------
-130 96-910015-155 . BAFFLE ASSY-RH FWD LOWER FE 1
OIL COOLER
ATTACHING PARTS
135 MS35206-244 . SCREW FE 1
-140 AN960-8 . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-145 130909N28 . NUT FE 1
-------*-------
150 96-910015-151 . . STRIP-BACK FE 1
155 96-910015-63 . . STRIP-BACK FE 1
160 96-910015-65 . . STRIP-BACK FE 1
165 96-910015-67 . . STRIP-BACK FE 1
175 96-910015-105 . . CLIP-OIL COOLER FE 1
FOR SPARES ORDER:
96-910015-173
180 96-910015-173 . . CLIP-OIL COOLER FE 1
96-910015-105
ATTACHING PARTS
-185 AN525R8-18 . . SCREW FE 2
-190 102933D5ZX0750 . . SPACER FE 2
-195 AN960-8 . . WASHER FE 2
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-200 130909N28 . . NUT FE 2
-------*-------
205 96-910015-11 . . SEAL FE 1
210 96-910015-153 . . BAFFLE FE 1
215 96-910015-157 . . SEAL FE 1
220 96-910015-19 . . STRIP-CAP FE 1
225 96-910015-149 . . BAFFLE FE 1
230 96-910015-133 . . STRIP FE 1
-235 AN515-6R7 . . SCREW FE 4
FOR SPARES ORDER:
MS35206-229
-235 MS35206-229 . . SCREW FE 4
AN515-6R7

71-60-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-240 AN960-8 . . WASHER FE 4
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-245 H1S632BC100X200 . . NUT FE 4
-250 MS35206-244 . . SCREW FE 1
-255 AN960-8 . . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-260 MK2000-832 . . NUTPLATE FE 1
-265 AN515-832 . . SCREW FE 1
-270 100951DD032ZD . . WASHER FE 2
-275 130909N28 . . NUT FE 1
-280 96-910015-183 . BAFFLE ASSY-LH FWD LOWER FE 1
ATTACHING PARTS
285 MS35206-227 . SCREW FE 3
-290 AN960-6 . WASHER FE 3
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-295 AN365-632 . NUT FE 3
ALTERNATE SPARE:
MS21044N06
MS21042-06
MS20365-632
MS21042L06
-295 MS21044N06 . NUT FE 3
ALTERNATE SPARE:
AN365-632
MS21042-06
MS20365-632
MS21042L06
-295 MS21042-06 . NUT FE 3
ALTERNATE SPARE:
AN365-632
MS21044N06
MS20365-632
MS21042L06
-295 MS20365-632 . NUT FE 3
ALTERNATE SPARE:
AN365-632
MS21044N06
MS21042-06
MS21042L06

71-60-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-295 MS21042L06 . NUT FE 3
ALTERNATE SPARE:
AN365-632
MS21044N06
MS21042-06
MS20365-632
-------*-------
300 96-910015-23 . . STRIP-CAP FE 1
305 96-910015-25 . . STRIP-CAP FE 1
310 96-910015-119 . . SEAL FE 1
315 96-910015-125 . . SEAL FE 1
320 96-910015-127 . . SEAL FE 1
325 96-910015-45 . . CLIP FE 1
330 96-910015-89 . . BAFFLE FE 1
335 96-910015-99 . . SEAL FE 1
340 96-910015-117 . . STRIP-CAP FE 1
345 96-910015-121 . . STRIP-CAP FE 1
350 96-910015-123 . . STRIP-CAP FE 1
355 96-910015-129 . . BAFFLE-LH FWD FE 1
360 96-910015-115 . . DOOR-LH FWD BAFFLE FE 1
-365 96-910015-71 . BAFFLE ASSY-RH REAR LOWER FE 1
ATTACHING PARTS
370 MS35206-227 . SCREW FE 4
-375 AN960-6 . WASHER FE 4
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-380 AN365-632 . NUT FE 1
ALTERNATE SPARE:
MS21044N06
MS21042-06
MS20365-632
MS21042L06
-380 MS21044N06 . NUT FE 1
ALTERNATE SPARE:
AN365-632
MS21042-06
MS20365-632
MS21042L06
-380 MS21042-06 . NUT FE 1
ALTERNATE SPARE:
AN365-632
MS21044N06
MS20365-632
MS21042L06
-380 MS20365-632 . NUT FE 1
ALTERNATE SPARE:
AN365-632
MS21044N06
MS21042-06
MS21042L06

71-60-00-03
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-380 MS21042L06 . NUT FE 1
ALTERNATE SPARE:
AN365-632
MS21044N06
MS21042-06
MS20365-632
-------*-------
385 96-910015-77 . . BAFFLE-RH REAR FE 1
390 96-910015-55 . . CLIP-RH REAR BAFFLE FE 1
395 35-910066-43 . . BAFFLE-RH REAR FE 1
400 35-910066-165 . . CLIP FE 1
-405 96-910015-169 . BAFFLE ASSY-LH REAR LOWER FE 1
ATTACHING PARTS
410 MS35206-227 . SCREW FE 2
415 MS35206-243 . SCREW FE 2
-420 AN960-6 . WASHER FE 2
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-425 AN365-632 . NUT FE 2
ALTERNATE SPARE:
MS21044N06
MS21042-06
MS20365-632
MS21042L06
-425 MS21044N06 . NUT FE 2
ALTERNATE SPARE:
AN365-632
MS21042-06
MS20365-632
MS21042L06
-425 MS21042-06 . NUT FE 2
ALTERNATE SPARE:
AN365-632
MS21044N06
MS20365-632
MS21042L06
-425 MS20365-632 . NUT FE 2
ALTERNATE SPARE:
AN365-632
MS21044N06
MS21042-06
MS21042L06
-425 MS21042L06 . NUT FE 2
ALTERNATE SPARE:
AN365-632
MS21044N06
MS21042-06
MS20365-632
-430 H1S832BC100X200 . NUTPLATE FE 2
-------*-------
435 96-910015-139 . . CLIP FE 1
440 96-910015-165 . . BAFFLE-LH REAR FE 1
71-60-00-03
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
445 96-910015-87 . . STRIP-BACK FE 1
450 96-910015-85 . . SEAL FE 1
455 96-910015-93 . . STRIP-CAP FE 1
460 96-910015-91 . . SEAL FE 1
465 96-910015-41 . . SUPPORT FE 1
470 96-910015-109 . . SUPPORT FE 1
-475 AN520-10R . . SCREW FE 3
-480 AN366-F1032 . . NUTPLATE FE 3
FOR SPARES ORDER:
MS21078-3
MS21047L3
130909N33
-480 MS21078-3 . . NUTPLATE FE 3
AN366-F1032
AN366-F1032
-480 130909N33 . . NUTPLATE FE 3
AN366-F1032
490 96-910015-81 . . SUPPORT FE 1
495 35-910066-41 . . BAFFLE FE 1
500 35-910066-45 . . BAFFLE FE 1
505 35-910066-165 . . CLIP FE 1
510 35-910066-241 . . BAFFLE FE 1
515 35-910294 . SUPPORT FE 1
ATTACHING PARTS
520 AN3-71A . BOLT FE 1
-------*-------
-525 96-910015-103 . BAFFLE ASSY-LH FWD FE 1
INTERCYLINDER
530 96-910015-101 . . BAFFLE FE 1
535 35-910066-77 . . SECTION-HAT FE 1
540 35-910066-97 . . BAFFLE FE 1
545 35-910066-99 . . TAB FE 1
-550 MS35206-245 . . SCREW FE 1
-555 AN960-8 . . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-560 AN366-F1032 . . NUTPLATE FE 1
FOR SPARES ORDER:
MS21078-3
MS21047L3
130909N33
-560 MS21078-3 . . NUTPLATE FE 1
AN366-F1032
AN366-F1032
71-60-00-03
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-560 130909N33 . . NUTPLATE FE 1
AN366-F1032
-565 MS21047L08 . . NUTPLATE FE 1
-570 35-910066-107 . BAFFLE ASSY-RH AFT FE 3
INTERCYLINDER
575 35-910066-77 . . SECTION-HAT FE 1
580 35-910066-97 . . BAFFLE FE 1
585 35-910066-99 . . TAB FE 1
590 35-910066-101 . . BAFFLE FE 1
-595 MS35206-245 . . SCREW FE 1
-600 AN960-8 . . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-605 AN366-F1032 . . NUTPLATE FE 1
FOR SPARES ORDER:
MS21078-3
MS21047L3
130909N33
-605 MS21078-3 . . NUTPLATE FE 1
AN366-F1032
AN366-F1032
-605 130909N33 . . NUTPLATE FE 1
AN366-F1032
-610 MS21047L08 . . NUTPLATE FE 1
620 96-910015-73 . . CLIP FE 1
625 35-910066-183 . . BAFFLE-RH FWD FE 1
630 35-910066-193 . . BRACKET FE 1
635 35-910066-135 . . ANGLE FE 1
640 35-910066-165 . . CLIP FE 1
645 96-910015-159 . . BAFFLE FE 1
650 MS35206-243 . . SCREW FE 4
-655 AN960-8 . . WASHER FE 4
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
660 MS35206-244 . . SCREW FE 1
-665 MK1000-832 . . NUTPLATE FE 2
-670 NAS1025N08K . . NUTPLATE FE 1
-675 H1S832BC100X200 . . NUTPLATE FE 5
-680 AN931-5S13 . GROMMET FE 2
-685 AN931-6-S16 . GROMMET FE 2
-690 96-910025-7 . BAFFLE ASSY-RH FWD UPPER FE 1

71-60-00-03
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
ATTACHING PARTS
-695 AN500-416-14 . SCREW-ENGINE ROCKER BOX FE 1
COVER
-700 AN515-8R9 . SCREW FE 1
-705 AN960C8 . WASHER FE 1
FOR SPARES ORDER:
NAS1149CN832R
-705 NAS1149CN832R . WASHER FE 1
AN960C8
-------*-------
710 96-910025-3 . . BAFFLE FE 1
715 96-910025-5 . . CLIP FE 1
C1608-C2002 B
C2003-C9999 C
C1608-C9999 FE

71-60-00-03
PAGE 8
BARON MAY 01/19
71-60-00-04
ENGINE BAFFLES
71-60-00-04
BARON MAY 01/19
ENGINE BAFFLES
SHEET 1 OF 4
71-60-00-04
PAGE 0
MAY 01/19
ENGINE BAFFLES
SHEET 2 OF 4
71-60-00-04
PAGE 0A
MAY 01/19
ENGINE BAFFLES
SHEET 3 OF 4
71-60-00-04
PAGE 0B
MAY 01/19
ENGINE BAFFLES
SHEET 4 OF 4
71-60-00-04
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 ENGINE BAFFLES
-5 96-910020 BAFFLE INSTL-LH ENGINE, A RF
I0 520 ENGINE
FOR NHA SEE:
71-00-00-02
-10 96-910020-301 BAFFLE INSTL-RH ENGINE, B RF
I0 520 ENGINE
FOR NHA SEE:
71-00-00-03
-15 96-910020-365 . BAFFLE ASSY-RH REAR UPPER FE 1
20 96-910020-361 . . BAFFLE-RH REAR UPPER FE 1
25 96-910020-29 . . SEAL FE 1
30 96-910020-31 . . STRIP-CAP FE 1
35 96-910020-33 . . STRIP-CAP FE 1
40 96-910020-35 . . SEAL FE 1
45 96-910020-125 . . STRIP-CAP FE 1
50 96-910020-127 . . SEAL FE 1
55 96-910020-129 . . SEAL FE 1
60 96-910020-131 . . STRIP-CAP FE 1
65 96-910020-223 . . SUPPORT FE 1
70 96-910020-257 . . CLIP FE 1
ATTACHING PARTS
-75 130909B12 . . BOLT FE 2
-80 AN960-10 . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0363P
-80 NAS1149F0363P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10
-85 130909N29 . . NUT FE 2
-------*-------
ATTACHING PARTS
-95 MS35206-227 . SCREW FE 5
-100 AN960-6 . WASHER FE 5
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-105 MS21042L06 . NUT FE 5
-------*-------
110 96-910020-219 . . BAFFLE-RH REAR LOWER FE 1
120 35-910066-165 . . CLIP FE 1
-125 96-910020-367 . BAFFLE ASSY-LH REAR UPPER D 1
-130 96-910020-375 . BAFFLE ASSY-LH REAR UPPER E 1
ATTACHING PARTS
-135 AN520-10R . SCREW FE 1
-140 AN960-10L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-------*-------
71-60-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
145 96-910020-233 . . BAFFLE-LH REAR UPPER FE 1
150 96-910020-363 . . BAFFLE-LH REAR UPPER D 1
-155 96-910020-373 . . BAFFLE-LH REAR UPPER E 1
160 96-910020-181 . . STRIP-CAP FE 1
165 96-910020-157 . . SEAL FE 1
170 96-910020-173 . . SUPPORT FE 1
175 96-910020-235 . . CLIP FE 1
ATTACHING PARTS
-180 AN520-10R4 . . SCREW FE 2
-185 AN960-10L . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
-185 NAS1149F0332P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
-190 MS20365-1032C . . NUT FE 2
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-190 MS21044N3 . . NUT FE 2
ALTERNATE SPARE:
MS20365-1032C
-190 MS21042-3 . . NUT FE 2
ALTERNATE SPARE:
MS20365-1032C
-190 130909N29 . . NUT FE 2
MS20365-1032C
-------*-------
200 96-910020-245 . . BAFFLE-LH REAR LOWER FE 1
205 96-910020-247 . . ANGLE FE 1
210 96-910020-189 . . SEAL FE 1
215 96-910020-191 . . STRIP-CAP FE 1
220 96-910020-215 . . ANGLE ASSY FE 1
ATTACHING PARTS
-225 AN520-10R . . SCREW FE 2
-230 AN960-10L . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
-230 NAS1149F0332P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
ALTERNATE SPARE:
MS21069L3K
-235 MS21069L3K . . NUTPLATE FE 2
ALTERNATE SPARE:
NAS697A3K
-------*-------
240 96-910020-243 . BAFFLE-LH REAR LOWER FE 1

71-60-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-245 96-910020-85 . BAFFLE ASSY-LH REAR FE 1
INTERCYLINDER
FOR SPARES ORDER:
96-910020-535
INTERCYLINDER
96-910020-85
250 96-910020-87 . . BAFFLE FE 1
255 35-910066-97 . . BAFFLE FE 1
260 35-910066-99 . . TAB FE 1
265 35-910066-77 . . SECTION-HAT FE 1
270 96-910020-253 . . GROMMET FE 1
ALTERNATE SPARE:
MS21047L3
ALTERNATE SPARE:
NAS680A3
-280 MS21047L08 . . NUTPLATE FE 1
-285 AN960-8 . . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-290 MS35206-245 . . SCREW FE 1
-295 96-910020-151 . BAFFLE ASSY-INTERCYLINDER FE 3
RH AFT, LH AND LH FWD
300 96-910020-149 . . BAFFLE FE 1
305 35-910066-97 . . BAFFLE FE 1
310 35-910066-77 . . SECTION-HAT FE 1
315 35-910066-99 . . TAB FE 1
-320 H1S832BC100 . . NUTPLATE FE 1
ALTERNATE SPARE:
MS21047L3
ALTERNATE SPARE:
NAS680A3
-330 MS35206-243 . . SCREW FE 1
-335 96-910020-81 . BAFFLE ASSY-LH FWD UPPER FE 1
340 96-910020-83 . . BAFFLE FE 1
345 96-910020-259 . . BAFFLE FE 1
350 35-910066-241 . . BAFFLE FE 1
355 96-910015-81 . . SUPPORT FE 1
360 35-910066-165 . . CLIP-BAFFLE FE 1
-370 96-910020-3 . BAFFLE ASSY-LH FWD LOWER, A 1
COMPLETE
-375 96-910020-5 . . BAFFLE ASSY A 1
380 96-910020-23 . . . BAFFLE-LH FWD LOWER A 1
385 96-910020-7 . . . SEAL A 1
390 96-910015-25 . . . STRIP-CAP A 1
-395 96-910020-19 . . . DOOR ASSY A 1
400 96-910020-21 . . . . DOOR A 1
71-60-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
405 96-910020-13 . . . . SEAL A 1
410 96-910020-11 . . . . STRIP-CAP A 1
415 96-910020-9 . . . STRIP-CAP A 1
420 96-910020-17 . . . SEAL A 1
425 96-910020-15 . . . STRIP-CAP A 1
430 96-910020-117 . . . SEAL A 1
435 96-910020-119 . . . STRIP-CAP A 1
440 96-910015-89 . . BAFFLE A 1
-445 AN515-8R5 . . SCREW A 4
FOR SPARES ORDER:
MS35206-242
-445 MS35206-242 . . SCREW A 4
AN515-8R5
-450 NAS697A3K . . NUTPLATE A 4
ALTERNATE SPARE:
MS21069L3K
-450 MS21069L3K . . NUTPLATE A 4
ALTERNATE SPARE:
NAS697A3K
-455 96-910020-265 . BAFFLE ASSY-RH FWD F 1
-460 96-910020-403 . BAFFLE ASSY-RH FWD G 1
465 96-910020-213 . . BAFFLE A 1
470 96-910020-267 . . BAFFLE F 1
-475 96-910020-405 . . BAFFLE G 1
480 96-910020-63 . . SEAL A 1
485 96-910020-65 . . STRIP-CAP A 1
490 96-910020-67 . . SEAL A 1
495 96-910020-69 . . STRIP-CAP A 1
-500 102-910024-85 . . SEAL G 1
505 96-910020-199 . . PLATE-END A 1
510 96-910020-209 . . STIFFENER A 1
515 96-910020-211 . . STIFFENER A 1
520 96-910020-61 . . BRACKET A 1
-525 96-910020-371 . . BUMPER A 1
-530 96-910020-205 . SUPPORT ASSY A 1
ATTACHING PARTS
-535 AN520-10 . SCREW A 3
-540 AN960-10L . WASHER A 3
ALTERNATE SPARE:
NAS1149F0332P
-540 NAS1149F0332P . WASHER A 3
ALTERNATE SPARE:
AN960-10L
-545 130909N29 . NUT A 3
-------*-------
550 96-910020-39 . . PLATE A 1
555 96-910020-203 . . CHANNEL A 1
560 45-910314 . PLATE FE 4
565 45-910315-1 . CLIP-IGNITION HARNESS FE 4
ATTACHING PARTS
-570 MS35206-245 . SCREW FE 2
-575 AN960-8 . WASHER FE 2
FOR SPARES ORDER:
NAS1149FN832P
71-60-00-04
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
AN960-8
-580 130909N28 . NUT FE 2
-------*-------
585 35-910216 . SUPPORT-INNER CYLINDER, A 4
BAFFLE
FOR SPARES ORDER:
35-910216-5
-590 35-910216-3 . SUPPORT-INNER CYLINDER, A 4
BAFFLE
FOR SPARES ORDER:
35-910216-5
-595 35-910216-5 . SUPPORT-INNER CYLINDER, A 4
BAFFLE
35-910216
35-910216-3
ATTACHING PARTS
600 AN3-63A . BOLT A 1
-605 AN960-10L . WASHER A 4
ALTERNATE SPARE:
NAS1149F0332P
-605 NAS1149F0332P . WASHER A 4
ALTERNATE SPARE:
AN960-10L
-------*-------
610 AN931-5S13 . GROMMET-SPARK PLUG LEAD FE 4
WIRE
615 96-910020-137 . BRACKET FE 1
ATTACHING PARTS
-620 AN520-10R . SCREW FE 1
-625 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-630 MS20365-1032C . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-630 MS21044N3 . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-630 MS21042-3 . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-630 130909N29 . NUT FE 1
MS20365-1032C
-------*-------
635 96-910020-255 . BRACKET ASSY FE 1
71-60-00-04
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-640 96-910020-77 . . BRACKET FE 1
FOR SPARES ORDER:
MS21051L3
NAS1025A3
-650 96-910020-601 . BAFFLE ASSY-LH FWD LOWER B 1
655 96-910020-319 . . BAFFLE B 1
660 96-910020-287 . . SEAL B 1
665 96-910020-295 . . STRIP-CAP B 1
670 96-910020-289 . . SEAL B 1
675 96-910020-297 . . STRIP-CAP B 1
-680 96-910020-269 . . DOOR ASSY B 1
ATTACHING PARTS
-685 MS27039-1-07 . . SCREW B 5
-690 NAS1031A3 . . NUTPLATE B 5
-------*-------
695 96-910020-279 . . . DOOR B 1
700 96-910020-285 . . . SEAL B 1
705 96-910020-283 . . . STRIP-CAP B 1
710 96-910015-89 . . BAFFLE B 1
715 96-910020-333 . . SEAL B 1
720 96-910020-339 . . STRIP-CAP B 1
725 96-910020-337 . . STRIP-CAP B 1
730 96-910020-331 . . SEAL B 1
735 96-910020-329 . . STRIP-CAP B 1
740 96-910020-315 . . SEAL B 1
745 96-910020-317 . . STRIP-CAP B 1
750 96-910020-271 . BRACKET B 1
-755 96-910020-605 . BAFFLE ASSY-RH FWD LOWER H 1
-760 96-910020-607 . BAFFLE ASSY-RH FWD LOWER J 1
765 96-910020-341 . . BAFFLE H 1
-770 96-910020-409 . . BAFFLE J 1
775 96-910020-345 . . SEAL B 1
780 96-910020-343 . . STRIP-SEAL BACKING B 1
790 96-910020-369 . . SEAL B 1
800 96-910020-199 . . PLATE-END B 1
805 96-910020-209 . . STIFFENER B 1
810 96-910020-61 . . BRACKET B 1
815 96-910020-39 . . PLATE B 1
820 96-910020-275 . . CHANNEL B 1
825 96-910020-277 . . STIFFENER B 1
830 96-910020-213 . . BAFFLE B 1
835 96-910020-211 . . STIFFENER B 1
840 96-910020-371 . . BUMPER-RUBBER B 1
-845 96-910020-355 . BAFFLE ASSY-CENTER B 1
ATTACHING PARTS
-850 AN3 . BOLT B 5
-855 AN960-10L . WASHER B 5
ALTERNATE SPARE:
NAS1149F0332P

71-60-00-04
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-855 NAS1149F0332P . WASHER B 5
ALTERNATE SPARE:
AN960-10L
-860 130909N29 . NUT B 5
-------*-------
865 96-910020-347 . . BAFFLE B 1
870 96-910020-349 . . SEAL-BAFFLE B 1
880 96-910020-303 . . SEAL-BAFFLE B 1
-890 96-910034-13 BAFFLE INSTL-NOSE COWL, A RF
WINTER
-895 96-910034-11 . BAFFLE ASSY A 1
ATTACHING PARTS
-900 AN525-10-7 . SCREW A 4
-905 NAS697-A3 . NUTPLATE A 4
-------*-------
910 96-910034-9 . . BAFFLE A 1
915 96-910037-1 . . PLACARD-REMOVE BAFFLE A 1
920 96-910038-1 . PLACARD-REMOVE BAFFLE A 1
E0938-E0938,E0943-E9999 A
H0001-H1388,H1390-H1395 B
E0938-E0938,E0943-E0969,H0001-H0442,H0473-H0473 D
E0970-E9999,H0443-H0472,H0474-H1388,H1390-H1395 E
E0938-E0938,E0943-E1121 F
E1122-E9999 G
H0001-H0893 H
H0894-H1388,H1390-H1395 J
E0938-E0938,E0943-E9999,H0001-H1388,H1390-H1395 FE

71-60-00-04
PAGE 7
BARON MAY 01/19

71-60-00-05
ENGINE BAFFLES, WITH AIR COND
71-60-00-05
BARON MAY 01/19

SHEET 1 OF 3
71-60-00-05
PAGE 0
MAY 01/19

SHEET 2 OF 3
71-60-00-05
PAGE 0A
MAY 01/19

SHEET 3 OF 3
71-60-00-05
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05 ENGINE BAFFLES, WITH AIR COND

-5 96-910020-399 BAFFLE INSTL-LH ENGINE, FE RF
I0 520 ENGINE
-10 96-910020-301 BAFFLE INSTL-RH ENGINE, FE RF
IO 520 ENGINE
FOR NHA SEE:
71-00-00-03
-15 96-910020-383 . BAFFLE ASSY-RH REAR UPPER, FE 1
LH ENGINE
-20 96-910020-365 . BAFFLE ASSY-RH REAR UPPER, FE 1
RH ENGINE
25 96-910020-385 . . BAFFLE-RH REAR UPPER, LH FE 1
ENGINE
-30 96-910020-361 . . BAFFLE-RH REAR UPPER, RH FE 1
ENGINE
35 MS21266-1 . . GROMMET-LH ENGINE FE 1
40 96-910020-29 . . SEAL FE 1
45 96-910020-31 . . STRIP-CAP FE 1
50 96-910020-33 . . STRIP-CAP FE 1
55 96-910020-35 . . SEAL FE 1
60 96-910020-125 . . STRIP-CAP FE 1
65 96-910020-127 . . SEAL FE 1
70 96-910020-129 . . SEAL FE 1
75 96-910020-131 . . STRIP-CAP FE 1
80 96-910020-223 . . SUPPORT FE 1
85 96-910020-257 . . CLIP FE 1
ATTACHING PARTS
-90 130909B12 . . BOLT FE 2
-95 AN960-10 . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0363P
-95 NAS1149F0363P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10
-100 130909N29 . . NUT FE 2
-------*-------
ATTACHING PARTS
-110 MS35206-227 . SCREW FE 5
-115 AN960-6 . WASHER FE 5
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-120 MS21042L06 . NUT FE 5
-------*-------
135 35-910066-165 . . CLIP FE 1
-140 96-910020-375 . BAFFLE ASSY-LH REAR UPPER FE 1
ATTACHING PARTS
-150 AN520-10R . . SCREW FE 1

71-60-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-155 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-155 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
ALTERNATE SPARE:
MS21069L3K
ALTERNATE SPARE:
NAS697A3K
-------*-------
170 96-910020-181 . . STRIP-CAP FE 1
175 96-910020-157 . . SEAL FE 1
180 96-910020-173 . . SUPPORT FE 1
185 96-910020-235 . . CLIP FE 1
ATTACHING PARTS
-190 AN520-10R4 . . SCREW FE 2
-195 AN960-10L . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
-195 NAS1149F0332P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
-200 MS20365-1032C . . NUT FE 2
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-200 MS21044N3 . . NUT FE 2
ALTERNATE SPARE:
MS20365-1032C
-200 MS21042-3 . . NUT FE 2
ALTERNATE SPARE:
MS20365-1032C
-200 130909N29 . . NUT FE 2
MS20365-1032C
-------*-------
210 96-910020-245 . . BAFFLE-LH REAR LOWER FE 1
215 96-910020-247 . . ANGLE FE 1
220 96-910020-189 . . SEAL FE 1
225 96-910020-191 . . STRIP-CAP FE 1
230 96-910020-215 . . ANGLE ASSY FE 1
ATTACHING PARTS
-235 AN520-10R . . SCREW FE 2
-240 AN960-10L . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P

71-60-00-05
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-240 NAS1149F0332P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
ALTERNATE SPARE:
MS21069L3K
ALTERNATE SPARE:
NAS697A3K
-------*-------
INTERCYLINDER
FOR SPARES ORDER:
96-910020-535
255 96-910020-535 . BAFFLE ASSY-LH REAR FE 1
INTERCYLINDER
96-910020-85
260 96-910020-87 . . BAFFLE FE 1
265 35-910066-97 . . BAFFLE FE 1
270 35-910066-99 . . TAB FE 1
275 35-910066-77 . . SECTION-HAT FE 1
280 96-910020-253 . . GROMMET FE 1
ALTERNATE SPARE:
MS21047L3
ALTERNATE SPARE:
NAS680A3
-290 MS21047L08 . . NUTPLATE FE 1
-295 AN960-8 . . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-300 MS35206-245 . . SCREW FE 1
-305 96-910020-151 . BAFFLE ASSY-INTERCYLINDER FE 3
RH AFT, LH AND RH FWD
310 96-910020-149 . . BAFFLE FE 1
315 35-910066-97 . . BAFFLE FE 1
320 35-910066-77 . . SECTION-HAT FE 1
325 35-910066-99 . . TAB FE 1
-330 H1S832BC100 . . NUTPLATE FE 1
ALTERNATE SPARE:
MS21047L3
ALTERNATE SPARE:
NAS680A3
-340 MS35206-243 . . SCREW FE 1
350 96-910020-395 . . BAFFLE FE 1
355 96-910020-259 . . BAFFLE FE 1
71-60-00-05
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
360 35-910066-241 . . BAFFLE FE 1
365 35-910066-165 . . CLIP-BAFFLE FE 1
375 45-910314 . PLATE FE 4
380 45-910315-1 . CLIP-IGNITION HARNESS FE 4
-385 MS35206-245 . SCREW FE 2
-390 AN960-8 . WASHER FE 2
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-395 130909N28 . NUT FE 2
400 35-910216 . SUPPORT-INNER CYLINDER FE 4
BAFFLE
FOR SPARES ORDER:
35-910216-5
BAFFLE
FOR SPARES ORDER:
35-910216-5
BAFFLE
35-910216
35-910216-3
415 AN3-63A . BOLT FE 1
-420 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
425 AN931-5S13 . GROMMET-SPARK PLUG LEAD FE 4
WIRE
430 96-910020-137 . BRACKET FE 1
-435 AN520-10R . SCREW FE 1
-440 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-445 MS20365-1032C . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-445 MS21044N3 . NUT FE 1
ALTERNATE SPARE:
MS21044N3
-445 MS21042-3 . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
71-60-00-05
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-445 130909N29 . NUT FE 1
MS20365-1032C
450 96-910020-255 . BRACKET ASSY FE 1
-455 96-910020-77 . . BRACKET FE 1
FOR SPARES ORDER:
MS21051L3
NAS1025A3
470 96-910020-319 . . BAFFLE FE 1
ATTACHING PARTS
475 AN520-10R . . SCREW FE 3
480 AN515-6R . . SCREW FE 2
-485 AN960-6 . . WASHER FE 2
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-490 MS21042L06 . . NUT FE 2
-------*-------
495 96-910020-287 . . SEAL FE 1
500 96-910020-295 . . STRIP-CAP FE 1
505 96-910020-289 . . SEAL FE 1
510 96-910020-297 . . STRIP-CAP FE 1
-515 96-910020-269 . . DOOR ASSY FE 1
ATTACHING PARTS
-520 MS27039-1-07 . . SCREW FE 5
-------*-------
530 96-910020-279 . . . DOOR FE 1
535 96-910020-285 . . . SEAL FE 1
540 96-910020-283 . . . STRIP-CAP FE 1
545 96-910015-89 . . BAFFLE FE 1
550 96-910020-333 . . SEAL FE 1
555 96-910020-339 . . STRIP-CAP FE 1
560 96-910020-337 . . STRIP-CAP FE 1
565 96-910020-331 . . SEAL FE 1
570 96-910020-329 . . STRIP-CAP FE 1
575 96-910020-315 . . SEAL FE 1
580 96-910020-317 . . STRIP-CAP FE 1
585 MS35206-243 . SCREW FE 2
-590 AN960-8 . WASHER FE 2
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-595 MK2000-832 . NUTPLATE FE 2
600 96-910020-271 . BRACKET FE 1
610 96-910020-409 . . BAFFLE FE 1
71-60-00-05
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
615 96-910020-345 . . SEAL FE 1
620 96-910020-343 . . STRIP-SEAL BACKING FE 1
630 96-910020-369 . . SEAL FE 1
-635 102-910024-85 . . SEAL FE 1
645 96-910020-199 . . PLATE-END FE 1
650 96-910020-209 . . STIFFENER FE 1
655 96-910020-61 . . BRACKET FE 1
660 96-910020-39 . . PLATE FE 1
665 96-910020-275 . . CHANNEL FE 1
670 96-910020-277 . . STIFFENER FE 1
675 96-910020-213 . . BAFFLE FE 1
680 96-910020-211 . . STIFFENER FE 1
685 96-910020-371 . . BUMPER-RUBBER FE 1
-690 96-910020-389 . BAFFLE ASSY-CENTER, LH FE 1
ENGINE
-695 96-910020-355 . BAFFLE ASSY-CENTER, RH FE 1
ENGINE
ATTACHING PARTS
-700 AN3 . BOLT FE 5
-705 AN960-10L . WASHER FE 5
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-710 130909N29 . NUT FE 5
-------*-------
715 96-910020-391 . . BAFFLE FE 1
-720 96-910020-347 . . BAFFLE FE 1
725 96-910020-349 . . SEAL FE 1
735 96-910020-303 . . SEAL FE 1
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H1388, FE
H1390-H1395

71-60-00-05
PAGE 6
BARON MAY 01/19
71-60-00-06
ENGINE BAFFLES
71-60-00-06
BARON MAY 01/19
ENGINE BAFFLES
SHEET 1 OF 4
71-60-00-06
PAGE 0
MAY 01/19
ENGINE BAFFLES
SHEET 2 OF 4
71-60-00-06
PAGE 0A
MAY 01/19
ENGINE BAFFLES
SHEET 3 OF 4
71-60-00-06
PAGE 0B
MAY 01/19
ENGINE BAFFLES
SHEET 4 OF 4
71-60-00-06
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06 ENGINE BAFFLES
-5 96-910020-413 BAFFLE INSTL-LH AND RH, FE RF
WITHOUT AIR COND, RH WITH
AIR COND
-10 96-910020-415 BAFFLE INSTL-LH, WITH AIR FE RF
COND
-15 96-910020-417 . BAFFLE ASSY-LH AND RH, FE 1
WITHOUT AIR COND, RH WITH
AIR COND
-20 96-910020-421 . BAFFLE ASSY-LH, WITH AIR COND A 1
FOR SPARES ORDER:
96-910020-541
-20 96-910020-541 . BAFFLE ASSY-LH, WITH AIR COND FE 1
96-910020-421
25 96-910020-419 . . BAFFLE-LH AND RH, WITHOUT FE 1
AIR COND, RH WITH AIR COND
-30 96-910020-423 . . BAFFLE-LH, WITH AIR COND A 1
USED ON:
96-910020-421
-30 96-910020-543 . . BAFFLE-LH, WITH AIR COND B 1
USED ON:
96-910020-541
35 MS21266-1N . . GROMMET-LH ENGINE FE 1
40 96-910020-29 . . SEAL FE 1
45 96-910020-31 . . STRIP-CAP FE 1
50 96-910020-33 . . STRIP-CAP FE 1
55 96-910020-35 . . SEAL FE 1
60 96-910020-125 . . STRIP-CAP FE 1
65 96-910020-127 . . SEAL FE 1
70 96-910020-129 . . SEAL FE 1
75 96-910020-131 . . STRIP-CAP FE 1
80 96-910020-223 . . SUPPORT FE 1
85 96-910020-257 . . CLIP FE 1
-90 130909B12 . . BOLT FE 2
-95 AN960-10 . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0363P
-95 NAS1149F0363P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10
-100 130909N29 . . NUT FE 2
-105 96-910020-435 . BAFFLE ASSY-LH REAR UPPER, FE 2
LH AND RH ENGINE
-115 AN520-10R . . SCREW FE 1
-120 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-120 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
ALTERNATE SPARE:
MS210693K

71-60-00-06
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
ALTERNATE SPARE:
NAS697A3K
135 96-910020-181 . . STRIP-CAP FE 1
-140 96-910020-443 . . STRIP-CAP FE 1
-145 96-910020-445 . . STRIP-CAP FE 1
150 96-910020-157 . . SEAL FE 1
-155 96-910020-447 . . SEAL FE 1
160 96-910020-173 . . SUPPORT FE 1
165 102-910024-19 . . ANGLE FE 1
ATTACHING PARTS
-170 AN520-10R4 . . SCREW FE 2
-175 AN960-10L . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
-175 NAS1149F0332P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
-180 MS20365-1032C . . NUT FE 2
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-180 MS21044N3 . . NUT FE 2
ALTERNATE SPARE:
MS20365-1032C
-180 MS21042-3 . . NUT FE 2
ALTERNATE SPARE:
MS20365-1032C
-180 130909N29 . . NUT FE 2
MS20365-1032C
-------*-------
ATTACHING PARTS
-190 MS35206-227 . SCREW FE 5
-195 AN960-6 . WASHER FE 5
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-200 MS21042L06 . NUT FE 5
-------*-------
215 35-910066-165 . . CLIP FE 1
-220 96-910020-425 . BAFFLE ASSY-LH REAR LOWER, FE 1
OIL COOLER
225 96-910020-427 . . BAFFLE ASSY-OIL COOLER FE 1
230 96-910020-247 . . ANGLE FE 1
235 96-910020-189 . . SEAL FE 1
240 96-910020-191 . . STRIP FE 1
71-60-00-06
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
245 96-910020-215 . . ANGLE ASSY FE 1
-250 AN520-10R . . SCREW FE 2
-255 AN960-10L . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
-255 NAS1149F0332P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
ALTERNATE SPARE:
MS21069L3K
ALTERNATE SPARE:
NAS697A3K
-270 58-910033-1 . BAFFLE ASSY-VALVE ROCKER FE 1
COVER
275 MS35206-243 . . SCREW FE 10
280 MS35206-244 . . SCREW FE 16
285 MS35206-245 . . SCREW FE 1
-290 130909B19 . . BOLT FE 1
295 NAS42DD6-32 . . SPACER FE 1
300 AN960-8 . . WASHER FE 28
FOR SPARES ORDER:
NAS1149FN832P
300 NAS1149FN832P . . WASHER FE 28
AN960-8
-305 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-305 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
310 130909N28 . . NUT FE 11
-315 130909N29 . . NUT FE 1
320 102-910024-229 . . BAFFLE ASSY FE 1
325 45-910314-5 . . PLATE FE 4
330 MS35489-38S . . GROMMET FE 4
-335 102-910024-189 . . CLIP FE 4
340 58-910033-3 . . BAFFLE ASSY FE 1
350 96-910020-395 . . BAFFLE FE 1
-355 96-910020-401 . . BAFFLE FE 1
360 96-910020-259 . . BAFFLE FE 1
365 96-910020-241 . . BAFFLE FE 1
370 35-910066-165 . . CLIP-BAFFLE FE 1
380 35-910216-3 . SUPPORT-INNER CYLINDER FE 4
BAFFLE
FOR SPARES ORDER:
35-910216-5

71-60-00-06
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
380 35-910216-5 . SUPPORT-INNER CYLINDER FE 4
BAFFLE
35-910216-3
ATTACHING PARTS
390 AN3-63A . BOLT FE 4
-------*-------
395 96-910020-137 . BRACKET FE 1
ATTACHING PARTS
-400 AN520-10R . SCREW FE 1
-405 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-410 MS20365-1032C . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-410 MS21044N3 . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-410 MS21042-3 . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-410 130909N29 . NUT FE 1
MS20365-1032C
-------*-------
415 96-910020-255 . BRACKET ASSY FE 1
-420 96-910020-77 . . BRACKET FE 1
FOR SPARES ORDER:
MS21051L3
NAS1025A3
-430 96-910020-311 . BAFFLE ASSY-LH FWD LOWER FE RF
435 96-910020-319 . . BAFFLE FE 1
ATTACHING PARTS
440 AN520-10R . . SCREW FE 3
445 AN515-6R . . SCREW FE 2
-450 AN960-6 . . WASHER FE 2
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-455 MS21042L06 . . NUT FE 2
-------*-------
460 96-910020-287 . . SEAL FE 1
465 96-910020-295 . . STRIP-CAP FE 1
71-60-00-06
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
470 96-910020-289 . . SEAL FE 1
475 96-910020-297 . . STRIP-CAP FE 1
-480 96-910020-269 . . DOOR ASSY FE 1
ATTACHING PARTS
-485 MS27039-1-07 . . SCREW FE 5
-------*-------
495 96-910020-279 . . . DOOR FE 1
500 96-910020-285 . . . SEAL FE 1
505 96-910020-283 . . . STRIP-CAP FE 1
510 96-910015-89 . . BAFFLE FE 1
515 96-910020-333 . . SEAL FE 1
520 96-910020-339 . . STRIP-CAP FE 1
525 96-910020-337 . . STRIP-CAP FE 1
530 96-910020-331 . . SEAL FE 1
535 96-910020-329 . . STRIP-CAP FE 1
540 96-910020-315 . . SEAL FE 1
545 96-910020-317 . . STRIP-CAP FE 1
550 MS35206-243 . . SCREW FE 2
-555 AN960-8 . . WASHER FE 2
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-560 MK2000-832 . . NUTPLATE FE 2
565 96-910020-271 . . BRACKET FE 1
575 96-910020-431 . . BAFFLE FE 1
580 96-910020-345 . . SEAL FE 1
595 96-910020-433 . . SEAL FE 1
-600 102-910024-85 . . SEAL FE 1
-605 35-910067-259 . . CLIP FE 1
615 96-910020-199 . . PLATE-END FE 1
620 96-910020-209 . . STIFFENER FE 1
625 96-910020-61 . . BRACKET FE 1
630 96-910020-39 . . PLATE FE 1
635 96-910020-275 . . CHANNEL FE 1
640 96-910020-277 . . STIFFENER FE 1
645 96-910020-213 . . BAFFLE FE 1
650 96-910020-211 . . STIFFENER FE 1
655 96-910020-371 . . BUMPER-RUBBER FE 1
-660 96-910020-389 . BAFFLE ASSY-CENTER FE 1
ATTACHING PARTS
-665 AN3 . BOLT FE 5
-670 AN960-10L . WASHER FE 5
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L

71-60-00-06
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-675 MS20365-1032 . NUT FE 5
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-675 MS21044N3 . NUT FE 5
ALTERNATE SPARE:
MS20365-1032
-675 MS21042-3 . NUT FE 5
ALTERNATE SPARE:
MS20365-1032
-675 130909N29 . NUT FE 5
MS20365-1032
-------*-------
680 96-910020-391 . . BAFFLE FE 1
685 96-910020-349 . . SEAL FE 1
695 96-910020-303 . . SEAL FE 1
-705 96-910020-85 BAFFLE ASSY-LH AFT FE 1
INTERCYLINDER
FOR SPARES ORDER:
96-910020-535
-705 96-910020-535 BAFFLE ASSY-LH AFT FE 1
INTERCYLINDER
96-910020-85
-710 35-910067-47 BAFFLE ASSY-RH AFT FE 1
INTERCYLINDER
715 96-910020-87 . BAFFLE-LH AFT FE 1
-720 35-910067-49 . BAFFLE-RH AFT FE 1
725 35-910066-97 . BAFFLE FE 2
730 35-910066-99 . TAB FE 2
735 35-910066-77 . SECTION-HAT FE 2
740 96-910020-253 . GROMMET-LH AFT BAFFLE FE 1
-745 NAS680A3 . NUTPLATE FE 1
ALTERNATE SPARE:
MS21047L3
-745 MS21047L3 . NUTPLATE FE 1
ALTERNATE SPARE:
NAS680A3
-755 96-910020-151 BAFFLE ASSY-LH AND RH FRONT FE 2
INTERCYLINDER
760 96-910020-149 . BAFFLE FE 2
765 35-910066-97 . BAFFLE FE 2
770 35-910066-77 . SECTION-HAT FE 2
775 35-910066-99 . TAB FE 2
-780 H1S832BC100 . NUTPLATE FE 2
-785 NAS680A3 . NUTPLATE FE 2
ALTERNATE SPARE:
MS21047L3

71-60-00-06
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
ALTERNATE SPARE:
NAS680A3
-790 MS35206-243 . SCREW FE 2
H1389-H1389,H1396-H1852 A
H1853-H9999 B
H1389-H1389,H1396-H9999 FE

71-60-00-06
PAGE 7
BARON MAY 01/19

71-70-00-01
ENGINE DRAINS
71-70-00-01
BARON MAY 01/19
ENGINE DRAINS
SHEET 1 OF 2
71-70-00-01
PAGE 0
MAY 01/19
ENGINE DRAINS
SHEET 2 OF 2
71-70-00-01
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 ENGINE DRAINS
-5 96-910045-1 TUBE INSTL-ENGINE BREATHER, B RF
LH
FOR NHA SEE:
37-10-00-01
-10 96-910045-27 BREATHER INSTL-LH ENGINE C RF
78-10-00-03
-15 96-910045-3 TUBE INSTL-ENGINE BREATHER, B RF
RH
FOR NHA SEE:
37-10-00-01
-20 96-910045-29 BREATHER INSTL-RH ENGINE C RF
78-10-00-03
25 106200H12-11 . HOSE FE 1
ATTACHING PARTS
30 130292-A-18 . CLAMP FE 1
-------*-------
35 96-910001-13 . TUBE-ENGINE BREATHER D 1
35 96-910045-31 . TUBE-ENGINE BREATHER E 1
45 96-910001-45 . TUBE-INSULATING D 1
45 131545-014-0260 . TUBE-INSULATING E 1
-55 MS21919DG16 . CLAMP E 1
FOR SPARES ORDER:
AS21919WDG16
-55 AS21919WDG16 . CLAMP E 1
MS21919DG16
-60 MS35207-268 . SCREW E 1
-65 NAS43DD3-36 . SPACER E 1
-70 AN960-10L . WASHER E 1
ALTERNATE SPARE:
NAS1149F0332P
-70 NAS1149F0332P . WASHER E 1
ALTERNATE SPARE:
AN960-10L
-75 130909N29 . NUT E 1
80 NAS397-18 . CLAMP-INSULATING TUBE FE 2
ALTERNATE SPARE:
MS22064-5
80 MS22064-5 . CLAMP-INSULATING TUBE FE 2
ALTERNATE SPARE:
NAS397-18
85 106200H12-11 . HOSE FE 1
ATTACHING PARTS
90 130292-A-18 . CLAMP FE 2
-------*-------
95 AN931-12-17 . GROMMET FE 1
ALTERNATE SPARE:
MS35489-20
95 MS35489-20 . GROMMET FE 1
ALTERNATE SPARE:
AN931-12-17
100 106200G8-61 . HOSE B 1

71-70-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
ATTACHING PARTS
105 AN737TW26-30 . CLAMP B 2
-------*-------
110 MS21919DG36 . CLAMP-BREATHER TUBE FE 1
FOR SPARES ORDER:
AS21919WDG36
110 AS21919WDG36 . CLAMP-BREATHER TUBE FE 1
MS21919DG36
115 MS21919G12 . CLAMP FE 1
ATTACHING PARTS
120 130909B15 . BOLT FE 1
-125 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-130 130909N29 . NUT FE 1
-------*-------
135 96-910001-87 . CLAMP FE 1
ATTACHING PARTS
140 AN4-21AM . BOLT FE 1
-145 100696X-ZS116 . SPACER FE 1
-150 AN960-416 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0463P
ALTERNATE SPARE:
AN960-416
-155 130909N32 . NUT FE 1
-------*-------
160 96-910045-17 . TUBE ASSY-LH B 1
160 96-910045-9 . TUBE-LH C 1
-170 96-910045-19 . TUBE ASSY-RH B 1
-170 96-910045-11 . TUBE-RH C 1
-180 N0NUMBER5 DRAIN INSTL-ENGINE FE RF
185 96-910001-105 . HOSE-MANIFOLD FWD DRAIN FE 1
ATTACHING PARTS
-190 130292A8 . CLAMP FE 2
-------*-------
195 58-920051-3 . VALVE ASSY-MANIFOLD DRAIN FE 1
96-920010-5
-200 96-920010-7 . . ADAPTER FE 1
-205 35-924254-5 . . BODY FE 1
-210 35-924254-9 . . BALL FE 1
215 96-910001-97 . TUBE-MANIFOLD DRAIN, LH FE 1
-220 96-910001-98 . TUBE-MANIFOLD DRAIN, RH FE 1
-225 MS35489-6 . GROMMET FE 2
230 MS21919DG8 . CLAMP-DRAIN TUBE SUPPORT FE 1
FOR SPARES ORDER:
AS21919WDG8

71-70-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
230 AS21919WDG8 . CLAMP-DRAIN TUBE SUPPORT FE 1
MS21919DG8
ATTACHING PARTS
-235 130909B13 . BOLT FE 1
-240 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-245 130909N29 . NUT FE 1
-------*-------
250 96-910001-95 . TUBE-AFT MANIFOLD DRAIN, FE 1
PART OF COWL
255 96-910001-103 . CLIP-CLAMP SUPPORT, FE 1
PART OF COWL
ATTACHING PARTS
-260 AN520-10-4 . SCREW FE 1
-265 AN960-10L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-270 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-275 130909N29 . NUT FE 1
-------*-------
280 96-910001-107 . HOSE-PART OF COWL FE 1
ATTACHING PARTS
-285 130292A8 . CLAMP FE 2
-------*-------
290 96-910001-117 . HOSE-LH FUEL PUMP DRAIN FE 1
-295 96-910001-109 . HOSE-RH FUEL PUMP DRAIN FE 1
ATTACHING PARTS
-300 130292A8 . CLAMP FE 2
-------*-------
305 96-910001-113 . HOSE-DRAIN, AFT INBD FE 1
MANIFOLD, LH ENGINE
-310 106200G4-14 . HOSE-DRAIN, AFT INBD FE 1
MANIFOLD, LH ENGINE
ATTACHING PARTS
-315 130292A8 . CLAMP FE 2
-------*-------
320 96-910001-111 . HOSE-OUTBD MANIFOLD DRAIN FE 1
LH AND RH ENGINE
ATTACHING PARTS
-325 130292A8 . CLAMP FE 2
-------*-------
330 96-910001-93 . FITTING ASSY FE 1
71-70-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-335 TY5TYRAP . TIE-HOSE SUPPORT FE AR
340 AN915-1 . ELBOW-RH AFT MANIFOLD FE 1
DRAIN VALVE
345 58-920051-3 . VALVE ASSY-AFT MANIFOLD FE 2
DRAIN
96-920010-5
350 AN840-4 . ADAPTER-FUEL PUMP DRAIN FE 1
355 BJ1000AH3D0 . VALVE-OIL SUMP DRAIN FE 1
C1608-C2002 B
C2003-C9999 C
C1608-C2354 D
C2355-C9999 E
C1608-C9999 FE

71-70-00-01
PAGE 4
BARON MAY 01/19
71-70-00-02
ENGINE DRAINS
71-70-00-02
BARON MAY 01/19
ENGINE DRAINS
71-70-00-02
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 ENGINE DRAINS
-5 58-910018-1 TUBE INSTL-LH ENGINE FE RF
BREATHER
78-10-00-03
-10 58-910018-3 TUBE INSTL-RH ENGINE FE RF
BREATHER
78-10-00-03
15 106200H12-32 . HOSE FE 1
20 AN737RM38 . CLAMP-HOSE FE 4
FOR SPARES ORDER:
132742-38L
20 132742-38L . CLAMP-HOSE FE 4
AN737RM38
25 AN931-12-17 . GROMMET FE 1
ALTERNATE SPARE:
MS35489-20
25 MS35489-20 . GROMMET FE 1
ALTERNATE SPARE:
AN931-12-17
30 96-910002-19 . TUBE-BREATHER FE 1
35 106200H12-14 . HOSE FE 1
40 58-910018-5 . TUBE-LH BREATHER, MANUAL FE 1
COWL FLAP
-45 58-910018-7 . TUBE-RH BREATHER FE 1
50 MS21919DG36 . CLAMP-TUBE SUPPORT FE 1
FOR SPARES ORDER:
AS21919WDG36
50 AS21919WDG36 . CLAMP-TUBE SUPPORT FE 1
MS21919DG36
FOR SPARES ORDER:
AS21919WDG12
MS21919DG12
ATTACHING PARTS
-60 AN520-10R . SCREW FE 1
-65 AN960-10L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-70 MS20365-1032C . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-70 MS21044N3 . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
71-70-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-70 MS21042-3 . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-70 130909N29 . NUT FE 1
MS20365-1032C
-------*-------
75 96-910001-87 . CLAMP-TUBE SUPPORT FE 1
ATTACHING PARTS
-80 AN4-21A . BOLT FE 1
85 100696X-ZS116 . SPACER FE 1
-90 AN960-416 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0463P
ALTERNATE SPARE:
AN960-416
-95 130909N32 . NUT FE 1
-------*-------
-100 96-910002-601 POWER PLANT ASSY-LH FE 1
-105 96-910002-602 POWER PLANT ASSY-RH FE 1
110 AN915-1 . ELBOW FE 1
115 58-920051-1 . VALVE ASSY FE 1
96-920010-1
120 96-910002-21 . HOSE FE 1
-125 130292A8 . CLAMP-HOSE FE 7
130 MS35489-6 . GROMMET FE 2
-135 96-910001-97 . TUBE-LH ENGINE DRAIN FE 1
140 96-910001-98 . TUBE-RH ENGINE DRAIN FE 1
145 96-910001-95 . TUBE-MANIFOLD DRAIN FE 1
150 96-910001-103 . CLIP-CLAMP SUPPORT FE 1
ATTACHING PARTS
-155 AN520-10-4 . SCREW FE 1
-160 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-165 130909N29 . NUT FE 1
-------*-------
FOR SPARES ORDER:
AS21919WDG8
MS21919DG8
ATTACHING PARTS
-175 130909B13 . BOLT FE 1
-180 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P

71-70-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ALTERNATE SPARE:
AN960-10
-185 130909N29 . NUT FE 1
-------*-------
190 96-910001-93 . FITTING ASSY-DRAIN FE 1
195 96-910001-119 . HOSE-MANIFOLD DRAIN FE 1
96-920010-5
205 106200G4-86 . HOSE-MANIFOLD DRAIN FE 1
-210 106200G4-96 . HOSE-LH FUEL PUMP DRAIN FE 1
215 106200G4-70 . HOSE-RH FUEL PUMP DRAIN FE 1
220 35-944047-1 . BRACKET-HOSE CLAMP SUPPORT FE 1
225 AN742DG8 . CLAMP-HOSE SUPPORT FE 1
ATTACHING PARTS
-230 AN515-10R7 . SCREW FE 1
FOR SPARES ORDER:
MS35206-262
-230 MS35206-262 . SCREW FE 1
AN515-10R7
-235 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-240 130909N29 . NUT FE 1
-------*-------
245 BJ1000AH3D0 . VALVE-OIL SUMP DRAIN FE 1
E0938-E0938,E0943-E9999 FE

71-70-00-02
PAGE 3
BARON MAY 01/19

71-70-00-03
ENGINE DRAINS
71-70-00-03
BARON MAY 01/19
ENGINE DRAINS
71-70-00-03
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 ENGINE DRAINS
-5 58-910000-1 POWER PLANT INSTL-LH FE RF
61-10-00-05
71-00-00-03
-10 58-910000-2 POWER PLANT INSTL-RH FE RF
61-10-00-05
71-00-00-03
-15 58-910000-601 . POWER PLANT ASSY-LH FE RF
-20 58-910000-602 . POWER PLANT ASSY-RH FE RF
25 106200H12-32 . . HOSE-BREATHER FE 1
30 AN737RM38 . . CLAMP-HOSE FE 4
FOR SPARES ORDER:
132742-38L
30 132742-38L . . CLAMP-HOSE FE 4
AN737RM38
35 AN931-12-17 . . GROMMET FE 1
ALTERNATE SPARE:
MS35489-20
35 MS35489-20 . . GROMMET FE 1
ALTERNATE SPARE:
AN931-12-17
40 96-910002-19 . . TUBE-BREATHER FE 1
45 106200H12-14 . . HOSE-BREATHER FE 1
50 58-910000-7 . . TUBE-BREATHER FE 1
55 AN742-36 . . CLAMP FE 1
60 MS21919DG14 . . CLAMP-BREATHER TUBE FE 1
ALTERNATE SPARE:
AN742D16C
60 AN742D16C . . CLAMP-BREATHER TUBE FE 1
ALTERNATE SPARE:
MS21919DG14
ATTACHING PARTS
-65 AN520-10R . . SCREW FE 1
-70 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-70 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-75 MS20365-1032C . . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-75 MS21044N3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-75 MS21042-3 . . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
71-70-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-75 130909N29 . . NUT FE 1
MS20365-1032C
-------*-------
80 96-910001-87 . . CLAMP-BREATHER TUBE FE 1
ATTACHING PARTS
85 130909B33 . . BOLT FE 1
-90 AN960-416L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0432P
-90 NAS1149F0432P . . WASHER FE 1
ALTERNATE SPARE:
AN960-416L
-95 H10-428 . . NUT FE 1
-------*-------
100 AN915-1 . . ELBOW-MANIFOLD DRAIN FE 1
VALVE
105 58-920051-1 . . VALVE ASSY-MANIFOLD FWD FE 2
DRAIN
96-920010-1
110 106200G4-28 . . HOSE-MANIFOLD DRAIN FE 2
-115 130292A8 . . CLAMP-HOSE FE 7
120 MS35489-6 . . GROMMET FE 4
125 96-910001-97 . . TUBE-LH MANIFOLD DRAIN FE 1
-130 96-910001-98 . . TUBE-RH MANIFOLD DRAIN FE 1
135 96-910001-95 . . TUBE-MANIFOLD DRAIN FE 1
140 96-910001-103 . . CLIP-CLAMP SUPPORT FE 1
ATTACHING PARTS
-145 AN520-10-4 . . SCREW FE 1
-150 AN960-10 . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
-150 NAS1149F0363P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10
-155 AN960-10L . . WASHER FE 1
MISCELLANEOUS DATA:
INSTALL UNDER SCREW HEAD
ALTERNATE SPARE:
NAS1149F0332P
-155 NAS1149F0332P . . WASHER FE 1
MISCELLANEOUS DATA:
INSTALL UNDER SCREW HEAD
ALTERNATE SPARE:
AN960-10L
-160 130909N29 . . NUT FE 1
-------*-------
165 MS21919DG8 . . CLAMP-MANIFOLD DRAIN HOSE FE 1
FOR SPARES ORDER:
AS21919WDG8
165 AS21919WDG8 . . CLAMP-MANIFOLD DRAIN HOSE FE 1
MS21919DG8
71-70-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
ATTACHING PARTS
-170 130909B13 . . BOLT FE 1
-175 AN960-10 . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
-175 NAS1149F0363P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10
-180 130909N29 . . NUT FE 1
-------*-------
185 96-910001-93 . . FITTING ASSY-MANIFOLD FE 1
DRAIN
-195 130292A8 . . CLAMP-HOSE FE 2
200 58-920051-3 . . VALVE ASSY-MANIFOLD AFT FE 2
DRAIN
96-920010-5
-215 130292A8 . . CLAMP-HOSE FE 3
220 106200G4-96 . . HOSE-LH FUEL PUMP DRAIN FE 1
-225 106200G4-62 . . HOSE-RH FUEL PUMP DRAIN FE 1
230 35-944047-1 . . BRACKET-HOSE CLAMP FE 1
SUPPORT
235 AN742DG8 . . CLAMP-FUEL PUMP DRAIN FE 1
HOSE
240 BJ1000AH3D0 . . VALVE-OIL SUMP DRAIN FE 1
245 96-910001-55 . . HOSE-OIL SUMP DRAIN FE 1
H0001-H0200,H0202-H0212 FE

71-70-00-03
PAGE 3
BARON MAY 01/19

71-70-00-04
ENGINE DRAINS
71-70-00-04
BARON MAY 01/19
ENGINE DRAINS
SHEET 1 OF 2
71-70-00-04
PAGE 0
MAY 01/19
ENGINE DRAINS
SHEET 2 OF 2
71-70-00-04
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 ENGINE DRAINS
BREATHER
78-10-00-03
BREATHER
78-10-00-03
15 106200H12-32 . HOSE FE 1
20 AN737RM38 . CLAMP-HOSE FE 4
FOR SPARES ORDER:
132742-38L
20 132742-38L . CLAMP-HOSE FE 4
AN737RM38
25 AN931-12-17 . GROMMET FE 1
ALTERNATE SPARE:
MS35489-20
25 MS35489-20 . GROMMET FE 1
ALTERNATE SPARE:
AN931-12-17
30 96-910002-19 . TUBE-BREATHER FE 1
35 106200H12-14 . HOSE FE 1
-40 58-910018-5 . TUBE-LH BREATHER, ELECTRIC B 1
COWL FLAP
-40 58-910018-9 . TUBE-LH BREATHER, MANUAL C 1
COWL FLAP
50 58-910018-7 . TUBE-RH BREATHER FE 1
FOR SPARES ORDER:
AS21919WDG36
MS21919DG36
FOR SPARES ORDER:
AS21919WDG12
MS21919DG12
ATTACHING PARTS
-65 AN520-10R . SCREW FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-75 MS20365-1032C . NUT FE 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29

71-70-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-75 MS21044N3 . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-75 MS21042-3 . NUT FE 1
ALTERNATE SPARE:
MS20365-1032C
-75 130909N29 . NUT FE 1
MS20365-1032C
-------*-------
80 96-910001-87 . CLAMP-TUBE SUPPORT FE 1
ATTACHING PARTS
-85 AN4-21A . BOLT FE 1
90 100696X-ZS116 . SPACER FE 1
-95 AN960-416 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0463P
ALTERNATE SPARE:
AN960-416
-100 130909N32 . NUT FE 1
-------*-------
-105 58-910000-601 POWER PLANT ASSY-LH FE 1
-110 58-910000-602 POWER PLANT ASSY-RH FE 1
115 AN915-1 . ELBOW FE 1
120 58-920051-1 . VALVE ASSY FE 1
96-920010-1
125 106200-4-28 . HOSE FE 2
-130 130292A8 . CLAMP-HOSE FE 7
135 MS35489-6 . GROMMET FE 2
-140 96-910001-97 . TUBE-LH ENGINE DRAIN FE 1
145 96-910001-98 . TUBE-RH ENGINE DRAIN FE 1
150 96-910001-95 . TUBE-MANIFOLD DRAIN FE 1
155 96-910001-103 . CLIP-CLAMP SUPPORT FE 1
ATTACHING PARTS
-160 AN520-10-4 . SCREW FE 1
-165 AN960-10L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-170 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-175 130909N29 . NUT FE 1
-------*-------
FOR SPARES ORDER:
AS21919WDG8

71-70-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
MS21919DG8
ATTACHING PARTS
-185 130909B13 . BOLT FE 1
-190 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-195 130909N29 . NUT FE 1
-------*-------
200 96-910001-93 . FITTING ASSY-MANIFOLD FE 1
205 106200-4-14 . HOSE-MANIFOLD DRAIN FE 1
96-920010-5
215 106200G4-86 . HOSE-MANIFOLD DRAIN FE 1
-220 106200G4-96 . HOSE-LH FUEL PUMP DRAIN FE 1
225 106200G4-70 . HOSE-RH FUEL PUMP DRAIN FE 1
230 35-944047-1 . BRACKET-HOSE CLAMP SUPPORT FE 1
235 AN742DG8 . CLAMP-HOSE SUPPORT FE 1
ATTACHING PARTS
-240 AN515-10R7 . SCREW FE 1
FOR SPARES ORDER:
MS35206-262
-240 MS35206-262 . SCREW FE 1
AN515-10R7
-245 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-250 130909N29 . NUT FE 1
-------*-------
255 BJ1000AH3D0 . VALVE-OIL SUMP PUMP FE 1
H0201-H0201,H0213-H0384 B
H0385-H1388,H1390-H1395 C
H0201-H0201,H0213-H1388,H1390-H1395 FE

71-70-00-04
PAGE 3
BARON MAY 01/19

71-70-00-05
ENGINE DRAINS
71-70-00-05
BARON MAY 01/19
ENGINE DRAINS
SHEET 1 OF 2
71-70-00-05
PAGE 0
MAY 01/19
ENGINE DRAINS
SHEET 2 OF 2
71-70-00-05
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05 ENGINE DRAINS
BREATHER
BREATHER
15 106200H12-29 . HOSE FE 1
ATTACHING PARTS
-20 A18 . CLAMP FE 2
-------*-------
25 MS35489-20 . GROMMET FE 1
30 58-910035-9 . TUBE ASSY FE 1
35 106200H12-14 . HOSE FE 1
ATTACHING PARTS
-40 A18 . CLAMP FE 2
-------*-------
45 58-910035-5 . TUBE-LH ENGINE FE 1
-50 58-910035-7 . TUBE-RH ENGINE FE 1
55 MS21919DG36 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG36
MS21919DG36
60 MS21919DG12 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG12
MS21919DG12
ATTACHING PARTS
-65 130909B14 . BOLT FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-75 130909N29 . NUT FE 1
-------*-------
80 96-910001-87 . CLAMP FE 1
ATTACHING PARTS
85 NAS43HT4-96 . SPACER FE 1
-90 AN4-23A . BOLT FE 1
-95 AN960-416L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0432P
ALTERNATE SPARE:
AN960-416L
-100 130909N32 . NUT FE 1
-------*-------
-105 58-910001-1 POWER PLANT INSTL-LH A RF
21-50-00-01
71-00-00-04
71-70-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-105 58-910001-5 POWER PLANT INSTL-LH, A RF
WITH AIR COND
21-50-00-01
71-00-00-04
-105 58-910001-33 POWER PLANT INSTL-LH G RF
ALTERNATE SPARE:
58-910001-37
21-50-00-01
71-00-00-04
-105 58-910001-37 POWER PLANT INSTL-LH, G RF
WITH AIR COND
ALTERNATE SPARE:
58-910001-33
21-50-00-01
71-00-00-04
-105 58-910001-0047 POWER PLANT INSTL-LH H RF
21-50-00-01
71-00-00-04
-110 58-910001-3 POWER PLANT INSTL-RH A RF
21-50-00-01
71-00-00-04
-110 58-910001-7 POWER PLANT INSTL-RH, A RF
WITH AIR COND
21-50-00-01
71-00-00-04
-110 58-910001-35 POWER PLANT INSTL-RH G RF
ALTERNATE SPARE:
58-910001-39
21-50-00-01
71-00-00-04
-110 58-910001-39 POWER PLANT INSTL-RH, G RF
WITH AIR COND
ALTERNATE SPARE:
58-910001-35
21-50-00-01
71-00-00-04

71-70-00-05
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-110 58-910001-0049 POWER PLANT INSTL-RH H RF
21-50-00-01
71-00-00-04
112 TYZ-25M . TIE FE 2
ALTERNATE SPARE:
TYZ-28M
REPLACED BY:
AS21919WDG16
AS21919WDG08
112 TYZ-28M . TIE FE 2
ALTERNATE SPARE:
TYZ-25M
REPLACED BY:
AS21919WDG16
AS21919WDG08
115 AN3-4A . BOLT FE 2
120 130909N29 . NUT FE 2
REPLACES:
TYZ-25M
TYZ-28M
REPLACES:
TYZ-25M
TYZ-28M
125 58-910001-9 . TUBE ASSY FE 1
-130 MS35489-7 . GROMMET-INTERCYLINDER FE 1
BAFFLE
135 106200G4-48 . HOSE FE 1
-140 130292A8 . CLAMP E 13
USE ON ALL 16200G4 HOSES
-142 130292A8 . CLAMP D 9
USE ON ALL 16200G4 HOSES
155 106200G4-14 . HOSE-LH ENGINE FE 2
160 96-910001-93 . FITTING ASSY-LH ENGINE FE 1
165 58-910001-11 . TEE-LH ENGINE FE 1
170 106200G4-70 . HOSE-LH ENGINE FE 1
175 106200G4-96 . HOSE-LH ENGINE E 1
175 106200G-4-100 . HOSE-LH ENGINE D 1
180 106200G4-14 . HOSE-RH ENGINE FE 1
185 58-910001-11 . TEE-RH ENGINE FE 1
190 106200G4-70 . HOSE-FUEL PUMP DRAIN, RH E 1
ENGINE
190 106200G-4-74 . HOSE-FUEL PUMP DRAIN, RH D 1
ENGINE
192 106200G4-70 . HOSE-FUEL PUMP DRAIN, RH FE 1
ENGINE
-195 35-944047-1 . BRACKET-FUEL PUMP DRAIN FE 1
SUPPORT, LH AND RH ENGINE

71-70-00-05
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
200 MS21919DG8 . CLAMP-FUEL PUMP DRAIN FE 1
FOR SPARES ORDER:
AS21919WDG8
200 AS21919WDG8 . CLAMP-FUEL PUMP DRAIN FE 1
MS21919DG8
ATTACHING PARTS
-205 MS35207-262 . SCREW FE 1
-210 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-215 130909N29 . NUT FE 1
-------*-------
220 96-910001-93 . FITTING ASSY-RH ENGINE E 1
225 106200G4-28 . HOSE-LH AND RH ENGINE E 1
227 58-910001-23 . WELD ASSY-LH AND RH ENGINE D 1
229 58-910001-29 . TUBE-LH AND RH ENGINE D 1
231 106200G4-32 . TUBE-LH AND RH ENGINE D 2
233 106200G4-32 . TUBE-LH AND RH ENGINE D 2
234 96-910001-103 . CLIP-LH AND RH ENGINE FE 1
ATTACHING PARTS
-235 MS35207-259 . SCREW FE 1
-240 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-245 AN960-10L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-250 130909N29 . NUT FE 1
-------*-------
255 MS21919DG8 . CLAMP-LH AND RH ENGINE FE 1
FOR SPARES ORDER:
AS21919WDG8
255 AS21919WDG8 . CLAMP-LH AND RH ENGINE FE 1
MS21919DG8
ATTACHING PARTS
-260 130909B14 . BOLT FE 1
-265 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
71-70-00-05
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-270 130909N29 . NUT FE 1
-------*-------
275 96-910001-95 . TUBE-LH AND RH ENGINE E 1
FOR SPARES ORDER:
58-910001-21
275 58-910001-21 . TUBE-LH AND RH ENGINE E 1
96-910001-95
280 MS35489-6 . GROMMET-LH AND RH ENGINE FE 2
285 AN915-1 . ELBOW-LH AND RH ENGINE FE 1
287 106200G4-28 . HOSE-LH AND RH ENGINE FE 1
290 96-920010-1 . VALVE ASSY-MANIFOLD DRAIN B 1
LH AND RH ENGINE
290 58-920051-1 . VALVE ASSY-MANIFOLD DRAIN C 1
-300 96-910001-97 . TUBE-LH ENGINE FE 1
305 96-910001-98 . TUBE-RH ENGINE FE 1
H1389-H1389,H1396-H2380 A
H1389-H1389,H1396-H1471 B
H1472-H9999 C
H1532-H9999 D
H1389-H1389,H1396-H1531 E
H2381-H2477 G
H2478-H9999 H
H1389-H1389,H1396-H9999 FE

71-70-00-05
PAGE 5
BARON MAY 01/19

71 - Effective Pages: Beechcraft Corporation

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

71 - Effective Pages: Beechcraft Corporation

Uploaded by

Copyright:

Available Formats

Beechcraft Corporation

BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

71 - CONTENTS 1 MAY 01/19 71-00-00-04 1 MAY 01/19

71-10-00-10 2 MAY 01/19 71-60-00-06 3 MAY 01/19

CHAPTER 71 - POWER PLANT

CHAPTER 71 - POWER PLANT

ENGINE DRAINS 71-70-00 05 H1389-H1389

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

ENGINE COWLING WITH AIR CONDITIONING

ENGINE COWLING WITH AIR CONDITIONING

ENGINE COWLING WITH AIR CONDITIONING

ENGINE COWLING WITH AIR CONDITIONING

ENGINE COWLING WITH AIR CONDITIONING

PAGE INTENTIONALLY LEFT BLANK

04 ENGINE COWLING WITH AIR CONDITIONING

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

ENGINE COWLING WITHOUT AIR CONDITIONING

ENGINE COWLING WITHOUT AIR CONDITIONING

ENGINE COWLING WITHOUT AIR CONDITIONING

ENGINE COWLING WITHOUT AIR CONDITIONING

05 ENGINE COWLING WITHOUT AIR CONDITIONING

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK
