21 - Effective Pages: Beechcraft Corporation

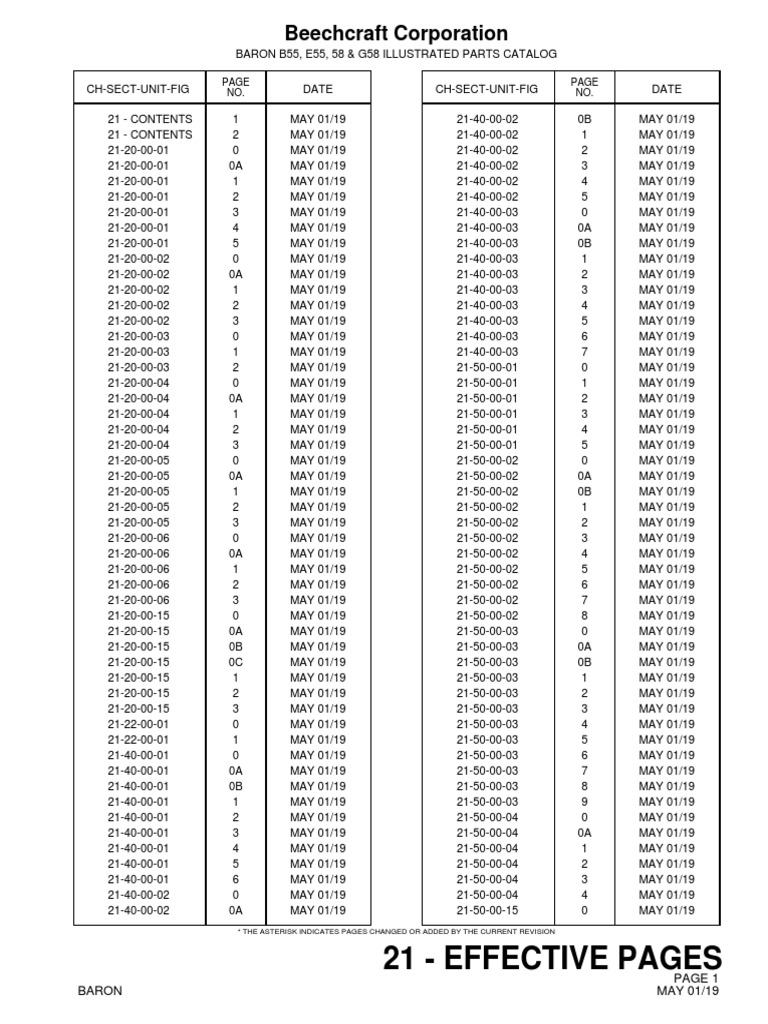

Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
21 - CONTENTS 1 MAY 01/19 21-40-00-02 0B MAY 01/19

21 - CONTENTS 2 MAY 01/19 21-40-00-02 1 MAY 01/19
21-20-00-01 0 MAY 01/19 21-40-00-02 2 MAY 01/19
21-20-00-01 0A MAY 01/19 21-40-00-02 3 MAY 01/19
21-20-00-01 1 MAY 01/19 21-40-00-02 4 MAY 01/19
21-20-00-01 2 MAY 01/19 21-40-00-02 5 MAY 01/19
21-20-00-01 3 MAY 01/19 21-40-00-03 0 MAY 01/19
21-20-00-01 4 MAY 01/19 21-40-00-03 0A MAY 01/19
21-20-00-01 5 MAY 01/19 21-40-00-03 0B MAY 01/19
21-20-00-02 0 MAY 01/19 21-40-00-03 1 MAY 01/19
21-20-00-02 0A MAY 01/19 21-40-00-03 2 MAY 01/19
21-20-00-02 1 MAY 01/19 21-40-00-03 3 MAY 01/19
21-20-00-02 2 MAY 01/19 21-40-00-03 4 MAY 01/19
21-20-00-02 3 MAY 01/19 21-40-00-03 5 MAY 01/19
21-20-00-03 0 MAY 01/19 21-40-00-03 6 MAY 01/19
21-20-00-03 1 MAY 01/19 21-40-00-03 7 MAY 01/19
21-20-00-03 2 MAY 01/19 21-50-00-01 0 MAY 01/19
21-20-00-04 0 MAY 01/19 21-50-00-01 1 MAY 01/19
21-20-00-04 0A MAY 01/19 21-50-00-01 2 MAY 01/19
21-20-00-04 1 MAY 01/19 21-50-00-01 3 MAY 01/19
21-20-00-04 2 MAY 01/19 21-50-00-01 4 MAY 01/19
21-20-00-04 3 MAY 01/19 21-50-00-01 5 MAY 01/19
21-20-00-05 0 MAY 01/19 21-50-00-02 0 MAY 01/19
21-20-00-05 0A MAY 01/19 21-50-00-02 0A MAY 01/19
21-20-00-05 1 MAY 01/19 21-50-00-02 0B MAY 01/19
21-20-00-05 2 MAY 01/19 21-50-00-02 1 MAY 01/19
21-20-00-05 3 MAY 01/19 21-50-00-02 2 MAY 01/19
21-20-00-06 0 MAY 01/19 21-50-00-02 3 MAY 01/19
21-20-00-06 0A MAY 01/19 21-50-00-02 4 MAY 01/19
21-20-00-06 1 MAY 01/19 21-50-00-02 5 MAY 01/19
21-20-00-06 2 MAY 01/19 21-50-00-02 6 MAY 01/19
21-20-00-06 3 MAY 01/19 21-50-00-02 7 MAY 01/19
21-20-00-15 0 MAY 01/19 21-50-00-02 8 MAY 01/19
21-20-00-15 0A MAY 01/19 21-50-00-03 0 MAY 01/19
21-20-00-15 0B MAY 01/19 21-50-00-03 0A MAY 01/19
21-20-00-15 0C MAY 01/19 21-50-00-03 0B MAY 01/19
21-20-00-15 1 MAY 01/19 21-50-00-03 1 MAY 01/19
21-20-00-15 2 MAY 01/19 21-50-00-03 2 MAY 01/19
21-20-00-15 3 MAY 01/19 21-50-00-03 3 MAY 01/19
21-22-00-01 0 MAY 01/19 21-50-00-03 4 MAY 01/19
21-22-00-01 1 MAY 01/19 21-50-00-03 5 MAY 01/19
21-40-00-01 0 MAY 01/19 21-50-00-03 6 MAY 01/19
21-40-00-01 0A MAY 01/19 21-50-00-03 7 MAY 01/19
21-40-00-01 0B MAY 01/19 21-50-00-03 8 MAY 01/19
21-40-00-01 1 MAY 01/19 21-50-00-03 9 MAY 01/19
21-40-00-01 2 MAY 01/19 21-50-00-04 0 MAY 01/19
21-40-00-01 3 MAY 01/19 21-50-00-04 0A MAY 01/19
21-40-00-01 4 MAY 01/19 21-50-00-04 1 MAY 01/19
21-40-00-01 5 MAY 01/19 21-50-00-04 2 MAY 01/19
21-40-00-01 6 MAY 01/19 21-50-00-04 3 MAY 01/19
21-40-00-02 0 MAY 01/19 21-50-00-04 4 MAY 01/19
21-40-00-02 0A MAY 01/19 21-50-00-15 0 MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
21 - EFFECTIVE PAGES
PAGE 1
BARON MAY 01/19
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
21-50-00-15 0A MAY 01/19

21-50-00-15 0B MAY 01/19
21-50-00-15 1 MAY 01/19
21-50-00-20 0 MAY 01/19
21-50-00-20 0A MAY 01/19
21-50-00-20 1 MAY 01/19
21-50-00-25 0 MAY 01/19
21-50-00-25 0A MAY 01/19
21-50-00-25 1 MAY 01/19
21-50-00-30 0 MAY 01/19
21-50-00-30 1 MAY 01/19
21-60-00-10 0 MAY 01/19
21-60-00-10 0A MAY 01/19
21-60-00-10 1 MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
21 - EFFECTIVE PAGES
PAGE 2
BARON MAY 01/19
CHAPTER 21 - ENVIRONMENTAL/AIR CONDITIONING
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
DISTRIBUTION 21-20-00
HEAT DISTRIBUTION 21-20-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H2442
AIR CONDITIONING DISTRIBUTION, FWD 21-20-00 02 E1119-E1119
E1125-E9999
H0873-H0873
H0895-H2442
AIR CONDITIONING DISTRIBUTION, AFT 21-20-00 03 E1119-E1119
E1125-E9999
H0873-H0873
H0895-H2442
FRESH AIR DISTRIBUTION 21-20-00 04 H0001-H0174
FRESH AIR DISTRIBUTION 21-20-00 05 C1608-C9999
E0938-E0938
E0943-E9999
H0175-H2442
FRESH AIR BLOWER 21-20-00 06 C2372-C9999
E1188-E9999
H1225-H2442
HEAT DISTRIBUTION 21-20-00 15 H2443-H9999
AIR DUCTS 21-22-00 01 H0001-H9999
HEATING 21-40-00
CABIN HEATER 21-40-00 01 C1608-C1657
E0938-E0938
E0943-E0958
E0960-E0967
H0001-H0436
CABIN HEATER 21-40-00 02 C1658-C1926
E0959-E0959
E0968-E1075
H0437-H0712
CABIN HEATER 21-40-00 03 C1927-C9999
E1076-E9999
H0713-H9999
COOLING 21-50-00
AIR CONDITIONING COMPRESSOR 21-50-00 01 E1119-E1119
E1125-E9999
H0873-H0873
H0895-H9999
AIR CONDITIONING PLUMBING 21-50-00 02 E1119-E1119
E1125-E1189
H0873-H0873
H0895-H1238
AIR CONDITIONING PLUMBING 21-50-00 03 E1190-E9999
H1239-H2442
21 - CONTENTS
PAGE 1
BARON MAY 01/19
CHAPTER 21 - ENVIRONMENTAL/AIR CONDITIONING
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
AIR CONDITIONING CONDENSER 21-50-00 04 E1119-E1119

E1125-E9999
H0873-H0873
H0895-H2442
AIR CONDITIONING HOSE 21-50-00 15 H2478-H9999
AIR CONDITIONING EVAPORATOR AND BLOWER 21-50-00 20 H2478-H9999
AIR CONDITIONING CONDENSER 21-50-00 25 H2478-H9999
AIR CONDITIONING RECEIVER/DRYER 21-50-00 30 H2478-H9999
TEMPERATURE CONTROL 21-60-00
PEDESTAL CONTROLS, AIR CONDITIONING 21-60-00 10 H2478-H9999
21 - CONTENTS
PAGE 2
BARON MAY 01/19
21-20-00-01
HEAT DISTRIBUTION
21-20-00-01
BARON MAY 01/19
HEAT DISTRIBUTION
SHEET 1 OF 2
21-20-00-01
PAGE 0
MAY 01/19
HEAT DISTRIBUTION
SHEET 2 OF 2
21-20-00-01
PAGE 0A
MAY 01/19
PAGE INTENTIONALLY LEFT BLANK

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 HEAT DISTRIBUTION
-5 95-550002-221 HEATING AND VENT INSTL A RF
CABIN
FOR OTHER SYS DETAILS SEE:
30-40-00-02
FOR ADDITIONAL DETAILS SEE:
21-40-00-01
-5 95-550002-219 HEATING AND VENT INSTL B RF
CABIN
30-40-00-02
21-40-00-01
-5 95-550002-227 HEATING AND VENT INSTL C RF
CABIN
30-40-00-02
21-40-00-01
-5 58-550019-1 DUCT INSTL-HEAT AND VENT D RF
30-40-00-02
-5 58-550019-3 DUCT INSTL-HEAT AND VENT E RF
30-40-00-02
-5 58-550019-5 DUCT INSTL-HEAT AND VENT F RF
30-40-00-02
-5 58-550019-7 DUCT INSTL-HEAT AND VENT W RF
30-40-00-02
-5 58-550034-5 DUCT INSTL-HEAT AND VENT X RF
30-40-00-02
40 95-554037 . DUCT A 1
40 95-554037-1 . DUCT G 1
40 95-554037-11 . DUCT D 1
40 95-554037-13 . DUCT H 1
60 95-550016 . PLENUM FE 1
65 002-430050-31 . PLUG FE 2
ALTERNATE SPARE:
95-550002-47
70 002-430049-55 . FRAME-LH FE 1
ALTERNATE SPARE:
35-550024-6
-71 002-430049-55 . FRAME-RH FE 1
ALTERNATE SPARE:
35-550024-7
75 002-430050-33 . DOOR-LH FE 1
ALTERNATE SPARE:
35-550097-1
-76 002-430050-33 . DOOR-RH FE 1
ALTERNATE SPARE:
35-550097-2
MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED
21-20-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
ATTACHING PARTS
-80 MS24665-363 . PIN-COTTER FE 2
-------*-------
85 002-430050-27 . BRACKET-LH CONTROL FE 1
ALTERNATE SPARE:
35-550096-3
-90 002-430050-28 . BRACKET-RH CONTROL FE 1
ALTERNATE SPARE:
35-550096-4
95 002-430050-35 . CLIP-LH FE 1
ALTERNATE SPARE:
35-550097-3
-96 002-430050-35 . CLIP-RH FE 1
ALTERNATE SPARE:
35-550097-4
100 35-380051-31 . CONTROL-PILOT AND COPILOT Y 2
VENT
102 36-380081-1 . CONTROL-PILOT AND COPILOT X 2
VENT
103 1-294-010 . KNOB ASSY X 2
ATTACHING PARTS
105 35-550520 . PIN-CONTROL ATTACHING X 2
110 102933S4ZG0080 . SPACER X 2
110 012933S4-0300-0080 . SPACER Y 2
115 NAS1149F0363P . WASHER FE AR
120 130909N29 . NUT X 2
120 MS20365-1032 . NUT Y 2
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-120 MS21044N3 . NUT Y 2
ALTERNATE SPARE:
MS20365-1032
-120 MS21042-3 . NUT Y 2
ALTERNATE SPARE:
MS20365-1032
-120 130909N29 . NUT Y 2
SPARES REPLACEMENT FOR:
MS20365-1032
-------*-------
125 MS21919DG2 . CLAMP FE 2
FOR SPARES ORDER:
AS21919WDG2
125 AS21919WDG2 . CLAMP FE 2
MS21919DG2
ATTACHING PARTS
130 AN515-8R . SCREW Y 2
130 MS35206-243 . SCREW X 2
-135 NAS1149FN832P . WASHER FE 2
-140 130909N28 . NUT X 2
-140 130909N23 . NUT Y 2
-------*-------
21-20-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
145 95-550002-51 . COLLAR-WINDSHIELD DEFROST Y 1
150 95-554041-7 . ELBOW-WINDSHIELD DEFROST Y 1
MISCELLANEOUS DATA:
SEE CHAPTER 30 FOR
WINDSHIELD DEFROST
DUCTS AND CONTROLS
155 95-550002-217 . DUCT Y 1
155 102-550047-3 . DUCT X 1
160 35-550567-29 . DUCT J 1
160 35-550567-39 . DUCT K 1
160 35-550567-71 . DUCT X 1
165 95-550002-213 . DUCT Y 1
165 102-550055-1 . DUCT X 1
170 95-550001-33 . OUTLET M 1
170 95-550001-57 . OUTLET N 1
180 111716AX4XX15 . DUCT-FLEX FE 1
-185 105798-7 . CLAMP-FLEX DUCT Y 2
-185 20036S . CLAMP-FLEX DUCT X 2
190 95-550001-31 . DUCT-ADAPTER FE 1
-200 105798-9 . CLAMP-FLEX DUCT Y 2
-200 20048S . CLAMP-FLEX DUCT X 2
205 35-380051-29 . CONTROL ASSY-CABIN HEAT FE 2
AND DEFROST VALVE
210 95-550002-33 . CONTROL-HEATER IRIS VALVE, P 1
INST PANEL MTD
210 95-550002-229 . CONTROL-HEATER IRIS VALVE, Q 1
INST PANEL MTD
212 1-294-010 . KNOB ASSY X 2
215 36-380081-11 . CONTROL-CABIN HEAT X 1
217 36-380081-7 . CONTROL-DEFROST X 1
220 55-4362-2155 . CONTROL ASSY-HEATER IRIS VALVE, L 1
SIDE PANEL MTD, LH
FOR SPARES ORDER:
38502200
220 38502200 . CONTROL ASSY-HEATER IRIS VALVE, L 1
SIDE PANEL MTD, LH
55-4362-2155
225 58-550019-29 . BRACKET-CONTROL MTG L 1
230 58-550019-37 . COVER ASSY L 1
235 58-550019-15 . PLATE L 1
240 58-550019-19 . COVER L 1
245 58-550019-41 . SLIDE ASSY-HEATER CONTROL X 1
245 58-550019-13 . SLIDE ASSY-HEATER CONTROL W 1
250 58-550027-1 . PLATE-CABIN VENT AIR L 1
255 G-714127 . THERMOSTAT FE 1
-260 35-554035-41 DUCT INSTL-CABIN AIR R RF
EXHAUST, WITHOUT BAG. COMP
-260 58-550017-1 DUCT INSTL-CABIN AIR S RF
EXHAUST
-260 58-550017-11 DUCT INSTL-CABIN AIR T RF
EXHAUST, 5TH AND 6TH SEAT

21-20-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-260 106-555012-1 DUCT INSTL-CABIN AIR U RF
EXHAUST
21-20-00-03
-260 106-555012-19 DUCT INSTL-CABIN AIR V RF
EXHAUST
21-20-00-03
285 58-550017-9 . DOUBLER R 1
285 35-554035-43 . DOUBLER-B55 WITHOUT R 1
BAGGAGE COMPARTMENT
295 35-554035-37 . SCOOP ASSY FE 1
300 34-554035-35 . SCREEN FE 1
305 35-554035-33 . RETAINER FE 1
310 58-550017-7 . DUCT ASSY S 1
310 58-550017-13 . DUCT ASSY T 1
-320 115167DXX12-0563 . DUCT-EXHAUST U 1
-320 106-555012-21 . DUCT-EXHAUST V 1
-330 35-554035-13 . DUCT-B55 WITHOUT BAGGAGE R 1
COMPARTMENT
-335 35-554035-15 . DUCT-B55 WITHOUT BAGGAGE R 1
COMPARTMENT
340 35-534445-3 . FRAME S 1
345 35-534445-5 . GRILL S 1
350 114632-24-14 . DUCT-FLEX R 1
350 114632-24-09 . DUCT-FLEX S 1
350 111716AX6XX30 . DUCT-FLEX T 1
-365 36-380052-1 . COUPLING-CONNECTOR V 1
370 AN737TW107 . CLAMP FE 2
FOR SPARES ORDER:
132742-107L
370 132742-107L . CLAMP FE 2
AN737TW107
C1608-C1657 A
E0938-E0938,E0943-E0958,E0960-E0967 B
H0001-H0436 C
C1658-C9999 D
E0959-E0959,E0968-E1118,E1120-E1124 E
H0437-H0768,H0770-H0781 F
E0938-E0938,E0943-E0967,H0001-H0436 G
E0968-E9999,H0437-H2442 H
C1608-C9999,E0938-E0938,E0943-E9999 J
H0001-H1395 K
E1119-E1119,E1125-E9999,H0769-H0769,H0782-H2442 L
C1608-C1719,E0938-E0938,E0943-E0988,H0001-H0991 M
C1720-C9999,E0989-E9999,H0492-H2442 N
C1608-C9999 P
E0959-E0959,E0968-E1118,E1120-E1124,H0001-H0679, Q
H0681-H0872,H0874-H0895
C1608-C1699 R
C1608-C2339,C2341-C2354,E0938-E0938,E0943-E1080, S
H0001-H0750
(CONTINUED NEXT PAGE)
21-20-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
(CONTINUED)
C1700-C9999 T
E1081-E1147,H0751-H0988 U
C2340-C2340,C2355-C9999,E1148-E9999,H0989-H2442 V
E1119-E1119,E1125-E9999,H0769-H0769,H0782-H1395 W
H1396-H2442 X
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1395 Y
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H2442 FE

21-20-00-01
PAGE 5
BARON MAY 01/19

21-20-00-02
AIR CONDITIONING DISTRIBUTION, FWD
21-20-00-02
BARON MAY 01/19

SHEET 1 OF 2
21-20-00-02
PAGE 0
MAY 01/19

SHEET 2 OF 2
21-20-00-02
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 AIR CONDITIONING DISTRIBUTION, FWD

-5 58-555001-3 AIR CONDITIONING INSTL B RF
21-20-00-03
-5 58-555001-1 AIR CONDITIONING INSTL C RF
21-20-00-03
-5 58-555003-1 AIR CONDITIONING INSTL J RF
21-20-00-03
-5 58-555003-5 AIR CONDITIONING INSTL K RF
21-20-00-03
-25 106-555011-1 . EVAPORATOR INSTL-FORWARD H RF
CABIN
-25 106-555016-1 . EVAPORATOR INSTL-FORWARD D RF
CABIN
40 58-380072-9 . . MODULE-FORWARD CABIN G 1
EVAPORATOR
58-380072-1
40 58-380072-1 . . MODULE-FORWARD CABIN F 1
EVAPORATOR
FOR SPARES ORDER:
58-380072-9
-43 1523227-2 . . . BRACKET-EXPANSION VALVE G 1
SUPPORT
-45 1523215-6 . . . VALVE-EXPANSION FE 1
-47 1523211 . . . SCROLL FE 1
-50 1523225-13 . . . COIL ASSY FE 1
-53 1523263-1 . . . SHROUD FE 1
-55 1523218-1 . . . MOTOR FE 1
-57 1523219-1 . . . WHEEL-BLOWER FE 1
-60 106-555011-9 . . SEAL FE 1
-65 106-555011-15 . . FILTER FE 1
70 106-555011-7 . . COVER FE 1
ATTACHING PARTS
-75 130909N29 . . NUT FE 4
-80 MS35426-13 . . NUT-WING FE 4
-85 NAS1149F0332P . . WASHER FE 8
-90 NAS1149F0363P . . WASHER FE 8
-------*-------
95 106-555011-11 . . TUBE FE 1
-100 MS35489-19 . . GROMMET FE 1
-105 130292-10A . . CLAMP FE 1
110 106-555011-3 . . DUCT H 1
115 106-555011-17 . . ELBOW H 1
120 115167-A-XX-09-1043 . . DUCT H 1
125 115167-A-XX-09-0603 . . DUCT H 2
-130 AN737TW82 . . CLAMP H 6
FOR SPARES ORDER:
132742-82L
-130 132742-82L . . CLAMP H 6
AN737TW82

21-20-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
135 115167AXX070803 . . DUCT D 1
ALTERNATE SPARE:
131824AXX070803
135 131824AXX070803 . . DUCT D 1
ALTERNATE SPARE:
115167AXX070803
140 AN737TW58 . . DUCT D 6
FOR SPARES ORDER:
132742-58L
140 132742-58L . . DUCT D 6
AN737TW58
145 106-555021-1 . . DUCT D 1
150 115167AXX070943 . . DUCT D 1
ALTERNATE SRARE:
131824AXX070943
150 131824AXX070943 . . DUCT D 1
ATERNATE SPARE:
115167AXX070943
155 106-555020-1 . . DUCT D 1
160 106-555019-1 . . DUCT D 1
165 115167AXX071083 . . DUCT D 1
ALTERNATE SPARE:
115167AXX071043
165 115167AXX071043 . . DUCT D 1
ALTERNATE SPARE:
115167AXX071083
-170 102-380023-1 . . OUTLET ASSY-AIR D 2
171 MS35190-211 . . . SCREW D 4
172 102-380023-3 . . . BEZEL D 1
173 102-380023-5 . . . PLENUM D 1
174 102-380023-7 . . . OUTLET D 1
175 115167AXX091043 . . DUCT D 1
ALTERNATE SPARE:
131824AXX091043
175 131624AXX091043 . . DUCT D 1
ALTERNATE SPARE:
115167AXX091043
180 AN737TW74 . . CLAMP D 2
FOR SPARES ORDER:
132742-74L
180 132742-74L . . CLAMP D 2
AN737TW74
-185 106-555017-1 . . PLENUM ASSY D 1
ATTACHING PARTS
-190 MS35214-29 . . SCREW D 1
-------*-------
195 106-555017-3 . . . PLENUM D 1
200 2373-3 . . VALVE-AIR D 3
ATTACHING PARTS
-205 MS24693-S2 . . SCREW D 12
-------*-------

21-20-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-210 102-530119-7 . GLARESHIELD INSTL H RF
FOR DETAILS SEE:
25-12-00-02
E1119-E1119,E1125-E9999 B
H0873-H0873,H0895-H1388,H1390-H1395 C
H1389-H1389,H1396-H2442 D
E1119-E1119,E1125-E1182,H0873-H0873,H0895-H1198 F
E1183-E9999,H1199-H2442 G
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H1388, H
H1390-H1395
H1389-H1389,H1396-H1744 J
H1745-H2442 K
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H2442 FE

21-20-00-02
PAGE 3
BARON MAY 01/19

21-20-00-03
AIR CONDITIONING DISTRIBUTION, AFT
21-20-00-03
BARON MAY 01/19
AIR CONDITIONING DISTRIBUTION, AFT
21-20-00-03
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 AIR CONDITIONING DISTRIBUTION, AFT

-5 58-555001-3 AIR CONDITIONING INSTL B RF
21-20-00-02
-5 58-555001-1 AIR CONDITIONING INSTL C RF
21-20-00-02
-5 58-555003-1 AIR CONDITIONING INSTL D RF
21-20-00-02
-5 58-555003-5 AIR CONDITIONING INSTL P RF
21-20-00-02
10 MS21919WH10 . CLAMP A 1
ATTACHING PARTS
15 MS27039-1-08 . SCREW A 1
17 NAS1149F0332P . WASHER A 1
20 130909N29 . NUT A 1
-------*-------
-25 106-555012-3 . EVAPORATOR INSTL-AFT CABIN FE RF
30 58-380072-7 . . MODULE-AFT CABIN EVAPORATOR E 1
FOR SPARES ORDER:
58-380072-11
30 58-380072-11 . . MODULE-AFT CABIN EVAPORATOR F 1
-40 1523227-1 . . . BRACKET-EXPANSION VALVE FE 1
SUPPORT
-45 1523215-6 . . . VALVE-EXPANSION FE 1
-50 1523211 . . . SCROLL FE 1
-55 1523225-7 . . . COIL ASSY FE 1
-60 1523263-1 . . . SHROUD FE 1
-65 1523218-2 . . . MOTOR FE 1
-70 1523219-1 . . . WHEEL-BLOWER FE 1
75 106-555012-5 . . DUCT FE 1
90 106-555012-25 . . BRACKET-MOTOR FE 1
95 106-555012-11 . . PAN ASSY-DRAIN, AFT FE 1
EVAPORATOR
100 106-555012-17 . . TUBE FE 1
105 AN737TW98-114 . . CLAMP FE 1
110 106-555012-9 . . TUBE FE 1
-115 106-555014-25 . DUCT INSTL-AFT AIR J RF
CONDITIONING
-115 106-555014-1 . DUCT INSTL-AFT AIR K RF
CONDITIONING
-125 106-555014-27 . . DUCT ASSY J 1
-125 106-555014-3 . . DUCT ASSY K 1
140 106-555014-5 . . . DUCT K 1
140 106-555014-29 . . . DUCT J 1
145 106-555014-7 . . . COVER G 1
150 L1242 . . . LOUVER G 4
-155 106-555012-1 DUCT INSTL-CABIN AIR EXHAUST L RF
21-20-00-01
-155 106-555012-19 DUCT INSTL-CABIN AIR EXHAUST M RF
21-20-00-01
165 002-410000-153 . FLANGE FE 1
21-20-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
170 115167DXX120563 . DUCT L 1
170 106-555012-21 . DUCT M 1
-180 36-380052-1 . COUPLING-CONNECTOR M 1
FOR SPARES ORDER:
132742-107L
185 132742-107L . CLAMP FE 2
AN737TW107
-188 106-555012-1 DUCT INSTL-CABIN AIR EXHAUST L RF
21-20-00-01
-188 106-555012-19 DUCT INSTL-CABIN AIR EXHAUST M RF
21-20-00-01
190 35-554035-37 . SCOOP ASSY-CABIN EXHAUST FE 1
AIR
195 35-554035-33 . RETAINER-CABIN EXHAUST AIR FE 1
SCOOP
H2125-H2442 A
E1119-E1119,E1125-E9999 B
H0873-H0873,H0895-H1388,H1390-H1395 C
H1389-H1389,H1396-H1744 D
E1119-E1119,E1125-E1179,H0873-H0873,H0895-H1169 E
E1180-E9999,H1170-H2442 F
E1119-E1119,E1125-E1151,E1153-E1180,H0873-H0873, G
H0895-H1026,H1028-H1061,H1063-H1066,H1068-H1079
E1119-E1119,E1125-E1151,E1153-E1180 J
H0873-H0873,H0895-H1026,H1028-H1061,H1063-H1066, K
H1068-H1079
E1119-E1119,E1125-E1147,H0873-H0873,H0895-H0988 L
E1148-E9999,H0989-H2442 M
H1745-H2442 P
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H2442 FE

21-20-00-03
PAGE 2
BARON MAY 01/19
21-20-00-04
FRESH AIR DISTRIBUTION
21-20-00-04
BARON MAY 01/19

SHEET 1 OF 2
21-20-00-04
PAGE 0
MAY 01/19

SHEET 2 OF 2
21-20-00-04
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 FRESH AIR DISTRIBUTION

-5 96-550016-13 PANEL INSTL-OVERHEAD FRESH FE RF
AIR, 4 AIR VALVES,
2 READING LIGHTS
AIR, 5 AIR VALVES,
2 READING LIGHTS
AIR, 6 AIR VALVES,
NO READING LIGHTS
-20 96-550013-145 . PANEL ASSY-FWD FE 1
25 96-550016-19 . . SHELL FE 1
ATTACHING PARTS
-30 AN531-6-R8 . . SCREW FE 9
-35 NAS395-31-1 . . NUT FE 9
FOR SPARES ORDER:
132326-31-1
-35 132326-31-1 . . NUT-U-TYPE FE 9
NAS395-31-1
-------*-------
40 96-550013-37 . . GASKET-EXHAUST VALVE FE 1
45 2373 . VALVE-AIR FE 2
ATTACHING PARTS
-50 NAS384-6-8P . SCREW FE 4
-55 A1181-2-1 . NUT FE 4
-------*-------
60 L18366-1 . SWITCH-DOME LIGHT FE 1
65 96-550013-51 . GASKET-SWITCH FE 1
70 B3550-1 . LIGHT ASSY-DOME FE 1
ATTACHING PARTS
-75 NAS387-632-8P . SCREW FE 4
-80 NAS697A06 . NUTPLATE FE 4
-------*-------
-85 303 . LAMP-DOME LIGHT FE 1
90 96-550013-53 . GASKET-DOME LIGHT FE 1
95 51067 . BUTTON-PLUG FE 1
100 AN931-5-9 . GROMMET FE 1
FOR SPARES ORDER:
MS35489-9
100 MS35489-9 . GROMMET FE 1
AN931-5-9
105 AN931-5-9 . GROMMET FE 1
FOR SPARES ORDER:
MS35489-9
105 MS35489-9 . GROMMET FE 1
AN931-5-9
110 96-550013-39 . DOUBLER-SHELL FE 1
115 96-550013-35 . PAN-CABIN EXHAUST DUCT FE 1
ATTACHING PARTS
-120 MS51957-30 . SCREW FE 3
AN515C6R8

21-20-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-120 AN515C6R8 . SCREW FE 3
FOR SPARES ORDER:
MS51957-30
-------*-------
130 96-550013-95 . PAN FE 1
ATTACHING PARTS
135 NAS378-632-8P . SCREW FE 8
-------*-------
145 96-550013-83 . GASKET-PAN FE 2
150 L18366-1 . SWITCH-READING LIGHT FE 2
155 96-550013-51 . GASKET FE 2
160 2373 . VALVE-AIR FE 2
ATTACHING PARTS
-165 NAS384-6-8P . SCREW FE 4
-170 A1171-2-1 . NUT FE 4
-------*-------
175 1870 . LIGHT-READING FE 2
ATTACHING PARTS
-180 NAS384-6-8P . SCREW FE 4
-185 NAS446-2-1 . NUT FE 4
ALTERNATE SPARE:
A1181-6Z-1D
-185 A1181-6Z-1D . NUT FE 4
ALTERNATE SPARE:
NAS446-2-1
-------*-------
-190 303 . . LAMP-READING LIGHT FE 1
195 96-550013-49 . DOME-RADIO SPEAKER FE 1
200 96-550013-33 . GASKET FE 1
205 96-554011 . GRILL ASSY FE 1
ATTACHING PARTS
210 NAS387-632-8P . SCREW FE 8
-215 MF1000-632 . NUTPLATE FE 8
-------*-------
-220 P5 SPEAKER FE 1
FOR SPARES ORDER:
A46FC
-220 A46FC SPEAKER FE 1
P5
-225 MC0D54353-1 PLATE-SPEAKER MOUNT FE 1
-230 96-550015 . VALVE ASSY-CABIN EXHAUST FE 1
ATTACHING PARTS
235 NAS387-832-8P . SCREW FE 4
-240 MK-2000-08 . NUTPLATE FE 4
-------*-------
245 96-550015-23 . . KNOB ASSY-VALVE CONTROL FE 1
ATTACHING PARTS
250 AN565D8H8 . . SCREW-SET FE 1
-------*-------
255 96-554013-1 . . . PLACARD-VALVE FE 1
INSTRUCTIONS
260 96-550015-11 . . RING-BACKUP FE 1
21-20-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
265 35-410154-3 . . SEAL-VALVE FE 1
270 96-550015-3 . . SHAFT ASSY-VALVE CONTROL FE 1
275 96-550015-9 . . SHUTTER FE 1
280 35-410455-1 . . COVER FE 1
285 96-550015-13 . . PLATE FE 1
-290 96-550016-601 . SHELL ASSY-AFT FE 1
295 96-550016-21 . . COVER FE 1
-300 96-550016-19 . . SHELL-AFT FE 1
305 96-550013-103 . . COVER FE 1
ATTACHING PARTS
310 NAS387-6 . . SCREW FE 18
-315 NAS697A06 . . NUTPLATE FE 18
-------*-------
320 96-550013-143 . CLIP-AFT LH, 4 AND 5 OUTLET FE 2
-325 96-550013-143 . CLIP-AFT LH, 6 OUTLET FE 1
-330 96-550013-144 . CLIP-AFT RH, 4 AND 5 OUTLET FE 2
-335 96-550013-144 . CLIP-AFT RH, 6 OUTLET FE 1
340 96-550013-63 . CLIP-FWD FE AR
345 96-550013-137 . STRIP FE 2
350 96-550013-139 . STRIP FE 2
355 96-550013-141 . STRIP FE 2
360 96-550013-59 . CLIP-FWD LH FE 1
-365 96-550013-60 . CLIP-FWD RH FE 1
370 96-550013-57 . CLIP-AFT LH FE 1
-375 96-550013-58 . CLIP-AFT RH FE 1
380 96-550013-55 . CLIP-AFT FE 2
385 96-550013-75 . DOOR-NO OUTLETS FE 1
385 96-550013-85 . DOOR-WITH OUTLETS FE 1
ATTACHING PARTS
-395 NAS384-6P . SCREW FE 11
-400 NAS395-6-1 . NUT FE 11
FOR SPARES ORDER:
132326-6-1
-400 132326-6-1 . NUTPLATE FE 11
NAS395-6-1
-------*-------
405 96-550013-77 . GASKET-DOOR FE 1
410 96-550013-91 . GASKET FE 1
420 96-550013-101 . PAN-DOUBLE OUTLET FE 1
420 96-550013-99 . PAN-SINGLE OUTLET FE 1
425 2373-1 . VALVE-AIR FE 2
ATTACHING PARTS
-430 NAS384-6-8P . SCREW FE 4
-435 A1181-2-1 . NUT FE 4
-------*-------
H0001-H0174 FE

21-20-00-04
PAGE 3
BARON MAY 01/19

21-20-00-05
21-20-00-05
BARON MAY 01/19

SHEET 1 OF 2
21-20-00-05
PAGE 0
MAY 01/19

SHEET 2 OF 2
21-20-00-05
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05 FRESH AIR DISTRIBUTION

-5 58-550011-33 DUCT INSTL-FRESH AIR, SHORT A RF
AND LONG CABIN
-5 58-550011-31 DUCT INSTL-FRESH AIR B RF
-5 58-550028-5 DUCT INSTL-FRESH AIR, SHORT C RF
CABIN
-5 58-550028-3 DUCT INSTL-FRESH AIR D RF
-5 58-550028-1 DUCT INSTL-FRESH AIR E RF
30 58-530095-1 . DUCT ASSY-CONSOLE FRESH FE 1
AIR OUTLET
35 130907CAC182 . DUCT-CONNECTING, FWD G 2
40 58-550013-1 . DUCT-CONNECTING, FWD G 2
45 58-550012-9 . DUCT ASSY-LH, MID AND AFT G 2
FRESH AIR OUTLET
50 58-550012-10 . DUCT ASSY-RH, MID AND AFT G 2
FRESH AIR OUTLET
55 58-550026-1 . DUCT-CONNECTING, MID AND B 2
AFT OUTLET DUCT
55 58-550026-3 . DUCT-CONNECTING, MID AND A 2
AFT OUTLET DUCT
65 130907TCAB84 . DUCT-CONNECTING, AFT OUTLET A 2
DUCT AND PLENUM
65 130907T-C-AB-158 . DUCT-CONNECTING, AFT OUTLET B 2
DUCT AND PLENUM
75 58-550014-3 . PLENUM-FRESH AIR G 1
80 58-530100-1 . BRACKET ASSY-FRESH CONTROL FE 1
MOUNTING
ATTACHING PARTS
-85 MS35207-261 . SCREW FE 2
-90 MS35207-263 . SCREW FE 1
-95 130290-2 . CLIPNUT FE 1
-------*-------
100 361-000 . CONTROL-FRESH AIR VENT FE 1
ATTACHING PARTS
-105 MS35207-266 . SCREW FE 1
-110 100696A-ZG011 . SPACER FE 1
-115 130290-2 . CLIPNUT FE 1
-------*-------
-120 58-550028-13 . EXTENSION-FRESH AIR FE 1
CONTROL
ATTACHING PARTS
-125 AN565DH5 . SCREW-SET FE 1
-------*-------
130 106-530046-5 . DUCT-CONNECTING, FWD H 1
135 106-530045-1 . DUCT-CONNECTING, FWD H 1
145 36-550050-1 . DUCT-AFT, FRESH AIR INLET C 1
SHORT CABIN
145 58-550029-1 . DUCT-AFT, FRESH AIR INLET H 1
150 NAS1924-107 . CLAMP-DUCT H 2
ALTERNATE SPARE:
132742-107L
150 132742-107L . CLAMP-DUCT H 2
ALTERNATE SPARE:
NAS1924-107
160 115167-CXX-120644 . DUCT-AFT C 1
160 115167CXX120105 . DUCT-AFT H 1
21-20-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
165 58-550030-1 ELBOW ASSY-FRESH AIR INLET H 1
-345 58-530096-1 CONSOLE INSTL-OVERHEAD F RF
-345 58-530096-5 CONSOLE INSTL-OVERHEAD M RF
-355 58-530097-1 . CONSOLE ASSY-OVERHEAD F 1
-355 58-530097-11 . CONSOLE ASSY-OVERHEAD M 1
365 58-530098-1 . . ESCUTCHEON F 1
365 58-530098-11 . . ESCUTCHEON M 1
375 58-530106-7 . . LIGHT ASSY V 1
380 J20125-03 . . SWITCH-LIGHT V 1
ALTERNATE SPARE:
L18366-3
380 L18366-3 . . SWITCH-LIGHT V 1
ALTERNATE SPARE:
J20125-03
-390 2506 . . SOCKET-LIGHT V 2
-395 P5 . . SPEAKER F 1
-395 A46FC . . SPEAKER M 1
ALTERNATE SPARE:
T5712
-395 T5712 . . SPEAKER M 1
ALTERNATE SPARE:
A46FC
ATTACHING PARTS
-410 MS24693-S9 . . SCREW F 4
-410 MS24693S30 . . SCREW M 4
-420 100696D-ZL008 . . SPACER F 4
-425 6S . . WELLNUT M 4
-430 MS21042L04 . . NUT F 4
-430 MS21042L06 . . NUT M 4
-------*-------
440 58-530111-1 . . GASKET F 1
445 96-550015-21 . . PLATE-EXHAUST AIR F 1
450 96-550015-29 . . SHUTTER ASSY-EXHAUST AIR F 1
455 58-530101-1 . GRILL ASSY F 1
455 58-530101-5 . GRILL ASSY M 1
-465 58-530110-1 . KNOB ASSY-EXHAUST AIR CONTROL F 1
470 58-530110-3 . KNOB ASSY-FRESH AIR CONTROL V 1
475 2515 . VALVE-FRESH AIR V 2
480 58-530109-1 . PLENUM ASSY-EXHAUST AIR F 1
-485 58-530096-9 . SUPPORT ASSY-CONSOLE M 1
490 58-530105 . SUPPORT ASSY-CONSOLE M 2
495 106-530041-1 CONSOLE ASSY-OVERHEAD X 1
FOR DETAILS SEE:
25-26-00-05
495 106-530041-3 CONSOLE ASSY-OVERHEAD W 1
FOR DETAILS SEE:
25-26-00-05
495 106-530155-1 CONSOLE ASSY-OVERHEAD Y 1
FOR DETAILS SEE:
25-26-00-05
495 106-530155-3 CONSOLE ASSY-OVERHEAD Z 1
FOR DETAILS SEE:
25-26-00-05

21-20-00-05
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
495 106-530155-5 CONSOLE ASSY-OVERHEAD J 1
FOR DETAILS SEE:
25-26-00-05
C1608-C2334,C2336-C2339,E0938-E0938,E0943-E1180 A
H0175-H1026,H1028-H1061,H1063-H1066,H1068-H1079 B
C2335-C2335,C2340-C9999 C
C2335-C2335,C2340-C9999,E1181-E9999 D
H1027-H1027,H1062-H1062,H1067-H1067,H1080-H2442 E
C1608-C1817,E0938-E0938,E0943-E1010,H0175-H0542 F
C1608-C2334,C2336-C2339,E0938-E0938,E0943-E1180, G
H0175-H1026,H1028-H1061,H1063-H1066,H1068-H1079
C2335-C2335,C2340-C9999,E1181-E9999,H1027-H1027, H
H1062-H1062,H1067-H1067,H1080-H2442
H2028-H2442 J
C1818-C2339,C2341-C2354,E1011-E1151,E1153-E1180, M
H0543-H1026,H1028-H1061,H1063-H1066,H1068-H1079
C1608-C2339,C2341-C2354,E0938-E0938,E0943-E1151, V
E1153-E1180,H0175-H1026,H1028-H1061,H1063-H1066,
H1068-H1079
C2356-C9999,E1183-E9999,H1195-H1388,H1390-H1395 W
C2340-C2340,C2355-C2355,E1152-E1152,E1181-E1182, X
H1027-H1027,H1062-H1062,H1067-H1067,H1080-H1194
H1389-H1389,H1396-H1672 Y
H1673-H2027 Z
C1608-C9999,E0938-E0938,E0943-E9999,H0175-H2442 FE

21-20-00-05
PAGE 3
BARON MAY 01/19

21-20-00-06
FRESH AIR BLOWER
21-20-00-06
BARON MAY 01/19
FRESH AIR BLOWER

SHEET 1 OF 2
21-20-00-06
PAGE 0
MAY 01/19
FRESH AIR BLOWER

SHEET 2 OF 2
21-20-00-06
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06 FRESH AIR BLOWER

-5 58-550031-1 BLOWER INSTL-FRESH AIR, C RF
CABIN
-5 58-550031-3 BLOWER INSTL-FRESH AIR, B RF
CABIN, OPT BAGGAGE
-5 58-550031-5 BLOWER INSTL-FRESH AIR, B RF
CABIN, STD BAGGAGE
20 169-380096-5 . BLOWER ASSY-FRESH AIR F 1
20 58-380108-1 . BLOWER ASSY-FRESH AIR G 1
FOR SPARES ORDER:
58-380108-3
20 58-380108-3 . BLOWER ASSY-FRESH AIR H 1
FOR SPARES ORDER:
58-380108-5
20 58-380108-5 . BLOWER ASSY-FRESH AIR J 1
58-380108-1
58-380108-3
40 105798-12 . CLAMP-BLOWER SUPPORT FE 1
FOR SPARES ORDER:
MS35842-14
40 MS35842-14 . CLAMP-BLOWER SUPPORT FE 1
105798-12
45 106-555012-25 . BRACKET-BLOWER SUPPORT FE 1
-50 169-554021-13 . ADAPTER-BLOWER MOUNTING FE 1
55 58-550033-1 . BRACKET ASSY-BLOWER MOUNTING FE 1
ATTACHING PARTS
-60 MS35207-262 . SCREW B 4
-60 MS35207-269 . SCREW C 4
-------*-------
70 106-410010-15 . COVER FE 1
-75 106-555011-9 . SEAL FE 1
-80 58-555049-1 . DUCT ASSY-AIR DISTRIBUTION FE 1
85 58-555049-3 . . DUCT-OVERHEAD AIR, AFT CABIN FE 1
90 58-555050-1 . . PLATE-DAMPER FE 2
95 102809-A125-319 . . SHAFT-PLATE FE 1
100 5115-12 . . RETAINER RING-SHAFT, FE 1
.010 THICKNESS
105 100942AG0020-38 . . SPRING-DAMPER FE 1
110 MS24665-65 . . PIN-COTTER FE 2
FOR SPARES ORDER:
132742-107L
115 132742-107L . CLAMP FE 3
AN737TW107
120 115167CXX120105 . DUCT B 1
125 AN737RM107 . CLAMP B 2
FOR SPARES ORDER:
132742-107L
125 132742-107L . CLAMP B 2
AN737RM107
130 58-550032-1 . DUCT-AIR INTAKE FE 1
135 36-380052-1 . COUPLING-DRAIN TUBE FE 1
21-20-00-06
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
140 58-550031-9 . TUBE-DRAIN FE 1
ATTACHING PARTS
145 130292AB . CLAMP-HOSE FE 1
-------*-------
-150 49246 . BAND FE 1
-155 49296 . CLIP FE 1
-160 MS35489-14 . GROMMET FE 1
165 35-554035-35 . SCREEN-FILTER K 1
FOR SPARES ORDER:
106-555012-27
165 106-555012-27 . SCREEN-FILTER FE 1
35-554035-35
170 002-410000-153 . FLANGE FE 1
175 58-550031-11 . DOUBLER-AIR INTAKE FE 1
180 36-555000-151 . SUPPORT-DIODE L 1
ATTACHING PARTS
-185 MS35207-230 . SCREW L 2
-------*-------
190 1N1202A . DIODE L 1
FOR SPARES ORDER:
132408-10
190 132408-10 . DIODE FE 1
1N1202A
193 7277-2-10 . CIRCUIT BREAKER A 1
195 7277-2-10 . CIRCUIT BREAKER D 1
200 114931-1-3 . STRIP D 1
205 7277-2-10 . CIRCUIT BREAKER E 1
207 114931-1-4 . STRIP E 1
210 58-364050-31 . PLATE-CIRCUIT BREAKER COVER C 1
215 002-361013-55 . SWITCH ASSY FE 1
-220 206708-1 . CONNECTOR M 1
-225 206966-1 . CLAMP-CABLE M 1
-230 66105-2 . SOCKET M 9
235 4522 . BLOCK-FUSE B 1
ATTACHING PARTS
240 MS24693-S28 . SCREW B 2
-------*-------
245 AGC-10 . FUSE B 2
250 36-364028-39 . PLACARD B 1
-255 58-550031-13 . BRACKET-BLOWER MOUNTING B 1
260 36-550051-3 . DUCT-OVERHEAD AIR, AFT CABIN B 1
-300 002-440000-9 FUSELAGE ASSY-AFT, SMALL B RF
BAGGAGE DOOR
53-18-00-01
-300 002-440000-11 FUSELAGE ASSY-AFT, LARGE B RF
BAGGAGE DOOR
53-18-00-01
-300 002-440000-13 FUSELAGE ASSY-AFT, SMALL B RF
BAGGAGE DR EXTD AFT COMP
53-18-00-01
21-20-00-06
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-300 002-440000-15 FUSELAGE ASSY-AFT, LARGE B RF
53-18-00-01
-300 002-440000-7 FUSELAGE ASSY-AFT, SMALL P RF
53-18-00-01
-300 002-440000-17 FUSELAGE ASSY-AFT, LARGE P RF
53-18-00-01
-300 002-440000-5 FUSELAGE ASSY-AFT, UTILITY Q RF
DR EXTD AFT COMP
53-18-00-01
305 58-550030-1 . ELBOW ASSY-FRESH AIR FE 1
INLET, AFT FUSELAGE
MISCELLANEOUS DATA:
SEE CHAPTER 55-31-00-01
FOR INTAKE DUCT AND DOOR
ASSY
E1188-E9999,H1225-H1388,H1390-H1395 A
C2372-C9999 B
E1188-E9999,H1225-H2442 C
E1188-E9999,H1225-H2205,H2207-H2217,H2219-H2220, D
H2206-H2206,H2218-H2218,H2221-H2442 E
C2372-C2456,E1188-E9999,H1225-H1373 F
C2457-C9999,H1374-H1615 G
C2457-C9999,H1374-H1628 H
C2457-C9999,H1374-H2442 J
C2372-C9999,E1188-E9999,H1225-H2027 K
C2372-C9999,E1188-E9999,H1225-H1388,H1390-H1395 L
C2372-C2413,E1188-E1194,H1225-H1288 M
E1188-E9999 P
H1225-H2442 Q
C2372-C9999,E1188-E9999,H1225-H2442 FE

21-20-00-06
PAGE 3
BARON MAY 01/19

21-20-00-15
HEAT DISTRIBUTION
21-20-00-15
BARON MAY 01/19
HEAT DISTRIBUTION
SHEET 1 OF 4
21-20-00-15
PAGE 0
MAY 01/19
HEAT DISTRIBUTION
SHEET 2 OF 4
21-20-00-15
PAGE 0A
MAY 01/19
HEAT DISTRIBUTION
SHEET 3 OF 4
21-20-00-15
PAGE 0B
MAY 01/19
HEAT DISTRIBUTION
SHEET 4 OF 4
21-20-00-15
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
15 HEAT DISTRIBUTION
-5 58-550034-0007 DUCT INSTL-HEAT AND VENT FE RF
30-40-00-10
10 95-554037-13 . DUCT FE 1
15 95-550016 . PLENUM FE 1
20 102-550047-3 . DUCT FE 1
25 102-550055-1 . DUCT FE 1
30 35-550567-71 . DUCT FE 1
35 MS35842-13 . CLAMP FE 2
ALTERNATE SPARE:
131824CXX08030
40 131824CXX08030 . DUCT-FLEX FE 1
ALTERNATE SPARE:
111716AX4XX15
45 95-550001-57 . OUTLET FE 1
50 95-550001-31 . DUCT-ADAPTER FE 1
55 MS35842-14 . CLAMP FE 2
ALTERNATE SPARE:
131824CXX10068
60 131824CXX10068 . DUCT-FLEX FE 1
ALTERNATE SPARE:
111716AX5XX34
ATTACHING PARTS
70 MS35207-262 . SCREW FE 1
75 NAS1149F0332P . WASHER FE 1
-------*-------
80 MS35206-263 . SCREW FE 2
90 MS21042L3 . NUT FE 2
100 AN743-12 . BRACKET FE 1
ATTACHING PARTS
110 MS27039-1-08 . SCREW FE 1
-------*-------
115 MS3367-5-9 . TIE-CABLE FE 2
120 ABMM-D . MOUNT-CABLE TIE FE 2
125 MS3367-1-9 . STRAP FE 2
130 MS24665-363 . PIN-COTTER FE 2
135 002-430050-0035 . CLIP FE 2
140 002-430050-0033 . DOOR FE 2
145 002-430049-0055 . FRAME FE 2
150 MS35489-6 . GROMMET FE 1
155 002-430050-27 . BRACKET-LH FE 1
160 002-430050-28 . BRACKET-RH FE 1
165 AN931-5-9 . GROMMET FE 3
170 G-714127 . THERMOSTAT FE 1
ATTACHING PARTS
175 MS27039-1-08 . SCREW FE 2
-------*-------
180 2209331 . MODULE-ACTUATOR, 28VDC FE 1

21-20-00-15
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
15
ATTACHING PARTS
185 MS35206-263 . SCREW FE 1
195 MS21042L3 . NUT FE 1
-------*-------
200 2214085 . ACTUATOR ASSY-DEFOG FE 1
ATTACHING PARTS
205 AN526-1032R18 . SCREW FE 3
ALTERNATE SPARE:
MS27039-1-17
205 MS27039-1-17 . SCREW FE 3
ALTERNATE SPARE:
AN526-1032R18
215 0587912 . SPACER FE 3
220 MS21044N3 . NUT FE 3
-------*-------
225 2246767 . ACTUATOR ASSY-HEATER FE 1
ATTACHING PARTS
230 MS35206-215 . SCREW FE 4
235 MS21042L04 . NUT FE 4
-------*-------
240 MS35206-245 . SCREW FE 2
245 NAS1149FN832P . WASHER FE 2
250 MS21043-08 . NUT FE 2
ATTACHING PARTS
270 MS35206-245 . SCREW FE 2
280 MS21043-08 . NUT FE 2
-------*-------
285 FTA-200-8-12 . CABLE-DEFOG ACTUATOR FE 1
290 FTA-200-8-10 . CABLE-HEATER ACTUATOR FE 1
295 ABMM-D . MOUNT-CABLE TIE FE 1
300 TM2S8 . MOUNT FE 2
305 MS24693-S49 . SCREW FE 2
310 MS21083N08 . NUT FE 2
315 MS21266-2N . GROMMET FE 1
320 FTA-200-5-17 . PLATE-ACTUATOR DRIVE, HEAT/DEFOG FE 1
ATTACHING PARTS
325 MS35206-247 . SCREW FE 2
330 MS35206-249 . SCREW FE 2
335 NAS43DD3-16FC . SPACER FE 4
350 MS21059L08 . NUTPLATE FE 4
-------*-------
360 2246751 . ACTUATOR ASSY-FRESH AIR FE 1
ATTACHING PARTS
365 AN525C1032R16 . SCREW FE 3
370 0587912 . SPACER FE 3

21-20-00-15
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
15
375 MS21044N3 . NUT FE 3
-------*-------
380 FTA-200-5-9 . PLATE-ACTUATOR DRIVE, FRESH AIR FE 1
ATTACHING PARTS
385 AN525-832R7 . SCREW FE 2
-------*-------
395 AN742-4 . CLAMP FE 1
ATTACHING PARTS
400 MS35206-245 . SCREW FE 1
410 MS21043-08 . NUT FE 1
-------*-------
415 38502200 . CONTROL ASSY FE 1
ALTERNATE SPARE:
55-4362-2155
415 55-4362-2155 . CONTROL ASSY FE 1
ALTERNATE SPARE:
38502200
H2443-H9999 FE

21-20-00-15
PAGE 3
BARON MAY 01/19

21-22-00-01
AIR DUCTS
21-22-00-01
BARON MAY 01/19
AIR DUCTS
21-22-00-01
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 AIR DUCTS
-5 58-550011-31 DUCT INSTL-FRESH AIR, FE RF
OVERHEAD FWD
FOR NHA SEE:
53-10-00-10
10 58-530095-1 . DUCT ASSY FE 1
15 130907-C-AC-182 . DUCT FE 2
20 58-550013-1 . DUCT FE 2
25 58-550012-9 . DUCT ASSY FE 2
30 58-550012-10 . DUCT ASSY FE 2
35 58-550011-21 . SPACER FE 2
40 58-550011-29 . SPACER FE 4
45 58-550026-1 . DUCT FE 2
50 130907-T-C-AB-158 . DUCT FE 2
55 58-530105-1 . SUPPORT ASSY FE 2
60 58-530096-9 . SUPPORT ASSY FE 1
65 36-530064-75 . SUPPORT FE 3
H0001-H9999 FE

21-22-00-01
PAGE 1
BARON MAY 01/19

21-40-00-01
CABIN HEATER
21-40-00-01
BARON MAY 01/19
CABIN HEATER
SHEET 1 OF 3
21-40-00-01
PAGE 0
MAY 01/19
CABIN HEATER
SHEET 2 OF 3
21-40-00-01
PAGE 0A
MAY 01/19
CABIN HEATER
SHEET 3 OF 3
21-40-00-01
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 CABIN HEATER
-5 95-550002-221 HEATING AND VENT INSTL-CABIN A RF
30-40-00-02
21-20-00-01
-5 95-550002-219 HEATING AND VENT INSTL-CABIN B RF
30-40-00-02
21-20-00-01
-5 95-550002-227 HEATING AND VENT INSTL-CABIN C RF
30-40-00-02
21-20-00-01
20 50-554106 . SCREEN FE 1
25 2100905-1 . BLOWER ASSY-CABIN HEATER FE 1
30 414-183963-9 . GASKET FE 2
35 95-554022 . FLANGE FE 1
40 95-550015-3 . PLENUM FE 1
45 95-554024 . HEATER ASSY FE 1
-50 95-554025 . SUPPORT ASSY FE 1
55 95-554025-1 . . SUPPORT FE 1
60 95-554025-1 . . SUPPORT FE 1
ATTACHING PARTS
-65 130909B14 . . BOLT FE 8
-70 AN960-10 . . WASHER FE AR
ALTERNATE SPARE:
NAS1149F0363P
-70 NAS1149F0363P . . WASHER FE AR
ALTERNATE SPARE:
AN960-10
-------*-------
-75 95-554026 . GASKET FE 1
80 40A50 . CLAMP FE 2
ALTERNATE SPARE:
21058-1
-85 21058-1 . CLAMP FE 2
ALTERNATE SPARE:
40A50
90 105798-2325 . CLAMP FE 1
-95 95-550002-17 . VALVE ASSY-IRIS FE 1
100 95-550002-15 . . BRACKET FE 1
105 95-550002-13 . . VALVE-IRIS FE 1
-110 95-554014-601 . SHROUD ASSY-HEATER EXHAUST FE 1
115 95-554014-23 . . WELD ASSY FE 1
120 95-554014-9 . . CLAMP FE 1
125 95-554014-11 . . GUSSET FE 2
130 22A21-22-82 . . NUTPLATE FE 6
135 95-554015 . . GASKET FE 1
140 95-554014-15 . SHIELD FE 1
145 111716-AX3XX42 . DUCT FE 1
150 105798-6 . CLAMP FE 2
155 95-550000-39 . ELBOW FE 1

21-40-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
160 MS35489-11 . GROMMET FE 2
AN931-6-10
165 95-550000-15 . TUBE ASSY-HEATER DRAIN A 1
175 11C30 . UNIT-IGNITION FE 1
FOR SPARES ORDER:
90-3093-3
-180 90-3093-3 . KIT-IGNITION VIBRATOR FE 1
11C30
ATTACHING PARTS
185 414-183950-123 . CLAMP FE 1
190 414-183950-125 . CLAMP FE 1
195 AN520-10 . SCREW FE 4
200 414-183950-135 . SPACER FE 2
-------*-------
205 95-550002-45 . SPACER FE 1
ATTACHING PARTS
-210 AN960-10 . WASHER FE AR
ALTERNATE SPARE:
NAS1149F0363P
-210 NAS1149F0363P . WASHER FE AR
ALTERNATE SPARE:
AN960-10
-215 130909N29 . NUT FE 4
-------*-------
-220 12C60 . . VIBRATOR FE RF
FOR SPARES ORDER:
90-3093-1
-225 13C74 . . FILTER-RADIO NOISE FE 1
-230 08D20 . . CONDENSER FE 1
14C01
-235 14C-14 . . COIL ASSY FE 1
240 J-41C74 . LEAD ASSY-HTR IGNITION FE 1
ALTERNATE SPARE:
SAJ41-474C
-245 SAJ41-474C . LEAD ASSY-HTR IGNITION FE 1
ALTERNATE SPARE:
J41C74
250 95-554038 . PLENUM ASSY FE 1
255 112447S-1C-C300T . THERMOSTAT FE 1
ATTACHING PARTS
-260 MS35206-245 . SCREW FE 3
FOR SPARES ORDER:
NAS1149FN832P
-265 NAS1149FN832P . WASHER FE AR
AN960-8
-------*-------
270 95-550002-33 . CONTROL-IRIS VALVE A 1
-275 95-550002-229 . CONTROL-IRIS VALVE F 1
280 AN665-21R . CLEVIS FE 1

21-40-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
285 AN315-3 . NUT FE 1
FOR SPARES ORDER:
AN315-3R
285 AN315-3R . NUT FE 1
AN315-3
290 95-550002-23 . BUSHING FE 1
ATTACHING PARTS
295 MS20362-2C11 . PIN-CLEVIS FE 1
-300 MS24665-130 . PIN FE 1
FOR SPARES ORDER:
MS24665-132
-300 MS24665-132 . PIN FE 1
MS24665-130
-------*-------
305 95-550002-31 . BELLCRANK FE 1
ATTACHING PARTS
-315 MS24665-130 . PIN-COTTER FE 1
FOR SPARES ORDER:
MS24665-132
-315 MS24665-132 . PIN-COTTER FE 1
MS24665-130
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-------*-------
325 95-550002-21 . GUIDE-PHENOLIC FE 2
-330 95-550002-25 . PLATE FE 1
335 95-550002-19 . BRACKET FE 1
340 95-550002-27 . PLATE FE 2
ATTACHING PARTS
345 130909B14 . BOLT FE 2
-350 H-10-10/32 . NUT FE 2
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-360 AN960-10C . WASHER FE AR
365 MS35207-270 . SCREW FE 1
-370 AN970-3 . WASHER FE 2
-375 NAS43DD3-40 . SPACER FE 1
-------*-------
380 MS25026-1 . SWITCH-LIMIT FE 1
385 AN3169 . ACTUATOR FE 1
ATTACHING PARTS
390 AN515-6-18 . SCREW FE 1
-------*-------
21-40-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
395 95-550002-29 . LINK FE 1
ATTACHING PARTS
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-405 MS24665-130 . PIN-COTTER FE 4
FOR SPARES ORDER:
MS24665-132
-405 MS24665-132 . PIN-COTTER FE 4
MS24665-130
410 AN960-10 . WASHER FE AR
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-415 AN960-10L . WASHER FE AR
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-------*-------
420 95-550002-23 . BUSHING FE 2
425 95-550002-57 . TUBE ASSY G 1
-430 95-550002-239 . TUBE ASSY C 1
435 AN815-4D . UNION C 1
ALTERNATE SPARE:
AS5174D0404
MS24392D4
435 AS5174D0404 . UNION C 1
ALTERNATE SPARE:
AN815-4D
MS24392D4
435 MS24392D4 . UNION C 1
ALTERNATE SPARE:
AN815-4D
AS5174D0404
440 AN815-4D . UNION FE 1
ALTERNATE SPARE:
AS5174D0404
MS24392D4
440 AS5174D0404 . UNION FE 1
ALTERNATE SPARE:
AN815-4D
MS24392D4
440 MS24392D4 . UNION FE 1
ALTERNATE SPARE:
AN815-4D
AS5174D0404
445 95-550000-21 . TUBE ASSY FE 1
21-40-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
450 AN832-4D . UNION-BULKHEAD FE 1
FOR SPARES ORDER:
MS24393D4
450 MS24393D4 . UNION-BULKHEAD FE 1
AN832-4D
455 95-550000-23 . TUBE ASSY A 1
460 95-550002-201 . TUBE ASSY F 1
465 AN822-4 . ELBOW FE 4
FOR SPARES ORDER:
MS20822-4
465 MS20822-4 . ELBOW FE 4
AN822-4
470 95-550000-45 . TUBE ASSY FE 1
475 476284 . PUMP ASSY-HEATER FUEL FE 2
FOR DETAILS SEE:
21-40-00-03
ATTACHING PARTS
480 AN520-10R . SCREW FE 3
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
490 102933D4ZM0312 . SPACER FE 2
-495 AN936 . WASHER FE 6
-500 MS35650-305 . NUT FE 3
505 130909N29 . NUT FE 3
-------*-------
510 95-550002-233 . TUBE ASSY FE 1
515 7760598 . CONNECTOR-ELECTRICAL FE 2
520 AN816-4 . NIPPLE FE 2
ALTERNATE SPARE:
AS5194-0402
520 AS5194-0402 . NIPPLE FE 2
ALTERNATE SPARE:
AN816-4
525 MS25171-2S . COVER-ELECTRICAL FE 1
530 AV-1B-1473 . VALVE-SHUTOFF FE 1
535 AN6264-4-14 . HOSE ASSY FE 1
540 AN822-1 . ELBOW FE 1
FOR SPARES ORDER:
MS20822-1
540 MS20822-1 . ELBOW FE 1
AN822-1
545 87D78-1 . COVER ASSY-SHROUD BOX FE 1
550 87D76-1 . BOX-SHROUD FE 1
555 AN520-10R22 . SCREW FE 2
560 50-555019-4 . GASKET FE 1
565 106043-0804-0200 . TUBE FE 1
570 95-550000-35 . TUBE FE 1

21-40-00-01
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-575 MS21919DG5 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG5
-575 AS21919WDG5 . CLAMP FE 1
MS21919DG5
C1608-C1657 A
E0938-E0938,E0943-E0958,E0960-E0967 B
H0001-H0436 C
E0938-E0938,E0943-E0958,E0960-E0967,H0001-H0436 F
C1608-C1657,E0938-E0938,E0943-E0958,E0960-E0967 G
C1608-C1657,E0938-E0938,E0943-E0958,E0960-E0967, FE
H0001-H0436

21-40-00-01
PAGE 6
BARON MAY 01/19
21-40-00-02
CABIN HEATER
21-40-00-02
BARON MAY 01/19
CABIN HEATER
SHEET 1 OF 3
21-40-00-02
PAGE 0
MAY 01/19
CABIN HEATER
SHEET 2 OF 3
21-40-00-02
PAGE 0A
MAY 01/19
CABIN HEATER
SHEET 3 OF 3
21-40-00-02
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 CABIN HEATER
-5 58-550021-1 HEATER INSTL A RF
-5 58-550021-3 HEATER INSTL B RF
-5 58-550021-5 HEATER INSTL C RF
-5 58-550021-59 HEATER INSTL H RF
MISCELLANEOUS DATA:
SEE SI NO.0721-412 REV1
-5 58-550021-61 HEATER INSTL J RF
MISCELLANEOUS DATA:
-5 58-550021-63 HEATER INSTL K RF
SEE CHAPTER 53-50-00-01
FOR STRUCTURE DETAILS
MISCELLANEOUS DATA:
35 58-550020-15 . SUPPORT-UPPER, FWD FE 1
40 50-554106 . SCREEN FE 1
45 95-550002-17 . VALVE ASSY-IRIS FE 1
50 58-380057-3 . HEATER ASSY-CABIN F 1
50 58-380057-7 . HEATER ASSY-CABIN G 1
FOR SPARES ORDER:
58-380057-9
50 58-380057-9 . HEATER ASSY-CABIN K 1
58-380057-7
-60 87D24-5 . . IGNITION ASSY FE 1
-65 57D27 . . . FILTER-RADIO NOISE FE 1
-70 10D48 . . . VIBRATOR FE 1
-75 81D13-1 . . . CONDENSER FE 1
-80 93C31 . . . COIL FE 1
-85 83D59-3 . . SOLENOID FE 1
-90 39D18 . . SPARKPLUG FE 1
-95 87D52-2 . . HOLDER-NOZZLE, FUEL FEED FE 1
-100 H08D09 . . NOZZLE-HEATER SPRAY FE 1
105 58-550020-17 . SUPPORT-LWR, AFT FE 1
110 58-550020-19 . SUPPORT-UPR, AFT FE 1
120 105798-24 . CLAMP-HEATER SUPPORT FE 1
FOR SPARES ORDER:
MS35842-16
120 MS35842-16 . CLAMP FE 1
105798-24
125 106200FR4 . HOSE-FLEX FE 1
-130 130292-A-4 . CLAMP FE 1
135 MS20823-5J . ELBOW FE 1
140 58-550021-7 . TUBE ASSY FE 1
145 MS20823-5J . ELBOW FE 1
150 58-550021-9 . TUBE ASSY FE 1
155 58-550023-1 . EXHAUST ASSY-HEATER FE 1
160 58-550024-1 . PLATE FE 1
ATTACHING PARTS
-165 MS27039-1-08 . SCREW FE 6
-------*-------
170 58-550020-9 . SUPPORT ASSY-BLOWER FE 1

21-40-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ATTACHING PARTS
-175 130909B14 . BOLT FE 7
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-185 130909N29 . NUT FE 7
-------*-------
-190 A42D36 . SWITCH-COMBUSTION AIR, H 1
PRESSURE DIFFERENTIAL
195 58-550021-15 . CUSHION-COMBUSTION AIR FE 1
BLOWER
-200 83D91-1 . BLOWER ASSY-COMBUSTION AIR FE 1
FOR DETAILS SEE:
21-40-00-03
205 27D39 . . MOTOR-COMBUSTION AIR FE 1
BLOWER
210 115798-18 . CLAMP FE 2
215 109645-027-4A . DUCT-COMBUSTION AIR FE 1
220 AN737TM66 . CLAMP-COMBUSTION AIR DUCT FE 2
FOR SPARES ORDER:
132742-66L
220 132742-66L . CLAMP-COMBUSTION AIR DUCT FE 2
AN737TM66
225 58-550022-3 . DUCT-BLOWER AIR INTAKE FE 1
230 MS21919DG24 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG24
MS21919DG24
ATTACHING PARTS
-235 MS27039-1-10 . SCREW FE 1
-240 130909N29 . NUT FE 1
-------*-------
245 MS27405-12P . CLAMP FE 1
ATTACHING PARTS
-250 130909B36 . BOLT FE 1
ALTERNATE SPARE:
NAS1149F0432P
ALTERNATE SPARE:
AN960-416L
-260 130909N32 . NUT FE 1
-------*-------
265 95-550002-27 . PLATE FE 2
ATTACHING PARTS
270 130909B14 . BOLT FE 2
ALTERNATE SPARE:
NAS1149F0332P
21-40-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ALTERNATE SPARE:
AN960-10L
-280 130909N29 . NUT FE 2
-------*-------
290 95-550002-19 . BRACKET FE 1
ATTACHING PARTS
-295 MS35207-270 . SCREW FE 1
-300 AN970-3 . WASHER FE 3
-305 NAS43DD3-40 . SPACER FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-320 H-10-10/32 . NUT FE 2
-------*-------
325 MS25026-1 . SWITCH-MICRO FE 1
330 AN3169 . ACTUATOR-MICROSWITCH FE 1
ATTACHING PARTS
340 AN315-3 . NUT FE 1
FOR SPARES ORDER:
AN315-3R
340 AN315-3R . NUT FE 1
AN315-3
-------*-------
-350 95-550002-23 . BUSHING FE 1
ATTACHING PARTS
-355 MS24665-130 . PIN-COTTER FE 1
FOR SPARES ORDER:
MS24665-132
-355 MS24665-132 . PIN-COTTER FE 1
MS24665-130
-------*-------
360 95-550002-31 . BELLCRANK FE 1
ATTACHING PARTS
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
21-40-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-375 MS24665-130 . PIN-COTTER FE 1
FOR SPARES ORDER:
MS24665-132
-375 MS24665-132 . PIN-COTTER FE 1
MS24665-130
-------*-------
380 95-550002-29 . LINK FE 1
ATTACHING PARTS
-385 95-550002-23 . BUSHING FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-395 MS24665-130 . PIN-COTTER FE 2
FOR SPARES ORDER:
MS24665-132
-395 MS24665-132 . PIN-COTTER FE 2
MS24665-130
-------*-------
400 95-550002-33 . CONTROL-IRIS VALVE M 1
400 95-550002-229 . CONTROL-IRIS VALVE E 1
410 95-550000-57 . TUBE ASSY L 1
410 95-550002-239 . TUBE ASSY C 1
420 AN815-4 . UNION FE 1
ALTERNATE SPARE:
AS5174-0404
MS24392-4
420 AS5174-0404 . UNION FE 1
ALTERNATE SPARE:
AN815-4
MS24392-4
420 MS24392-4 . UNION FE 1
ALTERNATE SPARE:
AN815-4
AS5174-0404
425 95-550000-21 . TUBE ASSY FE 1
430 AN832-4D . UNION-BULKHEAD FE 1
FOR SPARES ORDER:
MS24393D4
430 MS24393D4 . UNION-BULKHEAD FE 1
AN832-4D
ATTACHING PARTS
-435 AN924-4 . NUT FE 1
ALTERNATE SPARE:
AS5178-04
-435 AS5178-04 . NUT FE 1
ALTERNATE SPARE:
AN924-4

21-40-00-02
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-440 AN960-716 . WASHER FE 1
FOR SPARES ORDER:
NAS1149F0763P
-440 NAS1149F0763P . WASHER FE 1
AN960-716
-------*-------
445 95-550000-23 . TUBE ASSY A 1
445 95-550002-201 . TUBE ASSY E 1
455 58-550021-19 . TUBE ASSY FE 1
-460 476284 . PUMP ASSY-HEATER FUEL FE 1
ATTACHING PARTS
-465 AN520-10R . SCREW FE 2
-470 AN960-10 . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-475 MS35650-305 . NUT FE 2
-480 130909N29 . NUT FE 2
-------*-------
485 478130 . . COVER FE 1
490 479136 . . GASKET-COVER FE 1
495 479012 . . MAGNET FE 1
500 479135 . . FILTER FE 1
505 479137 . . RETAINER-PLUNGER AND CUP FE 1
510 479138 . . WASHER FE 1
515 479139 . . SPRING-CUP GASKET FE 1
520 479132 . . SPRING-CUP AND VALVE FE 1
525 176285 . . SPRING-PLUNGER RETURN FE 1
530 476474 . PLUNGER FE 1
535 7760598 . CONNECTOR-ELECTRICAL FE 2
540 AN822-4 . ELBOW FE 2
FOR SPARES ORDER:
MS20822-4
540 MS20822-4 . ELBOW FE 2
AN822-4
C1658-C1875 A
E0959-E0959,E0968-E1048 B
H0437-H0633 C
E0959-E0959,E0968-E1075,H0437-H0712 E
C1658-C1875,E0959-E0959,E0968-E1048,H0437-H0633 F
C1876-C1926,E1049-E1075,H0634-H0712 G
C1876-C1926 H
E1049-E1075 J
H0634-H0712 K
C1658-C1875,E0959-E0959,E0968-E1075 L
C1658-C1926 M
C1658-C1926,E0959-E0959,E0968-E1075,H0437-H0712 FE

21-40-00-02
PAGE 5
BARON MAY 01/19

21-40-00-03
CABIN HEATER
21-40-00-03
BARON MAY 01/19
CABIN HEATER
SHEET 1 OF 3
21-40-00-03
PAGE 0
MAY 01/19
CABIN HEATER
SHEET 2 OF 3
21-40-00-03
PAGE 0A
MAY 01/19
CABIN HEATER
SHEET 3 OF 3
21-40-00-03
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 CABIN HEATER
-5 58-550021-69 HEATER INSTL-CABIN B RF
-5 58-550021-71 HEATER INSTL-CABIN C RF
-5 58-550021-75 HEATER INSTL-CABIN E RF
-5 58-550021-77 HEATER INSTL-CABIN F RF
-5 58-550021-79 HEATER INSTL-CABIN G RF
-5 58-550021-85 HEATER INSTL-CABIN D RF
-5 58-550021-105 HEATER INSTL-CABIN H RF
-5 58-550021-107 HEATER INSTL-CABIN J RF
-5 58-550021-109 HEATER INSTL-CABIN K RF
-5 58-550021-121 HEATER INSTL-CABIN T RF
-5 58-550021-123 HEATER INSTL-CABIN V RF
-5 58-550021-125 HEATER INSTL-CABIN AL RF
-5 58-550021-0149 HEATER INSTL-CABIN AM RF
-6 58-550021-127 PUMP INSTL-FUEL T RF
-6 58-550021-129 PUMP INSTL-FUEL AF RF
10 MS35207-267 . SCREW W 5
10 AN520-10R . SCREW AD 5
20 130909N29 . NUT FE 5
25 58-550020-15 . SUPPORT-UPPER, FWD FE 1
30 MS24665-132 . PIN-COTTER FE 2
45 58-550021-21 . LINK FE 1
50 95-550002-23 . BUSHING FE 2
65 95-550002-17 . VALVE ASSY-IRIS, CABIN HEATER FE 1
ALTERNATE SPARE:
403-H003659
65 403-H003659 . VALVE ASSY-IRIS, CABIN HEATER FE 1
ALTERNATE SPARE:
95-550002-17
66 MS21919WDG24 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG24
MS21919WDG24
ATTACHING PARTS
-67 MS27039-1-08 . SCREW W 1
-67 MS27039-1-10 . SCREW AD 1
-68 130909N29 . NUT FE 1
-------*-------
70 58-550022-1 . DUCT-COMBUSTION AIR INTAKE AA 1
FOR SPARES ORDER:
58-550022-3
70 58-550022-3 . DUCT-COMBUSTION AIR INTAKE Z 1
58-550022-1
75 MS27405-12P . CLAMP AD 1
75 AN737TW56-66 . CLAMP W 1
ALTERNATE SPARE:
AN737TW56-66BLIN
75 AN737TW56-66BLIN . CLAMP W 1
ALTERNATE SPARE:
AN737TW56-66
21-40-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
80 130909B36 . BOLT AD 1
85 NAS1149F0432P . WASHER AD 1
90 130909N32 . NUT AD 1
-95 83D91-1 . BLOWER ASSY-COMBUSTION AIR FE 1
100 84D38-2 . . ADAPTER-INLET FE 1
105 84D43-3 . . HOUSING-WITH BRACKET FE 1
110 35D41 . . WHEEL FE 1
115 86D72-1 . . HOUSING FE 1
-120 86D38-1 . . SCREW-HOUSING ATTACH FE 5
125 27D39 . . MOTOR-COMBUSTION AIR FE 1
BLOWER
-130 86D35-1 . . SCREW-MOTOR ATTACH FE 1
135 58-550021-15 . CUSHION-COMBUSTION AIR FE 1
BLWR MOTOR
140 115798-18 . CLAMP-COMBUSTION AIR BLWR AD 2
MOTOR
140 MS35842-15 . CLAMP-COMBUSTION AIR BLWR W 2
MOTOR
FOR SPARES ORDER:
20060S
140 20060S . CLAMP-COMBUSTION AIR BLWR W 2
MOTOR
MS35842-15
145 58-550020-9 . SUPPORT ASSY-COMBUSTION FE 1
AIR BLWR MOTOR
150 130909B14 . BOLT-SUPPORT ASSY ATTACH FE 6
155 109645-025-4A . DUCT-COMBUSTION AIR BLOWER FE 1
160 NAS1924-66 . CLAMP FE 2
ALTERNATE SPARE:
132742-66L
160 132742-66L . CLAMP FE 2
ALTERNATE SPARE:
NAS1924-66
165 R76B1G12 . SWITCH-COMBUSTION AIR A 1
PRESSURE
165 94E42-2 . SWITCH-COMBUSTION AIR X 1
PRESSURE
170 69F_3/16_X_1/8 . ELBOW AJ 2
FOR SPARES ORDER:
69-F-03X02
169HD-3-2
170 69-F-03X02 . ELBOW AK 2
69F_3/16_X_1/8
FOR SPARES ORDER:
169HD-3-2
170 169HD-3-2 . ELBOW FE 2
69F_3/16_X_1/8
69-F-03X02
175 58-550021-67 . TUBE-HIGH PRESSURE PORT A 1
175 58-550021-145 . TUBE-HIGH PRESSURE PORT X 1
180 58-550021-65 . TUBE-LOW PRESSURE PORT A 1
180 58-550021-143 . TUBE-LOW PRESSURE PORT X 1
21-40-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
185 62-CM-03 . UNION FE 2
ALTERNATE SPARE:
62C-3
185 62C-3 . UNION FE 2
ALTERNATE SPARE:
62-CM-03
190 58-380057-7 . HEATER ASSY Y 1
FOR SPARES ORDER:
58-380057-9
FOR DETAILS SEE:
21-40-00-02
190 58-380057-9 . HEATER ASSY Z 1
58-380057-7
FOR DETAILS SEE:
21-40-00-02
-195 35-380138-5 . METER-HEATER HR NOSE U 1
BAGGAGE COMPARTMENT
-200 102-550056-1 . PLATE-IDENTIFICATION U 1
HEATER HOURS
-205 87D24-5 . IGNITION ASSY FE 1
-210 57D27 . . FILTER-RADIO NOISE FE 1
-215 10D48 . . VIBRATOR FE 1
-220 81D13-1 . . CONDENSER FE 1
-225 93C31 . . COIL FE 1
227 A-8 . CLAMP-FWD HEATER VENT AD 1
227 GS-4 . CLAMP-FWD HEATER VENT W 1
ALTERNATE SPARE:
3604
227 3604 . CLAMP-FWD HEATER VENT W 1
ALTERNATE SPARE:
GS4
230 58-550021-39 . HOSE-FLEX,HEATER VENT FE 1
-235 130292A8 . CLAMP-FLEX HOSE FE 1
240 MS20823-5D . ELBOW-FWD HEATER DRAIN AB 1
240 MS20823-5J . ELBOW-FWD HEATER DRAIN AN 1
FOR SPARES ORDER:
AS5196J0502
240 AS5196J0502 . ELBOW FE 1
MS20823-5J
245 58-550021-7 . TUBE ASSY-FWD HEATER DRAIN FE 1
250 58-550021-41 . HOSE-FWD HEATER DRAIN FE 1
255 GS5 . CLAMP-FWD AND AFT DRAIN HOSE FE 2
ALTERNATE SPARE:
3608
255 3608 . CLAMP-FWD AND AFT DRAIN HOSE FE 2
ALTERNATE SPARE:
GS5
260 58-550021-43 . TUBE-FWD HEATER DRAIN FE 1
265 A-16 . CLAMP-FWD AND AFT HEATER FE 2
DRAIN TUBE
270 AS5195D0502 . ELBOW-AFT HEATER DRAIN AB 1
270 AS5195J0502 . ELBOW-AFT HEATER DRAIN AC 1
275 58-550021-9 . TUBE ASSY-AFT HEATER DRAIN FE 1
21-40-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
280 58-550021-47 . HOSE-AFT HEATER DRAIN FE 1
-285 AN737TW34-38 . CLAMP FE 1
FOR SPARES ORDER:
AN737TW34-38BLIN
-285 AN737TW34-38BLIN . CLAMP FE 1
AN737TW34-38
290 58-550021-45 . TUBE-AFT HEATER DRAIN FE 1
-295 MS35489-20 . GROMMET FE 1
-300 NAS557-16 . GROMMET FE 1
305 58-550023-21 . EXHAUST ASSY-HEATER FE 1
58-550023-1
310 58-550024-1 . PLATE-HEATER EXHAUST FE 1
-315 MS27039-1-08 . SCREW-EXHAUST PLATE ATTACH FE 6
-330 55-4362-2155 . CONTROL ASSY-IRIS VALVE R 1
-330 95-550002-33 . CONTROL-IRIS VALVE N 1
-330 95-550002-229 . CONTROL-IRIS VALVE Q 1
335 95-550002-27 . PLATE-HEATER CONTROL FE 2
340 130909B14 . BOLT AD 2
340 130909B15 . BOLT W 2
341 NAS1149F0332P . WASHER W 2
343 130909N29 . NUT W 2
350 95-550002-19 . BRACKET-MICROSWITCH MOUNTING FE 1
ATTACHING PARTS
-355 MS35207-270 . SCREW FE 1
-365 NAS43DD3-48FC . SPACER FE 1
-380 130909N29 . NUT FE 1
-------*-------
385 MS25026-1 . SWITCH-IRIS VALVE LIMIT FE 1
390 AN3169 . ACTUATOR-MICROSWITCH FE 1
ATTACHING PARTS
400 AN315-3R . NUT FE 1
-410 NAS1149F0363P . WASHER FE 50
-415 MS24665-132 . PIN-COTTER FE 1
-------*-------
420 95-550002-23 . BUSHING FE 3
425 95-550002-31 . BELLCRANK-HEAT CONTROL FE 1
ATTACHING PARTS
-435 MS24665-132 . PIN-COTTER FE 1
-------*-------
440 95-550002-29 . LINK FE 1
441 MS20392-2C11 . PIN-CLEVIS W 1
442 MS24665-132 . PIN-COTTER W 1
445 58-550021-35 . TUBE ASSY-HEATER FUEL S 1

21-40-00-03
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
450 366-00-17 . CHECK VALVE-HEATER FUEL AG 1
ALTERNATE SPARE:
340000-4
450 340000-4 . CHECK VALVE-HEATER FUEL AG 1
ALTERNATE SPARE:
366-00-17
455 MS21919DF17 . CLAMP S 1
ALTERNATE SPARE:
AS21919DF17
455 AS21919DF17 . CLAMP S 1
ALTERNATE SPARE:
MS21919DF17
ATTACHING PARTS
-460 MS35207-263 . SCREW S 1
-------*-------
465 58-550021-31 . TUBE ASSY-HEATER FUEL S 1
466 AN525-10R8 . SCREW W 2
468 130909N29 . NUT W 2
469 MS21919WDG4 . CLAMP W 1
470 MS9600-12 . BRACKET W 1
-473 58-550021-19 . TUBE ASSY AE 1
-475 58-550021-131 . TUBE ASSY AE 1
-477 58-550021-135 . TUBE ASSY T 1
-479 58-550021-139 . TUBE ASSY AE 1
481 MS20822-4D . ELBOW-HEATER FUEL PUMP FE 2
FOR SPARES ORDER:
AS5195D0402
481 AS5195D0402 . ELBOW-HEATER FUEL PUMP FE 2
MS20822-4D
483 7760598 . CONNECTOR-HEAT FUEL PUMP FE 1
485 MS35207-266 . SCREW AF 1
487 MS35207-268 . SCREW AF 1
489 MS35333-39 . WASHER AF 4
491 NAS1149F0363P . WASHER AF 6
493 NAS43HT3-16 . SPACER AF 1
495 130909N29 . NUT AF 2
497 AN315-3R . NUT AF 2
-500 58-550021-27 . WIRE ASSY-CONNECTOR FE 1
-505 476284 . PUMP ASSY-HEATER FUEL AE 1
FOR SPARES ORDER:
58-920054-1
-505 58-920054-1 . PUMP ASSY-FUEL, ELECTRIC AE 1
476284
ALTERNATE SPARE:
58-920054-11
-505 58-920054-11 . PUMP ASSY-FUEL, ELECTRIC AE 1
ALTERNATE SPARE:
58-920054-1
510 478130 . . COVER AE 1
515 479136 . . GASKET-COVER AE 1
520 479012 . . MAGNET AE 1
525 479135 . . FILTER AE 1
21-40-00-03
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
530 479137 . . RETAINER-PLUNGER AND CUP AE 1
535 479138 . . WASHER AE 1
540 479139 . . SPRING-CUP GASKET AE 1
545 479132 . . SPRING-CUP AND VALVE AE 1
550 476285 . . SPRING-PLUNGER RETURN AE 1
555 476474 . . PLUNGER AE 1
565 95-550002-201 . TUBE ASSY P 1
565 95-550000-23 . TUBE ASSY N 1
570 MS24393D4 . UNION FE 1
-575 AN924-4 . NUT FE 4
ALTERNATE SPARE:
AS5178-04
-575 AS5178-04 . NUT FE 4
ALTERNATE SPARE:
AN924-4
585 95-550000-21 . TUBE ASSY-HEATER FUEL FE 1
590 AS5174-0404 . UNION FE 1
595 95-550000-57 . TUBE ASSY N 1
595 95-550000-239 . TUBE ASSY P 1
605 58-550021-89 . TUBE ASSY M 1
610 MS24402D4 . TEE M 1
FOR SPARES ORDER:
AS1035D040404
610 AS1035D040404 . TEE M 1
MS24402D4
615 58-550021-97 . TUBE ASSY M 1
620 58-550021-93 . TUBE ASSY M 1
625 366-00-17 . CHECK VALVE-HEATER FUEL M 2
ALTERNATE SPARE:
340000-4
625 340000-4 . CHECK VALVE-HEATER FUEL M 2
ALTERNATE SPARE:
366-00-17
630 MS21919DF17 . CLAMP M 2
635 AN825-4 . TEE M 1
640 58-550021-101 . TUBE ASSY M 1
645 58-550021-31 . TUBE ASSY FE 1
-650 55-5015-1S . KIT-HEATING L 1
MISCELLANEOUS DATA:
ADDITION OF SECOND CHECK
VALVE TO FUEL PLUMBING.
SAME AS ABOVE LISTED
ITEMS
655 130909B15 . BOLT FE 8
660 130909B14 . BOLT FE 4
670 130909N29 . NUT FE 2
675 AN931-9-13 . GROMMET FE 1
ALTERNATE SPARE:
MS21266-2N
ALTERNATE SPARE:
AN931-9-13
21-40-00-03
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
680 58-550020-17 . SUPPORT-LWR, AFT FE 1
685 58-550020-19 . SUPPORT-UPR, AFT FE 1
690 36-364028-77 . PLACARD AH 1
695 AGC-2 . FUSE AH 2
REFERENCE DESIGNATOR NO.:
F42
700 4522 . BLOCK-FUSE HOLDER AH 1
REFERENCE DESIGNATOR NO.:
XF42
ATTACHING PARTS
705 MS24693-S28 . SCREW AH 2
710 NAS1149FN632P . WASHER AH 2
715 MS21042-06 . NUT AH 2
-------*-------
C1927-C9999,E1076-E9999,H0713-H1844 A
C1927-C1969,C1971-C2002 B
E1076-E1080,E1082-E1083 C
H0713-H0765,H0767-H0772 D
C1970-C1970,C2003-C2014 E
E1081-E1081,E1084-E1085 F
H0766-H0766,H0773-H0781 G
C2015-C2330 H
E1086-E1178 J
H0782-H1144 K
C1927-C2014,E1076-E1085,H0713-H0781 L
C2015-C9999,E1086-E9999,H0782-H9999 M
C1927-C9999 N
E1076-E9999,H0713-H9999 P
E1076-E1118,E1120-E1124,H0713-H0872,H0874-H0894 Q
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H9999 R
C1927-C2330,E1076-E1170,H0713-H1144 S
C2331-C9999 T
C2389-C9999,E1191-E9999,H1253-H9999 U
E1179-E9999 V
H1145-H9999 W
H1845-H9999 X
C1927-C9999,E1076-E9999,H0713-H1801 Y
H0713-H9999 Z
C1927-C9999,E1076-E9999,H0713-H1471 AA
C1927-C2393,E1076-E1190,H0713-H1259 AB
C2394-C9999,E1191-E9999,H1260-H9999 AC
C1927-C9999,E1076-E9999,H0713-H1144 AD
C2331-C9999,E1179-E9999,H1145-H9999 AE
E1179-E9999,H1145-H9999 AF
C1927-C2014,C2331-C9999,E1076-E1085,E1179-E9999, AG
H0713-H0781,H1145-H9999
H2240-H9999 AH
C1927-C9999,E1076-E9999,H0713-H1663 AJ
C1927-C9999,E1076-E9999,H0713-H2239 AK
H1145-H2425 AL
H2426-H9999 AM
C2394-C9999,E1191-E9999,H1260-H2442 AN
C1927-C9999,E1076-E9999,H0713-H9999 FE

21-40-00-03
PAGE 7
BARON MAY 01/19

21-50-00-01
AIR CONDITIONING COMPRESSOR
21-50-00-01
BARON MAY 01/19
AIR CONDITIONING COMPRESSOR
21-50-00-01
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 AIR CONDITIONING COMPRESSOR

-5 58-910000-17 POWER PLANT INSTL-LH 2 BLADE FE RF
HARTZELL PROP
61-10-00-06
71-00-00-02
71-00-00-03
-5 58-910000-19 POWER PLANT INSTL-LH 3 BLADE FE RF
HARTZELL PROP
61-10-00-04
61-10-00-08
71-00-00-02
71-00-00-03
15 102-389006-5 . COMPRESSOR ASSY-AIR D 1
CONDITIONER, 24V
15 36-555003-3 . COMPRESSOR ASSY-AIR E 1
CONDITIONER, 24V
ATTACHING PARTS
-25 130909B68 . BOLT FE 3
-30 130909B70 . BOLT FE 1
-35 AN960-616 . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0663P
ALTERNATE SPARE:
AN960-616
-40 MS21045L6 . NUT FE 4
-------*-------
-45 101-910208-1 . . PLACARD-AIR CONDITIONER E 1
COMPRESSOR
-50 58-380082-5 . SHIM FE AR
55 58-555011-1 . BRACKET-MOUNTING FE 1
-60 58-380082-7 . SHIM-BRKT ALIGN LWR FE AR
-65 58-380082-3 . SHIM-BRKT ALIGN UPR FE AR
-70 NAS42HT10-36 . SPACER FE 2
-75 130909B149 . BOLT FE 1
-80 AN5-43A . BOLT FE 1
-85 AN960-516 . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0563P
ALTERNATE SPARE:
AN960-516
-90 MS21045L5 . NUT FE 2
95 58-555012-1 . SUPPORT ASSY-IDLER PULLEY FE 1
-100 AN5H5A . BOLT FE 2
-105 AN960-516 . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0563P
ALTERNATE SPARE:
AN960-516
110 58-555015-1 . BOLT-ADJUSTING FE 1
-115 MS21045L6 . NUT-ADJUSTING BOLT FE 1
-120 58-910000-39 . SHIM-IDLER PULLEY ALIGN FE AR
21-50-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-125 58-555013-1 . PULLEY ASSY-IDLER B 1
FOR SPARES ORDER:
58-555013-7
-125 58-555013-7 . PULLEY ASSY-IDLER FE 1
58-555013-1
135 58-555027-3 . . PULLEY FE 1
140 58-555026-3 . . NUT FE 1
-145 58-555027-9 . . BOLT ASSY FE 1
150 58-555027-5 . . . BOLT FE 1
152 58-555013-5 . . WASHER FE 1
-155 58-555027-7 . . . PLUG FE 1
160 203SZZ . . BEARING FE 1
165 58-555022-1 . PLATE-DRIVE PULLEY FE 1
MOUNTING, W/O PROP DEICER
170 58-555021-1 . PULLEY-COMPRESSOR DRIVE, FE 1
W/O PROP DEICER
ATTACHING PARTS
-175 130909B38 . BOLT FE 8
-180 AN960-416 . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0463P
ALTERNATE SPARE:
AN960-416
-185 130909N38 . NUT FE 8
-------*-------
190 58-910000-27 . HOSE ASSY-COMPRESSOR, LOW G 1
PRESSURE
FOR SPARES ORDER:
58-555052-17
190 58-555052-1 . HOSE ASSY-COMPRESSOR, LOW F 1
PRESSURE
FOR SPARES ORDER:
58-555052-9
190 58-555052-9 . HOSE ASSY-COMPRESSOR, LOW E 1
PRESSURE
58-555052-1
190 58-555052-17 . HOSE ASSY-COMPRESSOR, LOW D 1
PRESSURE
58-910000-27
195 2-015N1206-70 . . PACKING L 1
USED ON PART NUMBER:
58-555052-1
58-555052-9
58-555052-17
200 58-910000-33 . HOSE ASSY-COMPRESSOR, HIGH G 1
PRESSURE
FOR SPARES ORDER:
58-555052-19

21-50-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
200 58-555052-5 . HOSE ASSY-COMPRESSOR, HIGH F 1
PRESSURE
FOR SPARES ORDER:
58-555052-13
200 58-555052-13 . HOSE ASSY-COMPRESSOR, HIGH E 1
PRESSURE
58-555052-5
200 58-555052-19 . HOSE ASSY-COMPRESSOR, HIGH D 1
PRESSURE
58-910000-33
203 2-013N1206-70 . . PACKING L 1
USED ON PART NUMBER:
58-555052-5
58-555052-13
58-555052-19
-205 58-910001-1 POWER PLANT INSTL-LH A RF
71-00-00-04
71-70-00-05
-205 58-910001-5 POWER PLANT INSTL-LH, WITH A RF
AIR COND
71-00-00-04
71-70-00-05
-205 58-910001-33 POWER PLANT INSTL-LH M RF
ALTERNATE SPARE:
58-910001-37
71-00-00-04
71-70-00-05
-205 58-910001-37 POWER PLANT INSTL-LH, WITH M RF
AIR COND
ALTERNATE SPARE:
58-910001-33
71-00-00-04
71-70-00-05
-205 58-910001-0047 POWER PLANT INSTL-LH N RF
71-00-00-04
71-70-00-05
-207 58-910001-3 POWER PLANT INSTL-RH A RF
71-00-00-04
71-70-00-05
-207 58-910001-7 POWER PLANT INSTL-RH, WITH A RF
AIR COND
71-00-00-04
71-70-00-05

21-50-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-207 58-910001-35 POWER PLANT INSTL-RH M RF
ALTERNATE SPARE:
58-910001-39
71-00-00-04
71-70-00-05
-207 58-910001-39 POWER PLANT INSTL-RH, WITH M RF
AIR COND
ALTERNATE SPARE:
58-910001-35
71-00-00-04
71-70-00-05
-207 58-910001-0049 POWER PLANT INSTL-RH N RF
71-00-00-04
71-70-00-05
210 8130-0228 . BELT-COMPRESSOR DRIVE K 1
ALTERNATE SPARE:
8562-8371
8136-3929
FOR SPARES ORDER:
F3395
ALTERNATE SPARE:
8130-0228
8136-3929
FOR SPARES ORDER:
F3395
210 7385 . BELT-COMPRESSOR DRIVE K 1
MISCELLANEOUS DATA:
FOR USE ON AIRPLANES
WITHOUT ELECTROTHERMAL
PROPELLER DEICER
FOR SPARES ORDER:
F3395
ALTERNATE SPARE:
8130-0228
8562-8371
FOR SPARES ORDER:
F3395
210 F3395 . BELT-COMPRESSOR DRIVE K 1
8130-0228
8562-8371
7385
8136-3929
H1389-H1389,H1396-H2380 A
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H1408 B
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H1744 D
H1745-H9999 E
H1745-H1939 F
(CONTINUED NEXT PAGE)
21-50-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
(CONTINUED)
E1119-E1119,E1125-E9999 G
H1389-H1389,H1396-H9999 K
H0873-H0873,H0895-H9999 L
H2381-H2477 M
H2478-H9999 N
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H9999 FE

21-50-00-01
PAGE 5
BARON MAY 01/19

21-50-00-02
AIR CONDITIONING PLUMBING
21-50-00-02
BARON MAY 01/19

SHEET 1 OF 3
21-50-00-02
PAGE 0
MAY 01/19

SHEET 2 OF 3
21-50-00-02
PAGE 0A
MAY 01/19

SHEET 3 OF 3
21-50-00-02
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 AIR CONDITIONING PLUMBING

-5 58-555028-1 PLUMBING INSTL-AIR B RF
CONDITIONING
MISCELLANEOUS DATA:
USE SECO 7A-10, 7A-8, 7A-6
OR 7A-4 GASKETS AS
REQUIRED AND APPLY
TEFLON TAPE TO THE FIRST
THREE THREADS TO SEAL
ALL AIR CONDITIONING
FITTINGS
-10 58-555028-49 PLUMBING INSTL-AIR C RF
CONDITIONING
MISCELLANEOUS DATA:
USE SECO 7A-10, 7A-8, 7A-6
OR 7A-4 GASKETS AS
REQUIRED AND APPLY
FITTINGS
15 AN833-8 . ELBOW-H.P., FIREWALL FE 1
-20 AN960-1216 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F1290P
ALTERNATE SPARE:
AN960-1216
-25 AN924-8 . NUT FE 1
ALTERNATE SPARE:
AS5178-08
-25 AS5178-08 . NUT FE 1
ALTERNATE SPARE:
AN924-8
30 102-555040-1 . MANIFOLD ASSY-H.P. G 1
FOR SPARES ORDER:
102-555040-7
30 102-555040-7 . MANIFOLD ASSY-H.P. H 1
40 P25-349A-450 . VALVE-H.P. RELIEF FE 1
45 58-555028-63 . TUBE ASSY-H.P. FE 1
50 60-389026-1 . SWITCH-H.P. FE 1
55 AN815-4D . UNION-H.P. FE 1
ALTERNATE SPARE:
AS5174D0404
MS24392D4
55 AS5174D0404 . UNION-H.P. FE 1
ALTERNATE SPARE:
AN815-4D
MS24392D4
55 MS24392D4 . UNION-H.P. FE 1
ALTERNATE SPARE:
AN815-4D
AS5174D0404
-60 MS28775-012 . PACKING-PREFORMED FE 1
FOR SPARES ORDER:
M83461/1-012
21-50-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-60 M83461/1-012 . PACKING-PREFORMED FE 1
MS28775-012
-65 MS3108A14S7S . CONNECTOR-ELECTRICAL FE 1
FOR SPARES ORDER:
AS21919WDG24
MS21919WDG24
ATTACHING PARTS
-75 MS35207-264 . SCREW FE 1
-80 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-85 130909N29 . NUT FE 1
-------*-------
90 58-555028-59 . TUBE ASSY-H.P. FE 1
-95 UR3-68 . UNION-DRYER FE 1
100 EK083 . RECEIVER-DRYER FE 1
FOR SPARES ORDER:
AS21919WDG38
MS21919WDG38
ATTACHING PARTS
-110 130909B15 . BOLT FE 1
-115 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-120 130909N29 . NUT FE 1
-------*-------
125 58-555028-5 . TUBE ASSY-H.P. FE 1
130 AN833-6D . ELBOW FE 2
FOR SPARES ORDER:
MS24394D6
130 MS24394D6 . ELBOW FE 2
AN833-6D
-135 AN960-916 . WASHER FE 2
FOR SPARES ORDER:
NAS1149F0963P
AN960-916
-140 AN924-6D . NUT FE 2
ALTERNATE SPARE:
AS5178D06
21-50-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-140 AS5178D06 . NUT FE 2
ALTERNATE SPARE:
AN924-6D
145 58-555028-89 . TUBE ASSY-H.P. FE 1
150 58-555028-7 . TUBE ASSY-H.P. FE 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6
155 AS5174D0606 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
MS24392D6
155 MS24392D6 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
AS5174D0606
160 58-555028-55 . TUBE ASSY-H.P. FE 1
165 AN833-10D . ELBOW FE 2
-170 AN960-1416 . WASHER FE 2
ALTERNATE SPARE:
NAS1149F1490P
ALTERNATE SPARE:
AN960-1416
-175 AN924-10D . NUT FE 2
180 58-555028-87 . TUBE ASSY-L.P. FE 1
185 76577-7 . SWITCH-L.P. FE 1
190 58-555028-9 . TUBE ASSY-L.P. FE 1
195 AN815-10D . UNION-L.P. FE 2
ALTERNATE SPARE:
AS5174D1010
MS24392D10
FOR SPARES ORDER:
132754-74
195 AS5174D1010 . UNION-L.P. FE 2
ALTERNATE SPARE:
AN815-10D
MS24392D10
FOR SPARES ORDER:
132754-74
195 MS24392D10 . UNION-L.P. FE 2
ALTERNATE SPARE:
AN815-10D
AS5174D1010
FOR SPARES ORDER:
132754-74
195 132754-74 . UNION-L.P. FE 2
AN815-10D
AS5174D1010
MS24392D10
200 58-555028-57 . TUBE ASSY-L.P. J 1
205 58-555028-121 . TUBE ASSY-L.P. K 1

21-50-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
210 AN815-10D . UNION-L.P. K 1
ALTERNATE SPARE:
AS5174D1010
MS24392D10
FOR SPARES ORDER:
132754-74
210 AS5174D1010 . UNION-L.P. K 1
ALTERNATE SPARE:
AN815-10D
MS24392D10
FOR SPARES ORDER:
132754-74
210 MS24392D10 . UNION-L.P. K 1
ALTERNATE SPARE:
AN815-10D
AS5174D1010
FOR SPARES ORDER:
132754-74
210 132754-74 . UNION-L.P. K 1
AN815-10D
AS5174D1010
MS24392D10
215 58-555028-123 . TUBE ASSY-L.P. K 1
220 58-555028-47 . TUBE ASSY-H.P. FE 1
225 AN919-6D . REDUCER FE 1
FOR SPARES ORDER:
AS5174D0604
225 AS5174D0604 . REDUCER FE 1
AN919-6D
230 58-555028-83 . TUBE ASSY-H.P. FE 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6
235 AS5174D0606 . UNION FE 3
ALTERNATE SPARE:
AN815-6D
MS24392D6
235 MS24392D6 . UNION FE 3
ALTERNATE SPARE:
AN815-6D
AS5174D0606
240 58-555028-43 . TUBE ASSY-H.P. FE 1
245 58-555028-37 . TUBE ASSY-H.P. FE 1
FOR SPARES ORDER:
AS1034W0606
250 AS1034W0606 . ELBOW FE 1
AN821-6D
255 58-555028-17 . TUBE ASSY-H.P. B 1
-260 58-555028-77 . TUBE ASSY-H.P. C 1
265 AVU45 . VALVE-SERVICE FE 1
21-50-00-02
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
270 6-0TX-S . TEE FE 1
275 102-555010-5 . TUBE ASSY-H.P FE 1
280 A17001 . SIGHT GLASS-H.P. FE 1
285 58-555028-19 . TUBE ASSY-H.P. B 1
-290 58-555028-79 . TUBE ASSY-H.P. C 1
-295 58-555028-91 . BRACKET ASSY-H.P. LINE B 1
SUPPORT
300 58-555028-27 . TUBE ASSY-H.P. B 1
-305 58-555028-75 . TUBE ASSY-H.P. C 1
FOR SPARES ORDER:
MS24393D6
310 MS24393D6 . UNION FE 1
AN832-6D
-315 AN960-916 . WASHER FE 1
FOR SPARES ORDER:
NAS1149F0963P
AN960-916
-320 AN924-6D . NUT FE 1
ALTERNATE SPARE:
AS5178D06
-320 AS5178D06 . NUT FE 1
ALTERNATE SPARE:
AN924-6D
-325 AN818-6D . NUT FE 1
330 A55C6-4AL . REDUCER FE 1
335 106-555010-11 . TUBE ASSY-H.P. FE 1
-345 8-0TX-S . TEE FE 1
-350 AN912-2D . REDUCER FE 1
355 58-555028-65 . TUBE ASSY-L.P. FE 1
FOR SPARES ORDER:
132754-104
360 132754-104 . UNION FE 1
AN832-8D
-365 AN960-1216 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F1290P
ALTERNATE SPARE:
AN960-1216
-370 AN924-8D . NUT FE 1
ALTERNATE SPARE:
AS5178D08
-370 AS5178D08 . NUT FE 1
ALTERNATE SPARE:
AN924-8D
375 58-555028-23 . TUBE ASSY-L.P. B 1
-380 58-555028-51 . TUBE ASSY-L.P. C 1
385 AN824-8D . TEE FE 1
21-50-00-02
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
390 58-555028-21 . TUBE ASSY-L.P. B 1
-395 58-555028-81 . TUBE ASSY-L.P. C 1
-405 AN916-2D . ELBOW FE 1
-410 AN816-7D . NIPPLE FE 1
ALTERNATE SPARE :
AS5194D0804
-410 AS5194D0804 . NIPPLE FE 1
ALTERNATE SPARE:
AN816-7D
-420 8-0TX-S . TEE FE 1
-425 AN912-2D . REDUCER FE 1
430 58-555028-45 . TUBE ASSY-L.P. FE 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8
435 AS5174D0808 . UNION FE 3
ALTERNATE SPARE:
AN815-8D
MS24392D8
435 MS24392D8 . UNION FE 3
ALTERNATE SPARE:
AN815-8D
AS5174D0808
440 58-555028-85 . TUBE ASSY-L.P. FE 1
445 58-555028-41 . TUBE ASSY-L.P. FE 1
450 58-555028-39 . TUBE ASSY-L.P. FE 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8
455 AS5174D0808 . UNION FE 1
ALTERNATE SPARE:
AN815-8D
MS24392D8
455 MS24392D8 . UNION FE 1
ALTERNATE SPARE:
AN815-8D
AS5174D0808
460 58-555028-31 . TUBE ASSY-L.P. FE 1
465 AN815-8D . UNION E 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8
465 AS5174D0808 . UNION E 1
ALTERNATE SPARE:
AN815-8D
MS24392D8
465 MS24392D8 . UNION E 1
ALTERNATE SPARE:
AN815-8D
AS5174D0808
470 58-555028-113 . TUBE ASSY-L.P. E 1
21-50-00-02
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
475 AN824-10D . TEE FE 1
FOR SPARES ORDER:
132754-30
475 132754-30 . TEE FE 1
AN824-10D
480 10-8TRTXS . REDUCER FE 2
485 58-555028-35 . TUBE ASSY-L.P. D 1
490 58-555028-105 . TUBE ASSY-L.P. E 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6
495 AS5174D0606 . UNION FE 1
ALTERNATE SPARE:
AN815-6D
MS24392D6
495 MS24392D6 . UNION FE 1
ALTERNATE SPARE:
AN815-6D
AS5174D0606
500 58-555028-29 . TUBE ASSY-H.P. FE 1
505 AN821-6D . ELBOW E 1
FOR SPARES ORDER:
AS1034W0606
505 AS1034W0606 . ELBOW E 1
AN821-6D
510 58-555028-115 . TUBE ASSY-H.P. E 1
515 AN824-6D . TEE FE 1
FOR SPARES ORDER:
132754-28
515 132754-28 . TEE FE 1
AN824-6D
520 58-555028-33 . TUBE ASSY-H.P. D 1
525 58-555028-107 . TUBE ASSY-H.P. E 1
530 58-555028-11 . TUBE ASSY-L.P. B 1
-535 58-555028-97 . TUBE ASSY-L.P. F 1
540 58-555028-109 . TUBE ASSY-L.P. E 1
545 AN815-10D . UNION E 1
ALTERNATE SPARE:
AS5174D1010
FOR SPARES ORDER:
132754-74
545 AS5174D1010 . UNION E 1
ALTERNATE SPARE:
AN815-10D
FOR SPARES ORDER:
132754-74
545 132754-74 . UNION E 1
AN815-10D
AS5174D1010
550 58-555028-117 . TUBE ASSY-L.P. E 1
21-50-00-02
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
555 58-555028-13 . TUBE ASSY-H.P. B 1
-560 58-555028-99 . TUBE ASSY-H.P. F 1
565 58-555028-111 . TUBE ASSY-H.P. E 1
570 AN815-6D . UNION E 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6
570 AS5174D0606 . UNION E 1
ALTERNATE SPARE:
AN815-6D
MS24392D6
570 MS24392D6 . UNION E 1
ALTERNATE SPARE:
AN815-6D
AS5174D0606
575 58-555028-119 . TUBE ASSY-H.P. E 1
H0873-H0873,H0895-H1238 B
E1119-E1119,E1125-E1189 C
E1119-E1119,E1125-E1139,H0873-H0873,H0895-H1238 D
E1140-E1189 E
E1119-E1119,E1125-E1139 F
E1119-E1119,E1125-E1183,H0873-H0873,H0895-H1142 G
E1184-E1189,H1143-H1238 H
E1119-E1119,E1125-E1151,H0873-H0873,H0895-H1130 J
E1152-E1189,H1131-H1238 K
E1119-E1119,E1125-E1189,H0873-H0873,H0895-H1238 FE

21-50-00-02
PAGE 8
BARON MAY 01/19
21-50-00-03
21-50-00-03
BARON MAY 01/19

SHEET 1 OF 3
21-50-00-03
PAGE 0
MAY 01/19

SHEET 2 OF 3
21-50-00-03
PAGE 0A
MAY 01/19

SHEET 3 OF 3
21-50-00-03
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 AIR CONDITIONING PLUMBING

-5 58-555028-129 PLUMBING INSTL-AIR B RF
CONDITIONING
MISCELLANEOUS DATA:
USE SECO 7A-10, 7A-8, 7A-6
OR 7A-4 GASKETS AS
REQUIRED AND APPLY
FITTINGS
-10 58-555028-145 PLUMBING INSTL-AIR D RF
CONDITIONING
MISCELLANEOUS DATA:
USE SECO 7A-10, 7A-8, 7A-6
OR 7A-4 GASKETS AS
REQUIRED AND APPLY
FITTINGS
-15 58-555028-131 PLUMBING INSTL-AIR C RF
CONDITIONING
MISCELLANEOUS DATA:
USE SECO 7A-10, 7A-8, 7A-6
OR 7A-4 GASKETS AS
REQUIRED AND APPLY
FITTINGS
20 AN833-8 . ELBOW-FIREWALL FE 1
-25 AN960-1216 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F1290P
ALTERNATE SPARE:
AN960-1216
35 102-555040-7 . MANIFOLD ASSY-H.P. FE 1
40 P25-349A-450 . VALVE-H.P. RELIEF FE 1
45 58-555028-63 . TUBE ASSY-H.P. FE 1
50 60-389026-1 . SWITCH-H.P. FE 1
ALTERNATE SPARE:
AS5174D0404
MS24392D4
55 AS5174D0404 . UNION FE 1
ALTERNATE SPARE:
AN815-4D
MS24392D4
55 MS24392D4 . UNION FE 1
ALTERNATE SPARE:
AN815-4D
AS5174D0404
-60 3-904N1206-70 . PACKING-PREFORMED FE 1
-65 MS3108A14S7S . CONNECTOR-ELECTRICAL FE 1
21-50-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
FOR SPARES ORDER:
AS21919WDG24
MS21919WDG24
ATTACHING PARTS
-75 MS35207-264 . SCREW FE 1
-80 AN960-10 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-85 130909N29 . NUT FE 1
-------*-------
90 8-6TRTXS . REDUCER FE 1
-95 AN818-8D . NUT FE 1
100 58-555028-127 . TUBE ASSY-H.P. FE 1
FOR SPARES ORDER:
MS24394D6
105 MS24394D6 . ELBOW FE 2
AN833-6D
-110 AN960-916 . WASHER FE 2
FOR SPARES ORDER:
NAS1149F0963P
AN960-916
-115 AN924-6D . NUT FE 2
ALTERNATE SPARE:
AS5178D06
-115 AS5178D06 . NUT FE 2
ALTERNATE SPARE:
AN924-6D
120 58-555028-89 . TUBE ASSY-H.P. FE 1
125 58-555028-7 . TUBE ASSY-H.P. FE 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6
130 AS5174D0606 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
MS24392D6
130 MS24392D6 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
AS5174D0606
135 58-555028-55 . TUBE ASSY-H.P. FE 1
140 AN833-10 . ELBOW FE 1

21-50-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-145 AN960-1416 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F1490P
ALTERNATE SPARE:
AN960-1416
-150 AN924-10 . NUT FE 1
155 58-555028-87 . TUBE ASSY-L.P. FE 1
-160 AN833-10D . ELBOW FE 1
-165 AN960-1416 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F1490P
ALTERNATE SPARE:
AN960-1416
-170 AN924-10D . NUT FE 1
175 76577-7 . SWITCH-L.P. FE 1
180 58-555028-9 . TUBE ASSY-L.P. FE 1
185 AN815-10D . UNION FE 3
ALTERNATE SPARE:
AS5174D1010
MS24392D10
FOR SPARES ORDER:
132754-74
185 AS5174D1010 . UNION FE 3
ALTERNATE SPARE:
AN815-10D
MS24392D10
FOR SPARES ORDER:
132754-74
185 MS24392D10 . UNION FE 3
ALTERNATE SPARE:
AN815-10D
AS5174D1010
FOR SPARES ORDER:
132754-74
185 132754-74 . UNION FE 3
AN815-10D
AS5174D1010
MS24392D10
190 58-555028-121 . TUBE ASSY-L.P. FE 1
195 58-555028-123 . TUBE ASSY-L.P. FE 1
200 58-555028-47 . TUBE ASSY-H.P. FE 1
205 AN919-6D . REDUCER FE 1
FOR SPARES ORDER:
AS5174D0604
205 AS5174D0604 . REDUCER FE 1
AN919-6D
210 58-555028-83 . TUBE ASSY-H.P. A 1
210 58-555028-151 . TUBE ASSY-H.P. G 1

21-50-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
ALTERNATE SPARE:
AS5174D0606
MS24392D6
215 AS5174D0606 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
MS24392D6
215 MS24392D6 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
AS5174D0606
220 58-555028-43 . TUBE ASSY-H.P. FE 1
225 58-555028-37 . TUBE ASSY-H.P. FE 1
FOR SPARES ORDER:
AS1034W0606
230 AS1034W0606 . ELBOW FE 1
AN821-6D
235 58-555028-17 . TUBE ASSY-H.P. E 1
-240 58-555028-77 . TUBE ASSY-H.P. C 1
245 AVU45 . VALVE-SERVICE F 1
250 6-0TX-S . TEE F 1
-255 AN824-6D . TEE D 1
FOR SPARES ORDER:
132754-28
-255 132754-28 . TEE D 1
AN824-6D
-260 36-555053-9 . TUBE ASSY D 1
-265 JD13-1019-05-05 . PORT-CHARGE D 1
-270 JD13-1011-05 . CAP D 1
275 102-555010-5 . TUBE ASSY-H.P E 1
-280 58-555028-139 . TUBE ASSY-H.P C 1
285 90-384019-1 . RECEIVER-DRYER F 1
-290 90-384019-3 . RECEIVER-DRYER D 1
295 MS21919DG40 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG40
MS21919DG40
ATTACHING PARTS
-300 MS35207-263 . SCREW FE 1
-305 130909N29 . NUT FE 1
-------*-------
310 58-555028-19 . TUBE ASSY-H.P. E 1
-315 58-555028-143 . TUBE ASSY-H.P. C 1
-320 58-555028-91 . BRACKET ASSY-H.P. LINE B 1
SUPPORT
-325 58-555028-147 . BRACKET ASSY-H.P. LINE D 1
SUPPORT

21-50-00-03
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
330 AN824-6D . TEE FE 1
FOR SPARES ORDER:
132754-28
330 132754-28 . TEE FE 1
AN824-6D
335 58-555028-27 . TUBE ASSY-H.P. E 1
-340 58-555028-75 . TUBE ASSY-H.P. C 1
FOR SPARES ORDER:
MS24393D6
345 MS24393D6 . UNION FE 1
AN832-6D
-350 AN960-916 . WASHER FE 1
FOR SPARES ORDER:
NAS1149F0963P
AN960-916
-355 AN924-6D . NUT FE 1
ALTERNATE SPARE:
AS5178D06
-355 AS5178D06 . NUT FE 1
ALTERNATE SPARE:
AN924-6D
-360 AN818-6D . NUT FE 1
365 A55C6-4AL . REDUCER FE 1
370 106-555010-11 . TUBE ASSY-H.P. FE 1
-380 8-0TX-S . TEE F 1
-385 AN912-2 . BUSHING F 1
-390 AN815-8D . UNION D 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8
-390 AS5174D0808 . UNION D 1
ALTERNATE SPARE:
AN815-8D
MS24392D8
-390 MS24392D8 . UNION D 1
ALTERNATE SPARE:
AN815-8D
AS5174D0808
395 58-555028-65 . TUBE ASSY-L.P. FE 1
FOR SPARES ORDER:
132754-104
400 132754-104 . UNION FE 1
AN832-8D
-405 AN960-1216 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F1290P

21-50-00-03
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
ALTERNATE SPARE:
AN960-1216
-410 AN924-8D . NUT FE 1
ALTERNATE SPARE:
AS5178D08
-410 AS5178D08 . NUT FE 1
ALTERNATE SPARE:
AN924-8D
415 58-555028-23 . TUBE ASSY-L.P. E 1
-420 58-555028-51 . TUBE ASSY-L.P. C 1
425 AN824-8D . TEE FE 1
430 58-555028-21 . TUBE ASSY-L.P. E 1
-435 58-555028-141 . TUBE ASSY-L.P. C 1
-445 AN916-2D . ELBOW F 1
-450 AN816-7D . NIPPLE F 1
ALTERNATE SPARE:
AS5194D0804
-450 AS5194D0804 . NIPPLE F 1
ALTERNATE SPARE:
AN816-7D
-455 AN821-8D . ELBOW D 1
FOR SPARES ORDER:
132754-24
-455 132754-24 . ELBOW D 1
AN821-8D
-460 36-555053-11 . TUBE ASSY D 1
-465 JD13-1019-04-04 . PORT-CHARGE D 1
-470 JD13-1011-04 . CAP D 1
-480 8-0TX-S . TEE F 1
-485 AN912-2 . BUSHING F 1
-490 AN815-8D . UNION D 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8
-490 AS5174D0808 . UNION D 1
ALTERNATE SPARE:
AN815-8D
MS24392D8
-490 MS24392D8 . UNION D 1
ALTERNATE SPARE:
AN815-8D
AS5174D0808
495 58-555028-45 . TUBE ASSY-L.P. FE 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8
500 AS5174D0808 . UNION FE 3
ALTERNATE SPARE:
AN815-8D
MS24392D8
21-50-00-03
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
500 MS24392D8 . UNION FE 3
ALTERNATE SPARE:
AN815-8D
AS5174D0808
505 58-555028-85 . TUBE ASSY-L.P. A 1
505 58-555028-153 . TUBE ASSY-L.P. G 1
510 58-555028-41 . TUBE ASSY-L.P. FE 1
515 58-555028-39 . TUBE ASSY-L.P. FE 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8
520 AS5174D0808 . UNION FE 1
ALTERNATE SPARE:
AN815-8D
MS24392D8
520 MS24392D8 . UNION FE 1
ALTERNATE SPARE:
AN815-8D
AS5174D0808
525 58-555028-31 . TUBE ASSY-L.P. FE 1
530 AN815-8D . UNION C 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8
530 AS5174D0808 . UNION C 1
ALTERNATE SPARE:
AN815-8D
MS24392D8
530 MS24392D8 . UNION C 1
ALTERNATE SPARE:
AN815-8D
AS5174D0808
535 58-555028-113 . TUBE ASSY-L.P. C 1
540 AN824-10D . TEE FE 1
FOR SPARES ORDER:
132754-30
540 132754-30 . TEE FE 1
AN824-10D
545 10-8TRTXS . REDUCER H 2
545 10-8TRTXS . REDUCER D 2
ALTERNATE SPARE:
10-8TRTXN-S
545 10-8TRTXN-S . REDUCER D 2
ALTERNATE SPARE:
10-8TRTXS
550 58-555028-35 . TUBE ASSY-L.P. E 1
555 58-555028-105 . TUBE ASSY-L.P. C 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6

21-50-00-03
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
560 AS5174D0606 . UNION FE 1
ALTERNATE SPARE:
AN815-6D
MS24392D6
560 MS24392D6 . UNION FE 1
ALTERNATE SPARE:
AN815-6D
AS5174D0606
565 58-555028-133 . TUBE ASSY-H.P. FE 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6
570 AS5174D0606 . UNION FE 1
ALTERNATE SPARE:
AN815-6D
MS24392D6
570 MS24392D6 . UNION FE 1
ALTERNATE SPARE:
AN815-6D
AS5174D0606
575 58-555028-135 . TUBE ASSY-H.P. FE 1
FOR SPARES ORDER:
AS1034W0606
580 AS1034W0606 . ELBOW FE 1
AN821-6D
585 58-555028-137 . TUBE ASSY-H.P. FE 1
590 58-555028-33 . TUBE ASSY-H.P. E 1
595 AN815-6D . UNION E 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6
595 AS5174D0606 . UNION E 1
ALTERNATE SPARE:
AN815-6D
MS24392D6
595 MS24392D6 . UNION E 1
ALTERNATE SPARE:
AN815-6D
AS5174D0606
600 58-555028-13 . TUBE ASSY-H.P. E 1
605 58-555028-107 . TUBE ASSY-H.P. C 1
610 AN821-6D . ELBOW C 1
FOR SPARES ORDER:
AS1034W0606
610 AS1034W0606 . ELBOW C 1
AN821-6D
615 58-555028-119 . TUBE ASSY-H.P. C 1
620 AN815-6D . UNION C 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6
21-50-00-03
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
620 AS5174D0606 . UNION C 1
ALTERNATE SPARE:
AN815-6D
MS24392D6
620 MS24392D6 . UNION C 1
ALTERNATE SPARE:
AN815-6D
AS5174D0606
625 58-555028-111 . TUBE ASSY-H.P. C 1
630 58-555028-11 . TUBE ASSY-L.P. E 1
635 58-555028-109 . TUBE ASSY-L.P. C 1
640 AN815-10D . UNION C 1
ALTERNATE SPARE:
AS5174D1010
MS24392D10
FOR SPARES ORDER:
132754-74
640 AS5174D1010 . UNION C 1
ALTERNATE SPARE:
AN815-10D
MS24392D10
FOR SPARES ORDER:
132754-74
640 MS24392D10 . UNION C 1
ALTERNATE SPARE:
AN815-10D
AS5174D1010
FOR SPARES ORDER:
132754-74
640 132754-74 . UNION C 1
AN815-10D
AS5174D1010
MS24392D10
645 58-555028-117 . TUBE ASSY-L.P. C 1
E1190-E9999,H1239-H2124 A
H1239-H1744 B
E1190-E9999 C
H1745-H2442 D
H1239-H2442 E
E1190-E9999,H1239-H1744 F
H2125-H2442 G
E1190-E9999,H1239-H1744 H
E1190-E9999,H1239-H2442 FE

21-50-00-03
PAGE 9
BARON MAY 01/19

21-50-00-04
AIR CONDITIONING CONDENSER
21-50-00-04
BARON MAY 01/19

SHEET 1 OF 2
21-50-00-04
PAGE 0
MAY 01/19

SHEET 2 OF 2
21-50-00-04
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 AIR CONDITIONING CONDENSER

-5 58-555036-1 CONDENSER INSTL-AIR FE RF
CONDITIONING
10 102-384016-3 . COIL ASSY-CONDENSER B RF
-15 36-380101-3 . COIL ASSY-CONDENSER C 1
ATTACHING PARTS
20 130909B27 . BOLT B 7
-25 AN3-23A . BOLT C 7
-30 131152-3-0-19 . TUBE-INSULATING B 7
FOR SPARES ORDER:
36-555010-111
-30 36-555010-31 . TUBE-INSULATING C 7
FOR SPARES ORDER:
36-555010-111
-30 36-555010-111 . TUBE-INSULATING FE 7
131152-3-0-19
36-555010-31
-------*-------
45 102-980018-11 . STRIP FE 1
50 102-980018-9 . STRIP ASSY FE 1
55 102-980018-21 . STRIP FE 1
-60 1-8X10 . STRIP-SELF ADHESIVE SPONGE FE AR
65 102-555019-1 . MOUNT ASSY-CONSENSER FE 1
BLOWER
ATTACHING PARTS
-70 MS24694-S49 . SCREW FE 10
-------*-------
75 102-555020-1 . DUCT ASSY-CONDENSER BLOWER FE 1
ATTACHING PARTS
-80 MS35207-263 . SCREW FE 5
-85 AN960-10L . WASHER FE 5
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-------*-------
90 MS35842-16 . CLAMP FE 2
FOR SPARES ORDER:
200104S
90 200104S . CLAMP FE 2
MS35842-16
-95 58-380081-1 . BLOWER ASSY-AIR CONDITIONING FE 1
CONDENSER, DETAILS OF
M5861AY3A1 BLOWER ASSY
100 A2781-812 . . HOUSING FE 1
105 M3516D . . MOTOR-ELEC D.C. FE 1
ATTACHING PARTS
110 K161FGU1213 . . BOLT FE 3
115 AN960-416 . . WASHER FE 3
ALTERNATE SPARE:
NAS1149F0463P

21-50-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
115 NAS1149F0463P . . WASHER FE 3
ALTERNATE SPARE:
AN960-416
120 1081-40 . . SPACER FE 3
-------*-------
125 593D-9 . . PROPELLER-CONDENSER FE 1
BLOWER
-130 MS24665-134 . . PIN-COTTER FE 1
135 3140-3 . . BOLT-POS AND NEG FE 2
TERMINALS
140 AN960-10 . . WASHER FE 6
MISCELLANEOUS DATA:
USE 2 EA POS,
4 EA NEG TERMINALS
ALTERNATE SPARE:
NAS1149F0363P
140 NAS1149F0363P . . WASHER FE 6
MISCELLANEOUS DATA:
USE 2 EA POS,
4 EA NEG TERMINALS
ALTERNATE SPARE:
AN960-10
145 K127G5 . . WASHER-POS TERMINAL FE 2
150 2721-15 . . BUSHING-INSULATOR, POS FE 1
TERMINAL
155 2003-2 . . WASHER-FIBERGLASS, POS FE 1
TERMINAL
160 MS35338-43 . . WASHER-SPRING LOCK FE 2
165 MS35650-302 . . NUT-PLAIN HEX FE 2
170 1376-134 . . LEAD-ELEC WHITE, POS FE 1
175 1376-135 . . LEAD-ELEC BLACK, NEG FE 1
180 MS35338-42 . . WASHER FE 2
185 MS35649-282 . . NUT FE 2
MISCELLANEOUS DATA:
NO DETAILS OF EM610
BLOWER ASSY
-190 58-555036-3 . PAD-SCUFF, CONDENSER BLOWER FE 1
-195 MS24166D1 . RELAY-AIR CONDITIONING FE 1
-200 5KE51CA . TRANSORB FE 1
-205 4522 . BLOCK FE 1
-210 AGC25 . FUSE FE 2
-215 102-555030-1 . PLACARD FE 1
220 58-555029-1 . DOOR ASSY-CONDENSER, FE 1
ENVIRONMENTAL AIR
ATTACHING PARTS
225 130909B15 . BOLT FE 2
230 105739S-ZF0250 . BUSHING FE 2
235 AN960-10L . WASHER FE AR
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
240 130909N29 . NUT FE 2
-------*-------
21-50-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
245 102-555025-1 . . BEARING FE 2
250 102-555024-1 . . BRACKET ASSY-OUTBD FE 1
-255 102-555024-2 . . BRACKET ASSY-INBD FE 1
ATTACHING PARTS
260 MS35207-208 . . SCREW FE 4
265 MS20392-2C17 . . PIN FE 1
270 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
270 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
275 MS24655-170 . . PIN-COTTER FE 1
-------*-------
-280 58-555046-1 . SUPPORT ASSY-CONDENSER FE 1
DOOR
ATTACHING PARTS
-285 130909B12 . BOLT FE 4
-290 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-------*-------
-295 58-555047-1 . HINGE-CONDENSER DOOR, OUTBD FE 1
-300 58-555047-2 . HINGE-CONDENSER DOOR, INBD FE 1
ATTACHING PARTS
-305 130909B12 . BOLT FE 4
-310 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-315 130909N29 . NUT FE 2
-------*-------
320 58-380080-3 . ACTUATOR ASSY-CONDENSER FE 1
DOOR
ATTACHING PARTS
325 130909B17 . BOLT FE 1
330 130909B23 . BOLT FE 1
335 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
340 130909N29 . NUT FE 2
-------*-------
345 58-555048-1 . BRACKET-ACTUATOR MOUNTING FE 2
ATTACHING PARTS
350 130909B15 . BOLT FE 4

21-50-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
355 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-360 130909N29 . NUT FE 4
-------*-------
365 102-980000-251 . COVER-CONDENSER FE 1
370 102-980000-261 . COVER ASSY-CONDENSER FE 1
OUTLET
375 102-555021-1 DUCT ASSY-CONDENSER OUTLET FE 1
-380 102-980018-1 BRACKET ASSY-CONDENSER COIL B 1
-385 102-980018-29 BRACKET ASSY-CONDENSER COIL C 1
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H1716 B
H1717-H2442 C
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H2442 FE

21-50-00-04
PAGE 4
BARON MAY 01/19
21-50-00-15
AIR CONDITIONING HOSE
21-50-00-15
BARON MAY 01/19

SHEET 1 OF 3
21-50-00-15
PAGE 0
MAY 01/19

SHEET 2 OF 3
21-50-00-15
PAGE 0A
MAY 01/19

SHEET 3 OF 3
21-50-00-15
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
15 AIR CONDITIONING HOSE

-5 58-555110-0001 HOSE INSTL-AIR CONDITIONING FE RF
10 AN3-3A . BOLT FE 2
20 MS35207-246 . SCREW FE 1
25 MS35207-262 . SCREW FE 4
30 MS35207-263 . SCREW FE 3
35 MS35207-264 . SCREW FE 2
40 MS35206-265 . SCREW FE 3
45 MS35207-268 . SCREW FE 1
70 MS21042L08 . NUT FE 1
75 MS21042L3 . NUT FE 11
80 MS21044N3 . NUT FE 3
85 MS21919WH10 . CLAMP FE 10
ALTERNATE SPARE:
AS21919WCH
85 AS21919WCH . CLAMP FE 10
ALTERNATE SPARE:
MS21919WH10
90 MS21919WH12 . CLAMP FE 11
105 PLT4SM76 . TIE-CABLE FE AR
110 2246503 . HOSE ASSY FE 1
115 2246513 . HOSE ASSY FE 1
120 2214507 . HOSE ASSY FE 1
125 2214505 . HOSE ASSY FE 1
130 2214509 . HOSE ASSY FE 1
135 2214511 . HOSE ASSY FE 1
140 MS27980-1B . BUTTON FE 1
145 MS27980-7B . STUD FE 1
160 FTA-200-5-13 . RETAINER FE 1
165 MS21266-1N . GROMMET FE AR
H2478-H9999 FE

21-50-00-15
PAGE 1
BARON MAY 01/19

21-50-00-20
AIR CONDITIONING EVAPORATOR AND BLOWER
21-50-00-20
BARON MAY 01/19

SHEET 1 OF 2
21-50-00-20
PAGE 0
MAY 01/19

SHEET 2 OF 2
21-50-00-20
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
20 AIR CONDITIONING EVAPORATOR AND BLOWER

-5 36-555009-0001 EVAPORATOR AND BLOWER INSTL-AIR FE RF
CONDITIONING
10 2214113 . BLOWER ASSY-28VDC FE 1
ATTACHING PARTS
-------*-------
25 FTA-200-6-1 . BRACKET-TOP LEFT BLOWER MOUNT FE 1
30 FTA-200-6-2 . BRACKET-TOP RIGHT BLOWER MOUNT FE 1
ATTACHING PARTS
35 MS35206-246 . SCREW FE 4
40 MS21044N08 . NUT FE 4
-------*-------
45 NAS1924-107 . CLAMP FE 2
50 05-29912-24 . DUCT-AIR, LOW PRESSURE FE 1
55 2214119 . ADAPTER-DUCT HOSE SPLICE FE 1
60 MS35206-245 . SCREW FE 13
70 MS21044N08 . NUT FE 6
75 2214121 . MODULE ASSY-EVAPORATOR FE 1
H2478-H9999 FE

21-50-00-20
PAGE 1
BARON MAY 01/19

21-50-00-25
21-50-00-25
BARON MAY 01/19

SHEET 1 OF 2
21-50-00-25
PAGE 0
MAY 01/19

SHEET 2 OF 2
21-50-00-25
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
25 AIR CONDITIONING CONDENSER

-5 36-555008-0001 CONDENSER INSTL-AIR CONDITIONING FE RF
10 2246127 . CONDENSER ASSY-28VDC FE 1
ATTACHING PARTS
-------*-------
25 FTA-200-1-5 . BRACKET-CONDENSER UPPER MOUNT FE 1
ATTACHING PARTS
30 MS35206-246 . SCREW FE 2
40 MS21044N08 . NUT FE 2
-------*-------
45 FTA-200-1-3 . SHELF-FWD FE 1
50 FTA-200-1-1 . SHELF-AFT FE 1
ATTACHING PARTS
55 MS35206-248 . SCREW FE 8
65 FTA-200-1-7 . SPACER FE 4
70 MS21044N08 . NUT FE 8
-------*-------
75 0250-1200-0002-8 . DUCTING-EXPANDABLE FE 1
80 0626-1200-0001-60 . CLAMP FE 2
85 MS24694-C8 . SCREW FE 8
H2478-H9999 FE

21-50-00-25
PAGE 1
BARON MAY 01/19

21-50-00-30
AIR CONDITIONING RECEIVER/DRYER
21-50-00-30
BARON MAY 01/19
AIR CONDITIONING RECEIVER/DRYER
21-50-00-30
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
30 AIR CONDITIONING RECEIVER/DRYER

-5 36-555056-0001 RECEIVER/DRYER INSTL-AIR CONDITIONING FE RF
10 0857372 . RECEIVER/DRYER ASSY FE 1
ATTACHING PARTS
25 MS21044N3 . NUT FE 2
-------*-------
-30 1998640 . OIL-VCS FE 2
35 FTA-200-1-8 . MOUNT FE 1
H2478-H9999 FE

21-50-00-30
PAGE 1
BARON MAY 01/19

21-60-00-10
PEDESTAL CONTROLS, AIR CONDITIONING
21-60-00-10
BARON MAY 01/19

SHEET 1 OF 2
21-60-00-10
PAGE 0
MAY 01/19

SHEET 2 OF 2
21-60-00-10
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10 PEDESTAL CONTROLS, AIR CONDITIONING

-5 58-555120-0001 CONTROLS INSTL-PEDESTAL, AIR CONDITIONING FE RF
10 2150001 . SENSOR ASSY-CABIN TEMPERATURE FE 1
ATTACHING PARTS
15 MS24693-29B . SCREW FE 4
20 2192230 . SPACER FE 1
-------*-------
25 3835100 . PANEL ASSY-SWITCH FE 1
30 SJ3560 . FASTENER FE AR
35 2214321 . RELAY ASSY FE 1
40 2246355 . MODULE-ECU/BLOWER FE 1
H2478-H9999 FE

21-60-00-10
PAGE 1
BARON MAY 01/19

21 - Effective Pages: Beechcraft Corporation

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

21 - Effective Pages: Beechcraft Corporation

Uploaded by

Copyright:

Available Formats

Beechcraft Corporation

BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

21 - CONTENTS 1 MAY 01/19 21-40-00-02 0B MAY 01/19

21-50-00-15 0A MAY 01/19

* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION

CHAPTER 21 - ENVIRONMENTAL/AIR CONDITIONING

CHAPTER 21 - ENVIRONMENTAL/AIR CONDITIONING

AIR CONDITIONING CONDENSER 21-50-00 04 E1119-E1119

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

AIR CONDITIONING DISTRIBUTION, FWD

AIR CONDITIONING DISTRIBUTION, FWD

AIR CONDITIONING DISTRIBUTION, FWD

PAGE INTENTIONALLY LEFT BLANK

02 AIR CONDITIONING DISTRIBUTION, FWD

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

AIR CONDITIONING DISTRIBUTION, AFT

AIR CONDITIONING DISTRIBUTION, AFT

03 AIR CONDITIONING DISTRIBUTION, AFT

MISSING ITEM NO. NOT APPLICABLE

FRESH AIR DISTRIBUTION

FRESH AIR DISTRIBUTION

FRESH AIR DISTRIBUTION

PAGE INTENTIONALLY LEFT BLANK

04 FRESH AIR DISTRIBUTION

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

FRESH AIR DISTRIBUTION

FRESH AIR DISTRIBUTION

FRESH AIR DISTRIBUTION

PAGE INTENTIONALLY LEFT BLANK

05 FRESH AIR DISTRIBUTION

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

FRESH AIR BLOWER

FRESH AIR BLOWER

FRESH AIR BLOWER

PAGE INTENTIONALLY LEFT BLANK

06 FRESH AIR BLOWER

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE
