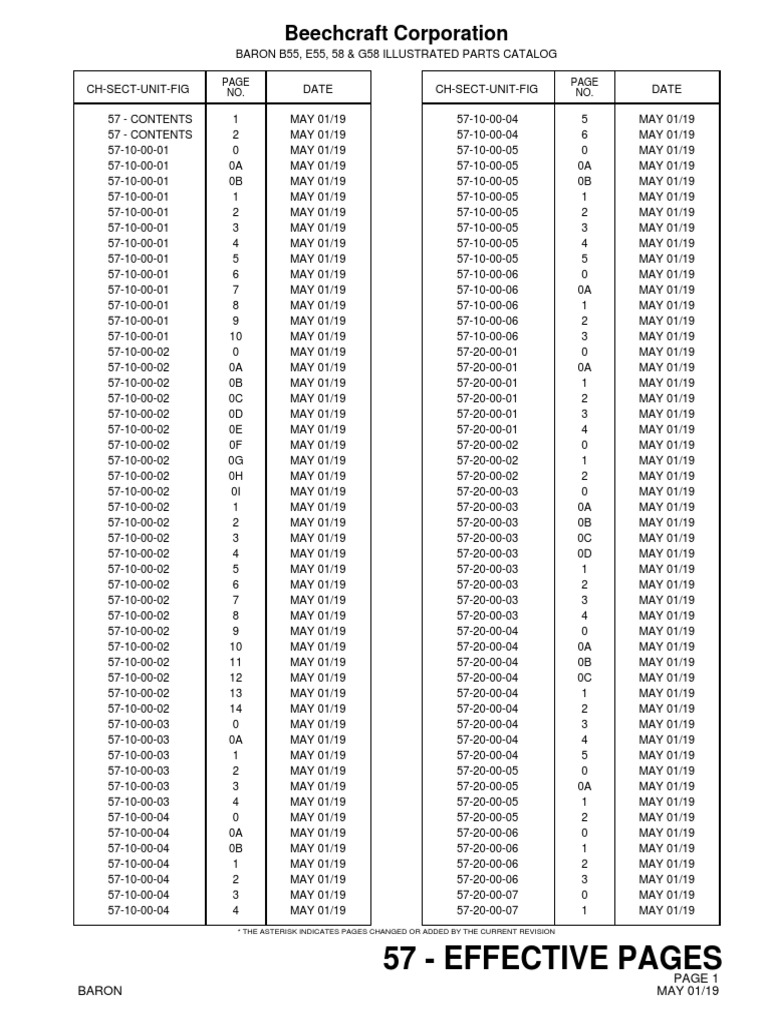

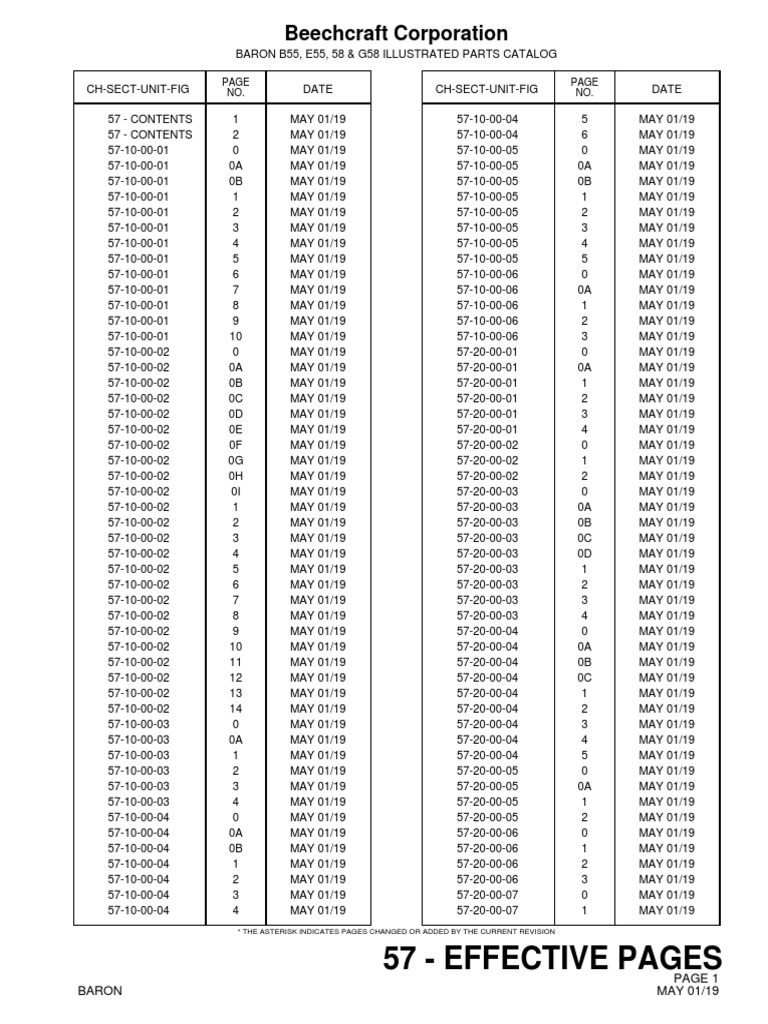

57 - Effective Pages: Beechcraft Corporation

Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
57 - CONTENTS 1 MAY 01/19 57-10-00-04 5 MAY 01/19

57 - CONTENTS 2 MAY 01/19 57-10-00-04 6 MAY 01/19
57-10-00-01 0 MAY 01/19 57-10-00-05 0 MAY 01/19
57-10-00-01 0A MAY 01/19 57-10-00-05 0A MAY 01/19
57-10-00-01 0B MAY 01/19 57-10-00-05 0B MAY 01/19
57-10-00-01 1 MAY 01/19 57-10-00-05 1 MAY 01/19
57-10-00-01 2 MAY 01/19 57-10-00-05 2 MAY 01/19
57-10-00-01 3 MAY 01/19 57-10-00-05 3 MAY 01/19
57-10-00-01 4 MAY 01/19 57-10-00-05 4 MAY 01/19
57-10-00-01 5 MAY 01/19 57-10-00-05 5 MAY 01/19
57-10-00-01 6 MAY 01/19 57-10-00-06 0 MAY 01/19
57-10-00-01 7 MAY 01/19 57-10-00-06 0A MAY 01/19
57-10-00-01 8 MAY 01/19 57-10-00-06 1 MAY 01/19
57-10-00-01 9 MAY 01/19 57-10-00-06 2 MAY 01/19
57-10-00-01 10 MAY 01/19 57-10-00-06 3 MAY 01/19
57-10-00-02 0 MAY 01/19 57-20-00-01 0 MAY 01/19
57-10-00-02 0A MAY 01/19 57-20-00-01 0A MAY 01/19
57-10-00-02 0B MAY 01/19 57-20-00-01 1 MAY 01/19
57-10-00-02 0C MAY 01/19 57-20-00-01 2 MAY 01/19
57-10-00-02 0D MAY 01/19 57-20-00-01 3 MAY 01/19
57-10-00-02 0E MAY 01/19 57-20-00-01 4 MAY 01/19
57-10-00-02 0F MAY 01/19 57-20-00-02 0 MAY 01/19
57-10-00-02 0G MAY 01/19 57-20-00-02 1 MAY 01/19
57-10-00-02 0H MAY 01/19 57-20-00-02 2 MAY 01/19
57-10-00-02 0I MAY 01/19 57-20-00-03 0 MAY 01/19
57-10-00-02 1 MAY 01/19 57-20-00-03 0A MAY 01/19
57-10-00-02 2 MAY 01/19 57-20-00-03 0B MAY 01/19
57-10-00-02 3 MAY 01/19 57-20-00-03 0C MAY 01/19
57-10-00-02 4 MAY 01/19 57-20-00-03 0D MAY 01/19
57-10-00-02 5 MAY 01/19 57-20-00-03 1 MAY 01/19
57-10-00-02 6 MAY 01/19 57-20-00-03 2 MAY 01/19
57-10-00-02 7 MAY 01/19 57-20-00-03 3 MAY 01/19
57-10-00-02 8 MAY 01/19 57-20-00-03 4 MAY 01/19
57-10-00-02 9 MAY 01/19 57-20-00-04 0 MAY 01/19
57-10-00-02 10 MAY 01/19 57-20-00-04 0A MAY 01/19
57-10-00-02 11 MAY 01/19 57-20-00-04 0B MAY 01/19
57-10-00-02 12 MAY 01/19 57-20-00-04 0C MAY 01/19
57-10-00-02 13 MAY 01/19 57-20-00-04 1 MAY 01/19
57-10-00-02 14 MAY 01/19 57-20-00-04 2 MAY 01/19
57-10-00-03 0 MAY 01/19 57-20-00-04 3 MAY 01/19
57-10-00-03 0A MAY 01/19 57-20-00-04 4 MAY 01/19
57-10-00-03 1 MAY 01/19 57-20-00-04 5 MAY 01/19
57-10-00-03 2 MAY 01/19 57-20-00-05 0 MAY 01/19
57-10-00-03 3 MAY 01/19 57-20-00-05 0A MAY 01/19
57-10-00-03 4 MAY 01/19 57-20-00-05 1 MAY 01/19
57-10-00-04 0 MAY 01/19 57-20-00-05 2 MAY 01/19
57-10-00-04 0A MAY 01/19 57-20-00-06 0 MAY 01/19
57-10-00-04 0B MAY 01/19 57-20-00-06 1 MAY 01/19
57-10-00-04 1 MAY 01/19 57-20-00-06 2 MAY 01/19
57-10-00-04 2 MAY 01/19 57-20-00-06 3 MAY 01/19
57-10-00-04 3 MAY 01/19 57-20-00-07 0 MAY 01/19
57-10-00-04 4 MAY 01/19 57-20-00-07 1 MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
57 - EFFECTIVE PAGES
PAGE 1
BARON MAY 01/19
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
57-20-00-08 0 MAY 01/19 57-50-00-03 2 MAY 01/19

57-20-00-08 1 MAY 01/19 57-50-00-03 3 MAY 01/19
57-20-00-09 0 MAY 01/19 57-50-00-03 4 MAY 01/19
57-20-00-09 0A MAY 01/19 57-50-00-03 5 MAY 01/19
57-20-00-09 1 MAY 01/19
57-20-00-09 2 MAY 01/19
57-20-00-09 3 MAY 01/19
57-20-00-09 4 MAY 01/19
57-20-00-09 5 MAY 01/19
57-20-00-10 0 MAY 01/19
57-20-00-10 0A MAY 01/19
57-20-00-10 0B MAY 01/19
57-20-00-10 1 MAY 01/19
57-20-00-10 2 MAY 01/19
57-20-00-10 3 MAY 01/19
57-20-00-10 4 MAY 01/19
57-20-00-10 5 MAY 01/19
57-20-00-11 0 MAY 01/19
57-20-00-11 1 MAY 01/19
57-20-00-11 2 MAY 01/19
57-20-00-11 3 MAY 01/19
57-20-00-12 0 MAY 01/19
57-20-00-12 0A MAY 01/19
57-20-00-12 0B MAY 01/19
57-20-00-12 1 MAY 01/19
57-20-00-12 2 MAY 01/19
57-20-00-12 3 MAY 01/19
57-20-00-12 4 MAY 01/19
57-20-00-12 5 MAY 01/19
57-20-00-12 6 MAY 01/19
57-30-00-01 0 MAY 01/19
57-30-00-01 0A MAY 01/19
57-30-00-01 1 MAY 01/19
57-30-00-01 2 MAY 01/19
57-30-00-01 3 MAY 01/19
57-40-00-01 0 MAY 01/19
57-40-00-01 1 MAY 01/19
57-40-00-01 2 MAY 01/19
57-40-00-01 3 MAY 01/19
57-50-00-01 0 MAY 01/19
57-50-00-01 0A MAY 01/19
57-50-00-01 1 MAY 01/19
57-50-00-01 2 MAY 01/19
57-50-00-01 3 MAY 01/19
57-50-00-02 0 MAY 01/19
57-50-00-02 0A MAY 01/19
57-50-00-02 1 MAY 01/19
57-50-00-02 2 MAY 01/19
57-50-00-02 3 MAY 01/19
57-50-00-03 0 MAY 01/19
57-50-00-03 0A MAY 01/19
57-50-00-03 1 MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
57 - EFFECTIVE PAGES
PAGE 2
BARON MAY 01/19
CHAPTER 57 - WINGS
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
MAIN FRAME 57-10-00

WING ASSEMBLY 57-10-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
WING MAIN SECTION ASSEMBLY 57-10-00 02 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
WING FRONT SPAR 57-10-00 03 C1608-C9999
E0938-E0938
E0943-E9999
WING FRONT SPAR 57-10-00 04 H0001-H0234
WING FRONT SPAR 57-10-00 05 H0235-H9999
WING REAR SPAR 57-10-00 06 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
AUXILIARY STRUCTURE 57-20-00
LEADING EDGE AND FRONT SPAR 57-20-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0385-H9999
LEADING EDGE AND FRONT SPAR ASSY 57-20-00 02 H0001-H0384
WING INBOARD LEADING EDGE 57-20-00 03 H0001-H0384
WING INBOARD LEADING EDGE 57-20-00 04 C1608-C9999
E0938-E0938
E0943-E9999
H0385-H9999
WING OUTBOARD LEADING EDGE 57-20-00 05 H0001-H0384
WING OUTBOARD LEADING EDGE, WITH FUEL 57-20-00 06 C1608-C9999
E0938-E0938
E0943-E9999
H0385-H9999
WING OUTBOARD LEADING EDGE 57-20-00 07 H0001-H0384
WING OUTBOARD LEADING EDGE 57-20-00 08 C1608-C9999
E0938-E0938
E0943-E9999
H0385-H9999
REAR SPAR AND TRAILING EDGE 57-20-00 09 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
WING TIP 57-20-00 10 E0938-E0938
E0943-E0952
H0001-H0380
57 - CONTENTS
PAGE 1
BARON MAY 01/19
CHAPTER 57 - WINGS
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
EXTENDED WING TIP 57-20-00 11 C1608-C9999

E0953-E9999
H0381-H9999
WET WING TIP, OPTIONAL 57-20-00 12 H0669-H0669
H0680-H9999
PLATES/SKIN 57-30-00
WING SKINS 57-30-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
ATTACH FITTINGS 57-40-00
WING INSTALLATION 57-40-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
FLIGHT SURFACES 57-50-00
FLAP ASSEMBLY 57-50-00 01 H0001-H0220
FLAP ASSEMBLY 57-50-00 02 C1608-C9999
E0938-E0938
E0943-E9999
H0221-H9999
AILERON ASSEMBLY 57-50-00 03 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
57 - CONTENTS
PAGE 2
BARON MAY 01/19
57-10-00-01
WING ASSEMBLY
57-10-00-01
BARON MAY 01/19
WING ASSEMBLY
SHEET 1 OF 3
57-10-00-01
PAGE 0
MAY 01/19
WING ASSEMBLY
SHEET 2 OF 3
57-10-00-01
PAGE 0A
MAY 01/19
WING ASSEMBLY
SHEET 3 OF 3
57-10-00-01
PAGE 0B
MAY 01/19
FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 WING ASSEMBLY
-5 96-110005-701 WING ASSY-LH A RF
-5 96-110005-703 WING ASSY-LH B RF
-5 58-100000-601 WING ASSY-LH G RF
-5 58-100000-11 WING ASSY-LH, 136 GALLON C RF
ALTERNATE SPARE:
58-100000-13
58-100000-15
-5 58-100000-13 WING ASSY-LH, 166 GALLON C RF
ALTERNATE SPARE:
58-100000-11
58-100000-15
-5 58-100000-15 WING ASSY-LH, 194 GALLON AN RF
WET WING TIP
ALTERNATE SPARE:
58-100000-11
58-100000-13
FOR SPARES ORDER:
58-100000-17
-5 58-100000-17 WING ASSY-LH, 194 GALLON AO RF
WET WING TIP
SPARES REPLACEMENT FOR:
58-100000-15
-10 96-110005-702 WING ASSY-RH A RF
-10 96-110005-704 WING ASSY-RH B RF
-10 58-100000-602 WING ASSY-RH G RF
-10 58-100000-12 WING ASSY-RH, 136 GALLON C RF
ALTERNATE SPARE:
58-100000-14
58-100000-16
-10 58-100000-14 WING ASSY-RH, 166 GALLON C RF
ALTERNATE SPARE:
58-100000-12
58-100000-16
-10 58-100000-16 WING ASSY-RH, 194 GALLON AN RF
WET WING TIP
ALTERNATE SPARE:
58-100000-12
58-100000-14
FOR SPARES ORDER:
58-100000-18
-10 58-100000-18 WING ASSY--RH, 194 GALLON AO RF
WET WING TIP
58-100000-16
45 000-110162-603 . EDGE AND SPAR ASSY-LH WING A 1
LEADING EDGE, FRONT SPAR
45 000-110162-601 . EDGE AND SPAR ASSY-LH WING B 1
45 000-110162-23 . EDGE AND SPAR ASSY-LH WING C 1
USED ON PART NUMBER:
58-100000-11
MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED
57-10-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
45 000-110162-33 . EDGE AND SPAR ASSY-LH WING C 1
58-100000-13
58-100000-15
45 58-100000-603 . EDGE AND SPAR ASSY-LH WING G 1
45 58-100000-603 . EDGE AND SPAR ASSY-LH WING G 1
-50 000-110162-604 . EDGE AND SPAR ASSY-RH WING A 1
-50 000-110162-602 . EDGE AND SPAR ASSY-RH WING B 1
-50 000-110162-24 . EDGE AND SPAR ASSY-RH WING C 1
58-100000-12
-50 000-110162-34 . EDGE AND SPAR ASSY-RH WING C 1
58-100000-14
58-100000-16
-50 58-100000-604 . EDGE AND SPAR ASSY-RH WING G 1
-85 000-110011-3 . . SPAR ASSY-WING, LH FRONT H 1
FOR DETAILS SEE:
57-10-00-03
-85 000-110011-49 . . SPAR ASSY-WING, LH FRONT M 1
FOR DETAILS SEE:
57-10-00-05
-85 000-110011-5 . . SPAR ASSY-WING, LH FRONT L 1
FOR DETAILS SEE:
57-10-00-05
-85 000-110011-27 . . SPAR ASSY-WING, LH FRONT P 1
FOR DETAILS SEE:
57-10-00-05
-85 000-110011-33 . . SPAR ASSY-WING, LH FRONT C 1
000-110162-33
FOR DETAILS SEE:
57-10-00-05
-85 95-110013-627 . . SPAR ASSY-FRONT, LH WING N 1
FOR DETAILS SEE:
57-10-00-04
-95 000-110011-4 . . SPAR ASSY-WING, RH FRONT H 1
FOR DETAILS SEE:
57-10-00-03
-95 000-110011-50 . . SPAR ASSY-WING, RH FRONT M 1
FOR DETAILS SEE:
57-10-00-05
-95 000-110011-6 . . SPAR ASSY-WING, RH FRONT L 1
FOR DETAILS SEE:
57-10-00-05

57-10-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-95 000-110011-28 . . SPAR ASSY-WING, RH FRONT P 1
FOR DETAILS SEE:
57-10-00-05
-95 000-110011-34 . . SPAR ASSY-WING, RH FRONT C 1
000-110162-34
FOR DETAILS SEE:
57-10-00-05
-95 95-110013-628 . . SPAR ASSY-FRONT, RH WING N 1
FOR DETAILS SEE:
57-10-00-04
-135 000-110105-603 . . EDGE ASSY-LEADING, LH INBD A 1
FOR DETAILS SEE:
57-20-00-04
-135 000-110105-601 . . EDGE ASSY-LEADING, LH INBD B 1
FOR DETAILS SEE:
57-20-00-04
-135 000-110105-99 . . EDGE ASSY-LEADING, LH INBD C 1
FOR DETAILS SEE:
57-20-00-04
-135 58-100021-601 . . EDGE ASSY-LEADING, LH INBD G 1
FOR DETAILS SEE:
57-20-00-03
-140 000-110105-604 . . EDGE ASSY-LEADING, RH INBD A 1
FOR DETAILS SEE:
57-20-00-04
-140 000-110105-602 . . EDGE ASSY-LEADING, RH INBD B 1
FOR DETAILS SEE:
57-20-00-04
-140 000-110105-100 . . EDGE ASSY-LEADING, RH INBD C 1
FOR DETAILS SEE:
57-20-00-04
-140 58-100021-602 . . EDGE ASSY-LEADING, INBD, RH G 1
FOR DETAILS SEE:
57-20-00-03
-175 000-110015-1 . . EDGE ASSY-LEADING, LH U 1
OUTBD, WITHOUT FUEL
FOR DETAILS SEE:
57-20-00-08
-175 000-110015-3 . . EDGE ASSY-LEADING, LH W 1
OUTBD, WITHOUT FUEL
FOR DETAILS SEE:
57-20-00-08
-175 000-110015-25 . . EDGE ASSY-LEADING, LH X 1
OUTBD, WITHOUT FUEL
FOR DETAILS SEE:
57-20-00-08
-175 000-110015-27 . . EDGE ASSY-LEADING, LH Y 1
OUTBD, WITHOUT FUEL
FOR DETAILS SEE:
57-20-00-08
-175 000-110029-1 . . EDGE ASSY-LEADING, LH Z 1
OUTBD, WITH FUEL
FOR DETAILS SEE:
57-20-00-06
57-10-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-175 000-110029-59 . . EDGE ASSY-LEADING, LH AA 1
OUTBD, WITH FUEL
FOR DETAILS SEE:
57-20-00-06
-175 58-100021-603 . . EDGE ASSY-LEADING, LH G 1
OUTBD
FOR DETAILS SEE:
57-20-00-07
-180 000-110015-2 . . EDGE ASSY-LEADING, RH AB 1
OUTBD, WITHOUT FUEL
FOR DETAILS SEE:
57-20-00-08
-180 000-110015-26 . . EDGE ASSY-LEADING, RH AC 1
OUTBD, WITHOUT FUEL
FOR DETAILS SEE:
57-20-00-08
-180 000-110029-2 . . EDGE ASSY-LEADING, RH Z 1
OUTBD, WITH FUEL
FOR DETAILS SEE:
57-20-00-06
-180 000-110029-60 . . EDGE ASSY-LEADING, RH AA 1
OUTBD, WITH FUEL
FOR DETAILS SEE:
57-20-00-06
-180 58-100021-604 . . EDGE ASSY-LEADING, RH G 1
OUTBD
FOR DETAILS SEE:
57-20-00-07
245 105774-C-069-18700 . PIN-HINGE FE 4
255 NAS220-9 . SCREW FE 7
ALTERNATE SPARE:
MS27039-0809
255 MS27039-0809 . SCREW FE 7
ALTERNATE SPARE:
NAS220-9
ALTERNATE SPARE:
MS27039-0808
260 MS27039-0808 . SCREW FE 1
ALTERNATE SPARE:
NAS220-8
265 AN525-832R11 . SCREW FE 10
-270 AN960-8 . WASHER FE 18
FOR SPARES ORDER:
NAS1149FN832P
-270 NAS1149FN832P . WASHER FE 18
AN960-8
-275 130909N28 . NUT FE 18
280 AN525-1032R10 . SCREW FE 14
-285 AN960-10 . WASHER FE 14
ALTERNATE SPARE:
NAS1149F0363P

57-10-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-285 NAS1149F0363P . WASHER FE 14
ALTERNATE SPARE:
AN960-10
-290 130909N29 . NUT FE 14
295 MS27039-0809 . SCREW FE 2
-300 AN960D8 . WASHER FE 2
FOR SPARES ORDER:
NAS1149DN832H
-300 NAS1149DN832H . WASHER FE 2
AN960D8
-305 NAS1329H08K75L . RIVNUT FE 2
310 000-170030-1 . ANGLE-TIE FE 1
315 35-115232 . LUG ASSY-WING TIE DOWN FE 1
ATTACHING PARTS
ALTERNATE SPARE:
MS27039-1-09
320 MS27039-1-09 . SCREW FE 4
ALTERNATE SPARE:
NAS221-9
-325 22A17-02 . NUTPLATE FE 4
FOR SPARES ORDER:
MS21080-3
MS21061L3
-325 MS21080-3 . NUTPLATE FE 4
22A17-02
-325 MS21051L3 . NUTPLATE FE 4
22A17-02
-------*-------
-330 35-115232-2 . . LUG FE 2
-335 35-115232-4 . . GROMMET FE 2
340 103637 . PLACARD FE 1
ATTACHING PARTS
-345 49384 . FASTENER FE 2
-------*-------
350 58-100022-613 . WING ASSY-MAIN SECTION, LH A 1
FOR DETAILS SEE:
57-10-00-02
350 58-100022-619 . WING ASSY-MAIN SECTION, LH B 1
FOR DETAILS SEE:
57-10-00-02
350 58-100022-601 . WING ASSY-MAIN SECTION, LH G 1
FOR DETAILS SEE:
57-10-00-02
350 58-100022-47 . WING ASSY-MAIN SECTION, LH C 1
194 GALLON
FOR DETAILS SEE:
57-10-00-02
166 GALLON
FOR DETAILS SEE:
57-10-00-02
57-10-00-01
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
136 GALLON
FOR DETAILS SEE:
57-10-00-02
-355 58-100022-614 . WING ASSY-MAIN SECTION, RH A 1
FOR DETAILS SEE:
57-10-00-02
-355 58-100022-620 . WING ASSY-MAIN SECTION, RH B 1
FOR DETAILS SEE:
57-10-00-02
-355 58-100022-602 . WING ASSY-MAIN SECTION, RH G 1
-355 58-100022-48 . WING ASSY-MAIN SECTION, RH C 1
194 GALLON
FOR DETAILS SEE:
57-10-00-02
166 GALLON
FOR DETAILS SEE:
57-10-00-02
136 GALLON
FOR DETAILS SEE:
57-10-00-02
390 45-115053 . . CLIP ASSY-WING FE 1
-395 45-115053-1 . . . CLIP FE 1
-400 A6163-8Z . . . NUTPLATE FE 1
405 35-115199-12 . . DOOR-WING ACCESS AILERON FE 1
CABLE INSPECTION
ATTACHING PARTS
410 AN525-832 . . SCREW FE 6
-------*-------
415 95-110014-339 . . DOOR ASSY-AILERON TAB FE 1
ACTUATOR AND PULLEY
ATTACHING PARTS
420 AN525-832-6 . . SCREW FE 6
-------*-------
-425 95-110014-355 . . . COVER FE 1
-430 95-110014-341 . . . COVER FE 1
435 58-110011-1 . . DOOR ASSY-LH AUXILIARY Q 1
TANK ACCESS
435 58-110013-1 . . DOOR ASSY-LH AUXILIARY R 1
TANK ACCESS
-445 58-110011-2 . . DOOR ASSY-RH AUXILIARY Q 1
TANK ACCESS
-445 58-110013-2 . . DOOR ASSY-RH AUXILIARY R 1
TANK ACCESS
450 95-110014-253 . . DOOR-WING ACCESS FE 2
ATTACHING PARTS
452 AN507B832-8 . . SCREW FE 6
455 MS24694S5 . . SCREW FE 18
-------*-------
460 000-110117-9 . CLIP ASSY-INBD LEADING FE 2
EDGE
465 111722-03408 . EXTRUSION-WING FAIRING FE 1
RUBBER
57-10-00-01
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
470 115092-10500 . EXTRUSION-WING FAIRING FE 1
RUBBER
-475 96-110010-9 . FILLET INSTL-OUTBD LH S RF
-475 96-110010-33 . FILLET INSTL-OUTBD LH T RF
-480 96-110010-11 . FILLET INSTL-OUTBD RH S RF
-480 96-110010-35 . FILLET INSTL-OUTBD RH T RF
485 96-110010-17 . . FILLET-OUTBD LH FE 1
-490 96-110010-19 . . FILLET-OUTBD RH FE 1
-492 96-110010-13 . FILLET INSTL-INBD, LH S RF
-492 96-110010-33 . FILLET INSTL-INBD, LH T RF
-493 96-110010-15 . FILLET INSTL-INBD, RH S RF
-493 96-110010-35 . FILLET INSTL-INBD, RH T RF
495 96-110010-21 . . FILLET-INBD LH FE 1
-500 96-110010-23 . . FILLET-INBD RH FE 1
505 AN509-10R8 . SCREW FE 9
ALTERNATE SPARE:
MS24694S50
505 MS24694S50 . SCREW FE 9
ALTERNATE SPARE:
AN509-10R8
510 AN525-10R6 . SCREW FE 5
515 96-980001-115 . NACELLE INSTL-LH A RF
FOR DETAILS SEE:
54-10-00-01
515 96-980001-117 . NACELLE INSTL-LH AD RF
FOR DETAILS SEE:
54-10-00-01
515 96-980001-171 . NACELLE INSTL-LH AE RF
FOR DETAILS SEE:
54-10-00-01
515 96-980001-225 . NACELLE INSTL-LH J RF
FOR DETAILS SEE:
54-10-00-01
515 96-980001-255 . NACELLE INSTL-LH AM RF
FOR DETAILS SEE:
54-10-00-01
-520 96-980001-116 . NACELLE INSTL-RH A RF
FOR DETAILS SEE:
54-10-00-01
-520 96-980001-118 . NACELLE INSTL-RH F RF
FOR DETAILS SEE:
54-10-00-01
-520 96-980001-257 . NACELLE INSTL-RH AM RF
FOR DETAILS SEE:
54-10-00-01
545 000-017000-33 . TIP ASSY-LH WING, EXTENDED AF 1
545 000-170000-5 . TIP ASSY-LH WING, EXTENDED AK 1
WITHOUT FLUX DETECTOR
FOR DETAILS SEE:
57-20-00-11
545 000-170000-135 . TIP ASSY-LH WING, EXTENDED E 1
FOR DETAILS SEE:
57-20-00-11

57-10-00-01
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
545 000-170000-139 . TIP ASSY-LH WING, EXTENDED AL 1
FOR DETAILS SEE:
57-20-00-11
545 58-170000-1 . TIP ASSY-LH WING, SHORT D 1
FOR DETAILS SEE:
57-20-00-10
545 60-170010-1 . TIP ASSY-LH WING, WET FUEL K 1
FOR DETAILS SEE:
28-10-00-05
57-20-00-12
545 60-170010-121 . TIP ASSY-LH WING, WET FUEL E 1
FOR DETAILS SEE:
28-10-00-05
57-20-00-12
545 60-170010-125 . TIP ASSY-LH WING, WET FUEL AL 1
FOR DETAILS SEE:
28-10-00-05
57-20-00-12
-550 000-170000-6 . TIP ASSY-RH WING, EXTENDED AK 1
FOR DETAILS SEE:
57-20-00-11
-550 000-170000-136 . TIP ASSY-RH WING, EXTENDED E 1
FOR DETAILS SEE:
57-20-00-11
-550 000-170000-140 . TIP ASSY-RH WING, EXTENDED AL 1
FOR DETAILS SEE:
57-20-00-11
-550 000-017000-34 . TIP ASSY-RH WING, EXTENDED AF 1
-550 58-170000-2 . TIP ASSY-RH WING, SHORT D 1
FOR DETAILS SEE:
57-20-00-10
-550 60-170010-2 . TIP ASSY-RH WING, WET FUEL K 1
FOR DETAILS SEE:
28-10-00-05
57-20-00-12
-550 60-170010-122 . TIP ASSY-RH WING, WET FUEL E 1
FOR DETAILS SEE:
28-10-00-05
57-20-00-12
-550 60-170010-126 . TIP ASSY-RH WING, WET FUEL AL 1
FOR DETAILS SEE:
28-10-00-05
57-20-00-12
575 MS27039C0808 . SCREW FE AR
580 MS27039C0809 . SCREW FE 8
585 MS27039C0807 . SCREW FE 2
-590 AN960PD8L . WASHER FE 53
-595 MS21045-C08 . NUT FE 24
-600 130290-1 . NUT ASSY-CLIP FE 5
605 95-170000-63 . COVER ASSY-WING TIP, LH FE 1
-610 95-170000-64 . COVER ASSY-WING TIP, RH FE 1
57-10-00-01
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
ATTACHING PARTS
615 MS27039C0806 . SCREW FE 7
-625 MS21045-C08 . NUT FE 7
-------*-------
-630 95-170000-61 . . COVER-LH FE 1
-635 95-170000-62 . . COVER-RH FE 1
-640 MK1000-08 . . NUTPLATE FE 5
FOR SPARES ORDER:
MS21069L08
-640 MS21069L08 . . NUTPLATE FE 5
MK1000-08
-645 MK-2000-08 . . NUTPLATE FE 2
650 96-170000-17 . REFLECTOR-LANDING LIGHT A 1
INBD
650 000-170000-39 . REFLECTOR-LANDING LIGHT AG 1
INBD
ATTACHING PARTS
655 AN504-6-4 . SCREW A 6
-------*-------
660 96-170000-49 . REFLECTOR-LANDING LIGHT B 1
INBD
ATTACHING PARTS
665 AN515-6R10 . SCREW B 6
FOR SPARES ORDER:
MS35206-231
665 MS35206-231 . SCREW B 6
AN515-6R10
670 100696-D-ZC008 . SPACER B 6
-------*-------
-675 000-170000-39 . REFLECTOR-LANDING LIGHT AG 1
INBD, LH
-675 000-170000-131 . REFLECTOR-LANDING LIGHT AH 1
INBD, LH
-680 000-170000-39 . REFLECTOR-LANDING LIGHT AG 1
INBD, RH
-680 000-170000-132 . REFLECTOR-LANDING LIGHT AH 1
INBD, RH
ATTACHING PARTS
-685 AN504-6R4 . SCREW AJ 6
-------*-------
C1608-C9999 A
E0938-E0938,E0943-E9999 B
H0385-H9999 C
E0938-E0938,E0943-E0952,H0001-H0380 D
H2164-H2277 E
E0938-E0938,E0943-E9999,H0001-H2479 F
H0001-H0384 G
C1608-C1794,E0938-E0938,E0943-E1011 H
H1673-H2479 J
H0669-H0669,H0680-H2163 K
(CONTINUED NEXT PAGE)
57-10-00-01
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
(CONTINUED)
C1795-C9999,E1012-E9999,H0235-H0384 L
H1389-H1389,H1396-H9999 M
H0001-H0234 N
H0385-H1388,H1390-H1395 P
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1255 Q
H1256-H9999 R
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1655 S
H1656-H9999 T
C1608-C1915 U
E0938-E0938,E0943-E1070,H0385-H0679 W
C1916-C9999 X
E1071-E9999,H0680-H9999 Y
C1608-C1915,E0938-E0938,E0943-E1070 Z
C1916-C9999,E1071-E9999,H0385-H9999 AA
C1608-C1915,E0938-E0938,E0943-E1070,H0385-H0679 AB
C1916-C9999,E1071-E9999,H0680-H9999 AC
E0938-E0938,E0943-E9999,H0001-H0872,H0874-H0894 AD
H0873-H0873,H0895-H1672 AE
H0381-H0521 AF
H0001-H1775 AG
H1776-H9999 AH
H0001-H9999 AJ
C1608-C9999,E0953-E9999,H0522-H2163 AK
H2278-H9999 AL
H2480-H9999 AM
H0385-H2499 AN
H2500-H9999 AO
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

57-10-00-01
PAGE 10
BARON MAY 01/19
57-10-00-02
WING MAIN SECTION ASSEMBLY
57-10-00-02
BARON MAY 01/19

SHEET 1 OF 10
57-10-00-02
PAGE 0
MAY 01/19

SHEET 2 OF 10
57-10-00-02
PAGE 0A
MAY 01/19

SHEET 3 OF 10
57-10-00-02
PAGE 0B
MAY 01/19

SHEET 4 OF 10
57-10-00-02
PAGE 0C
MAY 01/19

SHEET 5 OF 10
57-10-00-02
PAGE 0D
MAY 01/19

SHEET 6 OF 10
57-10-00-02
PAGE 0E
MAY 01/19

SHEET 7 OF 10
57-10-00-02
PAGE 0F
MAY 01/19

SHEET 8 OF 10
57-10-00-02
PAGE 0G
MAY 01/19

SHEET 9 OF 10
57-10-00-02
PAGE 0H
MAY 01/19

SHEET 10 OF 10
57-10-00-02
PAGE 0I
MAY 01/19
PAGE INTENTIONALLY LEFT BLANK

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 WING MAIN SECTION ASSEMBLY

-2 58-100022-613 WING ASSY-MAIN SECTION, LH B RF
FOR NHA SEE:
57-10-00-01
-2 58-100022-619 WING ASSY-MAIN SECTION, LH A RF
FOR NHA SEE:
57-10-00-01
-2 58-100022-601 WING ASSY-MAIN SECTION, LH F RF
FOR NHA SEE:
57-10-00-01
-2 58-100022-47 WING ASSY-MAIN SECTION, LH C RF
194 GALLON
FOR NHA SEE:
57-10-00-01
166 GALLON
FOR NHA SEE:
57-10-00-01
136 GALLON
FOR NHA SEE:
57-10-00-01
-3 58-100022-614 WING ASSY-MAIN SECTION, RH B RF
FOR NHA SEE:
57-10-00-01
-3 58-100022-620 WING ASSY-MAIN SECTION, RH A RF
FOR NHA SEE:
57-10-00-01
-3 58-100022-602 WING ASSY-MAIN SECTION, RH F RF
FOR NHA SEE:
57-10-00-01
-3 58-100022-48 WING ASSY-MAIN SECTION, RH C RF
194 GALLON
FOR NHA SEE:
57-10-00-01
166 GALLON
FOR NHA SEE:
57-10-00-01
136 GALLON
FOR NHA SEE:
57-10-00-01
-8 58-100022-615 . BOX SECTION ASSY-LH WING A 1
-8 58-100022-621 . BOX SECTION ASSY-LH WING B 1
-8 58-100022-625 . BOX SECTION ASSY-LH WING N 1
-9 58-100022-616 . BOX SECTION ASSY-RH WING A 1
-9 58-100022-622 . BOX SECTION ASSY-RH WING B 1
ATTACHING PARTS
-9 58-100022-626 . BOX SECTION ASSY-RH WING N 1
-------*-------
-18 58-100022-607 . . SPAR AND EDGE ASSY-REAR, N 1
TRAILING, LH
FOR DETAILS SEE:
57-20-00-09

57-10-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-18 95-110014-705 . . SPAR AND EDGE ASSY-REAR, A 1
TRAILING, LH
FOR DETAILS SEE:
57-20-00-09
-18 95-110014-727 . . SPAR AND EDGE ASSY-REAR, B 1
TRAILING, LH
FOR DETAILS SEE:
57-20-00-09
-19 58-100022-608 . . SPAR AND EDGE ASSY-REAR, N 1
TRAILING, RH
FOR DETAILS SEE:
57-20-00-09
-19 95-110014-706 . . SPAR AND EDGE ASSY-REAR, A 1
TRAILING, RH
FOR DETAILS SEE:
57-20-00-09
-19 95-110014-728 . . SPAR AND EDGE ASSY-REAR, B 1
TRAILING, RH
FOR DETAILS SEE:
57-20-00-09
-22 58-100022-605 . . PANEL ASSY-LH WING N 1
-22 58-100022-617 . . PANEL ASSY-LH WING D 1
-23 58-100022-606 . . PANEL ASSY-RH WING N 1
-23 58-100022-618 . . PANEL ASSY-RH WING D 1
24 95-110031-603 . . . RIB ASSY-STA 23.881 LH E 1
24 95-110031-601 . . . RIB ASSY-STA 23.881 LH F 1
-26 95-110031-5 . . . . GUSSET-LH FE 1
-27 95-110031-7 . . . . DOUBLER-LH FE 1
-28 95-110031-9 . . . . FAIRLEAD FE 1
-29 95-110031-11 . . . . ANGLE-LH FE 1
-30 95-110031-13 . . . . ANGLE-LH FE 1
-31 95-110031-17 . . . . ANGLE-LH FE 1
-32 95-110031-19 . . . . ANGLE-LH FE 1
-33 95-110031-27 . . . . RIB-LH FE 1
-34 95-110031-29 . . . . ANGLE-LH FE 1
-35 95-110031-31 . . . . ANGLE-LH FE 1
-36 35-115070-22 . . . . CLIP-LH FE 1
-37 C0D23106 . . . . ANGLE-LH FE 1
-38 96-110016-2 . . . . REINFORCEMENT-LH FE 1
-40 95-110032-603 . . . RIB ASSY-STA 23.881 RH F 1
-40 95-110032-605 . . . RIB ASSY-STA 23.881 RH E 1
-41 95-110032-5 . . . . ANGLE-RH FE 1
-42 95-110032-7 . . . . ANGLE-RH FE 1
-43 95-110032-11 . . . . ANGLE-RH FE 1
-44 95-110032-13 . . . . ANGLE-RH FE 1
-45 95-110032-25 . . . . ANGLE-RH FE 1
-46 95-110032-27 . . . . ANGLE-RH FE 1
-47 95-110032-23 . . . . RIB-RH FE 1
-48 96-110016-7 . . . . REINFORCEMENT-CROSSFEED FE 1
LINE
-49 95-110031-9 . . . . FAIRLEAD FE 1
-50 35-115070-23 . . . . CLIP-RH FE 1
-51 35-115130-10 . . . . ANGLE-RH FE 1
-52 C0D23106-2 . . . . ANGLE-RH FE 1
53 35-115269 . . . CLIP-LH FE 1
57-10-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-54 35-115269-1 . . . CLIP-RH FE 1
55 108424-4 . . . CLIP-LH FE AR
56 60-110022-35 . . . CLIP-LH FE 1
-57 60-110023-35 . . . CLIP-RH FE 1
58 95-110030-601 . . . RIB ASSY-STA 34.375 LH FE 1
-59 95-110030-1 . . . . RIB-LH FE 1
-60 95-110030-3 . . . . DOUBLER-LH FE 1
-61 95-110030-7 . . . . STOP-LH FE 1
-62 MS27980-6B . . . . SOCKET-LH FE 2
-63 MS27980-8B . . . . EYELET-LH FE 2
-64 95-110039 . . . RIB ASSY-STA 34.375 RH FE 1
65 95-110026-603 . . . RIB ASSY-STA 45 LH FE 1
-66 95-110026-15 . . . . RIB-LH FE 1
-67 95-110026-17 . . . . DOUBLER-LH FE 1
-68 95-110026-7 . . . . DOUBLER-LH FE 1
-69 95-110026-21 . . . . DOUBLER-LH FE 1
-70 35-115100-20 . . . . CLIP-LH FE 1
-71 95-110026-19 . . . . ANGLE-LH FE 1
-72 49160 . . . . BAND-LH FE 1
ATTACHING PARTS
-73 AN515-6-4 . . . . SCREW FE 1
-74 AN960-6L . . . . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN616P
-74 NAS1149FN616P . . . . WASHER FE 1
AN960-6L
-75 MS21042L06 . . . . NUT FE 1
-------*-------
-76 MS35489-11 . . . . GROMMET FE 3
-77 MS35489-6 . . . . GROMMET FE 2
-78 MS27980-6B . . . . SOCKET FE 3
-79 MS27980-8B . . . . EYELET FE 3
-80 95-110026-9 . . . . FAIRLEAD FE 1
-81 22A17-82 . . . . NUTPLATE FE 1
FOR SPARES ORDER:
MS21051L08
-81 MS21051L08 . . . . NUTPLATE FE 1
22A17-82
-82 95-110027-603 . . . RIB ASSY-STA 45 RH FE 1
-83 95-110027-9 . . . . RIB-RH FE 1
-84 95-110026-17 . . . . DOUBLER-RH FE 1
-85 35-115109-20 . . . . ANGLE-RH FE 1
-86 22A17-82 . . . . NUTPLATE FE 1
FOR SPARES ORDER:
MS21051L08
-86 MS21051L08 . . . . NUTPLATE FE 1
22A17-82
-87 MS35489-11 . . . . GROMMET FE 3
-88 MS35489-6 . . . . GROMMET FE 2
89 35-115246 . . . SUPPORT ASSY-LH FE 1
-90 35-115241 . . . SUPPORT ASSY-RH FE 1
-91 35-115246-2 . . . . SUPPORT-LH FE 1
57-10-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-92 35-115241-2 . . . . SUPPORT-RH FE 1
-93 35-115246-4 . . . . CHANNEL-LH FE 1
-94 35-115241-6 . . . . CHANNEL-RH FE 1
95 35-115247 . . . SUPPORT ASSY-LH FE 1
-96 35-115242 . . . SUPPORT ASSY-RH FE 1
-97 35-115247-2 . . . . SUPPORT-LH FE 1
-98 35-115242-2 . . . . SUPPORT-RH FE 1
-99 35-115247-4 . . . . CHANNEL-LH FE 1
-100 35-115242-4 . . . . CHANNEL-RH FE 1
101 35-115142-40 . . . CLIP-LH FE 2
102 95-110014-295 . . . HINGE-LH FE 1
-103 95-110014-296 . . . HINGE-RH FE 1
104 50-110059-2 . . . GUSSET-LH FE 1
105 35-115267 . . . CLIP-LH STRINGER FE 2
106 58-100022-5 . . . SKIN-UPPER INBD LH FE 1
-107 58-100022-7 . . . SKIN-UPPER INBD RH FE 1
108 95-110014-139 . . . STRINGER-LH FE 1
-109 95-110014-142 . . . STRINGER-RH FE 1
110 95-110014-143 . . . STRINGER-LH, STA 23 TO 94 FE 1
-111 95-110014-146 . . . STRINGER-RH, STA 45 TO 94 FE 1
112 95-110014-647 . . . FORMER ASSY-LH FE 1
-113 95-110014-648 . . . FORMER ASSY-RH FE 1
-114 95-110014-151 . . . . FORMER-LH FE 1
-115 NAS680A3 . . . . NUTPLATE-LH FE 2
ALTERNATE SPARE:
MS21047L3
-115 MS21047L3 . . . . NUTPLATE-LH FE 2
ALTERNATE SPARE:
NAS680A3
-116 45-115144-24 . . . . FORMER-RH FE 1
-117 NAS680A3 . . . . NUTPLATE-RH FE 1
ALTERNATE SPARE:
MS21047L3
-117 MS21047L3 . . . . NUTPLATE-RH FE 1
ALTERNATE SPARE:
NAS680A3
-118 95-110014-275 . . . . STRINGER-LH FE 1
-119 95-110014-276 . . . . STRINGER-RH FE 1
120 95-110014-517 . . . STRINGER ASSY-LH P 1
120 58-100022-79 . . . STRINGER ASSY-LH Q 1
-121 95-110014-147 . . . . STRINGER-LH, STA 23 TO 108 FE 1
-122 MS27980-6B . . . . SOCKET-LH FE 4
124 35-115270 . . . CLIP-LH FE 1
-125 35-115270-1 . . . CLIP-RH FE 1
126 108424-2 . . . CLIP-STRINGER AND LINER FE AR
127 95-110014-265 . . . STRINGER-LH FE 1
-128 95-110014-268 . . . STRINGER-RH FE 1
129 95-110023-603 . . . RIB ASSY-LH, STA 66 FE 1
-130 95-110023-604 . . . RIB ASSY-RH, STA 66 FE 1
-131 95-110023-31 . . . . RIB-LH FE 1
-132 95-110023-32 . . . . RIB-RH FE 1
-133 22A17-82 . . . . NUTPLATE FE 1
FOR SPARES ORDER:
MS21051L08
57-10-00-02
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-133 MS21051L08 . . . . NUTPLATE FE 1
22A17-82
-134 95-110023-5 . . . . CHANNEL-LH FE 1
-135 95-110023-6 . . . . CHANNEL-RH FE 1
-136 95-110023-7 . . . . CHANNEL-LH FE 1
-137 95-110023-8 . . . . CHANNEL-RH FE 1
-138 95-110023-9 . . . . ANGLE-LH FE 1
-139 95-110023-10 . . . . ANGLE-RH FE 1
-140 95-110023-11 . . . . ANGLE-LH FE 1
-141 95-110023-12 . . . . ANGLE-RH FE 1
-142 95-110023-13 . . . . ANGLE-LH FE 1
-143 95-110023-14 . . . . ANGLE-RH FE 1
-144 95-110023-15 . . . . ANGLE-LH FE 1
-145 95-110023-16 . . . . ANGLE-RH FE 1
-146 95-110023-17 . . . . CHANNEL-LH FE 1
-147 95-110023-18 . . . . CHANNEL-RH FE 1
-148 95-110023-19 . . . . CHANNEL-LH FE 1
-149 95-110023-20 . . . . CHANNEL-RH FE 1
-150 95-110023-25 . . . . CHANNEL-LH FE 1
-151 95-110023-26 . . . . CHANNEL-RH FE 1
-152 MS35206-245 . . . . SCREW FE 2
-153 AN960-8 . . . . WASHER FE 2
FOR SPARES ORDER:
NAS1149FN832P
-153 NAS1149FN832P . . . . WASHER FE 2
AN960-8
-154 130909N28 . . . . NUT FE 2
-155 35-115051-16 . . . . PLATE FE 1
-156 35-115051-20 . . . . ANGLE-LH FE 1
-157 35-115051-21 . . . . ANGLE-RH FE 1
-158 95-110014-325 . . . STIFFENER FE 2
159 95-110014-269 . . . STRINGER-LH FE 1
-160 95-110014-270 . . . STRINGER-RH FE 1
-161 95-110014-343 . . . STIFFENER-LH, STA 66 TO 80 FE 1
-162 95-110014-344 . . . STIFFENER-RH, STA 45 TO 80 FE 1
163 95-110014-187 . . . FORMER-STA 80.047 LH FE 1
-164 95-110014-188 . . . FORMER-STA 80.047 RH FE 1
-165 AN366-F1032 . . . NUTPLATE FE 6
FOR SPARES ORDER:
MS21078-3
MS21047L3
130909N33
-165 MS21078-3 . . . NUTPLATE FE 6
AN366-F1032
-165 MS21047L3 . . . NUTPLATE FE 6
AN366-F1032
-165 130909N33 . . . NUTPLATE FE 6
AN366-F1032
166 50-110074-5 . . . DOOR-AUXILIARY TANK FE 1
ACCESS LH
57-10-00-02
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-167 50-110074-6 . . . DOOR-AUXILIARY TANK FE 1
ACCESS RH
ATTACHING PARTS
168 AN507-832-7 . . . SCREW FE 19
-------*-------
-169 50-110074-602 . . . DOUBLER ASSY-LH FE 1
-170 50-110074-603 . . . DOUBLER ASSY-RH FE 1
-171 50-110074-3 . . . . DOUBLER-LH FE 1
-172 50-110074-4 . . . . DOUBLER-RH FE 1
-173 MS21059L08K . . . . NUTPLATE FE 19
174 95-110014-623 . . . RIB ASSY-STA 94.094 LH FE 1
-175 95-110014-624 . . . RIB ASSY-STA 94.094 RH FE 1
-176 95-110014-175 . . . . WEB-LH FE 1
-177 95-110014-176 . . . . WEB-RH FE 1
-178 95-110014-177 . . . . FORMER-LH FE 1
-179 95-110014-178 . . . . FORMER-RH FE 1
-180 95-110014-181 . . . . ANGLE-LH FE 1
-181 95-110014-182 . . . . ANGLE-RH FE 1
-182 95-110014-319 . . . . FAIRLEAD FE 1
-183 MS35489-17 . . . . GROMMET-LH FE 1
-184 95-110014-179 . . . FORMER-LH FE 1
-185 95-110014-180 . . . FORMER-RH FE 1
-186 95-110014-327 . . . STIFFENER-UPPER AND FE 1
LOWER
187 95-110014-905 . . . STRINGER-LH FE 1
-188 95-110014-906 . . . STRINGER-RH FE 1
189 95-110014-641 . . . RIB ASSY-STA 108.21 LH FE 1
-190 95-110014-642 . . . RIB ASSY-STA 108.21 RH FE 1
-191 95-110014-281 . . . . CHANNEL-LH FE 1
-192 95-110014-282 . . . . CHANNEL-RH FE 1
-193 95-110014-289 . . . . WEB-LH FE 1
-194 95-110014-290 . . . . WEB-RH FE 1
-195 HIS832-BC100X200 . . . . NUTPLATE FE 1
-196 95-110014-283 . . . CHANNEL-LH FE 1
-197 95-110014-284 . . . CHANNEL-RH FE 1
-198 95-110014-349 . . . CLIP-LH FE 1
-199 95-110014-350 . . . CLIP-RH FE 1
-200 95-110014-329 . . . STIFFENER-STA 108 TO 122 FE 1
201 95-110014-357 . . . STRINGER-LH, STA 94 TO 191 FE 1
-203 95-110033-1 . . . BRACKET ASSY-LH FE 1
-204 95-110033-2 . . . BRACKET ASSY-RH FE 1
205 95-110033-3 . . . . RIB-LH FE 1
-206 95-110033-4 . . . . RIB-RH FE 1
-207 35-115202-4 . . . . REINFORCEMENT-LH FE 1
-208 35-115202-5 . . . . REINFORCEMENT-RH FE 1
-209 35-115202-6 . . . . SUPPORT-LH FE 1
-210 35-115202-7 . . . . SUPPORT-RH FE 1
-211 35-115202-10 . . . . CLIP FE 1
-212 35-115202-12 . . . . CLIP FE 1
-213 35-115202-14 . . . . DOUBLER FE 1
-214 35-115252-2 . . . . SUPPORT-LH FE 1
-215 35-115252-3 . . . . SUPPORT-RH FE 1
-216 35-115252-8 . . . . STOP FE 2
-217 35-115252-10 . . . . REINFORCEMENT FE 1
57-10-00-02
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
219 95-110014-613 . . . RIB ASSY-STA 122.750 LH G 1
219 95-110014-763 . . . RIB ASSY-STA 122.750 LH H 1
-220 95-110014-614 . . . RIB ASSY-STA 122.750 RH G 1
-220 95-110014-764 . . . RIB ASSY-STA 122.750 RH H 1
-222 95-110014-925 . . . . CHANNEL-LH N 1
-223 95-110014-926 . . . . CHANNEL-RH N 1
-224 95-110014-101 . . . . ANGLE-LH N 1
-225 95-110014-102 . . . . ANGLE-RH N 1
-226 95-110014-927 . . . . RIB-LH N 1
-227 95-110014-928 . . . . RIB-RH N 1
-228 95-110014-105 . . . . ANGLE-LH N 1
-229 95-110014-106 . . . . ANGLE-RH N 1
-230 95-110014-929 . . . DOUBLER-LH FE 1
-231 95-110014-930 . . . DOUBLER-RH FE 1
232 50-110025-44 . . . DOOR-AUXILIARY FUEL CELL FE 1
TRANSMITTER
ATTACHING PARTS
233 AN509-832R8 . . . SCREW FE 6
-------*-------
234 95-110014-161 . . . SKIN-UPPER OUTBD LH FE 1
-235 95-110014-162 . . . SKIN-UPPER OUTBD RH FE 1
236 95-110014-163 . . . DOUBLER-LH L 1
236 95-110014-1113 . . . DOUBLER-LH M 1
-237 95-110014-164 . . . DOUBLER-RH L 1
-237 95-110014-1114 . . . DOUBLER-RH M 1
238 95-110014-627 . . . DOUBLER ASSY-LH FE 1
-240 95-110014-165 . . . . DOUBLER-LH FE 1
-241 95-110014-166 . . . . DOUBLER-RH FE 1
-242 NAS1024A08 . . . . NUTPLATE FE 6
ALTERNATE SPARE:
MS21049L08
-242 MS21049L08 . . . . NUTPLATE FE 6
ALTERNATE SPARE:
NAS1024A08
243 95-110014-615 . . . RIB ASSY-STA 136.188 LH FE 1
-244 95-110014-616 . . . RIB ASSY-STA 136.188 RH FE 1
-245 95-110014-79 . . . . ANGLE-LH FE 1
-246 95-110014-80 . . . . ANGLE-RH FE 1
-247 95-110014-81 . . . . FORMER-LH FE 1
-248 95-110014-82 . . . . FORMER-RH FE 1
-249 95-110014-91 . . . . WEB-LH FE 1
-250 95-110014-92 . . . . WEB-RH FE 1
251 95-110014-159 . . . HINGE-STA 108 TO 191 FE 1
UPPER LH
-252 95-110014-160 . . . HINGE-STA 108 TO 191 FE 1
UPPER RH
-253 95-110014-333 . . . STIFFENER FE 1
254 95-110014-903 . . . STRINGER-LH FE 1
-255 95-110014-904 . . . STRINGER-RH FE 1
256 95-110014-367 . . . CLIP-STA 162 FE 2
257 95-110014-617 . . . RIB ASSY-STA 148.875 LH FE 1
-258 95-110014-618 . . . RIB ASSY-STA 148.875 RH FE 1
-259 95-110014-67 . . . . CHANNEL-LH FE 1
-260 95-110014-68 . . . . CHANNEL-RH FE 1
57-10-00-02
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-261 95-110014-71 . . . . WEB-LH FE 1
-262 95-110014-72 . . . . WEB-RH FE 1
-263 95-110014-75 . . . . ANGLE-LH FE 1
-264 95-110014-76 . . . . ANGLE-RH FE 1
-265 95-110014-69 . . . . CHANNEL-LH FE 1
-266 95-110014-70 . . . . CHANNEL-RH FE 1
267 95-110014-901 . . . STRINGER-LH FE 1
-268 95-110014-902 . . . STRINGER-RH FE 1
269 95-110014-609 . . . RIB ASSY-STA 162.252, LH FE 1
-270 95-110014-610 . . . RIB ASSY-STA 162.252, RH FE 1
-271 95-110014-933 . . . . RIB-LH FE 1
-272 95-110014-934 . . . . RIB-RH FE 1
-273 95-110014-43 . . . . STIFFENER-LH FE 1
-274 95-110014-44 . . . . STIFFENER-RH FE 1
-275 95-110014-45 . . . . STIFFENER-LH FE 1
-276 95-110014-46 . . . . STIFFENER-RH FE 1
-277 95-110014-49 . . . . ANGLE-LH FE 1
-278 95-110014-50 . . . . ANGLE-RH FE 1
-279 95-110014-53 . . . . ANGLE-LH FE 1
-280 95-110014-54 . . . . ANGLE-RH FE 1
-281 95-110014-55 . . . . CLIP-LH FE 1
-282 95-110014-56 . . . . CLIP-RH FE 1
-283 95-110014-57 . . . . CLIP-LH FE 1
-284 95-110014-58 . . . . CLIP-RH FE 1
-285 95-110014-59 . . . . CLIP FE 1
-286 95-110014-157 . . . . CLIP-LH FE 1
-287 95-110014-158 . . . . CLIP-RH FE 1
-288 95-110014-805 . . . . DOUBLER-LH VENT FE 1
289 95-110014-197 . . . STRINGER-LH FE 1
-290 95-110014-198 . . . STRINGER-RH FE 1
291 95-110014-639 . . . RIB ASSY-STA 175 LH FE 1
-292 95-110014-640 . . . RIB ASSY-STA 175 RH FE 1
-293 95-110014-39 . . . . RIB-LH FE 1
-294 95-110014-40 . . . . RIB-RH FE 1
-295 35-115032-6 . . . . ANGLE-LH FE 1
-296 35-115032-7 . . . . ANGLE-RH FE 1
297 95-110014-377 . . . DOUBLER-LH FE 1
-298 95-110014-378 . . . DOUBLER-RH FE 1
299 95-110011-1 . . RIB ASSY-LH, STA 191 FE 1
FOR SPARES ORDER:
60-110040-1
299 60-110040-1 . . RIB ASSY-LH, STA 191 FE 1
95-110011-1
-301 95-110011-2 . . RIB ASSY-RH, STA 191 FE 1
FOR SPARES ORDER:
60-110040-2
-301 60-110040-2 . . RIB ASSY-RH, STA 191 FE 1
95-110011-2
303 35-115200-48 . . . SKIN-LH FE 1
-304 35-115200-49 . . . SKIN-RH FE 1
305 000-110185-1 . . . EXTENSION-FRAME LH FE 1
-306 000-110185-2 . . . EXTENSION-FRAME RH FE 1
307 96-110019-3 . . . WALKWAY ASSY-RH FE 1
57-10-00-02
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-308 35-115111 . . . SUPPORT ASSY-RH WALKWAY FE 1
309 35-115111-2 . . . . SUPPORT-WALKWAY FE 1
-310 AN227-8B . . . . STUD FE 9
FOR SPARES ORDER:
MS27980-7B
-310 MS27980-7B . . . . STUD FE 9
AN227-8B
-311 MS27980-6B . . . . SOCKET FE 1
312 95-110014-247 . . . DOUBLER-LH FE 1
-313 95-110014-240 . . . DOUBLER-RH FE 1
314 95-110014-649 . . . SKIN ASSY-LOWER INBD LH FE 1
-315 95-110014-650 . . . SKIN ASSY-LOWER INBD RH FE 1
-316 35-115203 . . . . REINFORCEMENT-LH FE 1
-318 35-115208 . . . . GUSSET-LH FE 1
-319 35-115208-1 . . . . GUSSET-RH FE 1
320 95-110014-537 . . . SKIN-LH FE 1
-321 95-110014-538 . . . SKIN-RH FE 1
322 95-110014-733 . . . SKIN ASSY-LOWER INBD LH FE 1
-323 95-110014-734 . . . SKIN ASSY-LOWER INBD RH FE 1
-324 95-110014-539 . . . . SKIN-LH FE 1
-325 95-110014-540 . . . . SKIN-RH FE 1
-326 35-115200-30 . . . . STRINGER-LH FE 1
-327 35-115200-31 . . . . STRINGER-RH FE 1
-328 35-115205 . . . . REINFORCEMENT-LH FE 1
-330 35-115207 . . . . GUSSET-LH FE 1
-331 35-115207-1 . . . . GUSSET-RH FE 1
332 95-110014-353 . . . . COVER FE 1
333 95-110014-219 . . . GUSSET-STA 66 LH FE 1
-334 95-110014-220 . . . GUSSET-STA 66 RH FE 1
335 95-110014-435 . . . DOUBLER-LH FE 1
-336 95-110014-436 . . . DOUBLER-RH FE 1
337 95-110014-449 . . . DOUBLER FE 1
338 95-110014-205 . . . SKIN-LOWER INBD LH FE 1
-339 95-110014-206 . . . SKIN-LOWER INBD RH FE 1
340 95-110014-227 . . . STRINGER-LH FE 1
-341 95-110014-228 . . . STRINGER-RH FE 1
342 95-110014-225 . . . STRINGER-LH FE 1
-343 95-110014-226 . . . STRINGER-RH FE 1
344 95-110014-229 . . . STRINGER-LH FE 1
-345 95-110014-230 . . . STRINGER-RH FE 1
346 95-110014-221 . . . STRINGER-LH FE 1
-347 95-110014-222 . . . STRINGER-RH FE 1
348 95-110014-321 . . . HINGE-LH FE 1
-349 95-110014-322 . . . HINGE-RH FE 1
350 95-110014-297 . . . HINGE-LH FE 1
-351 95-110014-298 . . . HINGE-RH FE 1
352 95-110014-519 . . . SKIN-LOWER OUTBD LH FE 1
-353 95-110014-520 . . . SKIN-LOWER OUTBD RH FE 1
-356 95-110014-335 . . . . DOUBLER-LH FE 1
-357 95-110014-336 . . . . DOUBLER-RH FE 1
57-10-00-02
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-358 MS21047L08 . . . . NUTPLATE FE 4
-361 95-110014-237 . . . . DOUBLER-LH FE 1
-362 95-110014-238 . . . . DOUBLER-RH FE 1
-363 NAS680A08K . . . . NUTPLATE FE 6
-366 95-110014-243 . . . . DOUBLER-LH FE 1
-367 95-110014-244 . . . . DOUBLER-RH FE 1
-368 NAS680A08K . . . . NUTPLATE D 6
-368A NAS680A08K . . . . NUTPLATE N 10
95-110014-241
-368B NAS680A08K . . . . NUTPLATE N 6
95-110014-242
-371 95-110014-255 . . . . DOUBLER-LH FE 1
-372 95-110014-256 . . . . DOUBLER-RH FE 1
-373 MS21047L08 . . . . NUTPLATE FE 10
-374 NAS1024A08 . . . . NUTPLATE FE 4
-375 NAS697A08 . . . . NUTPLATE FE 4
376 95-110014-223 . . . STRINGER-LH FE 1
-377 95-110014-224 . . . STRINGER-RH FE 1
378 95-110014-263 . . . STRINGER-LH FE 1
-379 95-110014-264 . . . STRINGER-RH FE 1
380 50-110010-181 . . . STIFFENER FE 1
-381 000-110027-1 . . . REINFORCEMENT ASSY FE 1
382 95-110014-907 . . . STRINGER-LH FE 1
-383 95-110014-908 . . . STRINGER-RH FE 1
384 95-110014-911 . . . STRINGER-LH FE 1
-385 95-110014-912 . . . STRINGER-RH FE 1
386 95-110014-383 . . . DOUBLER-LH FE 1
-388 95-110014-381 . . . . DOUBLER-LH FE 1
-389 95-110014-382 . . . . DOUBLER-RH FE 1
-390 MS21050L08K . . . . NUTPLATE FE 6
391 95-110014-253 . . . DOOR-ACCESS FE 2
ATTACHING PARTS
392 AN507-B832-R8 . . . SCREW FE 6
-------*-------
-395 95-110014-249 . . . . DOUBLER-LH FE 1
-396 95-110014-250 . . . . DOUBLER-RH FE 1
-397 NAS697C08M . . . . NUTPLATE FE 6
398 95-110014-379 . . . DOUBLER-LH FE 1
-399 95-110014-380 . . . DOUBLER-RH FE 1
400 35-115200-42 . . . DOOR-ACCESS, 3 REQUIRED FE 3
LH AND 2 RH
ATTACHING PARTS
401 AN525-832R7 . . . SCREW FE 4
-------*-------
57-10-00-02
PAGE 10
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-402 50-110093-6 . . . DOUBLER-LH, OPTIONAL FE 1
-403 50-110093-2 . . . DOOR-REMOTE COMPASS FE 1
TRANSMITTER ACCESS,
OPTIONAL
ATTACHING PARTS
-404 AN507B8R8 . . . SCREW-OPTIONAL FE 6
-405 NAJ1-82C . . . NUTPLATE-OPTIONAL FE 6
-------*-------
-406 95-110014-287 . . ANGLE-LH FE 1
-407 95-110014-288 . . ANGLE-RH FE 1
-408 95-110014-347 . . DOUBLER-LH, STA 108.281 FE 1
-409 95-110014-348 . . DOUBLER-RH, STA 108.281 FE 1
-410 95-110014-433 . . FAIRLEAD-STA 108.281 FE 1
411 95-110014-657 . . FORMER ASSY-LH, STA 80.047 FE 1
-412 95-110014-658 . . FORMER ASSY-RH, STA 80.047 FE 1
-413 95-110014-185 . . . FORMER-LH FE 1
-414 95-110014-186 . . . FORMER-RH FE 1
-415 NAS680A3 . . . NUTPLATE FE 3
ALTERNATE SPARE:
MS21047L3
-415 MS21047L3 . . . NUTPLATE FE 3
ALTERNATE SPARE:
NAS680A3
416 95-110014-609 . . RIB ASSY-LH, STA 66 TO 94 FE 1
TOP
-417 95-110014-610 . . RIB ASSY-RH, STA 66 TO 94 FE 1
TOP
-418 58-100022-9 . . . LINER-TOP LH FE 1
-419 58-100022-10 . . . LINER-TOP RH FE 1
-420 58-110081 . . . RETAINER FE 5
421 95-110014-669 . . LINER ASSY-LH, STA 94 TO FE 1
122 TOP
-422 95-110014-670 . . LINER ASSY-RH, STA 94 TO FE 1
122 TOP
-423 95-110014-473 . . . LINER-TOP LH FE 1
-424 95-110014-474 . . . LINER-TOP RH FE 1
-425 50-110081 . . . RETAINER FE 6
426 95-110014-611 . . LINER ASSY-LH, STA 122 TO FE 1
162 TOP
-427 95-110014-612 . . LINER ASSY-RH, STA 122 TO FE 1
162 TOP
-428 58-100022-11 . . . LINER-TOP LH FE 1
-429 58-100022-12 . . . LINER-TOP RH FE 1
-430 50-110081 . . . RETAINER FE 5
431 95-110014-485 . . LINER-LH, STA 66 TO 94 FE 1
FRONT
-432 95-110014-486 . . LINER RH-STA 66 TO 94 FE 1
FRONT
433 95-110014-471 . . LINER-LH, STA 94 TO 122 FE 1
FRONT
-434 95-110014-472 . . LINER-RH, STA 94 TO 122 FE 1
FRONT
435 95-110014-807 . . LINER-LH, STA 122 TO 162 FE 1
FRONT

57-10-00-02
PAGE 11
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-436 95-110014-808 . . LINER-RH, STA 122 TO 162 FE 1
FRONT
-437 95-110014-809 . . DOUBLER FE 1
438 95-110014-9 . . LINER-LH, STA 66 TO 94 AFT FE 1
-439 95-110014-10 . . LINER-RH, STA 66 TO 94 AFT FE 1
444 95-110014-483 . . LINER-LH, STA 66 TO 94 BOTTOM FE 1
-445 95-110014-484 . . LINER-RH, STA 66 TO 94 BOTTOM FE 1
446 95-110014-23 . . LINER-LH, STA 94 TO 122 FE 1
BOTTOM
-447 95-110014-24 . . LINER-RH, STA 94 TO 122 FE 1
BOTTOM
448 95-110014-19 . . LINER-LH, STA 122 TO 162 FE 1
BOTTOM
-449 95-110014-20 . . LINER-RH, STA 122 TO 162 FE 1
BOTTOM
-450 108424-2 . . CLIP-STRINGER AND LINER FE AR
451 50-110002-136 . . ANGLE-LH FE 1
-452 50-110002-137 . . ANGLE-RH FE 1
453 50-110002-138 . . ANGLE-LH FE 1
-454 50-110002-139 . . ANGLE-RH FE 1
455 50-110002-150 . . DOUBLER-LH FE 1
-456 50-110002-151 . . DOUBLER-RH FE 1
457 102361-00228 . . PIN FE 2
458 50-110002-132 . . ANGLE-LH, STA 94 FE 1
-459 50-110002-133 . . ANGLE-RH, STA 94 FE 1
460 50-110002-122 . . ANGLE-LH, STA 80.047 FE 1
-461 50-110002-123 . . ANGLE-RH, STA 80.047 FE 1
-462 95-110014-65 . . ANGLE-LH, STA 148 FE 1
-463 95-110014-66 . . ANGLE-RH, STA 148 FE 1
464 35-115142-26 . . ANGLE-HINGE SPLICE, FE 2
STA 108.281
-465 95-110014-83 . . ANGLE-LH, STA 36 FE 1
-466 95-110014-84 . . ANGLE-RH, STA 36 FE 1
-467 95-110014-93 . . ANGLE-LH, STA 122 FE 1
-468 95-110014-94 . . ANGLE-RH, STA 122 FE 1
-469 35-115276 . . CLIP-RH, STA 45 FE 1
-470 95-110014-189 . . ANGLE-LH, STA 80 FE 1
-471 95-110014-190 . . ANGLE-RH, STA 80 FE 1
-472 95-110014-285 . . ANGLE-LH, STA 108 FE 1
-473 95-110014-286 . . ANGLE-RH, STA 108 FE 1
474 35-115269 . . CLIP-LH STRINGER FE 1
-475 35-115269-1 . . CLIP-RH STRINGER FE 1
-476 108424-4 . . CLIP-LH STRINGER FE 1
477 9-50727 . . BUTTON-PLUG FE 1
-478 MS35489-6 . . GROMMET FE 15
479 95-110014-653 . . DOOR ASSY-LH, STA 87 FE 1
-480 95-110014-654 . . DOOR ASSY-RH, STA 87 FE 1
ATTACHING PARTS
481 AN3-8AM . . BOLT FE 3
-------*-------
-482 50-110002-134 . . . DOOR-LH FE 1
57-10-00-02
PAGE 12
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-483 50-110002-135 . .
. DOOR-RH FE 1
-484 50-110002-140 . .
. HINGE FE 2
485 95-110014-337 . .
CLIP-LH FE 1
-486 95-110014-345 . .
CLIP FE 1
-487 MS35489-6 . .
GROMMET FE 1
-488 58-100022-3 . .
PLATE FE 1
489 58-110011-1 . .
DOOR ASSY-ACCESS WING FE 1
FUEL TANK
-490 58-110011-2 . . DOOR ASSY-ACCESS WING FE 1
FUEL TANK
ATTACHING PARTS
491 AN509-8R8 . . SCREW FE 18
ALTERNATE SPARE:
MS24694-S5
491 MS24694-S5 . . SCREW FE 18
ALTERNATE SPARE:
AN509-8R8
-------*-------
492 35-115199-12 . . DOOR FE 1
ATTACHING PARTS
493 AN526-832-6 . . SCREW FE 6
FOR SPARES ORDER:
MS35206-228
493 MS35206-228 . . SCREW FE 6
AN526-832-6
-------*-------
494 60-110028 . . PLATE-TIE RIB MAIN SPAR N 1
ATTACHING PARTS
495 130909B14 . . BOLT N 13
-496 AN960-10 . . WASHER N 13
ALTERNATE SPARE:
NAS1149F0363P
-496 NAS1149F0363P . . WASHER N 13
ALTERNATE SPARE:
AN960-10
-497 130909N29 . . NUT N 6
-------*-------
498 95-110014-337 CLIP FE 1
499 766-6 CLAMP FE 5
ATTACHING PARTS
500 MS27039-0804 SCREW FE 5
-501 AN960-8 WASHER FE 5
FOR SPARES ORDER:
NAS1149FN832P
-501 NAS1149FN832P WASHER FE 5
AN960-8
-502 130909N28 NUT FE 5
-------*-------
-503 115005-1 GROMMET FE 8
504 000-920012-11 FLANGE ASSY-FUEL VENT FE 1
505 50-920077-11 FLANGE ASSY-FUEL VENT J 1
505 102-920013-1 FLANGE ASSY-FUEL VENT K 1
506 35-115264 COVER ASSY FE 1
57-10-00-02
PAGE 13
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
507 35-115256 COVER FE 1
515 102-920013-1 FLANGE ASSY-FUEL VENT K 1
E0938-E0938,E0943-E9999 A
C1608-C9999 B
H0385-H9999 C
C1608-C9999,E0938-E0938,E0943-E9999 D
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H9999 E
H0001-H0384 F
H0001-H0077 G
H0078-H9999 H
C1608-C2076,E0938-E0938,E0943-E1107,H0001-H0854 J
C2077-C9999,E1108-E9999,H0855-H9999 K
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1801 L
H1802-H9999 M
H0001-H9999 N
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H2160 P
H2161-H9999 Q
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

57-10-00-02
PAGE 14
BARON MAY 01/19
57-10-00-03
WING FRONT SPAR
57-10-00-03
BARON MAY 01/19
WING FRONT SPAR

SHEET 1 OF 2
57-10-00-03
PAGE 0
MAY 01/19
WING FRONT SPAR

SHEET 2 OF 2
57-10-00-03
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 WING FRONT SPAR

-5 000-110011-3 SPAR ASSY-LH FRONT FE 1
-10 000-110011-4 SPAR ASSY-RH FRONT FE 1
-15 000-110011-1 . SPAR ASSY-LH FE 1
-20 000-110011-2 . SPAR ASSY-RH FE 1
-25 000-110013-1 . . CAP ASSY-FRONT SPAR UPPER FE 1
LH
-30 000-110013-2 . . CAP ASSY-FRONT SPAR UPPER FE 1
RH
35 000-110013-9 . . . HINGE CAP-LH FE 1
-40 000-110013-10 . . . HINGE CAP-RH FE 1
45 000-110013-7 . . . FILLER FE RF
50 000-110013-11 . . . TEE-LH FE 1
-55 000-110013-12 . . . TEE-RH FE 1
60 000-110250-1 . . . CONNECTOR-LH FE 1
-65 000-110250-2 . . . CONNECTOR-RH FE 1
-70 NAS1486-14 . . . BOLT-LOCK FE 4
FOR SPARES ORDER:
2LS509-T06-14
-70 2LS509-T06-14 . . . BOLT-LOCK FE 4
NAS1486-14
-75 NAS1486-15 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-15
-75 2LS509-T06-15 . . . BOLT-LOCK FE 2
NAS1486-15
-80 NAS1486-16 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-16
-80 2LS509-T06-16 . . . BOLT-LOCK FE 2
NAS1486-16
-85 NAS1486-17 . . . BOLT-LOCK FE 4
FOR SPARES ORDER:
2LS509-T06-17
-85 2LS509-T06-17 . . . BOLT-LOCK FE 4
NAS1486-17
-90 NAS1486-18 . . . BOLT-LOCK FE 6
FOR SPARES ORDER:
2LS509-T06-18
-90 2LS509-T06-18 . . . BOLT-LOCK FE 6
NAS1486-18
-95 NAS1486-19 . . . BOLT-LOCK FE 6
FOR SPARES ORDER:
2LS509-T06-19
-95 2LS509-T06-19 . . . BOLT-LOCK FE 6
NAS1486-19
-100 NAS1486-20 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-20

57-10-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-100 2LS509-T06-20 . . . BOLT-LOCK FE 6
NAS1486-20
-105 NAS1080-06 . . . COLLAR FE 26
-110 000-110013-3 . . CAP ASSY-FRONT SPAR LOWER FE 1
LH
-115 000-110013-4 . . CAP ASSY-FRONT SPAR LOWER FE 1
RH
120 000-110013-15 . . . HINGE CAP-LH FE 1
-125 000-110013-16 . . . HINGE CAP-RH FE 1
-130 MS21051-3 . . . NUTPLATE FE 4
135 000-110013-13 . . . TEE-LH FE 1
-140 000-110013-14 . . . TEE-RH FE 1
-145 35-110065-1 . . . FITTING-LH FE 1
-150 35-110065-2 . . . FITTING-RH FE 1
155 000-110088-1 . . . FITTING-LH FE 1
-160 000-110088-2 . . . FITTING-RH FE 1
-165 NAS1486-11 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-11
-165 2LS509-T06-11 . . . BOLT-LOCK FE 2
NAS1486-11
-170 NAS1486-12 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-12
-170 2LS509-T06-12 . . . BOLT-LOCK FE 2
NAS1486-12
-175 NAS1486-13 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-13
-175 2LS509-T06-13 . . . BOLT-LOCK FE 2
NAS1486-13
-180 NAS1486-14 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-14
-180 2LS509-T06-14 . . . BOLT-LOCK FE 2
NAS1486-14
-185 NAS1486-15 . . . BOLT-LOCK FE 6
FOR SPARES ORDER:
2LS509-T06-15
-185 2LS509-T06-15 . . . BOLT-LOCK FE 6
NAS1486-15
-190 NAS1486-16 . . . BOLT-LOCK FE 8
FOR SPARES ORDER:
2LS509-T06-16
-190 2LS509-T06-16 . . . BOLT-LOCK FE 8
NAS1486-16

57-10-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-195 NAS1486-17 . . . BOLT-LOCK FE 8
FOR SPARES ORDER:
2LS509-T06-17
-195 2LS509-T06-17 . . . BOLT-LOCK FE 8
NAS1486-17
-200 NAS1080-06 . . . COLLAR FE 30
-205 000-110014-1 . . WEB ASSY-FRONT SPAR FE 1
INBOARD LH
INBOARD RH
215 000-110014-5 . . . WEB-LH FE 1
-220 000-110014-6 . . . WEB-RH FE 1
225 000-110014-7 . . . STIFFENER FE 1
230 000-110014-9 . . . STIFFENER FE 1
235 000-110011-9 . . SPACER FE 1
240 000-110011-11 . . SPACER FE 1
245 000-110010-39 . . STIFFENER-LH FE 1
-250 000-110010-40 . . STIFFENER-RH FE 1
255 000-110010-41 . . STIFFENER FE 1
260 000-110095-1 . . PLATE-TIE UPPER FE 2
265 000-110095-3 . . PLATE-TIE UPPER FE 1
270 000-110024-1 . . PLATE-TIE LOWER FE 2
275 000-110024-3 . . PLATE-TIE LOWER FE 2
280 000-110010-35 . . ANGLE-LH FE 1
-285 000-110010-36 . . ANGLE-RH FE 1
290 000-110010-37 . . SPACER FE 1
-295 MS35489-6 . . GROMMET FE 2
-300 HL18PB-6-5 . . PIN FE 4
-305 130909N31 . . NUT FE 4
310 000-110010-55 . . BRACKET FE 1
315 D23217-1 . . ANGLE FE 1
CENTER LH
CENTER RH
330 000-110010-5 . . . WEB FE 1
335 000-110010-7 . . . STIFFENER FE 3
340 000-110010-9 . . . STIFFENER FE 2
345 000-110010-11 . . . STIFFENER FE 1
350 000-110010-51 . . . RING-REINFORCEMENT FE 3
-355 MS35489-6 . . . GROMMET FE 1
360 000-110010-53 . . REINFORCEMENT FE 2
-365 MS21061L4 . . NUTPLATE FE 2
370 000-110010-45 . . STIFFENER FE 1
-375 000-110011-13 . . WEB ASSY-FRONT SPAR LH FE 1
OUTBD
-380 000-110011-14 . . WEB ASSY-FRONT SPAR RH FE 1
OUTBD
385 000-110010-15 . . . WEB FE 1
390 000-110010-17 . . . STIFFENER FE 1
395 000-110010-19 . . . STIFFENER FE 1
400 000-110010-21 . . . STIFFENER FE 1
405 000-110010-23 . . . STIFFENER FE 1
410 000-110010-25 . . . STIFFENER FE 1
57-10-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
415 000-110011-15 . . . STIFFENER FE 1
420 000-110010-27 . . . STIFFENER FE 1
425 000-110011-17 . . . STIFFENER FE 1
430 000-110010-29 . . . STIFFENER FE 1
435 000-110011-19 . . . STIFFENER FE 1
440 000-110010-79 . . . REINFORCEMENT FE 1
-445 D08431-1 . . . DOUBLER FE 1
450 000-110028-1 . . STIFFENER-LH FE 1
-455 000-110028-2 . . STIFFENER-RH FE 1
-460 MS21047L08 . . NUTPLATE FE 2
-465 NAS1080-06 . . COLLAR FE 68
-470 NAS1466-4 . . BOLT-LOCK FE 2
-475 NAS1466-4 . . BOLT-LOCK FE 2
-480 NAS1466-10 . . BOLT-LOCK FE 6
-485 NAS1466-12 . . BOLT-LOCK FE 48
-490 NAS1466-13 . . BOLT-LOCK FE 5
-495 000-110022-1 . . PLATE-LANDING GEAR FE 1
RETRACT
500 000-110022-3 . . . PLATE-BUSHING FE 1
505 35-115184 . . . BUSHING FE 1
510 MS15001-3 . . . FITTING-LUBE FE 1
ALTERNATE SPARE:
AS15001-3-C
AS15001-3-P
510 AS15001-3-C . . . FITTING-LUBE FE 1
ALTERNATE SPARE:
MS15001-3
AS15001-3-P
510 AS15001-3-P . . . FITTING-LUBE FE 1
ALTERNATE SPARE:
MS15001-3
AS15001-3-C
-515 000-110023-1 . . PLATE-LANDING GEAR ATTACH FE 1
520 000-110023-3 . . . PLATE-BUSHING FE 1
525 35-115215 . . . BUSHING FE 1
530 000-361010-1 . BRACKET-LANDING GEAR FE 1
SWITCH
SWITCH LH
-540 000-361011-2 . BRACKET-LANDING GEAR FE 1
SWITCH RH
545 000-920010-1 . BRACKET-FUEL STRAINER FE 1
C1608-C9999,E0938-E0938,E0943-E9999 FE

57-10-00-03
PAGE 4
BARON MAY 01/19
57-10-00-04
WING FRONT SPAR
57-10-00-04
BARON MAY 01/19
WING FRONT SPAR

SHEET 1 OF 3
57-10-00-04
PAGE 0
MAY 01/19
WING FRONT SPAR

SHEET 2 OF 3
57-10-00-04
PAGE 0A
MAY 01/19
WING FRONT SPAR

SHEET 3 OF 3
57-10-00-04
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 WING FRONT SPAR

-5 95-110013-627 SPAR ASSY-FRONT, LH WING FE 1
-10 95-110013-628 SPAR ASSY-FRONT, RH WING FE 1
-15 95-110013-637 . CAP ASSY-FRONT SPAR UPPER FE 1
LH
-20 95-110013-638 . CAP ASSY-FRONT SPAR UPPER FE 1
RH
25 50-110003-2 . . HINGE CAP-LH FE 1
-30 50-110003-3 . . HINGE CAP-RH FE 1
-35 50-110003-10 . . CHANNEL-LH FE 1
-40 95-110013-65 . . CHANNEL-LH, 168 GAL. FE 1
SYSTEM
-45 95-110013-61 . . DOUBLER-LH, 168 GAL. FE 1
SYSTEM
-50 95-110013-53 . . TUBE ASSY-LH, 168 GAL. FE 1
SYSTEM
-55 50-110003-11 . . CHANNEL-RH FE 1
-60 95-110013-66 . . CHANNEL-RH, 168 GAL. FE 1
SYSTEM
-65 95-110013-63 . . DOUBLER-RH, 168 GAL. FE 1
SYSTEM
-70 95-110013-54 . . TUBE ASSY-RH, 168 GAL. FE 1
SYSTEM
75 50-110003-22 . . FILLER FE 1
80 95-110013-5 . . TEE-LH FE 1
-85 95-110013-6 . . TEE-RH FE 1
90 95-110013-13 . . FITTING-LH FE 1
-95 95-110013-14 . . FITTING-RH FE 1
-100 NAS1486-14 . . BOLT-LOCK FE 4
FOR SPARES ORDER:
2LS509-T06-14
-100 2LS509-T06-14 . . BOLT-LOCK FE 4
NAS1486-14
-105 NAS1486-15 . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-15
-105 2LS509-T06-15 . . BOLT-LOCK FE 2
NAS1486-15
-110 NAS1486-16 . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-16
-110 2LS509-T06-16 . . BOLT-LOCK FE 2
NAS1486-16
-115 NAS1486-17 . . BOLT-LOCK FE 4
FOR SPARES ORDER:
2LS509-T06-17
-115 2LS509-T06-17 . . BOLT-LOCK FE 4
NAS1486-17
-120 NAS1486-18 . . BOLT-LOCK FE 6
FOR SPARES ORDER:
2LS509-T06-18

57-10-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-120 2LS509-T06-18 . . BOLT-LOCK FE 6
NAS1486-18
-125 NAS1486-19 . . BOLT-LOCK FE 6
FOR SPARES ORDER:
2LS509-T06-19
-125 2LS509-T06-19 . . BOLT-LOCK FE 6
NAS1486-19
-130 NAS1486-20 . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-20
-130 2LS509-T06-20 . . BOLT-LOCK FE 2
NAS1486-20
-135 NAS1080-06 . . COLLAR FE 26
-140 95-110013-605 . CAP ASSY-FRONT SPAR LOWER FE 1
LH
-145 95-110013-606 . CAP ASSY-FRONT SPAR LOWER FE 1
RH
150 50-110003-4 . . HINGE CAP-LH FE 1
-155 50-110003-5 . . HINGE CAP-RH FE 1
-160 50-110003-12 . . CHANNEL-LH FE 1
-165 50-110003-13 . . CHANNEL-RH FE 1
-170 50-110003-22 . . FILLER FE 1
175 95-110013-7 . . TEE-LH FE 1
-180 95-110013-8 . . TEE-RH FE 1
185 50-110057 . . FITTING-LH FE 1
-190 50-110057-1 . . FITTING-RH FE 1
-195 NAS1486-11 . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-11
-195 2LS509-T06-11 . . BOLT-LOCK FE 2
FOR SPARES ORDER:
NAS1486-11
-200 NAS1486-12 . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-12
-200 2LS509-T06-12 . . BOLT-LOCK FE 2
NAS1486-12
-205 NAS1486-13 . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-13
-205 2LS509-T06-13 . . BOLT-LOCK FE 2
NAS1486-13
-210 NAS1486-14 . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-14
-210 2LS509-T06-14 . . BOLT-LOCK FE 2
NAS1486-14

57-10-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-215 NAS1486-15 . . BOLT-LOCK FE 4
FOR SPARES ORDER:
2LS509-T06-15
-215 2LS509-T06-15 . . BOLT-LOCK FE 4
NAS1486-15
-220 NAS1486-16 . . BOLT-LOCK FE 8
FOR SPARES ORDER:
2LS509-T06-16
-220 2LS509-T06-16 . . BOLT-LOCK FE 8
NAS1486-16
-225 NAS1486-17 . . BOLT-LOCK FE 8
FOR SPARES ORDER:
2LS509-T06-17
-225 2LS509-T06-17 . . BOLT-LOCK FE 8
NAS1486-17
-230 NAS1080-06 . . COLLAR FE 28
-235 95-110013-619 . WEB ASSY-FRONT SPAR INBD FE 1
LH
-240 95-110013-620 . WEB ASSY-FRONT SPAR INBD FE 1
RH
245 95-110013-27 . . WEB-LH FE 1
-250 95-110013-28 . . WEB-RH FE 1
-255 95-110013-47 . . WEB-LH FE 1
-260 95-110013-48 . . WEB-RH FE 1
265 50-110003-32 . . STIFFENER FE 1
-270 95-110013-21 . . STIFFENER-LH FE 1
-275 95-110013-22 . . STIFFENER-RH FE 1
280 95-110013-45 . . STIFFENER-LH FE 1
-285 95-110013-46 . . STIFFENER-RH FE 1
-290 35-115020-74 . . BRACKET FE 1
-295 95-110013-23 . . BRACKET-LH FE 1
-300 95-110013-24 . . BRACKET-RH FE 1
305 95-920001-153 . . BRACKET-FUEL BOOST PUMP FE 1
310 50-110003-24 . SPACER FE 1
315 50-110003-28 . SPACER FE 1
320 50-110003-26 . STIFFENER-LH FE 1
-325 50-110003-27 . STIFFENER-RH FE 1
330 50-110003-30 . STIFFENER-LH FE 1
-335 50-110003-31 . STIFFENER-RH FE 1
340 50-110003-14 . PLATE-TIE UPPER FE 1
345 50-110003-16 . PLATE-TIE UPPER FE 1
350 50-110003-18 . PLATE-TIE LOWER FE 1
355 50-110003-20 . PLATE-TIE LOWER FE 1
-360 NAS1466-4 . BOLT-LOCK FE 2
-365 NAS1466-5 . PIN-LOCK FE 2
-375 NAS1466-12 . BOLT-LOCK FE 48
-385 NAS1080-06 . COLLAR FE 63
390 50-110003-86 . ANGLE-LH FE 1
-395 50-110003-87 . ANGLE-RH FE 1
400 50-110003-90 . SPACER FE 1
57-10-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
405 35-115020-74 . BRACKET FE 1
-410 95-110013-23 . BRACKET-LH FE 1
-415 95-110013-24 . BRACKET-RH FE 1
420 95-110013-19 . ANGLE-LH FE 1
-425 95-110013-20 . ANGLE-RH FE 1
-430 95-110013-621 . WEB ASSY-FRONT SPAR CENTER FE 1
LH
-435 95-110013-622 . WEB ASSY-FRONT SPAR CENTER FE 1
RH
440 95-110013-29 . . WEB FE 1
445 50-110003-42 . . STIFFENER FE 1
450 50-110003-44 . . STIFFENER FE 1
455 50-110003-46 . . STIFFENER FE 1
460 50-110003-48 . . STIFFENER FE 1
465 50-110003-50 . . STIFFENER FE 1
470 50-110003-52 . . STIFFENER FE 1
475 50-110003-54 . STIFFENER FE 1
-480 95-110013-625 . WEB ASSY-FRONT SPAR LH FE 1
OUTBD
-485 95-110013-626 . WEB ASSY-FRONT SPAR RH FE 1
OUTBD
490 50-110003-62 . . WEB FE 1
495 50-110003-66 . . STIFFENER FE 1
500 50-110003-70 . . STIFFENER FE 1
505 50-110003-74 . . STIFFENER FE 1
510 50-110003-78 . . STIFFENER FE 1
515 50-110003-82 . . STIFFENER FE 1
520 50-110003-84 . . STIFFENER FE 1
-525 35-115020-6 . STIFFENER ASSY-FRONT SPAR FE 1
LH
-530 35-115020-7 . STIFFENER ASSY-FRONT SPAR FE 1
RH
535 35-115020-8 . . STIFFENER-LH FE 1
-540 35-115020-9 . . STIFFENER-RH FE 1
-545 H1S832BC100X200 . . NUTPLATE FE 8
550 35-115232 . LUG ASSY-TIE DOWN FE 1
ATTACHING PARTS
-555 NAS221-9 . SCREW FE 4
ALTERNATE SPARE:
MS27039-1-09
-555 MS27039-1-09 . SCREW FE 4
ALTERNATE SPARE:
NAS221-9
-560 22A17-02 . NUTPLATE FE 4
FOR SPARES ORDER:
MS21080-3
MS21051L3
-560 MS21080-3 . NUTPLATE FE 4
22A17-02
22A17-02
-------*-------
-565 35-110061-67 . FITTING ASSY-FRONT SPAR FE 1
57-10-00-04
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
ATTACHING PARTS
-570 ALPPH-T6-7 . HUCKBOLT FE 7
FOR SPARES ORDER:
R3001-T06-7
-570 R3001-T06-7 . LOCKBOLT FE 7
ALPPH-T6-7
-575 LC-C6 . COLLAR FE 7
-------*-------
580 35-110061-69 . . FITTING FE 1
585 35-115184 . . BUSHING FE 1
590 MS15001-4 . . FITTING-LUBRICATION FE 1
-595 95-110013-3 . FITTING ASSY-FRONT SPAR FE 1
ATTACHING PARTS
-600 130909B17 . BOLT FE 4
-605 AN960-10 . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0363P
-605 NAS1149F0363P . WASHER FE 8
ALTERNATE SPARE:
AN960-10
-610 AN365-1032 . NUT FE 4
ALTERNATE SPARE:
MS21044N3
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-610 MS21044N3 . NUT FE 4
ALTERNATE SPARE:
AN365-1032
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-610 MS21042-3 . NUT FE 4
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS20365-1032
FOR SPARES ORDER:
130909N29
-610 MS20365-1032 . NUT FE 4
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29

57-10-00-04
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-610 130909N29 . NUT FE 4
AN365-1032
MS21044N3
MS21042-3
MS20365-1032
-------*-------
615 95-110013-17 . . FITTING FE 1
620 35-115215 . . BUSHING FE 1
-625 MK1031-832 . KAYLOCK FE 4
-630 MK2031-832 . KAYLOCK FE 4
-635 MS35489-6 . GROMMET FE 1
640 50-110003-64 . STIFFENER-LH FE 1
-645 50-110003-65 . STIFFENER-RH FE 1
650 50-110003-68 . STIFFENER-LH FE 1
-655 50-110003-69 . STIFFENER-RH FE 1
660 50-110003-72 . STIFFENER-LH FE 1
-665 50-110003-73 . STIFFENER-RH FE 1
670 50-110003-76 . STIFFENER-LH FE 1
-675 50-110003-77 . STIFFENER-RH FE 1
680 50-110003-80 . STIFFENER FE 1
-685 50-110003-81 . STIFFENER FE 1
H0001-H0234 FE

57-10-00-04
PAGE 6
BARON MAY 01/19
57-10-00-05
WING FRONT SPAR
57-10-00-05
BARON MAY 01/19
WING FRONT SPAR

SHEET 1 OF 3
57-10-00-05
PAGE 0
MAY 01/19
WING FRONT SPAR

SHEET 2 OF 3
57-10-00-05
PAGE 0A
MAY 01/19
WING FRONT SPAR

SHEET 3 OF 3
57-10-00-05
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05 WING FRONT SPAR

-5 000-110011-49 SPAR ASSY-LH FRONT D 1
-10 000-110011-5 SPAR ASSY-LH FRONT C 1
-15 000-110011-27 SPAR ASSY-LH FRONT B 1
-20 000-110011-50 SPAR ASSY-RH FRONT D 1
-25 000-110011-6 SPAR ASSY-RH FRONT C 1
-30 000-110011-28 SPAR ASSY-RH FRONT B 1
-35 000-110011-1 . SPAR ASSY-LH E 1
-40 000-110011-47 . SPAR ASSY-LH B 1
-45 000-110011-53 . SPAR ASSY-LH D 1
-50 000-110011-2 . SPAR ASSY-RH E 1
-55 000-110011-48 . SPAR ASSY-RH B 1
-60 000-110011-54 . SPAR ASSY-RH D 1
-65 000-110013-1 . . CAP ASSY-FRONT SPAR UPPER E 1
LH
-70 000-110013-27 . . CAP ASSY-FRONT SPAR UPPER D 1
LH
-75 000-110013-2 . . CAP ASSY-FRONT SPAR UPPER E 1
RH
-80 000-110013-28 . . CAP ASSY-FRONT SPAR UPPER D 1
RH
85 000-110013-9 . . . HINGE CAP-LH E 1
-90 000-110013-31 . . . HINGE CAP-LH D 1
-95 000-110013-10 . . . HINGE CAP-RH E 1
-100 000-110013-32 . . . HINGE CAP-RH D 1
105 000-110013-11 . . . TEE-LH FE 1
-110 000-110013-12 . . . TEE-RH FE 1
115 000-110250-1 . . . CONNECTOR-LH G 1
-120 000-110250-2 . . . CONNECTOR-RH G 1
-125 000-110087-1 . . . FITTING-LH F RF
-130 000-110087-2 . . . FITTING-RH F RF
-135 000-110013-7 . . . FILLER F RF
-140 NAS1486-14 . . . BOLT-LOCK FE 4
FOR SPARES ORDER:
2LS509-T06-14
-140 2LS509-T06-14 . . . BOLT-LOCK FE 4
NAS1486-14
-145 NAS1486-15 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-15
-145 2LS509-T06-15 . . . BOLT-LOCK FE 2
NAS1486-15
-150 NAS1486-16 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-16
-150 2LS509-T06-16 . . . BOLT-LOCK FE 2
NAS1486-16
-155 NAS1486-17 . . . BOLT-LOCK FE 4
FOR SPARES ORDER:
2LS509-T06-17
-155 2LS509-T06-17 . . . BOLT-LOCK FE 4
NAS1486-17
57-10-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-160 NAS1486-18 . . . BOLT-LOCK FE 6
FOR SPARES ORDER:
2LS509-T06-18
-160 2LS509-T06-18 . . . BOLT-LOCK FE 6
NAS1486-18
-165 NAS1486-19 . . . BOLT-LOCK FE 6
FOR SPARES ORDER:
2LS509-T06-19
-165 2LS509-T06-19 . . . BOLT-LOCK FE 6
NAS1486-19
-170 NAS1486-20 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-20
-170 2LS509-T06-20 . . . BOLT-LOCK FE 2
NAS1486-20
175 NAS1080-06 . . . COLLAR FE 26
-180 000-110013-3 . . CAP ASSY-FRONT SPAR LOWER E 1
LH
-185 000-110013-29 . . CAP ASSY-FRONT SPAR LOWER D 1
LH
-190 000-110013-4 . . CAP ASSY-FRONT SPAR LOWER E 1
RH
-195 000-110013-30 . . CAP ASSY-FRONT SPAR LOWER D 1
RH
200 000-110013-15 . . . HINGE CAP-LH E 1
-205 000-110013-33 . . . HINGE CAP-LH D 1
-210 000-110013-16 . . . HINGE CAP-RH E 1
-215 000-110013-34 . . . HINGE CAP-RH D 1
-220 MS21051-3 . . . NUTPLATE FE 4
225 000-110013-13 . . . TEE-LH FE 1
-230 000-110013-14 . . . TEE-RH FE 1
-235 35-110065-1 . . . FITTING-LH FE 1
-240 35-110065-2 . . . FITTING-RH FE 1
245 000-110088-1 . . . FITTING-LH FE 1
-250 000-110088-2 . . . FITTING-RH FE 1
-255 NAS1486-11 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-11
-255 2LS509-T06-11 . . . BOLT-LOCK FE 2
NAS1486-11
-260 NAS1486-12 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-12
-260 2LS509-T06-12 . . . BOLT-LOCK FE 2
NAS1486-12
-265 NAS1486-13 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-13

57-10-00-05
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-265 2LS509-T06-13 . . . BOLT-LOCK FE 2
NAS1486-13
-270 NAS1486-14 . . . BOLT-LOCK FE 2
FOR SPARES ORDER:
2LS509-T06-14
-270 2LS509-T06-14 . . . BOLT-LOCK FE 2
NAS1486-14
-275 NAS1486-15 . . . BOLT-LOCK FE 6
FOR SPARES ORDER:
2LS509-T06-15
-275 2LS509-T06-15 . . . BOLT-LOCK FE 6
NAS1486-15
-280 NAS1486-16 . . . BOLT-LOCK FE 8
FOR SPARES ORDER:
2LS509-T06-16
-280 2LS509-T06-16 . . . BOLT-LOCK FE 8
NAS1486-16
-285 NAS1486-17 . . . BOLT-LOCK FE 8
FOR SPARES ORDER:
2LS509-T06-17
-285 2LS509-T06-17 . . . BOLT-LOCK FE 8
NAS1486-17
-290 NAS1080-06 . . . COLLAR FE 30
INBOARD LH
INBOARD RH
305 000-110014-5 . . . WEB-LH FE 1
-310 000-110014-6 . . . WEB-RH FE 1
315 000-110014-7 . . . STIFFENER FE 1
320 000-110014-9 . . . STIFFENER FE 1
325 000-110011-9 . . SPACER FE 1
330 000-110011-11 . . SPACER FE 1
335 000-110010-39 . . STIFFENER-LH FE 1
-340 000-110010-40 . . STIFFENER-RH FE 1
345 000-110010-41 . . STIFFENER FE 1
350 000-110095-1 . . PLATE-TIE, UPPER FE 2
355 000-110095-3 . . PLATE-TIE, UPPER FE 2
360 000-110024-1 . . PLATE-TIE, LOWER FE 2
365 000-110024-3 . . PLATE-TIE, LOWER FE 2
370 000-110010-35 . . ANGLE-LH FE 1
-375 000-110010-36 . . ANGLE-RH FE 1
380 000-110010-37 . . SPACER FE 1
-385 MS35489-6 . . GROMMET FE 2
-390 HL18PB-6-5 . . PIN FE 4
-395 130909N31 . . NUT FE 4
400 000-110010-55 . . BRACKET FE 1
405 000-110190-1 . . ANGLE FE 1
CENTER LH
57-10-00-05
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
CENTER RH
420 000-110010-5 . . . WEB FE 1
425 000-110010-7 . . . STIFFENER FE 3
430 000-110010-9 . . . STIFFENER FE 2
435 000-110010-11 . . . STIFFENER FE 1
440 000-110010-51 . . . RING-REINFORCEMENT FE 3
-445 MS35489-6 . . . GROMMET FE 1
450 000-110010-53 . . REINFORCEMENT FE 2
-455 MS21061L4 . . NUTPLATE FE 2
460 000-110010-45 . . STIFFENER FE 1
-465 000-110011-13 . . WEB ASSY-FRONT SPAR LH FE 1
OUTBD
-470 000-110011-14 . . WEB ASSY-FRONT SPAR RH FE 1
OUTBD
475 000-110010-15 . . . WEB FE 1
480 000-110010-17 . . . STIFFENER FE 1
485 000-110010-19 . . . STIFFENER FE 1
490 000-110010-21 . . . STIFFENER FE 1
495 000-110010-23 . . . STIFFENER FE 1
500 000-110010-25 . . . STIFFENER FE 1
505 000-110011-15 . . . STIFFENER FE 1
510 000-110010-27 . . . STIFFENER FE 1
515 000-110011-17 . . . STIFFENER FE 1
520 000-110010-29 . . . STIFFENER FE 1
525 000-110011-19 . . . STIFFENER FE 1
535 000-110028-1 . . STIFFENER-LH FE 1
-540 000-110028-2 . . STIFFENER-RH FE 1
-545 MS21047L08 . . NUTPLATE FE 2
-550 NAS1080-06 . . COLLAR FE 68
-555 NAS1466-4 . . BOLT-LOCK FE 2
-560 NAS1466-4 . . BOLT-LOCK FE 2
-565 NAS1466-10 . . BOLT-LOCK FE 6
-570 NAS1466-12 . . BOLT-LOCK FE 48
-575 NAS1466-13 . . BOLT-LOCK FE 5
-580 000-110022-1 . . PLATE-LANDING GEAR FE 1
RETRACT
585 000-110022-3 . . . PLATE-BUSHING FE 1
590 35-115184 . . . BUSHING FE 1
595 MS15001-3 . . . FITTING-LUBE FE 1
ALTERNATE SPARE:
AS15001-3-C
AS15001-3-P
595 AS15001-3-C . . . FITTING-LUBE FE 1
ALTERNATE SPARE:
MS15001-3
AS15001-3-P
595 AS15001-3-P . . . FITTING-LUBE FE 1
ALTERNATE SPARE:
MS15001-3
AS15001-3-C
-600 000-110023-1 . . PLATE-LANDING GEAR ATTACH FE 1
605 000-110023-3 . . . PLATE-BUSHING FE 1
610 35-115215 . . . BUSHING FE 1
57-10-00-05
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
SWITCH
SWITCH LH
-625 000-361011-2 . BRACKET-LANDING GEAR FE 1
SWITCH RH
630 000-920010-1 . BRACKET-FUEL STRAINER FE 1
H0385-H1388,H1390-H1395 B
H0235-H0384 C
H1389-H1389,H1396-H9999 D
H0235-H1388,H1390-H1395 E
H0235-H1275 F
H1276-H9999 G
H0235-H9999 FE

57-10-00-05
PAGE 5
BARON MAY 01/19

57-10-00-06
WING REAR SPAR
57-10-00-06
BARON MAY 01/19
WING REAR SPAR

SHEET 1 OF 2
57-10-00-06
PAGE 0
MAY 01/19
WING REAR SPAR

SHEET 2 OF 2
57-10-00-06
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06 WING REAR SPAR

-15 95-110022-601 SPAR ASSY-REAR LH B RF
FOR NHA SEE:
57-20-00-09
-15 95-110022-611 SPAR ASSY-REAR LH A RF
FOR NHA SEE:
57-20-00-09
-20 95-110022-602 SPAR ASSY-REAR RH B RF
FOR NHA SEE:
57-20-00-09
-20 95-110022-612 SPAR ASSY-REAR RH A RF
FOR NHA SEE:
57-20-00-09
-25 95-110022-605 . WEB ASSY-LH FE 1
-30 95-110022-606 . WEB ASSY-RH FE 1
35 95-110022-11 . . WEB-LH SPAR INBOARD FE 1
-40 95-110022-12 . . WEB-RH SPAR INBOARD FE 1
45 95-110022-13 . . WEB-LH SPAR OUTBOARD FE 1
-50 95-110022-14 . . WEB-RH SPAR OUTBOARD FE 1
55 95-110022-65 . . REINFORCEMENT-LH FE 1
-60 95-110022-66 . . REINFORCEMENT-RH FE 1
65 95-110016-1 . FITTING-UPPER LH SPAR FE 1
-70 95-110016-2 . FITTING-UPPER RH SPAR FE 1
75 95-110017-1 . FITTING-LOWER LH SPAR FE 1
-80 95-110017-2 . FITTING-LOWER RH SPAR FE 1
-85 95-110019-1 . ADAPTER ASSY-LH DRAG LEG FE 1
HINGE POINT AFT
-90 95-110019-2 . ADAPTER ASSY-RH DRAG LEG FE 1
HINGE POINT AFT
95 95-110019-3 . . ADAPTER-LH FE 1
-100 95-110019-4 . . ADAPTER-RH FE 1
105 MS15001-4 . . FITTING-GREASE FE 1
110 35-115062 . . BUSHING FE 1
-120 95-110020-1 . ADAPTER ASSY-LH MAIN GEAR FE 1
HINGE POINT AFT
FOR SPARES ORDER:
95-110020-5
-120 95-110020-5 . ADAPTER ASSY-LH MAIN GEAR FE 1
HINGE POINT AFT
95-110020-1
-130 95-110020-2 . ADAPTER ASSY-RH MAIN GEAR FE 1
HINGE POINT AFT
FOR SPARES ORDER:
95-110020-6
-130 95-110020-6 . ADAPTER ASSY-RH MAIN GEAR FE 1
HINGE POINT AFT
95-110020-2
140 95-110020-3 . . ADAPTER-LH FE 1
FOR SPARES ORDER:
95-110020-7
140 95-110020-7 . . ADAPTER-LH FE 1
95-110020-3

57-10-00-06
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-150 95-110020-4 . . ADAPTER-RH FE 1
FOR SPARES ORDER:
95-110020-8
-150 95-110020-8 . . ADAPTER-RH FE 1
95-110020-4
155 45-115064 . . BUSHING FE 1
160 95-110022-3 . CAP-UPPER LH FE 1
-165 95-110022-4 . CAP-UPPER RH FE 1
170 95-110022-5 . CAP-LOWER LH FE 1
-175 95-110022-6 . CAP-LOWER RH FE 1
180 95-110022-7 . CAP-UPPER LH FE 1
-185 95-110022-8 . CAP-UPPER RH FE 1
190 95-110022-9 . CAP-LOWER LH FE 1
-195 95-110022-10 . CAP-LOWER RH FE 1
200 95-110022-17 . STRAP-LOWER FE 2
205 95-110022-19 . ANGLE-FORWARD FE 1
210 95-110022-21 . SPACER FE 1
215 95-110022-23 . ANGLE-AFT FE 1
220 95-110022-73 . STRAP-UPPER FE 2
225 95-110022-25 . ANGLE-LH FE 1
-230 95-110022-26 . ANGLE-RH FE 1
235 95-110022-27 . SPACER FE 1
240 95-110022-29 . ANGLE FE 1
245 95-110022-31 . ANGLE FE 1
250 95-110022-33 . ANGLE FE 1
255 95-110022-35 . ANGLE FE 1
260 95-110022-67 . ANGLE FE 1
265 45-115075-45 . ANGLE-LH FE 1
-270 SLS100T8-9 . STUMP RIVET FE 20
FOR SPARES ORDER:
NAS1080-08
-275 NAS1080-08 . COLLAR FE 20
LC-C8
-280 ALPPH-T8-12 . BOLT-HUCK FE 2
FOR SPARES ORDER
R3001-T08-12
-280 R3001-T08-12 . LOCKBOLT FE 2
ALPPH-T8-12
FOR SPARES ORDER
R3001-T08-11
-285 R3001-T08-11 . LOCKBOLT FE 10
ALPPH-T8-11
FOR SPARES ORDER:
NAS1080-08
-290 NAS1080-08 . COLLAR FE 12
LC-C8

57-10-00-06
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
FOR SPARES ORDER
R3001-T06-6
-295 R3001-T06-6 . LOCKBOLT FE 10
ALPPH-T6-6
305 95-110014-123 . ANGLE-STA 108 TRAILING FE 1
EDGE RIB LH
-310 95-110014-124 . ANGLE-STA 108 TRAILING FE 1
EDGE RIB RH
315 95-110014-125 . ANGLE-STA 55 TRAILING EDGE FE 1
RIB LH
-320 95-110014-126 . ANGLE-STA 55 TRAILING EDGE FE 1
RIB RH
RIB LH
RIB RH
RIB LH
RIB RH
345 95-110014-299 . ANGLE-STA 108 MAIN RIB LH FE 1
-350 95-110014-300 . ANGLE-STA 108 MAIN RIB RH FE 1
-375 95-110022-91 SHIM FE 1
-380 95-110022-93 SHIM FE 1
-385 95-110022-95 SHIM FE 1
-390 95-110022-97 SHIM FE 1
-395 95-110022-99 SHIM FE 1
-400 95-110022-101 SHIM FE 1
C1608-C9999,E0938-E0938,E0943-E9999 A
H0001-H9999 B
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

57-10-00-06
PAGE 3
BARON MAY 01/19

57-20-00-01
LEADING EDGE AND FRONT SPAR
57-20-00-01
BARON MAY 01/19

SHEET 1 OF 2
57-20-00-01
PAGE 0
MAY 01/19

SHEET 2 OF 2
57-20-00-01
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 LEADING EDGE AND FRONT SPAR

-5 000-110162-603 EDGE AND SPAR ASSY-LEADING, A 1
FRONT, LH
-10 000-110162-604 EDGE AND SPAR ASSY-LEADING, A 1
FRONT, RH
-15 000-110162-601 EDGE AND SPAR ASSY-LEADING, B 1
FRONT, LH
-20 000-110162-602 EDGE AND SPAR ASSY-LEADING, B 1
FRONT, RH
-25 000-110162-605 EDGE AND SPAR ASSY-LEADING, C 1
FRONT, LH
-30 000-110162-606 EDGE AND SPAR ASSY-LEADING, C 1
FRONT, RH
35 000-1100114-3 . SPAR ASSY-FRONT, LH WING N 1
-40 000-1140011-4 . FRONT SPAR ASSY-RH WING N 1
-45 000-110011-27 . SPAR ASSY-FRONT, LH G 1
FOR DETAILS SEE:
57-10-00-05
-50 000-110011-28 . SPAR ASSY-FRONT, RH G 1
FOR DETAILS SEE:
57-10-00-05
-55 000-110011-49 . SPAR ASSY-FRONT, LH H 1
FOR DETAILS SEE:
57-10-00-05
-60 000-110011-50 . SPAR ASSY-FRONT, RH H 1
FOR DETAILS SEE:
57-10-00-05
65 000-110105-603 . EDGE ASSY-INBOARD LEADING, LH A 1
FOR DETAILS SEE:
57-20-00-04
-70 000-110105-604 . EDGE ASSY-INBOARD LEADING, RH A 1
FOR DETAILS SEE:
57-20-00-04
-75 000-110105-601 . EDGE ASSY-INBOARD LEADING, LH B 1
FOR DETAILS SEE:
57-20-00-04
-80 000-110105-602 . EDGE ASSY-INBOARD LEADING, RH B 1
FOR DETAILS SEE:
57-20-00-04
-85 000-110105-605 . EDGE ASSY-INBOARD LEADING, LH C 1
FOR DETAILS SEE:
57-20-00-04
-90 000-110105-606 . EDGE ASSY-INBOARD LEADING, RH C 1
FOR DETAILS SEE:
57-20-00-04
-95 000-110107-3 . ZEE-LH FE 1
-100 000-110107-4 . ZEE-RH FE 1
-105 000-110107-7 . ANGLE-LH FE 1
-110 000-110107-8 . ANGLE-RH FE 1
-115 000-110117-3 . CLIP FE AR
-120 000-110157-1 . DOOR ASSY-FUEL CELL INTER FE 1
CONNECT
ATTACHING PARTS
125 MS27039-1-06 . SCREW FE 1
-------*-------
130 000-110157-3 . . DOOR FE 1
57-20-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-135 000-110157-5 . . HINGE-HALF FE 1
-140 000-110157-7 . . STIFFENER FE 1
-145 000-110161-7 . ANGLE FE 2
150 000-110165-1 . SUPPORT ASSY-LH FE 1
-155 000-110165-2 . SUPPORT ASSY-RH FE 1
-160 000-110168-1 . LINER ASSY-LH J 1
-165 000-110168-13 . LINER ASSY-LH K 1
-170 000-110168-2 . LINER ASSY-RH J 1
-175 000-110168-14 . LINER ASSY-RH K 1
-180 000-110169-1 . LINER-LH J 1
-185 000-110169-7 . LINER-LH K 1
-190 000-110169-2 . LINER-RH J 1
-195 000-110169-8 . LINER-RH K 1
-200 000-110170-1 . LINER ASSY-LH FE 1
-205 000-110170-2 . LINER ASSY-RH FE 1
-210 000-110171-3 . LINER ASSY-LH FE 1
-215 000-110171-4 . LINER ASSY-RH FE 1
-220 000-110166-1 . LINER-LH FE 1
-225 000-110166-3 . LINER-RH FE 1
-230 000-110167-1 . LINER-LH FE 1
-235 000-110167-5 . LINER-RH FE 1
240 000-110157-5 . HINGE-HALF FE 1
245 102361-00200 . PIN-REMOVABLE HINGE FE 1
-250 000-170030-1 . ANGLE-MAIN SPAR TIE FE 1
255 105774CZG17004 . WIRE-HINGE FE 2
-260 000-110016-1 . RIB-LH LEADING EDGE, L 1
W.S.122.50
-265 000-110016-3 . RIB-LH LEADING EDGE M 1
-270 000-110016-2 . RIB-RH LEADING EDGE, L 1
W.S.122.50
-275 000-110016-4 . RIB-RH LEADING EDGE M 1
280 000-110107-9 . ANGLE-LH LINER SUPPORT FE 1
LOWER
-285 000-110107-10 . ANGLE-LINER SUPPORT, UPPER FE 1
300 000-110115-19 . COVER ASSY-ACCESS, LH, FE 1
WITHOUT FUEL
-305 000-110115-20 . COVER ASSY-ACCESS, RH, FE 1
WITHOUT FUEL
-310 000-110115-23 . COVER ASSY-ACCESS, LH, D 1
WITH FUEL
-315 000-110187-1 . COVER ASSY-ACCESS, LH, E 1
WITH FUEL
-320 000-110115-24 . COVER ASSY-ACCESS, RH, D 1
WITH FUEL
-325 000-110187-2 . COVER ASSY-ACCESS, LH, E 1
WITH FUEL
-330 000-110132-11 . STRINGER-LH FE 1
-335 000-110132-12 . STRINGER-RH FE 1
-340 000-110132-13 . STRINGER-LH FE 1
-345 000-110132-14 . STRINGER-RH FE 1
-350 000-110135-29 . FORMER-LH UPPER FE 1
-355 000-110135-30 . FORMER-RH UPPER FE 1
-360 000-110135-31 . FORMER-LH LOWER FE 1
57-20-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-365 000-110135-32 . FORMER-RH LOWER FE 1
370 000-110175-3 . STRIP-STALL FE 1
375 000-110015-607 . EDGE ASSY-LEADING, LH OUTBD FE 1
WITHOUT FUEL
FOR DETAILS SEE:
57-20-00-08
-380 000-110015-608 . EDGE ASSY-LEADING, RH OUTBD A 1
WITHOUT FUEL
-385 000-110029-607 . EDGE ASSY-LEADING, LH OUTBD A 1
WITH FUEL
FOR DETAILS SEE:
57-20-00-06
-390 000-110029-608 . EDGE ASSY-LEADING, RH OUTBD A 1
WITH FUEL
-395 000-110015-609 . EDGE ASSY-LEADING, LH OUTBD B 1
WITHOUT FUEL
-400 000-110015-610 . EDGE ASSY-LEADING, RH OUTBD B 1
WITHOUT FUEL
-405 000-110029-603 . EDGE ASSY-LEADING, LH OUTBD B 1
WITH FUEL
-410 000-110029-604 . EDGE ASSY-LEADING, RH OUTBD B 1
WITH FUEL
-415 000-110015-611 . EDGE ASSY-LEADING, LH OUTBD C 1
WITHOUT FUEL
-420 000-110015-612 . EDGE ASSY-LEADING, RH OUTBD C 1
WITHOUT FUEL
-425 000-110029-605 . EDGE ASSY-LEADING, LH OUTBD C 1
WITH FUEL
-430 000-110029-606 . EDGE ASSY-LEADING, RH OUTBD C 1
WITH FUEL
435 AN525-8R12 . SCREW FE 12
-440 AN960-8 . WASHER FE 12
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-445 130909N28 . NUT FE 12
ALTERNATE SPARE:
MS27039-0809
450 MS27039-0809 . SCREW FE 2
ALTERNATE SPARE:
NAS220-9
455 NAS220-10 . SCREW FE 2
ALTERNATE SPARE:
MS27039-0810
455 MS27039-0810 . SCREW FE 2
ALTERNATE SPARE:
NAS220-10
-460 AN960-8 . WASHER FE 4
FOR SPARES ORDER:
NAS1149FN832P

57-20-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
AN960-8
-465 130909N28 . NUT FE 4
C1608-C9999 A
E0938-E0938,E0943-E9999 B
H0385-H9999 C
C1608-C1711,E0938-E0938,E0943-E0986,H0385-H0485 D
C1712-C9999,E0987-E9999,H0486-H9999 E
H0385-H1388,H1390-H1395 G
H1389-H1389,H1396-H9999 H
H0385-H0765,H0767-H0772 J
H0766-H0766,H0773-H9999 K
H0385-H0945 L
H0946-H9999 M
C1608-C9999,E0938-E0938,E0943-E9999 N
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H9999 FE

57-20-00-01
PAGE 4
BARON MAY 01/19
57-20-00-02
LEADING EDGE AND FRONT SPAR ASSY
57-20-00-02
BARON MAY 01/19
LEADING EDGE AND FRONT SPAR ASSY
57-20-00-02
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 LEADING EDGE AND FRONT SPAR ASSY

-5 58-100000-603 EDGE AND SPAR ASSY-LEADING, FE 1
FRONT, LH
-10 58-100000-604 EDGE AND SPAR ASSY-LEADING, FE 1
FRONT, RH
15 000-110011-5 . SPAR ASSY-LH FRONT FE 1
FOR SPARES ORDER:
95-110013-627
15 95-110013-627 . SPAR ASSY FE 1
000-110011-5
-20 000-110011-6 . SPAR ASSY-RH FRONT FE 1
FOR SPARES ORDER:
95-110013-628
FOR DETAILS SEE:
57-10-00-05
-20 95-110013-628 . SPAR ASSY FE 1
000-110011-6
25 58-100021-601 . EDGE ASSY-LEADING, LH FE 1
INBOARD
FOR DETAILS SEE:
57-10-00-03
-30 58-100021-602 . EDGE ASSY-LEADING, RH FE 1
INBOARD
FOR DETAILS SEE:
57-10-00-03
35 MS27039-1-06 . . SCREW FE 1
40 60-110014 . . DOOR ASSY-FUEL CELL FE 1
ACCESS
45 60-110014-3 . . . HINGE-HALF FE 1
50 58-100021-3 . . SKIN-LH INBD NOSE FE 1
-55 58-100021-4 . . SKIN-RH INBD NOSE FE 1
-60 96-110007-39 . . SKIN-LH OUTBD NOSE FE 1
-65 96-110007-40 . . SKIN-RH OUTBD NOSE FE 1
ATTACHING PARTS
70 AN509-8R8 . . SCREW FE 24
ALTERNATE SPARE:
MS24694-S5
70 MS24694-S5 . . SCREW FE 24
ALTERNATE SPARE:
AN509-8R8
-------*-------
75 50-110010-106 . . COVER-ACCESS FE 2
ATTACHING PARTS
-80 MS24695-26 . . SCREW FE 6
-------*-------
85 105774C-ZG18700 . PIN-HINGE FE 1
90 102361-0020 . PIN-HINGE FE 1
95 60-100022-603 . DOOR ASSY-LH ACCESS, FE 1
FUEL BOOST PUMP
-100 60-100022-604 . DOOR ASSY-LH ACCESS, FE 1
FUEL BOOST PUMP
105 96-100016-113 . DOOR ASSY-LH ACCESS, FE 1
FUEL PLUMBING

57-20-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-110 96-100016-114 . DOOR ASSY-RH ACCESS, FE 1
FUEL PLUMBING
ATTACHING PARTS
-115 MS24694S5 . SCREW FE 12
-------*-------
-120 000-110029-1 . EDGE ASSY-LEADING, OUTBD, FE 1
LH, WITH FUEL
-125 000-110029-2 . EDGE ASSY-LEADING, OUTBD, FE 1
RH, WITH FUEL
-130 000-110083-7 . HINGE-LEADING EDGE FE 1
H0001-H0384 FE

57-20-00-02
PAGE 2
BARON MAY 01/19
57-20-00-03
WING INBOARD LEADING EDGE
57-20-00-03
BARON MAY 01/19

SHEET 1 OF 5
57-20-00-03
PAGE 0
MAY 01/19

SHEET 2 OF 5
57-20-00-03
PAGE 0A
MAY 01/19

SHEET 3 OF 5
57-20-00-03
PAGE 0B
MAY 01/19

SHEET 4 OF 5
57-20-00-03
PAGE 0C
MAY 01/19

SHEET 5 OF 5
57-20-00-03
PAGE 0D
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 WING INBOARD LEADING EDGE

-5 58-100021-601 EDGE ASSY-LEADING, LH FE 1
INBOARD
-10 58-100021-602 EDGE ASSY-LEADING, RH FE 1
INBOARD
-15 96-100016-405 . LINER-LH, STA 23 TO 47 FE 1
-20 96-100016-406 . LINER-RH, STA 23 TO 47 FE 1
25 60-921011-1 . DOUBLER-LH FE 1
-30 60-921011-2 . DOUBLER-RH FE 1
35 96-100016-175 . DOUBLER-LH FE 1
-40 96-100016-176 . DOUBLER-RH FE 1
45 45-115004-57 . SPACER FE 2
50 45-115089-33 . CHANNEL ASSY FE 1
55 58-100021-3 . SKIN-LH FE 1
-60 58-100021-4 . SKIN-RH FE 1
65 58-100021-5 . SKIN-LH FE 1
-70 58-100021-6 . SKIN-RH FE 1
75 58-100021-7 . SKIN-LH FE 1
-80 58-100021-8 . SKIN-RH FE 1
85 96-100016-379 . CLIP FE 1
90 96-100016-381 . CLIP FE 1
95 58-100021-23 . SKIN-LH FE 1
-100 58-100021-24 . SKIN-RH FE 1
105 58-100021-39 . DOUBLER-LH FE 1
-110 58-100021-40 . DOUBLER-RH FE 1
115 96-100016-67 . ZEE-LH, STA 73 FE 1
-120 96-100016-68 . ZEE-RH, STA 73 FE 1
125 96-100016-603 . LINER-LH, STA 47 TO 113 FE 1
-130 96-100016-604 . LINER-RH, STA 47 TO 113 FE 1
135 96-100016-123 . LINER FE 1
-140 50-110081 . RETAINER FE 12
145 96-100016-121 . PAN-LH FE 1
-150 96-100016-122 . PAN-RH FE 1
155 96-100016-185 . FORMER-LH, STA 39 FE 1
-160 96-100016-186 . FORMER-RH, STA 39 FE 1
165 96-100016-189 . FORMER-LH, STA 47 FE 1
-170 96-100016-190 . FORMER-RH, STA 47 FE 1
175 96-100016-11 . DOUBLER-LH FE 1
-180 96-100016-12 . DOUBLER-RH FE 1
185 60-110014-601 . DOOR ASSY FE 1
190 60-110014-3 . . HINGE-HALF, DOOR FE 1
-195 60-110014-3 . HINGE-HALF, LEADING EDGE FE 1
-200 102361-00200 . PIN-HINGE FE 1
205 58-100021-41 . SHIM FE 1
210 96-100016-385 . FORMER-LH, STA 80 FE 1
-215 96-100016-386 . FORMER-RH, STA 80 FE 1
220 96-100016-119 . ANGLE-LH FE 1
-225 96-100016-120 . ANGLE-RH FE 1
230 96-100016-213 . RIB-LH FE 1
-235 96-100016-214 . RIB-RH FE 1
240 96-100016-215 . ZEE-LH FE 1
-245 96-100016-216 . ZEE-RH FE 1
250 96-100016-217 . ANGLE-LH FE 2
-255 96-100016-218 . ANGLE-RH FE 2
260 96-100016-219 . ANGLE-LH FE 2
-265 96-100016-220 . ANGLE-RH FE 2
57-20-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
270 96-100016-221 . ANGLE-LH FE 1
-275 96-100016-222 . ANGLE-RH FE 1
280 96-100016-223 . ANGLE-LH FE 1
-285 96-100016-224 . ANGLE-RH FE 1
290 96-100016-225 . TUBE ASSY-DRAIN FE 2
295 35-115028-11 . ANGLE FE 1
300 35-115028-9 . ANGLE FE 1
305 35-115431-9 . STRINGER-LH FE 1
-310 35-115431-10 . STRINGER-RH FE 1
315 95-110041-5 . STRINGER-LH FE 1
-320 95-110041-6 . STRINGER-RH FE 1
325 95-110041-11 . STRINGER-LH FE 1
-330 95-110041-12 . STRINGER-RH FE 1
335 35-115431-39 . ZEE-LH FE 1
-340 35-115431-40 . ZEE-RH FE 1
345 35-115431-29 . ZEE-LH FE 1
-350 35-115431-30 . ZEE-RH FE 1
-355 96-110007-627 . SPAR ASSY-LH FE 1
-360 96-110007-628 . SPAR ASSY-RH FE 1
365 96-110007-37 . . SPAR-LH FE 1
-370 96-110007-38 . . SPAR-RH FE 1
375 96-110007-65 . . SPAR-LH FE 1
-380 96-110007-66 . . SPAR-RH FE 1
385 96-110007-79 . SPLICE-LH FE 1
-390 96-110007-80 . SPLICE-RH FE 1
395 96-110007-55 . ANGLE-LH FE 1
-400 96-110007-56 . ANGLE-RH FE 1
405 35-115431-23 . ZEE-LH FE 1
-410 35-115431-24 . ZEE-RH FE 1
415 95-110041-15 . ZEE-LH FE 1
-420 95-110041-16 . ZEE-RH FE 1
425 95-110041-17 . ZEE-LH FE 1
-430 95-110041-18 . ZEE-RH FE 1
435 35-115431-117 . ZEE-LH FE 1
-440 35-115431-118 . ZEE-RH FE 1
445 35-115431-27 . ZEE-LH FE 1
-450 35-115431-28 . ZEE-RH FE 1
455 35-115431-33 . ZEE-LH FE 1
-460 35-115431-34 . ZEE-RH FE 1
465 95-110041-19 . ZEE-LH FE 1
-470 95-110041-20 . ZEE-RH FE 1
475 45-115053 . CLIP ASSY FE 2
-480 58-100021-609 . RIB ASSY-LH FE 1
-485 58-100021-610 . RIB ASSY-RH FE 1
490 58-100021-37 . . RIB-LH ROOT FE 1
-495 58-100021-38 . . RIB-RH ROOT FE 1
510 50-110046-8 . . ANGLE-LH FE 1
-515 50-110046-9 . . ANGLE-RH FE 1
520 35-115166-20 . . STRIP FE 1
-525 35-115166-14 . . DOOR FE 1
-530 35-115166-16 . . HINGE FE 2
-535 104215-00300 . . PIN-HINGE FE 1
540 50-110010-165 . . STIFFENER FE 1
57-20-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-545 60-110019-5 . . REINFORCEMENT-LH FE 1
555 50-110010-34 . SUPPORT-LH FE 2
-560 50-110010-36 . SUPPORT-RH FE 2
565 50-110010-50 . STRINGER-LH FE 1
-570 50-110010-51 . STRINGER-RH FE 1
575 50-110010-52 . STRINGER-LH FE 1
-580 50-110010-53 . STRINGER-RH FE 1
585 96-100016-97 . STRINGER-LH FE 1
-590 96-100016-98 . STRINGER-RH FE 1
-595 50-110010-131 . REINFORCEMENT-RH FE 1
600 96-100016-53 . FORMER-LH FE 1
605 96-100016-55 . FORMER-LH FE 1
-610 96-100016-56 . FORMER-RH FE 1
615 35-115431-7 . STRINGER-LH FE 1
-620 35-115431-8 . STRINGER-RH FE 1
625 96-100016-59 . FORMER-LH FE 1
-630 96-100016-60 . FORMER-RH FE 1
635 96-100016-63 . FORMER-LH FE 1
-640 96-100016-64 . FORMER-RH FE 1
645 96-100016-65 . FORMER-LH FE 1
-650 96-100016-66 . FORMER-RH FE 1
655 95-110015-25 . FORMER-LH FE 1
-660 95-110015-26 . FORMER-RH FE 1
665 95-110015-27 . FORMER-LH FE 1
-670 95-110015-28 . FORMER-RH FE 1
675 95-110015-29 . FORMER-LH FE 1
-680 95-110015-30 . FORMER-RH FE 1
685 95-110015-31 . FORMER-LH FE 1
-690 95-110015-37 . FORMER-RH FE 1
-695 96-100016-99 . FORMER-RH FE 1
700 96-110007-77 . DOUBLER-LH FE 1
-705 96-110007-78 . DOUBLER-RH FE 1
710 96-110007-75 . DOUBLER-LH FE 1
-715 96-110007-76 . DOUBLER-RH FE 1
720 96-100016-51 . DOUBLER-LH FE 1
-725 96-100016-52 . DOUBLER-RH FE 1
730 50-110046-10 . ANGLE-LH FE 1
-735 50-110046-11 . ANGLE-RH FE 1
740 96-110007-35 . SPLICE-LH FE 1
-745 96-110007-36 . SPLICE-RH FE 1
750 96-110007-39 . SKIN-LH FE 1
-755 96-110007-40 . SKIN-RH FE 1
760 50-110056 . GUSSET-LH FE 1
-765 50-110056-1 . GUSSET-RH FE 1
770 60-110013-3 . GUSSET-LH FE 1
-775 60-110013-4 . GUSSET-RH FE 1
780 96-100016-19 . LINER-LH FE 1
-785 96-100016-20 . LINER-RH FE 1
790 35-115212 . CLIP FE 12
-795 35-115212-1 . CLIP FE 12
800 95-110018 . DOOR ASSY FE 1
FOR SPARES ORDER:
35-115431-173

57-20-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
800 35-115431-173 . DOOR ASSY FE 1
95-110018
805 35-115166-4 . ANGLE-LH FE 1
-810 35-115166-5 . ANGLE-RH FE 1
-815 35-115213 . CLIP-LH FE 1
-820 35-115213-1 . CLIP-RH FE 1
-825 35-115214 . CLIP FE 1
830 35-115433-45 . ZEE-LH FE 1
-835 35-115433-46 . ZEE-RH FE 1
840 95-980001-201 . ANGLE-LH FE 1
-845 95-980001-202 . ANGLE-RH FE 1
850 95-980001-205 . ANGLE-LH FE 1
-855 95-980001-206 . ANGLE-RH FE 1
-860 95-980001-169 . CLIP FE 1
865 95-980001-155 . TIE-LH NOSE FE 1
-870 95-980001-156 . TIE-RH NOSE FE 1
875 95-980001-181 . CLIP FE 1
880 95-980001-199 . CLIP FE 1
885 96-980001-59 . TIE-LH NOSE FE 1
-890 96-980001-60 . TIE-RH NOSE FE 1
-895 35-115431-621 . DOUBLER ASSY-LH, 142 GAL. FE 1
SYSTEM
-900 35-115431-622 . DOUBLER ASSY-RH, 142 GAL. FE 1
SYSTEM
905 50-110010-161 . . DOUBLER-LH FE 1
-910 50-110010-162 . . DOUBLER-RH FE 1
915 96-110007-47 . FORMER-LH FE 1
-920 96-110007-48 . FORMER-RH FE 1
925 35-115431-109 . HINGE-LH FE 1
-930 35-115431-110 . HINGE-RH FE 1
935 50-110010-163 . DOOR FE 1
940 96-100016-3 . FORMER-LH, 168 GAL. SYSTEM FE 1
-945 96-100016-4 . FORMER-RH, 168 GAL. SYSTEM FE 1
950 96-100016-275 . STRINGER-LH, 168 GAL. FE 1
SYSTEM
-955 96-100016-276 . STRINGER-RH, 168 GAL. FE 1
SYSTEM
960 96-100016-263 . STRINGER-LH, 168 GAL. FE 1
SYSTEM
-965 96-100016-264 . STRINGER-RH, 168 GAL. FE 1
SYSTEM
970 96-100016-377 . HINGE-LH, 168 GAL. SYSTEM FE 1
-975 96-100016-378 . HINGE-RH, 168 GAL. SYSTEM FE 1
-980 60-100022-603 DOOR ASSY-FUEL BOOST PUMP FE 1
ACCESS, LH
-985 60-100022-604 DOOR ASSY-FUEL BOOST PUMP FE 1
ACCESS, RH
H0001-H0384 FE

57-20-00-03
PAGE 4
BARON MAY 01/19
57-20-00-04
57-20-00-04
BARON MAY 01/19

SHEET 1 OF 4
57-20-00-04
PAGE 0
MAY 01/19

SHEET 2 OF 4
57-20-00-04
PAGE 0A
MAY 01/19

SHEET 3 OF 4
57-20-00-04
PAGE 0B
MAY 01/19

SHEET 4 OF 4
57-20-00-04
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 WING INBOARD LEADING EDGE

-5 000-110105-603 EDGE ASSY-LEADING, LH INBD B RF
FOR NHA SEE:
57-10-00-01
-5 000-110105-601 EDGE ASSY-LEADING, LH INBD C RF
FOR NHA SEE:
57-10-00-01
-5 000-110105-99 EDGE ASSY-LEADING, LH INBD D RF
FOR NHA SEE:
57-10-00-01
-10 000-110105-604 EDGE ASSY-LEADING, RH INBD B RF
FOR NHA SEE:
57-10-00-01
-10 000-110105-602 EDGE ASSY-LEADING, RH INBD C RF
FOR NHA SEE:
57-10-00-01
-10 000-110105-100 EDGE ASSY-LEADING, RH INBD D RF
FOR NHA SEE:
57-10-00-01
-35 000-110105-23 . PANEL ASSY-SKIN UPPER LH FE 1
-40 000-110105-24 . PANEL ASSY-SKIN UPPER RH FE 1
45 000-110109-9 . . SKIN-LH UPPER FE 1
-50 000-110109-11 . . SKIN-RH UPPER FE 1
70 000-110109-13 . SKIN-LH FE 1
75 000-110159-1 . SKIN-LH G 1
-80 000-110159-3 . SKIN-LH H 1
-85 000-110109-14 . SKIN-RH FE 1
-90 000-110159-2 . SKIN-RH G 1
-95 000-110159-4 . SKIN-RH H 1
ATTACHING PARTS
100 MS24694S5 . SCREW FE 33
-------*-------
-105 000-110105-51 . SPLICE-LH FE 1
-110 000-110105-52 . SPLICE-RH FE 1
115 000-110106-1 . RIB ASSY-LH E 1
-120 000-110106-43 . RIB ASSY-LH F 1
-125 000-110106-2 . RIB ASSY-RH E 1
-130 000-110106-44 . RIB ASSY-RH F 1
-135 000-110106-5 . . RIB-LH FE 1
-140 000-110106-6 . . RIB-RH FE 1
-145 000-110106-7 . . CHANNEL-LH FE 1
-150 000-110106-9 . . CHANNEL-RH FE 1
-155 000-110106-11 . . STIFFENER FE 1
-160 000-110106-15 . . ANGLE-LH FE 1
-165 000-110106-16 . . ANGLE-RH FE 1
-170 000-110106-19 . . ANGLE-LH FE 1
-175 000-110106-20 . . ANGLE-RH FE 1
180 000-110105-81 . ANGLE-PLUMBING SUPPORT FE 1
-185 000-110111-1 . GUSSET-LH UPPER FE 1
-190 000-110111-2 . GUSSET-RH UPPER FE 1
195 000-110135-1 . FORMER-LH UPPER FE 1
57-20-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
215 000-110116-1 . SPAR ASSY-LH FE 1
-220 000-110116-2 . SPAR ASSY-RH FE 1
-225 000-110116-3 . . SPAR-LH FE 1
-230 000-110116-4 . . SPAR-RH FE 1
-235 000-110116-5 . . SPAR-LH FE 1
-240 000-110116-6 . . SPAR-RH FE 1
-245 000-110116-7 . . SPLICE-LH FE 1
-250 000-110116-8 . . SPLICE-RH FE 1
255 000-110114-1 . COVER ASSY-LH FE 1
-260 000-110114-2 . COVER ASSY-RH FE 1
ATTACHING PARTS
265 MS24694S5 . SCREW FE 16
-------*-------
-270 000-110114-3 . . COVER-LH FE 1
-275 000-110114-4 . . COVER-RH FE 1
-280 000-110114-5 . . ANGLE FE 1
285 000-110135-11 . FORMER-LH FE 1
-290 000-110135-12 . FORMER-RH FE 1
295 000-110135-15 . FORMER-LH FE 1
-300 000-110135-16 . FORMER-RH FE 1
-305 000-110158-1 . CLIP FE 1
-310 000-110158-2 . CLIP FE 1
-315 000-110142-1 . CLIP FE 1
-320 000-110142-2 . CLIP FE 1
-335 000-110117-1 . CLIP FE 12
-340 000-110117-2 . CLIP FE 12
355 000-110154-1 . REINFORCEMENT-LH FE 1
-365 000-110143-1 . CLIP FE 1
-370 000-110144-1 . CLIP FE 1
385 000-110105-57 . SKIN-LH FE 1
-390 000-110105-58 . SKIN-RH FE 1
395 000-110132-3 . STRINGER-LH FE 1
-400 000-110132-4 . STRINGER-RH FE 1
405 000-110136-5 . FORMER-LH FE 1
-410 000-110136-6 . FORMER-RH FE 1
425 000-110115-1 . REINFORCEMENT FE 1
-430 000-110155-1 . SUPPORT ASSY-LH FUEL CELL FE 1
-435 000-110155-2 . SUPPORT ASSY-RH FUEL CELL FE 1
440 000-110155-3 . . LINER-LH FE 1
-445 000-110155-4 . . LINER-RH FE 1
-450 000-110155-5 . . ANGLE FE 1
-455 330865 . . GROMMET FE 1
470 000-110083-5 . HINGE LEAF-LH FE 1
57-20-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
475 000-110107-5 . ANGLE FE 1
-480 000-110105-69 . GUSSET-LH AND RH, 2 1/2 PCT FE 1
SPAR
-485 000-110117-3 . CLIP FE 1
490 000-110132-9 . STRINGER-LH FE 1
-495 000-110132-10 . STRINGER-RH FE 1
500 000-110107-13 . RIB ASSY-LH, OPT FUEL, 168 GAL. FE 1
-505 000-110107-15 . RIB ASSY-LH, STD FUEL, 142 GAL. FE 1
-510 000-110107-14 . RIB ASSY-RH, OPT FUEL, 168 GAL. FE 1
-515 000-110107-16 . RIB ASSY-RH, STD FUEL, 142 GAL. FE 1
-520 000-110105-63 . REINFORCEMENT FE 1
-525 000-110105-65 . REINFORCEMENT-W.S. 23.8 FE 1
530 000-110112-1 . GUSSET-LH E 1
-535 000-110186-1 . GUSSET-LH J 1
-540 000-110186-3 . GUSSET-LH K 1
-545 000-110112-2 . GUSSET-RH E 1
-550 000-110186-2 . GUSSET-RH J 1
-555 000-110186-4 . GUSSET-RH K 1
560 000-110083-7 . HINGE FE 1
565 000-110135-5 . FORMER-LH E 1
-570 000-110135-33 . FORMER-LH F 1
-575 000-110135-6 . FORMER-RH E 1
-580 000-110135-34 . FORMER-RH F 1
585 000-110135-9 . FORMER-LH FE 1
-590 000-110135-10 . FORMER-RH FE 1
-595 000-110105-25 . PANEL ASSY-LH L 1
-600 000-110105-103 . PANEL ASSY-LH M 1
-605 000-110105-26 . PANEL ASSY-RH L 1
-610 000-110105-104 . PANEL ASSY-RH M 1
625 000-110109-7 . SKIN-LH E 1
-630 000-110109-21 . SKIN-LH F 1
-635 000-110109-8 . SKIN-RH E 1
-640 000-110109-22 . SKIN-RH F 1
-645 000-110240-11 . DOOR ASSY-ACCESS, FE 1
FUEL BOOST PUMP
650 95-110040-1 . SUPPORT FE 3
655 95-110040-3 . CLAMP FE 3
ATTACHING PARTS
660 MS35206 . SCREW FE 9
-665 AN960-8 . WASHER FE 9
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-------*-------
670 000-110135-13 . FORMER-LH LOWER FE 1
-675 000-110135-14 . FORMER-RH LOWER FE 1
680 000-110135-17 . FORMER-LH FE 1
-685 000-110135-18 . FORMER-RH FE 1
690 000-110135-21 . FORMER-LH FE 1
-695 000-110135-22 . FORMER-RH FE 1
700 000-110145-1 . ANGLE-LH FE 1
57-20-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-705 000-110145-2 . ANGLE-RH FE 1
710 000-110135-25 . FORMER-LH FE 1
-715 000-110135-26 . FORMER-RH FE 1
-720 000-110105-53 . ANGLE-WING COVER SUPPORT FE 1
725 000-110136-1 . STIFFENER-LH FE 1
-730 000-110136-2 . STIFFENER-RH FE 1
745 000-110105-83 . COVER-LANDING GEAR BOLT, FE 1
ACCESS
ATTACHING PARTS
750 MS24694S5 . SCREW FE 6
755 AN525-10R8 . SCREW FE 2
-------*-------
-760 000-110160-1 . REINFORCEMENT FE 1
765 000-110135-27 . FORMER-LH FE 1
-770 000-110135-28 . FORMER-RH FE 1
775 000-110146-1 . ANGLE-LH FE 1
-780 000-110146-2 . ANGLE-RH FE 1
785 000-110136-3 . STIFFENER-LH FE 1
-790 000-110136-4 . STIFFENER-RH FE 1
795 000-110136-7 . STIFFENER-LH FE 1
-800 000-110136-8 . STIFFENER-RH FE 1
-805 MS35489-11 . GROMMET FE 1
820 000-110136-9 . STIFFENER-LH FE 1
-825 000-110136-10 . STIFFENER-RH FE 1
-830 000-110141-1 . TIE-NOSE LH FE 1
-835 000-110141-2 . TIE-NOSE RH FE 1
855 000-110105-75 . COVER-ACCESS FE 1
ATTACHING PARTS
860 MS27039-0808 . SCREW FE 8
-865 130290-3 . NUT-CLIP FE 8
-------*-------
C1608-C9999 B
E0938-E0938,E0943-E9999 C
H0385-H9999 D
C1608-C1969,C1971-C2002,E0938-E0938,E0943-E1080, E
E1082-E9999,H0385-H0765,H0767-H0772
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, F
H0766-H0766,H0773-H9999
C1608-C1886,E0938-E0938,E0943-E1052,H0385-H0639 G
C1887-C9999,E1053-E9999,H0640-H9999 H
C1970-C1970,C2003-C2035,E1081-E1081,E1084-E1094, J
H0766-H0766,H0773-H0801
C2036-C9999,E1095-E9999,H0802-H9999 K
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H0765, L
H0767-H0772
H0766-H0766,H0773-H9999 M
57-20-00-04
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
(CONTINUED)
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H9999 FE

57-20-00-04
PAGE 5
BARON MAY 01/19

57-20-00-05
WING OUTBOARD LEADING EDGE
57-20-00-05
BARON MAY 01/19

SHEET 1 OF 2
57-20-00-05
PAGE 0
MAY 01/19

SHEET 2 OF 2
57-20-00-05
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05 WING OUTBOARD LEADING EDGE

-5 58-100021-605 EDGE ASSY-LEADING, OUTBOARD FE 1
LH, 168 GAL. SYSTEM
-10 58-100021-606 EDGE ASSY-LEADING, OUTBOARD FE 1
RH, 168 GAL. SYSTEM
15 96-100016-281 . STRINGER-LH FE 1
-20 96-100016-282 . STRINGER-RH FE 1
25 96-100016-279 . STRINGER-LH FE 1
-30 96-100016-280 . STRINGER-RH FE 1
35 96-100016-277 . STRINGER-LH FE 1
-40 96-100016-278 . STRINGER-RH FE 1
45 96-100016-319 . CLIP-LH FE 1
-50 96-100016-320 . CLIP-RH FE 1
55 96-100016-265 . ZEE-LH FE 1
-60 96-100016-266 . ZEE-RH FE 1
65 96-100016-267 . STRINGER-LH FE 1
-70 96-100016-268 . STRINGER-RH FE 1
75 96-100016-269 . STRINGER-LH FE 1
-80 96-100016-270 . STRINGER-RH FE 1
85 96-100016-635 . DOUBLER ASSY-LH FE 1
-90 96-100016-636 . DOUBLER ASSY-RH FE 1
95 96-100016-271 . ZEE-LH FE 1
-100 96-100016-272 . ZEE-RH FE 1
105 96-100016-329 . ANGLE FE 1
110 96-100016-273 . STRINGER-LH FE 1
-115 96-100016-274 . STRINGER-RH FE 1
120 96-100016-297 . ANGLE FE 1
125 96-100016-295 . ANGLE FE 1
130 96-100016-633 . RIB ASSY-LH FE 1
-135 96-100016-634 . RIB ASSY-RH FE 1
140 96-100016-305 . DOOR ASSY FE 1
145 96-100016-311 . DOOR ASSY FE 1
150 96-100016-231 . FORMER-LOWER, LH FE 1
-155 96-100016-232 . FORMER-LOWER, RH FE 1
160 96-100016-327 . BRACKET FE 1
165 96-100016-233 . FORMER-UPPER, LH FE 1
-170 96-100016-234 . FORMER-UPPER, RH FE 1
175 96-100016-637 . DOUBLER ASSY-LH FE 1
-180 96-100016-638 . DOUBLER ASSY-RH FE 1
185 96-100016-289 . WEB-LH FE 1
-190 96-100016-290 . WEB-RH FE 1
195 58-100021-9 . SKIN-LH OUTBOARD LEADING FE 1
EDGE
-200 58-100021-10 . SKIN-RH OUTBOARD LEADING FE 1
EDGE
205 96-100016-313 . DOUBLER-LH BRACKET FE 1
210 96-100016-325 . CLIP FE 3
215 96-100016-351 . FORMER-LH FE 1
220 96-100016-293 . LINER-WEB FE 1
225 96-100016-317 . CLIP-LH FE 2
-230 96-100016-318 . CLIP-RH FE 2
235 96-100016-291 . LINER-LH WEB FE 1
-240 96-100016-292 . LINER-RH WEB FE 1
245 96-100016-285 . STRINGER-LH FE 1
-250 96-100016-286 . STRINGER-RH FE 1
255 96-100016-323 . CLIP-LH FE 16
57-20-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-260 96-100016-321 . CLIP-RH FE 16
265 58-100021-33 . DOUBLER-LH FE 1
-270 58-100021-34 . DOUBLER-RH FE 1
275 96-100016-283 . STRINGER-LH FE 1
-280 96-100016-284 . STRINGER-RH FE 1
285 96-100016-241 . ZEE-LH FE 1
-290 96-100016-242 . ZEE-RH FE 1
295 96-100016-237 . ZEE-LH FE 1
-300 96-100016-238 . ZEE-RH FE 1
305 96-100016-235 . ZEE-LH FE 1
-310 96-100016-236 . ZEE-RH FE 1
315 96-100016-375 . HINGE-UPPER LH FE 1
-320 96-100016-376 . HINGE-UPPER RH FE 1
325 96-100016-361 . HINGE-LOWER LH FE 1
-330 96-100016-362 . HINGE-LOWER RH FE 1
335 96-100016-251 . ZEE-LH FE 1
-340 96-100016-252 . ZEE-RH FE 1
345 96-100016-249 . ZEE-LH FE 1
-350 96-100016-250 . ZEE-RH FE 1
355 96-100016-245 . ZEE-LH FE 1
-360 96-100016-246 . ZEE-RH FE 1
365 96-100016-247 . ZEE-LH FE 1
-370 96-100016-248 . ZEE-RH FE 1
375 96-100016-243 . ZEE-LH FE 1
-380 96-100016-244 . ZEE-RH FE 1
385 96-100016-239 . ZEE-LH FE 1
-390 96-100016-240 . ZEE-RH FE 1
395 96-100016-287 . LINER-LH FE 1
-400 96-100016-288 . LINER-RH FE 1
405 96-100016-369 . CLIP-LH FE 1
-410 96-100016-370 . CLIP-RH FE 1
415 96-100016-371 . CLIP-LH FE 2
-420 96-100016-372 . CLIP-RH FE 2
425 96-100016-363 . ANGLE-LH FE 1
-430 96-100016-364 . ANGLE-RH FE 1
435 96-100016-365 . SPLICE-LH FE 1
-440 96-100016-366 . SPLICE-RH FE 1
H0001-H0384 FE

57-20-00-05
PAGE 2
BARON MAY 01/19
57-20-00-06
WING OUTBOARD LEADING EDGE, WITH FUEL
57-20-00-06
BARON MAY 01/19
WING OUTBOARD LEADING EDGE, WITH FUEL
57-20-00-06
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06 WING OUTBOARD LEADING EDGE, WITH FUEL

-5 000-110029-1 EDGE ASSY-LEADING, OUTBD, F RF
LH, WITH FUEL
-5 000-110029-59 EDGE ASSY-LEADING, OUTBD, G RF
LH, WITH FUEL
-10 000-110029-2 EDGE ASSY-LEADING, OUTBD, F RF
RH, WITH FUEL
-10 000-110029-60 EDGE ASSY-LEADING, OUTBD, G RF
RH, WITH FUEL
35 000-110029-5 . FORMER-UPPER LH, FE 1
STA 136.188
-40 000-110029-6 . FORMER-UPPER RH, FE 1
STA 136.188
STA 148.875
STA 148.875
STA 162.563
STA 162.563
STA 175.281
STA 175.281
STA 183.130
STA 183.130
85 000-110096-1 . RIB-LH, STA 191.00 G 1
85 000-110096-3 . RIB ASSY-LH, STA 191.00 F 1
-90 000-110096-2 . RIB-RH, STA 191.00 G 1
-90 000-110096-4 . RIB ASSY-RH, STA 191.00 F 1
95 000-110029-47 . ANGLE-RIB FE 1
100 000-110083-3 . HINGE FE 2
105 000-110029-17 . STRINGER-LOWER LH FE 1
-110 000-110029-18 . STRINGER-LOWER RH FE 1
115 000-110029-19 . STRINGER-UPPER LH FE 1
-120 000-110029-20 . STRINGER-UPPER RH FE 1
125 000-110029-15 . SPAR-OUTBOARD LEADING EDGE FE 1
LH
-130 000-110029-55 . SPAR-OUTBOARD LEADING EDGE FE 1
RH
135 000-110029-25 . FORMER-LOWER LH, FE 1
STA 175.281
-140 000-110029-26 . FORMER-LOWER RH, FE 1
STA 175.281
STA 162.563
STA 162.563
STA 148.875
STA 148.875

57-20-00-06
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
STA 136.188
STA 136.188
175 000-110029-33 . ANGLE-LINER SUPPORT FE 2
-180 000-110029-21 . REINFORCEMENT ASSY-LH FE 1
-185 000-110029-22 . REINFORCEMENT ASSY-RH FE 1
190 000-110029-41 . . REINFORCEMENT-INBD LINER FE 1
DOOR ACCESS LH
-195 000-110029-42 . . REINFORCEMENT-INBD LINER FE 1
DOOR ACCESS RH
-205 MS21059L08K . . NUTPLATE FE 13
210 000-110029-57 . DOOR-LINER ACCESS FE 1
ATTACHING PARTS
-215 MS24694-S5 . SCREW FE 20
-------*-------
-220 000-110029-43 . REINFORCEMENT ASSY-LH J 1
-220 000-110029-107 . REINFORCEMENT ASSY-LH K 1
-225 000-110029-44 . REINFORCEMENT ASSY-RH J 1
-225 000-110029-108 . REINFORCEMENT ASSY-RH K 1
230 000-110029-45 . . REINFORCEMENT-OUTBD LINER FE 1
DOOR ACCESS LH
-235 000-110029-46 . . REINFORCEMENT-OUTBD LINER FE 1
DOOR ACCESS RH
-245 MS21059L08K . . NUTPLATE J 13
-245 NAS1773C08M . . NUTPLATE K 13
-250 000-110029-49 . DOOR ASSY-LINER ACCESS FE 1
ATTACHING PARTS
-255 MS24694-S5 . SCREW J 20
-255 MS24694-C5 . SCREW K 20
-------*-------
260 000-110029-35 . . DOOR FE 1
265 000-110029-23 . . PAN-DOOR SUPPORT FE 1
-272 MS21059L08 . NUTPLATE J 5
-272 NAS1773C08M . NUTPLATE K 5
-277 MS21071L08 . NUTPLATE J 2
-277 MS21072L08 . NUTPLATE K 2
-280 MS35489-4 . GROMMET FE 1
285 000-110029-51 . HAT SECTION-LH FE 1
290 000-110029-37 . DOUBLER-LH FE 1
295 000-110029-39 . DOUBLER-LH FE 1
300 000-110029-3 . SKIN-LH OUTBOARD LEADING F 1
EDGE
300 000-110029-67 . SKIN-LH OUTBOARD LEADING G 1
EDGE
-305 000-110029-53 . SKIN-RH OUTBOARD LEADING F 1
EDGE
-305 000-110029-69 . SKIN-RH OUTBOARD LEADING G 1
EDGE
C1608-C1915,E0938-E0938,E0943-E1070 F
C1916-C9999,E1071-E9999,H0385-H9999 G
57-20-00-06
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
(CONTINUED)
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H1912 J
H1913-H9999 K
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H9999 FE

57-20-00-06
PAGE 3
BARON MAY 01/19

57-20-00-07
57-20-00-07
BARON MAY 01/19
57-20-00-07
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

-5 58-100021-603 EDGE ASSY-OUTBD LH, FE 1
142 GAL. SYSTEM
-10 58-100021-604 EDGE ASSY-OUTBD RH, FE 1
142 GAL. SYSTEM
15 35-115035 . RIB ASSY-LH, STA 175 FE 1
-20 35-115035-1 . RIB ASSY-RH, STA 175 FE 1
25 35-115034 . RIB ASSY-LH, STA 191 FE 1
-30 35-115034-1 . RIB ASSY-RH, STA 191 FE 1
35 35-115036-8 . RIB ASSY-LH, STA 162 FE 1
-40 35-115036-9 . RIB ASSY-RH, STA 162 FE 1
45 35-115038-8 . RIB ASSY-LH, STA 148 FE 1
-50 35-115038-9 . RIB ASSY-RH, STA 148 FE 1
55 35-115037-8 . RIB ASSY-LH, STA 136 FE 1
-60 35-115037-9 . RIB ASSY-RH, STA 136 FE 1
65 35-115046 . RIB ASSY-LH, STA 122 FE 1
-70 35-115046-1 . RIB ASSY-RH, STA 122 FE 1
75 96-110007-3 . STRINGER-LH FE 1
-80 96-110007-4 . STRINGER-RH FE 1
85 95-110041-13 . ANGLE-LH STRINGER SPLICE FE 1
-90 95-110041-14 . ANGLE-RH STRINGER SPLICE FE 1
95 50-110010-48 . SPLICE-LH FE 1
-100 50-110010-49 . SPLICE-RH FE 1
105 35-361151 . DOUBLER ASSY-PITOT MAST FE 1
120 35-115431-107 . SKIN-LEADING EDGE LH FE 1
-125 35-115431-108 . SKIN-LEADING EDGE RH FE 1
130 35-115431-113 . HINGE-UPPER LH FE 1
-135 35-115431-114 . HINGE-UPPER RH FE 1
140 35-115431-115 . HINGE-LOWER LH FE 1
-145 35-115431-116 . HINGE-LOWER RH FE 1
-150 157-7 DETECTOR-LIFT, WITHOUT BOOTS FE 1
-155 151-6 DETECTOR-LIFT, WITH BOOTS FE 1
-160 151-101-3 . PLATE-MOUNTING, WITHOUT FE 1
BOOTS
H0001-H0384 FE

57-20-00-07
PAGE 1
BARON MAY 01/19

57-20-00-08
57-20-00-08
BARON MAY 01/19
57-20-00-08
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

-5 000-110015-607 EDGE ASSY-OUTBOARD LEADING, B 1
LH
-10 000-110015-608 EDGE ASSY-OUTBOARD LEADING, B 1
RH
-15 000-110015-609 EDGE ASSY-OUTBOARD LEADING, C 1
LH
-20 000-110015-610 EDGE ASSY-OUTBOARD LEADING, C 1
RH
-25 000-110015-611 EDGE ASSY-OUTBOARD LEADING, D 1
LH
-30 000-110015-612 EDGE ASSY-OUTBOARD LEADING, D 1
RH
35 000-110015-7 . STRINGER-LH FE 1
-40 000-110015-8 . STRINGER-RH FE 1
45 000-110015-9 . STRINGER-LH FE 1
-50 000-110015-10 . STRINGER-RH FE 1
55 000-110017-1 . RIB-LH FE 1
-60 000-110017-2 . RIB-RH FE 1
65 000-110018-1 . RIB-LH FE 1
-70 000-110018-2 . RIB-RH FE 1
75 DELETED . DELETED FE
80 000-110019-1 . RIB-LH FE 1
-85 000-110019-2 . RIB-RH FE 1
90 000-110020-1 . RIB-LH FE 1
-95 000-110020-2 . RIB-RH FE 1
-100 000-110096-3 . RIB ASSY-LH FE 1
-101 000-110096-4 . RIB ASSY-RH FE 1
103 000-110096-1 . . RIB-LH FE 1
-104 000-110096-2 . . RIB-RH FE 1
-106 MS21062L08K . . NUT FE 2
-108 MS21060L08K . . NUT FE 6
110 000-110025-1 . REINFORCEMENT ASSY-PITOT FE 1
MAST MOUNTAIN
115 000-110083-3 . HINGE FE 2
-120 000-110029-39 . DOUBLER-LH STALL WARNING FE 1
SWITCH
-125 000-110027-1 . REINFORCEMENT ASSY FE 1
130 000-110026-1 . COVER-PITOT MAST MOUNTING FE 1
ATTACHING PARTS
135 MS24694S5 . SCREW FE 4
-------*-------
140 000-110015-5 . SKIN-LH FE 1
-145 000-110015-11 . SKIN-RH FE 1
C1608-C9999 B
E0938-E0938,E0943-E9999 C
H0385-H9999 D
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H9999 FE

57-20-00-08
PAGE 1
BARON MAY 01/19

57-20-00-09
REAR SPAR AND TRAILING EDGE
57-20-00-09
BARON MAY 01/19

SHEET 1 OF 2
57-20-00-09
PAGE 0
MAY 01/19

SHEET 2 OF 2
57-20-00-09
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
09 REAR SPAR AND TRAILING EDGE

-5 58-100022-607 SPAR AND EDGE ASSY-REAR, C RF
TRAILING, LH
FOR NHA SEE:
57-10-00-02
-5 95-110014-705 SPAR AND EDGE ASSY-REAR, A RF
TRAILING, LH
FOR NHA SEE:
57-10-00-02
-5 95-110014-727 SPAR AND EDGE ASSY-REAR, B RF
TRAILING, LH
FOR NHA SEE:
57-10-00-02
-10 58-100022-608 SPAR AND EDGE ASSY-REAR, C RF
TRAILING, RH
FOR NHA SEE:
57-10-00-02
-10 95-110014-706 SPAR AND EDGE ASSY-REAR, A RF
TRAILING, RH
FOR NHA SEE:
57-10-00-02
-10 95-110014-728 SPAR AND EDGE ASSY-REAR, B RF
TRAILING, RH
FOR NHA SEE:
57-10-00-02
35 95-110022-601 . SPAR ASSY-LH REAR C 1
FOR DETAILS SEE:
57-10-00-06
35 95-110022-611 . SPAR ASSY-LH REAR D 1
FOR DETAILS SEE:
57-10-00-06
-40 95-110022-602 . SPAR ASSY-RH REAR C 1
FOR DETAILS SEE:
57-10-00-06
-40 95-110022-612 . SPAR ASSY-RH REAR D 1
FOR DETAILS SEE:
57-10-00-06
-55 95-110022-607 . TRACK ASSY-INBD FLAP LH FE 1
-60 95-110022-608 . TRACK ASSY-INBD FLAP RH FE 1
65 95-110022-37 . . ANGLE-OUTBD LH FE 1
-70 95-110022-38 . . ANGLE-OUTBD RH FE 1
75 95-110022-39 . . ANGLE-INBD LH FE 1
-80 95-110022-40 . . ANGLE-INBD RH FE 1
85 95-110022-41 . . ANGLE-OUTBD LH FE 1
-90 95-110022-42 . . ANGLE-OUTBD RH FE 1
95 95-110022-43 . . ANGLE-INBD LH FE 1
-100 95-110022-44 . . ANGLE-INBD RH FE 1
105 95-110022-45 . . TRACK-FLAP FE 1
110 95-110022-47 . . ANGLE-OUTBD LH FE 1
-115 95-110022-48 . . ANGLE-OUTBD RH FE 1
120 95-110022-49 . . ANGLE-INBD LH FE 1
-125 95-110022-50 . . ANGLE-INBD RH FE 1
130 95-110022-71 . . SUPPORT-LH FE 1
-135 22A17-82 . . NUTPLATE-LH FE 4
FOR SPARES ORDER:
MS21051L08
57-20-00-09
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
09
-135 MS21051L08 . . NUTPLATE-LH FE 4
22A17-82
140 35-115395 . . SUPPORT-LH AND RH FE AR
-145 95-110022-609 . TRACK ASSY-OUTBD FLAP LH FE 1
-150 95-110022-610 . TRACK ASSY-OUTBD FLAP RH FE 1
155 95-110022-51 . . ANGLE-OUTBD LH FE 1
-160 95-110022-52 . . ANGLE-OUTBD RH FE 1
165 95-110022-53 . . ANGLE-INBD LH FE 1
-170 95-110022-54 . . ANGLE-INBD RH FE 1
175 95-110022-55 . . TRACK-FLAP FE 1
180 95-110022-57 . . ANGLE-OUTBD LH FE 1
-185 95-110022-58 . . ANGLE-OUTBD RH FE 1
190 95-110022-59 . . ANGLE-INBD LH FE 1
-195 95-110022-60 . . ANGLE-INBD RH FE 1
200 95-110022-61 . . ANGLE-OUTBD LH FE 1
-205 95-110022-62 . . ANGLE-OUTBD RH FE 1
210 95-110022-63 . . ANGLE-INBD LH FE 1
-215 95-110022-64 . . ANGLE-INBD RH FE 1
220 35-115395 . . SUPPORT FE 2
-225 95-110014-751 . BRACKET ASSY-LH FE 1
-230 95-110014-752 . BRACKET ASSY-RH FE 1
235 95-110014-111 . . RIB-LH FE 1
-240 95-110014-112 . . RIB-RH FE 1
245 60-130017-3 . . RIB-LH FE 1
-250 60-130017-4 . . RIB-RH FE 1
-275 35-115147 . . FITTING ASSY-AILERON INBD FE 1
280 35-115147-2 . . . FITTING FE 1
285 MS24461-3 . . . BEARING FE 1
290 MS25083-1AA8 . . WIRE-BOND FE 1
ATTACHING PARTS
-295 MS35206-230 . . SCREW FE 1
-300 NAS1149FN616P . . WASHER FE 1
-305 MS21042L06 . . NUT FE 1
-------*-------
320 95-110014-31 . . BRACKET-LH FE 1
-325 95-110014-32 . . BRACKET-RH FE 1
330 95-110014-29 . . BRACKET-LH FE 1
-335 95-110014-30 . . BRACKET-RH FE 1
340 35-115071-14 . . ANGLE-LH FE 1
-345 35-115071-15 . . ANGLE-RH FE 1
350 35-115071-16 . . ANGLE-LH FE 1
-355 35-115071-17 . . ANGLE-RH FE 1
-360 35-115071-12 . . BRACKET ASSY-OUTBD FE 1
AILERON HINGE
365 35-115071-10 . . . PLATE FE 1
370 MS24461-3J . . . BEARING-NEEDLE FE 1
375 MS25083-2AA6 . . JUMPER ASSY-BONDING FE 1

57-20-00-09
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
09
ATTACHING PARTS
-380 MS35206-232 . . SCREW FE 1
-385 NAS1149FN616P . . WASHER FE 1
-390 MS21042L06 . . NUT FE 1
-------*-------
-395 95-110014-626 . RIB ASSY-STA 45 RH FE 1
400 95-110014-304 . . RIB FE 1
405 95-110014-306 . . ANGLE FE 1
-410 95-110036 . RIB ASSY-STA 23 RH FE 1
415 95-110036-2 . . RIB FE 1
420 95-110036-4 . . ANGLE FE 1
-425 95-110014-765 . SKIN ASSY-TRAILING EDGE FE 1
INBD LH
-430 95-110014-766 . SKIN ASSY-TRAILING EDGE FE 1
INBD RH
435 95-110014-947 . . SKIN-LH UPPER HALF FE 1
-440 95-110014-948 . . SKIN-RH UPPER HALF FE 1
-455 95-110014-213 . SKIN ASSY-BOTTOM LH FE 1
456 95-110014-423 . . SKIN-UPPER AFT LH FE 1
457 95-110014-323 . . SKIN-LOWER HALF LH FE 1
-460 95-110014-214 . SKIN ASSY-BOTTOM RH FE 1
-461 95-110014-424 . . SKIN-UPPER AFT LH FE 1
-462 95-110014-324 . . SKIN-LOWER HALF RH FE 1
465 95-110014-565 . SKIN ASSY-UPPER TRAILING FE 1
EDGE OUTBD LH
-470 95-110014-566 . SKIN ASSY-UPPER TRAILING FE 1
EDGE OUTBD RH
475 95-110014-567 . SKIN ASSY-LOWER TRAILING FE 1
EDGE LH
-480 95-110014-568 . SKIN ASSY-LOWER TRAILING FE 1
EDGE RH
-485 WIS632 . NUTPLATE FE 2
490 95-110014-41 . RIB-STA 162.562 LH FE 1
-495 95-110014-42 . RIB-STA 162.562 RH FE 1
500 95-110014-63 . RIB-STA 148.875 LH FE 1
-505 95-110014-64 . RIB-STA 148.875 RH FE 1
510 95-110014-941 . STRINGER-LH FE 1
-515 95-110014-943 . STRINGER-LH FE 1
-520 95-110014-945 . STRINGER-LH FE 1
-525 95-110014-942 . STRINGER-RH FE 1
-530 95-110014-949 . STRINGER-RH FE 1
535 95-110014-119 . RIB-STA 108 LH FE 1
-540 95-110014-120 . RIB-STA 108 RH FE 1
545 95-110014-129 . RIB-STA 55 LH FE 1
-550 95-110014-130 . RIB-STA 55 RH FE 1
555 95-110014-135 . RIB-STA 45 LH FE 1
560 95-110014-153 . RIB-STA 66 LH FE 1
-565 95-110014-154 . RIB-STA 66 RH FE 1
570 95-110014-167 . RIB-STA 136.188 LH FE 1
-575 95-110014-168 . RIB-STA 136.188 RH FE 1
580 95-110014-191 . RIB-STA 80.047 LH FE 1
-585 95-110014-192 . RIB-STA 80.047 RH FE 1
590 95-110037 . RIB-STA 23 LH FE 1
595 95-110014-27 . GUSSET-STA 175 UPPER LH FE 1
-600 95-110014-28 . GUSSET-STA 175 UPPER RH FE 1
57-20-00-09
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
09
605 95-110014-245 . GUSSET-STA 175 LOWER LH FE 1
-610 95-110014-246 . GUSSET-STA 175 LOWER RH FE 1
640 95-110014-121 . BRACKET-STA 108 LH FE 1
-645 95-110014-122 . BRACKET-STA 108 RH FE 1
-655 95-110014-38 . ANGLE-STA 108 RH FE 1
660 35-115150-1 . SUPPORT-RH FE 1
665 95-521000-27 . FAIRLEAD-LH FE 1
-675 95-110014-62 . BRACKET-STA 162 MAIN RIB FE 1
RH
700 95-110014-929 . DOUBLER-STA 122 MAIN RIB FE 1
LH
-705 95-110014-930 . DOUBLER-STA 122 MAIN RIB FE 1
RH
LH
RH
740 35-115236 . SUPPORT-LH AND RH FE AR
745 35-115301-22 . CHANNEL-LH FE 1
750 95-110014-373 . CLIP-LH AND RH FE AR
755 95-980001-209 . TIE-LH FE 1
-760 95-980001-210 . TIE-RH FE 1
765 95-980001-113 . FILLER-INBD FE 1
770 95-980001-115 . TIE-SPAR OUTBOARD LH FE 1
-775 95-980001-116 . TIE-SPAR OUTBOARD RH FE 1
780 95-980001-117 . TIE-SPAR OUTBD LH FE 1
-785 95-980001-118 . TIE-SPAR OUTBD RH FE 1
795 96-361011-7 . BRACKET-FLAP DOWN LIMIT FE 1
SWITCH LH
800 96-361011-9 . DOUBLER-FLAP LIMIT SWITCH FE 1
BRACKET
805 96-361011-601 . SWITCH ASSY-FLAP LIMIT FE 1
810 35-364238 . INSULATOR-LIMIT SWITCH FE 1
C1608-C9999 A
E0938-E0938,E0943-E9999 B
H0001-H9999 C
C1608-C9999,E0938-E0938,E0943-E9999 D
57-20-00-09
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
09
(CONTINUED)
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

57-20-00-09
PAGE 5
BARON MAY 01/19

57-20-00-10
WING TIP
57-20-00-10
BARON MAY 01/19
WING TIP
SHEET 1 OF 3
57-20-00-10
PAGE 0
MAY 01/19
WING TIP
SHEET 2 OF 3
57-20-00-10
PAGE 0A
MAY 01/19
WING TIP
SHEET 3 OF 3
57-20-00-10
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10 WING TIP
-5 58-170000-607 TIP ASSY-LH WING B 1
-10 58-170000-608 TIP ASSY-RH WING B 1
-15 58-170000-601 TIP ASSY-LH WING C 1
-20 58-170000-602 TIP ASSY-RH WING C 1
ATTACHING PARTS
-25 AN525-8R8 SCREW FE 41
-30 AN525-8R8 SCREW FE 2
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-40 130909N28 NUT FE 26
-------*-------
45 95-170000-29 . RIB-LH FE 1
-50 95-170000-30 . RIB-RH FE 1
55 95-170000-23 . RIB-LH, WITH STROBE LIGHT FE 1
-60 95-170000-25 . RIB-LH, WITHOUT STROBE LIGHT FE 1
-65 95-170000-24 . RIB-RH, WITH STROBE LIGHT FE 1
-70 95-170000-26 . RIB-RH, WITHOUT STROBE LIGHT FE 1
75 95-170000-15 . DOUBLER-UPPER FE 1
80 96-170000-45 . REINFORCEMENT-LH LOWER FE 1
-85 96-170000-46 . REINFORCEMENT-RH LOWER FE 1
90 95-170000-57 . ANGLE FE 1
ATTACHING PARTS
95 AN525-1032R8 . SCREW FE 3
-100 NAS682A3 . NUTPLATE FE 2
-------*-------
110 95-170000-39 . STRINGER-LH UPPER FE 1
-115 95-170000-40 . STRINGER-RH UPPER FE 1
120 95-170000-41 . STRINGER-LH LOWER FE 1
-125 95-170000-42 . STRINGER-RH LOWER FE 1
130 95-170000-33 . SPAR-LH REAR, WITH STROBE FE 1
LIGHT
-135 95-170000-34 . SPAR-RH REAR, WITH STROBE FE 1
LIGHT
140 95-170000-35 . STRINGER-LH UPPER FE 2
-145 95-170000-36 . STRINGER-RH UPPER FE 2
150 95-170000-37 . STRINGER-LH LOWER FE 2
-155 95-170000-38 . STRINGER-RH LOWER FE 2
160 95-170000-21 . RIB-LH FE 1
-165 95-170000-22 . RIB-RH FE 1
170 96-170000-47 . BRACKET-LH FUEL VENT FLOAT FE 1
VALVE
-175 96-170000-48 . BRACKET-RH FUEL VENT FLOAT FE 1
VALVE
180 58-170000-11 . DOOR-WING TIP ACCESS FE 2
ATTACHING PARTS
185 AN509C8R7 . SCREW FE 8
ALTERNATE SPARE:
MS21049L08

57-20-00-10
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10
ALTERNATE SPARE:
NAS681A08
-------*-------
195 AN737TW98-114 . CLAMP FE 1
200 95-170000-55 . ANGLE-LH FE 1
-205 95-170000-56 . ANGLE-RH FE 1
210 95-170000-19 . RIB-LH FE 1
-215 95-170000-20 . RIB-RH FE 1
220 96-170000-61 . RIB-LH FE 1
-225 96-170000-62 . RIB-RH FE 1
ATTACHING PARTS
-240 AN535-832R6 . SCREW FE 4
-------*-------
245 96-170000-3 . . BRACKET-LH FE 1
-250 96-170000-4 . . BRACKET-RH FE 1
-255 MS21047L08 . . NUTPLATE FE 4
260 96-170000-5 . RING FE 1
265 4596 . LAMP FE 1
-270 96-170000-601 . PANE AND RETAINER ASSY-LH, FE 1
BONDED
-275 96-170000-602 . PANE AND RETAINER ASSY-RH, FE 1
BONDED
ATTACHING PARTS
280 AN509-8R8 . SCREW FE 16
ALTERNATE SPARE:
MS24694-S5
280 MS24694-S5 . SCREW FE 16
ALTERNATE SPARE:
AN509-8R8
-285 NAS681A08K . NUTPLATE FE 16
ALTERNATE SPARE:
MS21049L08K
-285 MS21049L08K . NUTPLATE FE 16
ALTERNATE SPARE:
NAS681A08K
-------*-------
290 95-170000-99 . CAP-LH, WITHOUT STROBE LIGHT FE 1
-295 95-170000-123 . CAP-LH, WITH STROBE LIGHT FE 1
-300 95-170000-100 . CAP-RH, WITHOUT STROBE LIGHT FE 1
-305 95-170000-124 . CAP-RH, WITH STROBE LIGHT FE 1
310 95-170000-165 . SKIN-LH TOP, WITH STROBE FE 1
LIGHT
-315 58-170000-7 . SKIN-LH TOP, WITHOUT STROBE FE 1
LIGHT
-320 95-170000-166 . SKIN-RH TOP, WITH STROBE FE 1
LIGHT
-325 58-170000-8 . SKIN-RH TOP, WITHOUT STROBE FE 1
LIGHT
330 60-360015-9 . SKIN-LH BOTTOM, WITH STROBE FE 1
LIGHT
-335 58-170000-5 . SKIN-LH BOTTOM, WITHOUT FE 1
STROBE LIGHT
57-20-00-10
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10
-340 60-360015-10 . SKIN-RH BOTTOM, WITH STROBE FE 1
LIGHT
-345 58-170000-6 . SKIN-RH BOTTOM, WITHOUT FE 1
STROBE LIGHT
350 95-170000-115 . RIB-LH OUTBD, WITH STROBE FE 1
LIGHT
-355 95-170000-89 . RIB-LH OUTBD, WITHOUT FE 1
STROBE LIGHT
-360 95-170000-116 . RIB-RH OUTBD, WITH STROBE FE 1
LIGHT
-365 95-170000-90 . RIB-RH OUTBD, WITHOUT FE 1
STROBE LIGHT
-370 58-170000-605 . SPAR ASSY-LH FE 1
-375 58-170000-606 . SPAR ASSY-RH FE 1
ATTACHING PARTS
380 AN525-8R6 . SCREW FE 4
-385 NAS697C832 . NUTPLATE-UPPER FE 2
-390 NAS696C832 . NUTPLATE-LOWER FE 2
-------*-------
395 95-170000-177 . . SPAR-LH, WITH STROBE LIGHT FE 1
-400 95-170000-31 . . SPAR-LH, WITHOUT STROBE LIGHT FE 1
-405 95-170000-178 . . SPAR-RH, WITH STROBE LIGHT FE 1
-410 95-170000-32 . . SPAR-RH, WITHOUT STROBE LIGHT FE 1
-415 MF1000-08 . . NUTPLATE FE 6
420 95-170000-51 . . ANGLE-LH UPPER FE 1
-425 95-170000-52 . . ANGLE-RH UPPER FE 1
-430 95-170000-53 . . ANGLE-LH LOWER FE 1
-435 95-170000-54 . . ANGLE-RH LOWER FE 1
440 60-360015-7 . SKIN-LH LEADING EDGE, FE 1
WITH STROBE LIGHT
-445 96-170000-11 . SKIN-LH LEADING EDGE, FE 1
WITHOUT STROBE LIGHT
-450 60-360015-8 . SKIN-RH LEADING EDGE, FE 1
WITH STROBE LIGHT
-455 96-170000-12 . SKIN-RH LEADING EDGE, FE 1
460 95-170000-173 . RIB-LH FE 1
-465 95-170000-174 . RIB-RH FE 1
-470 MF1000-08 . NUTPLATE FE 2
475 95-170000-127 . SKIN-LH BOTTOM, WITH FE 1
STROBE LIGHT
-480 95-170000-85 . SKIN-LH BOTTOM, WITHOUT FE 1
STROBE LIGHT
-485 95-170000-83 . SKIN-LH TOP, WITHOUT FE 1
STROBE LIGHT
-490 95-170000-128 . SKIN-RH BOTTOM, WITH FE 1
STROBE LIGHT
-495 95-170000-86 . SKIN-RH BOTTOM, WITHOUT FE 1
STROBE LIGHT
-500 95-170000-84 . SKIN-RH TOP, WITHOUT FE 1
STROBE LIGHT
505 95-170000-195 . COVER ASSY-LH, WITH FE 1
STROBE LIGHT
-510 95-170000-69 . COVER ASSY-LH, WITHOUT FE 1
STROBE LIGHT
57-20-00-10
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10
-515 95-170000-196 . COVER ASSY-RH, WITH FE 1
STROBE LIGHT
-520 95-170000-70 . COVER ASSY-RH, WITHOUT FE 1
STROBE LIGHT
525 95-170000-191 . GLARESHIELD-LH, WITH FE 1
STROBE LIGHT
-530 58-170011-1 . GLARESHIELD-LH, WITHOUT FE 1
STROBE LIGHT
-535 95-170000-192 . GLARESHIELD-RH, WITH FE 1
STROBE LIGHT
-540 58-170011-2 . GLARESHIELD-RH, WITHOUT FE 1
STROBE LIGHT
ATTACHING PARTS
545 AN509-8R8 . SCREW-COVER ASSY FE 11
ALTERNATE SPARE:
MS24694-S5
545 MS24694-S5 . SCREW-COVER ASSY FE 11
ALTERNATE SPARE:
AN509-8R8
-550 AN509-8-R10 . SCREW-COVER ASSY AND FE 6
GLARESHIELD
ALTERNATE SPARE:
MS24694-S7
-550 MS24694-S7 . SCREW-COVER ASSY AND FE 6
GLARESHIELD
ALTERNATE SPARE:
AN509-8-R10
-555 NAS390S8 . WASHER FE 17
-------*-------
560 96-170000-49 . REFLECTOR FE 1
ATTACHING PARTS
-565 AN515C6R6 . SCREW FE 6
FOR SPARES ORDER:
MS51957-28
-565 MS51957-28 . SCREW FE 6
AN515C6R6
-570 AN960C6L . WASHER FE 6
FOR SPARES ORDER:
NAS1149CN616R
-570 NAS1149CN616R . WASHER FE 6
AN960C6L
-------*-------
-575 95-170000-63 . COVER ASSY-LH WING TIP FE 1
-580 95-170000-64 . COVER ASSY-RH WING TIP FE 1
585 95-170000-77 . BRACKET-LH, WITHOUT FE 1
STROBE LIGHT
-590 95-170000-78 . BRACKET-RH, WITHOUT FE 1
STROBE LIGHT
595 95-170000-79 . BRACKET-LH, WITHOUT FE 1
STROBE LIGHT
-600 95-170000-80 . BRACKET-RH, WITHOUT FE 1
STROBE LIGHT

57-20-00-10
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10
605 95-170000-81 . DOUBLER-LH, WITHOUT FE 1
STROBE LIGHT
-610 95-170000-82 . DOUBLER-RH, WITHOUT FE 1
STROBE LIGHT
615 95-170000-87 . SHIELD-WITHOUT STROBE LIGHT FE 1
620 AN3042-1 . COVER-LIGHT,RED, WITHOUT FE 1
STROBE LIGHT
-625 AN3042-2 . LENS-LIGHT, GREEN, WITHOUT FE 1
STROBE LIGHT
ALTERNATE SPARE:
A-1280-3
-625 A-1280-3 . LENS-LIGHT, GREEN, WITHOUT FE 1
STROBE LIGHT
ALTERNATE SPARE:
AN3042-2
ATTACHING PARTS
-630 NAS387-632-20 . SCREW FE 1
FOR SPARES ORDER:
MS21042L06
-635 MS21042L06 . NUT FE 1
NAS679A06
-------*-------
-640 AN889-1 . GASKET FE 1
-645 96-360011-671 . HARNESS ASSY-LH WIRE FE 1
-650 96-360011-672 . HARNESS ASSY-RH WIRE FE 1
-655 96-170000-65 LENS ASSY-LH LANDING LIGHT FE 1
-660 96-170000-66 LENS ASSY-RH LANDING LIGHT FE 1
-665 95-970000-603 LENS ASSY-LH LANDING LIGHT, FE 1
WITH DEICER
-670 95-970000-604 LENS ASSY-RH LANDING LIGHT, FE 1
WITH DEICER
ATTACHING PARTS
-675 AN509-8R8 SCREW FE 16
ALTERNATE SPARE:
MS24694-S5
-675 MS24694-S5 SCREW FE 16
ALTERNATE SPARE:
AN509-8R8
-680 22NA38-32 NUTPLATE FE 16
-------*-------
E0938-E0938,E0943-E0952 B
H0001-H0380 C
E0938-E0938,E0943-E0952,H0001-H0380 FE

57-20-00-10
PAGE 5
BARON MAY 01/19

57-20-00-11
EXTENDED WING TIP
57-20-00-11
BARON MAY 01/19
EXTENDED WING TIP
57-20-00-11
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
11 EXTENDED WING TIP

-5 000-170000-5 TIP ASSY-EXTENDED LH, A RF
FOR NHA SEE:
57-10-00-01
-5 000-170000-135 TIP ASSY-EXTENDED LH, B RF
FOR NHA SEE:
57-10-00-01
-5 000-170000-139 TIP ASSY-EXTENDED LH, C RF
FOR NHA SEE:
57-10-00-01
-10 000-170000-7 TIP ASSY-EXTENDED LH FE RF
WITH FLUX DETECTOR
-15 000-170000-6 TIP ASSY-EXTENDED RH, A RF
FOR NHA SEE:
57-10-00-01
-15 000-170000-136 TIP ASSY-EXTENDED RH, B RF
FOR NHA SEE:
57-10-00-01
-15 000-170000-140 TIP ASSY-EXTENDED RH, C RF
FOR NHA SEE:
57-10-00-01
-20 000-170000-8 TIP ASSY-EXTENDED RH FE RF
WITH FLUX DETECTOR
-25 000-170000-1 . STRUCTURE ASSY-LH FE 1
-30 000-170000-2 . STRUCTURE ASSY-RH FE 1
-35 000-170000-15 . . SKIN ASSY-LOWER WING TIP FE 1
LH
-40 000-170000-16 . . SKIN ASSY-LOWER WING TIP FE 1
RH
45 000-170000-31 . . . SKIN-LOWER LH FE 1
-50 000-170000-32 . . . SKIN-LOWER RH FE 1
65 000-170015-1 . . . COVER-LH ACCESS FE 1
-70 000-170015-2 . . . COVER-RH ACCESS FE 1
ATTACHING PARTS
-75 MS27039B0807 . . . SCREW FE 10
-80 MS21070L08K . . . NUTPLATE FE 10
-------*-------
85 000-170022-1 . . . STRINGER FE 1
90 000-170023-1 . . . STRINGER FE 2
-95 000-170000-13 . . SKIN ASSY-UPPER LH FE 1
-100 000-170000-14 . . SKIN ASSY-UPPER RH FE 1
105 000-170000-29 . . . SKIN-UPPER LH FE 1
-110 000-170000-30 . . . SKIN-UPPER RH FE 1
120 000-170022-3 . . . STRINGER FE 1
125 000-170023-1 . . . STRINGER FE 2
130 000-170000-21 . . SKIN-LEADING EDGE LH FE 1
-135 000-170000-22 . . SKIN-LEADING EDGE RH FE 1
57-20-00-11
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
11
140 000-170000-55 . . SKIN-TIP LH FE 1
-145 000-170000-56 . . SKIN-TIP RH FE 1
150 000-170000-19 . . WEDGE FE 1
155 000-170012-5 . . RIB-CENTER AFT LH FE 1
-160 000-170012-6 . . RIB-CENTER AFT RH FE 1
165 000-170011-3 . . SPAR-REAR LH FE 1
-170 000-170011-4 . . SPAR-REAR RH FE 1
175 000-170013-13 . . RIB-OUTBD LH FE 1
-180 000-170013-14 . . RIB-OUTBD RH FE 1
185 000-170014-1 . . FORMER-OUTBOARD LH FE 1
-190 000-170014-2 . . FORMER-OUTBOARD RH FE 1
ATTACHING PARTS
-195 MS21069L08K . . NUTPLATE FE 2
-------*-------
200 000-170012-3 . . RIB-CENTER LH FE 1
-205 000-170012-4 . . RIB-CENTER RH FE 1
210 000-170012-1 . . RIB-CENTER FWD LH FE 1
-215 000-170012-2 . . RIB-CENTER FWD RH FE 1
-220 000-170010-7 . . SPAR ASSY-FRONT LH FE 1
-225 000-170010-8 . . SPAR ASSY-FRONT RH FE 1
230 000-170010-3 . . . SPAR-LH FE 1
-235 000-170010-4 . . . SPAR-RH FE 1
240 000-170010-5 . . . ANGLE-FRONT SPAR FE 2
-245 000-170016-1 . . BRACKET ASSY-LH FE 1
-250 000-170016-2 . . BRACKET ASSY-RH FE 1
255 000-170016-3 . . . BRACKET-LH FE 1
-260 000-170016-4 . . . BRACKET-RH FE 1
265 MS21073L04K . . . NUTPLATE FE 3
270 MS21073L08K . . NUTPLATE FE 2
275 000-170017-1 . . FORMER ASSY-LENS SUPPORT, FE 1
LH
-280 000-170017-2 . . FORMER ASSY-LENS SUPPORT, FE 1
RH
285 000-170020-1 . . RETAINER FE 2
290 000-170021-1 . . RETAINER FE 2
295 000-170000-23 . . GLARESHIELD-LH FE 1
-300 000-170000-24 . . GLARESHIELD-RH FE 1
305 000-170000-33 . . ANGLE FE 1
-310 000-170000-57 . SUPPORT ASSY-LH TIP ONLY, FE 1
FLUX DETECTOR
315 000-170000-59 . . SUPPORT-FLUX DETECTOR LH FE 1
320 MS21070L06K . . NUTPLATE FE 5
-325 000-170000-37 . HARNESS ASSY-NAVIGATION D 1
LIGHT LH,RED
FOR DETAILS SEE:
33-40-00-01
-325 60-170010-123 . HARNESS ASSY-NAVIGATION B 1
LIGHT LH,RED
FOR DETAILS SEE:
33-40-00-01
-325 60-170010-127 . HARNESS ASSY-NAVIGATION C 1
LIGHT LH,RED
FOR DETAILS SEE:
33-40-00-01

57-20-00-11
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
11
-330 000-170000-38 . HARNESS ASSY-NAVIGATION D 1
LIGHT,RH GREEN
FOR DETAILS SEE:
33-40-00-01
-330 60-170010-124 . HARNESS ASSY-NAVIGATION B 1
LIGHT,RH GREEN
FOR DETAILS SEE:
33-40-00-01
-330 60-170010-128 . HARNESS ASSY-NAVIGATION C 1
LIGHT,RH GREEN
FOR DETAILS SEE:
33-40-00-01
335 XS48175 . BUTTON-PLUG FE 1
355 000-110085-3 . COVER-REMOTE COMPASS, LH FE 1
ONLY
340 000-170000-53 . COVER-LENS LH FE 1
-345 000-170000-54 . COVER-LENS RH FE 1
ATTACHING PARTS
360 MS24693BB50 . SCREW FE 6
-------*-------
370 000-170029-1 . BRACKET-FUEL VENT FE 1
410 000-170027-1 . RIB-CLOSURE FE 1
-415 000-170027-2 . RIB-CLOSURE FE 1
435 95-170000-63 COVER ASSY-TRAILING EDGE, FE 1
STA 199.924
-440 95-170000-64 COVER ASSY-TRAILING EDGE, FE 1
STA 199.924
C1608-C9999,E0953-E9999,H0522-H2163 A
H2164-H2277 B
H2278-H9999 C
C1608-C9999,E0953-E9999,H0381-H2163 D
C1608-C9999,E0953-E9999,H0381-H9999 FE

57-20-00-11
PAGE 3
BARON MAY 01/19

57-20-00-12
WET WING TIP, OPTIONAL
57-20-00-12
BARON MAY 01/19

SHEET 1 OF 3
57-20-00-12
PAGE 0
MAY 01/19

SHEET 2 OF 3
57-20-00-12
PAGE 0A
MAY 01/19

SHEET 3 OF 3
57-20-00-12
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
12 WET WING TIP, OPTIONAL

-5 60-170010-1 TIP ASSY-LH WING, OPTIONAL J RF
FOR NHA SEE:
57-10-00-01
-5 60-170010-121 TIP ASSY-LH WING, WET FUEL K RF
FOR NHA SEE:
57-10-00-01
-5 60-170010-125 TIP ASSY-LH WING, WET FUEL L RF
FOR NHA SEE:
57-10-00-01
-10 60-170010-2 TIP ASSY-RH WING, OPTIONAL J RF
FOR NHA SEE:
57-10-00-01
-10 60-170010-122 TIP ASSY-RH WING, WET FUEL K RF
FOR NHA SEE:
57-10-00-01
-10 60-170010-126 TIP ASSY-RH WING, WET FUEL L RF
FOR NHA SEE:
57-10-00-01
15 000-170000-37 . HARNESS ASSY-LH, NAV LIGHT J 1
FOR DETAILS SEE:
33-40-00-01
15 60-170010-123 . HARNESS ASSY-LH, NAV LIGHT K 1
FOR DETAILS SEE:
33-40-00-01
15 60-170010-127 . HARNESS ASSY-LH, NAV LIGHT L 1
FOR DETAILS SEE:
33-40-00-01
-20 000-170000-38 . HARNESS ASSY-RH, NAV LIGHT J 1
FOR DETAILS SEE:
33-40-00-01
-20 60-170010-124 . HARNESS ASSY-RH, NAV LIGHT K 1
FOR DETAILS SEE:
33-40-00-01
-20 60-170010-128 . HARNESS ASSY-RH, NAV LIGHT L 1
FOR DETAILS SEE:
33-40-00-01
ATTACHING PARTS
-25 MS24693-S5 . SCREW FE 2
-30 MS35206-216 . SCREW FE 1
-------*-------
35 000-170000-23 . GLARESHIELD-LH F 1
35 000-170000-73 . GLARESHIELD-LH G 1
-45 000-170000-24 . GLARESHIELD-RH F 1
-45 000-170000-74 . GLARESHIELD-RH G 1
55 000-170000-53 . COVER-LENS LH FE 1
-60 000-170000-54 . COVER-LENS RH FE 1
ATTACHING PARTS
-65 MS15985-8R7 . SCREW FE 2
FOR SPARES ORDER:
132262S8R7
-65 132262S8R7 . SCREW FE 2
MS15985-8R7

57-20-00-12
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
12
-75 MS21069L08K . NUTPLATE FE 2
-------*-------
80 S43 . GROMMET-METAL DRAIN FE 2
85 MS21073L08K . NUTPLATE FE 2
-90 60-170010-605 . STRUCTURE ASSY-LH FE 1
-95 60-170010-606 . STRUCTURE ASSY-RH FE 1
100 60-170010-4 . . RIB-LH FE 1
-105 60-170010-3 . . RIB-RH FE 1
110 60-170010-5 . . TUBE ASSY-LH FE 1
-115 60-170010-6 . . TUBE ASSY-RH FE 1
120 60-170010-7 . . SPAR-LH FE 1
-125 60-170010-8 . . SPAR-RH FE 1
130 60-170010-9 . . REAR SPAR-LH FE 1
-135 60-170010-10 . . REAR SPAR-RH FE 1
140 60-170010-71 . . SPAR ASSY-LH FE 1
-145 60-170010-72 . . SPAR ASSY-RH FE 1
-150 60-170010-11 . . . SPAR-LH FE 1
-155 60-170010-12 . . . SPAR-RH FE 1
-160 MS21059L08 . . . NUTPLATE FE 2
165 60-170010-15 . . PANEL ASSY FE 1
ATTACHING PARTS
-170 NAS1202-2 . . BOLT FE 16
-------*-------
-175 60-170010-13 . . . PANEL-ACCESS FE 1
-180 NAS1474A08 . . . NUTPLATE FE 16
ATTACHING PARTS
182 60-170010-77 . . GASKET FE 1
-------*-------
185 60-170010-17 . . RIB-LH FE 1
-190 60-170010-18 . . RIB-RH FE 1
195 60-170010-19 . . RIB-LH FE 1
-200 60-170010-20 . . RIB-RH FE 1
205 60-170010-21 . . RIB-LH FE 1
-210 60-170010-22 . . RIB-RH FE 1
215 60-170010-23 . . RIB-LH FE 1
-220 60-170010-24 . . RIB-RH FE 1
225 60-170010-25 . . CLIP FE 1
230 60-170010-27 . . ANGLE-LH FE 1
-235 60-170010-28 . . ANGLE-RH FE 1
240 60-170010-29 . . MAIN SPAR-LH FE 1
-245 60-170010-30 . . MAIN SPAR-RH FE 1
250 60-170010-33 . . PLUG-LH FE 1
-255 60-170010-34 . . PLUG-RH FE 1
260 60-170010-35 . . CLIP FE 1
265 60-170010-37 . . CLIP FE 1
270 60-170010-39 . . CLIP FE 1
275 60-170010-41 . . CLIP FE 1
280 60-170010-51 . . WEDGE FE 1
285 60-170010-53 . . SKIN-LEADING EDGE LH FE 1
-290 60-170010-54 . . SKIN-LEADING EDGE RH FE 1
295 60-170010-55 . . SKIN-UPPER LH FE 1
-300 60-170010-56 . . SKIN-UPPER RH FE 1
305 60-170010-57 . . SKIN-TIP LH FE 1
-310 60-170010-58 . . SKIN-TIP RH FE 1
315 60-170010-59 . . ANGLE B 1
57-20-00-12
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
12
315 60-170010-95 . . ANGLE C 1
325 60-170010-61 . . ANGLE B 2
325 60-170010-97 . . ANGLE C 2
335 60-170010-63 . . SKIN-LOWER LH FE 1
-340 60-170010-64 . . SKIN-LOWER RH FE 1
345 60-170010-65 . . ANGLE-LH FE 1
-350 60-170010-66 . . ANGLE-RH FE 1
355 60-170010-67 . . BAFFLE-LH FE 1
-360 60-170010-68 . . BAFFLE-RH FE 1
ATTACHING PARTS
-365 MS35206-243 . . SCREW FE 4
-370 MS21059L08 . . NUTPLATE FE 2
-------*-------
375 60-170010-87 . . SUPPORT D 4
-380 60-170010-87 . . SUPPORT E 6
385 MS21919F8 . . CLAMP FE 1
FOR SPARES ORDER:
MS21919WCF8
385 MS21919WCF8 . . CLAMP FE 1
MS21919F8
-390 MS21919F4 . . CLAMP FE 1
ATTACHING PARTS
-395 MS35206-262 . . SCREW FE 1
-400 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-400 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-405 130909N29 . . NUT FE 1
-------*-------
410 MS21919F8 . . CLAMP FE 2
FOR SPARES ORDER:
MS21919WCF8
410 MS21919WCF8 . . CLAMP FE 2
MS21919F8
ATTACHING PARTS
-415 MS35206-262 . . SCREW FE 2
-420 AN960-10L . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
-420 NAS1149F0332P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
-425 130909N29 . . NUT FE 2
-------*-------
430 AN735D8 . . CLAMP FE 1
ATTACHING PARTS
-435 MS35206-262 . . SCREW FE 1
-440 AN960-10L . . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P

57-20-00-12
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
12
-440 NAS1149F0332P . . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
-445 130909N29 . . NUT FE 1
-------*-------
450 MS25083-1BB5 . . BONDING JUMPER FE 1
ATTACHING PARTS
-455 MS35206-262 . . SCREW FE 1
-460 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-460 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-465 AN960PD10L . . WASHER FE 2
ALTERNATE SPARE:
NAS1149D0316K
-465 NAS1149D0316K . . WASHER FE 2
ALTERNATE SPARE:
AN960PD10L
-470 130909N29 . . NUT FE 1
-------*-------
475 MS21919F12 . . CLAMP FE 1
ATTACHING PARTS
-480 MS35206-262 . . SCREW FE 1
-485 AN960-10L . . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-485 NAS1149F0332P . . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-490 130909N29 . . NUT FE 1
-------*-------
495 NAS1474A06 . . CAP NUT-STATIC WICK FE 4
ALTERNATE SPARE:
33-357-499-00
495 33-357-499-00 . . CAP NUT-STATIC WICK FE 4
ALTERNATE SPARE:
NAS1474A06
500 60-170010-69 . . BAFFLE FE 1
505 60-170010-73 . . TUBE ASSY-LH FE 1
-510 60-170010-74 . . TUBE ASSY-RH FE 1
520 60-170010-79 . . TUBE-VENT FE 1
525 000-170013-9 . . RIB-LH FE 1
-530 000-170013-10 . . RIB-RH FE 1
535 60-910064-3 . . ADAPTER ASSY FE 1
ATTACHING PARTS
-540 NAS1068A3 . . NUTPLATE FE 4
-------*-------
545 60-170011-3 . . RIB-LH FE 1
-550 60-170011-4 . . RIB-RH FE 1
555 60-170011-5 . . END-LH FE 1
-560 60-170011-6 . . END-RH FE 1
565 60-170011-7 . . TUBE ASSY FE 1
570 60-170012-1 . . ADAPTER-VENT FE 1
57-20-00-12
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
12
575 60-170012-13 . . ADAPTER ASSY FE 1
580 60-170010-89 . . FORMER-LH FE 1
-585 60-170010-90 . . FORMER-RH FE 1
590 966B1 . . VALVE-DRAIN FE 1
ALTERNATE SPARE:
78-1021
86-4077
590 78-1021 . . VALVE-DRAIN FE 1
ALTERNATE SPARE:
966B1
86-4077
590 86-4077 . . VALVE-DRAIN FE 1
ALTERNATE SPARE:
78-1021
966B1
-600 MS29513-20 . . . PACKING-PREFORMED FE 1
ALTERNATE SPARE:
MS29513-020
-600 MS29513-020 . . . PACKING-PREFORMED FE 1
ALTERNATE SPARE:
MS29513-20
-605 1006C . . RETAINER-DRAIN VALVE FE 1
610 000-170016-1 . . BRACKET ASSY-LH FE 1
-615 000-170016-2 . . BRACKET ASSY-RH FE 1
620 000-170017-1 . . FORMER ASSY-LH FE 1
-625 000-170017-2 . . FORMER ASSY-RH FE 1
630 000-170021-1 . . RETAINER FE 2
635 000-170020-1 . . RETAINER FE 2
640 60-170010-607 . . ADAPTER ASSY FE 1
645 60-920016-11 . . VALVE ASSY-FLOAT FE 1
-650 100-920048-17 . . GASKET-FLOAT VALVE FE 1
ATTACHING PARTS
-655 130909B17 . . BOLT FE 4
-660 AN960PD10 . . WASHER FE 4
FOR SPARES ORDER:
NAS1149D0363K
-660 NAS1149D0363K . . WASHER FE 4
AN960PD10
-------*-------
665 60-170010-93 . . SCUFF PAD-SEE S.I. NO.0930 FE 1
REV.1
-670 60-170010-133 . . CLAMP-SEE S.I. NO.0930 FE 1
REV.1
675 60-921058-1 . ADAPTER ASSY A 1
60-170010-1
60-170010-2
675 60-921060-1 . ADAPTER ASSY H 1
60-170010-1
60-170010-2

57-20-00-12
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
12
675 60-921060-1 . ADAPTER ASSY FE 1
60-170010-121
60-170010-122
680 60-170010-99 . TUBE E 1
685 MS21919F4 . CLAMP E 2
ATTACHING PARTS
-690 MS35206-262 . SCREW E 2
-695 AN960-10L . WASHER E 2
ALTERNATE SPARE:
NAS1149F0332P
-695 NAS1149F0332P . WASHER E 2
ALTERNATE SPARE:
AN960-10L
-700 130909N29 . NUT E 2
-------*-------
705 106200H4-4 . HOSE E 1
H0669-H0669,H0680-H0827 A
H0669-H0669,H0680-H0709 B
H0710-H9999 C
H0669-H0669,H0680-H0708 D
H0709-H9999 E
H0669-H0669,H0680-H0865 F
H0866-H9999 G
H0828-H9999 H
H0669-H0669,H0680-H2163 J
H2164-H2277 K
H2278-H9999 L
H0669-H0669,H0680-H9999 FE

57-20-00-12
PAGE 6
BARON MAY 01/19
57-30-00-01
WING SKINS
57-30-00-01
BARON MAY 01/19
WING SKINS
SHEET 1 OF 2
57-30-00-01
PAGE 0
MAY 01/19
WING SKINS
SHEET 2 OF 2
57-30-00-01
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 WING SKINS
5 000-110109-9 SKIN-LEADING EDGE TOP INBD A 1
LH
-10 58-100021-5 SKIN-LEADING EDGE TOP INBD B 1
LH
15 000-110109-11 SKIN-LEADING EDGE TOP INBD A 1
RH
-20 58-100021-6 SKIN-LEADING EDGE TOP INBD B 1
RH
25 000-110109-7 SKIN-LEADING EDGE BOTTOM A 1
INBD LH
30 000-110109-8 SKIN-LEADING EDGE BOTTOM A 1
INBD RH
-35 58-100021-7 SKIN-LEADING EDGE BOTTOM B 1
40 000-110109-13 SKIN-LEADING INBD LH A 1
-45 58-100021-8 SKIN-LEADING EDGE BOTTOM B 1
INBD RH
50 000-110109-14 SKIN-LEADING INBD RH A 1
-55 58-100021-3 SKIN-LEADING EDGE INBD LH B 1
60 000-110159-1 SKIN-LEADING EDGE INBD LH A 1
-65 58-100021-4 SKIN-LEADING EDGE INBD RH B 1
70 000-110159-2 SKIN-LEADING EDGE INBD RH A 1
75 000-110105-57 SKIN-LEADING EDGE LH, STA 47 A 1
TO 136
-80 96-110007-39 SKIN-LEADING EDGE LH, STA 47 B 1
TO 136
85 000-110105-58 SKIN-LEADING EDGE RH, STA 47 A 1
TO 136
-90 96-110007-40 SKIN-LEADING EDGE RH, STA 47 B 1
TO 136
95 000-110029-3 SKIN-LEADING EDGE OUTBD LH, A 1
WITH FUEL
-100 35-115431-107 SKIN-LEADING EDGE OUTBD LH, B 1
WITH FUEL
-105 000-110015-5 SKIN-LEADING EDGE OUTBD LH, A 1
WITHOUT FUEL
110 000-110029-53 SKIN-LEADING EDGE OUTBD RH, A 1
WITH FUEL
-115 35-115431-108 SKIN-LEADING EDGE OUTBD RH, B 1
WITH FUEL
-120 000-110015-11 SKIN-LEADING EDGE OUTBD RH, A 1
WITHOUT FUEL
-125 95-110014-477 SKIN-MAIN PANEL TOP INBD LH B 1
130 96-110019-5 SKIN-WALKWAY RH WING A 1
135 58-100022-5 SKIN-MAIN PANEL TOP INBD LH B 1
-140 95-110014-478 SKIN-MAIN PANEL TOP INBD LH A 1
145 58-100022-7 SKIN-MAIN PANEL TOP INBD RH FE 1
150 95-110014-161 SKIN-MAIN PANEL TOP OUTBD FE 1
LH
155 95-110014-162 SKIN-MAIN PANEL TOP OUTBD FE 1
RH
160 95-110014-565 SKIN ASSY-TRAILING EDGE A 1
OUTBD LH
-165 95-110014-199 SKIN-TRAILING EDGE OUTBD LH B 1
OUTBD RH
57-30-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-175 95-110014-200 SKIN-TRAILING EDGE OUTBD RH B 1
180 95-110014-947 SKIN-TRAILING EDGE INBD LH A 1
-185 95-110014-695 SKIN ASSY-TRAILING EDGE B 1
OUTBD LH
190 95-110014-948 SKIN-TRAILING EDGE INBD RH A 1
-195 95-110014-698 SKIN ASSY-TRAILING EDGE B 1
OUTBD RH
200 95-110014-537 SKIN-MAIN PANEL LOWER FWD FE 1
INBD LH
205 95-110014-538 SKIN-MAIN PANEL LOWER FWD FE 1
INBD RH
210 95-110014-539 SKIN-MAIN PANEL LOWER AFT FE 1
INBD LH
215 95-110014-540 SKIN-MAIN PANEL LOWER AFT FE 1
INBD RH
220 95-110014-205 SKIN-MAIN PANEL LOWER LH FE 1
225 95-110014-206 SKIN-MAIN PANEL LOWER RH FE 1
230 95-110014-519 SKIN-MAIN PANEL LOWER OUTBD FE 1
LH
235 95-110014-520 SKIN-MAIN PANEL LOWER OUTBD FE 1
RH
LOWER OUTBD LH
-245 95-110014-211 SKIN-TRAILING EDGE LOWER B 1
OUTBD LH
LOWER OUTBD RH
-255 95-110014-212 SKIN-TRAILING EDGE LOWER B 1
OUTBD RH
260 95-110014-323 SKIN-TRAILING EDGE LOWER FE 1
INBD LH
265 95-110014-324 SKIN-TRAILING EDGE LOWER FE 1
INBD RH
270 58-170000-7 SKIN-WING TIP LH TOP, FE 1
-275 95-170000-165 SKIN-WING TIP LH TOP, FE 1
WITH STROBE LIGHT
280 58-170000-8 SKIN-WING TIP RH TOP, FE 1
-285 95-170000-166 SKIN-WING TIP RH TOP, FE 1
WITH STROBE LIGHT
290 58-170000-5 SKIN-WING TIP LH LOWER, FE 1
-295 60-360015-9 SKIN-WING TIP LH LOWER, FE 1
WITH STROBE LIGHT
300 58-170000-6 SKIN-WING TIP LOWER RH, FE 1
-305 60-360015-10 SKIN-WING TIP LOWER RH, FE 1
WITH STROBE LIGHT
310 96-170000-11 SKIN-WING TIP LH LEADING FE 1
EDGE, WITHOUT STROBE LIGHT
-315 60-360015-7 SKIN-WING TIP LH LEADING FE 1
EDGE, WITH STROBE LIGHT
320 96-170000-12 SKIN-WING TIP RH LEADING FE 1
EDGE, WITHOUT STROBE LIGHT
57-30-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-325 60-360015-8 SKIN-WING TIP RH LEADING FE 1
EDGE, WITH STROBE LIGHT
330 95-170000-83 SKIN-WING TIP LH TOP FE 1
LEADING EDGE, WITHOUT
STROBE LIGHT
335 95-170000-84 SKIN-WING TIP RH TOP FE 1
LEADING EDGE, WITHOUT
STROBE LIGHT
340 95-170000-85 SKIN-WING TIP LH TOP OUTBD, FE 1
-345 95-170000-127 SKIN-WING TIP LOWER LH FE 1
OUTBD, WITH STROBE LIGHT
350 95-170000-86 SKIN-WING TIP LOWER RH FE 1
OUTBD, WITHOUT STROBE
LIGHT
-355 95-170000-128 SKIN-WING TIP RH LOWER FE 1
OUTBD, WITH STROBE LIGHT
360 35-165051-8 SKIN-FLAP LH A 1
-365 95-160000-75 SKIN-FLAP LH B 1
370 35-165051-9 SKIN-FLAP RH A 1
-375 95-160000-58 SKIN-FLAP RH B 1
380 45-135031-93 SKIN-LH AILERON C 1
FOR SPARES ORDER:
45-135031-139
380 45-135031-139 SKIN-LH AILERON FE 1
45-135031-93
390 33-130000-3 SKIN-RH AILERON C 1
FOR SPARES ORDER:
33-130000-49
390 33-130000-49 SKIN-RH AILERON FE 1
33-130000-3
400 45-135032-3 SKIN-LH AILERON TAB LOWER FE 1
-405 45-135032-1 SKIN-LH AILERON TAB UPPER FE 1
410 35-115200-48 SKIN-ENCLOSURE LH A 1
-415 35-115200-6 SKIN-ENCLOSURE LH B 1
420 35-115200-49 SKIN-ENCLOSURE RH A 1
-425 35-115200-7 SKIN-ENCLOSURE RH B 1
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H9999 A
H0001-H0384 B
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1936 C
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

57-30-00-01
PAGE 3
BARON MAY 01/19

57-40-00-01
WING INSTALLATION
57-40-00-01
BARON MAY 01/19
WING INSTALLATION
57-40-00-01
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 WING INSTALLATION
-5 95-100000-1 WING INSTL-LH FE RF
-10 95-100000-2 WING INSTL-RH FE RF
15 35-105005-10 . DOOR ASSY-LH UPPER FWD FE 1
-20 35-105005-11 . DOOR ASSY-RH UPPER FWD FE 1
-25 35-105005-4 . . CLIP FE 1
-30 35-105005-6 . . CLIP FE 1
35 000-100100-1 . COVER ASSY-LH LOWER FWD FE 1
-40 000-100100-2 . COVER ASSY-RH LOWER FWD FE 1
ATTACHING PARTS
45 AN530-8R8 . SCREW FE 4
FOR SPARES ORDER:
MS51861-35
45 MS51861-35 . SCREW FE 4
AN530-8R8
-50 NAS395-17-1 . NUT-CLIP FE 2
-55 NAS394-17-1 . NUT-CLIP G 1
-55 NAS395-17-1 . NUT-CLIP J 1
-------*-------
60 35-105005-12 . DOOR ASSY-LH UPPER AFT FE 1
-65 35-105005-13 . DOOR ASSY-RH UPPER AFT FE 1
-70 35-105005-4 . . CLIP FE 1
-75 35-105005-6 . . CLIP FE 1
80 35-105110 . COVER ASSY-LH LOWER AFT FE 1
-85 35-105110-1 . COVER ASSY-RH LOWER AFT FE 1
ATTACHING PARTS
90 PK-56Z-8-6 . SCREW G 3
90 MS51861-34 . SCREW J 3
-------*-------
95 NAS152-37M . BOLT-UPPER FWD G 1
FOR SPARES ORDER:
131790-1
95 NAS152-37 . BOLT-UPPER FWD H 1
FOR SPARES ORDER:
131790-1
95 131790-1 . BOLT-UPPER FWD FE 1
NAS152-37M
NAS152-37
105 95-110021 . WASHER FE 1
CHAMFER SIDE TOWARD
BOLT HEAD, RADIUS SIDE
TOWARD SPAR
110 105090-A032-12-124 . WASHER-SOFT ALUMINUM FE 1
ALTERNATE SPARE:
105090-A040-12K
110 105090-A-040-12K . WASHER-SOFT ALUMINUM FE 1
ALTERNATE SPARE:
105090-A032-12-124
115 95-110025-1 . WASHER FE 1
RADIUS SIDE TOWARD
FITTING
120 MS20002-12 . WASHER G AR
ALTERNATE SPARE:
NAS143-12
57-40-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
120 NAS143-12 . WASHER G AR
ALTERNATE SPARE:
MS20002-12
125 EB-126 . NUT A 1
ALTERNATE SPARE:
130909N53
DHN35-12
125 130909N53 . NUT A 1
ALTERNATE SPARE:
EB-126
DHN35-12
125 DHN35-12 . NUT A 1
ALTERNATE SPARE:
EB-126
130909N53
125 12B126 . NUT B 1
135 131790-3 . BOLT-LOWER FWD C 1
135 NAS495-14-26 . BOLT-LOWER FWD K 1
FOR SPARES ORDER:
130909B279
135 130909B279 . BOLT-LOWER FWD K 1
NAS495-14-26
145 50-105011 . WASHER FE 1
CHAMFER SIDE TOWARD NUT,
RADIUS SIDE TOWARD
SPAR FITTING
150 EB-144 . NUT FE 1
ALTERNATE SPARE:
ZEB1845-144
130909N54
150 ZEB1845-144 . NUT FE 1
ALTERNATE SPARE:
EB144
130909N54
150 130909N54 . NUT FE 1
ALTERNATE SPARE:
EB-144
ZEB1845-144
160 NAS150-35M . BOLT-UPPER AFT G 1
FOR SPARES ORDER:
130909B274
160 NAS150-35 . BOLT-UPPER AFT H 1
FOR SPARES ORDER:
130909B274
160 130909B274 . BOLT-UPPER AFT FE 1
NAS150-35M
NAS150-35
165 35-105111 . WASHER F 1
CHAMFER SIDE TOWARD
BOLT HEAD
FOR SPARES ORDER:
35-105111-3

57-40-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
165 35-105111-3 . WASHER FE 1
CHAMFER SIDE TOWARD
BOLT HEAD
35-105111
175 105090-A032-10-120 . WASHER-ALUMINUM FE 1
ALTERNATE SPARE:
105090A040-10J
175 105090A040-10J . WASHER-ALUMINUM FE 1
ALTERNATE SPARE:
105090-A032-10-120
180 95-110025-3 . WASHER FE 1
RADIUS SIDE TOWARD
SPAR FITTING
185 MS20002-10 . WASHER G 1
185 NAS143-10 . WASHER J 1
FOR SPARES ORDER:
MS20002-10
185 MS20002-10 . WASHER J 1
SPARE REPLACEMENT FOR:
NAS143-10
190 12B-108 . NUT FE 1
195 MS21250-12-024M . BOLT-LOWER, AFT G 1
195 MS21250-12024 . BOLT-LOWER, AFT H 1
FOR SPARES ORDER:
130909B280
195 130909B280 . BOLT-LOWER, AFT J 1
MS21250-12024
200 95-110021-1 . WASHER FE 1
CHAMFER SIDE TOWARD
BOLT HEAD
205 95-110025-1 . WASHER FE 1
RADIUS SIDE TOWARD
SPAR FITTING
210 MS20002-12 . WASHER G 1
ALTERNATE SPARE:
NAS143-12
210 NAS143-12 . WASHER G 1
ALTERNATE SPARE:
MS20002-12
215 130909N55 . NUT FE 1
C2359-C9999,E1183-E9999,H1193-H9999 A
C1608-C2358,E0938-E0938,E0943-E1182,H0001-H1192 B
C1608-C9999,E0938-E0938,E0943-E9999,H0235-H9999 C
C1608-C2128,E0938-E0938,E0943-E1126,H0001-H0912 F
C1608-C9999,E0938-E0938,E0943-E9999 G
H0001-H2085 H
H0001-H9999 J
H0001-H0234 K
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

57-40-00-01
PAGE 3
BARON MAY 01/19

57-50-00-01
FLAP ASSEMBLY
57-50-00-01
BARON MAY 01/19
FLAP ASSEMBLY
SHEET 1 OF 2
57-50-00-01
PAGE 0
MAY 01/19
FLAP ASSEMBLY
SHEET 2 OF 2
57-50-00-01
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 FLAP ASSEMBLY
-5 95-160000-55 FLAP INSTL-LH FE RF
-10 95-160000-56 FLAP INSTL-RH FE RF
-15 95-160000-607 . FLAP ASSY-LH FE 1
-20 95-160000-608 . FLAP ASSY-RH FE 1
ATTACHING PARTS
25 130909B23 . BOLT-FLAP HINGE FE 2
-------*-------
30 99-160011 . ROLLER-FLAP AFT FE 2
ATTACHING PARTS
35 130909B21 . BOLT-FLAP HINGE FE 2
-------*-------
40 35-165004 . ROLLER-FLAP FWD, FLAP HINGE FE 2
ATTACHING PARTS
45 50-105000-3 . WASHER-FLAP HINGE FE 2
-50 AN960-10 . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-55 MS20365-1032 . NUT FE 4
ALTERNATE SPARE:
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-55 MS21044N3 . NUT FE 4
ALTERNATE SPARE:
MS20365-1032
-55 MS21042-3 . NUT FE 4
ALTERNATE SPARE:
MS20365-1032
-55 130909N29 . NUT FE 4
MS20365-1032
60 130909B38 . BOLT-FLAP ACTUATOR FE 1
65 100801S5-0500 . BUSHING-FLAP ACTUATOR FE 1
-70 AN960-416 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0463P
ALTERNATE SPARE:
AN960-416
-75 MS20365-428 . NUT FE 1
ALTERNATE SPARE:
MS21044N4
MS21042-4
FOR SPARES ORDER:
130909N30
-75 MS21044N4 . NUT FE 1
ALTERNATE SPARE:
MS20365-428
-75 MS21042-4 . NUT FE 1
ALTERNATE SPARE:
MS20365-428
57-50-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-75 130909N30 . NUT FE 1
MS20365-428
-------*-------
80 35-165050-76 . . RIB-LH FLAP FE 1
-85 35-165050-77 . . RIB-RH FLAP FE 1
90 95-160000-71 . . RIB-LH FLAP FE 1
-95 95-160000-72 . . RIB-RH FLAP FE 1
100 35-165050-34 . . BRACKET-LH HALF OUTBD, FE 1
FLAP TRACK
105 35-165050-35 . . BRACKET-RH HALF OUTBD, FE 1
FLAP TRACK
110 35-165050-65 . . ANGLE-LH HALF OUTBD FE 1
BRACKET, FLAP TRACK
115 35-165050-64 . . ANGLE-RH HALF OUTBD FE 1
BRACKET, FLAP TRACK
120 50-160012-1 . . RIB-LH FLAP FE 1
-125 50-160012-2 . . RIB-RH FLAP FE 1
130 50-160013-1 . . RIB-LH FLAP FE 1
-135 50-160013-2 . . RIB-RH FLAP FE 1
140 35-165050-84 . . RIB-FLAP FE 1
145 35-165050-40 . . BRACKET-FLAP ACTUATOR FE 1
ATTACHING PARTS
150 MS35207-263 . . SCREW FE 3
155 100951S063ZT . . WASHER FE 3
-------*-------
160 35-165050-30 . . BRACKET-LH HALF INBD FE 1
FLAP TRACK
165 35-165050-31 . . BRACKET-RH HALF INBD, FE 1
FLAP TRACK
170 35-165050-62 . . ANGLE-LH HALF INBD FE 1
BRACKET, FLAP TRACK
175 35-165050-63 . . ANGLE-RH HALF INBD FE 1
BRACKET, FLAP TRACK
180 95-160000-49 . . CAM-FLAP LIMIT SWITCH, FE 1
15 DEGREES
185 95-160000-5 . . RIB-LH FLAP FE 1
-190 95-160000-6 . . RIB-RH FLAP FE 1
195 95-160000-9 . . RIB-LH FLAP FE 1
-200 95-160000-10 . . RIB-RH FLAP FE 1
205 95-160000-13 . . RIB-LH FLAP FE 1
-210 95-160000-62 . . RIB-RH FLAP FE 1
215 95-160000-17 . . RIB-LH FLAP FE 1
220 95-160000-18 . . RIB-RH FLAP FE 1
225 95-160000-25 . . RIB-LH FLAP FE 1
-230 95-160000-26 . . RIB-RH FLAP FE 1
235 95-160000-81 . . SKIN-LH NOSE FE 1
-240 95-160000-82 . . SKIN-RH NOSE FE 1
245 95-160000-33 . . SKIN-LH TIP FE 1
-250 95-160000-34 . . SKIN-RH TIP FE 1
255 95-160000-73 . . SPAR-LH FLAP FE 1
-260 95-160000-74 . . SPAR-RH FLAP FE 1
265 95-160000-65 . . RIB-LH FLAP FE 1
270 95-160000-31 . . RIB-RH FLAP FE 1
275 95-160000-77 . . SKIN-LH BOTTOM FLAP FE 1
57-50-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-280 95-160000-60 . . SKIN-RH BOTTOM FLAP FE 1
285 95-160000-75 . . SKIN-LH TOP FLAP FE 1
-290 95-160000-58 . . SKIN-RH TOP FLAP FE 1
295 95-160000-21 . . RIB-RH FLAP FE 1
-300 95-160000-63 . . RIB-LH FLAP FE 1
305 95-160000-45 . . DOUBLER-RH FLAP STEP FE 1
310 95-160000-47 . . DOUBLER-RH LOWER FLAP FE 1
315 95-160000-69 . . STIFFENER-FLAP FE 1
320 103637 . . PLACARD-FLAP FE 1
-325 49384 . . FASTENER FE 2
330 MS25083-1AA6 JUMPER-BONDING FE 2
ATTACHING PARTS
-335 AN515-6 SCREW FE 4
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-345 MS20365-632 NUT FE 2
ALTERNATE SPARE:
MS21044N06
MS21042L06
-345 MS21044N06 NUT FE 2
ALTERNATE SPARE:
MS20365-632
MS21042L06
-345 MS21042L06 NUT FE 2
ALTERNATE SPARE:
MS20365-632
MS21044N06
-350 AN366F632 NUTPLATE FE 2
FOR SPARES ORDER:
MS21078-06
-350 MS21078-06 NUTPLATE FE 2
AN366F632
-------*-------
355 A6914-1024-1 . PLATE-PATCH FE 8
FOR SPARES ORDER:
132641-5G
355 132641-5G . PLATE-PATCH FE 8
A6914-1024-1
MISCELLANEOUS DATA:
PERMISSIBLE TO USE
UP EXISTING STOCK OF
REPLACEMENT PARTS.
H0001-H0220 FE

57-50-00-01
PAGE 3
BARON MAY 01/19

57-50-00-02
FLAP ASSEMBLY
57-50-00-02
BARON MAY 01/19
FLAP ASSEMBLY
SHEET 1 OF 2
57-50-00-02
PAGE 0
MAY 01/19
FLAP ASSEMBLY
SHEET 2 OF 2
57-50-00-02
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 FLAP ASSEMBLY
-5 35-165050-607 FLAP ASSY-LH FE RF
-10 35-165050-606 FLAP ASSY-RH FE RF
ATTACHING PARTS
15 130909B23 . BOLT-AFT FE 2
20 130909B21 . BOLT FE 2
-25 AN960-10 . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-30 130909N29 . NUT FE 4
35 130909B38 . BOLT-FWD ATTACH FLAP FE 1
ACTUATOR
-40 100801S5-0500 . BUSHING FE 1
-45 AN960-416 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0463P
ALTERNATE SPARE:
AN960-416
-50 130909N32 . NUT FE 1
-------*-------
55 35-165050-30 . BRACKET-FLAP INBD LH FE 1
60 35-165050-62 . ANGLE-LH HALF INBD FE 1
BRACKET, FLAP TRACK
65 35-165050-63 . ANGLE-RH HALF INBD FE 1
BRACKET, FLAP TRACK
70 35-165050-65 . ANGLE-LH HALF OUTBD FE 1
BRACKET, FLAP TRACK
75 35-165050-64 . ANGLE-RH HALF OUTBD FE 1
BRACKET, FLAP TRACK
80 35-160000-49 . BRACKET FE 1
-85 35-165050-31 . BRACKET-FLAP INBD RH FE 1
90 35-165050-34 . BRACKET-FLAP OUTBD LH FE 1
-95 35-165050-35 . BRACKET-FLAP OUTBD RH FE 1
-100 102-160000-9 . DOUBLER-OUTBD, LH AND RH FE 2
105 50-160003-6 . BRACKET-ACTUATOR C 1
FOR SPARES ORDER:
35-165050-271
105 35-165050-271 . BRACKET-ACTUATOR FE 1
50-160003-6
ATTACHING PARTS
115 MS35207-263 . SCREW FE 3
-120 100951S063ZT . WASHER FE 3
ALTERNATE SPARE:
MS21047L3
ALTERNATE SPARE:
NAS680A3
-------*-------
130 103637 . PLACARD-SERIAL NUMBER FE 1

57-50-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ATTACHING PARTS
135 49384 . FASTENER FE 2
-------*-------
140 35-165051-8 . SKIN-LH FE 1
-145 35-165051-9 . SKIN-RH FE 1
150 50-160012-1 . RIB-LH FLAP NOSE B 1
-155 50-160012-3 . RIB-LH FLAP NOSE E 1
-160 50-160012-2 . RIB-RH FLAP NOSE B 1
-165 50-160012-4 . RIB-RH FLAP NOSE E 1
170 50-160013-1 . RIB-LH FLAP NOSE B 1
-175 50-160013-3 . RIB-LH FLAP NOSE E 1
-180 50-160013-2 . RIB-RH FLAP NOSE B 1
-185 50-160013-4 . RIB-RH FLAP NOSE E 1
190 35-165050-74 . RIB FE 1
195 35-165050-76 . RIB FE 1
200 35-165050-84 . RIB FE 1
205 35-165050-68 . SPAR FE 1
210 35-165050-70 . SPACER FE 1
215 MS25083-2AA6 . JUMPER ASSY-BONDING FE 6
ATTACHING PARTS
-220 AN515-6R8 . SCREW FE 6
FOR SPARES ORDER:
MS35206-230
-220 MS35206-230 . SCREW FE 6
AN515-6R8
-225 AN960-6 . WASHER FE 6
ALTERNATE SPARE:
NAS1149FN632P
ALTERNATE SPARE:
AN960-6
-230 MS20365-632 . NUT FE 6
ALTERNATE SPARE:
MS21044N06
MS21042L06
-230 MS21044N06 . NUT FE 6
ALTERNATE SPARE:
MS20365-632
MS21042L06
-230 MS21042L06 . NUT FE 6
ALTERNATE SPARE:
MS20365-632
MS21044N06
-------*-------
235 A6914-1024-1 . PLATE-PATCH FE 4
FOR SPARES ORDER:
132641-1G
235 132641-5G . PLATE-PATCH FE 4
A6914-1024-1
MISCELLANEOUS DATA:
PERMISSIBLE TO USE
UP EXISTING STOCK OF
REPLACEMENT PARTS.
57-50-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
240 BC56984 . BEARING ASSY-FLAP FE 2
ALTERNATE SPARE:
A-11540
240 A-11540 . BEARING ASSY-SPECIAL FLANGED FE 2
ALTERNATE SPARE:
BC56984
245 BC56985 . BEARING ASSY-FLAP FE 2
ALTERNATE SPARE:
A-11538
245 A-11538 . BEARING ASSY-SPECIAL FLANGED FE 2
ALTERNATE SPARE:
BC56985
C1608-C2402,E0938-E0938,E0943-E1192,H0221-H1273 B
C1608-C9999,E0938-E0938,E0943-E9999,H0221-H1702 C
C2403-C9999,E1193-E9999,H1274-H9999 E
C1608-C9999,E0938-E0938,E0943-E9999,H0221-H9999 FE

57-50-00-02
PAGE 3
BARON MAY 01/19

57-50-00-03
AILERON ASSEMBLY
57-50-00-03
BARON MAY 01/19
AILERON ASSEMBLY
SHEET 1 OF 2
57-50-00-03
PAGE 0
MAY 01/19
AILERON ASSEMBLY
SHEET 2 OF 2
57-50-00-03
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03 AILERON ASSEMBLY
-5 45-135030-9 AILERON ASSY-LH A 1
FOR SPARES ORDER:
45-135030-11
-5 45-135030-11 AILERON ASSY-LH B 1
45-135030-9
45-135030-13
-5 45-135030-13 AILERON ASSY-LH D 1
45-135030-11
15 45-135032 . TAB ASSY FE 1
20 45-135030-7 . PIN FE 1
-25 45-135032-25 . . PLATE FE 1
-30 45-135032-23 . . HINGE FE 1
-35 45-135032-1 . . SKIN-UPPER FE 1
-40 45-135032-3 . . SKIN-LOWER FE 1
45 45-135039-3 . ARM-LINKAGE FE 1
ATTACHING PARTS
50 130909B20 . BOLT FE 1
-55 AN960D10L . WASHER FE 1
FOR SPARES ORDER:
NAS1149D0316H
-55 NAS1149D0316H . WASHER FE 1
AN960D10L
-60 AN960-416 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0463P
ALTERNATE SPARE:
AN960-416
-65 AN960-416L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0432P
ALTERNATE SPARE:
AN960-416L
-------*-------
70 NAS1103-4D . BOLT FE 1
ALTERNATE SPARE:
NAS6203-4D
ALTERNATE SPARE:
NAS1103-4D
FOR SPARES ORDER:
NAS1149D0316H
AN960D10L
80 130909N15 . NUT FE 1
-85 AN380-2-2 . PIN FE 1
ALTERNATE SPARE:
MS24665-132

57-50-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-85 MS24665-132 . PIN FE 1
ALTERNATE SPARE:
AN380-2-2
-90 96-520013-5 . TUBE ASSY-ADJUSTABLE FE 1
ATTACHING PARTS
ALTERNATE SPARE:
NAS6203-4D
ALTERNATE SPARE:
NAS1103-4D
100 NAS1103-4D . BOLT FE 1
ALTERNATE SPARE:
NAS6203-4D
100 NAS6203-4D . BOLT FE 1
ALTERNATE SPARE:
NAS1103-4D
FOR SPARES ORDER:
NAS1149D0316H
AN960D10L
-110 130909N15 . NUT FE 2
-115 MS24665-132 . PIN-COTTER FE 2
-------*-------
120 96-520013-13 . . TUBE FE 1
125 96-526012 . . END-ROD FE 1
130 96-520011 . . END-ROD FE 1
135 AN316-4R . . NUT FE 1
140 45-135031-73 . STRUCTURE ASSY A 1
FOR SPARES ORDER:
45-135031-135
140 45-135031-135 . STRUCTURE ASSY B 1
45-135031-73
45-135031-0145
140 45-135031-0145 . STRUCTURE ASSY D 1
45-135031-135
150 45-135031-93 . . SKIN A 1
FOR SPARES ORDER:
45-135031-139
150 45-135031-139 . . SKIN B 1
45-135031-93
160 45-135031-21 . . WEIGHT ASSY FE 6
165 45-135031-23 . . WEIGHT FE 2
170 45-135031-43 . . BRACKET FE 1
175 AN7510-1 . . PLACARD FE 1
180 45-135035 . . HINGE ASSY-LH AILERON INBD FE 1
185 45-135036 . . WELD ASSY-HINGE BRACKET, LH FE 1
AILERON OUTBD
FOR SPARES ORDER:
35-135025-32
57-50-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
185 35-135025-32 . . WELD ASSY-HINGE BRACKET, LH FE 1
AILERON OUTBD
45-135036
ATTACHING PARTS
195 NAS221-9 . . SCREW FE 8
ALTERNATE SPARE:
MS27039-1-09
195 MS27039-1-09 . . SCREW FE 8
ALTERNATE SPARE:
NAS221-9
-200 AN960-10L . . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0332P
-200 NAS1149F0332P . . WASHER FE 8
ALTERNATE SPARE:
AN960-10L
-205 112105 . . WASHER C 4
-------*-------
210 130909B19 BOLT FE 2
ALTERNATE SPARE:
NAS1149F0363P
-215 NAS1149F0363P WASHER FE 2
ALTERNATE SPARE:
AN960-10
-220 AN365-1032 NUT FE 2
ALTERNATE SPARE:
MS21044N3
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-220 MS21044N3 NUT FE 2
ALTERNATE SPARE:
AN365-1032
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-220 MS21042-3 NUT FE 2
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS20365-1032
FOR SPARES ORDER:
130909N29
-220 MS20365-1032 NUT FE 2
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29

57-50-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-220 130909N29 NUT FE 2
AN365-1032
MS21044N3
MS21042-3
MS20365-1032
225 130909B38 BOLT FE 1
-230 AN960-416 WASHER FE 1
ALTERNATE SPARE:
NAS1149F0463P
-230 NAS1149F0463P WASHER FE 1
ALTERNATE SPARE:
AN960-416
-235 AN365-428 NUT FE 1
ALTERNATE SPARE:
MS21044N4
MS21042-4
MS20365-428
FOR SPARES ORDER:
130909N30
-235 MS21044N4 NUT FE 1
ALTERNATE SPARE:
AN365-428
MS21042-4
MS20365-428
FOR SPARES ORDER:
130909N30
-235 MS21042-4 NUT FE 1
ALTERNATE SPARE:
AN365-428
MS21044N4
MS20365-428
FOR SPARES ORDER:
130909N30
-235 MS20365-428 NUT FE 1
ALTERNATE SPARE:
AN365-428
MS21044N4
MS21042-4
FOR SPARES ORDER:
130909N30
-235 130909N30 NUT FE 1
AN365-428
MS21044N4
MS21042-4
MS20365-428
-240 33-130000-44 AILERON ASSY-RH A 1
FOR SPARES ORDER:
33-130000-47
-240 33-130000-47 AILERON ASSY-RH B 1
33-130000-44
ATTACHING PARTS
250 130909B19 . BOLT FE 2
57-50-00-03
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-255 AN960-10 . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-260 130909N32 . NUT FE 2
265 130909B38 . BOLT FE 1
-270 AN960-416 . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0463P
ALTERNATE SPARE:
AN960-416
-275 130909N32 . NUT FE 1
-------*-------
280 35-135025-36 . WELD ASSY-HINGE, INBD FE 1
285 35-135025-32 . WELD ASSY-HINGE, OUTBD FE 1
ATTACHING PARTS
ALTERNATE SPARE:
MS27039-1-09
290 MS27039-1-09 . SCREW FE 8
ALTERNATE SPARE:
NAS221-9
-295 AN960-10L . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-300 112105 . WASHER C 8
-------*-------
305 103637 . PLACARD-IDENTIFICATION FE 1
ATTACHING PARTS
310 49384 . FASTENER FE 2
-------*-------
315 35-135025-2 . WEIGHT-STATIC OVERBALANCE FE 4
320 35-135025-40 . WEIGHT-STATIC OVERBALANCE FE 2
325 33-130000-3 . SKIN A 1
FOR SPARES ORDER:
33-130000-49
325 33-130000-49 . SKIN B 1
33-130000-3
335 33-130000-21 . WEIGHT ASSY FE 2
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1936 A
H1937-H2458 B
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H2339 C
H2459-H9999 D
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

57-50-00-03
PAGE 5
BARON MAY 01/19

57 - Effective Pages: Beechcraft Corporation

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

57 - Effective Pages: Beechcraft Corporation

Uploaded by

Copyright:

Available Formats

Beechcraft Corporation

BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

57 - CONTENTS 1 MAY 01/19 57-10-00-04 5 MAY 01/19

57-20-00-08 0 MAY 01/19 57-50-00-03 2 MAY 01/19

MAIN FRAME 57-10-00

EXTENDED WING TIP 57-20-00 11 C1608-C9999

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

WING MAIN SECTION ASSEMBLY

PAGE INTENTIONALLY LEFT BLANK

02 WING MAIN SECTION ASSEMBLY

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

WING FRONT SPAR

WING FRONT SPAR

WING FRONT SPAR

PAGE INTENTIONALLY LEFT BLANK

03 WING FRONT SPAR

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

WING FRONT SPAR

WING FRONT SPAR

WING FRONT SPAR

WING FRONT SPAR

04 WING FRONT SPAR

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

WING FRONT SPAR

WING FRONT SPAR

WING FRONT SPAR

WING FRONT SPAR

05 WING FRONT SPAR

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

WING REAR SPAR

WING REAR SPAR

WING REAR SPAR

PAGE INTENTIONALLY LEFT BLANK

06 WING REAR SPAR

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

LEADING EDGE AND FRONT SPAR

LEADING EDGE AND FRONT SPAR
