34 - Effective Pages: Beechcraft Corporation

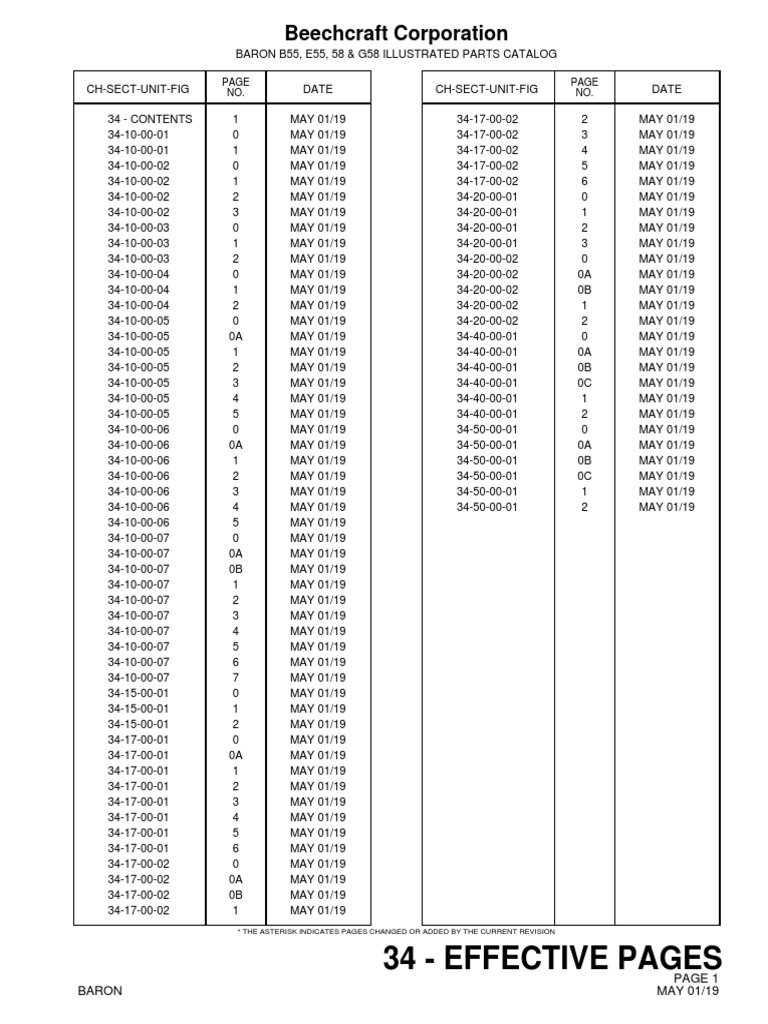

Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
34 - CONTENTS 1 MAY 01/19 34-17-00-02 2 MAY 01/19

34-10-00-01 0 MAY 01/19 34-17-00-02 3 MAY 01/19
34-10-00-01 1 MAY 01/19 34-17-00-02 4 MAY 01/19
34-10-00-02 0 MAY 01/19 34-17-00-02 5 MAY 01/19
34-10-00-02 1 MAY 01/19 34-17-00-02 6 MAY 01/19
34-10-00-02 2 MAY 01/19 34-20-00-01 0 MAY 01/19
34-10-00-02 3 MAY 01/19 34-20-00-01 1 MAY 01/19
34-10-00-03 0 MAY 01/19 34-20-00-01 2 MAY 01/19
34-10-00-03 1 MAY 01/19 34-20-00-01 3 MAY 01/19
34-10-00-03 2 MAY 01/19 34-20-00-02 0 MAY 01/19
34-10-00-04 0 MAY 01/19 34-20-00-02 0A MAY 01/19
34-10-00-04 1 MAY 01/19 34-20-00-02 0B MAY 01/19
34-10-00-04 2 MAY 01/19 34-20-00-02 1 MAY 01/19
34-10-00-05 0 MAY 01/19 34-20-00-02 2 MAY 01/19
34-10-00-05 0A MAY 01/19 34-40-00-01 0 MAY 01/19
34-10-00-05 1 MAY 01/19 34-40-00-01 0A MAY 01/19
34-10-00-05 2 MAY 01/19 34-40-00-01 0B MAY 01/19
34-10-00-05 3 MAY 01/19 34-40-00-01 0C MAY 01/19
34-10-00-05 4 MAY 01/19 34-40-00-01 1 MAY 01/19
34-10-00-05 5 MAY 01/19 34-40-00-01 2 MAY 01/19
34-10-00-06 0 MAY 01/19 34-50-00-01 0 MAY 01/19
34-10-00-06 0A MAY 01/19 34-50-00-01 0A MAY 01/19
34-10-00-06 1 MAY 01/19 34-50-00-01 0B MAY 01/19
34-10-00-06 2 MAY 01/19 34-50-00-01 0C MAY 01/19
34-10-00-06 3 MAY 01/19 34-50-00-01 1 MAY 01/19
34-10-00-06 4 MAY 01/19 34-50-00-01 2 MAY 01/19
34-10-00-06 5 MAY 01/19
34-10-00-07 0 MAY 01/19
34-10-00-07 0A MAY 01/19
34-10-00-07 0B MAY 01/19
34-10-00-07 1 MAY 01/19
34-10-00-07 2 MAY 01/19
34-10-00-07 3 MAY 01/19
34-10-00-07 4 MAY 01/19
34-10-00-07 5 MAY 01/19
34-10-00-07 6 MAY 01/19
34-10-00-07 7 MAY 01/19
34-15-00-01 0 MAY 01/19
34-15-00-01 1 MAY 01/19
34-15-00-01 2 MAY 01/19
34-17-00-01 0 MAY 01/19
34-17-00-01 0A MAY 01/19
34-17-00-01 1 MAY 01/19
34-17-00-01 2 MAY 01/19
34-17-00-01 3 MAY 01/19
34-17-00-01 4 MAY 01/19
34-17-00-01 5 MAY 01/19
34-17-00-01 6 MAY 01/19
34-17-00-02 0 MAY 01/19
34-17-00-02 0A MAY 01/19
34-17-00-02 0B MAY 01/19
34-17-00-02 1 MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
34 - EFFECTIVE PAGES
PAGE 1
BARON MAY 01/19
PAGE INTENTIONALLY LEFT BLANK

CHAPTER 34 - NAVIGATION/PITOT STATIC
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
FLIGHT ENVIRONMENT DATA 34-10-00

INSTRUMENT PRESSURE, PITOT, PLUMBING, STANDARD 34-10-00 01 C1608-C9999
INSTALLATION
INSTRUMENT PRESSURE, PITOT, PLUMBING, STANDARD 34-10-00 02 C2102-C9999
INSTALLATION E0938-E0938
E0943-E9999
H0001-H9999
INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH 34-10-00 03 C1608-C9999
INSTL, DUAL INSTRUMENTS
INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH 34-10-00 04 E0938-E0938
INSTL, DUAL INSTRUMENTS E0943-E9999
H0385-H9999
STATIC SYSTEM PLUMBING 34-10-00 05 C1608-C9999
STATIC SYSTEM PLUMBING 34-10-00 06 E0938-E0938
E0943-E9999
STATIC SYSTEM PLUMBING 34-10-00 07 H0001-H9999
FLIGHT DATA INSTRUMENTS 34-15-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
INSTRUMENT PANEL PLUMBING 34-17-00 01 C1608-C2002
INSTRUMENT PANEL PLUMBING 34-17-00 02 C2003-C9999
E0938-E0938
E0943-E9999
H0001-H9999
ATTITUDE AND DIRECTION 34-20-00
ATTITUDE AND DIRECTIONAL INSTRUMENTS 34-20-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
NAVIGATION ANTENNAS AND INSTRUMENTS 34-20-00 02 H2125-H9999
INDEPENDENT POSITIONING DETERMINING 34-40-00
WEATHER RADAR AND STORMSCOPE INSTL 34-40-00 01 H2125-H9999
DEPENDENT POSITIONING DETERMINING 34-50-00
SKYWATCH AND DME INSTL 34-50-00 01 H2125-H9999
34 - CONTENTS
PAGE 1
BARON MAY 01/19

34-10-00-01
INSTRUMENT PRESSURE, PITOT, PLUMBING, STANDARD INSTALLATION
34-10-00-01
BARON MAY 01/19
34-10-00-01
PAGE 0
MAY 01/19
FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 INSTRUMENT PRESSURE, PITOT, PLUMBING,

STANDARD INSTALLATION
-5 96-364038-41 PLUMBING INSTL-INSTRUMENT B RF
PRESSURE
-5 58-324021-95 PLUMBING INSTL-INSTRUMENT C RF
PRESSURE, USED WITH STD
100 GAL. FUEL SYSTEM
15 95-324018-151 . MAST ASSY FE 1
20 MS24694S5 . SCREW FE 4
25 50-384040 . TUBE-PITOT, HEATED FE 1
30 MS35207-226 . SCREW FE 4
35 35-361109 . TUBE ASSY FE 1
40 106200H4-90 . HOSE FE 1
45 A8 . CLAMP FE 2
-50 AN737PM22 . CLAMP FE 2
ALTERNATE SPARE:
A8
55 95-324018-221 . TUBE FE 1
60 106200H4-24 . HOSE FE 1
65 95-3240118-7 . TUBE FE 1
70 AN6270-4-17 . HOSE ASY FE 1
FOR SPARES ORDER:
AN6270-4D0170
70 AN6270-4D-0170 . HOSE ASY FE 1
SPARES REPLACEMENT FOR:
AN6270-4-17
75 96-324018-13 . TUBE FE 1
80 AN816-4D . ADAPTER FE 1
ALTERNATE SPARE:
AS5194D0402
80 AS5194D0402 . ADAPTER FE 1
ALTERNATE SPARE:
AN816-4D
C1608-C2101 B
C2102-C9999 C
C1608-C9999 FE
MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED
34-10-00-01
PAGE 1
BARON MAY 01/19

34-10-00-02
34-10-00-02
BARON MAY 01/19
34-10-00-02
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

STANDARD INSTALLATION
-5 58-324021-1 PLUMBING INSTL-INSTRUMENT PRESSURE, PITOT A RF
FOR OTHER SYS DETAILS SEE:
30-12-00-01
30-30-00-01
36-10-00-02
FOR ADDITIONAL DETAILS SEE:
34-10-00-06
-5 58-324021-5 PLUMBING INSTL-INSTRUMENT PRESSURE, PITOT B RF
30-15-00-01
30-30-00-01
36-10-00-02
34-10-00-07
-5 58-324021-93 PLUMBING INSTL-INSTRUMENT PRESSURE, PITOT, H RF
USED WITH OPT 136 GAL. FUEL SYSTEM
-5 58-324021-131 PLUMBING INSTL-INSTRUMENT AND PRESSURE, K RF
FUSELAGE
AND WING
30-30-00-01
36-10-00-02
34-10-00-07
-5 58-324021-0135 PLUMBING INSTL-INSTRUMENT AND PRESSURE, L RF
FUSELAGE
AND WING
30-30-00-01
36-10-00-02
34-10-00-07
-20 96-324129-1 . PITOT TUBE INSTL FE RF
25 96-324129-3 . . MAST ASSY FE 1
30 96-324129-9 . . DOUBLER ASSY FE 1
35 50-384040 . . TUBE-PITOT, HEATED FE 1
40 MS35207-226 . . SCREW FE 4
45 AN6270-4-18 . HOSE ASSY D 1
-50 AN6270-4-17 . HOSE ASY E 1
FOR SPARES ORDER:
AN6270-4D-0170
-50 AN6270-4D-0170 . HOSE ASY E 1
AN6270-4-17
ATTACHING PARTS
-55 49184 . CLIP FE 1
-60 49245 . BAND FE 1
-------*-------
65 AN931-6-16 . GROMMET F 1
ALTERNATE SPARE:
MS35489-12
65 MS35489-12 . GROMMET F 1
ALTERNATE SPARE:
AN931-6-16
34-10-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
70 AN919-6D . REDUCER FE 1
FOR SPARES ORDER:
AS5174D0604
70 AS5174D0604 . REDUCER FE 1
AN919-6D
75 96-324012-57 . TUBE ASSY F 1
-80 96-324038-123 . TUBE ASSY H 1
ATTACHING PARTS
-85 49184 . CLIP FE 1
-90 49245 . BAND FE 1
-------*-------
95 AN6270-4D-013 . HOSE G 1
100 MS35489-14S . GROMMET G 1
105 58-324021-75 . TUBE ASSY G 1
110 AN931-6-16 . GROMMET G 1
ALTERNATE SPARE:
MS35489-12
110 MS35489-12 . GROMMET G 1
ALTERNATE SPARE:
AN931-6-16
115 58-324021-73 . TUBE ASSY G 1
120 AN832-6D . UNION FE 1
FOR SPARES ORDER:
MS24393D6
120 MS24393D6 . UNION FE 1
AN832-6D
125 AN960-616L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0632P
125 NAS1149F0632P . WASHER FE 1
ALTERNATE SPARE:
AN960-616L
130 AN924-6D . NUT FE 1
ALTERNATE SPARE:
AS5178D06
130 AS5178D06 . NUT FE 1
ALTERNATE SPARE:
AN924-6D
135 AN833-6D . ELBOW J 1
FOR SPARES ORDER:
MS24394D6
135 MS24394D6 . ELBOW J 1
AN833-6D
135 AN832-6D . UNION C 1
FOR SPARES ORDER:
MS24393D6
135 MS24393D6 . UNION C 1
AN832-6D
140 AN960-616L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0632P
34-10-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ALTERNATE SPARE:
AN960-616L
145 AN924-6D . NUT FE 1
ALTERNATE SPARE:
AS5178D06
145 AS5178D06 . NUT FE 1
ALTERNATE SPARE:
AN924-6D
150 AN6270-6-36 . HOSE J 1
FOR SPARES ORDER:
AN6270-6D0360
150 AN6270-6D-0360 . HOSE J 1
AN6270-6-36
150 131823VE4A-0360 . TUBE C 1
155 AN816-6-2D . ADAPTER J 1
ALTERNATE SPARE:
AS5194D0602
155 AS5194D0602 . ADAPTER J 1
ALTERNATE SPARE:
AN816-6-2D
155 262-P-04 . UNION C 1
E0938-E0938,E0943-E9999 A
H0001-H2124 B
H2125-H9999 C
C2102-C9999,H0001-H0384 D
E0938-E0938,E0943-E0988,H0385-H0555 E
E0938-E0938,E0943-E0988,H0001-H0555 F
E0989-E9999,H0556-H9999 G
C2102-C9999 H
C2102-C9999,E0938-E0938,E0943-E9999,H0001-H2124 J
H2125-H2438 K
H2439-H9999 L
C2102-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

34-10-00-02
PAGE 3
BARON MAY 01/19

34-10-00-03
INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH INSTL, DUAL

INSTRUMENTS
34-10-00-03
BARON MAY 01/19
INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH INSTL, DUAL INSTRUMENTS
34-10-00-03
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

OPTIONAL RH INSTL, DUAL INSTRUMENTS
-5 96-324054 PLUMBING INSTL-OPT, K RF
INSTRUMENT PRESSURE,
PITOT, DUAL, STANDARD
INSTRUMENTS
-10 96-324054-7 PLUMBING ISNTL-OPT, L RF
INSTRUMENTS
-15 96-324054-3 PLUMBING INSTL-OPT, K RF
PITOT, DUAL, WEDGE LIT
INSTRUMENTS
-20 96-324054-9 PLUMBING INSTL-OPT, L RF
PITOT
25 000-110025-1 . REINFORCEMENT ASSY FE 1
30 95-324076-21 . MAST ASSY-PITOT FE 1
35 AN515-8R8 . SCREW FE 4
FOR SPARES ORDER:
MS35206-245
35 MS35206-245 . SCREW FE 4
AN515-8R8
40 50-384040 . TUBE-PITOT, HEATED FE 1
45 AN520-6R4 . SCREW FE 4
50 96-324038-39 . TUBE FE 1
55 95-324076-15 . TUBE FE 1
60 95-324018-135 . TUBE FE 1
MISCELLANEOUS DATA:
2 REQ'D FOR C1711C9999
65 95-324076-23 . TUBE FE 1
70 95-324076-11 . TUBE B 1
75 95-324038-61 . TUBE C 1
80 AN832-4D . UNION FE 1
FOR SPARES ORDER:
MS24393D4
80 MS24393D4 . UNION FE 1
AN832-4D
85 AN960-716 . WASHER FE 1
FOR SPARES ORDER:
NAS1149F0763P
AN960-716
90 AN924-4D . NUT FE 1
ALTERNATE SPARE:
AS5178D04
90 AS5178D04 . NUT FE 1
ALTERNATE SPARE:
AN924-4D
95 AN6270-4-12 . HOSE ASSY FE 1

34-10-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
100 AN822-4D . ELBOW D 1
FOR SPARES ORDER:
MS20822-4D
AS5195D0402
100 MS20822-4D . ELBOW D 1
FOR SPARES ORDER:
AS5195D0402
100 AS5195D0402 . ELBOW- D 1
AN822-4D
MS20822-4D
-105 269P1/4-1/8 . ELBOW E 1
110 50-384024-49 . INDICATOR-AIRSPEED F 1
OPTIONAL RH
-115 58-380010-5 . INDICATOR-AIRSPEED G 1
OPTIONAL RH
-120 102-380002-35 . INDICATOR-AIRSPEED H 1
OPTIONAL RH
-125 58-380037-39 . INDICATOR-AIRSPEED J 1
OPTIONAL RH
130 AN6270-4-47 . HOSE D 1
-135 96-324054-11 . TUBE E 1
140 AN826-4D . TEE D 1
FOR SPARES ORDER:
AS5198W040204
140 AS5198W040204 . TEE D 1
AN826-4D
-145 271-P-1/4-1/8 . TEE E 1
FOR SPARES ORDER:
271-P-04X02
-145 271-P-04X02 . TEE E 1
271-P-1/4-1/8
ALTERNATE SPARE:
171P-4-2
-145 171P-4-2 . TEE E 1
ALTERNATE SPARE:
271-P-04X02
-150 113-210-102 . CIRCUIT BREAKER FE 1
OPT PITOT HEAT
C1608-C1710 B
C1711-C9999 C
C1608-C2172 D
C2173-C9999 E
C1608-C2002 F
C2003-C2275 G
C2276-C2354 H
C2355-C9999 J
C1608-C1843 K
C1844-C9999 L
C1608-C9999 FE

34-10-00-03
PAGE 2
BARON MAY 01/19
34-10-00-04
INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH INSTL, DUAL

INSTRUMENTS
34-10-00-04
BARON MAY 01/19
INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH INSTL, DUAL INSTRUMENTS
34-10-00-04
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

OPTIONAL RH INSTL, DUAL INSTRUMENTS
-5 96-324139-3 PLUMBING INSTL-OPT, A RF
INSTRUMENTS
30-30-00-01
-5 96-324139-5 PLUMBING INSTL-OPT, A RF
INSTRUMENTS
30-30-00-01
-5 96-324139-13 PLUMBING ISNTL-OPT, B RF
INSTRUMENTS
30-30-00-01
-5 96-324139-15 PLUMBING INSTL-OPT, B RF
INSTRUMENTS
30-30-00-01
-25 96-324129-2 . PITOT MAST INSTL FE RF
30 96-324129-11 . . DOUBLER FE 1
35 96-324129-4 . . MAST ASSY FE 1
40 AN507-832R8 . . SCREW FE 3
45 50-384040 . . TUBE-PITOT, HEATED FE 1
50 AN507-640R4 . . SCREW FE 4
55 AN6270-4-17 . HOSE ASY D 1
FOR SPARES ORDER:
AN6270-4D-0170
55 AN6270-4D-0170 . HOSE ASY D 1
AN6270-4-17
-60 AN6270-4-13 . HOSE E 1
65 MS24399D7 . REDUCER FE 1
70 96-324139-1 . TUBE ASSY D 1
75 96-324139-29 . TUBE ASSY E 1
80 AS517D0606 . UNION E 1
85 96-324139-31 . TUBE ASSY E 1
90 MS24394D6 . ELBOW FE 1
100 AS5178D06 . NUT FE 1
105 AN6270-6-28 . HOSE ASSY FE 1
110 AS5194D0602 . ADAPTER FE 1
115 AS5194D0404 . NIPPLE D 1
-120 268-P-04X02 . CONNECTOR E 1
125 AN6270-4-47 . HOSE D 1
-130 96-324139-27 . TUBE E 1
135 MS20826-4D . TEE D 1
135 271P-4-2 . TEE E 1

34-10-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
OPTIONAL RH
OPTIONAL RH
WEDGE LIT
145 102-380001-21 . INDICATOR-AIRSPEED G 1
OPTIONAL RH
145 102-380002-21 . INDICATOR-AIRSPEED G 1
OPTIONAL RH
WEDGE LIT
145 50-384024-19 . INDICATOR-AIRSPEED H 1
OPTIONAL RH
145 102-380002-37 . INDICATOR-AIRSPEED H 1
OPTIONAL RH
WEDGE LIT
145 60-384024-33 . INDICATOR-AIRSPEED J 1
OPTIONAL RH
145 58-380037-47 . INDICATOR-AIRSPEED J 1
OPTIONAL RH
WEDGE LIT
145 58-384024-63 . INDICATOR-AIRSPEED K 1
OPTIONAL RH
145 58-380010-7 . INDICATOR-AIRSPEED K 1
OPTIONAL RH
WEDGE LIT
145 102-380001-23 . INDICATOR-AIRSPEED L 1
OPTIONAL RH
145 102-380002-23 . INDICATOR-AIRSPEED L 1
OPTIONAL RH
WEDGE LIT
145 102-380001-39 . INDICATOR-AIRSPEED M 1
OPTIONAL RH
145 102-380002-39 . INDICATOR-AIRSPEED M 1
OPTIONAL RH
WEDGE LIT
145 60-384024-35 . INDICATOR-AIRSPEED N 1
OPTIONAL RH
145 58-380037-43 . INDICATOR-AIRSPEED N 1
OPTIONAL RH
WEDGE LIT
H0385-H9999 A
E0938-E0938,E0943-E9999 B
E0938-E0938,E0943-E0988,H0385-H0491 D
E0989-E9999,H0492-H9999 E
E0938-E0938,E0943-E1083 F
E1084-E1151,E1153-E1168 G
E1169-E1182 H
E1152-E1152,E1183-E9999 J
H0385-H0732 K
H0733-H1079 L
H1080-H1193 M
H1194-H9999 N
E0938-E0938,E0943-E9999,H0385-H9999 FE

34-10-00-04
PAGE 2
BARON MAY 01/19
34-10-00-05
STATIC SYSTEM PLUMBING
34-10-00-05
BARON MAY 01/19

SHEET 1 OF 2
34-10-00-05
PAGE 0
MAY 01/19

SHEET 2 OF 2
34-10-00-05
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05 STATIC SYSTEM PLUMBING

5 96-440012-1 BUTTON ASSY FE 2
-10 96-324038-41 PLUMBING INSTL-INSTRUMENT, FE RF
STATIC AIR
30-30-00-01
37-10-00-01
15 58-324021-43 . TUBE-STATIC AIR FE 2
20 M5 . CLAMP FE 2
FOR SPARES ORDER:
3604
20 3604 . CLAMP FE 2
M5
25 264P1/2 . TEE B 1
-30 62065 . TEE C 1
-35 M5 . CLAMP C 3
FOR SPARES ORDER:
3604
-35 3604 . CLAMP C 3
M5
40 58-324021-45 . TUBE-STATIC AIR D 1
45 100ABMSAC . SUPPORT D 2
50 58-324021-41 . TUBE ASSY-STATIC AIR D 1
55 A8 . CLAMP D 1
60 96-324012-65 . TUBE ASSY-STATIC AIR D 1
65 AN919-6D . REDUCER D 1
FOR SPARES ORDER:
AS5174D0604
65 AS5174D0604 . REDUCER D 1
AN919-6D
70 106200H10-32 . HOSE E 1
75 58-324021-45 . TUBE E 1
80 A8 . CLAMP E 1
ATTACHING PARTS
85 MS21919-6 . CLAMP-LINE SUPPORT E 5
90 MS27039-0808 . SCREW E 5
-95 100696BZF012 . SPACER E 5
-100 AN960-8 . WASHER E 5
FOR SPARES ORDER:
NAS1149FN832P
-100 NAS1149FN832P . WASHER E 5
AN960-8
-105 130909N28 . NUT E 5
-------*-------
110 58-324021-41 . TUBE ASSY E 1
MISCELLANEOUS DATA:
FOR SPARES THE
58-324021-103 REPLACES
THE 58-324021-41 TUBE
ASSY, THE 58-324021-77
TUBE ASSY AND THE
AN919-6D UNION.
34-10-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
115 AN919-6D . REDUCER E 1
MISCELLANEOUS DATA:
FOR SPARES THE
58-324021-103 REPLACES
THE 58-324021-41 TUBE
ASSY, THE 58-324021-77
TUBE ASSY AND THE
AN919-6D UNION.
FOR SPARES ORDER:
AS5174D0604
115 AS5174D0604 . REDUCER E 1
MISCELLANEOUS DATA:
FOR SPARES THE
58-324021-103 REPLACES
THE 58-324021-41 TUBE
ASSY, THE 58-324021-77
TUBE ASSY AND THE
AN919-6D UNION
AN919-6D
120 58-324021-77 . TUBE ASSY E 1
MISCELLANEOUS DATA:
FOR SPARES THE
58-324021-103 REPLACES
THE 58-324021-41 TUBE
ASSY, THE 58-324021-77
TUBE ASSY AND THE
AN919-6D UNION.
125 96-324038-129 . HOSE ASSY F 1
-130 96-324128-137 . TUBE G 1
135 AN737TW22 . CLAMP F 1
FOR SPARES ORDER:
132742-22TL
135 132742-22TL . CLAMP F 1
AN737TW22
-140 262-P-1/4 . UNION G 1
FOR SPARES ORDER:
262-P-04
-140 262-P-04 . UNION G 1
262-P-1/4
145 AN824-4D . TEE F 1
FOR SPARES ORDER:
MS24402D4
AS1035D040404
145 MS24402D4 . TEE F 1
FOR SPARES ORDER:
AS1035D040404
145 AS1035D040404 . TEE F 1
AN824-4D
MS24402D4

34-10-00-05
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-150 AN929-4D . CAP F 1
FOR SPARES ORDER:
AN929-4
-150 AN929-4 . CAP ASSY F 1
AN929-4D
-155 264P04 . TEE G 1
-160 259P04 . CAP G 1
165 96-324038-131 . TUBE ASSY F 1
-170 96-324128-139 . TUBE G 1
175 AN826-4D . TEE F 1
FOR SPARES ORDER:
AS5198W040204
175 AS5198W040204 . TEE F 1
AN826-4D
-180 271-P-1/4-1/8 . TEE G 1
FOR SPARES ORDER:
271-P-04X02
-180 271-P-04X02 . TEE G 1
271-P-1/4-1/8
ALTERNATE SPARE:
171P-4-2
180 171P-4-2 . TEE G 1
ALTERNATE SPARE:
271-P-04X02
-185 58-324046-1 . DRAIN INSTL-STATIC AIR D RF
STANDARD
-185 58-324057-1 . DRAIN INSTL-STATIC AIR E RF
STANDARD
195 MS20825-4D . . TEE FE 1
200 35-324428-11 . . VALVE ASSY-DRAIN FE 1
MISCELLANEOUS DATA:
THE 35-324428-11, -27 OR
101-384184-3 AND
58-380032 VALVES ARE NOT
INTERCHANGEABLE. BEFORE
ORDERING A REPLACEMENT
PART, ENSURE THAT IT IS
BEING ORDERED FOR THE
INSTALLED SYSTEM.
FOR SPARES ORDER:
35-324428-27
101-384184-3

34-10-00-05
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-205 35-324428-27 . . VALVE ASSY-DRAIN FE 1
MISCELLANEOUS DATA:
THE 35-324428-11, -27 OR
101-384184-3 AND
INSTALLED SYSTEM.
35-324428-11
ALTERNATE SPARE:
101-384184-3
MISCELLANEOUS DATA:
THE 35-324428-11, -27 OR
101-384184-3 AND
INSTALLED SYSTEM.
35-324428-11
ALTERNATE SPARE:
35-324428-27
215 35-324428-23 . . COVER FE 1
220 95-970000-141 . . TUBE ASSY D 1
220 58-324057-5 . . TUBE ASSY E 1
230 58-324047-1 . . PLATE-INSTRUCTION FE 1
-235 96-324068-3 . STATIC AIR SOURCE INSTL D RF
EMERGENCY
OPTIONAL
-235 96-324068-5 . STATIC AIR SOURCE INSTL E RF
EMERGENCY
OPTIONAL
245 58-380032 . . VALVE ASSY-EMERGENCY STATIC FE 1
AIR
MISCELLANEOUS DATA:
THE 35-324428-11, -27 OR
101-384184-3 AND
INSTALLED SYSTEM.
250 35-324428-23 . . COVER FE 1
255 58-324043 . . PLATE-INSTRUCTION FE 1
260 95-970000-141 . . TUBE ASSY D 1
265 58-324057-5 . . TUBE ASSY E 1
270 96-324128-21 . TUBE ASSY F 1
-275 96-324128-135 . TUBE G 1
34-10-00-05
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
280 96-324159-159 . TUBE H 1
285 262-P-04 . UNION H 1
-290 259P04 . CAP H 1
295 96-324128-161 . TUBE H 1
300 AN826-4D . TEE J 1
FOR SPARES ORDER:
AS5198W040204
300 AS5198W040204 . TEE J 1
AN826-4D
-305 AN825-4D . TEE K 1
FOR SPARES ORDER:
MS20825-4D
-305 MS20825-4D . TEE K 1
AN825-4D
-310 271-P-1/4-1/8 . TEE L 1
FOR SPARES ORDER:
271-P-04X02
-310 271-P-04X02 . TEE L 1
271-P-1/4-1/8
ALTERNATE SPARE:
171P-4-2
310 171P-4-2 . TEE L 1
ALTERNATE SPARE:
271-P-04X02
315 96-324038-97 . TUBE ASSY J 1
-320 96-324128-19 . TUBE ASSY K 1
-325 96-324128-133 . TUBE L 1
330 AN816-4D . ADAPTER F 1
ALTERNATE SPARE:
AS5194D0402
330 AS5194D0402 . ADAPTER F 1
ALTERNATE SPARE:
AN816-4D
-335 268P1-41-8 . NIPPLE L 1
340 35-410286 PLACARD FE 2
C1608-C1918 B
C1919-C9999 C
C1608-C1788 D
C1789-C9999 E
C1608-C2101 F
C2102-C2287 G
C2288-C9999 H
C1608-C2002 J
C2003-C2101 K
C2102-C9999 L
C1608-C9999 FE

34-10-00-05
PAGE 5
BARON MAY 01/19

34-10-00-06
34-10-00-06
BARON MAY 01/19

SHEET 1 OF 2
34-10-00-06
PAGE 0
MAY 01/19

SHEET 2 OF 2
34-10-00-06
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

5 96-440012-1 BUTTON ASSY-AIR FE 2
-10 58-324021-1 PLUMBING INSTL-STATIC FE RF
AIR, INSTRUMENT AND
PRESSURE
30-12-00-01
30-30-00-01
36-10-00-02
34-10-00-02
15 58-324021-43 . TUBE FE 2
20 M5 . CLAMP FE 2
FOR SPARES ORDER:
3604
20 3604 . CLAMP FE 2
M5
25 264P1/2 . TEE B 1
25 62065 . TEE C 1
-35 M5 . CLAMP C 3
FOR SPARES ORDER:
3604
-35 3604 . CLAMP C 3
M5
40 58-324021-45 . TUBE FE 1
45 100ABMSAC . SUPPORT D 2
50 58-324021-41 . TUBE ASSY D 1
55 A8 . CLAMP FE 1
60 AN919-6D . REDUCER D 1
FOR SPARES ORDER:
AS5174D0604
60 AS5174D0604 . REDUCER D 1
AN919-6D
65 106200H10-32 . HOSE E 1
70 MS21919-6 . CLAMP E 5
75 MS27039-0808 . SCREW E 5
-80 100696BZF012 . SPACER E 5
-85 AN960-8 . WASHER E 5
FOR SPARES ORDER:
NAS1149FN832P
-85 NAS1149FN832P . WASHER E 5
AN960-8
-90 130909N28 . NUT E 5
95 58-324021-41 . TUBE ASSY E 1
MISCELLANEOUS DATA:
FOR SPARES THE
58-324021-103 REPLACES
THE 58-324021-41 TUBE
ASSY, THE 58-324021-77
TUBE ASSY AND THE
AN919-6D UNION.

34-10-00-06
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
100 AN919-6D . REDUCER E 1
MISCELLANEOUS DATA:
FOR SPARES THE
58-324021-103 REPLACES
THE 58-324021-41 TUBE
ASSY, THE 58-324021-77
TUBE ASSY AND THE
AN919-6D UNION.
FOR SPARES ORDER:
AS5174D0604
100 AS5174D0604 . REDUCER E 1
MISCELLANEOUS DATA:
FOR SPARES THE
58-324021-103 REPLACES
THE 58-324021-41 TUBE
ASSY, THE 58-324021-77
TUBE ASSY AND THE
AN919-6D UNION.
AN919-6D
105 58-324021-77 . TUBE ASSY E 1
MISCELLANEOUS DATA:
FOR SPARES THE
58-324021-103 REPLACES
THE 58-324021-41 TUBE
ASSY, THE 58-324021-77
TUBE ASSY AND THE
AN919-6D UNION.
110 AN826-4D . TEE F 1
FOR SPARES ORDER:
AS5198W040204
110 AS5198W040204 . TEE F 1
AN826-4D
110 271-P-1/4-1/8 . TEE G 1
FOR SPARES ORDER:
271-P-04X02
110 271-P-04X02 . TEE G 1
271-P-1/4-1/8
ALTERNATE SPARE:
171P-4-2
110 171P-4-2 . TEE G 1
ALTERNATE SPARE:
271-P-04X02
120 96-324038-131 . TUBE ASSY F 1
-125 96-324128-139 . TUBE G 1
130 AN824-4D . TEE F 1
FOR SPARES ORDER:
MS24402D4
AS1035D040404
130 MS24402D4 . TEE F 1
FOR SPARES ORDER:
AS1035D040404

34-10-00-06
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
130 AS1035D040404 . TEE F 1
AN824-4D
MS24402D4
-135 AN929-4D . CAP F 1
FOR SPARES ORDER:
AN929-4
-135 AN929-4 . CAP ASSY F 1
AN929-4D
-140 264P04 . TEE G 1
-145 259P04 . CAP G 1
150 96-324038-129 . HOSE ASSY F 1
-155 96-324128-137 . TUBE G 1
160 58-324021-33 . TUBE ASSY D 1
165 AN737TW22 . CLAMP F 1
FOR SPARES ORDER:
132742-22TL
165 132742-22TL . CLAMP F 1
AN737TW22
-170 262-P-1/4 . UNION G 1
FOR SPARES ORDER:
262-P-04
-170 262-P-04 . UNION G 1
262-P-1/4
-175 58-324046-1 . DRAIN INSTL-STATIC AIR D RF
STANDARD
-180 58-324057-1 . DRAIN INSTL-STATIC AIR E RF
STANDARD
185 MS20825-4D . . TEE FE 1
190 35-324428-11 . . VALVE ASSY-DRAIN FE 1
MISCELLANEOUS DATA:
THE 35-324428-11, -27 OR
101-384184-3 AND
INSTALLED SYSTEM.
FOR SPARES ORDER:
35-324428-27
101-384184-3

34-10-00-06
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
MISCELLANEOUS DATA:
THE 35-324428-11, -27 OR
101-384184-3 AND
INSTALLED SYSTEM.
35-324428-11
ALTERNATE SPARE:
101-384184-3
MISCELLANEOUS DATA:
THE 35-324428-11, -27 OR
101-384184-3 AND
INSTALLED SYSTEM.
35-324428-11
ALTERNATE SPARE:
35-324428-27
205 95-970000-141 . . TUBE ASSY D 1
-210 58-324057-5 . . TUBE ASSY E 1
215 35-324428-23 . . COVER FE 1
220 58-324047-1 . . PLATE-INSTRUCTION FE 1
-225 96-324068-3 STATIC AIR SOURCE INSTL D RF
EMERGENCY
OPTIONAL SYSTEM
-225 96-324068-5 STATIC AIR SOURCE INSTL E RF
EMERGENCY
OPTIONAL SYSTEM
235 58-380032 . VALVE ASSY FE 1
MISCELLANEOUS DATA:
THE 35-324428-11, -27 OR
101-384184-3 AND
INSTALLED SYSTEM.
240 95-970000-141 . TUBE ASSY D 1
-245 58-324057-5 . TUBE ASSY E 1
250 35-324428-23 . COVER FE 1
255 58-324043 . PLATE-INSTRUCTION FE 1
-260 96-324128-1 PLUMBING INSTL-INSTRUMENT FE RF
PANEL, WITH STANDARD
INSTRUMENTS
34-10-00-06
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
PANEL, WITH WEDGE LIT
INSTRUMENTS
270 96-324128-21 . TUBE ASSY F 1
275 AN825-4D . TEE F 1
FOR SPARES ORDER:
MS20825-4D
275 MS20825-4D . TEE F 1
AN825-4D
280 96-324128-19 . TUBE ASSY F 1
285 AN816-4D . ADAPTER F 1
ALTERNATE SPARE:
AS5194D0402
285 AS5194D0402 . ADAPTER F 1
ALTERNATE SPARE:
AN816-4D
290 96-324128-135 . TUBE H 1
295 96-324128-159 . TUBE J 1
300 264P04 . TEE J 1
-305 259P04 . CAP J 1
310 96-324128-161 . TUBE J 1
315 271-P-1/4-1/8 . TEE G 1
FOR SPARES ORDER:
271-P-04X02
315 271-P-04X02 . TEE G 1
271-P-1/4-1/8
ALTERNATE SPARE:
171P-4-2
315 171P-4-2 . TEE J 1
ALTERNATE SPARE:
271-P-04X02
320 96-324128-133 . TUBE J 1
325 268P1/4-1/8 . CONNECTOR G 1
FOR SPARES ORDER:
268-P-04X02
325 268-P-04X02 . CONNECTOR G 1
268P1/4-1/8
330 35-410286 PLACARD FE 1
PLACARD CONTENT:
STATIC AIR-KEEP CLEAN
E0938-E0938,E0943-E1072 B
E1073-E9999 C
E0938-E0938,E0943-E1010 D
E1011-E9999 E
E0938-E0938,E0943-E1117 F
E1118-E9999 G
E1118-E1171 H
E1172-E9999 J
E0938-E0938,E0943-E9999 FE

34-10-00-06
PAGE 5
BARON MAY 01/19

34-10-00-07
34-10-00-07
BARON MAY 01/19

SHEET 1 OF 3
34-10-00-07
PAGE 0
MAY 01/19

SHEET 2 OF 3
34-10-00-07
PAGE 0A
MAY 01/19

SHEET 3 OF 3
34-10-00-07
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

-5 58-324021-5 PLUMBING INSTL-INSTRUMENT AND PRESSURE, U RF
FUSELAGE
AND WING
30-15-00-01
30-30-00-01
36-10-00-02
34-10-00-02
-5 58-324021-131 PLUMBING INSTL-INSTRUMENT AND PRESSURE, X RF
FUSELAGE
AND WING
30-30-00-01
36-10-00-02
34-10-00-02
-5 58-324021-0135 PLUMBING INSTL-INSTRUMENT AND PRESSURE, Y RF
FUSELAGE
AND WING
30-30-00-01
36-10-00-02
34-10-00-02
10 106200H6-20 . HOSE B 2
-15 A-12 . CLAMP B 4
FOR SPARES ORDER:
130292-A-12
ATTACHING PARTS
-15 130292-A-12 . CLAMP B 4
A-12
-------*-------
20 58-324021-35 . TUBE ASSY-LH SIDE B 1
-25 58-324021-37 . TUBE ASSY-RH SIDE B 1
30 AN824-6D . TEE B 1
FOR SPARES ORDER:
132754-28
30 132754-28 . TEE B 1
AN824-6D
35 96-324038-63 . TUBE ASSY B 2
40 AN832-6D . UNION B 3
FOR SPARES ORDER:
MS24393D6
40 MS24393D6 . UNION B 3
AN832-6D
ATTACHING PARTS
-45 AN960-916 . WASHER B 3
FOR SPARES ORDER:
NAS1149F0963P

34-10-00-07
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
-45 NAS1149F0963P . WASHER B 3
AN960-916
-50 AN924-6D . NUT B 3
ALTERNATE SPARE:
AS5178D06
-50 AS5178D06 . NUT B 3
ALTERNATE SPARE:
AN924-6D
-------*-------
55 58-324021-25 . TUBE ASSY B 1
60 58-324021-23 . TUBE ASSY B 1
65 96-324038-67 . TUBE ASSY B 1
70 58-324021-21 . TUBE ASSY B 1
75 AN919-6D . REDUCER B 1
FOR SPARES ORDER:
AS5174D0604
75 AS5174D0604 . REDUCER B 1
AN919-6D
80 58-324021-19 . TUBE ASSY B 1
85 106200H6-20 . HOSE B 1
ATTACHING PARTS
-90 AN737RM24 . CLAMP B 2
FOR SPARES ORDER:
132742-24L
-90 132742-24L . CLAMP B 2
AN737RM24
-------*-------
95 58-324021-43 . TUBE C 2
-100 A-8 . CLAMP C 2
FOR SPARES ORDER:
130292-A-8
ATTACHING PARTS
-100 130292-A-8 . CLAMP C 2
A-8
-------*-------
105 264P1/2 . TEE C 1
110 58-324021-39 . TUBE C 1
115 100ABMSAC . SUPPORT-TUBING C 2
120 58-324021-103 . TUBE ASSY C 1
-125 A-8 . CLAMP C 1
FOR SPARES ORDER:
130292-A-8
ATTACHING PARTS
-125 130292-A-8 . CLAMP C 1
A-8
-------*-------
130 AN919-6D . REDUCER C 1
FOR SPARES ORDER:
AS5174D0604

34-10-00-07
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
130 AS5174D0604 . REDUCER C 1
AN919-6D
135 264P1/2 . TEE S 1
-140 62065 . TEE T 1
ATTACHING PARTS
-145 M5 . CLAMP T 3
FOR SPARES ORDER:
3604
-145 3604 . CLAMP T 3
M5
-------*-------
150 58-324021-43 . TUBE D 1
ATTACHING PARTS
-155 M5 . CLAMP D 4
FOR SPARES ORDER:
3604
-155 3604 . CLAMP D 4
M5
-------*-------
160 58-324021-39 . TUBE D 1
-165 A-8 . CLAMP D 1
FOR SPARES ORDER:
130292-A-8
ATTACHING PARTS
-165 130292-A-8 . CLAMP D 1
A-8
-------*-------
170 106200H10-32 . HOSE D 1
ATTACHING PARTS
-175 TY503 . TIE-LINE D AR
-------*-------
180 58-324021-103 . TUBE ASSY D 1
185 58-324021-33 . TUBE ASSY C 1
-190 96-324068-7 . STATIC AIR SOURCE INSTL-EMERGENCY X RF
195 58-324043 . . PLATE-INSTRUCTION X 1
ATTACHING PARTS
200 MS35206-230 . . SCREW X 4
205 AN366F632 . . NUTPLATE X 4
FOR SPARES ORDER:
MS21078-06
205 MS21078-06 . . NUTPLATE X 4
AN366F632
-------*-------
210 35-324428-23 . . COVER X 1
ATTACHING PARTS
215 MS35206-230 . . SCREW X 3
220 AN366F632 . . NUTPLATE X 3
FOR SPARES ORDER:
MS21078-06

34-10-00-07
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
220 MS21078-06 . . NUTPLATE X 3
AN366F632
-------*-------
225 58-380032 . . VALVE ASSY X 1
FOR SPARES ORDER:
35-324428-27
225 35-324428-27 . . VALVE ASSY X 1
58-380032
230 58-324057-7 . . TUBE X 1
-235 96-324068-0011 . STATIC AIR SOURCE INSTL-EMERGENCY Y RF
240 58-324043-0001 . . PLATE-INSTRUCTION Y 1
ATTACHING PARTS
245 MS35206-230 . . SCREW Y 4
250 AN366F632 . . NUTPLATE Y 4
FOR SPARES ORDER:
MS21078-06
250 MS21078-06 . . NUTPLATE Y 4
AN366F632
-------*-------
255 35-324428-23 . . COVER Y 1
ATTACHING PARTS
260 MS35206-230 . . SCREW Y 3
265 AN366F632 . . NUTPLATE Y 3
FOR SPARES ORDER:
MS21078-06
265 MS21078-06 . . NUTPLATE Y 3
AN366F632
-------*-------
270 35-324428-27 . . VALVE ASSY Y 1
275 MS20825-4D . . TEE Y 1
280 58-324057-7 . . TUBE Y 1
-285 58-324057-3 . DRAIN INSTL-STANDARD U RF
290 58-324047-1 . . PLATE-INSTRUCTION U 1
ATTACHING PARTS
295 MS35206-230 . . SCREW U 4
300 AN366F632 . . NUTPLATE U 4
FOR SPARES ORDER:
MS21078-06
300 MS21078-06 . . NUTPLATE U 4
AN366F632
-------*-------
305 35-324428-23 . . COVER U 1
ATTACHING PARTS
310 MS35206-230 . . SCREW U 3
315 AN366F632 . . NUTPLATE U 3
FOR SPARES ORDER:
MS21078-06

34-10-00-07
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
315 MS21078-06 . . NUTPLATE U 3
AN366F632
-------*-------
320 35-324428-11 . . VALVE ASSY U 1
FOR SPARES ORDER:
35-324428-27
101-384184-3
320 35-324428-27 . . VALVE ASSY U 1
35-324428-11
320 101-384184-3 . . VALVE ASSY U 1
VENDOR PART NUMBER:
1511F2B
B-0GF2
1-1483-1
35-324428-11
325 MS20825-4D . . TEE U 1
330 58-324057-7 . . TUBE U 1
-400 96-324128-65 PLUMBING INSTL-INSTRUMENT PANEL K RF
-400 96-324128-191 PLUMBING INSTL-INSTRUMENT PANEL L RF
405 96-324038-129 . HOSE ASSY M 1
410 AN737TW22 . CLAMP M 1
FOR SPARES ORDER:
132742-22TL
410 132742-22TL . CLAMP M 1
AN737TW22
415 262-P-1/4 . UNION P 1
FOR SPARES ORDER:
262-P-04
415 262-P-04 . UNION P 1
262-P-1/4
420 96-324128-137 . TUBE N 1
-430 130936P4A0310 . TUBE L 1
435 AN824-4D . TEE M 1
FOR SPARES ORDER:
MS24402D4
AS1035D040404
435 MS24402D4 . TEE M 1
FOR SPARES ORDER:
AS1035D040404
435 AS1035D040404 . TEE M 1
AN824-4D
MS24402D4
440 264P04 . TEE P 1
445 AN929-4D . CAP M 1
FOR SPARES ORDER:
AN929-4
445 AN929-4 . CAP ASSY M 1
AN929-4D
34-10-00-07
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
450 259P04 . CAP P 1
455 96-324038-131 . TUBE ASSY M 1
460 96-324038-139 . TUBE N 1
-465 130936P4A0015 . TUBE L 1
470 AN826-4D . TEE M 1
FOR SPARES ORDER:
AS5198W040204
470 AS5198W040204 . TEE M 1
AN826-4D
475 271-P-1/4-1/8 . TEE N 1
FOR SPARES ORDER:
271-P-04X02
475 271-P-04X02 . TEE N 1
271-P-1/4-1/8
ALTERNATE SPARE:
171P-4-2
475 171P-4-2 . TEE N 1
ALTERNATE SPARE:
271-P-04X02
-480 271P04-02 . TEE L 1
485 96-324128-21 . TUBE ASSY M 1
490 96-324128-135 . TUBE Q 1
-495 130936P4A-0090 . TUBE L 1
500 96-324128-159 . TUBE R 1
505 264P04 . TEE R 1
-510 259P04 . CAP R 1
515 96-324128-161 . TUBE R 1
520 AN825-4D . TEE M 1
FOR SPARES ORDER:
MS20825-4D
520 MS20825-4D . TEE M 1
AN825-4D
525 271-P-1/4-1/8 . TEE N 1
FOR SPARES ORDER:
271-P-04X02
525 271-P-04X02 . TEE N 1
271-P-1/4-1/8
ALTERNATE SPARE:
171P-4-2
525 171P-4-2 . TEE N 1
ALTERNATE SPARE:
271-P-04X02
-530 271P04-02 . TEE L 1
535 96-324128-19 . TUBE ASSY M 1
540 96-324128-133 . TUBE N 1
-545 130936P4A0110 . TUBE L 1
550 AN816-4D . ADAPTER M 1
ALTERNATE SPARE:
AS5194D0402

34-10-00-07
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
550 AS5194D0402 . ADAPTER M 1
ALTERNATE SPARE:
AN816-4D
555 268P1/4-1/8 . CONNECTOR N 1
FOR SPARES ORDER:
268-P-04X02
555 268-P-04X02 . CONNECTOR N 1
268P1/4-1/8
-560 268P04-02 . NIPPLE L 1
565 AN816-6-2D . ADAPTER-PITOT AIR U 1
ALTERNATE SPARE:
AS5194D0602
565 AS5194D0602 . ADAPTER-PITOT AIR U 1
ALTERNATE SPARE:
AN816-6-2D
570 96-440012-1 BUTTON ASSY FE 2
575 35-410286 PLACARD FE 2
PLACARD CONTENT:
STATIC AIR-KEEP CLEAN
-650 36-324101-0009 PLUMBING INSTL-INSTRUMENT PANEL A RF
655 264P1/4 . TEE A 3
660 259P1/4 . CAP A 1
FOR SPARES ORDER:
259-P-04
660 259-P-04 . CAP A 1
259P1/4
665 271P-4-2 . TEE A 1
670 36-324101-0003 . TUBE-PITOT A 1
675 36-324101-0007 . TUBE-PITOT A 1
680 36-324101-0005 . TUBE-STATIC A 1
685 36-324101-0013 . TUBE-STATIC A 1
690 36-324101-0011 . TUBE-STATIC A 1
695 36-324101-0007 . TUBE-STATIC A 1
700 268-P-04X02 . CONNECTOR A 4
H2125-H9999 A
H0001-H0174 B
H0175-H0547 C
H0548-H9999 D
H0001-H1388,H1390-H1395 K
H1389-H1389,H1396-H2124 L
H0001-H0883 M
H0884-H1388,H1390-H1395 N
H0884-H2124 P
H0884-H1091 Q
H1092-H1388,H1390-H1395 R
H0584-H0705 S
H0706-H9999 T
H0001-H2124 U
H2125-H2438 X
H2439-H9999 Y
H0001-H9999 FE

34-10-00-07
PAGE 7
BARON MAY 01/19

34-15-00-01
FLIGHT DATA INSTRUMENTS
34-15-00-01
BARON MAY 01/19
FLIGHT DATA INSTRUMENTS
34-15-00-01
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 FLIGHT DATA INSTRUMENTS

-5 N0NUMBER3 FLIGHT DATA INSTRUMENT FE RF
SINGEL OR DUAL INSTL
-10 96-324029-17 . PANEL INSTL-INSTRUMENT A RF
-15 96-324029-19 . PANEL INSTL-INSTRUMENT A RF
-20 58-324000-19 . PANEL INSTL-INSTRUMENT B RF
-25 58-324000-5 . PANEL INSTL-INSTRUMENT B RF
-30 58-324039-17 . PANEL INSTL-INSTRUMENT E RF
-35 58-324039-9 . PANEL INSTL-INSTRUMENT E RF
40 106-320016-5 . PANEL INSTL-INSTRUMENT C RF
-45 96-324053 . ALTIMETER INSTL-STANDARD A RF
CALIBRATION
-50 58-324022 . ALTIMETER INSTL-STANDARD D RF
CALIBRATION
-55 96-324053-1 . ALTIMETER INSTL-FEET AND A RF
MILLIBARS
-60 58-324022-1 . ALTIMETER INSTL-FEET AND D RF
MILLIBARS
DUAL BAROMETER
DUAL BAROMETER
-75 96-324053-5 . ALTIMETER INSTL-METERS AND A RF
MILLIBARS
-80 58-324022-5 . ALTIMETER INSTL-METERS AND D RF
MILLIBARS
-85 96-324053-15 . ALTIMETER INSTL-STD CAL, A RF
WEDGE LIT
-90 58-324022-15 . ALTIMETER INSTL-STD CAL, D RF
WEDGE LIT
MILLIBARS, WEDGE LIT
DUAL BARO, WEDGE LIT
DUAL BARO, WEDGE LIT
-115 96-324053-21 . ALTIMETER INSTL-METERS AND A RF
-120 58-324022-21 . ALTIMETER INSTL-METERS AND D RF
-125 58-324060-1 . INDICATOR-INSTANTANEOUS FE RF
VERTICAL SPEED
-130 58-324060-3 . INDICATOR-INSTANTANEOUS FE RF
VERTICAL SPEED
-135 96-324131-9 . INDICATOR INSTL-OUTSIDE F RF
AIR TEMPERATURE
140 35-380019-5 . . INDICATOR-OUTSIDE AIR F 1
TEMPERATURE
145 96-324131-7 . . SHIELD-SUN F 1
-150 96-324131-1 . . SUPPORT ASSY F 1
155 96-324131-3 . . . FLANGE F 1
160 96-324131-5 . . . FITTING F 1

34-15-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
C1608-C9999 A
E0938-E0938,E0943-E9999 B
H1389-H1389,H1396-H9999 C
E0938-E0938,E0943-E9999,H0001-H9999 D
H0001-H1388,H1390-H1395 E
C1608-C9999,E0938-E0938,E0943-E3980,H0001-H2339 F
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

34-15-00-01
PAGE 2
BARON MAY 01/19
34-17-00-01
INSTRUMENT PANEL PLUMBING
34-17-00-01
BARON MAY 01/19

SHEET 1 OF 2
34-17-00-01
PAGE 0
MAY 01/19

SHEET 2 OF 2
34-17-00-01
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 INSTRUMENT PANEL PLUMBING

-5 96-324038-125 PLUMBING INSTL-INSTRUMENT, FE RF
SINGLE, NOSE PITOT
PANEL, DUAL
15 96-324018-1 . TUBE ASSY-VACUUM FE 2
20 106200H10-26 . HOSE-VACUUM TUBE FE 2
ATTACHING PARTS
-25 AN737TW34 . CLAMP FE 2
FOR SPARES ORDER:
132742-34L
-25 132742-34L . CLAMP FE 2
AN737TW34
-------*-------
30 AN848-10D . ELBOW-VACUUM TUBE FE 2
ATTACHING PARTS
-35 AN960-1416 . WASHER FE AR
ALTERNATE SPARE:
NAS1149F1490P
-35 NAS1149F1490P . WASHER FE AR
ALTERNATE SPARE:
AN960-1416
-40 AN924-10D . NUT FE 1
-------*-------
ATTACHING PARTS
-50 AN737TW34 . CLAMP FE 4
FOR SPARES ORDER:
132742-34L
-50 132742-34L . CLAMP FE 4
AN737TW34
-------*-------
55 2H3-6 . VALVE-VACUUM REGULATOR FE 2
133B3
ATTACHING PARTS
-65 A16 . CLAMP FE 2
-------*-------
-70 95-324073-37 . MANIFOLD ASSY-VACUUM FE 1
75 95-324073-25 . . TUBE ASSY-MANIFOLD FE 2
FITTING
80 95-324073-27 . . TUBE ASSY-MANIFOLD FE 1
85 50-380170-7 . . VALVE-VACUUM MANIFOLD FE 2
CHECK
90 AN913-2D . PLUG-VACUUM MANIFOLD FE 2
FOR SPARES ORDER:
AS4863D02
90 AS4863D02 . PLUG-VACUUM MANIFOLD FE 2
AN913-2D
95 AN823-6D . ELBOW-VACUUM PLUMBING FE 3
FOR SPARES ORDER:
MS20823-6D
34-17-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
95 MS20823-6D . ELBOW-VACUUM PLUMBING FE 3
AN823-6D
100 96-324038-49 . TUBE-VACUUM RH FE 1
105 96-324038-51 . TUBE-VACUUM LH FE 1
ATTACHING PARTS
-110 130292A6 . CLAMP FE 2
-------*-------
115 AN832-4D . UNION-VACUUM PLUMBING FE 1
FOR SPARES ORDER:
MS24393D4
115 MS24393D4 . UNION-VACUUM PLUMBING FE 1
AN832-4D
-120 AN960-416 . WASHER-VACUUM PLUMBING FE 1
ALTERNATE SPARE:
NAS1149F0463P
-120 NAS1149F0463P . WASHER-VACUUM PLUMBING FE 1
ALTERNATE SPARE:
AN960-416
-125 AN924-4D . NUT-VACUUM PLUMBING FE 1
ALTERNATE SPARE:
AS5178D04
-125 AS5178D04 . NUT-VACUUM PLUMBING FE 1
ALTERNATE SPARE:
AN924-4D
130 AN837-4D . ELBOW-VACUUM PLUMBING FE 1
FOR SPARES ORDER:
MS24396D4
130 MS24396D4 . ELBOW- VACUUM PLUMBING FE 1
AN837-4D
-135 AN960-416 . WASHER-VACUUM PLUMBING FE 1
ALTERNATE SPARE:
NAS1149F0463P
-135 NAS1149F0463P . WASHER-VACUUM PLUMBING FE 1
ALTERNATE SPARE:
AN960-416
-140 AN924-4D . NUT-VACUUM PLUMBING FE 1
ALTERNATE SPARE:
AS5178D04
-140 AS5178D04 . NUT-VACUUM PLUMBING FE 1
ALTERNATE SPARE:
AN924-4D
145 AN816-4D . ADAPTER-SUCTION GAGE FE 1
ALTERNATE SPARE:
AS5194D0402
145 AS5194D0402 . ADAPTER-SUCTION GAGE FE 1
ALTERNATE SPARE:
AN816-4D
150 96-324038-55 . HOSE-HORIZON GYRO TO FE 1
SUCTION GAGE
155 96-324038-113 . TUBE ASSY-HORIZON GYRO TO FE 1
SUCTION GAGE

34-17-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
160 AN6270-4-12 . HOSE ASSY-HORIZON GYRO TO FE 1
SUCTION GAGE
165 AN6270-4-14 . HOSE ASSY-VACUUM FE 1
170 MS20822-4-4D . ELBOW-HORIZON GYRO FE 1
FOR SPARES ORDER:
AS5195D0404
170 AS5195D0404 . ELBOW-HORIZON GYRO FE 1
MS20822-4-4D
-175 AN816-4D . ADAPTER-HORIZON GYRO FE 1
ALTERNATE SPARE:
AS5194D0402
-175 AS5194D0402 . ADAPTER-HORIZON GYRO FE 1
ALTERNATE SPARE:
AN816-4D
180 AN6270-6-9 . HOSE ASSY-VACUUM FE 1
185 EGB03-0003 . FILTER-VACUUM SYSTEM AIR FE 1
-190 96-324107-5 . BRACKET-FILTER HOLD FE 1
195 96-324107-17 . TUBE-AIR FILTER TO FE 1
DIRECTION GYRO
-200 23-75-1 . ADAPTER-DIRECTIONAL GYRO FE 1
205 96-324107-19 . TUBE-AIR FILTER TO HORIZON FE 1
GYRO
ATTACHING PARTS
-210 130292A6 . CLAMP FE 4
-------*-------
215 96-324018-5 . TUBE ASSY-FUEL PRESSURE LH FE 1
220 96-324018-7 . TUBE ASSY-OIL PRESSURE LH FE 1
225 96-324018-6 . TUBE ASSY-FUEL PRESSURE RH FE 1
230 96-324018-8 . TUBE ASSY-OIL PRESSURE RH FE 1
235 AN837-4D . ELBOW-OIL-FUEL-MANIFOLD FE 3
PRESSURE
FOR SPARES ORDER:
MS24396D4
235 MS24396D4 . ELBOW-OIL-FUEL-MANIFOLD FE 3
PRESSURE
AN837-4D
-240 AN960-416 . WASHER-OIL-FUEL-MANIFOLD FE 3
PRESSURE
ALTERNATE SPARE:
NAS1149F0463P
-240 NAS1149F0463P . WASHER-FUEL-OIL-MANIFOLD FE 3
PRESSURE
ALTERNATE SPARE:
AN960-416
-245 AN924-4D . NUT-OIL-FUEL-MANIFOLD PRESSURE FE 3
ALTERNATE SPARE:
AS5178D04
-245 AS5178D04 . NUT-OIL-FUEL-MANIFOLD PRESSURE FE 3
ALTERNATE SPARE:
AN924-4D
250 96-324128-27 . TUBE ASSY-FUEL PRESSURE LH FE 1
-255 96-324128-31 . TUBE ASSY-FUEL PRESSURE RH FE 1
260 96-324038-99 . TUBE ASSY-OIL PRESSURE LH FE 1
34-17-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-265 96-324128-33 . TUBE ASSY-OIL PRESSURE RH FE 1
270 96-324038-93 . BRACKET-TUBE SUPPORT FE 2
275 96-324038-85 . TUBE ASSY-OIL PRESSURE FE 1
290 AN832-4D . UNION-FUEL-OIL-MANIFOLD FE 3
PRESSURE
FOR SPARES ORDER:
MS24393D4
290 MS24393D4 . UNION-FUEL-OIL-MANIFOLD FE 3
PRESSURE
AN832-4D
-295 AN960-416 . WASHER-FUEL-OIL-MANIFOLD FE 3
PRESSURE
ALTERNATE SPARE:
NAS1149F0463P
-295 NAS1149F0463P . WASHER-FUEL-OIL-MANIFOLD FE 3
PRESSURE
ALTERNATE SPARE:
AN960-416
-300 AN924-4D . NUT-FUEL-OIL-MANIFOLD FE 3
PRESSURE
ALTERNATE SPARE:
AS5178D04
-300 AS5178D04 . NUT-FUEL-OIL-MANIFOLD FE 3
PRESSURE
ALTERNATE SPARE:
AN924-4D
305 96-324128-17 . TUBE ASSY-FUEL PRESSURE FE 1
310 95-324018-141 . BRACKET FE 2
315 96-324128-15 . TUBE ASSY-FUEL PRESSURE FE 1
320 AN816-4D . ADAPTER-FUEL PRESSURE FE 2
INDICATOR
ALTERNATE SPARE:
AS5194D0402
320 AS5194D0402 . ADAPTER-FUEL PRESSURE FE 2
INDICATOR
ALTERNATE SPARE:
AN816-4D
325 96-324018-3 . TUBE ASSY-MANIFOLD FE 1
PRESSURE LH
PRESSURE RH
PRESSURE LH
-340 96-324128-31 . TUBE ASSY-MANIFOLD FE 1
PRESSURE RH
PRESSURE LH
-350 96-324128-11 . TUBE ASSY-MANIFOLD FE 1
PRESSURE RH

34-17-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
355 AN816-4 . NIPPLE-MANIFOLD PRESSURE FE 1
INDICATOR
ALTERNATE SPARE:
AS5194-0402
355 AS5194-0402 . NIPPLE-MANIFOLD PRESSURE FE 1
INDICATOR
ALTERNATE SPARE:
AN816-4
360 AN833-4 . ELBOW-FUEL FLOW INDICATOR FE 1
VENT TUBE
-365 AN960-416L . WASHER-FUEL FLOW INDICATOR FE 2
VENT TUBE
ALTERNATE SPARE:
NAS1149F0432P
-365 NAS1149F0432P . WASHER-FUEL FLOW INDICATOR FE 2
VENT TUBE
ALTERNATE SPARE:
AN960-416L
-370 AN924-4 . NUT-FUEL FLOW INDICATOR FE 1
VENT TUBE
ALTERNATE SPARE:
AS5178-04
-370 AS5178-04 . NUT-FUEL FLOW INDICATOR FE 1
VENT TUBE
ALTERNATE SPARE:
AN924-4
375 95-324072-51 . TUBE ASSY-FUEL FLOW FE 1
INDICATOR VENT
380 846FB1/4-1/8 . COUPLING-FUEL FLOW FE 1
INDICATOR VENT FEMALE
385 268P1/4-1/8 . CONNECTOR-FUEL FLOW FE 2
INDICATOR VENT MALE
FOR SPARES ORDER:
268-P-04X02
385 268-P-04X02 . CONNECTOR-FUEL FLOW FE 2
INDICATOR VENT MALE
268P1/4-1/8
390 96-324038-110 . TUBE-FUEL FLOW INDICATOR FE 1
VENT
395 271-P-1/4-1/8 . TEE-FUEL FLOW INDICATOR FE 1
VENT
FOR SPARES ORDER:
271-P-04X02
395 271-P-04X02 . TEE-FUEL FLOW INDICATOR FE 1
VENT
271-P-1/4-1/8
ALTERNATE SPARE:
171P-4-2
395 171P-4-2 . TEE-FUEL FLOW INDICATOR FE 1
VENT
ALTERNATE SPARE:
271-P-04X02

34-17-00-01
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
VENT
C1608-C2002 FE

34-17-00-01
PAGE 6
BARON MAY 01/19
34-17-00-02
34-17-00-02
BARON MAY 01/19

SHEET 1 OF 3
34-17-00-02
PAGE 0
MAY 01/19

SHEET 2 OF 3
34-17-00-02
PAGE 0A
MAY 01/19

SHEET 3 OF 3
34-17-00-02
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 INSTRUMENT PANEL PLUMBING

-5 96-324128-1 PLUMBING INSTL-INSTRUMENT A RF
PANEL, SINGLE
-10 96-324128-3 PLUMBING INSTL-INSTRUMENT A RF
PANEL, DUAL
PANEL, SINGLE
PANEL, DUAL
-25 96-324128-123 PLUMBING INSTL-INSTRUMENT K RF
PANEL, SINGLE STD FUEL
PANEL, DUAL STD FUEL
PANEL,SINGLE OPT FUEL
PANEL, DUAL OPT FUEL
-45 96-324128-145 PLUMBING INSTL-INSTRUMENT N RF
PANEL, SINGLE
-50 96-324128-147 PLUMBING INSTL-INSTRUMENT P RF
PANEL, SINGLE
-55 96-324128-149 PLUMBING INSTL-INSTRUMENT Q RF
PANEL, SINGLE OPT FUEL
-60 96-324128-151 PLUMBING INSTL-INSTRUMENT Q RF
PANEL, SINGLE OPT FUEL
65 96-324128-99 . TUBE-PRESSURE INDICATOR G 1
AIR
-70 96-324128-101 . TUBE-PRESSURE INDICATOR B 1
AIR
75 96-324128-95 . TUBE-PRESSURE INDICATOR G 1
AIR
-80 96-324128-97 . TUBE-PRESSURE INDICATOR B 1
AIR
85 95-324078-35 . TUBE-PRESSURE INDICATOR FE 1
PRESSURE
90 95-324078-37 . TUBE-PRESSURE INDICATOR FE 1
VENT
ATTACHING PARTS
-95 130292A6 . CLAMP FE 2
-------*-------
100 1K9-4-8 . ELBOW-HORIZON GYRO FE 2
105 96-324128-85 . TUBE-HORIZON GYRO VENT R 1
-110 96-324128-163 . TUBE-HORIZON GYRO VENT M 1
-115 1K30-8-8-4 . TEE-HORIZON GYRO VENT M 1
-120 96-324128-165 . TUBE-HORIZON GYRO VENT M 1
ATTACHING PARTS
-125 130292A10 . CLAMP FE 2
-------*-------
130 1K31-4-8-4 . FITTING-DIRECTION GYRO TEE FE 2
LH PANEL
-135 1K10-4-8 . FITTING-DIRECTION GYRO RH FE 2
PANEL
140 96-324128-87 . TUBE-HORIZON GYRO PRESSURE FE 1
ATTACHING PARTS
-145 130292A10 . CLAMP FE 2
-------*-------
34-17-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
150 64017 . CONNECTOR FE 1
155 96-324128-93 . TUBE R 1
-160 1K9-4-8 . ELBOW M 2
-165 96-324128-167 . TUBE M 1
ATTACHING PARTS
-170 130292A10 . CLAMP FE 2
-------*-------
175 96-324128-131 . TUBE-DIRECTIONAL GYRO VENT FE 1
ATTACHING PARTS
-180 130292A10 . CLAMP FE 2
-------*-------
185 96-324128-89 . TUBE-DIRECTION GYRO R 1
PRESSURE
-190 96-324128-169 . TUBE-DIRECTION GYRO M 1
PRESSURE
-195 1K30-8-8-4 . TEE-DIRECTION GYRO M 1
PRESSURE
-200 96-324128-171 . TUBE-DIRECTION GYRO M 1
PRESSURE
ATTACHING PARTS
-205 130292A10 . CLAMP FE 2
-------*-------
210 1K10-4-8 . FITTING FE 1
215 1K9-4-8 . ELBOW FE 1
220 MS35489-17 . GROMMET FE 1
-225 95-324073-27 . TUBE ASSY R 1
-230 58-324021-49 . TUBE-DUAL AND SINGLE R 1
-235 AN919-15D . REDUCER R 1
-240 AN913-2D . PLUG-SINGLE ONLY R 1
FOR SPARES ORDER:
AS4863D02
-240 AS4863D02 . PLUG-SINGLE ONLY R 1
AN913-2D
-245 AN806-D10 . PLUG-SINGLE ONLY R 1
250 96-324038-93 . BRACKET-MANIFOLD PRESSURE FE 1
TUBE
255 96-324128-17 . TUBE ASSY-LH MANIFOLD G 1
PRESSURE
-260 96-324128-71 . TUBE ASSY-LH MANIFOLD B 1
PRESSURE
265 96-324128-11 . TUBE ASSY-RH MANIFOLD F 1
PRESSURE
-270 96-324128-105 . TUBE ASSY-RH MANIFOLD G 1
PRESSURE
-275 96-324128-69 . TUBE ASSY-RH MANIFOLD H 1
PRESSURE
-280 96-324128-107 . TUBE ASSY-RH MANIFOLD J 1
PRESSURE
285 95-324018-141 . BRACKET-MANIFOLD PRESSURE D 2
TUBE
-290 96-324128-119 . BRACKET-MANIFOLD PRESSURE E 2
TUBE

34-17-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-295 AN833-4D . ELBOW-MANIFOLD PRESSURE TUBE, LH FE 1
FOR SPARES ORDER:
MS24394D4
-295 MS24394D4 . ELBOW-MANIFOLD PRESSURE TUBE, LH FE 1
AN833-4D
-300 AN832-4D . UNION-MANIFOLD PRESSURE TUBE, RH FE 1
FOR SPARES ORDER:
MS24393D4
-300 MS24393D4 . UNION-MANIFOLD PRESSURE TUBE, RH FE 1
AN832-4D
-305 AN960PD716 . WASHER-MANIFOLD PRESSURE FE 2
TUBE
-310 AN924-4D . NUT-MANIFOLD PRESSURE TUBE FE 2
ALTERNATE SPARE:
AS5178D04
-310 AS5178D04 . NUT-MANIFOLD PRESSURE TUBE FE 2
ALTERNATE SPARE:
AN924-4D
315 96-324128-15 . TUBE ASSY-LH MANIFOLD FE 1
PRESSURE
320 96-324128-13 . TUBE ASSY-RH MANIFOLD D 1
PRESSURE
-325 96-324128-103 . TUBE ASSY-RH MANIFOLD E 1
PRESSURE
330 AN816-4D . ADAPTER-MANIFOLD PRESSURE TUBE FE 2
ALTERNATE SPARE:
AS5194D0402
330 AS5194D0402 . ADAPTER-MANIFOLD PRESSURE TUBE FE 2
ALTERNATE SPARE:
AN816-4D
335 96-324038-99 . TUBE ASSY-LH OIL PRESSURE T 1
-340 96-324128-77 . TUBE ASSY-LH OIL PRESSURE S 1
-345 58-500026-109 . TUBE ASSY-LH OIL PRESSURE X 1
-350 58-500001-23 . TUBE ASSY-LH OIL PRESSURE U 1
-355 95-324078-23 . TUBE ASSY-LH OIL PRESSURE V 1
360 96-324128-25 . TUBE ASSY-RH OIL PRESSURE F 1
-365 96-324128-109 . TUBE ASSY-RH OIL PRESSURE T 1
-370 96-324128-75 . TUBE ASSY-RH OIL PRESSURE H 1
-375 96-324128-111 . TUBE ASSY-RH OIL PRESSURE S 1
-380 58-500001-25 . TUBE ASSY-RH OIL PRESSURE U 1
-385 96-500024-19 . TUBE ASSY-RH OIL PRESSURE V 1
390 AN833-4D . ELBOW-OIL AND PRESSURE TUBE FE 2
FOR SPARES ORDER:
MS24394D4
390 MS24394D4 . ELBOW-OIL AND PRESSURE TUBE FE 2
AN833-4D
-395 AN960PD716 . WASHER-OIL AND PRESSURE FE 2
TUBE
-400 AN924-4D . NUT-OIL AND PRESSURE FE 2
TUBE
ALTERNATE SPARE:
AS5178D04
34-17-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-400 AS5178D04 . NUT-OIL AND PRESSURE FE 2
TUBE
ALTERNATE SPARE:
AN924-4D
405 AN832-4D . UNION-OIL AND PRESSURE TUBE FE 2
FOR SPARES ORDER:
MS24393D4
405 MS24393D4 . UNION-OIL AND PRESSURE TUBE FE 2
AN832-4D
-410 AN960PD716 . WASHER-OIL AND PRESSURE FE 2
TUBE
-415 AN924-4D . NUT-OIL AND PRESSURE FE 2
TUBE
ALTERNATE SPARE:
AS5178D04
-415 AS5178D04 . NUT-OIL AND PRESSURE FE 2
TUBE
ALTERNATE SPARE:
AN924-4D
420 96-324128-29 . TUBE ASSY-RH OIL PRESSURE D 1
-425 96-324128-117 . TUBE ASSY-RH OIL PRESSURE E 1
430 96-324128-33 . TUBE ASSY-RH OIL PRESSURE W 1
435 96-324128-39 . TUBE ASSY-LH FUEL PRESSURE G 1
-440 96-324128-79 . TUBE ASSY-LH FUEL PRESSURE B 1
445 96-324128-23 . TUBE ASSY-RH FUEL PRESSURE F 1
-450 96-324128-113 . TUBE ASSY-RH FUEL PRESSURE G 1
-455 96-324128-73 . TUBE ASSY-RH FUEL PRESSURE H 1
-460 96-324128-115 . TUBE ASSY-RH FUEL PRESSURE J 1
465 96-324128-31 . TUBE ASSY-LH FUEL PRESSURE FE 1
470 96-324128-27 . TUBE ASSY-RH FUEL PRESSURE D 1
-475 96-324128-121 . TUBE ASSY-RH FUEL PRESSURE E 1
480 AN816-4D . ADAPTER-FUEL PRESSURE TUBE FE 2
ALTERNATE SPARE:
AS5194D0402
480 AS5194D0402 . ADAPTER-FUEL PRESSURE TUBE FE 2
ALTERNATE SPARE:
AN816-4D
485 AN833-4D . ELBOW-FUEL FLOW INDICATOR TUBE FE 1
FOR SPARES ORDER:
MS24394D4
485 MS24394D4 . ELBOW-FUEL FLOW INDICATOR TUBE FE 1
AN833-4D
-490 AN960PD716 . WASHER-FUEL FLOW INDICATOR FE 2
TUBE
-495 AN924-4D . NUT-FUEL FLOW INDICATOR FE 1
VENT TUBE
ALTERNATE SPARE:
AS5178D04
-495 AS5178D04 . NUT-FUEL FLOW INDICATOR FE 1
VENT TUBE
ALTERNATE SPARE:
AN924-4D

34-17-00-02
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
500 95-324072-51 . TUBE ASSY-FUEL FLOW FE 1
INDICATOR
505 846FB1/4-1/8 . COUPLING-FUEL FLOW FE 1
INDICATOR VENT FEMALE
-510 4GTX-B . COUPLING FE 1
ALTERNATE SPARE:
846FB1-4-1-8
INDICATOR VENT, MALE
FOR SPARES ORDER:
268-P-04X02
515 268-P-04X02 . CONNECTOR-FULE FLOW FE 2
INDICATOR VENT, MALE
268P1/4-1/8
VENT
525 271-P-1/4-1/8 . TEE-FUEL FLOW INDICATOR FE 1
VENT
FOR SPARES ORDER:
271-P-04X02
525 271-P-04X02 . TEE-FUEL FLOW INDICATOR FE 1
VENT
271-P-1/4-1/8
ALTERNATE SPARE:
171P-4-2
525 171P-4-2 . TEE-FUEL FLOW INDICATOR FE 1
VENT
ALTERNATE SPARE:
271-P-04X02
VENT
INDICATOR VENT
FOR SPARES ORDER:
268-P-04X02
535 268-P-04X02 . CONNECTOR-FUEL FLOW FE 1
INDICATOR VENT
268P1/4-1/8
E0938-E0938,E0943-E9999 A
H0001-H9999 B
C2003-C9999,E0938-E0938,E0943-E1046,H0001-H0628 D
C2003-C9999,E1047-E9999,H0629-H9999 E
C2003-C9999,E0938-E0938,E0943-E1046 F
C2003-C9999,E0938-E0938,E0943-E9999 G
H0001-H0628 H
H0629-H9999 J
C2003-C9999 K
C2168-C9999,E1139-E9999,H0958-H9999 M
E1139-E9999 N
H0958-H9999 P
(CONTINUED NEXT PAGE)
34-17-00-02
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
(CONTINUED)
C2168-C9999 Q
C2003-C2167,E0938-E0938,E0943-E1138,H0001-H0957 R
H0001-H1078 S
C2003-C2275,E0938-E0938,E0943-E1168 T
H1079-H9999 U
C2276-C9999,E1169-E9999 V
C2003-C2275,E0938-E0938,E0943-E1168,H0001-H1078 W
C2276-C9999,E1169-E9999,H1079-H9999 X
C2003-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

34-17-00-02
PAGE 6
BARON MAY 01/19
34-20-00-01
ATTITUDE AND DIRECTIONAL INSTRUMENTS
34-20-00-01
BARON MAY 01/19
ATTITUDE AND DIRECTIONAL INSTRUMENTS
34-20-00-01
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 ATTITUDE AND DIRECTIONAL INSTRUMENTS

-5 601-009-980 COORDINATOR-TURN, MODEL FE 1
TC100
10 58-380020-3 COORDINATOR-TURN, WEDGE LIT FE 1
FOR SPARES ORDER:
58-380094-9
10 58-380094-3 COORDINATOR-TURN B 1
ALTERNATE SPARE:
58-380094-7
FOR SPARES ORDER:
58-380094-9
10 58-380094-3 COORDINATOR-TURN D 1
ALTERNATE SPARE:
58-380094-7
FOR SPARES ORDER:
58-380094-9
ALTERNATE SPARE:
58-380094-3
FOR SPARES ORDER:
58-380094-9
10 58-380094-7 COORDINATOR-TURN D 1
ALTERNATE SPARE:
58-380094-3
FOR SPARES ORDER:
58-380094-9
10 58-380094-9 COORDINATOR-TURN E 1
58-380020-3
58-380094-3
58-380094-7
-20 601-009-980 COORDINATOR-TURN, UNLIT FE 1
FOR SPARES ORDER:
58-380085-3
-20 58-380085-3 COORDINATOR-TURN FE 1
601-009-980
-30 96-380039 GYRO-HORIZON A 1
-40 50-384202 GYRO-HORIZON C 1
ALTERNATE SPARE:
50-384203
-40 50-384203 GYRO-HORIZON C 1
ALTERNATE SPARE:
50-384202
45 58-380013-1 GYRO-HORIZON, WEDGE LIT FE 1
ALTERNATE SPARE:
58-380013-3
45 58-380013-3 INDICATOR-GYRO HORIZON, FE 1
WEDGE LIT
ALTERNATE SPARE:
58-380013-1
-55 18-380021-3 GYRO-DIRECTIONAL A 1
-60 50-384204 GYRO-DIRECTIONAL C 1
ALTERNATE SPARE:
50-384205
34-20-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-60 50-384205 GYRO-DIRECTIONAL C 1
ALTERNATE SPARE:
50-384204
70 58-380014-1 GYRO-DIRECTIONAL, WEDGE LIT FE 1
ALTERNATE SPARE:
58-380014-3
ALTERNATE SPARE:
58-380014-1
ALTERNATE SPARE:
58-380014-3
ALTERNATE SPARE:
58-380014-1
-80 96-324128 PLUMBING INSTL-DUAL C RF
85 1K9-4-8 . ELBOW C 4
90 96-324128-85 . TUBE C 2
95 130292A10 . CLAMP C 20
100 96-324128-87 . TUBE C 2
105 1K17-3 . FITTING C 2
110 96-324128-93 . TUBE C 2
115 64017 . CONNECTOR C 2
120 96-324128-91 . TUBING C 2
125 96-324128-89 . TUBE C 2
130 1K10-4-8 . FITTING C 6
135 130292A6 . CLAMP C 2
-140 96-324038 PLUMBING INSTL-DUAL A RF
145 AS5195D0404 . ELBOW A 1
150 AN6270-4-12 . HOSE ASSY A 1
155 MS20823-6D . ELBOW A 3
160 AN6270-6-14 . HOSE A 1
165 AN6270-6-9 . HOSE ASSY A 1
170 AN6270-6-17 . HOSE A 2
175 AN816-6D . NIPPLE A 2
180 MS20913-1D . PLUG A AR
-185 96-324107-3 . AIR CLEANER INSTL-GYRO A RF
190 AN844-6D . . ADAPTER A 4
195 130292A8 . . CLAMP-HOSE A 6
200 96-324107-19 . . TUBE A 1
205 96-324107-21 . . TUBE A 1
210 96-324107-17 . . TUBE A 1
215 96-324107-23 . . TUBE A 1
220 EBG03-0003 . . AIR CLEANER A 2
225 96-324107-15 . . BRACKET A 1
-230 96-324107-5 . . BRACKET-SINGLE INSTRUMENT A 1
INSTL ONLY
ATTACHING PARTS
-235 NAS1149F0363P . . WASHER A 2
-240 MS35333-39 . . WASHER A 2
245 130909N49 . . NUT A 2
250 MS35206-245 . . SCREW A 3
-255 NAS1149FN832P . . WASHER A 3
-260 130909N28 . . NUT A 3
-------*-------
34-20-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-265 C2400L4P1AB COMPASS-MOUNTED ON FE 1
GLARESHIELD
C1608-C9999 A
E0938-E0938,E0943-E9999,H0001-H1388,H1390-H1395 B
E0938-E0938,E0943-E9999,H0001-H9999 C
H1389-H1389,H1396-H1962 D
H1963-H9999 E
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

34-20-00-01
PAGE 3
BARON MAY 01/19

34-20-00-02
NAVIGATION ANTENNAS AND INSTRUMENTS
34-20-00-02
BARON MAY 01/19

SHEET 1 OF 3
34-20-00-02
PAGE 0
MAY 01/19

SHEET 2 OF 3
34-20-00-02
PAGE 0A
MAY 01/19

SHEET 3 OF 3
34-20-00-02
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02 NAVIGATION ANTENNAS AND INSTRUMENTS

-5 58-344100-0001 AVIONICS INSTL-NAVIGATION FE RF
ANTENNAS AND INSTRUMENTS
22-10-00-01
23-40-00-01
31-10-00-03
34-40-00-01
-10 58-344225-0001 . ANTENNA INSTL-G1000 FE RF
23-10-00-01
34-50-00-01
-15 36-340509-1 . . ANTENNA INSTL-DUAL GPS A RF
-15 36-344226-0001 . . ANTENNA INSTL-DUAL GPS WAAS B RF
20 211-62212-14 . . . SCREW A 8
20 MS24693-C276 . . . SCREW B 8
25 011-00147-00 . . . ANTENNA A 2
25 013-00244-00 . . . ANTENNA-WAAS GA36 B 2
30 36-340509-5 . . . FILLER A 1
-50 58-340448-1 . . ANTENNA INSTL-NAVIGATION FE RF
55 58-380114 . . . ANTENNA FE 1
ATTACHING PARTS
-60 MS35207-264 . . . SCREW FE 8
-------*-------
65 MS35206-229 . . . SCREW FE 2
70 NAS1149FN632P . . . WASHER FE 2
75 AN960PD6 . . . WASHER FE 2
ALTERNATE SPARE:
NAS1149DN632J
75 NAS1149DN632J . . . WASHER FE 2
ALTERNATE SPARE:
AN960PD6
-90 36-340431-2 . . ANTENNA INSTL-MARKER FE RF
BEACON
95 101-384179 . . . ANTENNA FE 1
ATTACHING PARTS
-100 MS27039-1-10 . . . SCREW FE 4
-------*-------
-120 36-344220-0003 . AVIONICS INSTL-INSTRUMENT FE RF
PANEL, ATTITUDE INDICATOR
31-10-00-03
125 4300-205 . . INDICATOR-ATTITUDE, C 1
ELECTRIC
FOR SPARES ORDER:
4300-215
125 4300-215 . . INDICATOR-ATTITUDE, FE 1
ELECTRIC
4300-205
ATTACHING PARTS
-130 130-340714-0019 . . SCREW FE 3
-------*-------
-140 58-344216-0001 . MAGNETOMETER INSTL-GMU 44 FE RF
-145 58-344216-0003 . . UNIT INSTL-MAGNETOMETER FE RF
150 211-60037-08 . . . SCREW FE 3
34-20-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
155 011-00870-00 . . . MAGNETOMETER-GMU 44 FE 1
-160 58-344216-0005 . . PLATE INSTL-ADAPTER FE RF
165 MS27039C0807 . . . SCREW FE 3
170 SSC2S-S10-C . . . CLAMP-CABLE TIE FE 2
175 115-00481-00 . . . RACK FE 1
180 58-344216-0007 . . . PLATE FE 1
-200 36-344201-0001 . PROBE INSLT-OAT FE RF
205 210-00055-00 . . NUT FE 1
KIT:
011-00978-00
210 212-00026-00 . . WASHER FE 1
KIT:
011-00978-00
215 494-00022-08 . . PROBE-OAT FE 1
KIT:
011-00978-00
220 36-344201-0005 . . PROBE ASSY-OAT FE 1
-240 36-344212-0001 . AHRS INSTL-GRS 77 FE RF
245 011-00868-10 . . AHRS UNIT-GRS 77 HIRF FE 1
250 MS35207-263 . . SCREW FE 4
255 MS35207-264 . . SCREW FE 1
260 115-00459-00 . . RACK-MOUNTING FE 1
-265 36-344302-0001 . . BRACKET INSTL-MOUNTING FE RF
270 36-344302-0021 . . . PLACARD FE 1
PLACARD CONTENT:
ATTITUDE HEADING
REFERENCE SYSTEM ONLY-DO
NOT INSTALL ANY OTHER
EQUIPMENT ON THIS SHELF
275 MS35206-245 . . . SCREW FE 6
277 MS35206-246 . . . SCREW FE 7
280 36-344302-0005 . . . PLATE ASSY-MOUNTING FE 1
-300 36-344215-0001 . COUPLER INSTL-NAV AND FE RF
GLIDE SLOPE
305 CI-1125 . . DIPLEXER-ANTENNA FE 1
ATTACHING PARTS
-310 MS35207-262 . . SCREW FE 2
-------*-------
H2125-H2227,H2229-H2229,H2231-H2232 A
H2228-H2228,H2230-H2230,H2233-H9999 B
H2125-H2225 C
H2125-H9999 FE

34-20-00-02
PAGE 2
BARON MAY 01/19
34-40-00-01
WEATHER RADAR AND STORMSCOPE INSTL
34-40-00-01
BARON MAY 01/19

SHEET 1 OF 4
34-40-00-01
PAGE 0
MAY 01/19

SHEET 2 OF 4
34-40-00-01
PAGE 0A
MAY 01/19

SHEET 3 OF 4
34-40-00-01
PAGE 0B
MAY 01/19

SHEET 4 OF 4
34-40-00-01
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 WEATHER RADAR AND STORMSCOPE INSTL

-5 58-344100-0001 AVIONICS INSTL-WEATHER FE RF
RADAR
22-10-00-01
23-40-00-01
31-10-00-03
34-20-00-02
-10 58-344210-0001 . RADAR INSTL-GWX 68 FE RF
15 130909BH157 . . BOLT FE 4
20 NAS1149F0463P . . WASHER FE AR
25 NAS1149D0463J . . WASHER FE AR
30 130909N32 . . NUT FE 4
35 011-00883-20 . . RADAR-GWX68 FE 1
40 MS35207-266 . . SCREW FE 1
45 MS35338-43 . . WASHER FE 1
50 NAS1149F0363P . . WASHER FE 2
55 NAS1149D0316K . . WASHER FE 2
60 130909N29 . . NUT FE 1
65 AN315-3R . . NUT FE 1
-70 58-410016-69 . . STRUCTURE INSTL-NOSE, FE RF
WEATHER RADAR
75 MS27039-1-16 . . . SCREW FE 2
80 MS27039-1-09 . . . SCREW FE 2
85 NAS1149F0332P . . . WASHER FE 8
90 MS21083N3 . . . NUT FE 4
95 331401-9 . . . STRAP-BONDING FE 4
100 AN525-10R14 . . . SCREW FE 12
105 NAS1149F0363P . . . WASHER FE 6
110 NAS1149F0332P . . . WASHER FE 10
115 NAS1149D0316J . . . WASHER FE 2
120 MS21083N3 . . . NUT FE 12
125 58-410016-17 . . . SHELF ASSY FE 1
130 MS27039-0808 . . . SCREW FE 6
135 NAS1149FN832P . . . WASHER FE 6
140 MS21083N08 . . . NUT FE 6
-145 58-410016-71 . . . BULKHEAD ASSY FE 1
150 MS21266-2T . . . . GROMMET FE 1
155 58-410017-3 . . . CONE ASSY-WEATHER FE 1
RADAR
FOR SPARES ORDER:
58-410020-1
FOR DETAILS SEE:
53-50-00-01
155 58-410020-1 . . . CONE ASSY-WEATHER FE 1
RADAR
58-410017-3
FOR DETAILS SEE:
53-50-00-01
-300 36-340508-7 STORMSCOPE INSTL-WX 500 FE RF
-305 36-364103-0011 . HARNESS ASSY-CIRCUIT FE 1
BREAKER

34-40-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
310 7277-2-3 . . CIRCUIT BREAKER FE 1
STORMSCOPE POWER DISC
REFERENCE DESIGNATOR NO.:
CB74
-315 36-344112-0005 . WIRE HARNESS ASSY FE 1
STORMSCOPE
320 805-11500-001 . PROCESSOR FE 1
ATTACHING PARTS
-325 MS27039-0812 . SCREW FE 4
-330 101-10131-001 . SPACER FE 4
-------*-------
-335 58-340495-1 . ANTENNA INSTL-STORMSCOPE FE RF
340 26-1004-9152-6 . . SCREW FE 2
FOR SPARES ORDER:
MS51958-69
340 MS51958-69 . . SCREW FE 2
26-1004-9152-6
345 NAS1149F0332P . . WASHER FE 6
350 MS21083N3 . . NUT FE 2
355 MS35650-302 . . NUT FE 2
357 MS35649-242 . . NUT FE 1
360 MS25083-2AB3 . . BONDING JUMPER FE 1
365 MS25083-2BB8 . . BONDING JUMPER FE 1
370 78-8060-5977-6 . . GASKET-ANTENNA FE 1
375 805-10930-001 . . ANTENNA FE 1
NY-163
400 36-340310-17 SHELF INSTL-AVIONICS FE RF
EQUIPMENT
FOR DETAILS SEE:
34-50-00-01
H2125-H9999 FE

34-40-00-01
PAGE 2
BARON MAY 01/19
34-50-00-01
SKYWATCH AND DME INSTL
34-50-00-01
BARON MAY 01/19

SHEET 1 OF 4
34-50-00-01
PAGE 0
MAY 01/19

SHEET 2 OF 4
34-50-00-01
PAGE 0A
MAY 01/19

SHEET 3 OF 4
34-50-00-01
PAGE 0B
MAY 01/19

SHEET 4 OF 4
34-50-00-01
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 SKYWATCH AND DME INSTL

-5 36-344218-0001 SKYWATCH INSTL-SKY497 FE RF
-10 36-344206-0001 . ANTENNA INSTL-SKYWATCH FE RF
15 MS51958-67 . . SCREW FE 4
20 800-10066-002 . . PLATE-ADAPTER FE 1
25 805-10890-001 . . ANTENNA-NY164 FE 1
-30 36-364103-0013 . HARNESS ASSY-RH CIRCUIT FE 1
BREAKER
35 7277-2-5 . . CIRCUIT BREAKER-TRAFFIC FE 1
ALERT POWER DISC
CB73
-40 36-344112-0003 . WIRE HARNESS ASSY-OPTIONS FE 1
45 980HNC-503-192 . CABLE-COAX ANTENNA FE 1
50 805-10800-001 . COMPUTER-TRC497 FE 1
TRANSMITTER/RECEIVER
65 805-10870-001 . TRAY ASSY-COMPUTER FE 1
ATTACHING PARTS
-70 MS21096-08001 . BOLT FE 4
-75 NAS1149FN832P . WASHER FE 4
-------*-------
-200 36-344204-0001 DME INSTL-KING KN-63 FE RF
-205 58-340447-1 . ANTENNA INSTL-DME, FE RF
TRANSPONDER
210 100-384129 . . ANTENNA-DME TRANSPONDER FE 1
ATTACHING PARTS
-215 MS24694-S5 . . SCREW FE 6
-------*-------
220 96-340177-23 . . PLATE ASSY FE 1
ATTACHING PARTS
-225 MS35206-228 . . SCREW FE 1
-------*-------
-230 36-364103-0009 . HARNESS ASSY-RH CIRCUIT FE 1
BREAKER
235 7277-2-3 . . CIRCUIT BREAKER-DME FE 1
POWER DISC
CB75
-240 36-344112-0001 . WIRE HARNESS ASSY-OPTIONS FE 1
245 MS21919WH6 . CLAMP FE 3
ATTACHING PARTS
-250 MS35207-263 . SCREW FE 3
-255 NAS1149F0332P . WASHER FE 3
-260 130909N29 . NUT FE 3
-------*-------
265 MS35206-332 . SCREW FE 4
270 101-340345-33 . SPACER FE 4
275 066-01070-0001 . RECEIVER-KN-63 FE 1
280 36-344111-0027 . CABLE ASSY-COAX, KN63 TO FE 1
DME ANTENNA
-400 36-340310-17 SHELF INSTL-AVIONICS A RF
EQUIPMENT
-400 36-340310-33 SHELF INSTL-AVIONICS B RF
EQUIPMENT
405 131270-3 . STUD-GROUNDING, BLIND FE 1
410 MS35338-43 . WASHER FE 1
34-50-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
425 130909N29 . NUT FE 1
430 36-340310-13 . CLIP FE 1
435 36-340310-27 . SHELF ASSY A 1
435 36-340310-35 . SHELF ASSY B 1
440 MS27039-1-06 . . SCREW FE 3
445 NAS1149F0332P . . WASHER FE 3
450 36-340310-23 . . SUPPORT-FWD FE 1
455 36-340310-25 . . SUPPORT-AFT FE 1
460 36-340310-15 . CHANNEL ASSY FE 1
-600 58-344225-0001 ANTENNA INSTL-TRANSPONDER FE RF
FOR NHA SEE:
34-20-00-02
-605 58-340447-7 . ANTENNA INSTL-DME, FE RF
TRANSPONDER
610 100-384129 . . ANTENNA-DME TRANSPONDER FE 1
ATTACHING PARTS
-615 MS24694-S5 . . SCREW FE 6
-------*-------
620 96-340177-23 . . PLATE ASSY FE 1
ATTACHING PARTS
-625 MS35206-228 . . SCREW FE 1
-------*-------
H2125-H2475 A
H2476-H9999 B
H2125-H9999 FE

34-50-00-01
PAGE 2
BARON MAY 01/19

34 - Effective Pages: Beechcraft Corporation

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

34 - Effective Pages: Beechcraft Corporation

Uploaded by

Copyright:

Available Formats

Beechcraft Corporation

BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

34 - CONTENTS 1 MAY 01/19 34-17-00-02 2 MAY 01/19

PAGE INTENTIONALLY LEFT BLANK

CHAPTER 34 - NAVIGATION/PITOT STATIC

FLIGHT ENVIRONMENT DATA 34-10-00

PAGE INTENTIONALLY LEFT BLANK

INSTRUMENT PRESSURE, PITOT, PLUMBING, STANDARD INSTALLATION

INSTRUMENT PRESSURE, PITOT, PLUMBING, STANDARD INSTALLATION

01 INSTRUMENT PRESSURE, PITOT, PLUMBING,

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

INSTRUMENT PRESSURE, PITOT, PLUMBING, STANDARD INSTALLATION

INSTRUMENT PRESSURE, PITOT, PLUMBING, STANDARD INSTALLATION

02 INSTRUMENT PRESSURE, PITOT, PLUMBING,

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH INSTL, DUAL

INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH INSTL, DUAL INSTRUMENTS

03 INSTRUMENT PRESSURE, PITOT, PLUMBING,

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH INSTL, DUAL

INSTRUMENT PRESSURE, PITOT, PLUMBING, OPTIONAL RH INSTL, DUAL INSTRUMENTS

04 INSTRUMENT PRESSURE, PITOT, PLUMBING,

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

STATIC SYSTEM PLUMBING

STATIC SYSTEM PLUMBING

STATIC SYSTEM PLUMBING

PAGE INTENTIONALLY LEFT BLANK

05 STATIC SYSTEM PLUMBING

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

STATIC SYSTEM PLUMBING

STATIC SYSTEM PLUMBING

STATIC SYSTEM PLUMBING

PAGE INTENTIONALLY LEFT BLANK

06 STATIC SYSTEM PLUMBING

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

STATIC SYSTEM PLUMBING

STATIC SYSTEM PLUMBING

STATIC SYSTEM PLUMBING

STATIC SYSTEM PLUMBING

07 STATIC SYSTEM PLUMBING

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

FLIGHT DATA INSTRUMENTS

FLIGHT DATA INSTRUMENTS

01 FLIGHT DATA INSTRUMENTS

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE
