Beechcraft Corporation

BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE

55 - CONTENTS 1 MAY 01/19 55-40-00-01 0B MAY 01/19

55-00-00-01 0 MAY 01/19 55-40-00-01 1 MAY 01/19
55-00-00-01 0A MAY 01/19 55-40-00-01 2 MAY 01/19
55-00-00-01 1 MAY 01/19 55-40-00-01 3 MAY 01/19
55-00-00-01 2 MAY 01/19 55-40-00-01 4 MAY 01/19
55-00-00-01 3 MAY 01/19 55-40-00-01 5 MAY 01/19
55-00-00-01 4 MAY 01/19 55-40-00-01 6 MAY 01/19
55-00-00-01 5 MAY 01/19
55-00-00-01 6 MAY 01/19
55-00-00-01 7 MAY 01/19
55-00-00-01 8 MAY 01/19
55-10-00-01 0 MAY 01/19
55-10-00-01 0A MAY 01/19
55-10-00-01 1 MAY 01/19
55-10-00-01 2 MAY 01/19
55-10-00-01 3 MAY 01/19
55-10-00-01 4 MAY 01/19
55-11-00-01 0 MAY 01/19
55-11-00-01 0A MAY 01/19
55-11-00-01 1 MAY 01/19
55-11-00-01 2 MAY 01/19
55-11-00-01 3 MAY 01/19
55-11-00-01 4 MAY 01/19
55-20-00-01 0 MAY 01/19
55-20-00-01 0A MAY 01/19
55-20-00-01 1 MAY 01/19
55-20-00-01 2 MAY 01/19
55-20-00-01 3 MAY 01/19
55-20-00-01 4 MAY 01/19
55-20-00-02 0 MAY 01/19
55-20-00-02 0A MAY 01/19
55-20-00-02 1 MAY 01/19
55-20-00-02 2 MAY 01/19
55-20-00-02 3 MAY 01/19
55-20-00-02 4 MAY 01/19
55-21-00-01 0 MAY 01/19
55-21-00-01 0A MAY 01/19
55-21-00-01 1 MAY 01/19
55-21-00-01 2 MAY 01/19
55-21-00-01 3 MAY 01/19
55-21-00-01 4 MAY 01/19
55-21-00-01 5 MAY 01/19
55-30-00-01 0 MAY 01/19
55-30-00-01 0A MAY 01/19
55-30-00-01 1 MAY 01/19
55-30-00-01 2 MAY 01/19
55-31-00-01 0 MAY 01/19
55-31-00-01 0A MAY 01/19
55-31-00-01 1 MAY 01/19
55-31-00-01 2 MAY 01/19
55-40-00-01 0 MAY 01/19
55-40-00-01 0A MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION

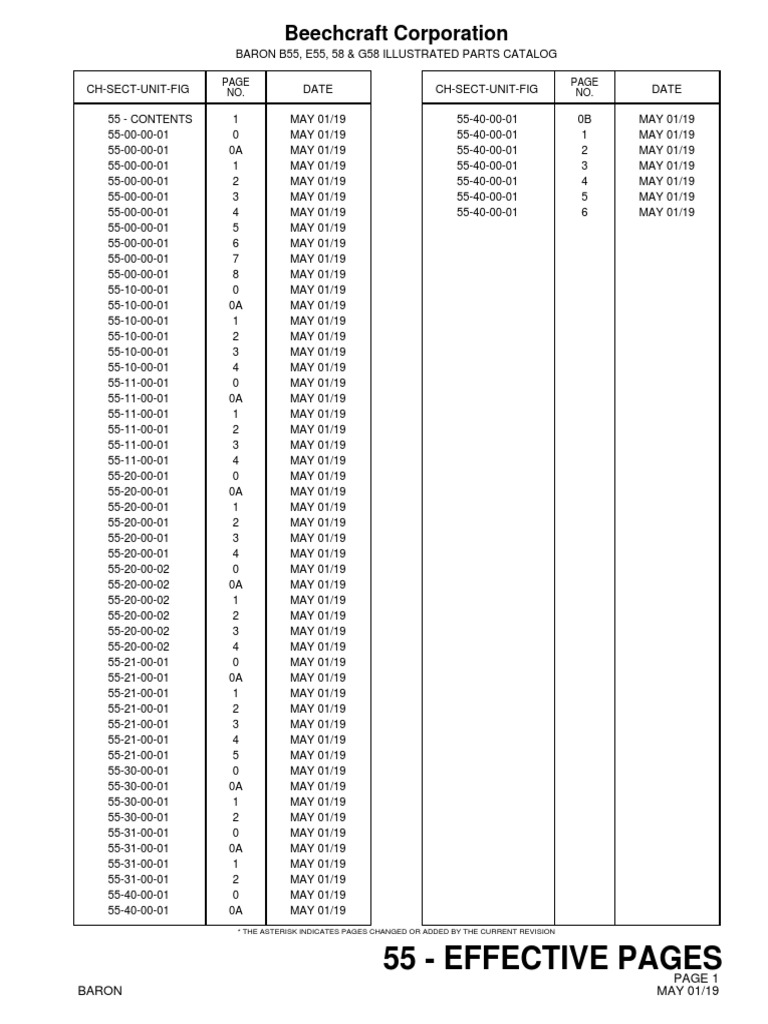

55 - EFFECTIVE PAGES
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

CHAPTER 55 - STABILIZERS

TABLE OF CONTENTS

CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT

GENERAL 55-00-00
EMPENNAGE INSTALLATION 55-00-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
HORIZONTAL STABILIZERS 55-10-00
HORIZONTAL STABILIZER 55-10-00 01 C1608-C9999
HORIZONTAL STABILIZER 55-11-00 01 E0938-E0938
E0943-E9999
H0001-H9999
ELEVATOR/ELEVON 55-20-00
ELEVATOR ASSEMBLY 55-20-00 01 C1608-C2406
ELEVATOR ASSEMBLY 55-20-00 02 C2407-C9999
ELEVATOR ASSEMBLY 55-21-00 01 E0938-E0938
E0943-E9999
H0001-H9999
VERTICAL STABILIZER 55-30-00
VERTICAL STABILIZER 55-30-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
DORSAL FIN AND FAIRING 55-31-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
RUDDER 55-40-00
RUDDER ASSEMBLY 55-40-00 01 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999

55 - CONTENTS
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

55-00-00-01

EMPENNAGE INSTALLATION

55-00-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

EMPENNAGE INSTALLATION
SHEET 1 OF 2

55-00-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

EMPENNAGE INSTALLATION
SHEET 2 OF 2

55-00-00-01
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 EMPENNAGE INSTALLATION
-5 96-600000-7 EMPENNAGE INSTL A RF
-5 96-600001-9 EMPENNAGE INSTL H RF
-5 96-600001-13 EMPENNAGE INSTL J RF
6 96-610005-615 . ELEVATOR ASSY-LH S 1
FOR SPARES ORDER:
96-610005-623
FOR DETAILS SEE:
55-20-00-01
6 96-610006-623 . ELEVATOR ASSY-LH S 1
SPARES REPLACEMENT FOR:
96-610005-615
FOR DETAILS SEE:
55-20-00-01
6 96-610007-601 . ELEVATOR ASSY-LH T 1
FOR SPARES ORDER:
96-610005-623
FOR DETAILS SEE:
55-20-00-02
6 96-610006-623 . ELEVATOR ASSY-LH T 1
SPARES REPLACEMENT FOR:
96-610005-601
FOR DETAILS SEE:
55-20-00-02
6 96-610006-613 . ELEVATOR ASSY-LH E 1
FOR SPARES ORDER:
96-610005-623
FOR DETAILS SEE:
55-21-00-01
6 96-610006-615 . ELEVATOR ASSY-LH B 1
FOR SPARES ORDER:
96-610005-623
FOR DETAILS SEE:
55-21-00-01
6 96-610006-617 . ELEVATOR ASSY-LH D 1
FOR SPARES ORDER:
96-610005-623
FOR DETAILS SEE:
55-21-00-01
6 96-610006-623 . ELEVATOR ASSY-LH FE 1
SPARES REPLACEMENT FOR:
96-610005-613
96-610005-615
96-610006-617
FOR DETAILS SEE:
55-21-00-01
-7 96-610005-616 . ELEVATOR ASSY-RH S 1
FOR SPARES ORDER:
96-610006-624
FOR DETAILS SEE:
55-20-00-01
-7 96-610006-624 . ELEVATOR ASSY-RH S 1
SPARES REPLACEMENT FOR:
96-610005-616
FOR DETAILS SEE:
55-20-00-01
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-00-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-7 96-610007-602 . ELEVATOR ASSY-RH T 1
FOR SPARES ORDER:
96-610006-624
FOR DETAILS SEE:
55-20-00-02
-7 96-610006-624 . ELEVATOR ASSY-RH T 1
SPARES REPLACEMENT FOR:
96-610005-602
FOR DETAILS SEE:
55-20-00-02
-7 96-610006-614 . ELEVATOR ASSY-RH E 1
FOR SPARES ORDER:
96-610006-624
FOR DETAILS SEE:
55-21-00-01
-7 96-610006-616 . ELEVATOR ASSY-RH B 1
FOR SPARES ORDER:
96-610006-624
FOR DETAILS SEE:
55-21-00-01
-7 96-610006-618 . ELEVATOR ASSY-RH D 1
FOR SPARES ORDER:
96-610006-624
FOR DETAILS SEE:
55-21-00-01
-7 96-610006-624 . ELEVATOR ASSY-RH FE 1
SPARES REPLACEMENT FOR:
96-610006-614
96-610006-616
96-610006-018
FOR DETAILS SEE:
55-21-00-01
ATTACHING PARTS
8 130909B41 . BOLT-INBD HINGE AND TORQUE N 1
FITTING
8 130909B210 . BOLT-INBD HINGE AND TORQUE R 1
FITTING
8 130909B200 . BOLT-INBD HINGE AND TORQUE Q 1
FITTING
-9 NAS1149F0463P . WASHER-INBD HINGE AND FE AR
TORQUE FITTING
-10 NAS1149F0463P . WASHER-UNDER NUT FE 1
-11 MS20365-428 . NUT AA 1
ALTERNATE SPARE:
MS21044N4
MS21042-4
FOR SPARES ORDER:
130909N30
-11 MS21044N4 . NUT K 1
ALTERNATE SPARE:
MS20365-428
-11 MS21042-4 . NUT AA 1
ALTERNATE SPARE:
MS20365-428

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-00-00-01
PAGE 2
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-11 130909N30 . NUT K 1
SPARES REPLACEMENT FOR:
MS20365-428
-11 130909N48 . NUT J 1
-------*-------
25 130909S3 . SCREW FE 8
26 NAS1149F0332P . WASHER FE 8
27 MS25083-2AA4 . JUMPER-BONDING FE 4
28 MS35206-230 . SCREW FE 8
29 NAS1149DN632H . WASHER FE 16
30 MS20365-632 . NUT FE 8
ALTERNATE SPARE:
MS21044N06
MS21042L06
30 MS21044N06 . NUT FE 8
ALTERNATE SPARE:
MS20365-632
MS21042L06
30 MS21042L06 . NUT FE 8
ALTERNATE SPARE:
MS20365-632
MS21044N06
33 95-620010-633 . STABILIZER ASSY-LH, C 1
HORIZONTAL
FOR DETAILS SEE:
55-10-00-01
33 96-620005-631 . STABILIZER ASSY-LH, M 1
HORIZONTAL
FOR DETAILS SEE:
55-11-00-01
-35 95-620010-634 . STABILIZER ASSY-RH, C 1
HORIZONTAL
FOR DETAILS SEE:
55-10-00-01
-35 96-620005-632 . STABILIZER ASSY-RH, M 1
HORIZONTAL
FOR DETAILS SEE:
55-11-00-01
ATTACHING PARTS
50 130909B96 . BOLT N 6
FOR SPARES ORDER:
130909BH96
50 130909BH96 . BOLT N 6
SPARES REPLACEMENT FOR:
130909B96
55 130909B98 . BOLT N 8
FOR SPARES ORDER:
130909BH98
55 130909BH98 . BOLT AB 8
FOR SPARES ORDER:
130909B98
55 130909B194 . BOLT P 8
FOR SPARES ORDER:
130909BH194

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-00-00-01
PAGE 3
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
55 130909BH194 . BOLT P 8
SPARES REPLACEMENT FOR:
130909B194
-65 NAS1149F0532P . WASHER P 8
-70 NAS1149F0432P . WASHER FE 6
-75 NAS1149F0463P . WASHER FE 6
-80 NAS143-4C . WASHER AB 6
FOR SPARES ORDER:
MS20002C4
-80 MS20002C4 . WASHER N 6
SPARES REPLACEMENT FOR:
NAS143-4C
-85 96-600001-19 . WASHER FE 8
-90 NAS143-5C . WASHER FE 6
FOR SPARES ORDER:
MS20002C5
-90 MS20002C5 . WASHER FE 6
SPARES REPLACEMENT FOR:
NAS143-5C
-95 NAS143-4C . WASHER AD 6
FOR SPARES ORDER:
MS20002C4
-95 MS20002C4 . WASHER FE 6
SPARES REPLACEMENT FOR:
NAS143-4C
-100 NAS143-5C . WASHER FE 8
FOR SPARES ORDER:
MS20002C5
-100 MS20002C5 . WASHER FE 8
SPARES REPLACEMENT FOR:
NAS143-5C
-105 130909N24 . NUT AB 8
-110 130909N43 . NUT P 8
-115 130909N30 . NUT FE 6
120 130909B17 . BOLT N 4
120 130909B19 . BOLT P 4
-130 NAS1149F0332P . WASHER P 8
-------*-------
135 96-600000-1 . SHIM FE AR
320 96-640000-607 . STABILIZER ASSY-VERTICAL A 1
FOR DETAILS SEE:
55-30-00-01
320 96-640000-608 . STABILIZER ASSY-VERTICAL F 1
FOR DETAILS SEE:
55-30-00-01
320 96-640000-197 . STABILIZER ASSY-VERTICAL G 1
FOR SPARES ORDER:
96-640000-243
FOR DETAILS SEE:
55-30-00-01
320 96-640000-243 . STABILIZER ASSY-VERTICAL Z 1
SPARES REPLACEMENT FOR:
96-640000-197
FOR DETAILS SEE:
55-30-00-01
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-00-00-01
PAGE 4
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
ATTACHING PARTS
335 130909B99 . BOLT FE 6
FOR SPARES ORDER:
130909BH99
335 130909BH99 . BOLT FE 6
SPARES REPLACEMENT FOR:
130909B99
-340 NAS143-6C . WASHER AC 6
FOR SPARES ORDER:
MS20002C6
-340 MS20002C6 . WASHER P 6
SPARES REPLACEMENT FOR:
NAS143-6C
-345 NAS1149F0663P . WASHER FE 4
-350 NAS1149F0632P . WASHER FE 2
-355 NAS143-6C . WASHER AD 6
FOR SPARES ORDER:
MS20002C6
-355 MS20002C6 . WASHER FE 6
SPARES REPLACEMENT FOR:
NAS143-6C
-360 130909N42 . NUT FE 6
-365 130909N25 . NUT N 4
-365 130909N47 . NUT P 4
-------*-------
375 96-630000-607 . RUDDER ASSY A 1
FOR DETAILS SEE:
55-40-00-01
375 96-630000-639 . RUDDER ASSY V 1
FOR DETAILS SEE:
55-40-00-01
375 96-630000-441 . RUDDER ASSY W 1
FOR DETAILS SEE:
55-40-00-01
375 96-630000-465 . RUDDER ASSY X 1
FOR DETAILS SEE:
55-40-00-01
375 96-630000-517 . RUDDER ASSY Y 1
FOR DETAILS SEE:
55-40-00-01
ATTACHING PARTS
385 130909B38 . BOLT N 1
-390 130909B190 . BOLT P 1
-395 NAS1149F0463P . WASHER P 1
-400 MS20365-428 . NUT AB 1
ALTERNATE SPARE:
MS21044N4
MS21042-4
FOR SPARES ORDER:
130909N30
-400 MS21044N4 . NUT N 1
ALTERNATE SPARE:
MS20365-428

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-00-00-01
PAGE 5
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-400 MS21042-4 . NUT AB 1
ALTERNATE SPARE:
MS20365-428
-400 130909N30 . NUT N 1
SPARES REPLACEMENT FOR:
MS20365-428
-405 130909N7 . NUT P 1
-410 MS24665-132 . PIN-COTTER P 1
415 130909B90 . BOLT FE 1
-------*-------
-420 96-600000-3 . SHIM-RUDDER BELLCRANK FE 1
ATTACHING PARTS
-425 NAS1149F0663P . WASHER N 1
-425 NAS1149F0632P . WASHER P 1
-435 AN320-6 . NUT AB 1
-435 130909N18 . NUT P 1
-445 AN380-2-3 . PIN-COTTER AB 1
ALTERNATE SPARE:
MS24665-134
-445 MS24665-134 . PIN-COTTER N 1
ALTERNATE SPARE:
AN380-2-3
-445 MS24665-134 . PIN-COTTER P 1
-------*-------
455 95-600001-3 . SEAL-LH FE 1
-460 95-600001-4 . SEAL-RH FE 1
465 95-610012-15 . HINGE ASSY-ELEVATOR, INBD A 1
465 95-610012-19 . HINGE ASSY-ELEVATOR, INBD L 1
ALTERNATE SPARE:
95-610012-15
95-610012-25
FOR SPARES ORDER:
95-610012-29
465 95-610012-25 . HINGE ASSY-ELEVATOR, INBD L 1
ALTERNATE SPARE:
95-610012-15
95-610012-19BR>FOR SPARES ORDER:
95-610012-29
465 95-610012-29 . HINGE ASSY-ELEVATOR, INBD M 1
SPARES REPLACEMENT FOR:
95-610012-19
95-610012-25
ATTACHING PARTS
475 130909B97 . BOLT N 4
FOR SPARES ORDER:
130909BH97
475 130909BH97 . BOLT AB 4
SPARES REPLACEMENT FOR:
130909B97
475 130909B195 . BOLT P 4
FOR SPARES ORDER:
130909BH195
475 130909BH195 . BOLT P 4
SPARES REPLACEMENT FOR:
130909B195
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-00-00-01
PAGE 6
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-485 NAS143-4C . WASHER AB 4
FOR SPARES ORDER:
MS20002C4
-485 MS20002C4 . WASHER N 4
SPARES REPLACEMENT FOR:
NAS143-4C
-490 NAS1149F0463P . WASHER N 4
-495 NAS143-4C . WASHER AC 4
FOR SPARES ORDER:
MS20002C4
-495 MS20002C4 . WASHER P 4
SPARES REPLACEMENT FOR:
NAS143-4C
-500 NAS1149F0432P . WASHER P 4
-505 NAS1149F0463P . WASHER P 8
-510 130909N32 . NUT N 4
-510 130909N30 . NUT P 4
-------*-------
-520 95-610012-13 . . HINGE A 1
-520 95-610012-17 . . HINGE M 1
530 MS27261KSP4 . . BEARING FE 2
535 96-524013 . BELLCRANK ASSY FE 1
FOR DETAILS SEE:
27-20-00-01

C1608-C9999 A
H0121-H0177 B
C1608-C9999 C
E0938-E0938,E0943-E9999,H0178-H2412 D
H0001-H0120 E
E0938-E0938,H0001-H0384 F
E0943-E9999,H0385-H2347 G
E0938-E0938,E0943-E9999,H0001-H1079 H
H1080-H9999 J
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1079 K
E0938-E0938,E0943-E9999,H0001-H1809 L
E0938-E0938,E0943-E9999,H0001-H9999 M
C1608-C2456,E0938-E0938,E0943-E1201,H0001-H1483 N
C2457-C9999,E1202-E9999,H1484-H9999 P
H1559-H9999 Q
C2457-C9999,E1202-E9999,H1484-H1558 R
C1608-C2406 S
C2407-C9999 T
E0938-E0938,E0943-E9999 V
H0001-H0383,H0388-H0388,H0390-H0390,H0393-H0396, W
H0398-H0398,H0407-H0408,H0410-H0410,H0412-H0413,
H0417-H0417,H0425-H0425
H0384-H0387,H0389-H0389,H0391-H0392,H0397-H0397, X
H0399-H0406,H0409-H0409,H0411-H0411,H0414-H0416,
H0418-H0424,H0426-H1894
H1895-H9999 Y
E0943-E9999,H0385-H9999 Z
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H2477 AA
C1608-C2456,E0938-E0938,E0943-E1201,H0001-H2477 AB
(CONTINUED NEXT PAGE)
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-00-00-01
PAGE 7
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
(CONTINUED)
C2457-C9999,E1202-E9999,H1484-H2477 AC
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H2477 AD
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-00-00-01
PAGE 8
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

55-10-00-01

HORIZONTAL STABILIZER

55-10-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

HORIZONTAL STABILIZER
SHEET 1 OF 2

55-10-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

HORIZONTAL STABILIZER
SHEET 2 OF 2

55-10-00-01
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 HORIZONTAL STABILIZER
-5 95-620010-633 STABILIZER ASSY-LH FE 1
HORIZONTAL
FOR NHA SEE:
55-00-00-01
-10 95-620010-634 STABILIZER ASSY-RH FE 1
HORIZONTAL
FOR NHA SEE:
55-00-00-01
-15 95-620010-604 . SPAR ASSY-FWD FE 1
20 95-620010-39 . . SPAR FE 1
25 95-620010-41 . . DOUBLER FE 1
30 45-620025-13 . . BRACKET-ELEVATOR FE 1
TRIM TAB
35 45-620011-12 . . BUSHING FE 8
-40 95-620010-632 . SPAR ASSY-AFT FE 1
45 95-620010-105 . . SPAR FE 1
50 95-620010-107 . . DOUBLER FE 1
55 45-620011-4 . . BUSHING FE 6
60 95-620010-113 . DOUBLER FE 1
65 MS21071L3 . NUTPLATE FE 4
70 96-610023-601 . HINGE ASSY-ELEVATOR CENTER FE 1
71 96-610023-1 . . BRACKET-ELEVATOR CENTER FE 1
HINGE,FWD
72 96-610023-5 . . PLATE-ELEVATOR CENTER FE 1
HINGE
73 MS27645-3A . . BEARING-ELEVATOR HINGE FE 1
PLATE
74 130909B193 . . BOLT-CENTER FE 1
75 100696XZD004 . . SPACER FE 2
76 NAS1149F0363P . . WASHER-TWO REQUIRED UNDER FE 2
EACH NUT
77 130909N6 . . NUT FE 1
78 MS24665-132 . . PIN-COTTER FE 1
79 35-650122-8 . . BRACKET-ELEVATOR CENTER FE 1
HINGE, AFT
-83 95-620010-627 . RIB ASSY-INBD LH FE 1
-84 95-620010-608 . RIB ASSY-INBD RH FE 1
85 95-620010-5 . . RIB FE 1
90 35-650005-45 . . ANGLE-TOP FE 1
95 35-650005-46 . . ANGLE-BOTTOM FE 1
-100 95-620010-607 . RIB ASSY-OUTBD FE 1
105 95-620010-53 . . RIB FE 1
110 95-620010-33 . . EXTENSION FE 1
-115 104-620001-31 . ANGLE C 1
120 35-650121 . HINGE ASSY-ELEVATOR, OUTBD FE 1
125 35-650121-4 . . HINGE ASSY FE 1
126 B-55 . . . BEARING FE 1
127 35-650121-2 . . . HINGE HALF FE 1
128 35-600003 . . BUSHING FE 1
ATTACHING PARTS
129 AN23-14 . . BOLT FE 1
130 NAS1149F0363P . . WASHER FE 1
131 130909N15 . . NUT FE 1
132 MS24665-132 . . PIN FE 1
-------*-------
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-10-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
133 35-650121-6 . . BRACKET FE 1
-135 95-620010-630 . SKIN ASSY-LH FE 1
-140 95-620010-631 . SKIN ASSY-RH FE 1
145 95-620010-69 . . SKIN-STABILIZER OUTBD FE 1
LEADING EDGE LH
-150 95-620010-70 . . SKIN-STABILIZER OUTBD FE 1
LEADING EDGE RH
155 95-620010-117 . . SKIN-STABILIZER INBD FE 1
LEADING EDGE LH
-160 95-620010-118 . . SKIN-STABILIZER INBD FE 1
LEADING EDGE RH
-165 95-620010-135 . . DOUBLER ASSY FE 1
170 95-620010-81 . . SKIN-STABILIZER INBD TOP FE 1
LH
-175 95-620010-82 . . SKIN-STABILIZER INBD TOP FE 1
RH
180 95-620010-15 . . RIB-STABILIZER LEADING FE 1
EDGE
185 95-620010-13 . . RIB-STABILIZER LEADING FE 1
EDGE
190 95-620010-11 . . RIB-STABILIZER LEADING FE 1
EDGE
195 95-620010-9 . . RIB-STABILIZER LEADING FE 1
EDGE
200 95-620010-7 . . RIB-STABILIZER LEADING FE 1
EDGE
205 35-650005-7 . . STIFFENER-LEADING EDGE LH FE 2
-210 35-650005-8 . . STIFFENER-LEADING EDGE RH FE 2
215 95-620010-95 . . STIFFENER-LEADING EDGE LH FE 1
-220 95-620010-96 . . STIFFENER-LEADING EDGE RH FE 1
225 95-620010-29 . . DOUBLER-UPPER FE 1
-230 95-620010-30 . . DOUBLER-LOWER FE 1
235 95-620010-19 . . TIP-STABILIZER FE 1
240 45-620010-20 . DOUBLER-PATCH PLATE FE 1
245 95-620010-65 . SKIN-TOP AFT LH FE 1
-250 95-620010-66 . SKIN-TOP AFT RH FE 1
255 95-620010-67 . SKIN-BOTTOM AFT LH FE 1
-260 95-620010-68 . SKIN-BOTTOM AFT RH FE 1
265 95-620010-75 . CHANNEL-AFT INBD FE 1
270 95-620010-77 . GUSSET-INBD FE 2
275 95-620010-127 . RIB-LH FE 1
-280 95-620010-128 . RIB-RH FE 1
285 45-620020 . COVER-STABILIZER ACCESS FE 1
HOLE
290 45-620021 . CLAMP ASSY FE 1
295 95-620010-71 . RIB-INBD FWD FE 1
300 95-620010-35 . RIB-OUTBD AFT FE 1
305 95-620010-31 . CLIP FE 1
310 35-650005-31 . RIB-MID AFT FE 1
315 95-620010-93 . SHIM-SPAR FE 2
320 45-620010-34 . REINFORCEMENT-SPAR UPPER FE 1
325 45-620010-35 . REINFORCEMENT-SPAR LOWER FE 1
330 A6914-1024-1 . PLATE-PATCH FE 1
FOR SPARES ORDER:
132641-5G
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-10-00-01
PAGE 2
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
330 132641-5G . PLATE-PATCH FE 1
SPARES REPLACEMENT FOR:
A6914-1024-1
335 95-620010-21 . SKIN-TIP UPPER FE 2
-340 95-620010-22 . SKIN-TIP LOWER FE 2
345 95-620010-85 . CHANNEL-FRONT SPAR FE 1
350 95-620010-87 . ANGLE FE 1
355 95-620010-55 . CLIP-AFT MID RIB FE 1
360 95-620010-91 . ANGLE-REAR SPAR LH FE 2
-365 95-620010-92 . ANGLE-REAR SPAR RH FE 2
370 95-620010-73 . RIB-INBD AFT FE 1
375 95-620010-119 . SKIN-AFT INBD LOWER LH FE 1
-380 95-620010-120 . SKIN-AFT INBD LOWER RH FE 1
385 45-526006-5 . PLATE ASSY-SPROCKET FE 1
SUPPORT
390 130909B12 . BOLT FE 2
-395 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
-395 NAS1149F0332P . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
-400 33-620000-83 . SHIM FE 2
405 95-620010-121 . DOOR-ACCESS FE 1
410 MS24693-S50 . SCREW FE 9
-415 95-620010-123 . DOUBLER FE 1
420 95-620010-131 . DOOR-ACCESS FE 1
425 MS24693-S50 . SCREW FE 8
430 96-526013-607 . ACTUATOR ASSY-LH ELEVATOR B 1
TRIM TAB
FOR SPARES ORDER:
96-526013-621
FOR DETAILS SEE:
27-30-00-03
430 96-526013-613 . ACTUATOR ASSY-LH ELEVATOR D 1
TRIM TAB
FOR SPARES ORDER:
96-526013-621
FOR DETAILS SEE:
27-30-00-03
430 96-526013-621 . ACTUATOR ASSY-LH ELEVATOR FE 1
TRIM TAB
SPARES REPLACEMENT FOR:
96-526013-607
96-526013-613
FOR DETAILS SEE:
27-30-00-03
-450 96-526013-608 . ACTUATOR ASSY-RH ELEVATOR B 1
TRIM TAB
FOR SPARES ORDER:
96-526013-622
FOR DETAILS SEE:
27-30-00-03

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-10-00-01
PAGE 3
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-450 96-526013-614 . ACTUATOR ASSY-RH ELEVATOR D 1
TRIM TAB
FOR SPARES ORDER:
96-526013-622
FOR DETAILS SEE:
27-30-00-03
-450 96-526013-622 . ACTUATOR ASSY-RH ELEVATOR FE 1
TRIM TAB
SPARES REPLACEMENT FOR:
96-526013-608
96-526013-614
FOR DETAILS SEE:
27-30-00-03
ATTACHING PARTS
460 MS27039-1-13 . SCREW FE 4
-465 AN960-10 . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0363P
-465 NAS1149F0363P . WASHER FE 4
ALTERNATE SPARE:
AN960-10
-470 130909N29 . NUT FE 4
-------*-------
475 96-524000-9 . CABLE ASSY-LH ELEVATOR FE 1
TRIM TAB
FOR DETAILS SEE:
27-30-00-03
-480 96-524000-7 . CABLE ASSY-RH ELEVATOR FE 1
TRIM TAB
FOR DETAILS SEE:
27-30-00-03
485 103637 . PLACARD-IDENTIFICATION FE 1
-490 49384 . FASTENER FE 2
FOR SPARES ORDER:
CCR274SS-4-01
-490 CCR274SS-4-01 . FASTENER FE 2
SPARES REPLACEMENT FOR:
49384
-495 95-620010-113 . DOUBLER FE 1
500 96-610023-1 . BRACKET FE 2

C1608-C2314 B
C2122-C9999 C
C2315-C2456 D
C1608-C9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-10-00-01
PAGE 4
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

55-11-00-01

HORIZONTAL STABILIZER

55-11-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

HORIZONTAL STABILIZER
SHEET 1 OF 2

55-11-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

HORIZONTAL STABILIZER
SHEET 2 OF 2

55-11-00-01
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 HORIZONTAL STABILIZER
-5 96-620005-631 STABILIZER ASSY-HORIZONTAL FE 1
LH
FOR NHA SEE:
55-00-00-01
-10 96-620005-632 STABILIZER ASSY-HORIZONTAL FE 1
RH
FOR NHA SEE:
55-00-00-01
-15 96-620005-627 . SPAR ASSY-FWD FE 1
20 96-620005-9 . . CAP-SPAR, UPPER FE 1
25 96-620005-10 . . CAP-SPAR, LOWER FE 1
30 96-620005-113 . . WEB-SPAR, INBD FE 1
35 96-620005-111 . . WEB-SPAR, OUTBD FE 1
40 96-620005-39 . . . CLIP FE 1
45 95-620010-85 . . CHANNEL FE 1
50 96-620005-93 . . ANGLE-LH FE 1
-55 96-620005-94 . . ANGLE-RH FE 1
60 96-620005-91 . . ANGLE-LH FE 1
-65 96-620005-92 . . ANGLE-RH FE 1
70 45-620025-13 . . BRACKET-ELEVATOR FE 1
TRIM TAB
-75 130909N33 . . NUTPLATE-ELEVATOR TRIM FE 2
TAB BRACKET
-80 45-620025-7 . . BLOCK FE 1
-85 96-620005-619 . SPAR ASSY-AFT B 1
FOR SPARES ORDER:
96-620005-635
96-620005-636
-85 96-620005-635 . SPAR ASSY-AFT, LH FE 1
SPARES REPLACEMENT FOR:
96-620005-619
-85 96-620005-636 . SPAR ASSY-AFT, RH FE 1
SPARES REPLACEMENT FOR:
96-620005-619
100 96-620005-99 . . WEB FE 1
-105 96-620005-123 . . DOUBLER C 1
110 96-620005-97 . . CAP-SPAR, UPPER FE 1
115 96-620005-98 . . CAP-SPAR, LOWER FE 1
120 96-620005-19 . . SPACER FE 1
125 95-620010-55 . . CLIP FE 1
130 95-620010-87 . . ANGLE-INBD RIB AFT CLIP FE 1
135 96-620005-35 . . CLIP FE 1
140 96-620005-47 . . CLIP-OUTBD RIB AFT FE 1
-145 MS35206-207 . SCREW FE 2
-150 NAS1149FN832P . WASHER FE 2
-153 MS21071L08 . NUTPLATE FE 2
155 96-610023-601 . HINGE ASSY-ELEVATOR CENTER FE 1
HINGE
156 96-610023-1 . . BRACKET-ELEVATOR CENTER FE 1
HINGE, FWD
157 96-610023-5 . . PLATE-ELEVATOR CENTER FE 1
HINGE
158 MS27645-3A . . BEARING-ELEVATOR HINGE FE 1
PLATE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-11-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
ATTACHING PARTS
159 130909B193 . . BOLT-CENTER FE 1
160 100696XZD004 . . SPACER FE 2
161 NAS1149F0363P . . WASHER FE 2
TWO REQUIRED UNDER NUT
162 130909N6 . . NUT FE 1
163 MS24665-132 . . PIN-COTTER 1
-------*-------
164 35-650122-8 . . BRACKET-ELEVATOR CENTER FE 1
HINGE, AFT
165 96-620005-61 . CLIP FE 1
-170 96-620005-625 . SKIN ASSY-LEADING EDGE LH FE 1
-175 96-620005-626 . SKIN ASSY-LEADING EDGE RH FE 1
180 96-620005-133 . . SKIN-STABILIZER LEADING FE 1
EDGE LH
-185 96-620005-134 . . SKIN-STABILIZER LEADING FE 1
EDGE RH
190 96-620005-23 . . RIB-STABILIZER LEADING FE 1
EDGE
195 95-620010-15 . . RIB-STABILIZER LEADING FE 1
EDGE
200 95-620010-13 . . RIB-STABILIZER LEADING FE 1
EDGE
205 95-620010-11 . . RIB-STABILIZER LEADING FE 1
EDGE
210 95-620010-9 . . RIB-STABILIZER LEADING FE 1
EDGE
215 96-620005-89 . . STIFFENER FE 1
220 95-620010-7 . . RIB-STABILIZER LEADING FE 1
EDGE
225 96-620005-87 . . STIFFENER FE 1
230 35-650005-7 . . STIFFENER-LEADING EDGE FE 1
-235 35-650005-8 . . STIFFENER-LEADING EDGE FE 1
240 95-620010-95 . . STIFFENER-LEADING EDGE FE 1
LH BOTTOM
-245 95-620010-96 . . STIFFENER-LEADING EDGE FE 1
RH BOTTOM
250 96-620005-65 . . STIFFENER-LEADING EDGE LH FE 1
-255 96-620005-66 . . STIFFENER-LEADING EDGE RH FE 1
260 96-620005-67 . . STIFFENER-LH FE 1
-265 96-620005-68 . . STIFFENER-RH FE 1
270 96-620005-41 . . GUSSET-UPPER FE 1
275 96-620005-42 . . GUSSET-LOWER FE 1
280 95-620010-5 . . RIB-STABILIZER LEADING FE 1
EDGE
285 96-620005-46 . . SHIM-RIB FE 2
-290 96-620005-143 . . SHIM-RIB D 2
295 35-650005-45 . . ANGLE-TOP FE 1
-300 35-650005-46 . . ANGLE-BOTTOM FE 1
-305 95-620010-135 . . DOUBLER ASSY FE 1
310 45-620010-20 . DOUBLER-DOOR FE 1
315 A6914-1024-1 . PLATE-PATCH FE 1
FOR SPARES ORDER:
132641-5G

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-11-00-01
PAGE 2
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
315 132641-5G . PLATE-PATCH FE 1
SPARES REPLACEMENT FOR:
A6914-1024-1
320 96-620005-129 . SKIN-TOP AFT LH FE 1
-325 96-620005-130 . SKIN-TOP AFT RH FE 1
330 96-620005-107 . SKIN-BOTTOM AFT LH FE 1
-335 96-620005-108 . SKIN-BOTTOM AFT RH FE 1
340 95-620010-75 . CHANNEL-INBD AFT FE 1
345 95-620010-77 . GUSSET-INBD FE 2
350 95-620010-127 . RIB-INBD AFT LH FE 1
-355 95-620010-128 . RIB-INBD AFT RH FE 1
360 45-620020 . COVER-ACCESS HOLE FE 1
365 45-620021 . CLAMP ASSY FE 1
370 96-620005-49 . SKIN-INBD TOP FE 1
-375 96-620005-50 . SKIN-INBD TOP FE 1
380 96-620005-131 . SKIN-INBD LOWER LH FE 1
-385 96-620005-132 . SKIN-INBD LOWER RH FE 1
390 96-620005-31 . RIB-AFT INBD FE 1
395 96-620005-29 . RIB-OUTBD FE 1
400 96-620005-55 . RIB-OUTBD CLOSURE FE 1
405 96-620005-59 . SKIN-TIP FE 1
410 96-620005-57 . RIB-TIP FE 1
-415 95-620010-71 . RIB-INBD FWD FE 1
420 96-620005-25 . RIB-OUTBD AFT FE 1
425 96-620005-121 . SKIN-OUTBD AFT FE 1
-430 96-620005-122 . SKIN-OUTBD AFT FE 1
435 96-620005-63 . SKIN-TIP FE 2
440 96-620005-43 . RIB-AFT MID FE 1
445 96-620005-11 . GUSSET-AFT LH FE 1
-450 96-620005-12 . GUSSET-AFT RH FE 1
455 45-620024 . STOP FE 1
-460 MS24665-132 . PIN-COTTER FE 1
-465 130909N15 . NUT FE 1
-470 NAS1149F0363P . WASHER FE 1
-475 AN23-14 . BOLT FE 1
476 96-610024-601 . HINGE ASSY-OUTBD FE 1
477 96-610024-1 . . PLATE-ELEVATOR OUTBD FE 1
HINGE
478 MS27645-3A . . BEARING-ELEVATOR HINGE FE 1
PLATE
ATTACHING PARTS
479 130909B193 . . BOLT FE 1
480 100696XZD004 . . SPACER F 2
480 NAS43HT3-8 . . SPACER G 2
481 NAS1149F0363P . . WASHER FE 2
TWO REQUIRED UNDER EACH NUT
482 130909N6 . . NUT FE 1
483 MS24665-132 . . PIN-COTTER FE 1
-------*-------
484 35-650121-8 . . BRACKET-ELEVATOR OUTBD FE 1
HINGE, AFT
485 45-526006-5 . PLATE ASSY-ACTUATOR FE 1
FOR DETAILS SEE:
27-30-00-03

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-11-00-01
PAGE 3
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
ATTACHING PARTS
490 130909B12 . BOLT FE 2
-495 NAS1149F0332P . WASHER FE 2
-------*-------
500 95-620010-121 . DOOR FE 1
-505 MS24693-S50 . SCREW FE 8
-510 95-620010-123 . DOUBLER FE 1
515 95-620010-131 . DOOR-ACCESS FE 1
-520 MS24693-S50 . SCREW FE 9
525 95-620010-93 . SHIM E 1
527 95-620010-93 . SHIM A 2
530 96-620005-123 . DOUBLER-ELEVATOR TRIM TAB FE 1
-535 MS21071L3 . NUTPLATE-ELEVATOR TRIM TAB FE 4
DOUBLER
-540 103637 . PLACARD-IDENTIFICATION FE 1
-545 CCR274SS-4-01 . FASTENER FE 2
-550 96-610023-1 . BRACKET FE 2
-555 96-526013 TAB CONTROL INSTL FE 1
FOR DETAILS SEE:
27-30-00-03

H0001-H9999 A
E0938-E0938,E0943-E9999,H0001-H1388,H1390-H1395 B
H1389-H1389,H1396-H9999 C
H1656-H9999 D
E0938-E0938,E0943-E9999 E
E0938-E0938,E0943-E9999,H0001-H1483 F
H1484-H9999 G
E0938-E0938,E0943-E9999,H0001-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-11-00-01
PAGE 4
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

55-20-00-01

ELEVATOR ASSEMBLY

55-20-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

ELEVATOR ASSEMBLY
SHEET 1 OF 2

55-20-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

ELEVATOR ASSEMBLY
SHEET 2 OF 2

55-20-00-01
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 ELEVATOR ASSEMBLY
-5 96-610005-615 ELEVATOR ASSY-LH FE 1
FOR SPARES ORDER:
96-610006-623
FOR NHA SEE:
55-00-00-01
-5 96-610006-623 ELEVATOR ASSY-LH FE 1
SPARES REPLACEMENT FOR:
96-610005-615
FOR NHA SEE:
55-00-00-01
-5 96-610005-655 ELEVATOR ASSY-LH, LESS FE 1
TAB
-10 96-610005-616 ELEVATOR ASSY-RH FE 1
FOR SPARES ORDER:
96-610006-624
FOR NHA SEE:
55-00-00-01
-10 96-610006-624 ELEVATOR ASSY-RH FE 1
SPARES REPLACEMENT FOR:
96-610005-616
FOR NHA SEE:
55-00-00-01
-10 96-610005-656 ELEVATOR ASSY-RH, LESS FE 1
TAB
25 95-610006-11 . SHIM FE 1
30 95-610005-603 . FITTING-ELEVATOR LH FE 1
-35 95-610005-604 . FITTING-ELEVATOR RH FE 1
ATTACHING PARTS
40 MS27039-1-12 . SCREW FE 4
-45 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
-45 NAS1149F0332P . WASHER FE 4
ALTERNATE SPARE:
AN960-10L
-50 AN960-10 . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0363P
-50 NAS1149F0363P . WASHER FE 8
ALTERNATE SPARE:
AN960-10
-55 130909N29 . NUT FE 4
-------*-------
60 45-660012-1 . SKIN-ELEVATOR HORN FE 1
ATTACHING PARTS
65 MS24693S49 . SCREW FE 16
70 AN507-832-R10 . SCREW FE 2
-75 112105 . WASHER FE 4
-80 AN960D8 . WASHER FE 6
FOR SPARES ORDER:
NAS1149DN832H
-80 NAS1149DN832H . WASHER FE 6
SPARES REPLACEMENT FOR:
AN960D8
-85 22A3-82 . NUT FE 4
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-20-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-90 MS21047L08 . NUTPLATE FE 12
-95 130909N28 . NUT FE 2
-------*-------
100 96-610025-5 . WEIGHT ASSY-ELEVATOR FE 1
BALANCE
FOR SPARES ORDER:
96-610022-11
100 96-610022-11 . WEIGHT ASSY-ELEVATOR FE 1
BALANCE
SPARES REPLACEMENT FOR:
96-610025-5
103 STHB-832-16 . . INSERT FE 2
104 STHB-832-24 . . INSERT FE 1
105 45-610005-54 . HINGE-LH FE 1
-110 45-610005-55 . HINGE-RH FE 1
ATTACHING PARTS
115 MS35206-232 . SCREW FE 3
-120 AN960D6 . WASHER FE 3
FOR SPARES ORDER:
NAS1149DN632H
-120 NAS1149DN632H . WASHER FE 3
SPARES REPLACEMENT FOR:
AN960D6
-125 NAS43DD1-25 . SPACER FE 3
-130 MS21042L06 . NUT FE 3
-------*-------
-135 96-610021-41 . TAB ASSY-LH ELEVATOR TRIM FE 1
-140 96-610021-42 . TAB ASSY-RH ELEVATOR TRIM FE 1
145 95-610006-27 . PIN-HINGE FE 1
ATTACHING PARTS
150 NAS602-8 . SCREW FE 1
-155 AN960-8 . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
-155 NAS1149FN832P . WASHER FE 1
SPARES REPLACEMENT FOR:
AN960-8
-------*-------
160 96-610021-43 . . HORN ASSY-ELEVATOR TAB FE 1
-165 96-610021-45 . . . HORN-ELEVATOR TAB FE 1
-170 96-610021-47 . . . BUSHING FE 1
175 96-610021-29 . . HINGE-LH FE 1
-180 96-610021-30 . . HINGE-RH FE 1
185 96-610021-3 . . SKIN-LH TAB FE 1
-190 96-610021-4 . . SKIN-RH TAB FE 1
195 96-610021-13 . . RIB-INBOARD FE 1
200 96-610021-17 . . RIB-OUTBOARD FE 1
205 96-610021-27 . . RIB-INBOARD FE 1
210 96-610021-28 . . RIB-OUTBOARD FE 1
215 96-610021-35 . . BRACKET FE 1
220 35-650122-8 . BRACKET-CENTER ELEVATOR FE 1
HINGE
225 35-650121-8 . BRACKET-OUTBOARD ELEVATOR FE 1
HINGE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-20-00-01
PAGE 2
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
ATTACHING PARTS
230 130909S3 . SCREW FE 4
-235 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
-235 NAS1149F0332P . WASHER FE 4
ALTERNATE SPARE:
AN960-10L
-------*-------
240 103637 . PLACARD-IDENTIFICATION FE 1
ATTACHING PARTS
-245 49384 . FASTENER FE 2
FOR SPARES ORDER:
CCR274SS-4-01
-245 CCR274SS-4-01 . FASTENER FE 2
SPARES REPLACEMENT FOR:
49384
-------*-------
250 95-610006-39 . SPAR-FWD FE 1
255 95-610006-21 . RIB FE 1
-257 96-610007-139 . SPACER FE 1
260 96-610005-27 . RIB B 1
FOR SPARES ORDER:
96-610005-41
260 96-610005-41 . RIB ASSY FE 1
SPARES REPLACEMENT FOR:
96-610005-27
-270 MS25083-2AA2 . JUMPER-BONDING C 1
275 45-610005-16 . RIB FE 1
280 45-610005-28 . RIB FE 1
285 96-610005-25 . RIB-OUTBOARD FE 1
290 45-660011-4 . PLATE-UPPER FE 1
295 45-660011-6 . PLATE-LOWER FE 1
-300 MS21047L08 . NUTPLATE FE 6
305 45-610005-104 . CHANNEL-UPPER LH FE 1
-310 45-610005-105 . CHANNEL-UPPER RH FE 1
315 45-610005-106 . CHANNEL-LOWER LH FE 1
-320 45-610005-107 . CHANNEL-LOWER RH FE 1
-325 95-610006-37 . CLIP FE 1
330 95-610006-29 . ANGLE-UPPER LH AND LOWER FE 1
RH
-335 95-610006-30 . ANGLE-LOWER LH AND UPPER FE 1
RH
340 45-610005-6 . BRACKET FE 1
345 96-610005-45 . SKIN-NOSE LH FE 1
FOR SPARES ORDER:
96-610006-129
345 96-610006-129 . SKIN FE 1
SPARES REPLACEMENT FOR:
96-610005-45
-350 96-610005-46 . SKIN-NOSE RH FE 1
FOR SPARES ORDER:
96-610006-129

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-20-00-01
PAGE 3
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-350 96-610006-129 . SKIN FE 1
SPARES REPLACEMENT FOR:
96-610005-46
355 45-610005-100 . FAIRING FE 1
360 45-610005-102 . FAIRING FE 1
365 45-610005-92 . RIB-NOSE FE 1
370 96-610006-41 . DOUBLER E 2
370 95-610006-33 . DOUBLER D 2
380 45-610005-94 . RIB-NOSE FE 1
-385 45-610005-30 . DOUBLER FE 1
390 45-610005-96 . RIB-NOSE FE 1
-395 45-610005-10 . DOUBLER FE 1
-400 45-610005-8 . GUSSET FE 2
405 96-610005-5 . SKIN ASSY-LH UPPER FE 1
FOR SPARES ORDER:
96-610006-131
405 96-610006-131 . SKIN ASSY-LH UPPER FE 1
SPARES REPLACEMENT FOR:
96-610005-5
-410 96-610005-6 . SKIN ASSY-RH UPPER FE 1
FOR SPARES ORDER:
96-610006-132
-410 96-610006-132 . SKIN ASSY-RH UPPER FE 1
SPARES REPLACEMENT FOR:
96-610005-6
415 96-610005-17 . SKIN ASSY-LH LOWER FE 1
FOR SPARES ORDER:
96-610006-133
415 96-610006-133 . SKIN ASSY-LH LOWER FE 1
SPARES REPLACEMENT FOR:
96-610005-17
-420 96-610005-18 . SKIN ASSY-RH LOWER FE 1
FOR SPARES ORDER:
96-610006-134
-420 96-610006-134 . SKIN ASSY-RH LOWER FE 1
SPARES REPLACEMENT FOR:
96-610005-18
425 96-610005-13 . SKIN-UPPER, FWD TIP FE 1
-430 96-610005-14 . SKIN-LOWER, FWD TIP FE 1
435 45-610005-114 . CHANNEL-SPAR FE 2
440 96-610005-31 . SPACER FE 1
FOR SPARES ORDER:
96-610006-135
440 96-610006-135 . SPACER FE 1
SPARES REPLACEMENT FOR:
96-610005-131
-445 96-610006-137 . SPACER FE 1

C1608-C2204 B
C2205-C2406 C
C1608-C2181 D
C2182-C2406 E
C1608-C2406 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-20-00-01
PAGE 4
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

55-20-00-02

ELEVATOR ASSEMBLY

55-20-00-02
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

ELEVATOR ASSEMBLY
SHEET 1 OF 2

55-20-00-02
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

ELEVATOR ASSEMBLY
SHEET 2 OF 2

55-20-00-02
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

02 ELEVATOR ASSEMBLY
-5 96-610007-601 ELEVATOR ASSY-LH FE 1
FOR SPARES ORDER:
96-610006-623
FOR NHA SEE:
55-00-00-01
-5 96-610006-623 ELEVATOR ASSY-LH FE 1
SPARES REPLACEMENT FOR:
96-610007-601
FOR NHA SEE:
55-00-00-01
-5 96-610007-651 ELEVATOR ASSY-LH, LESS TAB FE 1
AND HINGE PIN
-10 96-610007-602 ELEVATOR ASSY-RH FE 1
FOR SPARES ORDER:
96-610006-624
FOR NHA SEE:
55-00-00-01
-10 96-610006-624 ELEVATOR ASSY-RH FE 1
SPARES REPLACEMENT FOR:
96-610007-602
FOR NHA SEE:
55-00-00-01
-10 96-610007-652 ELEVATOR ASSY-RH, LESS TAB FE 1
AND HINGE PIN
25 95-610006-11 . SHIM FE 1
30 95-610005-603 . FITTING-ELEVATOR LH FE 1
-35 95-610005-604 . FITTING-ELEVATOR RH FE 1
ATTACHING PARTS
40 MS27039-1-12 . SCREW FE 4
-45 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
-45 NAS1149F0332P . WASHER FE 4
ALTERNATE SPARE:
AN960-10L
-50 AN960-10 . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0363P
-50 NAS1149F0363P . WASHER FE 8
ALTERNATE SPARE:
AN960-10
-55 130909N29 . NUT FE 4
-------*-------
60 45-660012-1 . SKIN-ELEVATOR HORN FE 1
ATTACHING PARTS
65 MS24693S49 . SCREW FE 16
70 AN507-832-R10 . SCREW FE 2
-75 112105 . WASHER FE 4
-80 AN960D8 . WASHER FE 6
FOR SPARES ORDER:
NAS1149DN832H
-80 NAS1149DN832H . WASHER FE 6
SPARES REPLACEMENT FOR:
AN960D8
-85 22A3-82 . NUT FE 4
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-20-00-02
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

02
-90 MS21047L08 . NUTPLATE FE 12
-95 130909N28 . NUT FE 2
-------*-------
100 96-610025-5 . WEIGHT ASSY-ELEVATOR FE 1
BALANCE
FOR SPARES ORDER:
96-610022-11
100 96-610022-11 . WEIGHT ASSY-ELEVATOR FE 1
BALANCE
SPARES REPLACEMENT FOR:
96-610025-5
103 STHB-832-16 . . INSERT FE 2
104 STHB-832-24 . . INSERT FE 1
105 45-610005-54 . HINGE-LH FE 1
-110 45-610005-55 . HINGE-RH FE 1
ATTACHING PARTS
115 MS35206-232 . SCREW FE 3
-120 AN960D6 . WASHER FE 3
FOR SPARES ORDER:
NAS1149DN632H
-120 NAS1149DN632H . WASHER FE 3
SPARES REPLACEMENT FOR:
AN960D6
-125 NAS43DD1-25 . SPACER FE 3
-130 MS21042L06 . NUT FE 3
-------*-------
-135 96-610021-41 . TAB ASSY-LH ELEVATOR TRIM FE 1
-140 96-610021-42 . TAB ASSY-RH ELEVATOR TRIM FE 1
145 95-610006-27 . PIN-HINGE FE 1
ATTACHING PARTS
150 NAS602-8 . SCREW FE 1
-155 AN960-8 . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
-155 NAS1149FN832P . WASHER FE 1
SPARES REPLACEMENT FOR:
AN960-8
-------*-------
160 96-610021-43 . . HORN ASSY-ELEVATOR TAB FE 1
-165 96-610021-45 . . . HORN-ELEVATOR TAB FE 1
-170 96-610021-47 . . . BUSHING FE 1
175 96-610021-29 . . HINGE-LH FE 1
-180 96-610021-30 . . HINGE-RH FE 1
185 96-610021-3 . . SKIN-LH TAB FE 1
-190 96-610021-4 . . SKIN-RH TAB FE 1
195 96-610021-13 . . RIB-INBOARD FE 1
200 96-610021-17 . . RIB-OUTBOARD FE 1
205 96-610021-27 . . RIB-INBOARD FE 1
210 96-610021-28 . . RIB-OUTBOARD FE 1
215 96-610021-35 . . BRACKET FE 1
220 35-650122-8 . BRACKET-CENTER ELEVATOR FE 1
HINGE
225 35-650121-8 . BRACKET-OUTBOARD ELEVATOR FE 1
HINGE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-20-00-02
PAGE 2
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

02
ATTACHING PARTS
230 130909S3 . SCREW FE 4
-235 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
-235 NAS1149F0332P . WASHER FE 4
ALTERNATE SPARE:
AN960-10L
-------*-------
240 103637 . PLACARD-IDENTIFICATION FE 1
ATTACHING PARTS
-245 49384 . FASTENER FE 2
FOR SPARES ORDER:
CCR274SS-4-01
-245 CCR274SS-4-01 . FASTENER FE 2
SPARES REPLACEMENT FOR:
49384
-------*-------
250 95-610006-39 . SPAR-FWD FE 1
255 95-610006-21 . RIB FE 1
-260 96-610007-33 . SPACER FE 1
FOR SPARES ORDER:
96-610007-139
-260 96-610007-139 . SPACER FE 1
SPARES REPLACEMENT FOR:
96-610007-33
265 96-610005-41 . RIB ASSY FE 1
-270 MS25083-2AA2 . JUMPER-BONDING FE 1
275 45-610005-16 . RIB FE 1
280 45-610005-28 . RIB FE 1
285 96-610007-29 . RIB-OUTBOARD FE 1
290 45-660011-4 . PLATE-UPPER FE 1
295 45-660011-6 . PLATE-LOWER FE 1
-300 MS21047L08 . NUTPLATE FE 6
305 45-610005-104 . CHANNEL-UPPER LH FE 1
-310 45-610005-105 . CHANNEL-UPPER RH FE 1
315 45-610005-106 . CHANNEL-LOWER LH FE 1
-320 45-610005-107 . CHANNEL-LOWER RH FE 1
-325 95-610006-37 . CLIP FE 1
330 95-610006-29 . ANGLE-UPPER LH AND LOWER FE 1
RH
-335 95-610006-30 . ANGLE-LOWER LH AND UPPER FE 1
RH
340 45-610005-6 . BRACKET FE 1
345 96-610007-15 . SKIN-NOSE LH AND RH FE 1
FOR SPARES ORDER:
96-610006-129
345 96-610006-129 . SKIN FE 1
SPARES REPLACEMENT FOR:
96-610007-15
-350 96-610005-46 . SKIN-NOSE RH FE 1
FOR SPARES ORDER:
96-610006-129

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-20-00-02
PAGE 3
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

02
-350 96-610006-129 . SKIN FE 1
SPARES REPLACEMENT FOR:
96-610005-46
355 45-610005-100 . FAIRING FE 1
360 45-610005-102 . FAIRING FE 1
365 45-610005-92 . RIB-NOSE FE 1
370 96-610006-41 . DOUBLER FE 2
375 45-610005-94 . RIB-NOSE FE 1
-380 45-610005-30 . DOUBLER FE 1
385 45-610005-96 . RIB-NOSE FE 1
-390 45-610005-10 . DOUBLER FE 1
-395 45-610005-8 . GUSSET FE 2
400 96-610007-5 . SKIN ASSY-LH UPPER FE 1
FOR SPARES ORDER:
96-610006-131
400 96-610006-131 . SKIN ASSY-LH UPPER FE 1
SPARES REPLACEMENT FOR:
96-610007-5
-405 96-610007-6 . SKIN ASSY-RH UPPER FE 1
FOR SPARES ORDER:
96-610006-132
-405 96-610006-132 . SKIN ASSY-RH UPPER FE 1
SPARES REPLACEMENT FOR:
96-610007-6
410 96-610007-17 . SKIN ASSY-LH LOWER FE 1
FOR SPARES ORDER:
96-610006-133
410 96-610006-133 . SKIN ASSY-LH LOWER FE 1
SPARES REPLACEMENT FOR:
96-610007-17
-415 96-610007-18 . SKIN ASSY-RH LOWER FE 1
FOR SPARES ORDER:
96-610006-134
-415 96-610006-134 . SKIN ASSY-RH LOWER FE 1
SPARES REPLACEMENT FOR:
96-610007-18
420 96-610007-13 . SKIN-UPPER, FWD TIP FE 1
-425 96-610007-14 . SKIN-LOWER, FWD TIP FE 1
430 45-610005-114 . CHANNEL-SPAR FE 2
435 96-610007-31 . SPACER FE 1
FOR SPARES ORDER:
96-610006-135
435 96-610006-135 . SPACER FE 1
SPARES REPLACEMENT FOR:
96-610007-131
-440 96-610006-137 . SPACER FE 1

C2407-C9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-20-00-02
PAGE 4
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

55-21-00-01

ELEVATOR ASSEMBLY

55-21-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

ELEVATOR ASSEMBLY
SHEET 1 OF 2

55-21-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

ELEVATOR ASSEMBLY
SHEET 2 OF 2

55-21-00-01
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 ELEVATOR ASSEMBLY
-5 96-610006-613 ELEVATOR ASSY-LH B 1
FOR SPARES ORDER:
96-610006-623
FOR NHA SEE:
55-00-00-01
-5 96-610006-615 ELEVATOR ASSY-LH C 1
FOR SPARES ORDER:
96-610006-623
FOR NHA SEE:
55-00-00-01
-5 96-610006-617 ELEVATOR ASSY-LH D 1
FOR SPARES ORDER:
96-610006-623
FOR NHA SEE:
55-00-00-01
-5 96-610006-623 ELEVATOR ASSY-LH FE 1
SPARES REPLACEMENT FOR:
96-610005-613
96-610005-615
96-610006-617
FOR NHA SEE:
55-00-00-01
-10 96-610006-614 ELEVATOR ASSY-RH B 1
FOR SPARES ORDER:
96-610006-624
FOR NHA SEE:
55-00-00-01
-10 96-610006-616 ELEVATOR ASSY-RH C 1
FOR SPARES ORDER:
96-610006-624
FOR NHA SEE:
55-00-00-01
-10 96-610006-618 ELEVATOR ASSY-RH D 1
FOR SPARES ORDER:
96-610006-624
FOR NHA SEE:
55-00-00-01
-10 96-610006-624 ELEVATOR ASSY-RH FE 1
SPARES REPLACEMENT FOR:
96-610005-614
96-610006-616
96-610006-018
FOR NHA SEE:
55-00-00-01
35 95-610006-11 . SHIM FE 1
40 95-610005-603 . FITTING-ELEVATOR LH FE 1
-45 95-610005-604 . FITTING-ELEVATOR RH FE 1
ATTACHING PARTS
50 MS27039-1-12 . SCREW FE 4
-55 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
-55 NAS1149F0332P . WASHER FE 4
ALTERNATE SPARE:
AN960-10L
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-21-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-60 AN960-10 . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0363P
-60 NAS1149F0363P . WASHER FE 8
ALTERNATE SPARE:
AN960-10
-65 130909N29 . NUT FE 4
-------*-------
70 96-610006-47 . SKIN-TIP FE 1
ATTACHING PARTS
75 AN509-8R7 . SCREW FE 22
ALTERNATE SPARE:
MS24694S4
75 MS24694S4 . SCREW FE 22
ALTERNATE SPARE:
AN509-8R7
-80 AN936D8 . WASHER FE 6
FOR SPARES ORDER:
MS35790-9
-80 MS35790-9 . WASHER FE 6
SPARES REPLACEMENT FOR:
AN936D8
-85 AN960-8 . WASHER FE 4
FOR SPARES ORDER:
NAS1149FN832P
-85 NAS1149FN832P . WASHER FE 4
SPARES REPLACEMENT FOR:
AN960-8
-90 130909N28 . NUT FE 2
-------*-------
95 96-610022-5 . WEIGHT ASSY-ELEVATOR E 1
BALANCE
ALTERNATE SPARE:
96-610022-7
FOR SPARES ORDER:
96-610022-11
95 96-610022-7 . WEIGHT ASSY-ELEVATOR E 1
BALANCE
ALTERNATE SPARE:
96-610022-7
FOR SPARES ORDER:
96-610022-11
95 96-610022-11 . WEIGHT ASSY-ELEVATOR FE 1
BALANCE
SPARES REPLACEMENT FOR:
96-610022-5
96-610022-7
100 SP832H8B . . INSERT FE 5
FOR SPARES ORDER:
STHB832-16
100 STHB-832-16 . . INSERT FE 5
SPARES REPLACEMENT FOR:
SP832H8B
105 45-610005-54 . HINGE-LH TRIM TAB FE 1
-110 45-610005-55 . HINGE-RH TRIM TAB FE 1
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-21-00-01
PAGE 2
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
ATTACHING PARTS
115 MS35206-232 . SCREW FE 3
-120 AN960D6 . WASHER FE 3
FOR SPARES ORDER:
NAS1149DN632H
-120 NAS1149DN632H . WASHER FE 3
SPARES REPLACEMENT FOR:
AN960D6
-125 NAS43DD1-25 . SPACER FE 3
-130 MS21042L06 . NUT FE 3
-------*-------
-135 96-610006-67 . TAB ASSY-LH ELEVATOR TRIM FE 1
-140 96-610006-68 . TAB ASSY-RH ELEVATOR TRIM FE 1
145 95-610006-27 . PIN-HINGE FE 1
ATTACHING PARTS
150 NAS602-8 . SCREW FE 1
-155 AN960-8 . WASHER FE 1
FOR SPARES ORDER:
NAS1149FN832P
-155 NAS1149FN832P . WASHER FE 1
SPARES REPLACEMENT FOR:
AN960-8
-------*-------
160 96-610021-41 . . TAB ASSY-LH ELEVATOR TRIM FE 1
-165 96-610021-42 . . TAB ASSY-RH ELEVATOR TRIM FE 1
SEE MAINTENANCE MANUAL
FOR BUSHING REPLACEMENT
ON HORN.
170 96-610021-29 . . . HINGE-LH FE 1
-175 96-610021-30 . . . HINGE-RH FE 1
180 96-610021-3 . . . SKIN-LH TAB FE 1
-185 96-610021-4 . . . SKIN-RH TAB FE 1
190 96-610021-13 . . . RIB-INBOARD FE 1
195 96-610021-17 . . . RIB-OUTBOARD FE 1
200 96-610021-27 . . . RIB-INBOARD FE 1
205 96-610021-28 . . . RIB-OUTBOARD FE 1
210 96-610021-35 . . . BRACKET FE 1
215 35-650122-8 . BRACKET-CENTER ELEVATOR FE 1
HINGE
220 35-650121-8 . BRACKET-OUTBOARD ELEVATOR FE 1
HINGE
225 130909S3 . SCREW FE 4
-230 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
-230 NAS1149F0332P . WASHER FE 4
ALTERNATE SPARE:
AN960-10L
235 103637 . PLACARD-IDENTIFICATION FE 1
240 96-610006-13 . SPAR-FWD FE 1
245 95-610006-21 . RIB FE 1
-247 96-610007-33 . SPACER E 1
FOR SPARES ORDER:
96-610007-139

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-21-00-01
PAGE 3
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-247 96-610007-139 . SPACER FE 1
SPARES REPLACEMENT FOR:
96-610007-33
250 96-610005-27 . RIB G 1
FOR SPARES ORDER:
96-610005-41
250 96-610005-41 . RIB ASSY H 1
SPARES REPLACEMENT FOR:
96-610005-27
-260 MS25083-2AA2 . JUMPER-BONDING H 1
265 96-610006-37 . RIB FE 1
270 96-610005-51 . RIB FE 1
275 45-610005-104 . CHANNEL-UPPER LH FE 1
-280 45-610005-105 . CHANNEL-UPPER RH FE 1
285 45-610005-106 . CHANNEL-LOWER LH FE 1
-290 45-610005-107 . CHANNEL-LOWER RH FE 1
-295 95-610006-37 . CLIP FE 1
300 95-610006-29 . ANGLE-UPPER LH AND LOWER FE 1
RH
-305 95-610006-30 . ANGLE-LOWER LH AND UPPER FE 1
RH
310 45-610005-6 . BRACKET FE 1
315 96-610006-71 . SKIN-FWD E 1
FOR SPARES ORDER:
96-610006-129
315 96-610006-129 . SKIN-FWD FE 1
SPARES REPLACEMENT FOR:
96-610006-71
320 45-610005-100 . FAIRING FE 1
325 45-610005-102 . FAIRING FE 1
330 45-610005-92 . RIB-NOSE FE 1
335 95-610006-33 . DOUBLER FE 2
340 45-610005-94 . RIB-NOSE FE 1
-345 45-610005-30 . DOUBLER FE 1
350 96-610006-33 . RIB-NOSE FE 1
-355 96-610006-29 . DOUBLER FE 1
-360 96-610006-49 . GUSSET FE 2
365 96-610006-9 . SKIN ASSY-LH UPPER E 1
FOR SPARES ORDER:
96-610006-131
365 96-610006-131 . SKIN ASSY-LH UPPER FE 1
SPARES REPLACEMENT FOR:
96-610006-9
-370 96-610006-10 . SKIN ASSY-RH UPPER E 1
FOR SPARES ORDER:
96-610006-132
-370 96-610006-132 . SKIN ASSY-RH UPPER FE 1
SPARES REPLACEMENT FOR:
96-610006-10
375 96-610006-11 . SKIN ASSY-LH LOWER E 1
FOR SPARES ORDER:
96-610006-133
375 96-610006-133 . SKIN ASSY-LH LOWER FE 1
SPARES REPLACEMENT FOR:
96-610006-11
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-21-00-01
PAGE 4
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-380 96-610006-12 . SKIN ASSY-RH LOWER E 1
FOR SPARES ORDER:
96-610006-134
-380 96-610006-134 . SKIN ASSY-RH LOWER FE 1
SPARES REPLACEMENT FOR:
96-610006-112
385 96-610006-17 . SKIN-UPPER FWD TIP FE 1
-390 96-610006-18 . SKIN-LOWER FWD TIP FE 1
395 96-610006-15 . SPACER E 1
FOR SPARES ORDER:
96-610006-135
395 96-610006-135 . SPACER FE 1
SPARES REPLACEMENT FOR:
96-610006-15
400 96-610006-35 . SPACER E 1
FOR SPARES ORDER:
96-610006-137
400 96-610006-137 . SPACER FE 1
SPARES REPLACEMENT FOR:
96-610006-35
-405 96-610006-41 . DOUBLER FE 2
410 96-610006-39 . TAB-FIXED FE 1
415 45-610005-114 . CHANNEL-SPAR FE 2
420 96-610006-61 . WEIGHT B 1
425 MS27039-1-24 . SCREW FE 4
-430 AN960-10 . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0363P
-430 NAS1149F0363P . WASHER FE 8
ALTERNATE SPARE:
AN960-10
-435 130909N29 . NUT FE 4
440 96-610006-45 . RIB-CLOSURE FE 1

H0001-H0120 B
E0938-E0938,E0943-E9999,H0121-H0177 C
H0178-H2412 D
E0938-E0938,E0943-E9999,H0001-H2412 E
E0938-E0938,E0943-E1152,H0001-H0998 G
E1153-E9999,H0999-H9999 H
E0938-E0938,E0943-E9999,H0001-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-21-00-01
PAGE 5
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

55-30-00-01

VERTICAL STABILIZER

55-30-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

VERTICAL STABILIZER
SHEET 1 OF 2

55-30-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

VERTICAL STABILIZER
SHEET 2 OF 2

55-30-00-01
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 VERTICAL STABILIZER
-5 96-640000-197 STABILIZER ASSY-VERTICAL D RF
FOR SPARES ORDER:
96-640000-243
FOR NHA SEE:
55-00-00-01
-5 96-640000-243 STABILIZER ASSY-VERTICAL J RF
SPARES REPLACEMENT FOR:
96-640000-197
FOR NHA SEE:
55-00-00-01
-10 96-640000-607 STABILIZER ASSY-VERTICAL C 1
FOR NHA SEE:
55-00-00-01
-15 96-640000-608 STABILIZER ASSY-VERTICAL A 1
FOR NHA SEE:
55-00-00-01
20 96-640010-3 . FITTING-FWD SPAR EXTENSION FE 1
25 96-640011-1 . FITTING-AFT SPAR EXTENSION FE 1
30 96-640000-43 . RIB-LOWER FWD H 1
30 96-640000-245 . RIB-LOWER FWD G 1
35 96-640000-193 . RIB-LOWER AFT H 1
35 96-640000-239 . RIB-LOWER AFT G 1
-40 96-640000-231 . SHIM-BETWEEN SKIN AND SPAR E AR
-45 96-640000-233 . STIFFENER-LH F AR
-50 96-640000-234 . STIFFENER-RH F AR
-55 96-640000-235 . STIFFENER-LH F AR
-60 96-640000-236 . STIFFENER-RH F AR
65 96-640000-39 . GUSSET-LOWER LH FE 1
-70 96-640000-40 . GUSSET-LOWER RH FE 1
75 96-640000-3 . RIB-FWD FE 1
80 96-640000-17 . RIB-AFT FE 1
85 96-640000-5 . RIB-FWD FE 1
90 96-640000-201 . RIB ASSY-AFT FE 1
-95 MS21059L06 . . NUTPLATE FE 2
100 96-640000-7 . RIB-FWD FE 1
105 96-640000-13 . RIB-AFT FE 1
110 58-340080-13 . ANGLE-LH B 1
-115 58-340080-14 . ANGLE-RH B 1
-120 58-340080-11 . DOUBLER ASSY-LH B 1
-125 58-340080-12 . DOUBLER ASSY-RH B 1
130 58-340080-9 . . DOUBLER-LH B 1
-135 58-340080-10 . . DOUBLER-RH B 1
140 95-110014-383 . DOUBLER-ACCESS DOOR B 1
145 95-110014-253 . DOOR-ACCESS B 1
ATTACHING PARTS
-150 MS24694-S3 . SCREW B 6
-------*-------
155 96-640000-9 . RIB-FWD FE 1
160 96-640000-19 . SPAR-FRONT H 1
160 96-640000-241 . SPAR-FRONT G 1
165 96-640000-11 . RIB-UPPER FE 1
170 96-640000-45 . SPAR-REAR FE 1
175 96-640000-37 . DOUBLER-REAR SPAR FE 1
180 96-640000-195 . ANGLE-REAR SPAR FE 1

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-30-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-185 96-640000-99 . BRACKET ASSY-LOWER RUDDER FE 1
HINGE
-190 96-640000-95 . BRACKET ASSY-UPPER RUDDER FE 1
HINGE
-195 96-640000-633 . . BRACKET ASSY-UPPER RUDDER FE 1
HINGE
-200 96-640000-631 . . BRACKET ASSY-LOWER RUDDER FE 1
HINGE
205 96-640000-93 . . . PLATE-UPPER HINGE FE 1
210 96-640000-97 . . . PLATE-LOWER HINGE FE 1
215 NAS505-4J . . . BEARING FE 1
ALTERNATE SPARE:
4NBC612YJ
FOR SPARES ORDER:
YAG-04-E
215 4NBC612YJ . . . BEARING FE 1
ALTERNATE SPARE:
NAS505-4J
FOR SPARES ORDER:
YAG-04-E
215 YAG-04-E . . . BEARING FE 1
SPARES REPLACEMENT FOR:
NAS505-4J
4NBC612YJ
220 96-640000-49 . . BRACKET-UPPER HINGE FE 2
225 96-640000-23 . . BRACKET-LOWER HINGE FE 2
230 96-640000-199 . SKIN-LH B 1
-235 96-640000-55 . SKIN-LH A 1
-240 96-640000-200 . SKIN-RH B 1
-245 96-640000-56 . SKIN-RH A 1
250 96-640000-57 . SKIN-LEADING EDGE FE 1
-255 96-640000-31 . TIP ASSY-WITHOUT ROTATING B 1
BEACON PROVISIONS
ATTACHING PARTS
260 MS27039-0808 . SCREW B 6
-265 MK1000-832 . NUTPLATE B 6
-------*-------
270 96-640000-29 . . TIP-WITHOUT ROTATING BEACON B 1
PROVISIONS
275 96-640000-27 . . BULKHEAD-WITH OR WITHOUT B 1
ROTATING BEACON
-280 96-364036-602 . WIRE ASSY-ROTATING BEACON A 1

E0938-E0938,H0001-H0384 A
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H9999 B
C1608-C9999 C
E0943-E9999,H0385-H2347 D
H1691-H9999 E
H1703-H9999 F
E0943-E9999,H2348-H9999 G
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H2347 H
E0943-E9999,H0385-H9999 J
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-30-00-01
PAGE 2
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

55-31-00-01

DORSAL FIN AND FAIRING

55-31-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

DORSAL FIN AND FAIRING

SHEET 1 OF 2

55-31-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

DORSAL FIN AND FAIRING

SHEET 2 OF 2

55-31-00-01
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

PAGE INTENTIONALLY LEFT BLANK

 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 DORSAL FIN AND FAIRING

-5 96-440015-43 FAIRING INSTL-DORSAL FIN A RF
-5 96-440015-65 FAIRING INSTL-DORSAL FIN B RF
-15 96-440015-63 . SADDLE ASSY FE 1
20 96-440010-11 . . SKIN-FAIRING LH FE 1
-25 96-440010-12 . . SKIN-FAIRING RH FE 1
30 96-440010-17 . . ANGLE-SADDLE LH FE 1
-35 96-440010-18 . . ANGLE-SADDLE RH FE 1
40 96-440015-39 . . SADDLE-DORSAL E 1
FOR SPARES ORDER:
96-440015-85
40 96-440015-73 . . SADDLE-DORSAL F 1
FOR SPARES ORDER:
96-440015-85
40 96-440015-85 . . SADDLE-DORSAL FE 1
SPARES REPLACEMENT FOR:
96-440015-39
96-440015-73
ATTACHING PARTS
-55 AN525-10R8 . . SCREW FE AR
-------*-------
-60 96-440015-59 . DORSAL FIN ASSY A 1
-60 96-440015-71 . DORSAL FIN ASSY B 1
-70 96-440015-41 . . BULKHEAD ASSY H 1
-70 96-440026-1 . . RIB ASSY J 1
75 96-440010-7 . . . BULKHEAD H 1
FOR SPARES ORDER:
96-440026-3
75 96-440026-3 . . . RIB FE 1
SPARES REPLACEMENT FOR:
96-440010-7
ATTACHING PARTS
-79 SL211-3-1 . . . NUT-CLIP J 8
-------*-------
-80 96-440015-51 . . BULKHEAD ASSY FE 1
85 96-440015-45 . . . BULKHEAD FE 1
-90 96-440015-57 . . SKIN ASSY-DORSAL FE 1
95 96-440015-7 . . . SKIN-DORSAL FE 1
100 96-440015-9 . . . PAN-AIR INLET DORSAL FE 1
-105 50-554242-3 . . . DUCT-DORSAL PAN B 1
-110 96-555013-41 . . DUCT INSTL-DORSAL FIN FE RF
-115 96-555013-31 . . . SCREEN-DUCT FE 1
-120 96-555013-3 . . . DOOR ASSY G 1
FOR SPARES ORDER:
96-555013-0061
-120 96-555013-0061 . . . DOOR ASSY FE 1
SPARES REPLACEMENT FOR:
96-555013-3
-125 96-555013-9 . . . . PAD-DOOR G 1
FOR SPARES ORDER:
96-555013-0063
-125 96-555013-0063 . . . . PAD-DOOR FE 1
SPARES REPLACEMENT FOR:
96-555013-9
130 96-555013-23 . . . . DOOR FE 1
135 96-555013-25 . . . . ARM-DOOR FE 1
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-31-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
140 96-555013-19 . . . . HINGE-HALF FE 1
145 96-555013-17 . . . HINGE-HALF C 1
145 96-555013-53 . . . HINGE-HALF D 1
-155 96-555013-21 . . . PIN-HINGE FE 1
160 96-555013-35 . . . BRACKET-CONTROL CABLE FE 1
-165 96-555013-29 . . . SPACER-CONTROL BRACKET C 1
-165 96-555013-55 . . . SPACER-CONTROL BRACKET D 1
175 MS21919WDG3 . . . CLAMP-CONTROL CABLE FE 1
ATTACHING PARTS
-180 130909B14 . . . BOLT FE 1
-185 NAS1149F0332P . . . WASHER-INSTALL ON EACH FE 3
END OF SPACER
-190 100696DZC003 . . . SPACER FE 1
-------*-------
195 96-555013-37 . . . LINK-CONTROL CABLE FE 1
-200 MS35650-305 . . . NUT-CABLE LINK FE 1
205 MS20392-1C13 . . . PIN-CABLE LINK FE 1
-210 MS24665-132 . . . PIN-COTTER FE 1
215 MS21919WDG5 . . . CLAMP-CONTROL CABLE FE 2
ATTACHING PARTS
-220 MS35206-262 . . . SCREW FE 2
-225 NAS1149F0363P . . . WASHER FE 2
-230 130909N29 . . . NUT FE 2
-------*-------
235 130-032-330 . . . CONTROL A 1
235 130-032-331 . . . CONTROL B 1

C1608-C1699,E0938-E0938,E0943-E0981,H0001-H0472 A
C1700-C9999,E0982-E9999,H0473-H9999 B
C1608-C9999,E0938-E0938,E0943-E1201,H0001-H1454 C
E1202-E9999,H1455-H9999 D
C1608-C1925,E0938-E0938,E0943-E1075,H0001-H0712 E
C1926-C2358,E1076-E1183,H0713-H1197 F
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H2106 G
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1940 H
H1941-H9999 J
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-31-00-01
PAGE 2
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

55-40-00-01

RUDDER ASSEMBLY

55-40-00-01
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

RUDDER ASSEMBLY
SHEET 1 OF 3

55-40-00-01
PAGE 0
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

RUDDER ASSEMBLY
SHEET 2 OF 3

55-40-00-01
PAGE 0A
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

RUDDER ASSEMBLY
SHEET 3 OF 3

55-40-00-01
PAGE 0B
MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01 RUDDER ASSEMBLY
-5 96-630000-607 RUDDER ASSY A 1
-5 96-630000-639 RUDDER ASSY T 1
-5 96-630000-441 RUDDER ASSY S 1
-5 96-630000-465 RUDDER ASSY U 1
-5 96-630000-517 RUDDER ASSY V 1
15 96-630000-333 . WELD ASSY FE 1
20 96-630000-101 . GUARD-CABLE FE 1
25 MS24566-1B . PULLEY FE 2
ATTACHING PARTS
-30 130909B209 . BOLT Q 1
-30 130909B21 . BOLT R 1
-40 AN960-10L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-40 NAS1149F0332P . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-45 130909N29 . NUT FE 1
-------*-------
50 96-630000-19 . SPAR-FRONT FE 1
55 96-630000-91 . STIFFENER FE 1
60 96-630000-27 . RIB-LOWER RUDDER FE 1
65 58-360000-603 . HARNESS ASSY-ROTATING B 1
BEACON
70 115005-5 . . GROMMET B 1
75 MS21059L06 . . NUTPLATE FE 1
80 96-630000-119 . ANGLE-RIB ATTACHING FE 1
85 96-630000-109 . RIB J 1
85 96-630000-501 . RIB K 1
95 96-630000-313 . RIB J 1
95 96-630000-503 . RIB K 1
105 96-630000-307 . DOUBLER FE 1
110 96-630000-63 . BULKHEAD FE 1
115 96-630000-61 . BULKHEAD FE 1
120 96-630000-195 . BRACKET-LOWER HINGE FE 1
ATTACHING PARTS
-125 130909S3 . SCREW FE 2
-130 130909N33 . NUTPLATE L 2
-130 MS21047L3K . NUTPLATE M 2
-------*-------
140 96-630000-311 . CLIP-ANGLE FE 1
145 96-630000-17 . RIB FE 1
150 96-630000-15 . RIB FE 1
155 96-630000-81 . RIB FE 1
160 96-630000-303 . DOUBLER-UPPER HINGE FE 1
165 96-630000-11 . RIB FE 1
170 96-630000-193 . BRACKET-UPPER HINGE FE 1
ATTACHING PARTS
-175 130909S3 . SCREW FE 2
-180 130909N33 . NUTPLATE L 2
-180 MS21047L3K . NUTPLATE M 2
-------*-------
190 96-630000-133 . ANGLE-RIB ATTACHING FE 1
195 96-630000-13 . RIB-TOP FE 1
200 96-630000-111 . ANGLE-LH FE 1
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-40-00-01
PAGE 1
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-205 96-630000-112 . ANGLE-RH FE 1
210 96-630000-9 . CAP A 1
210 96-630000-275 . CAP ASSY B 1
220 96-630000-279 . BULKHEAD-RUDDER CAP B 1
225 96-630000-141 . BULKHEAD-RUDDER CAP A 1
225 96-630000-277 . BULKHEAD-RUDDER CAP B 1
ATTACHING PARTS
-235 AN507-832 . SCREW FE 8
-240 NAS681A08K . NUTPLATE FE 8
ALTERNATE SPARE:
MS21049L08K
-240 MS21049L08K . NUTPLATE FE 8
ALTERNATE SPARE:
NAS681A08K
-------*-------
245 96-630000-59 . WEIGHT ASSY A 1
245 96-630000-455 . WEIGHT ASSY C 1
245 96-630000-487 . WEIGHT ASSY D 1
SPARES REPLACEMENT FOR:
96-630000-473
245 96-630000-519 . WEIGHT ASSY W 1
FOR SPARES ORDER:
96-630000-523
245 96-630000-523 . WEIGHT ASSY V 1
SPARES REPLACEMENT FOR:
96-630000-519
ATTACHING PARTS
-260 MS27039-1-13 . SCREW FE 4
-265 NAS1189-08P8L . SCREW FE 6
-270 NAS623-4-16 . SCREW FE 2
-275 NAS623-4-31 . SCREW FE 2
-280 AN960-10 . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0363P
-280 NAS1149F0363P . WASHER FE 4
ALTERNATE SPARE:
AN960-10
-285 NAS680A3 . NUTPLATE FE 4
-------*-------
290 40-0127-1 . LIGHT ASSY B 1
FOR DETAILS SEE:
33-44-00-01
-295 96-630000-459 . COVER ASSY-RUDDER CAP USE B 1
WITHOUT BEACON
ATTACHING PARTS
-300 AN525-10R8 . SCREW B 5
-------*-------
305 96-630000-443 . . COVER-RUDDER CAP B 1
310 96-630000-457 . . WEIGHT-BALANCE B 1
ATTACHING PARTS
-315 AN524-10R24 . . SCREW B 2
-320 AN960-10 . . WASHER B 2
ALTERNATE SPARE:
NAS1149F0363P

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-40-00-01
PAGE 2
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-320 NAS1149F0363P . . WASHER B 2
ALTERNATE SPARE:
AN960-10
-325 100951X050ZM . . WASHER B 2
-330 AN365-1032 . . NUT B 2
ALTERNATE SPARE:
MS21044N3
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-330 MS21044N3 . . NUT B 2
ALTERNATE SPARE:
AN365-1032
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-330 MS21042-3 . . NUT B 2
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS20365-1032
FOR SPARES ORDER:
130909N29
-330 MS20365-1032 . . NUT B 2
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-330 130909N29 . . NUT B 2
SPARES REPLACEMENT FOR:
AN365-1032
MS21044N3
MS21042-3
MS20365-1032
-------*-------
-335 96-630000-71 . TAB ASSY-RUDDER FE 1
340 96-630000-89 . PIN-HINGE FE 1
345 96-630000-39 . . RIB-TAB ASSY FE 6
-350 96-630000-43 . . HORN ASSY FE 1
-355 96-630000-41 . . . HORN FE 1
-360 105740X-ZH0115 . . . BUSHING FE 1
365 96-630000-31 . . SKIN-LH FE 1
-370 96-630000-32 . . SKIN-RH FE 1
375 96-630000-87 . . HINGE-TABLE SIDE FE 1
380 96-630000-117 . CHANNEL-LH FE 1
-385 96-630000-118 . CHANNEL-RH FE 1
390 96-630000-29 . HINGE-RUDDER SIDE FE 1
-395 96-630000-129 . DOOR ASSY H 1
-395 96-630000-667 . DOOR ASSY F 1
ATTACHING PARTS
-405 AN525-10 . SCREW FE 10
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-40-00-01
PAGE 3
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
-410 MS21051L3 . NUTPLATE- FE 4
-415 NAS680A3 . NUTPLATE FE 6
ALTERNATE SPARE:
MS21047L3
-415 MS21047L3 . NUTPLATE FE 6
ALTERNATE SPARE:
NAS680A3
-------*-------
420 96-630000-127 . . COVER FE 1
425 96-630000-131 . . DOOR J 1
425 96-630000-505 . . DOOR K 1
-435 AN960-3 . . WASHER FE 9
ALTERNATE SPARE:
NAS1149FN332P
-435 NAS1149FN332P . . WASHER FE 9
ALTERNATE SPARE:
AN960-3
-440 96-526000-601 . ACTUATOR ASSY-RUDDER TRIM A 1
TAB
FOR DETAILS SEE:
27-20-00-03
-440 96-526000-613 . ACTUATOR ASSY-RUDDER TRIM T 1
TAB
FOR DETAILS SEE:
27-20-00-03
-440 96-526000BSC . ACTUATOR ASSY-RUDDER TRIM X 1
TAB
FOR SPARES ORDER:
96-526000-33
FOR DETAILS SEE:
27-20-00-03
-440 96-526000-33 . ACTUATOR ASSY-RUDDER TRIM Y 1
TAB
SPARES REPLACEMENT FOR:
96-526000BSC
FOR DETAILS SEE:
27-20-00-03
ATTACHING PARTS
-450 AN173-13M . BOLT FE 1
-------*-------
-455 96-526000-25 . BUSHING FE 1
ATTACHING PARTS
-460 AN173-5M . BOLT N 1
-460 130909B171 . BOLT P 1
-470 AN960-10L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
-470 NAS1149F0332P . WASHER FE 1
ALTERNATE SPARE:
AN960-10L
-475 130909N15 . NUT FE 2
-480 MS24665-151 . PIN-COTTER FE 2
-------*-------
-485 96-526000-19 . BRACKET-RUDDER TAB FE 2
ACTUATOR
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-40-00-01
PAGE 4
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
ATTACHING PARTS
-490 AN525-10R . SCREW FE 2
-495 130909B13 . BOLT FE 2
-500 130909N29 . NUT FE 2
-505 130909N33 . NUTPLATE L 2
-505 MS21047L3K . NUTPLATE M 2
-------*-------
515 96-630000-469 . SKIN-NOSE FE 1
520 96-630000-461 . SKIN-LH FE 1
525 96-630000-463 . SKIN-RH FE 1
530 96-630000-68 . SKIN-RH FE 1
535 96-630000-143 . TAB-TRIM FE 1
-540 MS25083-2AA3 . JUMPER-BONDING, TAB E 1
-545 MS25083-2AA4 . JUMPER-BONDING RUDDER TO FE 1
STABILIZER
ATTACHING PARTS
-550 MS35206-230 . SCREW FE 2
-555 105090-032ID . WASHER FE 2
-560 MS35338-41 . WASHER FE 2
-565 MS21042L06 . NUT FE 2
-------*-------
-570 103637 . PLACARD-IDENTIFICATION FE 1

C1608-C9999 A
E0938-E0938,E0943-E9999,H0001-H9999 B
E0938-E0938,E0943-E1036,E1117-E9999,H0001-H0600, C
H0880-H1894
E1037-E1116,H0601-H0879 D
C2201-C9999,E1151-E9999,H0998-H9999 E
H1389-H1389,H1396-H9999 F
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1388, H
H1390-H1395
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1388, J
H1390-H1596
H1389-H1389,H1597-H9999 K
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1388, L
H1390-H1618
H1389-H1389,H1619-H9999 M
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1388, N
H1390-H1420
H1389-H1389,H1421-H9999 P
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1388, Q
H1390-H1551
H1389-H1389,H1552-H9999 R
H0001-H0383,H0388-H0388,H0390-H0390,H0393-H0396, S
H0398-H0398,H0407-H0408,H0410-H0410,H0412-H0413,
H0417-H0417,H0425-H0425
E0938-E0938,E0943-E9999 T
H0384-H0387,H0389-H0389,H0391-H0392,H0397-H0397, U
H0399-H0406,H0409-H0409,H0411-H0411,H0414-H0416,
H0418-H0424,H0426-H1894
H1895-H9999 V
H1895-H1917 W
H0001-H1889 X
(CONTINUED NEXT PAGE)
MISSING ITEM NO. NOT APPLICABLE
- ITEM NOT ILLUSTRATED

55-40-00-01
PAGE 5
BARON MAY 01/19
 Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY

01
(CONTINUED)
H0001-H9999 Y
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED

55-40-00-01
PAGE 6
BARON MAY 01/19
