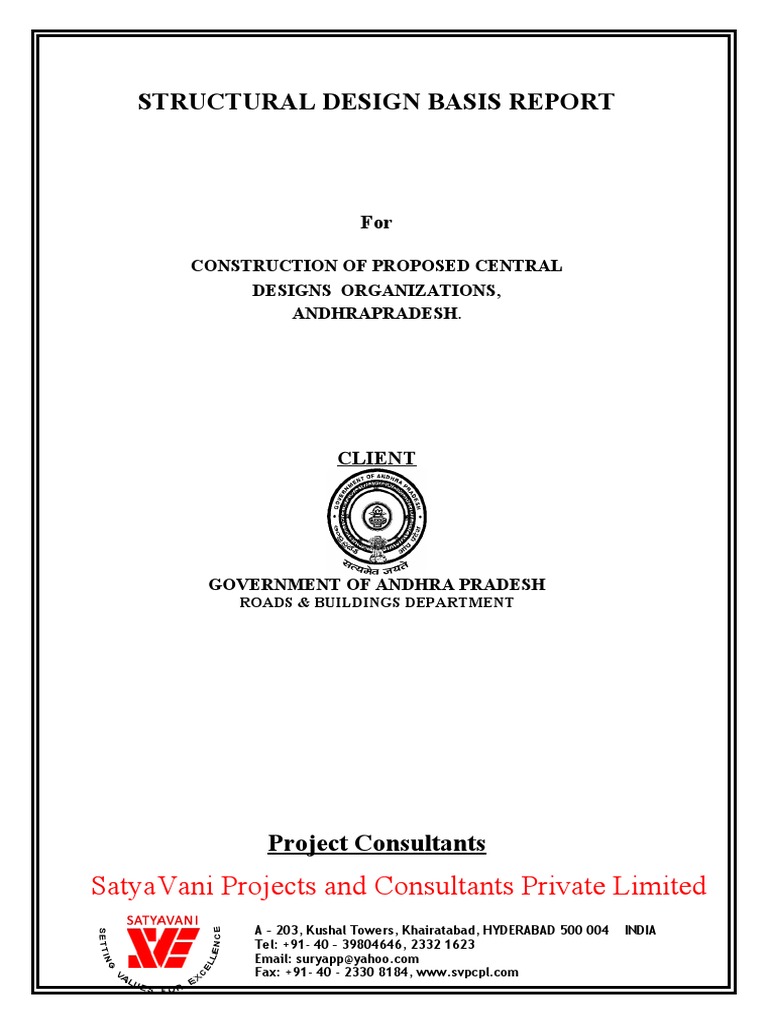

STRUCTURAL DESIGN BASIS REPORT

For

CONSTRUCTION OF PROPOSED CENTRAL

DESIGNS ORGANIZATIONS,
ANDHRAPRADESH.

CLIENT

GOVERNMENT OF ANDHRA PRADESH

ROADS & BUILDINGS DEPARTMENT

Project Consultants
SatyaVani Projects and Consultants Private Limited
A – 203, Kushal Towers, Khairatabad, HYDERABAD 500 004 INDIA
Tel: +91- 40 – 39804646, 2332 1623
Email: suryapp@yahoo.com
Fax: +91- 40 - 2330 8184, www.svpcpl.com
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

Index
CONTENTS:
1.0 General Information
1.1 Introduction

2.0 Structural Engineering Information

2.1 Structural system and concepts
2.2 Serviceability criteria
2.3 Design philoshopy

3.0 Loads
3.1 Dead Load
3.2 Live Load
3.3 Wind Load
3.4 Earthquake Load
3.5 Load Combinations

4.0 Materials Used

4.1 Concrete
4.2 Reinforcement
4.3 Structural steel
5.0 Exposure Condition
6.0 Fire Resistance
7.0 Concrete Covers
8.0 Temperature and Shrinkage Effects
9.0 Waterproofing
10.0 Codes & Standards
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

1. Introduction:
Department Of Roads & Buildings , Government of Andhra Pradesh, proposed the
Construction Of Proposed Central Designs organizations at Vishakapatinam,
Andhrapradesh As a part of its scope of services, SVPCPL is to provide structural designs
of the all proposed infrastructure development buildings at the site.

1.1 Geometric Details:

The Structural Design Basis Report is prepared in reference with the relevant IS Codes and
Architectural drawings. The Building is designed of Stilt +Ground + 5 Upper floors.
1.2 Geotechnical Data:
Foundation system of Raft foundation shall be selected based on the recommendations (SBC
of 130 KN/m2) given in Geotechnical report.

2.STRUCTURAL ENGINEERING INFORMATION

2.1 Structural System and Concepts..

 For RCC buildings:The structural system supports the vertical loads consisting of
dead and Super-Imposed loads, Dynamic loads due to lateral forces of Earthquake
and Wind.
 The Structural System comprises of RCC slabs & beams and is supported by RC
structural columns and shear walls.
 Floor slabs and beams are considered to act as a rigid diaphragm to transfer the
lateral forces to the columns and walls are vertical elements.
 Staircases are provided with mid-landing between the floors as per architectural
layout.
 All R.C.C elements shall be designed according to the Limit State Method as
specified in IS: 456 – 2000.
 The structure is idealized as 3D space frame and analyzed using STAAD
PRO/ETABS software package for both vertical and lateral loads.

2.2 Serviceability Criteria

2.2.1 Deflection Limits:
 Limiting values of deflection (Short and Long term) as per clause 35.3 of IS: 456-
2000 is followed in the design. Limiting value for short term deflection is
considered as span/250 and for the long term deflection is considered as span/350
or 20mm whichever less as per IS 456 – 2000 ( For Reinforced concrete works).
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

 As per IS1893 (Part1) :2016, Story drift in any storey due to minimum specified
design seismic lateral force shall not exceed 0.004 times the storey height design.
 Lateral sway due to wind load should not exceed H/500 (H is the total height of
structure).

2.2.2 Cracking Limits:

 Limiting values of crack width as per clause 35.3 of IS: 456-2000 is followed in the
design.
 In general for slabs and beams, the crack width is limited to 0.3mm.
 For basement retaining wall and water retaining structures, crack width is limited to
0.2mm.

2.3 Design philosophy:

2.3.1 Design Life

The design life of the building is assumed as 50 years. This requirement is
applicable only for concrete works and not applicable to replaceable finishing materials,
water proofing membrane and thermal insulations (if any). Hence periodic maintenance /
refurbishment is required for all replaceable material for longer life.

2.3.2 Design Interface:

This structure has physical interface with almost all the disciplines like
Geotechnical, MEP Services and Landscape etc. The Structure proposed is of cast in-situ
concrete construction with columns suitably placed. The core walls around lifts, stairs are
of cast in-situ concrete to resist lateral forces. The Structural design of the proposed project
is based on Indian Standard Codes and is analyzed for Dead, Live, Wind and Seismic Load
conditions taking into relevant load combinations recommended by the codes. The Vertical
Loads including the dead and super imposed loads are transferred to the soil through
columns, core walls and footings. Footings are sized with consideration to the safe bearing
capacity of soil at the level of transfer of load recommended by specialist soil investigation
consultants. The Lateral loads due to wind and seismic forces are dissipated to soil through
the proposed Reinforced Concrete Core Walls/columns/Steel .

3.Loads:
3.1 Dead Load:
Dead load shall include weight of all structural and Architectural components. Self-
weight of the materials shall be calculated based on unit weights given in IS: 875 (Part-I)-
1987. All internal and External walls of AAC block walls are considered in analysis of
structures.
 Floor finish of 75mm thick including screed in floors : 150 kg/sqm
 False ceiling + ducting + Sprinklers : 50 kg/sqm
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

 Partition walls : 200 kg/sqm

 Self-weight of Plain concrete : 2400 kg/cum
 Self-weight of RCC : 2500 kg/cum
 Aerated block masonry : 865 kg/cum
 Soil : 1800 kg/cum
 Water : 1000 kg/cum
 Glass : 2800 kg/cum
 Stainless steel : 7850 kg/cum
 Masonry with plastering : 2200 kg/cum
 Filling for sunken portion (Wherever filling is required) :2000 kg/cum
 Waterproofing : 300 kg/sqm including 150 thick screed on top
 External finishes : As per actuals
 Gardening/Landscape loads : As per actuals
 Equipment loads : As Furnished by Client/ services team.

3.2 Live Loads:

Imposed loads in different areas include live loads which will not be less than those
specified in IS: 875 (Part-II). The loads listed here under are the minimum loads for the
areas involved.
 Office/ working areas : 4.00 kN/m2
 Staircase/Balconies : 4.00 kN/m2
 Roof - accessible : 1.50 kN/m2
 Roof - Non accessible : 0.75 kN/m2
 Stairs / Corridors/ Balcony : 400 kg/sqm
 Toilets : 200 kg/sqm.
 UPS rooms : 1000 kg/sqm or as per actuals

3.3 Wind Loads:

Wind load on structure shall be calculated as per provisions of IS: 875 (Part-III). Wind
shall be assumed to blow in any direction and the most unfavorable condition will be
considered for design.
The computation of wind loads is based on IS: 875 (Part-III)-2015.
Vb (Basic wind speed of Vishakapatnam = 50 m/sec (From Fig 1.)
k1 (Risk Coefficient factor) = 1.0 (Table 1)
k2 (Terrain, Height factor) = 1.2 (Table 2)
k3 (Topography factor) = 1.0 (as per Clause 5.3.3.)
k4(Cyclonic factor) = 1.0
Vz (Design Wind speed) = Vb x k1 x k2 x k3 x k4
= 50 x 1.0 x 1.2 x 1.0 x1.0
= 60 m/s
Pz (Wind pressure) = 0.6 x Vz2 N/m2
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

= 0.6 x (60)2 /1000

=2.16 kN/m2
Pd (Design Wind Pressure) = Pz x kd x ka x kc
= 2.16 x 0.9 x 1 x 0.9
= 1.75 kN/m2
Where
Kd (Wind Directionality factor) = 0.9 (Cl. 7.2.1 of IS:875)
Ka (Area Averaging Factor) = 1.0 (Table 4)
Kc (Combination factor) = 0.9 (Cl. 7.3.3.13)
Pd’ = 1.75 kN/m2

3.4 Earthquake Forces:

 The loading due to earthquake is assessed based on the provisions of IS: 1893(Part-
1):2016
 Seismic Zone (Vishakapatnam) = II
 Zone factor (Z) = 0.1
 Importance Factor (I) = 1.2
 Response Reduction Factor (R) = 3
 R as per Table 9 of IS: 1893-2016.
 Sa/g – Average response acceleration coefficient for soil sites as per Fig.2 of IS:
1893-2016 and it is arrived based on appropriate natural periods as per clause 7.6.1
of IS: 1893-2002.
 Design horizontal seismic coefficient, Ah : (Z/2)*(Sa/g)*(I/R)
 Design seismic base shear, Vb : Ah * w where, w - seismic weight of building
 Detailing as per IS-13920-2016 : Special moment resistant frame with ductile
detailing(for RCC structures).

3.5 Load Combinations:

The structures shall be analyzed by carrying out Finite Element Software using ETABS for
all loadings in IS code.
Following Loading Combinations will be considered which are adopted from IS 456-2000
(Table 18) & IS 1893-2016 to arrive at the Governing Load case for the structural design of
a structure / member.

S. NO DL LL+ SL WL + -X WL + -Z EQL + -X EQL + -Z

1 1.5 1.5
2 1.5 + 1.5
3 1.5 - 1.5
4 1.5 + 1.5
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

5 1.5 - 1.5
6 1.5 +1.5
7 1.5 -1.5
8 1.5 +1.5
9 1.5 -1.5
10 1.2 1.2 +1.2
11 1.2 1.2 - 1.2
12 1.2 1.2 + 1.2
13 1.2 1.2 - 1.2
14 1.2 1.2 +1.2
15 1.2 1.2 -1.2
16 1.2 1.2 +1.2
17 1.2 1.2 -1.2
18 0.9 +1.5
19 0.9 -1.5
20 0.9 + 1.5
21 0.9 - 1.5
22 0.9 + 1.5
23 0.9 - 1.5
24 0.9 + 1.5
25 0.9 + 1.5
26 1.0 1.0
27 1.0 + 1.0
28 1.0 - 1.0
29 1.0 + 1.0
30 1.0 - 1.0
31 1.0 +1.0
32 1.0 -1.0
33 1.0 +1.0
34 1.0 -1.0
35 1.0 0.8 0.8
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

36 1.0 0.8 - 0.8

37 1.0 0.8 + 0.8
38 1.0 0.8 - 0.8
39 1.0 0.8 +0.8
40 1.0 0.8 -0.8
41 1.0 0.8 +0.8
42 1.0 0.8 -0.8

4 Material Properties:
4.1 Concrete
 Grade of concrete
Columns = M30 (Concrete design Mix as per IS: 456-2000)
Foundations = M30 (Concrete design Mix as per IS: 456-2000)
Beams = M30 (Concrete design Mix as per IS: 456-2000)
Miscellaneous = M30 (Concrete design Mix as per IS: 456-2000)
Characteristic compressive strength (fck) = 30 N/mm2
Minimum cement content = 320 kg/m3
Maximum water cement ratio (w/c) = 0.45
 Poisson’s ratio (µ) = 0.15
 Young’s Modulus (E) = 5000 √30
 = 27387 N/mm2

4.2 Steel Reinforcement

 Grade of steel
Main reinforcement = Fe 500
Secondary reinforcement = Fe 500
 Yield strength (fy) = 500 N/mm2
 Poisson’s ratio (µ) = 0.2
 Young’s Modulus (E) = 200000 N/mm2

4.3 Structural steel for Steeel building

All Structural steel members dimensions are to be confirmed with the code of IS 808:
1989
5 Exposure Condition
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

Structural elements below Plinth level are to be designed for severe exposure
conditions and super-structure is designed for mild exposure conditions as per Table 16 of
IS 456-2000 .

6. Fire Resistance
Structural Elements are designed for two hours of fire resistance.

7. Concrete Covers.
Considering severe exposure condition and 2 hours fire resistence (as per Table 16 &
16A of IS:456-2000).
Minimum clear cover to main reinforcement shall be as follows.
Top Bottom Side
Footings = 25mm 50mm 50mm
Grade Beam = 30mm 45mm 45mm
Grade Slab = 25mm 25mm 25mm
Columns = 45 mm - 45mm
Floor Beams = 30 mm 45mm 30mm
Lintel Beams = 25 mm 25mm 25mm
Slabs & Staircases = 25 mm 25mm 25mm

8. Temperature And Shrinkage Effects:

 Horizontal floor displacement due to differential temperatures and shrinkage is of

importance in long concrete buildings. It can be taken care of by either providing
expansion joints at an appropriate spacing or designing structural members for the
additional moments caused by the temperature and shrinkage effects. Pour strips at
suitable locations shall also be considered where required.
 The effect of temperature will be considered wherever applicable in accordance
with relevant Indian Codes. The coefficient for thermal expansion and contraction
will be in accordance with IS: 456 and IS: 800 for concrete and steel respectively.

9 Water Proofing

Water proofing, where applicable shall be as per approved specification and methodology,
as furnished in technical specification and as approved by client.

10 Codes & Standards

In general, the “Latest Edition” of the following codes shall be used in this project.
Loads:
IS:875 Code of Practice for design loads (other than earthquake) for Buildings and
structure ( All parts )
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

IS:1911 Schedule of unit weights of building materials

IS:1893 Criteria for earthquake resistant design of structure Foundations:
IS:1080 Code of Practice for design and construction of shallow foundations on soils
( other than raft, ring and shell )
IS:1904 Code of Practice for design and construction of foundations in soils general
requirement
IS:2950 Code of Practice for design and construction of raft foundations
IS:2974 Code of Practice for design and construction of machine foundations ( All
parts )
IS:8009 Code of Practice for calculation of settlement of foundations ( All parts )

RCC:
IS:456 Code of Practice for plain and reinforced concrete
IS:458 Specification for precast concrete pipes
IS:3370 Code of Practice for concrete structures for the storage of liquids: ( All parts
)
IS:4326 Code of Practice for earthquake resistant design and construction of
buildings
IS:5525 Recommendation for detailing of reinforced concrete works
IS:1786 Specification for high strength deformed steel bars and wires for concrete
reinforcement
IS:10262 Recommended guidelines for concrete mix design
IS: 1893 (Part-1) Criteria for earthquake resistant design of structures (General
provisions and building).

Structural steel:
IS:800 Code of Practice for general construction in steel
IS:802 Code of Practice for use of structural steel in overhead transmission line
towers: (All parts)
IS:806 Code of Practice for use of steel tubes in general building construction
IS:808 Dimensions for hot rolled steel beam, column channel and angle section
IS:816 Code of Practice for use of metal arc welding for general construction in
mild steel
IS:1024 Code of Practice for use of welding in bridges and structures subjected to
dynamic loading
IS:1161 Steel tubes for structural purposes
IS:4000 High Strength bolts in steel structures – Code of Practice
IS:7215 Tolerances for fabrication of steel structures

Miscellaneous:
IS: 432(part 2) Specification for mild steel and medium tensile steel bars and hard-drawn
steel wire for concrete reinforcement
IS: 6313(part II) Standards for anti-termite treatment
 Construction of Proposed Central Designs
PROJECT NAME:
Organizations, AP.

Roads & Buildings Department
CLIENT:
A – 203, Kushal Towers, Khairatabad,
HYDERABAD 500 004 INDIA (Govt. of A.P.)
Tel: +91- 40 - 39804646, 2332 1623
Email: suryapp@yahoo.com, www.svpcpl.com
CONSULTANTS: SVPCPL, Hyderabad

IS: 2751 Code of practice for welding of mild steel bars used for reinforced concrete
construction
IS:1905 Code of Practice for structural use of unreinforced masonry
IS:3067 Code of Practice for general design details and preparatory works for damp
proofing and water proofing of buildings
SP:6 Handbook for structural engineers ( all parts )
SP:7 National Building Code of India
SP:16 Design Aids for reinforced concrete to IS:456-1978
SP:22 Explanatory handbook on codes for earthquake engineering (IS:1982-1975
and IS:4326-1976 )
SP:24 Explanatory handbook on Indian Standard code of Practice for plain and
reinforced concrete
SP:34 Handbook of concrete reinforcement and detailing (SCIP) Wherever
appropriate Indian Regulation does not exist for any particular item, appropriate British
standards will be used.

Material :
IS: 269 Specification for Ordinary, rapid hardening and low heat Portland cement.
IS: 455 Specification for Portland blast furnace slag cement.
IS: 1489 Specification for Portland pozzolana cement
IS: 4031 Method of physical tests for Portland cement.
IS: 383 Specification for coarse and fine aggregates from natural sources for
concrete.
IS: 516 Method of test for strength of concrete.
IS: 1199 Method of sampling and analysis of concrete.
IS: 1139 Specification for hot rolled mild steel and Medium tensile steel deformed
bars for concrete reinforcement.
IS: 1566 Specification for plain hard drawn steel wire fabric for concrete
reinforcement.
IS: 4990 Specification for plywood for concrete shuttering works.
IS: 2645 Specification for integral cement water proofing compounds.
