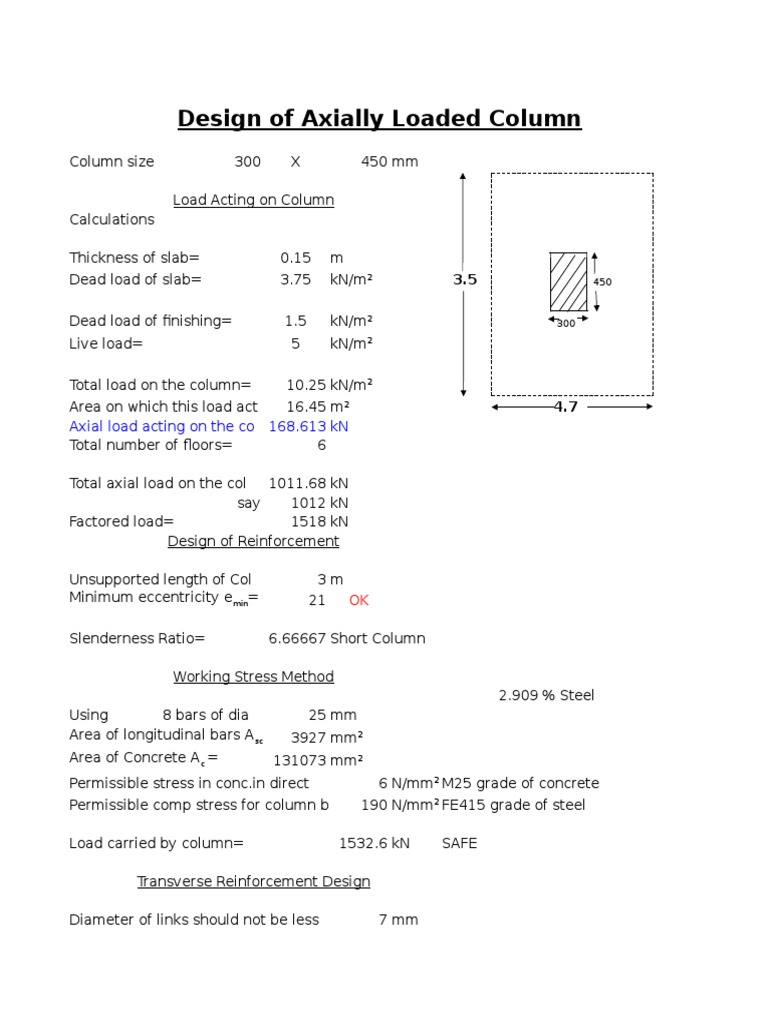

The document summarizes the design of an axially loaded column that is 300mm by 450mm. It calculates the total load on the column as 1012kN from loads such as a slab, finishing, and live loads across 16.45 square meters. It then determines the column has a short slenderness ratio of 6.66667 and designs the longitudinal reinforcement with 8 bars of 25mm diameter steel for a total area of 3927mm^2. The design also specifies 10mm diameter transverse links spaced at 400mm.
The document summarizes the design of an axially loaded column that is 300mm by 450mm. It calculates the total load on the column as 1012kN from loads such as a slab, finishing, and live loads across 16.45 square meters. It then determines the column has a short slenderness ratio of 6.66667 and designs the longitudinal reinforcement with 8 bars of 25mm diameter steel for a total area of 3927mm^2. The design also specifies 10mm diameter transverse links spaced at 400mm.
The document summarizes the design of an axially loaded column that is 300mm by 450mm. It calculates the total load on the column as 1012kN from loads such as a slab, finishing, and live loads across 16.45 square meters. It then determines the column has a short slenderness ratio of 6.66667 and designs the longitudinal reinforcement with 8 bars of 25mm diameter steel for a total area of 3927mm^2. The design also specifies 10mm diameter transverse links spaced at 400mm.
Area on which this load act 16.45 m2 4.7 Axial load acting on the co 168.613 kN Total number of floors= 6
Total axial load on the col 1011.68 kN
say 1012 kN Factored load= 1518 kN Design of Reinforcement
Unsupported length of Col 3m
Minimum eccentricity emin= 21 OK
Slenderness Ratio= 6.66667 Short Column
Working Stress Method
2.909 % Steel Using 8 bars of dia 25 mm Area of longitudinal bars Asc= 3927 mm2 Area of Concrete Ac = 131073 mm2 Permissible stress in conc.in direct 6 N/mm2 M25 grade of concrete Permissible comp stress for column b 190 N/mm2 FE415 grade of steel
