Microwave Design Pack Report
Link Id : JBA_M_01275#Infill_Jabo018
Near End Site ID JBA_M_01275
Site name Cibogo Margamulya
Site type Greenfield
Tower type SST 3 Legged
Far End Site ID Infill_Jabo018
Site name Margamulya
Site type Rooftop
Tower type SST 4 Legged

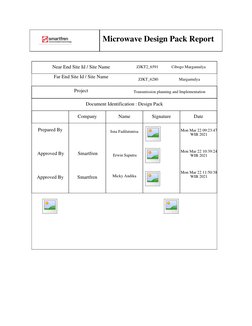

Near End Site Id / Site Name ZJKT2_6591 Cibogo Margamulya
Far End Site Id / Site Name ZJKT_6280 Margamulya
Project Transmission planning and Implementation
Document Identification : Design Pack
Company Name Signature Date
Prepared By Isna Fadilatunisa Mon Mar 22 09:23:47

WIB 2021
Mon Mar 22 10:39:24

Approved By Smartfren Erwin Saputra WIB 2021
Mon Mar 22 11:50:38

Approved By Smartfren Micky Andika WIB 2021

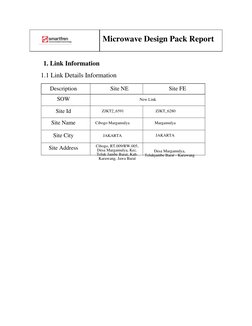

1. Link Information
1.1 Link Details Information
Description Site NE Site FE
SOW New Link
Site Id ZJKT2_6591 ZJKT_6280
Site Name Cibogo Margamulya Margamulya
Site City JAKARTA JAKARTA
Cibogo, RT.009/RW.005,
Site Address Desa Margamulya, Kec. Desa Margamulya,
Teluk Jambe Barat, Kab. Telukjambe Barat - Karawang
Karawang, Jawa Barat

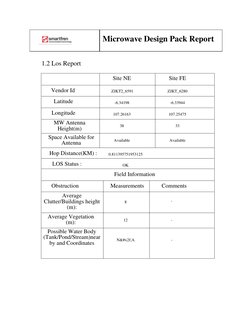

1.2 Los Report
Site NE Site FE
Vendor Id ZJKT2_6591 ZJKT_6280
Latitude -6.34198 -6.33944
Longitude 107.26163 107.25475
MW Antenna 38 33
Height(m)
Space Available for Available Available
Antenna
Hop Distance(KM) : 0.811395751953125
LOS Status : OK
Field Information
Obstruction Measurements Comments

Average
Clutter/Buildings height 8 -
(m):
Average Vegetation
12 -
(m):
Possible Water Body
(Tank/Pond/Stream)near N/A -
by and Coordinates

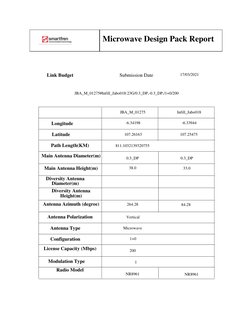

Link Budget Submission Date 17/03/2021
JBA_M_01275#Infill_Jabo018:23G/0.3_DP,-0.3_DP,/1+0/200
JBA_M_01275 Infill_Jabo018
Longitude -6.34198 -6.33944
Latitude 107.26163 107.25475
Path Length(KM) 811.1032139320755
Main Antenna Diameter(m) 0.3_DP 0.3_DP
Main Antenna Height(m) 38.0 33.0
Diversity Antenna
Diameter(m)
Diversity Antenna
Height(m)
Antenna Azimuth (degree) 264.28 84.28
Antenna Polarization Vertical
Antenna Type Microwave
Configuration 1+0
License Capacity (Mbps) 200
Modulation Type 1
Radio Model
NR8961 NR8961
Freq Band (Ghz) 23G
Band Width (Mhz) 28M
TX Power (tpm) 16
RX Signal Level (RSL) -33.06

(dBm)
Fade Margin (FM) (dB) 33.44
Availability (%) 99.99953
23G NR-8961 200Mbps

Remark : 0.3-0.3
Path Profile
Link Topology
Bill of Material (L3 BOM)

NE Site BOM
L2 NAME BOM MATER MATERIA MATERIA MATERI ASSO
Type IAL L NAME L L1 AL UoM CIAT
CODE CATEGOR TYPE ED
Y QUAN
TITY
FE Site BOM
ASSO
MATERIA CIAT
MATERI
BOM MATERI MATERIA L ED
L2 NAME L1 AL UoM QUAN
Type AL CODE L NAME CATEGOR TYPE TITY
Y
Collocation Application (Near End)
TP SITE ID IN20_JB_1400
Island -
Province JAWA BARAT
City TELUKJAMBE BARAT_KARAWANG
Latitude -6.34198
longitude 107.26163
Site Type Greenfield
Tower Type THREE_Legged
Kecamatan TELUKJAMBE BARAT_KARAWANG
Kabupaten
Cibogo, RT.009/RW.005, Desa

Site Address Margamulya, Kec. Teluk Jambe Barat,
Kab. Karawang, Jawa Barat
Tower Provider Owner PT Inti Bangun Sejahtera Tbk
Tower Provider Group
Building Height 0
Tower Height 42.6
Total Height 42.6
Land Status Rental
Rental Lease Period

Client Site ID ZJKT2_6591
Client Site Name Cibogo Margamulya
Service Type
Site Access Availability na
Client Name 0888
Client Contact 0888
Vertical Space On Tower -
Tower Extension Required No
Acc Plan MW
Tx Class End_Site
Equipment Type
Electricity Capacity (VA) 5500/6600
GenSet Capacity (VA) 1
ANTENNAS DETAILS
Status Height Qty Manufacture Model Dimension Azim
41 Rosenberger BA-4Q7X90V-00 1600x295x145 0
41 Commscope LDXX-6515DS-VTM 2070x549x165 0
41 ZTE 8978 430 x 400 x 125 0

41 Commscope E15V86P18 336x216x6 0
41 ZTE 8978 430 x 400 x 125 80
41 Commscope E15V86P18 336x216x6 80
41 ZTE 8978 430 x 400 x 125 270
41 Commscope E15V86P18 336x216x6 270
39 ZTE WTC03-212S-QO 0.3 264
41 ZTE 8862A 422X218X133 0
41 ZTE 8862A 422X218X133 80
41 ZTE 8862A 422X218X133 270

ANTENNAS REMARKS
BTS Remark
MW Remark
RRU Remark
GROUND SPACE DETAILS
Status New
Length 3
Width 1.5
ADDITIONAL LEASED AREA No

REQUIRED
Area Length
Area Width
Remark
SHELTER/POWER REQUIREMENTS
TYPE OF EQUIPMENT REQUIRED
ELECTRICITY REQUIREMENTS
(kVA)
ELECTRICITY REQUIREMENTS n x A
(phases)
PERMANENT GENSET REQUIRED No

Length
Width
Remark
Collocation Application (Far End)
TP SITE ID JB-0810-T-B
Island -
Province JAWA BARAT
City TELUKJAMBE BARAT_KARAWANG
Latitude -6.33944
longitude 107.25475
Site Type Rooftop
Tower Type Others_With_Height
Kecamatan TELUKJAMBE BARAT_KARAWANG
Kabupaten
Desa Margamulya, Telukjambe Barat -

Site Address Karawang
Tower Provider Owner PT Inti Bangun Sejahtera Tbk
Tower Provider Group
Building Height -
Tower Height 42
Total Height
Land Status Rental
Rental Lease Period

Client Site ID ZJKT_6280
Client Site Name Ciptasari Pamulihan
Service Type FULL_SERVICE
Site Access Availability Yes
Client Name Smartfren Planning
Client Contact Smartfren Planning
Vertical Space On Tower -
Tower Extension Required -
Acc Plan MW
Tx Class End_Site
Equipment Type
Electricity Capacity (VA) 5500
GenSet Capacity (VA) 1.3

38 ZTE 8978 430 x 400 x 125 0
38 ZTE 8862A 422X218X133 0
38 Rosenberger DFT-08-65-DF-01 263x139x152 0

ANTENNAS REMARKS
BTS Remark
MW Remark
RRU Remark
GROUND SPACE DETAILS
Status Exist
Length 2
Width 1.3
ADDITIONAL LEASED AREA No

REQUIRED
Area Length
Area Width
Remark
SHELTER/POWER REQUIREMENTS
TYPE OF EQUIPMENT REQUIRED
ELECTRICITY REQUIREMENTS
(kVA)
ELECTRICITY REQUIREMENTS n x A
(phases)
PERMANENT GENSET REQUIRED No

Length
Width
Remark
Layout base on plan
Layout base on plan

Layout base on plan
RESI for ISR

Site Map(NE)
Site Layout(NE)
View Top(NE)
Tower Information(NE)
Rack Layout(NE)
Site Map(FE)
Site Layout(FE)
