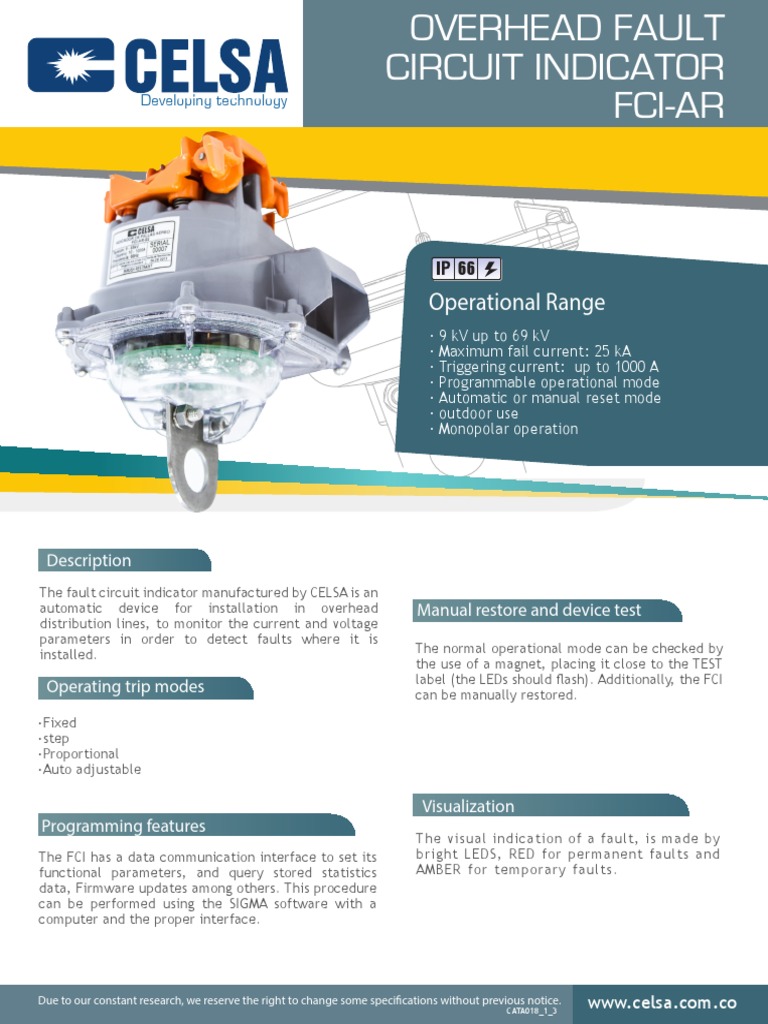

OVERHEAD FAULT
CIRCUIT INDICATOR
Developing technology
FCI-AR
66
Operational Range IP 66
· 9 kV up to 69 kV
· Maximum fail current: 25 kA
· Triggering current: up to 1000 A
· Programmable operational mode
(9kvmode
· Automatic or manual reset hasta 69 Kv)
· outdoor use
· Monopolar operation
Control por radiofrecuencia
Description
The fault circuit indicator manufactured by CELSA is an
automatic device for installation in overhead Manual restore and device test
distribution lines, to monitor the current and voltage
parameters in order to detect faults where it is
installed. The normal operational mode can be checked by
the use of a magnet, placing it close to the TEST
label (the LEDs should flash). Additionally, the FCI
Operating trip modes can be manually restored.
·Fixed
·step
·Proportional
·Auto adjustable
Visualization
Programming features
The visual indication of a fault, is made by
The FCI has a data communication interface to set its bright LEDS, RED for permanent faults and
functional parameters, and query stored statistics AMBER for temporary faults.
data, Firmware updates among others. This procedure
can be performed using the SIGMA software with a
computer and the proper interface.
Due to our constant research, we reserve the right to change some specifications without previous notice.
CATA018_1_3
www.celsa.com.co
OVERHEAD FAULT
CIRCUIT INDICATOR
FCI-AR
Technical features
+ compliant ANSI/IEEE 495
Power supply
+ Line voltage: 9 to 69 kV L-L The FCI uses long life lithium batteries (more than 10 years, storage
conditions). They can be easily replace by the user.
+ Auto adjustable reset voltage
+ Configurable trip current: from 10A up to 1000A Memory
+ Configurable trip current The FCI’s has a circular memory to store date and time for each fault, the
total amount of temporary and permanent faults, and other events like
+ Operating temperature range:-40°C to 85°C line’s circulating current.
+ Frequency: 50 Hz / 60Hz
+ Line diameter: 6mm to 31mm, optional up to 42 mm
+ Detects both permanent and temporary faults
Dimensions
+ Reset mode:
.Automatic: time voltaje return
.Manual: magnet
+ Configurable functional parameters
+ Statistics data storing
+ Battery standard: Lithium 3.6 V, several options according
to required autonomy time
+ Inrush restraint current
170,9
+ Short - time current: 25KA, 0.17 secs
+Optional: RF module for wireless communication with a FWT
200 hub.
+ No galvanic contact
Installation 157,4 145,8
Auto lock system for easy installation using a standard tool Unit: mm
for overhead lines.
