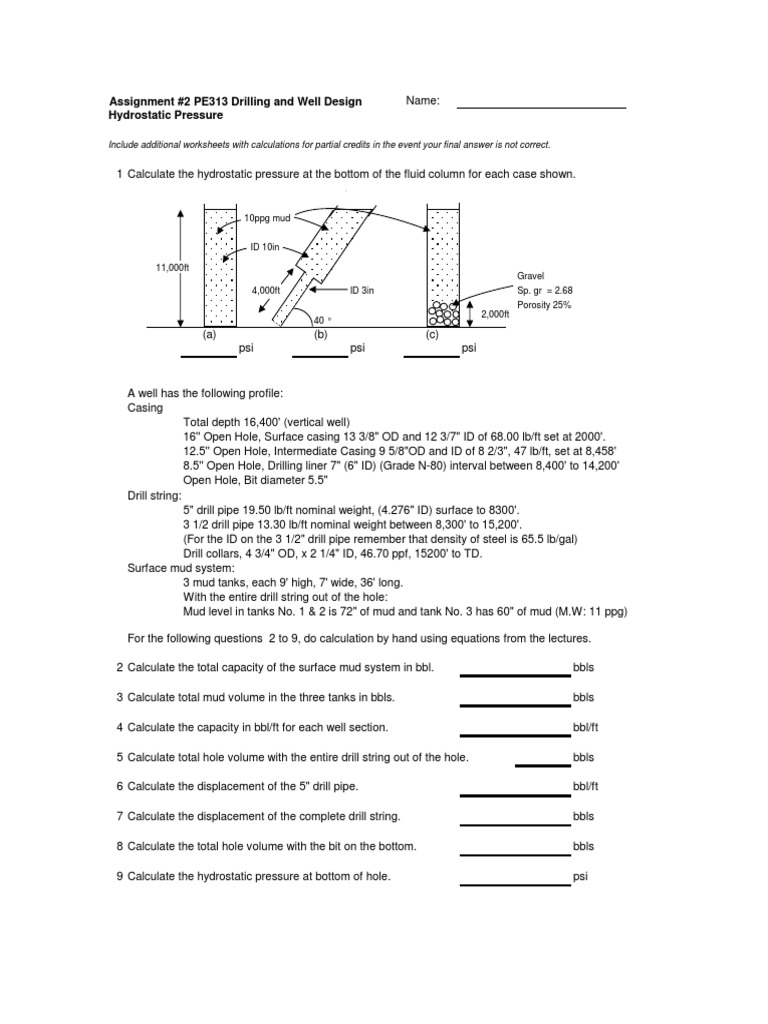

Assignment #2 PE313 Drilling and Well Design Name:

Hydrostatic Pressure

Include additional worksheets with calculations for partial credits in the event your final answer is not correct.

1 Calculate the hydrostatic pressure at the bottom of the fluid column for each case shown.

10ppg mud

ID 10in

11,000ft
Gravel
4,000ft ID 3in Sp. gr = 2.68
Porosity 25%
2,000ft
40 °
(a) (b) (c)
psi psi psi

A well has the following profile:


Casing
Total depth 16,400' (vertical well)
16'' Open Hole, Surface casing 13 3/8" OD and 12 3/7" ID of 68.00 lb/ft set at 2000'.
12.5'' Open Hole, Intermediate Casing 9 5/8"OD and ID of 8 2/3", 47 lb/ft, set at 8,458'
8.5'' Open Hole, Drilling liner 7" (6" ID) (Grade N-80) interval between 8,400' to 14,200'
Open Hole, Bit diameter 5.5"
Drill string:
5" drill pipe 19.50 lb/ft nominal weight, (4.276" ID) surface to 8300'.
3 1/2 drill pipe 13.30 lb/ft nominal weight between 8,300' to 15,200'.
(For the ID on the 3 1/2" drill pipe remember that density of steel is 65.5 lb/gal)
Drill collars, 4 3/4" OD, x 2 1/4" ID, 46.70 ppf, 15200' to TD.
Surface mud system:
3 mud tanks, each 9' high, 7' wide, 36' long.
With the entire drill string out of the hole:
Mud level in tanks No. 1 & 2 is 72" of mud and tank No. 3 has 60" of mud (M.W: 11 ppg)

For the following questions 2 to 9, do calculation by hand using equations from the lectures.

2 Calculate the total capacity of the surface mud system in bbl. bbls

3 Calculate total mud volume in the three tanks in bbls. bbls

4 Calculate the capacity in bbl/ft for each well section. bbl/ft

5 Calculate total hole volume with the entire drill string out of the hole. bbls

6 Calculate the displacement of the 5" drill pipe. bbl/ft

7 Calculate the displacement of the complete drill string. bbls

8 Calculate the total hole volume with the bit on the bottom. bbls

9 Calculate the hydrostatic pressure at bottom of hole. psi


10 Calculate the pressure at the bottom of each well.

MW = 10.5 MW = .468 MW = 82.28


ppg psi/ft lb/ft3

7800 ft 9000 ft 5500 ft

psi psi psi

11 Given the following well design:

a) Calculate total hole volume with the entire drill string in the hole. bbls

b) Calculate total hole volume with the entire drill string out of the hole. bbls

CSG Specification: (13 3/8" CSG (12.5" ID) and 7" Liner (6" ID))
Drill Pipe Specification: (4.5" DP (3.5" ID))
12 Calculate the equivalent density at 7000' depth of the following mixed fluid column.

1200ft
9 ppg

2800ft 10 ppg

4500ft 11 ppg
