CATALOGUE 2014

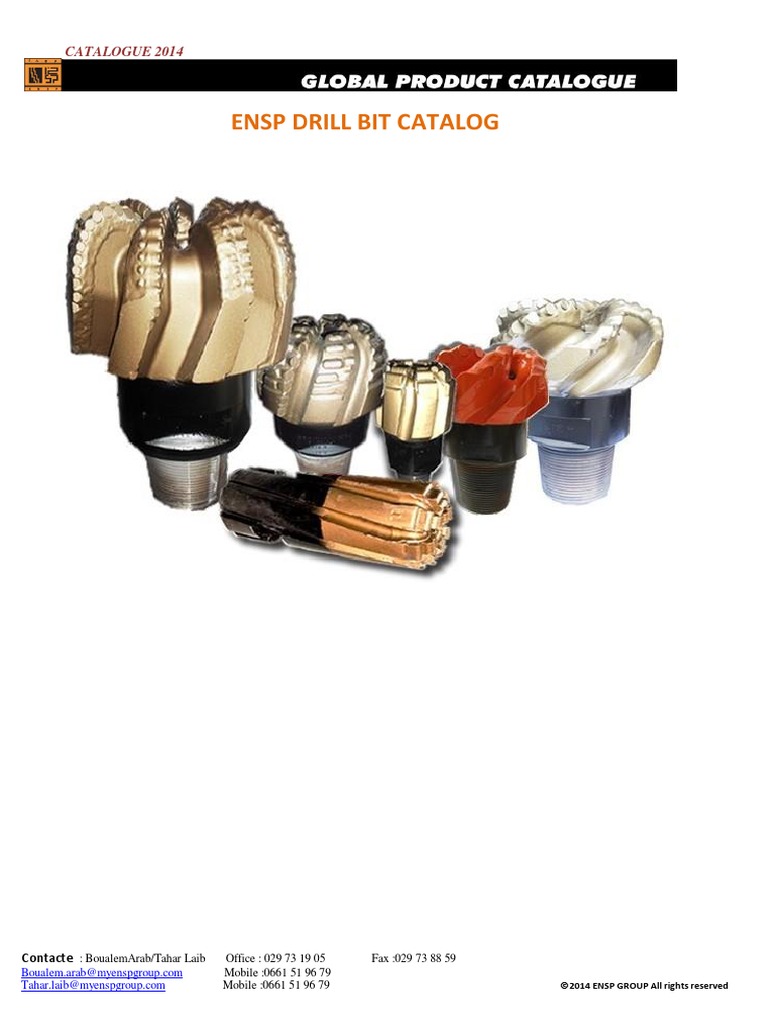

ENSP DRILL BIT CATALOG
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014

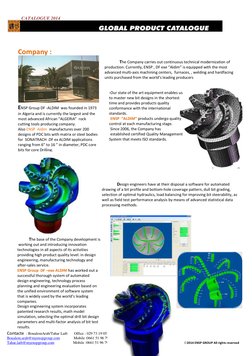

Company :
The Company carries out continuous technical modernization of
production. Currently, ENSP , DF exe “Aldim” is equipped with the most
advanced multi-axis machining centers, furnaces, , welding and hardfacing
units purchased from the world’s leading producers
-Our state of the art equipment enables us
to master new bit designs in the shortest
time and provides products quality
ENSP Group DF -ALDIM was founded in 1973 conformance with the international
in Algeria and is currently the largest and the standards.
most advanced African “ALGERIA” rock ENSP “ALDIM” products undergo quality
cutting tools producing company. control at each manufacturing stage.
Also ENSP Aldim manufactures over 200 Since 2006, the Company has
designs of PDC bits with matrix or steel bodies established certified Quality Management
for SONATRACH .DF ex ALDIM applications System that meets ISO standards.
ranging from 6” to 16 ” in diameter, PDC core
bits for core Drilling.
Design engineers have at their disposal a software for automated
drawing of a bit profile and bottom-hole coverage pattern, dull bit grading,
selection of optimal hydraulics, load balancing for improving bit steerability, as
well as field test performance analysis by means of advanced statistical data
processing methods.
The base of the Company development is
working out and introducing innovation
technologies in all aspects of its activities
providing high product quality level: in design
engineering, manufacturing technology and
after-sales service.
ENSP Group DF –exe ALDIM has worked out a
successful thorough system of automated
design engineering, technology process
planning and engineering evaluation based on
the unified environment of software system
that is widely used by the world’s leading
companies.
Design engineering system incorporates
patented research results, math model
simulation, selecting the optimal drill bit design
parameters and multi-factor analysis of bit test
results.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014

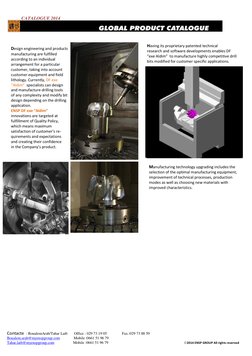

Having its proprietary patented technical
Design engineering and products
research and software developments enables DF
manufacturing are fulfilled
“exe Aldim” to manufacture highly competitive drill
according to an individual
bits modified for customer specific applications.
arrangement for a particular
customer, taking into account
customer equipment and field
lithology. Currently, DF exe
“Aldim” specialists can design
and manufacture drilling tools
of any complexity and modify bit
design depending on the drilling
application.
ENSP DF exe “Aldim”
innovations are targeted at
fulfillment of Quality Policy,
which means maximum
satisfaction of customer’s re-
quirements and expectations
and creating their confidence
in the Company’s product.
Manufacturing technology upgrading includes the
selection of the optimal manufacturing equipment,
improvement of technical processes, production
modes as well as choosing new materials with
improved characteristics.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014

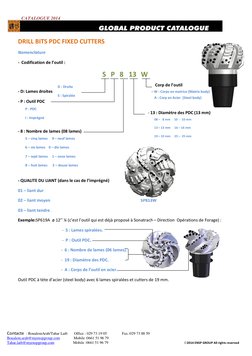

DRILL BITS PDC FIXED CUTTERS
Nomenclature
- Codification de l’outil :
S P 8 13 W
D : Droite Corp de l’outil
- D: Lames droites - W : Corps en matrice (Matrix body)
S : Spiralée
A : Corp en Acier (Steel body)
- P : Outil PDC
P : PDC
- 13 : Diamètre des PDC (13 mm)
I : Imprégné 08 – 8 mm 10 - 10 mm
13 – 13 mm 16 – 16 mm
- 8 : Nombre de lames (08 lames)
19 – 19 mm 25 – 25 mm
5 – cinq lames 9 – neuf lames
6 – six lames 0 – dix lames
7 – sept lames 1 – onze lames
8 – huit lames 2 – douze lames
- QUALITE DU LIANT (dans le cas de l’imprégné)
01 – liant dur
02 – liant moyen SP813W
03 – liant tendre .
Exemple:SP619A ø 12’’ ¼ (c’est l’outil qui est déjà proposé à Sonatrach – Direction Opérations de Forage) :
- S : Lames spiralées.
- P : Outil PDC.
- 6 : Nombre de lames (06 lames).
- 19 : Diamètre des PDC.
- A : Corps de l’outil en acier.
Outil PDC à tète d’acier (steel body) avec 6 lames spiralées et cutters de 19 mm.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014

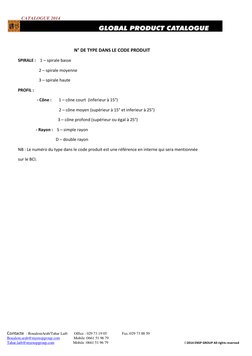

N° DE TYPE DANS LE CODE PRODUIT
SPIRALE : 1 – spirale basse
2 – spirale moyenne
3 – spirale haute
PROFIL :
- Cône : 1 – cône court (inferieur à 15°)
2 – cône moyen (supérieur à 15° et inferieur à 25°)
3 – cône profond (supérieur ou égal à 25°)
- Rayon : S – simple rayon
D – double rayon
NB : Le numéro du type dans le code produit est une référence en interne qui sera mentionnée
sur le BCI.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014

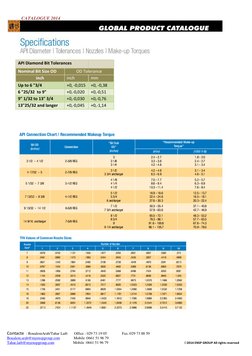

API Diamond Bit Tolerances
Nominal Bit Size OD OD Tolerance
inch inch mm
Up to 6 "3/4 +0, -0,015 +0, -0,38
6 "25/32 to 9" +0,-0,020 +0,-0,51
9" 1/32 to 13" 3/4 +0,-0,030 +0,-0,76
13"25/32 and langer +0,-0,045 +0,-1,14
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014

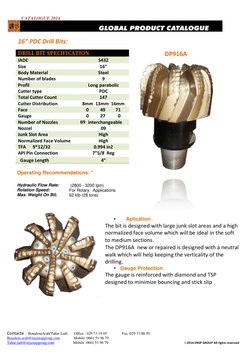

16” PDC Drill Bits:
DRILL BIT SPECIFICATION DP916A
IADC S432
Size 16"
Body Material Steel
Number of blades 9
Profil Long parabolic
Cutter type PDC
Total Cutter Count 147
Cutter Distribution 8mm 13mm 16mm
Face 0 49 71
Gauge 0 27 0
Number of Nozzles 09 interchangeable
Nozzel 09
Junk Slot Area High
Normalized Face Volume High
TFA 9*12/32 0.994 in2
API Pin Connection 7”5/8 Reg
Gauge Length 4”
Operating Recommendations: *
Hydraulic Flow Rate: (2800 - 3200 lpm)
Rotation Speed: For Rotary Applications
Max. Weight On Bit: 62 klb (28 tons)
§ Aplication
The bit is designed with large junk slot areas and a high
normalized face volume which will be ideal in the soft
to medium sections.
The DP916A new or repaired is designed with a neutral
walk which will help keeping the verticality of the
drilling.
§ Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014

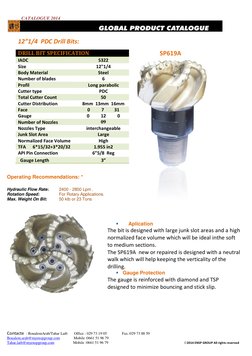

12”1/4 PDC Drill Bits:
DRILL BIT SPECIFICATION SP619A
IADC S322
Size 12"1/4
Body Material Steel
Number of blades 6
Profil Long parabolic
Cutter type PDC
Total Cutter Count 50
Cutter Distribution 8mm 13mm 16mm
Face 0 7 31
Gauge 0 12 0
Number of Nozzles 09
Nozzles Type interchangeable
Junk Slot Area Large
Normalized Face Volume High
TFA 6*15/32+3*20/32 1.955 in2
API Pin Connection 6”5/8 Reg
Gauge Length 3”
Operating Recommendations: *
Hydraulic Flow Rate: 2400 - 2800 Lpm .
Rotation Speed: For Rotary Applications.
Max. Weight On Bit: 50 klb or 23 Tons
§ Aplication
The bit is designed with large junk slot areas and a high
normalized face volume which will be ideal inthe soft
to medium sections.
The SP619A new or repaired is designed with a neutral
walk which will help keeping the verticality of the
drilling.
§ Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
12”1/4 PDC Drill Bits:
DRILL BIT SPECIFICATION DP913W
IADC M323
Size 12"1/4
Body Material Matrix
Number of blades 9
Profil Medium profile
Cutter type PDC
Total Cutter Count 86
Cutter Distribution 8mm 13mm 16mm
Face 0 50 0
Gauge 0 36 0
Number of Nozzles 09
Nozzles Type interchangeable
Junk Slot Area Short
Normalized Face Volume High
TFA 6*15/32+3*20/32 1.955 in2
API Pin Connection 6”5/8 Reg
Gauge Length 3”
Operating Recommendations: *
Hydraulic Flow Rate: 2000 - 2600 Lpm .
Rotation Speed: For Rotary Applications.
Max. Weight On Bit: 50 klb or 23 Tons
§ Aplication
The bit is designed with Short junk slot areas and a high
normalized face volume which will be ideal in the
medium to hard sections.
The DP913W is designed with a neutral walk which will
help keeping the verticality of the drilling.
§ Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
8”1/2 PDC Drill Bits:
DRILL BIT SPECIFICATION SP619A
IADC S322
Size 8"1/2
Body Material Steel
Number of blades 6
Profil Long parabolic
Cutter type PDC
Total Cutter Count 29
Cutter Distribution 8mm 13mm 16mm
Face 0 2 20
Gauge 0 7 0
Number of Nozzles 06
Nozzles Type interchangeable
Junk Slot Area Large
Normalized Face Volume High
TFA 4*14/32 0.601 in2
API Pin Connection 4”1/2 Reg
Gauge Length 2.3 ”
Operating Recommendations: *
Hydraulic Flow Rate: (1800 - 2200 lpm)
Rotation Speed: For Rotary Applications
Max. Weight On Bit: 36 klb (16 tons).
§ Aplication
The bit is designed with large junk slot areas and a high
normalized face volume which will be ideal in the soft
to medium sections.
The SP916A new or repaired is designed with a neutral
walk which will help keeping the verticality of the
drilling.
§ Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
8”1/2 PDC Drill Bits:
DRILL BIT SPECIFICATION DP813W
IADC M433
Size 8"1/2
Body Material Matrix
Number of blades 8
Profil Medium profile
Cutter type PDC
Total Cutter Count 60
Cutter Distribution 8mm 13mm 16mm
Face 0 50 0
Gauge 0 10 0
Number of Nozzles 04
Nozzles Type interchangeable
Junk Slot Area Medium
Normalized Face Volume Medium
TFA 0.601 in2
API Pin Connection 4”1/2 Reg
Gauge Length 3”
Operating Recommendations: *
Hydraulic Flow Rate: (1800 - 2200 lpm)
Rotation Speed: For Rotary Applications
Max. Weight On Bit: 36 klb (16 tons)
§ Aplication
The bit is designed with medium junk slot areas and a
high normalized face volume which will be ideal in the
medium and abrasive sections.
The DP813W is designed with a neutral walk which will
help keeping the verticality of the drilling.
§ Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
8”1/2 Hybrid PDC Drill Bits:
DRILL BIT SPECIFICATION SP813W
IADC M632
Size 8"1/2
Body Material Matrix
Number of blades 8
Profil Long parabolic
Cutter type PDC-Choc Reducer
Total Cutter Count PDC 65
Choc Reducer 38
Cutter Distribution 8mm 13mm 16mm
Face 02 24 0
Gauge 0 39 0
Number of Nozzles 04
Nozzles Type interchangeable
Junk Slot Area Low
Normalized Face Volume Low
TFA 4*14/32 0.601 in2
API Pin Connection 4”1/2 Reg
Gauge Length 3”
Operating Recommendations: *
Hydraulic Flow Rate: (1800 - 2200 Lpm).
Rotation Speed: For Rotary Applications.
Max. Weight On Bit: 35.2 klb (16)Ton.
§ Aplication
The bit is designed with Low junk slot areas and a Low
normalized face volume Bit profile with medium spirality
will offer good stability during drilling and eliminates
lateral vibration. The SP813 W is designed with a neutral
walk which will help keeping the verticality of the drilling.
§ Gauge Protection
The gauge is reinforced with TSP designed to minimize
bouncing and stick slip.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
8”3/8 Hybrid PDC Drill Bits:
DRILL BIT SPECIFICATION SP813W
IADC M632
Size 8"3/8
Body Material Matrix
Number of blades 8
Profil Long parabolic
Cutter type PDC-Choc Reducer
Total Cutter Count PDC 65
Choc Reducer 38
Cutter Distribution 8mm 13mm 16mm
Face 0 26 0
Gauge 0 39 0
Number of Nozzles 04
Nozzles Type interchangeable
Junk Slot Area Low
Normalized Face Volume Low
TFA 4x (14/32) 0.601 in2
API Pin Connection 4”1/2 Reg
Gauge Length 3”
Makeup Torque: 3.4klbs/ft-12.5k [Link]
Operating Recommendations: *
Hydraulic Flow Rate: 1800 - 2000 gpm (2100 - 4550 lpm)
Rotation Speed: For Rotary Applications .
Max. Weight On Bit: 37 klb-(17)Ton
§ Aplication
The bit is designed with Low junk slot areas and a Low
normalized face volume Bit profile with medium spirality
will offer good stability during drilling and eliminates
lateral vibration. The SP813 W is designed with a neutral
walk which will help keeping the verticality of the drilling.
§ Gauge Protection
The gauge is reinforced with TSP designed to minimize
bouncing and stick slip.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
8”1/2 Impregnated Drill Bits:
DRILL BIT SPECIFICATION DI220 W
IADC M243
Size 8"1/2
Body Material Matrix
Number of blades 12
Profile Straight
Cutter type Impregnated
Total Cutter Count 3000 Carats
Gauge reinforcement 72 Carats
Number of Nozzles 00
Crow foot 01
Junk Slot Area Low
Normalized Face Volume Low
TFA 1.2 in2
API Pin Connection 4”1/2 REG Pin
Gauge Length 3”
Formation Hard & abrasive
Operating Recommendations:
*
Hydraulic Flow Rate: (1800 – 2200 lpm)
Rotation Speed: For PDM & Rotary Applications
Max. Weight On Bit: 32 klb (15 tons)
§ Aplication
The bit is designed with eight blades with impregnated
blocs , which will be ideal in the hard and abrasive
formation .
The DI220W is designed both for vertical and
horizontal drilling sections.
§ Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
8”1/2 Impregnated Drill Bits:
DRILL BIT SPECIFICATION DI 820 W
IADC M843
Size 8"1/2
Body Material Matrix
Number of blades 08
Profile Straight
Cutter type Impregnated
Total Cutter Count 2500 Carats
Gauge reinforcement 72 Carats
Number of Nozzles 00
Crow foot 01
Junk Slot Area Low
Normalized Face Volume Low
TFA 1.2 in2
API Pin Connection 4”1/2 REG Pin
Gauge Length 3”
Formation Hard & abrasive
OperatingRecommendations:*
Hydraulic Flow Rate: (1800 – 2200 lpm)
Rotation Speed: For PDM & Rotary Applications
Max. Weight On Bit: 32 klb (15 tons)
§ Aplication
The bit is designed with eight blades with impregnated
blocs, which will be ideal in the hard and abrasive
formation .
The DI820W is designed both vertical and horizontal
drilling sections.
§ Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
6” Impregnated Drill Bits (Turbine):
DRILL BIT SPECIFICATION
DI 820 W
IADC M843
Size 6”
Body Material Matrix
Number of blades 8
Cutter type Impregnated
Total Cutter Count 2127 Carats
Number of Nozzles 0
Crow foot 1
Normalized Face Volume -
TFA 0.92 in2
API Pin Connection 3”1/2 Reg Box
Gauge Length 4”+8 ”
Gauge special TSP Reinforcement
Operating Recommendations: *
Hydraulic Flow Rate: (850 - 950 lpm)
Rotation Speed: Turbine Applications (950-1400) RPM
Max. Weight On Bit: (8.8 klb -6 tons )
§ Aplication
The bit is designed with eight blades with impregnated
blocs, which will be ideal in the hard and abrasive
formation .
The DI820W is designed for both vertical and
horizontal drilling sections.
§ Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
6” Impregnated Drill Bits 6” Gauge:
DRILL BIT SPECIFICATION DP820W
IADC M843
Size 6”
Body Material Matrix
Number of blades 8
Cutter type Impregnated
Total Cutter Count 1500 Carats
Number of Nozzles 0
Crow foot 1
Normalized Face Volume -
TFA 0.92 in2
API Pin Connection 3”1/2 Reg
Gauge Length 6”
Gauge special TSP Reinforcement
Operating Recommendations: *
Hydraulic Flow Rate: (1800 - 2000lpm)
Rotation Speed: For PDM Motor and Rotary Applications
Max. Weight On Bit: (17.6 klb 8 tons)
§ Aplication
The bit is designed with eight blades with impregnated
blocs, which will be ideal in the hard and abrasive
formation .
The DI820W is designed especially for vertical drilling
sections.
§ Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
6” Impregnated Drill Bits 3”Gauge:
DRILL BIT SPECIFICATION DI820W
IADC M843
Size 6"
Body Material Matrix
Number of blades 8
Cutter type Impregnated
Total Cutter Count 147
Totat Carat Weight 1500 Carat
Number of Nozzles 0
Crowfoot 1
TFA 0.92 in2
API Pin Connection 3”1/2 Reg
Gauge Length 3”
Gauge Special TSP Reinforcement
Operating Recommendations: *
Hydraulic Flow Rate: (800 - 950 lpm)
Rotation Speed: For PDM Motor Rotary Applications
Max. Weight On Bit: (18 klb (-8 Tons)
· Aplication
bit is designed with 8 x bladed matrix body
impregnated diamond bit featuring impregnated
blocks with TSP in the center. The total carat
weight is 1500 carats and the gauge is reinforced
with prime diamond quality.
· Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
CATALOGUE 2014
6” Impregnated Drill Bits 2”Gauge:
DRILL BIT SPECIFICATION DI820W
IADC M843
Size 6"
Body Material Matrix
Number of blades 8
Cutter type Impregnated
Total Carat Weight 1500 Carat
Number of Nozzles 0
Crowfoot 1
TFA 0.92 in²
API Pin Connection 3”1/2 Reg
Gauge Length 2”
Gauge Special TSP Reinforcement
Operating Recommendations: *
Hydraulic Flow Rate: (800 - 950 lpm)
Rotation Speed: For PDM Motor Rotary Applications
Max. Weight On Bit: (18 klb - 8 Tn)
· Aplication
bit is designed with 8 x bladed matrix body
impregnated diamond bit featuring impregnated
blocks with TSP in the center. The total carat
weight is 1500 carats and the gauge is reinforced
with prime diamond quality.
· Gauge Protection
The gauge is reinforced with diamond and TSP
designed to minimize bouncing and stick slip.
Contacte : BoualemArab/Tahar Laib Office : 029 73 19 05 Fax :029 73 88 59
[Link]@[Link] Mobile :0661 51 96 79
[Link]@[Link] Mobile :0661 51 96 79 Ó2014 ENSP GROUP All rights reserved
