PT.

THIESS CONTRACTORS INDONESIA

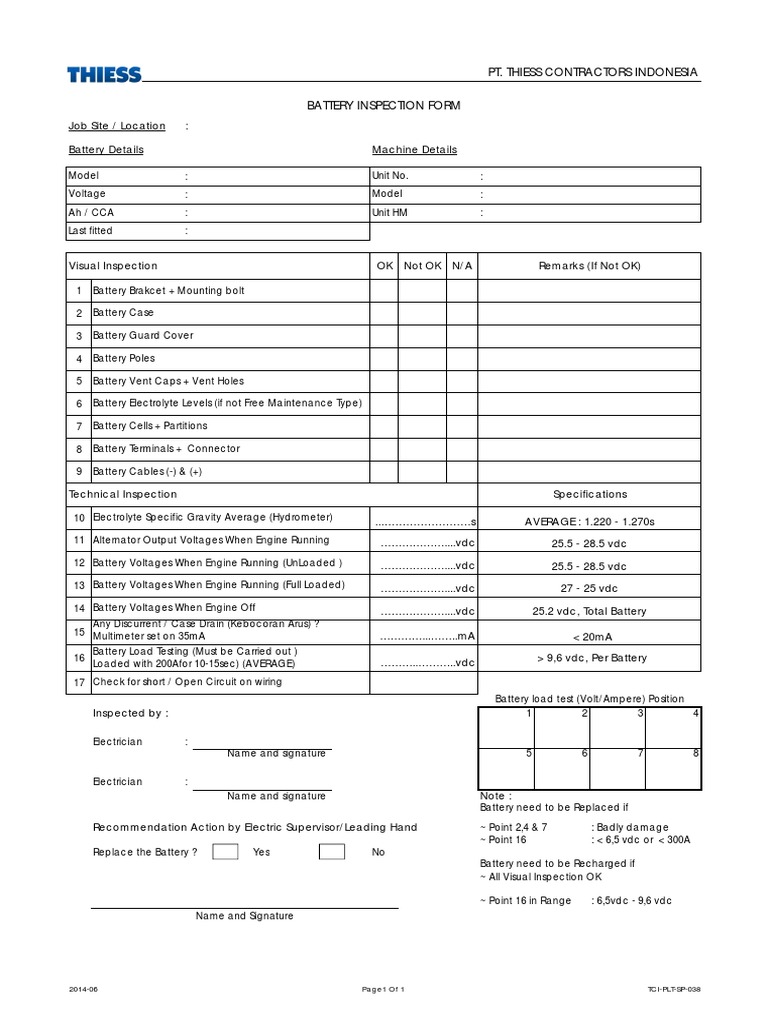

BATTERY INSPECTION FORM

Job Site / Location :

Battery Details Machine Details

Model : Unit No. :

Voltage : Model :
Ah / CCA : Unit HM :
Last fitted :

Visual Inspection OK Not OK N/A Remarks (If Not OK)

1 Battery Brakcet + Mounting bolt

2 Battery Case

3 Battery Guard Cover

4 Battery Poles

5 Battery Vent Caps + Vent Holes

6 Battery Electrolyte Levels (if not Free Maintenance Type)

7 Battery Cells + Partitions

8 Battery Terminals + Connector

9 Battery Cables (-) & (+)

Technical Inspection Specifications

10 Electrolyte Specific Gravity Average (Hydrometer) ...……………………s AVERAGE : 1.220 - 1.270s

11 Alternator Output Voltages When Engine Running ………………....vdc 25.5 - 28.5 vdc
12 Battery Voltages When Engine Running (UnLoaded ) ………………....vdc 25.5 - 28.5 vdc
13 Battery Voltages When Engine Running (Full Loaded) ………………....vdc 27 - 25 vdc
14 Battery Voltages When Engine Off ………………....vdc 25.2 vdc, Total Battery
Any Discurrent / Case Drain (Kebocoran Arus) ?
15 Multimeter set on 35mA …………...……..mA < 20mA
Battery Load Testing (Must be Carried out )
16 > 9,6 vdc, Per Battery
Loaded with 200Afor 10-15sec) (AVERAGE) ………..………..vdc
17 Check for short / Open Circuit on wiring
Battery load test (Volt/Ampere) Position
Inspected by : 1 2 3 4

Electrician :
Name and signature 5 6 7 8

Electrician :
Name and signature Note :
Battery need to be Replaced if

Recommendation Action by Electric Supervisor/Leading Hand ~ Point 2,4 & 7 : Badly damage
~ Point 16 : < 6,5 vdc or < 300A
Replace the Battery ? Yes No
Battery need to be Recharged if
~ All Visual Inspection OK

~ Point 16 in Range : 6,5vdc - 9,6 vdc

Name and Signature

2014-06 Page1 Of 1 TCI-PLT-SP-038
