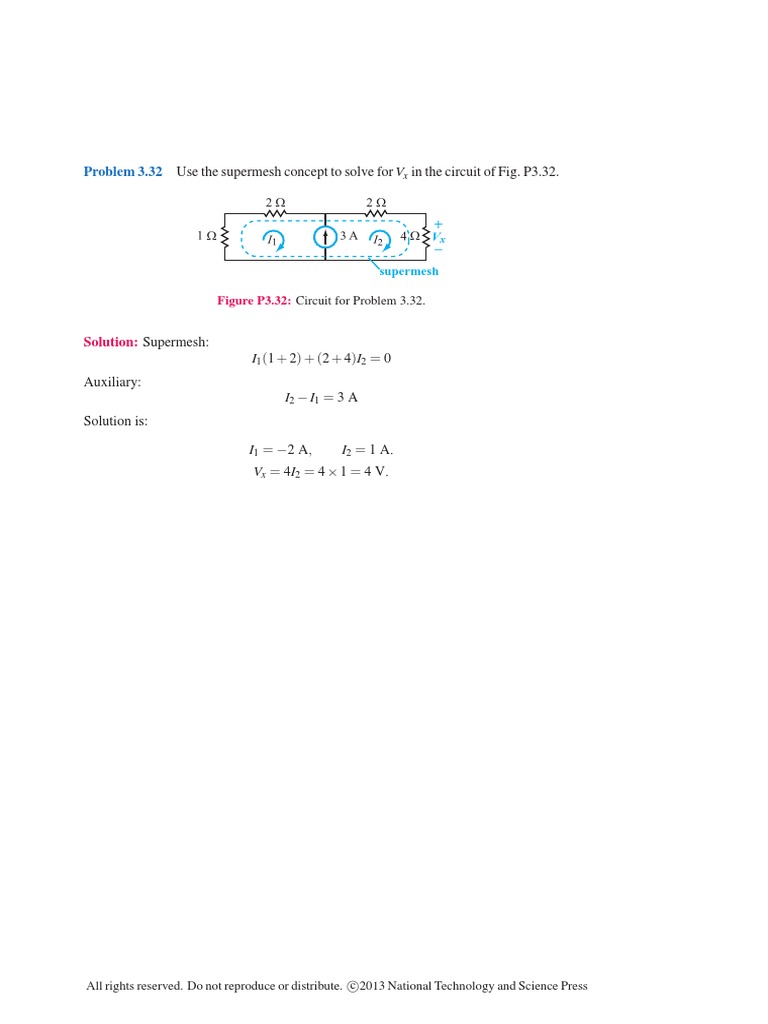

Problem 3.32 Use the supermesh concept to solve for Vx in the circuit of Fig. P3.32.

2Ω 2Ω
+
1Ω I1 3A I2 4 Ω Vx
_
supermesh

Figure P3.32: Circuit for Problem 3.32.

Solution: Supermesh:
I1 (1 + 2) + (2 + 4)I2 = 0
Auxiliary:
I2 − I1 = 3 A
Solution is:

I1 = −2 A, I2 = 1 A.
Vx = 4I2 = 4 × 1 = 4 V.

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
Problem 3.33 Use the supermesh concept to solve for Ix in the circuit of Fig. P3.33.

12 Ω Ix

supermesh
I4
4A
2A I1 6Ω I2 6Ω I3 3A

Figure P3.33: Circuit for Problem 3.33.

Solution:
Mesh 1: I1 = 2 A.
Supermesh: 6(I2 − I1 ) + 12I4 + 6(I2 − I3 ) = 0.
Mesh 3: I3 = −3 A.
Auxiliary: I4 − I2 = 4 A.
Solution is:

I1 = 2 A, I2 = −2.25 A, I3 = −3 A, I4 = 1.75 A.
Ix = −I4 = −1.75 A.

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
Problem 3.35 Determine the amount of power supplied by the independent voltage
source in Fig. P3.35 by applying the mesh-analysis method.

+ Vx _
+ 2Ω
12 V _ 4Ω I2 2Vx +
_
I1

Figure P3.35: Circuit for Problem 3.35.

Solution:

Mesh 1: −12 + 2I1 + 4(I1 − I2 ) = 0

Mesh 2: 4(I2 − I1 ) + 2Vx = 0
Auxiliary: Vx = 2I1

Solution is:

I1 = 2 A, I2 = 0.
Vx = 2I1 = 2 × 2 = 4 V.

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
Problem 3.36 Use mesh analysis to find Ix in the circuit of Fig. P3.36.

4V
0.2 Ω
+_
0.5 Ω I3 0.5 Ω
Ix
0.1 Ω 0.1 Ω
+ I1 I2 +
0.1 Ω
_ 2V 3V _

Figure P3.36: Circuit for Problem 3.36.

Solution:

Mesh 1: − 2 + 0.1I1 + 0.5(I1 − I3 ) + 0.1(I1 − I2 ) = 0

Mesh 2: 0.1(I2 − I1 ) + 0.5(I2 − I3 ) + 0.1I2 + 3 = 0
Mesh 3: 0.5(I3 − I1 ) + 0.2I3 + 4 + 0.5(I3 − I2 ) = 0

Solution is:

I1 = −8.69 A, I2 = −14.9 A, I3 = −13.2 A,

Ix = I1 − I2 = 6.25 A.

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
Problem 3.39 Apply mesh analysis to the circuit of Fig. P3.39 to determine Ix .

2A

6V I3
0.5 Ω
_+
Ix
0.5 Ω I1 I2 4A
0.5 Ω

Figure P3.39: Circuit for Problem 3.39.

Solution:

Mesh 1: 0.5I1 − 6 + 0.5(I1 − I2 ) = 0

Mesh 2: I2 = −4 A
Mesh 3: I3 = −2 A

Hence, I1 = 4 A.
Ix = I1 − I2 = 4 + 4 = 8 A.

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
Problem 3.40 Determine Vx in the circuit of Fig. P3.40.

4Ω
I3 2I
2Ω __
++ 6Ω
I
1Ω +
+ I1 I2 1Ω Vx
1Ω _
_ 8V

Figure P3.40: Circuit for Problems 3.40 and 3.42.

Solution:

Mesh 1: −8 + I1 + 2(I1 − I3 ) + (I1 − I2 ) = 0

Mesh 2: (I2 − I1 ) − 2I + 6(I2 − I3 ) + I2 = 0
Mesh 3: 2(I3 − I1 ) + 4I3 + 6(I3 − I2 ) + 2I = 0
Auxiliary: I = I1 − I2

Solution is:

I1 = 2.82 A, I2 = 1.41 A, I3 = 0.94 A.

Vx = I2 × 1 = I2 = 1.41 V.

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
Problem 3.45 Use an analysis method of your choice to determine I0 in the circuit
of Fig. P3.45.

5Ω
+ 10 Ω 10 Ω
12 V _ I1
5Ω
10 Ω
I3 I4
I0
I2 10 Ω 10 Ω
5Ω

Figure P3.45: Circuit for Problem 3.45.

Solution: We choose the mesh-current method.

Mesh 1: − 12 + 5I1 + 10(I1 − I3 ) + 10(I1 − I2 ) = 0

Mesh 2: 10(I2 − I1 ) + 10(I2 − I3 ) + 5I2 = 0
Mesh 3: 10(I3 − I1 ) + 5(I3 − I4 ) + 10(I3 − I2 ) = 0
Mesh 4: 5(I4 − I3 ) + 20I4 = 0

Simultaneous solution leads to:

I1 = 1.07 A, I2 = 0.73 A, I3 = 0.75 A, I4 = 0.15 A.

I0 = I3 − I4 = 0.75 − 0.15 = 0.6 A.

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
Problem 3.46 Simplify the circuit in Fig. P3.46 as much as possible using
source transformation and resistance combining, and then apply mesh analysis to
determine Ix .

6Ω 3Ω 3Ω 4Ω
+ Ix
12 V _ 6Ω 6Ω
1Ω
4Ω 3Ω

Figure P3.46: Circuit of Problem 3.46.

Solution:

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
 6Ω 3Ω 3Ω 4Ω
+ Ix
12 V _ 6Ω 6Ω
1Ω
4Ω 3Ω

3Ω 3Ω 4Ω
Ix
2A 3Ω 6Ω
1Ω
4Ω 3Ω

3Ω 3Ω 3Ω 4Ω
+ Ix
6V _ 6Ω
1Ω
4Ω 3Ω

3Ω 4Ω
Ix
1A 6Ω 6Ω
1Ω
4Ω 3Ω

3Ω

3Ω I2 4Ω
+ Ix
3V _ I1
1Ω
4Ω I3 3Ω

Fig. P3.46 (a)

KVL by inspection gives:

    
(3 + 3 + 4) −3 −4 I1 3
 −3 (3 + 4 + 1) −1  I2  = 0
−4 −1 (4 + 1 + 3) I3 0
Solution yields
I1 = 0.466 A,

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
 I2 = 0.207 A,
I3 = 0.259 A.

Hence,
Ix = I3 − I2 = 0.259 − 0.207 = 0.052 A.

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
Problem 3.52 Apply the by-inspection method to develop a node-voltage matrix
equation for the circuit in Fig. P3.52 and then use MATLAB
R
or MathScript software
to solve for V1 and V2 .
12 Ω
V1 V2

2A 6Ω 4A 6Ω 3A

Figure P3.52: Circuit for Problem 3.52.

Solution:

1 1
Node 1: G11 = + = 0.25
6 12
1
G12 = G21 = − = −0.083
12

1 1
G22 = + = 0.25
6 12
It1 = 2 + 4 = 6 A
It2 = 3 − 4 = −1 A

Application of Eq. (3.26) gives:


0.25 −0.083 V1 6
=
−0.083 0.25 V2 −1

Matrix inversion gives

V1 = 25.5 V, V2 = 4.5 V.

All rights reserved. Do not reproduce or distribute. 2013

c National Technology and Science Press
Problem 3.54 Develop a mesh-current matrix equation for the circuit in Fig. P3.54
by applying the by-inspection method. Solve for I1 to I3 .
5Ω

5Ω 5Ω
I1 I2 I3
+ _
21 V _ 10 Ω 10 Ω + 4.2 V

Figure P3.54: Circuit for Problem 3.54.

Solution:

R11 = 5 + 10 = 15
R12 = R21 = −10
R13 = R31 = 0
R22 = 10 + 5 + 10 = 25
R23 = R32 = −10
R33 = 10 + 5 = 15
Vt1 = 21
Vt2 = 0
Vt3 = 4.2

Application of Eq. (3.29) gives:

    
15 −10 0 I1 21
−10 25 −10 I2  =  0 
0 −10 15 I3 4.2

Matrix inversion gives:

I1 = 2.36 A, I2 = 1.44 A, I3 = 1.24 A.
