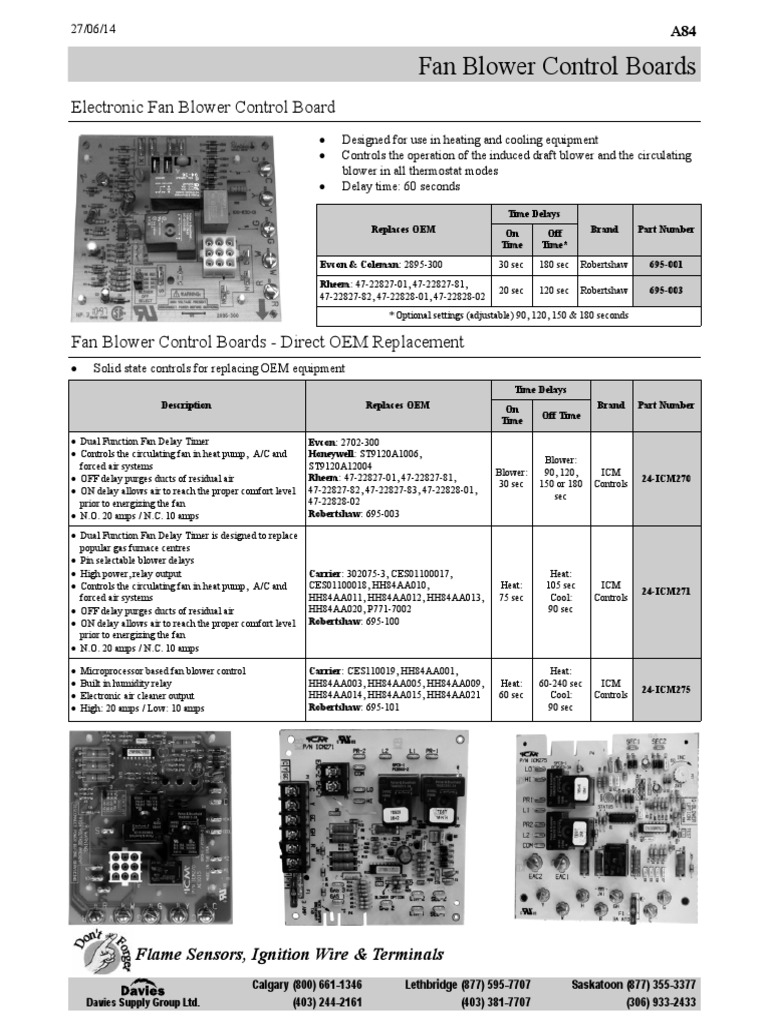

Fan Blower Control Boards
Electronic Fan Blower Control Board
Designed for use in heating and cooling equipment
Controls the operation of the induced draft blower and the circulating
blower in all thermostat modes
Delay time: 60 seconds
Time Delays
Replaces OEM On Off Brand Part Number
Time Time*
Evcon & Coleman: 2895-300 30 sec 180 sec Robertshaw 695-001
Rheem: 47-22827-01, 47-22827-81,
20 sec 120 sec Robertshaw 695-003
47-22827-82, 47-22828-01, 47-22828-02
* Optional settings (adjustable) 90, 120, 150 & 180 seconds
Fan Blower Control Boards - Direct OEM Replacement
Solid state controls for replacing OEM equipment
Time Delays
Description Replaces OEM On Brand Part Number
Off Time
Time
Dual Function Fan Delay Timer Evcon: 2702-300
Controls the circulating fan in heat pump, A/C and Honeywell: ST9120A1006,
Blower:
forced air systems ST9120A12004
Blower: 90, 120, ICM
OFF delay purges ducts of residual air Rheem: 47-22827-01, 47-22827-81, 24-ICM270
30 sec 150 or 180 Controls
ON delay allows air to reach the proper comfort level 47-22827-82, 47-22827-83, 47-22828-01,
sec
prior to energizing the fan 47-22828-02
N.O. 20 amps / N.C. 10 amps Robertshaw: 695-003
Dual Function Fan Delay Timer is designed to replace
popular gas furnace centres
Pin selectable blower delays
High power, relay output Carrier: 302075-3, CES01100017, Heat:
Controls the circulating fan in heat pump, A/C and CES01100018, HH84AA010, Heat: 105 sec ICM
24-ICM271
forced air systems HH84AA011, HH84AA012, HH84AA013, 75 sec Cool: Controls
OFF delay purges ducts of residual air HH84AA020, P771-7002 90 sec
ON delay allows air to reach the proper comfort level Robertshaw: 695-100
prior to energizing the fan
N.O. 20 amps / N.C. 10 amps
Microprocessor based fan blower control Carrier: CES110019, HH84AA001, Heat:
Built in humidity relay HH84AA003, HH84AA005, HH84AA009, Heat: 60-240 sec ICM
24-ICM275
Electronic air cleaner output HH84AA014, HH84AA015, HH84AA021 60 sec Cool: Controls
High: 20 amps / Low: 10 amps Robertshaw: 695-101 90 sec
Flame Sensors, Ignition Wire & Terminals
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Saskatoon (877) 355-3377
Davies Supply Group Ltd. (403) 244-2161 (403) 381-7707 (306) 933-2433
02/07/10 A85
Fan Blower Control Boards
Dual ON/OFF Delays Control Fan
Controls the circulating fan in A/C, forced air and heat pump systems
Dual function fan delay timer
High power, relay output
OFF delay purges ducts of residual air
ON delay allows air to reach the proper comfort level prior to energiz-
ing the fan
Time Delays
Replaces OEM On Off Brand Part Number
Time Time
A-1: 5893
Bard: 8201-056
Mars: 32393 1 60
ICM
Rheem: 42-22515-01, Sec Sec 24-ICM255
Controls
42-22515-02, 42-22515-03 fixed Fixed
Snyder General / ICP: 1395336
Watsco: 5893
Universal Electronic Fan Timer
Integrate control of combustion blower and circulating fan operations
in a gas warm air appliance
Central appliance wiring point simplifies appliance assembly and ser-
vice
Monitors thermostat for heat, cool and fan demands, runs the induced
draft blower motor and runs the circulating fan (up to two speeds) as
needed. It also monitors limit switch strings and energizes ignition
control.
Features a replaceable fuse and DIP switch, diagnostic LED and con-
tinuous EAC & HUM terminal connections
Ambient Temperature Range: -40 to 79C (-40 to 175F)
Heat Fan On Delay Heat Fan Off Delay Cool Fan On Delay Cool Fan Off Delay Brand Part Number
30 or 60 sec 60, 120, 150 or 180 sec 4 or 30 sec 30 or 60 sec
Honeywell ST9120U1011
Field Adjustable Field Adjustable Field Adjustable Field Adjustable
ST9120U1011 Universal Electronic Fan Timer Replaces Over 41 Existing Honeywell Controls:
ST9101A1014 ST9120C3018 ST9120D3009 ST9141A1028 ST9150C4057 ST9160B1050
ST9101A1022 ST9120C4008 ST9120G2024 ST9141B1001 ST9160A1002 ST9160B1068
ST9120A2004 ST9120C4016 ST9120G2032 ST9150A1003 ST9160B1001 ST9160B1076
ST9120C2002 ST9120C4040 ST9120G4004 ST9150B2000 ST9160B1019 ST9160B1084
ST9120C2010 ST9120C4057 ST9120G4038 ST9150B2018 ST9160B1027 ST9160C1000
ST9120C2028 ST9120C5005 ST9120U1003 ST9150B2026 ST9160B1035 ST9160C1018
ST9120C3000 ST9120C5013 ST9141A1002 ST9150B2034 ST9160B1043
