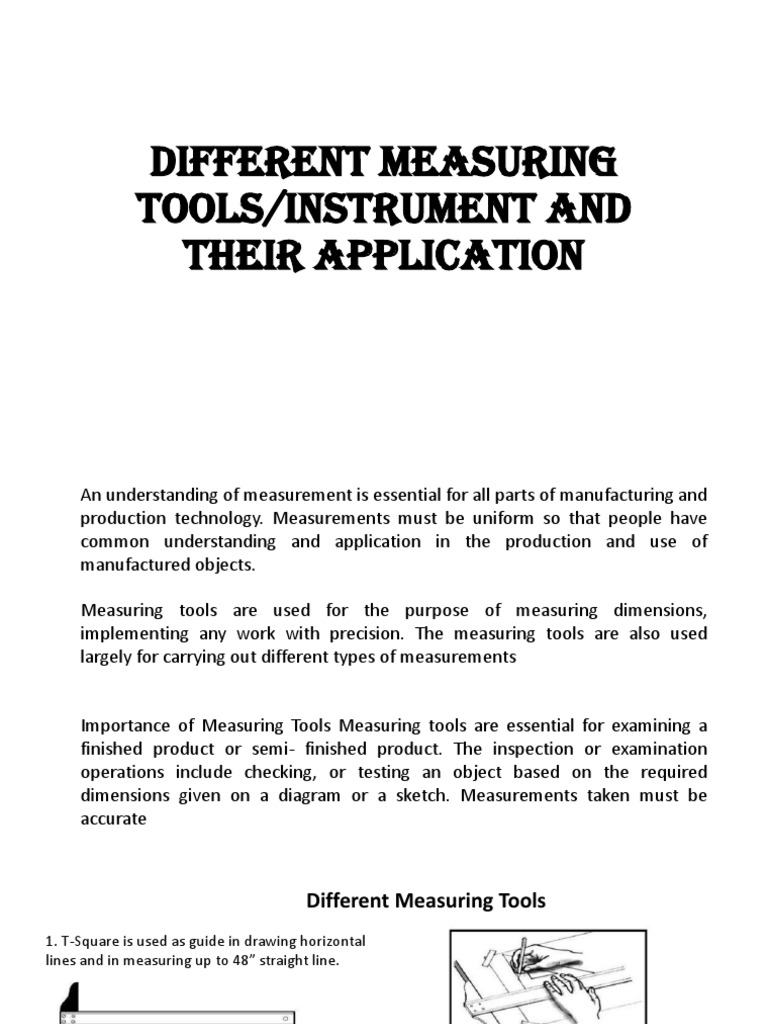

Different Measuring

Tools/instrument and
their application
An understanding of measurement is essential for all parts of manufacturing and
production technology. Measurements must be uniform so that people have
common understanding and application in the production and use of
manufactured objects.

Measuring tools are used for the purpose of measuring dimensions,

implementing any work with precision. The measuring tools are also used
largely for carrying out different types of measurements

Importance of Measuring Tools Measuring tools are essential for examining a

finished product or semi- finished product. The inspection or examination
operations include checking, or testing an object based on the required
dimensions given on a diagram or a sketch. Measurements taken must be
accurate
 Different Measuring Tools
1. T-Square is used as guide in drawing horizontal
lines and in measuring up to 48” straight line.

2. Triangles are used for drawing vertical and

oblique lines. The most commonly used triangles
are the 45 and the 30 x 60 . Illustrations below
show the proper use of drawing lines and
measuring angles using the T-square and triangle.
3. Ruler is the most popular type of measuring tool. It is
usually 6 or 12 inches in length. It is needed for
measuring sizes and distances.

4. Triangular Scale is used in general drawing. Its main purpose

is to reproduce the dimension in full size or to reduce or
enlarge them on a drawing. Scales help a drafter keep the
proportions accurate.

6. Protractor is used for measuring and setting of angles

other than those obtainable with the triangles.

7. Tape or tape ruler is a concave, spring-steel blade

ranging from 1/4" to 1" wide and 6 to about 300 feet in
length, coiled inside a carrying case. Metric tape ruler
comes in comparable widths and lengths up to 10
meters. It provides an easy means for accurately
measuring curved surfaces.
