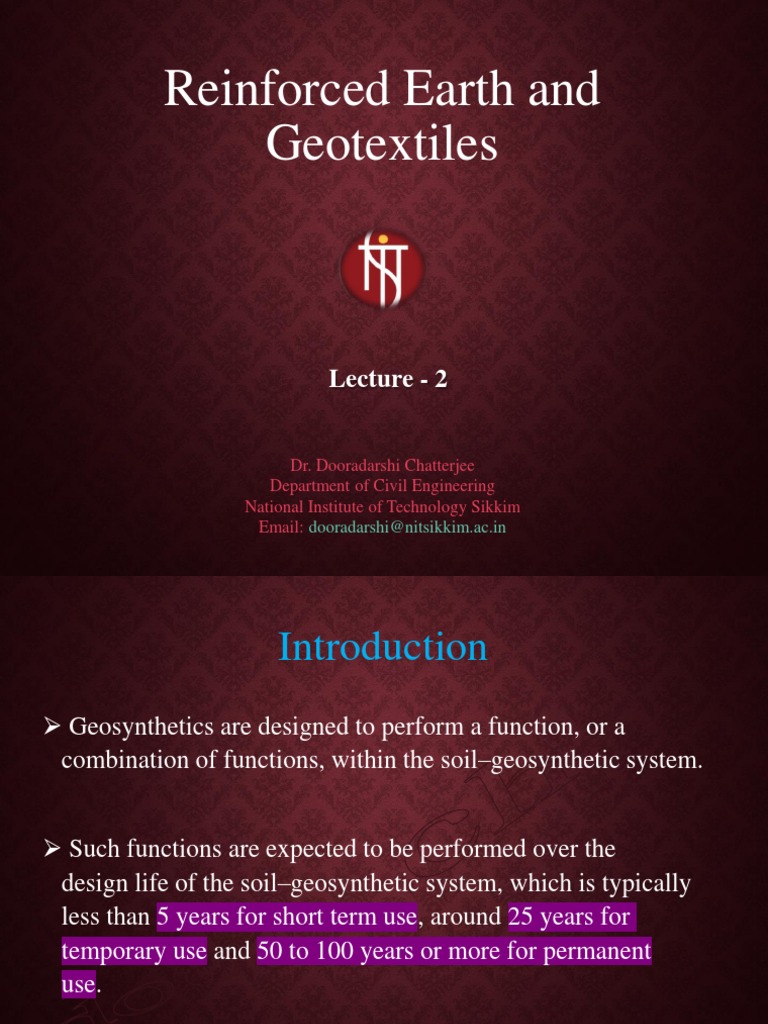

Reinforced Earth and

Geotextiles

Lecture - 2

Dr. Dooradarshi Chatterjee

Department of Civil Engineering
National Institute of Technology Sikkim
Email: dooradarshi@nitsikkim.ac.in
 Introduction
➢ Geosynthetics are designed to perform a function, or a
combination of functions, within the soil–geosynthetic system.

➢ Such functions are expected to be performed over the

design life of the soil–geosynthetic system, which is typically
less than 5 years for short term use, around 25 years for
temporary use and 50 to 100 years or more for permanent
use.

Reinforced Earth and Geotextiles 2

 Design Methodologies
The primary responsibility of a designer is to design a facility that
fulfils the operational requirements of the owner throughout its
design life.

Design by experience

Design by cost and availability

Design by specification

Design by function
Reinforced Earth and Geotextiles 3
 The design of a structure incorporating geosynthetics
aims to ensure its strength, stability and serviceability
over its intended life span.

Reinforced Earth and Geotextiles 4

 Design by Experience

❖ Based on one’s past experience or that of other’s.

❖ This is recommended if the application is not

driven by a basic function or has a nonrealistic test
method

Reinforced Earth and Geotextiles 5

 Design by Cost and Availability

❖ The maximum unit price of the geosynthetic is

calculated by dividing the funds available by the area to
be covered by the geosynthetic.
❖ The geosynthetic with the best quality is then selected
within this unit price limit according to its availability.

✓ Technically weak – not recommended

Reinforced Earth and Geotextiles 6

 Design by Specification

❖ Consists of a property matrix where common

application areas are listed along with minimum (or
sometimes maximum) property values.

❖ A property matrix is usually prepared on the basis of

local experiences and field conditions for routine
applications by most of the governmental agencies
and other large users of geosynthetics.
Reinforced Earth and Geotextiles 7
 Design by Function
Preferred design approach for geosynthetics - Working
stress design approach.
Steps:
o Define the primary function of the geosynthetic,
which can be reinforcement, separation, filtration,
drainage, fluid barrier or protection.
o Inventory of loads and constraints imposed by the
application.
o Define the design life of the geosynthetic.
Reinforced Earth and Geotextiles 8
o Determine the required functional property of the geosynthetic (e.g.
strength, permittivity, transmissivity, etc.) for the primary function.
o Obtain the allowable property (available property at the end of the
design life) of the geosynthetic.
o Calculate the factor of safety, FS
Allowable (or test) functional property
𝐹𝑆 =
Required (or design) functional property
o If this factor of safety is not acceptable, check into geosynthetics with
more appropriate properties.
o If acceptable, check if any other function of the geosynthetic is also
critical, and repeat the above steps.
o If several geosynthetics are found to meet the required factor of safety,
select the geosynthetic on the basis of cost–benefit ratio.
Reinforced Earth and Geotextiles 9
 Geosynthetic Failure Mechanisms

Reinforced Earth and Geotextiles 10

 Typical allowable (or test) value and required (design) value
of a functional property as a function of time

Reinforced Earth and Geotextiles 11

 Limit state design approach, rather than the working
stress design

Reinforced Earth and Geotextiles 12

For the purpose of geosynthetic-reinforced soil
design, a limit state is deemed to be reached when
one of the following occurs:

❖ Collapse, major damage or other similar forms of structural

failure – ultimate limit state
❖ Deformations in excess of acceptable limits – serviceability
limit state
❖ Other forms of distress or minor damage, which would
render the structure unsightly, require unforeseen maintenance
or shorten the expected life of the structure.

Reinforced Earth and Geotextiles 13

 Limit State Design
➢ The practice in reinforced soil is to design against the ultimate limit state and
check for the serviceability limit state
➢ Margins of safety, against attaining the ultimate limit state, are provided by
the use of partial material factors and partial load factors

• External dead load, ff

Dead Loads
• Soil unit weight, ffs

Principal • Geosynthetic reinforcement parameters, fm

material
factors • Soil parameters, fms

Economic • fn

Live loads • fq
Reinforced Earth and Geotextiles 14
 Construction Sequence of a Reinforced
Earth Wall

Reinforced Earth and Geotextiles 15

o Construction takes place from bottom upwards.
o Reinforcement is placed sequentially as layers of soil
are compacted one after the other.

✓ During construction – ensure that reinforcement is not

damaged.
✓ Facing panels are not displaced or tilted.

Reinforced Earth and Geotextiles 16

 Construction Techniques
❖ Soil - deposited in layers to form the structure.
❖ Settlements within the soil mass caused by gravitational forces.
❖ Reinforcing elements (positioned on discrete planes) move
together as the layers of soil separating the planes of
reinforcement are compressed.
❖ Construction techniques capable of accommodating this internal
compaction within the soil fill are required.

✓ Failure to accommodate the differential movement may result in

loss of serviceability .
Reinforced Earth and Geotextiles 17
 Construction
Techniques

Concertina Method Telescope Method Sliding Method

Reinforced Earth and Geotextiles 18

 Concertina Method

(a) Reinforced soil with metallic face units; (b) method of construction, fabric wall;
(c) method of construction, fabric wall; (d) method of construction of sloping
traverse; (e) method of construction, fabric or geogrid or cutting
 Concertina Method
❖ Differential settlement within the mass (d1—d4) is
achieved by the front or face of the structure concertinaing.
❖ The largest modern reinforced soil structures have been
built using this approach.
❖ Used with fabrics and geogrid reinforcing materials in both
embankments and cuttings.
❖ A flexible hoop-shaped unit made from steel or aluminium
is normally used.

Reinforced Earth and Geotextiles 20

 Telescope Method
❖ The settlement within the soil mass (d5, d6)
is achieved by the facing panels closing up
an equivalent amount to the internal
settlement.
❖ The facing panels are supported by the
reinforcing elements.
❖ A discrete horizontal gap - between facing
panel.
❖ Horizontal gap - compressible gaskets Telescope method

✓ Failure to provide a large enough gap between facing elements

can result in crushing of the facing.
Reinforced Earth and Geotextiles 21
 Telescope Method –
Construction Sequence

Reinforced Earth and Geotextiles 22

 Sliding Method

(a) Sliding method of construction, (b) perspective illustrating assembly of

component
Reinforced Earth and Geotextiles 23
 Sliding Method
❖ Differential settlement within the fill - accommodated by
permitting the reinforcing members to slide relative to the
facing.
❖ Slideable attachments - grooves, slots, vertical poles, lugs or
bolts.
❖ Vertical poles - form the structural elements of the facing
❖ The facing may become non-structural - protect the completed
structure from the elements and prevent erosion.

Reinforced Earth and Geotextiles 24

Sliding Method –
Erection Sequence

Reinforced Earth and Geotextiles 25

 Advantages of Reinforced Earth
Techniques

Economic Benefits
o Reduced earthwork quantities – result of steeper slopes and less
land acquisition costs.
o Increased construction speed – reinforcements and facing are
made available at site.
o Occupies less space – reinforced soil structure stays stable.
o Poor fill materials can be used due to strength improvement.

Reinforced Earth and Geotextiles 26

Technical Benefits
o Efficient use of material combinations: Shearing resistance of
soil + Tensile capacity of reinforcing materials.
o Inherent flexibility and tolerance to deformation
✓Reinforced soil structure can withstand severe earthquakes
o Overall improvement of performance.
o Offer totally different and new solutions – otherwise impossible

Reinforced Earth and Geotextiles 27

 References
➢ Koerner, R. M. (2005). Designing with Geosynthetics, 5th Edition, Pearson Education,
Pearson Prentice Hall.
➢ Saran, S. (2013). Reinforced Soil and its Engineering Applications, I.K. International
Publishing House Pvt. Ltd.

➢ Ingold, T. S. (1982). Reinforced Earth, Thomas Telford Ltd., London.

➢ Mandal, J.N. Geosynthetics Engineering: In Theory and Practice, IIT Bombay, NPTEL
lectures.
➢ Narain, J. (1984). Reinforced Earth, 7th IGS Annual lecture, 26th Annual General
Session held at Calcutta, India.

➢ Shukla, S.K. and Yin, J.H. (2006). Fundamentals of Geosynthetic Engineering, Taylor &
Francis Group, London, UK.
➢ Colin J. F. P. Jones. (1996). Earth reinforcement and soil structures, Thomas Telford,
ASCE Press.
