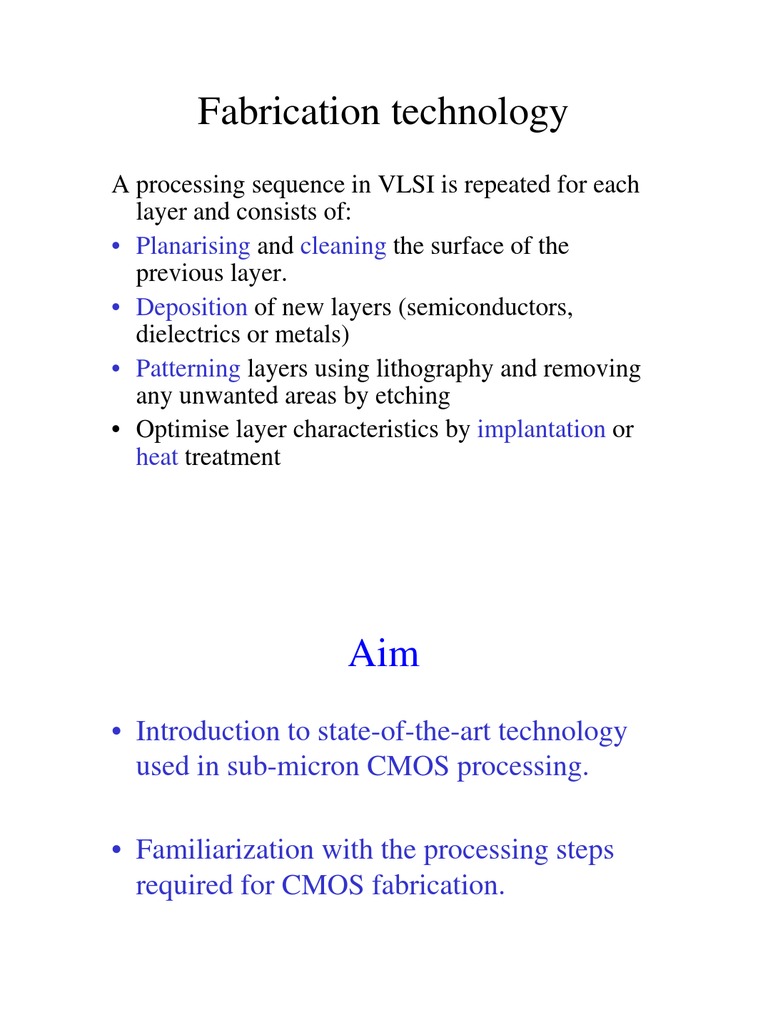

Fabrication technology

A processing sequence in VLSI is repeated for each layer and consists of: Planarising and cleaning the surface of the previous layer. Deposition of new layers (semiconductors, dielectrics or metals) Patterning layers using lithography and removing any unwanted areas by etching Optimise layer characteristics by implantation or heat treatment

Aim
Introduction to state-of-the-art technology used in sub-micron CMOS processing. Familiarization with the processing steps required for CMOS fabrication.

What is CMOS?
Complementary MOSFET: series connection on wafer of an n-MOS and a pMOS Remember: n-MOS made in p-type Si p-MOS made in n-type Si

CMOS

N-MOS and P-MOS

Simple CMOS circuits

NOT

NOR

CMOS: determines fabrication technology

CMOS inverter fabrication

Take cleanroom

www.nnf.cornell.edu/2000REU/ cnfreu2k/Hoff.cleanroom.jpg crio.mi.infn.it/wig/silicini/ img.jpg/IRST-cleanroom.JPG

CMOS inverter fabrication

Take p-type wafer

Current technology:

300mm

www.atp.nist.gov/eao/sp950-2/ diamond_1lo.jpg

CMOS inverter fabrication

Bulk material: wafer
Purified melt Seed Controlled cooling at phase boundary Ingot with diameter of 300 mm

Current technology:

300mm

CMOS inverter fabrication

Bulk material: wafer
Ingot with diameter of 300 mm

Wafer dicing and polishing

Current technology:

300mm

CMOS inverter fabrication

Cross section p-type wafer Oxide growth

p-substrate

Thermal oxidation
Consumes a layer of the Si wafer

Dry oxidation
800C 1100C Si + O2 SiO2 Slow process Dense, pure, high quality oxide Gate oxide

Wet oxidation
700C 1200C Si + 2H2O SiO2 + 2H 2 Faster process Medium quality oxide Field oxide

CMOS inverter fabrication

Cross section p-type wafer Definition of n-well

SiO2 p-substrate

How do we go from this:

SiO2 p-substrate

to this?

SiO2 p-substrate

n-well

CMOS inverter fabrication

Photolithography Spin photoresist

SiO2 p-substrate

Lithography
radiation mask resist dielectric or metal

Transferring patterns on a mask, consisting of transparent and non-transparent areas, via radiation onto a radiation sensitive layer (resist) on the semiconductor.

Fig taken from: http://www.marohn.chem.cornell.edu/nanofab/images/autostep_mask.JPG

Lithography methods
Optical lithography UV irradiation phase shift masks & short wavelength irradiation: = 248nm193nm157nm EUV node =115nm 65 nm (lg=80 nm 32 nm)
Focal length of lens Wavelength light

f d = 2.44 a
Minimum spot size Diameter of lens

From: http://www.ncnanotechnology.com/public/_assets/TNLC_Semicondutor_Process.jpg

Note on phase shift mask

Normal mask

Phase shift mask

Works based on light interference effects to increase contrast in certain regions of the masked wafer.

Lithography methods
Immersion lithography

From wikipedia

High purity water rather than air between lens and wafer. H2O has a higher refractive index than air and therefore the resolution is increased 37 nm

From: www.nikon.co.jp/.../immersion_e/img/gfx01_i.gif

Lithography methods
E-beam lithography
electron wavelength 1
node < 40 nm

Taken from: http://www.prism.princeton.edu/PRISM_cleanroom/equip/Raith/Raith%20e-LiNE.JPG Taken from: http://www.hkbu.edu.hk/~csar/semdiagram.jpg

exposure mask p-substrate development wet etch: BHF

Etching
Wet etching
Liquid chemicals Atmospheric pressure Pure chemical reactions Isotropic High selectivity
HF: SiO2 Si TMAH: Si SiGe

Dry etching
Gaseous chemicals Plasma (ions) assisted Low pressure Chemical-mechanical reactions Anisotropic Poor selectivity
(mechanical bombardment)

Cleaning

RIE: polySi gate etch

CMOS inverter fabrication

Implantation

p-substrate

Dissolve photoresist

Ion implantation
Change of carrier type or density Spin-on doping Diffusion in oven:
Allows batch processing

Ion implantation
Strict control of depth and density

CMOS inverter fabrication

Anneal

n-well p-substrate

CMOS inverter fabrication

Define active areas Oxide layer growth

Photolithography

n-well p-substrate

CMOS inverter fabrication

Deposit polysilicon Grow gate oxides

n-well p-substrate

Deposition
No consumption of the Si wafer

Semiconductor & Dielectrics

Chemical Vapour deposition (CVD) Molecular Vapour epitaxy (MBE) Liquid phase epitaxy (LPE) Spin-on dielectrics

Metals
Chemical vapour deposition (CVD) Thermal evaporation Sputter coating Electro-plating

Chemical Vapour Deposition

transport of gasses to the substrate absorption of the species in the gases on the substrate chemical reaction catalyzed by the substrate surface desorption of gaseous reaction products transport of reaction residue away from the substrate

Sputter Coating

Ar plasma is generated
RF field B field (confinement)

Ar+ hit target

E field

Target atoms ejected Target atoms deposited on substrate

Angstrom sciences

Electroplating

Au3+
electrolyte

Thick metal layers Cu, Au Function of metal resistivity Additives (impurities) d I t/

CMOS inverter fabrication

PolySi gate creation Reactivelithography E-beam ion etching
Jeol

n-well p-substrate

Vacuum chamber

wafer ~ RF

plasma

CMOS inverter fabrication

A complete simplified animated pn-junction process pn junction fabrication steps A complete simplified animated CMOS process CMOS fabrication

CMOS inverter fabrication

~150 processing steps further Lithography Deposition Implantation Etch

More than one metal layer

Planarisation
Chemical-mechanical Polishing (CMP)

Chemical slurry
KOH + 10 90 nm diamond or SiO2 grit

Rotating pad Rotating wafer holder

Damascene process
Metal inlay process
- CVD dielectric - Pattern dielectric - Sputter metal - CMP metal Solves:
Metal etching Gap filling

Dual damascene process

Metal line

Via plug

Copper interconnect technology using damascene process

http://sinclair.ece.uci.edu/Useful%20educational%20pictures/

Result

www.phy.ntnu.edu.tw/.../English/ images/Silicon%20wafer.jpg

[3]

Conclusion
All steps necessary to fabricate CMOS are introduced

State-of-the-art 50 nm Gate length MOSFET TEM cross section

[3]
