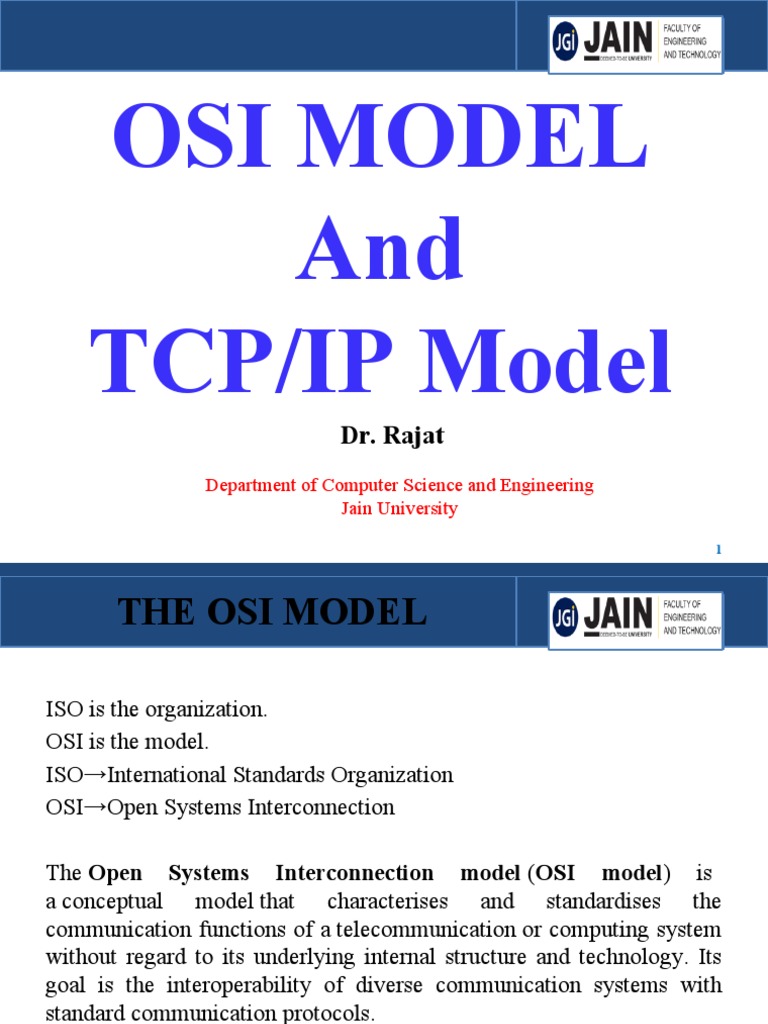

OSI MODEL

And
TCP/IP Model
Dr. Rajat
Department of Computer Science and Engineering
Jain University

1
 THE OSI MODEL

ISO is the organization.

OSI is the model.
ISO→International Standards Organization
OSI→Open Systems Interconnection

The Open Systems Interconnection model (OSI model) is

a conceptual model that characterises and standardises the
communication functions of a telecommunication or computing system
without regard to its underlying internal structure and technology. Its
goal is the interoperability of diverse communication systems with
standard communication protocols.

2
The model partitions the flow of data in a communication system
into seven abstraction layers, from the physical implementation of
transmitting bits across a communications medium to the
highest-level representation of data of a distributed application.
Each intermediate layer serves a class of functionality to the layer
above it and is served by the layer below it.
Classes of functionality are realized in software by
standardized communication protocols.

3
Tasks involved in sending a letter
Seven layers of the OSI model

5
The interaction between layers in the OSI
model

6
An exchange using the OSI model

7
 Physical layer

The physical layer is responsible for movements of individual bits from one
hop (node) to the next.

8
 Data link layer

The data link layer is responsible for moving frames from one hop (node) to
the next.

9
Hop-to-hop delivery

10
 Network layer

The network layer is responsible for the

delivery of individual packets from the source host to the destination host.

11
Source-to-destination delivery

12
 Transport layer

The transport layer is responsible for the delivery of a message from one
process to another.

13
Reliable process-to-process delivery of a message

14
 Session layer

The session layer is responsible for dialog control and synchronization.

Managing communication sessions, i.e., continuous exchange of
information in the form of multiple back-and-forth transmissions
between two nodes

15
 Presentation layer

The presentation layer is responsible for translation, compression, and

encryption.

16
 Application layer

The application layer is responsible for providing services to the

user. High-level APIs, including resource sharing, remote file access

17
Summary of layers

18
The TCP/IP Reference Model

• The TCP/IP reference model.

TCP/IP PROTOCOL SUITE

The layers in the TCP/IP protocol suite do not exactly match

those in the OSI model.
The original TCP/IP protocol suite was defined as having four
layers: host-to-network, internet, transport, and application.
However, when TCP/IP is compared to OSI, we can say that
the TCP/IP protocol suite is made of five layers: physical, data
link, network, transport, and application.

20
TCP/IP and OSI model

21
Addresses in the TCP/IP protocol suite

22
COMPARISON OF OSI AND TCP/IP
MODEL

One of the major difference is that OSI is a conceptual model which is not
practically used for communication, whereas, TCP/IP is used for
establishing a connection and communicating through the network.
The OSI model mainly emphasis on the services, interfaces and protocols;
make a clear distinction between these concepts. Conversely, the TCP
model is not able to distinctly describe these concepts.
Furthermore, the TCP/IP enables only connectionless communication mode
in the network layer but both modes (Connectionless and
connection-oriented) in the transport layer. When it comes to the OSI
model, it supports connectionless and connection-oriented communication
over the network layer but in the transport layer, connection-oriented
communication is merely allowed.

23
TCP/IP model is developed by Department of Defence, whereas OSI
model was developed by ISO.
Four layers in TCP/IP whereas seven layers in OSI model.

24
