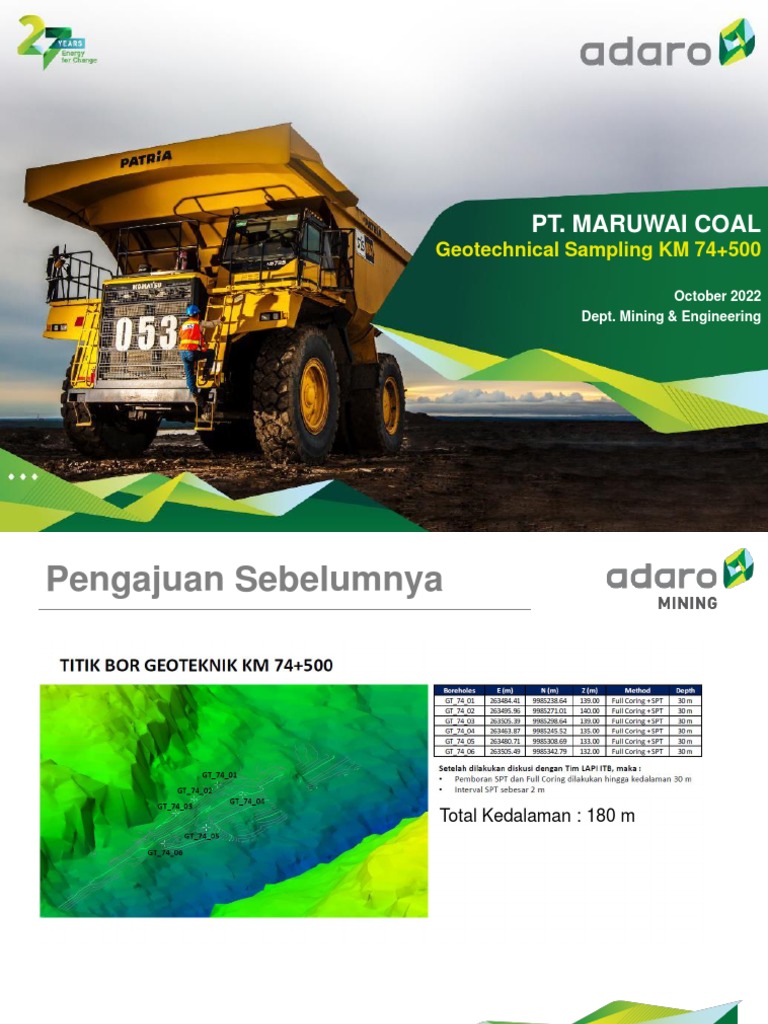

PT.

MARUWAI COAL
Geotechnical Sampling KM 74+500

October 2022
Dept. Mining & Engineering
Pengajuan Sebelumnya

Total Kedalaman : 180 m

2
Pengajuan Update
No. Boreholes E (m) N (m) Z (m) Method Depth (m)
1 GT_74_01 263484 9985239 139 Full Coring + SPT 20
2 GT_74_02 263495 9985271 140 Full Coring + SPT 20
3 GT_74_03 263505 9985298 139 Full Coring + SPT 20
4 GT_74_04 263463 9985245 135 Full Coring + SPT 20
5 GT_74_05 263480 9985308 133 Full Coring + SPT 20
6 GT_74_06 263505 9985342 132 Full Coring + SPT 20
7 GT_65_01 265281 9978432 100 Full Coring + SPT 20
8 GT_65_02 265237 9978501 99 Full Coring + SPT 20
9 GT_55_01 264550 9968813 113 Full Coring + SPT 20
Total Depth 180

• Total kedalaman tetap sama, 180 m

• Titik bor berada di 3 lokasi, yaitu : KM 74, 65, dan 55
• Sample bor berupa tanah dan batuan

3
Soil & Rock Investigation
• Hasil pemboran geoteknik di KM 74+500 bertujuan untuk mendapatkan :
• Material timbunan existing (Data SPT, Coring, dan Data Lab)
• Soil (Data SPT, Coring, dan Data Lab)
• Material Batuan Original (Coring dan Data Lab)
• Kedua ujung sampel ditutup menggunakan melamin/lilin (menjaga kadar air)
• Pengendalian terhadap aspek safety mengingat lokasi bor berada di jalan hauling
aktif.

4
Boreholes Points – KM 74+500
Boreholes E (m) N (m) Z (m) Method
GT_74_01 263484.41 9985238.64 139.00 Full Coring + SPT
GT_74_02 263495.96 9985271.01 140.00 Full Coring + SPT
GT_74_03 263505.39 9985298.64 139.00 Full Coring + SPT
GT_74_04 263463.87 9985245.52 135.00 Full Coring + SPT
GT_74_05 263480.71 9985308.69 133.00 Full Coring + SPT
GT_74_06 263505.49 9985342.79 132.00 Full Coring + SPT

GT-03
Note :
• 6 titik lokasi soil investigation dengan
total kedalaman 20 m.
GT-02

GT-01

5
SPT & Coring Predict
GT 06
• 1 m Coring (Fill Material)
GT-06 • 0.45 m SPT (Fill Material)
• 1 m Coring (Fill Material)
2.1 m Fill Material • 0.45 m SPT (Soil)
• 1 m Coring (Soil / Original)
• 0.45 SPT (Orig / Original)
• dst

GT 05
GT-03 • 1.5 m Coring (Fill Material)
3.2 m Fill Material • 0.45 m SPT (Fill Material)
• 1 m Coring (Fill Material)
GT-05 • 0.45 m SPT (Soil)
• 1 m Coring (Soil / Original)
2.5 m Fill Material • 0.45 SPT (Soil / Original)
• dst
GT 03
• 2 m Coring (Fill Material)
• 0.45 m SPT (Fill Material)
• 1 m Coring (Fill Material)
• 0.45 m SPT (Soil)
• 1 m Coring (Soil / Original)
• 0.45 SPT (Soil / Original)
• dst

6
SPT & Coring Predict
GT 02
• 2 m Coring (Fill Material)
GT-02
• 0.45 m SPT (Fill Material)
4.5 m • 2.5 m Coring (Fill Material)
• 0.45 m SPT (Soil)
• 1 m Coring (Soil / Original)
• 0.45 SPT (Soil / Original)
• dst

GT 04 GT 01
GT-01 • 1.5 m Coring (Fill Material) • 2 m Coring (Fill Material)
• 0.45 m SPT (Fill Material) • 0.45 m SPT (Fill Material)
GT-04 5.5 m • 1.5 m Coring (Fill Material) • 2 m Coring (Fill Material)
• 0.45 m SPT (Soil) • 0.45 m SPT (Fill Material)
3m
• 1 m Coring (Soil / Original) • 1 m Coring (Fill Material)
• 0.45 SPT (Soil / Original) • 0.45 m SPT (Soil)
• dst • 1 m Coring (Soil / Original)
• 0.45 SPT (Soil / Original)
• dst

7
Drilling Log – Soil Investigation
Deksripsi Soil :
1. Nama soil, dengan komposisi utama
menggunakan huruf kapital, (contoh :
Sandy CLAY)
2. Plastisitas untuk cohessive soil (Clay atau
Silt)
3. Ukuran butir dan bentuk butir untuk non
cohesive soil (sand dan gravel)
4. Secondary Composition (berupa plastisitas
/ukuran butir dan bentuk butir)
5. Gradasi (Well Graded atau Poorly Graded)
untuk sand dan gravel
6. Warna
7. Minor soil components (carbon/quartz/iron
stained, etc)
8. Moisture Content
9. Strength menggunakan pocket
penetrometer per 30 cm
10. Additional Observation

8
Drilling Log – Rock Logging

9
Description of Rock Logging

Note :
• Jika terdapat trace atau laminated dicatat pada
range meter berapa ke berapa
10
Weathering Condition & Strength

11
Defect Description

Note :
• Setiap joint di catat terdapat pada m ke berapa dan di
sketsa posisi, jenis, tipe
12
Defect Description

32 cm 45 cm 50 cm Trace of Coal dst

J, P, S J, W, S J, C, R 10 cm

13
Fracture Frequency

Note :
• Sesuai tutorial yang terlampir oleh tim
explorasi

14
Soil Lab Testing
No Soil Lab Testing
1 Moisture Content
2 LL, PL, PI
3 Bulk Density
4 Specific Gravity
5 Particle size distribution (coarse-fines)
6 1-D Consolidation
7 Triaxial UU
8 Triaxial CU
Total : 8 Testing

Note :
Untuk soil lab testing pada lapisan fill material
pada KM 55+000 hanya dilakukan Triaxial UU,
Triaxial CU, 1-D Consolidation, dan Bulk
Density

15
Rock Lab Testing
No Rock Lab Testing
1 Bulk Density
2 Moisture Content
3 UCS
4 PLI
Total : 4 Testing

16
Resume Soil & Rock Testing
Sample Lab Testing Distribution
Area Layer Type Testing Amount
Fill Material Soil Testing 8
KM 74+500 Soil Soil Testing 8
Base Rock Rock Testing 4
Fill Material Soil Testing 4
KM 55+000 Soil Soil Testing 8
Base Rock - -
KM 65+000 Rock Rock Testing 4
Grand Total 36
