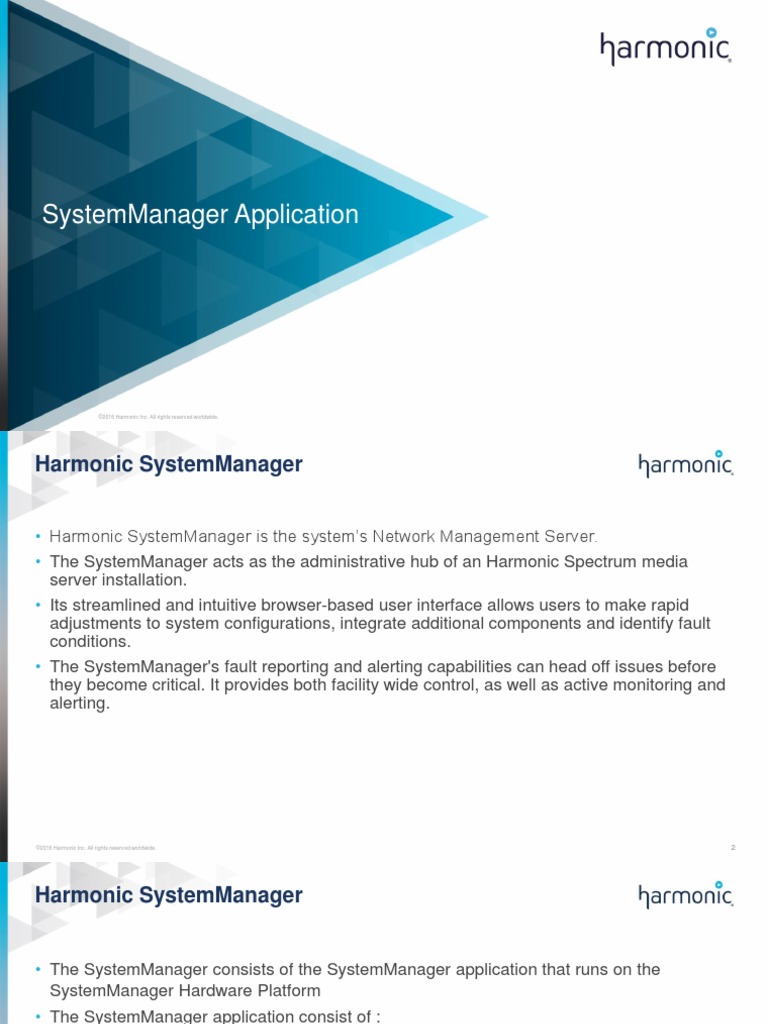

SystemManager Application

©2016 Harmonic Inc. All rights reserved worldwide.

Harmonic SystemManager

• Harmonic SystemManager is the system’s Network Management Server.

• The SystemManager acts as the administrative hub of an Harmonic Spectrum media
server installation.
• Its streamlined and intuitive browser-based user interface allows users to make rapid
adjustments to system configurations, integrate additional components and identify fault
conditions.
• The SystemManager's fault reporting and alerting capabilities can head off issues before
they become critical. It provides both facility wide control, as well as active monitoring and
alerting.

©2016 Harmonic Inc. All rights reserved worldwide. 2

Harmonic SystemManager

• The SystemManager consists of the SystemManager application that runs on the

SystemManager Hardware Platform
• The SystemManager application consist of :
– Background application that communicates with MediaDirectors/ ContentDirector over Ethernet
– Web server that provides a user interface for configuring, monitoring and upgrading MediaGrid and
Harmonic video server
• The SystemManager Hardware Platform

©2016 Harmonic Inc. All rights reserved worldwide. 3

Harmonic SystemManager

• Beginning from SystemManager v5.4 onwards, a license is required to run

SystemManager application
• Licensing is via FlexLM
• 6 Key Services used by SystemManager PC for Harmonic:
– Harmonic/FlexLM License Manager
– Harmonic SystemManager
– Portmap
– SNMP Service
– NTP services (optional)
– vDHCP services (optional)

©2016 Harmonic Inc. All rights reserved worldwide. 4

Harmonic SystemManager

• SystemManager maintains a database file called “manager.oda” in

“D:\Omneon\manager\omdb\” folder
• The database file contains the details of the hardware components managed by the
SystemManager as well as a copy of the Spectrum configuration settings.

©2016 Harmonic Inc. All rights reserved worldwide. 5

Accessing SystemManager GUI

Two ways:
• On SystemManager PC, launch Internet Explorer URL
– http://localhost or http://x.x.x.x where x.x.x.x is the IP address of the SystemManager PC
• On other Windows PC on the network, launch Internet Explorer URL
– http://x.x.x.x where x.x.x.x is the IP address of the SystemManager PC

©2016 Harmonic Inc. All rights reserved worldwide. 6

Accessing SystemManager GUI

• At the login screen, click “Log In”

• Enter login credential:

– Username = administrator
– Password = omneon

©2016 Harmonic Inc. All rights reserved worldwide. 7

5 Main Sections in SystemManager

©2016 Harmonic Inc. All rights reserved worldwide. 8

Configuration page choose MediaGrid

• Select the “Servers and Switches” to see MediaGrid components and status

©2016 Harmonic Inc. All rights reserved worldwide. 9

Configuration page choose MediaGrid

• For the SystemManager have the correct status display, need to configure for the
“Access Control” with the filesystem login credential (omneon/usm)

©2016 Harmonic Inc. All rights reserved worldwide. 10

Go into individual equipment to see its status

• By Click on the equipment link

©2016 Harmonic Inc. All rights reserved worldwide. 11

Check cluster information as well

• Click on Cluster name.

©2016 Harmonic Inc. All rights reserved worldwide. 12

Most or all component can be wink

• Winking the LED.

©2016 Harmonic Inc. All rights reserved worldwide. 13

See SystemManager User Manual for detail

• Please refer to the SystemManager User manual.

©2016 Harmonic Inc. All rights reserved worldwide. 14
