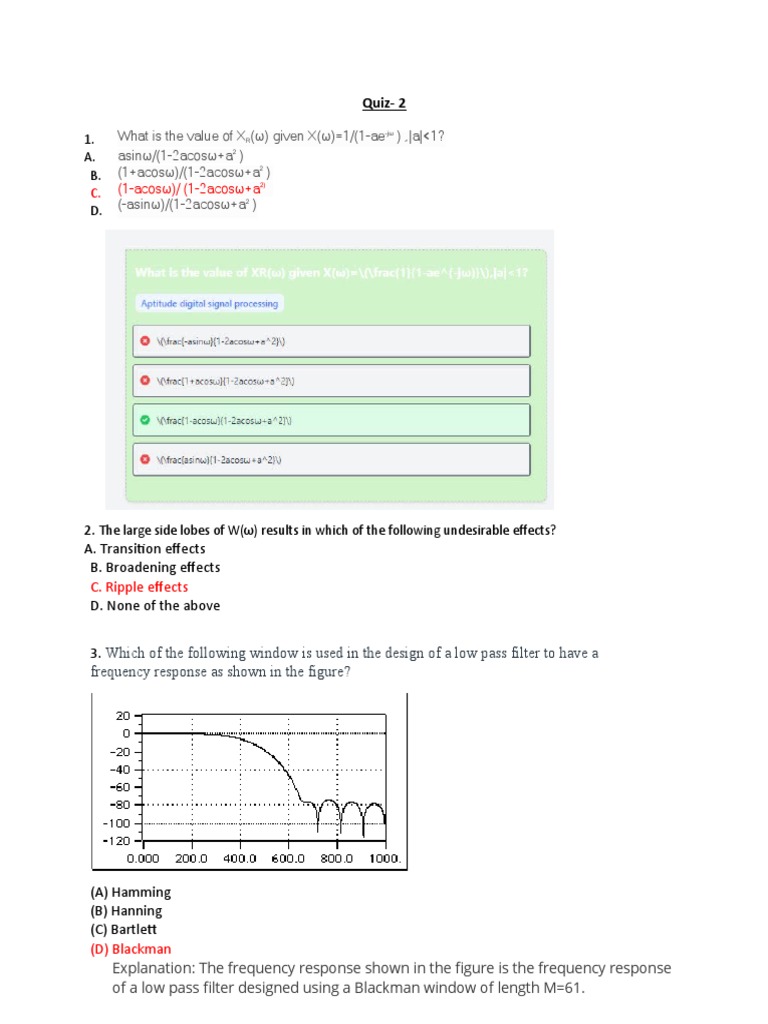

Quiz- 2

1. What is the value of XR(ω) given X(ω)=1/(1-ae-jω ) ,|a|<1?

A. asinω/(1-2acosω+a2 )
B. (1+acosω)/(1-2acosω+a2 )
C. (1-acosω)/ (1-2acosω+a2)
D. (-asinω)/(1-2acosω+a2 )

2. The large side lobes of W(ω) results in which of the following undesirable effects?
A. Transition effects
B. Broadening effects
C. Ripple effects
D. None of the above

3. Which of the following window is used in the design of a low pass filter to have a
frequency response as shown in the figure?

(A) Hamming
(B) Hanning
(C) Bartlett
(D) Blackman
Explanation: The frequency response shown in the figure is the frequency response
of a low pass filter designed using a Blackman window of length M=61.
4. Where does the maximum value of auto-correlation function of a signal occur?
(A) At origin
(B) At extremities
(C) At unity
(D) At infinity

5. With an increase in the value of M, the transition width:

(A) Do not vary
(B) Does not depend on value of M
(C) Increases
(D) Decreases
 6. What is the magnitude response |W(ω)| of a rectangular window function?
A.

B.

C.

D. None of the mentioned

Explanation: We know that for a rectangular window
W(ω)=∑M−1n=0w(n)e−jωn=e−jω(M−1)/2sin(ωM2)sin(ω2)
Thus the window function has a magnitude response
|W(ω)|=|sin(ωM/2)||sin(ω/2)|

7. Coefficient symmetry is important in FIR filters because it provides

A. a smaller transition bandwidth
B. less passband ripple
C. less stopband ripple
D. a linear phase response

8. Which of the following window is smoothly approach zero at both ends?

A. Rectangular window
B. Hanning window
C. Hamming window
D. Bartlett window

9. A system convolves each input sample with these coefficients: -0.25, -0.25, 1.0, 0.25, and
0.25. This must be a
A. low-pass filter
B. high-pass filter
C. band-pass filter
D. band-stop filter

10. If a linear phase filter has a phase response of 40 degrees at 200 Hz, what will its phase response at
a frequency of 400 Hz (assuming that both frequencies are in the passband of the filter)?
A. 35 degrees
B. 40 degrees
C. 45 degrees
D. 80 degrees
 Assignment- 2

Consider a design of type II linear phase band pass FIR filter. The edge frequencies are (0.1𝜋, 0.2
𝜋, 0.7𝜋, 0.8 𝜋). The peak stop band ripple value is 0.001.

Provide following information:

11. The suitable window function is .

(Note: Write your answer in integer: 1. Rectangular, 2. Bartlett, 3. Hamming, 4. Hanning, 5.

Blackman)

12. The length of unit impulse response is .

(Note: Write your answer in integer: for e.g. 89, 40 etc.)

13. The co-efficient h(55) is .

(Note: Write your answer in real number with two digits after decimal point only; or e.g. 2.00,
0.00, -0.43 etc. Use rounding operation)

14. The The co-efficient h(110) is .

(Note: Write your answer in real number with two digits after decimal point only; or e.g. 2.00,
0.00, -0.43 etc. Use rounding operation)

15. Number of zeros in the system transfer function of filter are .

(Note: Write your answer in integer: for e.g. 45, 70 etc.)

 Problem Solving- 2

Determine impulse response of a filter with the frequency response:

H(ω) = e|ω| for -𝜋 ≤ ω ≤ 𝜋.

Provide following information:

16. The filter co-efficient h(0) is .

(Note: Write your answer in real number with two digits only; for e.g. 12.22, 5.20, -10.02 etc.,
Use rounding operation)

17. The filter co-efficient h(1) is .

(Note: Write your answer in real number with two digits only; for e.g. 12.22, 5.20, -10.02 etc.,
Use rounding operation)

18. The filter is .

(Note: Write your answer in integer: 1: FIR, 2: IIR and stable, 3: IIR and unstable, 4: can’t say)

19. The nature of filter is like .

(Note: Write your answer in integer: 1: low pass filter, 2: high pass filter, 3: band pass filter, 4:
band stop filter)

20. The filter provides highest gain at positive frequency of radian/sample.

(Note: Write your answer in real number with two digits after decimal point only; or e.g. 2.00,
0.50, 0.43 etc. Use rounding operation)
