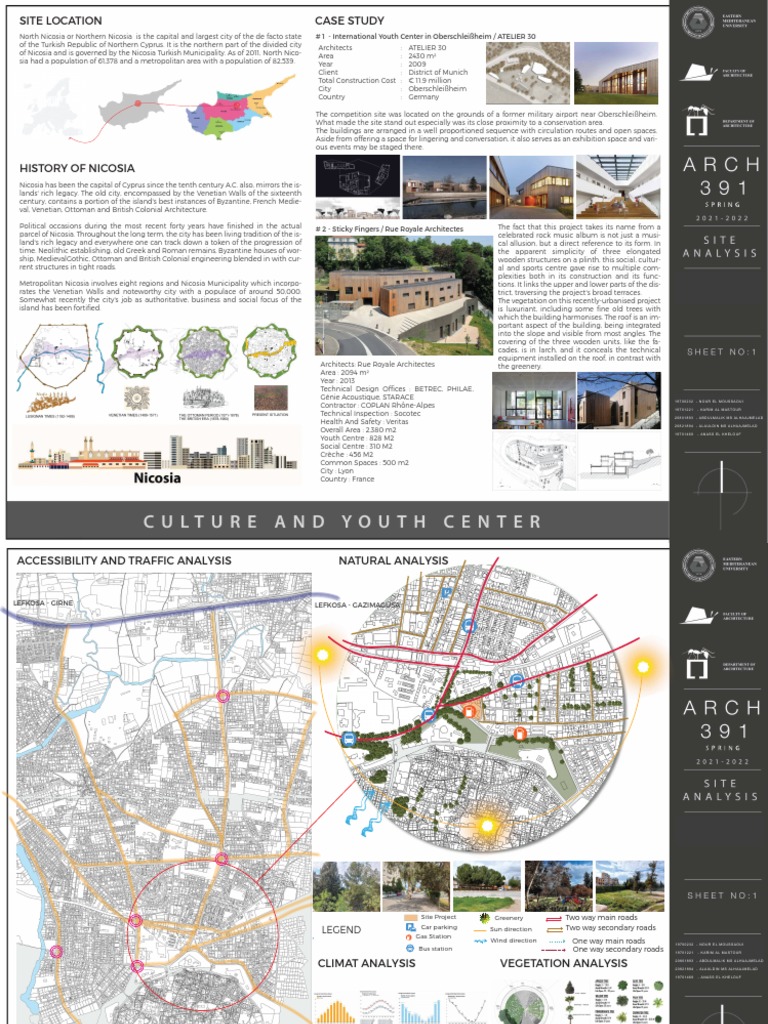

SITE LOCATION CASE STUDY

North Nicosia or Northern Nicosia is the capital and largest city of the de facto state # 1 - International Youth Center in Oberschleißheim / ATELIER 30
of the Turkish Republic of Northern Cyprus. It is the northern part of the divided city Architects : ATELIER 30
of Nicosia and is governed by the Nicosia Turkish Municipality. As of 2011, North Nico- Area : 2430 m²
sia had a population of 61,378 and a metropolitan area with a population of 82,539. Year : 2009
Client : District of Munich
Total Construction Cost : € 11.9 million
City : Oberschleißheim
Country : Germany

The competition site was located on the grounds of a former military airport near Oberschleißheim.
What made the site stand out especially was its close proximity to a conservation area.
The buildings are arranged in a well proportioned sequence with circulation routes and open spaces.
Aside from offering a space for lingering and conversation, it also serves as an exhibition space and vari-
ous events may be staged there.

HISTORY OF NICOSIA
Nicosia has been the capital of Cyprus since the tenth century A.C. also, mirrors the is-
lands' rich legacy. The old city, encompassed by the Venetian Walls of the sixteenth
century, contains a portion of the island's best instances of Byzantine, French Medie-
val, Venetian, Ottoman and British Colonial Architecture.

Political occasions during the most recent forty years have finished in the actual # 2 - Sticky Fingers / Rue Royale Architectes
parcel of Nicosia. Throughout the long term, the city has been living tradition of the is-
land's rich legacy and everywhere one can track down a token of the progression of
time. Neolithic establishing, old Greek and Roman remains, Byzantine houses of wor-
ship, MedievalGothic, Ottoman and British Colonial engineering blended in with cur-
rent structures in tight roads.
Metropolitan Nicosia involves eight regions and Nicosia Municipality which incorpo-
rates the Venetian Walls and noteworthy city with a populace of around 50,000.
Somewhat recently the city's job as authoritative, business and social focus of the
island has been fortified.
Architects: Rue Royale Architectes
Area : 2094 m²
Year : 2013
Technical Design Offices : BETREC, PHILAE,
Génie Acoustique, STARACE
Contractor : COPLAN Rhône-Alpes
Technical Inspection : Socotec
Health And Safety : Veritas
Overall Area : 2,380 m2
Youth Centre : 828 M2
Social Centre : 310 M2
Crèche : 456 M2
Common Spaces : 500 m2
City : Lyon
Country : France
The fact that this project takes its name from a
celebrated rock music album is not just a musi-
cal allusion, but a direct reference to its form. In
the apparent simplicity of three elongated
wooden structures on a plinth, this social, cultur-
al and sports centre gave rise to multiple com-
plexities both in its construction and its func-
tions. It links the upper and lower parts of the dis-
trict, traversing the project's broad terraces.
The vegetation on this recently-urbanised project
is luxuriant, including some fine old trees with
which the building harmonises. The roof is an im-
portant aspect of the building, being integrated
into the slope and visible from most angles. The
covering of the three wooden units, like the fa-
cades, is in larch, and it conceals the technical
equipment installed on the roof, in contrast with
the greenery.
19700232 - NOUR EL MOUSSAOUI
19701221 - KARIM AL MASTOUR
20801893 - ABDULMALIK MS ALHAAJMELAD
20821894 - ALAULDIN MS ALHAAJMELAD
19701469 - ANASS EL KHELOUF
ACCESSIBILITY AND TRAFFIC ANALYSIS NATURAL ANALYSIS

LEFKOSA - GIRNE LEFKOSA - GAZIMAGUSA

Site Project Greenery Two way main roads

LEGEND Car parking Sun direction Two way secondary roads
Gas Station
Wind direction One way main roads 19700232 - NOUR EL MOUSSAOUI
Bus station One way secondary roads 19701221 - KARIM AL MASTOUR

CLIMAT ANALYSIS VEGETATION ANALYSIS 20801893 - ABDULMALIK MS ALHAAJMELAD

20821894 - ALAULDIN MS ALHAAJMELAD

19701469 - ANASS EL KHELOUF

URBAN STRUCTURE - URBAN FORM ANALYSIS

C
B
F

E
D

SECTION A
RESIDENTIAL BUILDING

S I T E LO C AT I O N

19700232 - NOUR EL MOUSSAOUI

19701221 - KARIM AL MASTOUR

20801893 - ABDULMALIK MS ALHAAJMELAD

SECTION B SECTION C SECTION D SECTION E SECTION F 20821894 - ALAULDIN MS ALHAAJMELAD

19701469 - ANASS EL KHELOUF

O L D C I T Y WA L L

S I T E LO C AT I O N F O OT B A L L F I E L D
LEGIBILITY AND PREAMIBILITY
Legibility: the legibility of the area has 3 main sections , the old city which is very hard to
read since its an organic map layout, while the Yenişehir district is very uniform and
planned out, on the other hand Çağlayan district has very vague planning and hard to
read.
Permeability: permeability in Çağlayan district and strictly around the sight is very hard
to navigate and missing basic aspects of pedestrian access.
TOWNSCAPE
Visual environment: the monumental hierarchy of the buildings maintains clear juxtaposition be-
tween different types of buildings, where the old city is clearly separated from the modern area,
which is also separated from the British era buildings area, which is also clearly separated from the
Ottomans buildings and market area.

O1- focus on interior space as opposed to the outside or facade.

O2 -Arches and pointed arches
O3-Columns
O4-Religious buildings are usually higher and more characterized then other buildings
O5- Domes and semi domes in religious buildings

Küçük kaymaklı

b1-Common aspects are the half balconies supported by S shaped support

b2-And the open courtyards
b3-Chimneys and gable roofs
b4-Fences ( decorative ironwork) also Window wooden openings , and a lot of openings
because of the transportation of glass after the industrial era

Yenişehir
Köşklüçiftlik
Çağlayan

19700232 - NOUR EL MOUSSAOUI

19701221 - KARIM AL MASTOUR

Akkavuk
20801893 - ABDULMALIK MS ALHAAJMELAD

2) Çağlayan District: 20821894 - ALAULDIN MS ALHAAJMELAD

İbrahimpaşa Modern area: 19701469 - ANASS EL KHELOUF

Mahmutpaşa C1-reinforced concrete frames with wall fillings and modern

Abdi Çavuş Yenicami
design
C2 -industrial buildings with metal shed lightweight roofs
Haydarpaşa Old area:
C3 -Arches/ pointed arches
C4 -Columns, and Pitched roofs following the British style
LANDUSE ANALYSIS

19700232 - NOUR EL MOUSSAOUI

19701221 - KARIM AL MASTOUR

20801893 - ABDULMALIK MS ALHAAJMELAD

20821894 - ALAULDIN MS ALHAAJMELAD

19701469 - ANASS EL KHELOUF

LEGEND
Residential Retail O f fi ce Leisure

C o m . s e r v i ce Pub.utility Industry Va ca n t
BUILDING HEIGHTS ANALYSIS

19700232 - NOUR EL MOUSSAOUI

19701221 - KARIM AL MASTOUR

20801893 - ABDULMALIK MS ALHAAJMELAD

20821894 - ALAULDIN MS ALHAAJMELAD

19701469 - ANASS EL KHELOUF

LEGEND

1 S TO R E Y 2 S TO R E Y

3 S TO R E Y 4 S TO R E Y A N D M O R E
LOST SPACE ANALYSIS

19700232 - NOUR EL MOUSSAOUI

19701221 - KARIM AL MASTOUR

20801893 - ABDULMALIK MS ALHAAJMELAD

20821894 - ALAULDIN MS ALHAAJMELAD

19701469 - ANASS EL KHELOUF

LOST SPACES
SITE SURVEY

SWOT ANALYSIS

19700232 - NOUR EL MOUSSAOUI

19701221 - KARIM AL MASTOUR

weakness 20801893 - ABDULMALIK MS ALHAAJMELAD

20821894 - ALAULDIN MS ALHAAJMELAD

19701469 - ANASS EL KHELOUF

strenght
