155

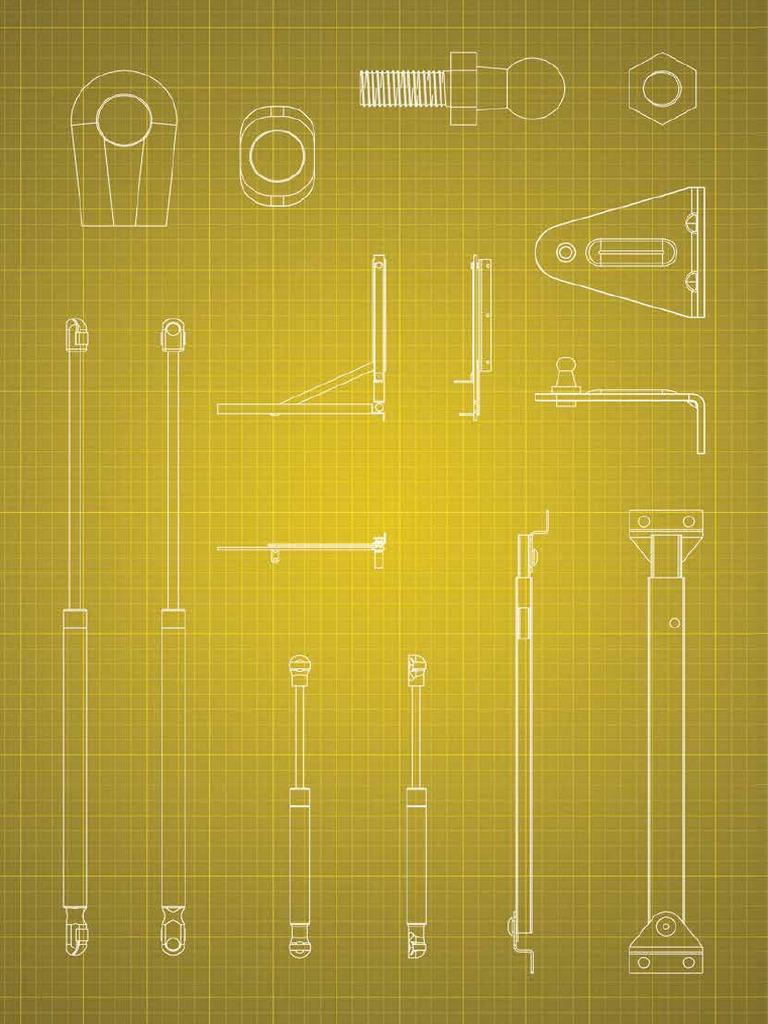

GAS SPRINGS
 156
GAS SPRINGS
 TIPS ON CORRECT
INSTALLATION OF
GAS STRUTS

- Always install after painting, welding etc.

- The gas strut should always be fitted with the piston pointing down.

- Temperature range -30C to +80C

- Use suitable end fittings and angle joints to avoid coupling jamming.

- Gas struts are maintenance free, do not grease or lubricate shaft.

- Install without twisting.

- Avoid lateral forces.

- Protect piston against dirt, paint or damage.

- Output forces will vary approximately 4% for every 10C change in temperature.

C centre of gravity
D moveable pivot
E fixed pivot
H hinge
G weight
L horizontal distance from
centre of gravity to hinge
W effective lever arm of
GAS SPRINGS

gas strut = smallest distance

gas strut = hinge E
F1 force of gas strut

157
Gas Struts
ST400N-145 ST700N-485 L 2
C D
MATERIAL
Steel
FINISH
B A
Corrosion Resistance Coated Black

UES P/N Force F1 L' mm B' mm C' mm D' mm End Fi ngs

ST400N-145 400N 145 40 6 15 Eyelet Ø6.5
ST50N-185 50N 185 60 6 15 Eyelet Ø6.5
ST50N-195 50N 195 60 6 15 B/J 10mm
ST100N-195 100N 195 60 6 15 B/J 10mm
ST200N-195 200N 195 60 6 15 B/J 10mm
ST250N-195 250N 195 60 6 15 B/J 10mm
ST300N-195 300N 195 60 6 15 B/J 10mm
ST400N-195 400N 195 60 6 15 B/J 10mm
ST150N-235 150N 235 80 6 15 B/J 10mm
ST250N-235 250N 235 80 6 15 B/J 10mm
ST150N-305 150N 305 98 8 19 B/J 10mm
ST200N-305 200N 305 98 8 19 B/J 10mm
ST300N-305 300N 305 98 8 19 B/J 10mm
ST100N-315 100N 315 120 6 15 B/J 10mm
ST250N-315 250N 315 120 6 15 B/J 10mm
ST300N-325 300N 325 120 8 19 B/J 10mm
ST400N-325 400N 325 120 8 19 B/J 10mm
ST500N-325 500N 325 120 8 19 B/J 10mm
ST600N-325 600N 325 120 8 19 B/J 10mm
ST800N-325 800N 325 120 8 19 B/J 10mm
ST100N-375 100N 375 150 6 15 B/J 10mm
ST350N-375 350N 375 150 6 15 B/J 10mm
ST250N-380 250N 380 155 6 15 B/J 10mm
ST370N-390 370N 390 150 8 19 B/J 10mm
ST400N-405 400N 405 160 8 19 B/J 10mm
ST130N-431 130N 431 174 8 19 B/J 10mm
ST200N-431 200N 431 174 8 19 B/J 10mm
ST250N-431 250N 431 174 8 19 B/J 10mm
ST300N-431 300N 431 174 8 19 B/J 10mm
ST375N-431 375N 431 174 8 19 B/J 10mm
ST400N-431 400N 431 174 8 19 B/J 10mm
ST550N-440 550N 440 175 8 19 B/J 10mm
ST100N-485 100N 485 200 8 19 B/J 10mm
ST150N-485 150N 485 200 8 19 B/J 10mm
ST200N-485 200N 485 200 8 19 B/J 10mm
GAS SPRINGS

ST250N-485 250N 485 200 8 19 B/J 10mm

ST350N-485 350N 485 200 8 19 B/J 10mm
ST400N-485 400N 485 200 8 19 B/J 10mm
ST500N-485 500N 485 200 8 19 B/J 10mm
ST600N-485 600N 485 200 8 19 B/J 10mm
ST700N-485 700N 485 200 8 19 B/J 10mm

158
 Gas Struts
L 2
ST100N-501 ST450-605 C D

MATERIAL
Steel
B A
FINISH
Corrosion Resistance Coated Black

UES P/N Force F1 L' mm B' mm C' mm D' mm End Fi ngs

ST100N-501 100N 501 200 8 19 B/J 10mm
ST150N-501 150N 501 200 8 19 B/J 10mm
ST200N-501 200N 501 200 8 19 B/J 10mm
ST250N-501 250N 501 200 8 19 B/J 10mm
ST300N-501 300N 501 200 8 19 B/J 10mm
ST350N-501 350N 501 200 8 19 B/J 10mm
ST400N-501 400N 501 200 8 19 B/J 10mm
ST450N-500 450N 501 200 8 19 B/J 10mm
ST500N-501 500N 501 200 8 19 B/J 10mm
ST600N-501 600N 501 200 8 19 B/J 10mm
ST700N-501 700N 501 200 8 19 B/J 10mm
ST800N-498 800N 501 200 8 19 B/J 10mm
ST900N-500 900N 501 200 8 19 B/J 10mm
ST620N-517 620N 517 200 10 22 B/J 13mm
ST680N-517 680N 517 200 10 22 B/J 13mm
ST960N-517 960N 517 200 10 22 B/J 13mm
ST1200N-516 1200N 516 250 10 22 B/J & Eye
ST100N-525 100N 525 220 8 19 B/J 10mm
ST150N-525 150N 525 220 8 19 B/J 10mm
ST200N-525 200N 525 220 8 19 B/J 10mm
ST250N-525 250N 525 220 8 19 B/J 10mm
ST300N-525 300N 525 220 8 19 B/J 10mm
ST350N-525 350N 525 220 8 19 B/J 10mm
ST400N-525 400N 525 220 8 19 B/J 10mm
ST500N-525 500N 525 220 8 19 B/J 10mm
ST600N-525 600N 525 220 8 19 B/J 10mm
ST700N-525 700N 525 220 8 19 B/J 10mm
ST800N-525 800N 525 220 8 19 B/J 10mm
ST900N-525 900N 525 220 8 19 B/J 10mm
ST750N-560 750N 560 225 8 19 B/J 10mm
ST960N-540 960N 560 225 10 22 B/J 10mm
ST280N-565 280N 565 225 10 22 B/J 13mm
ST350N-565 350N 565 225 10 22 B/J 13mm
ST150N-585 150N 585 250 8 19 B/J 10mm
ST200N-585 200N 585 250 8 19 B/J 10mm
ST250N-585 250N 585 250 8 19 B/J 10mm
ST300N-585 300N 585 250 8 19 B/J 10mm
GAS SPRINGS

ST350N-585 350N 585 250 8 19 B/J 10mm

ST400N-585 400N 585 250 8 19 B/J 10mm
ST500N-585 500N 585 250 8 19 B/J 10mm
ST600N-585 600N 585 250 8 19 B/J 10mm
ST700N-585 700N 585 250 8 19 B/J 10mm
ST900N-585 900N 585 250 8 19 B/J 10mm
ST1000N-602 1000N 602 250 10 22 B/J 10mm
ST280N-605 280N 605 250 10 22 B/J 10mm
ST450N-605 450N 605 250 10 22 B/J 10mm

159
Gas Struts
ST300N-610 ST1100N-840
MATERIAL L 2
Steel
C D
FINISH
Corrosion Resistance Coated Black

B A

UES P/N Force F1 L' mm B' mm C' mm D' mm End Fi ngs

ST300N-610 300N 610 250 8 19 B/J 10mm

ST300N-655 300N 655 275 10 22 B/J 10mm

ST700N-655 700N 655 275 10 22 B/J 10mm

ST750N-700 750N 700 300 10 22 Eyelet Ø8.1

ST1200N-700 1200N 700 300 10 22 Eyelet Ø8.1

ST620N-704 620N 704 300 10 22 B/J 10mm

ST1000N-704 1000N 704 300 10 22 B/J 10mm
ST1200N-704 1200N 704 300 10 22 B/J 10mm

ST300N-715 300N 715 300 10 22 B/J 13mm

ST450N-715 450N 715 300 10 22 B/J 13mm
ST700N-715 700N 715 300 10 22 B/J 13mm
ST750N-715 750N 715 300 10 22 B/J 13mm
ST1200N-716 1200N 716 300 10 22 B/J 13mm

ST150N-816 150N 816 350 10 22 B/J 13mm

ST200N-816 200N 816 350 10 22 B/J 13mm
ST300N-816 300N 816 350 10 22 B/J 13mm
ST700N-816 700N 816 350 10 22 B/J 13mm
ST800N-816 800N 816 350 10 22 B/J 13mm
ST900N-816 900N 816 350 10 22 B/J 13mm
ST1000N-816 1000N 816 350 10 22 B/J 13mm
ST1100N-816 1100N 816 350 10 22 B/J 13mm
ST1200N-816 1200N 816 350 10 22 B/J 13mm

ST240N-825 240N 825 350 10 22 B/J 10mm

ST290N-825 290N 825 350 10 22 B/J 10mm
ST435N-825 435N 825 350 10 22 B/J 10mm
ST600N-825 600N 825 350 10 22 B/J 10mm
ST700N-825 700N 825 350 10 22 B/J 10mm
GAS SPRINGS

ST800N-825 800N 825 350 10 22 B/J 10mm

ST1100N-840 1100N 840 350 14 28 B/J 16mm

160
 Gas Struts
46008 45075
MATERIAL L 2
Steel C D
FINISH
Corrosion Resistance Coated Black
B A

UES P/N Force F1 L' mm B' mm C' mm D' mm End Fi ngs

46008 75N 185 68 6 15 B/J 10mm
46010 100N 185 68 6 15 B/J 10mm
46015 100N 305 105 8 18 B/J 10mm
46005 50N 325 120 6 15 B/J 10mm
46017 100N 325 120 6 15 B/J 10mm
46022 150N 325 120 6 15 B/J 10mm
46024 200N 325 120 6 15 B/J 10mm
46031 250N 325 120 6 15 B/J 10mm
46038 300N 325 120 6 15 B/J 10mm
46047 350N 325 120 6 15 B/J 10mm
46000 50N 365 150 6 15 B/J 10mm
46020 100N 535 220 8 18 B/J 10mm
46025 200N 535 220 8 18 B/J 10mm
46035 250N 535 220 8 18 B/J 10mm
46040 300N 535 220 8 18 B/J 10mm
46050 350N 535 220 8 18 B/J 10mm
46060 400N 535 220 8 18 B/J 10mm
46070 450N 535 220 8 18 B/J 10mm
46085 500N 535 220 8 18 B/J 10mm
46093 600N 535 220 8 18 B/J 10mm
46140 300N 595 245 10 21 B/J 13mm
46141 500N 595 245 10 21 B/J 13mm
46142 600N 595 245 10 21 B/J 13mm
46143 800N 595 245 10 21 B/J 13mm
46055 400N 820 350 10 21 B/J 13mm
46080 500N 820 350 10 21 B/J 13mm
46090 600N 820 350 10 21 B/J 13mm
46110 700N 820 350 10 21 B/J 13mm
GAS SPRINGS

46120 800N 820 350 10 21 B/J 13mm

46130 900N 820 350 10 21 B/J 13mm
45075 450N 1105 500 10 21 Eyelet 8.1Ø

161
Gas Struts - Stainless Steel
47010 ST700N-816SS L 2
C D
MATERIAL
Stainless Steel 316

FINISH B A
Polished

UES P/N Force F1 L' mm B' mm C' mm D' mm End Fi ngs

47010 100N 315 125 6 15 B/J 10mm
ST200N-315SS 200N 315 125 6 15 B/J 10mm
ST350N-325SS 350N 325 125 6 15 B/J 10mm

ST200N-525SS 200N 525 220 8 18 B/J 10mm

47050 300N 525 220 8 18 B/J 10mm
47060 400N 525 220 8 18 B/J 10mm
ST600N-525SS 600N 525 220 8 18 B/J 10mm

ST400N-816SS 400N 816 365 10 22 B/J 10mm

ST500N-816SS 500N 816 365 10 22 B/J 10mm
ST600N-816SS 600N 816 365 10 22 B/J 10mm
ST700N-816SS 700N 816 365 10 22 B/J 10mm
47110 900N 816 355 10 22 B/J 10mm

Brackets for Gas Struts

91002
66 54
MATERIAL 4.2
Stainless Steel 54.2 40

6.1
FINISH 12.1
Raw 2.5 26.5

FEATURES
33 x 31 x 48 mm 14.8

10

Brackets for Gas Struts

GAS SPRINGS

91003 66 53.5
MATERIAL 54.2 39.3 4.2

Stainless Steel 10 6.1

FINISH 25
14.7
20 2.5
Raw

162
 Brackets for Gas Struts
91005
MATERIAL
Stainless Steel
11
FINISH 10
Raw

20 2.5

34.4

19

5.6

38
19
50.8
28

Brackets for Gas Struts

91006
MATERIAL
Stainless Steel
50.8 28
FINISH
38 11
Raw
10
5.6

19
22 2.5

7.5
19

Brackets for Gas Struts

GAS SPRINGS

91008 51
5.9
2.5 38
MATERIAL 10.6
Stainless Steel 8.5
10
FINISH 31
Raw

37 1.5

163
End Fittings for Gas Struts
479500, 657735, ST022721
MATERIAL
Steel

FINISH
479500 - ZP
657735 - Chrome
ST022721 - Black

FEATURES
479500 - Ball socket M6
657735 - Security pin
ST022721 - Ball stud

Thread size M8

End Fittings for Gas Struts

020877, 012386, ST022730
MATERIAL
Steel

FINISH
020877 - ZP
012386 - Chrome
072796 - Black

FEATURES
020877 - Ball socket M8
012386 - Security pin
ST022730 - Ball stud

Thread size M8

Eyelet
GAS SPRINGS

630269 10
MATERIAL
Steel
R11
FINISH
ZP

8.1

164
 End Fitting - Gas Struts
630276
MATERIAL
Steel

FINISH
ZP

End Fitting - Gas Struts

698482, 4486MD
MATERIAL
Nylon

FINISH
Black

End Fitting - Gas Struts

552550 17
GAS SPRINGS

MATERIAL
Steel
17

FINISH
ZP

8,1

165
Door Retainer
542104, 543004
MATERIAL
542104 - Steel
543004 - Stainless Steel

FINISH
542104 - ZP
543004 - Raw
FEATURES
Heavy duty door retainer. The door
retainer automatically locks at the
end position. Universal left or right
hand application. Screw-in or weld-
on mounted.

Opening Minimum door

X Y
Angle width in mm

Open Position

GAS SPRINGS

Closed Position

166
 Telescopic Support Stay
7/3099, 7/03098
MATERIAL
Steel

FINISH
ZP

FEATURES
BRACKET
290/495mm 12 300
14.5
7/3099 - Bottom bracket only. 9
7/03089 - 2 Brackets.

300 51
9

35 57

28 9 8.6

Telescopic Support Stay “Safety Catch” Release

7/25621
MATERIAL
Steel

FINISH
ZP

FEATURES
285/470 mm
2 x Brackets

This standard model is representative

GAS SPRINGS

of a family of stays for top-hinged

doors and hatches. The ‘saftey-catch’
design means the stay must be
manually released - a useful
precaution against vibration or
accidental closure.
Features include:
Stay extends as door is opened and
locks in the extended position. The
safety catch must be depressed
manually before it will close.
Clear zinc-plated. To special order,
yellow passivate or black zinc-plated. Closed 285mm
Standard brackets as illustrated for Extended 470mm
plant-on fitting.
Mild steel throughout.

167
Lid Stay w/ Catch RH & LH
S-20R, S-20L
MATERIAL
Steel, Brass, Nylon (Washer)

FINISH
Chrome

WEIGHT
125g

FEATURES
Lid stay with ball catch for light weight
door.
Catch automatically holds lid in opened
position.
Can be installed individually or in pairs.

S-20R: Right Hand

S-20L: Left Hand

GAS SPRINGS

168
