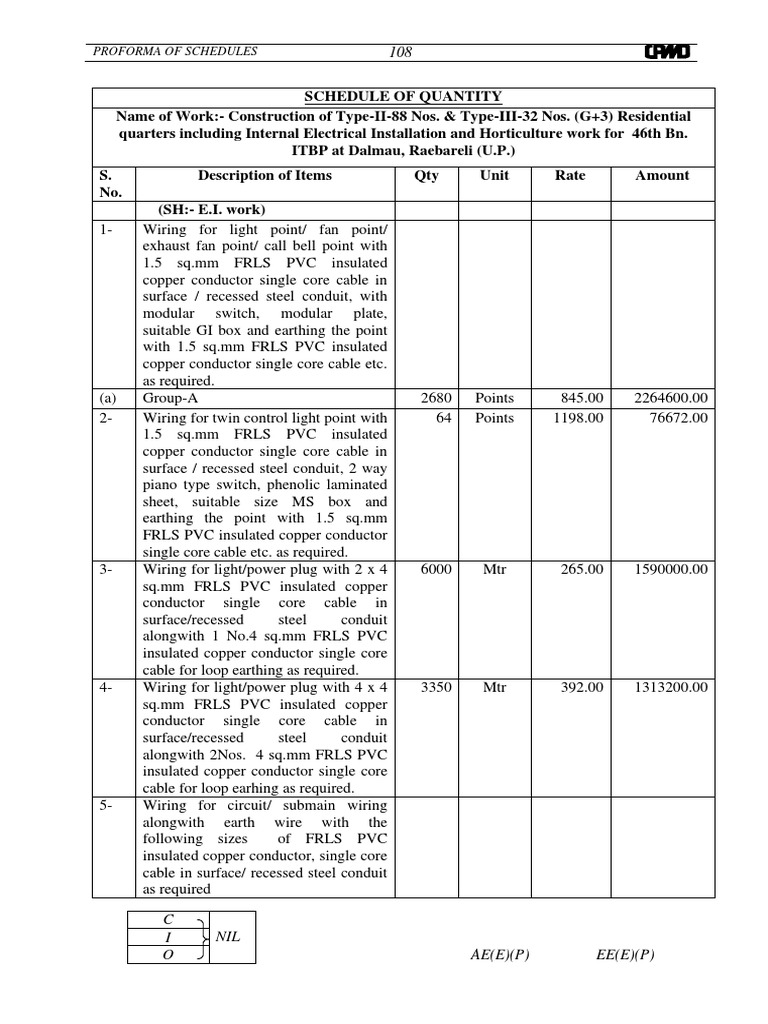

PROFORMA OF SCHEDULES 108

SCHEDULE OF QUANTITY
Name of Work:- Construction of Type-II-88 Nos. & Type-III-32 Nos. (G+3) Residential
quarters including Internal Electrical Installation and Horticulture work for 46th Bn.
ITBP at Dalmau, Raebareli (U.P.)
S. Description of Items Qty Unit Rate Amount
No.
(SH:- E.I. work)
1- Wiring for light point/ fan point/
exhaust fan point/ call bell point with
1.5 sq.mm FRLS PVC insulated
copper conductor single core cable in
surface / recessed steel conduit, with
modular switch, modular plate,
suitable GI box and earthing the point
with 1.5 sq.mm FRLS PVC insulated
copper conductor single core cable etc.
as required.
(a) Group-A 2680 Points 845.00 2264600.00
2- Wiring for twin control light point with 64 Points 1198.00 76672.00
1.5 sq.mm FRLS PVC insulated
copper conductor single core cable in
surface / recessed steel conduit, 2 way
piano type switch, phenolic laminated
sheet, suitable size MS box and
earthing the point with 1.5 sq.mm
FRLS PVC insulated copper conductor
single core cable etc. as required.
3- Wiring for light/power plug with 2 x 4 6000 Mtr 265.00 1590000.00
sq.mm FRLS PVC insulated copper
conductor single core cable in
surface/recessed steel conduit
alongwith 1 No.4 sq.mm FRLS PVC
insulated copper conductor single core
cable for loop earthing as required.
4- Wiring for light/power plug with 4 x 4 3350 Mtr 392.00 1313200.00
sq.mm FRLS PVC insulated copper
conductor single core cable in
surface/recessed steel conduit
alongwith 2Nos. 4 sq.mm FRLS PVC
insulated copper conductor single core
cable for loop earhing as required.
5- Wiring for circuit/ submain wiring
alongwith earth wire with the
following sizes of FRLS PVC
insulated copper conductor, single core
cable in surface/ recessed steel conduit
as required

C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 109

(a) 2 x1.5 sq.mm + 1x1.5 sq.mm earth 6500 Mtr 208.00 1352000.00
wire
(b) 4 x1.5 sq.mm + 2x1.5 sq.mm earth 1000 Mtr 248.00 248000.00
wire
(c) 2 X 6 Sq.mm + 1 x 6 Sq.mm earth wire 2500 Mtr 356.00 890000.00
(d) 4 X 6 sq. mm + 2 X 6 sq. mm earth 1800 Mtr 529.00 952200.00
wire
(e) 2 X 10 Sq.mm + 1 x 6 Sq.mm earth 2000 Mtr 426.00 852000.00
wire
6- Supplying and fixing of following
sizes of steel conduit along with
accessories in surface/recess including
painting in case of surface conduit, or
cutting the wall and making good the
same in case of recessed couduit as
required.
(a) 20 mm dia 1200 Mtr 146.00 175200.00
(b) 25 mm dia 1400 Mtr 165.00 231000.00
7- Supplying and drawing co-axial TV 3300 Mtr 33.00 108900.00
cable RG-6 grade, 0.7 mm solid copper
conductor PE insulated, shielded with
fine tinned copper braid and protected
with PVC sheath in the existing
surface/ recessed steel/ PVC conduit as
required.
8- Supplying and drawing following pair
0.5 mm dia FRLS PVC insulated
annealed copper conductor, unarmored
telephone cable in the existing surface/
recessed steel/ PVC conduit as
required.
(a) 4 Pair 2400 Mtr 29.00 69600.00
9- Supplying and fixing following
modular switch/ socket on the existing
modular plate & switch box including
connections but excluding modular
plate etc. as required.
(a) T.V. antenna socket outlet 360 Each 76.00 27360.00
(b) Telephone socket outlet 120 Each 75.00 9000.00
10- Supplying and fixing following size/
modules, GI box alongwith modular
base & cover plate for modular
switches in recess etc. as required.
(a) 1 or 2 Module (75mmX75mm) 480 Each 243.00 116640.00

C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 110

11- Supplying and fixing suitable size GI 720 Each 401.00 288720.00
box with modular plate and cover in
front on surface or in recess, including
providing and fixing 3 pin 5/6 A
modular socket outlet and 5/6 A
modular switch, connections etc. as
required.
12- Supplying and fixing suitable size GI 960 Each 495.00 475200.00
box with modular plate and cover in
front on surface or in recess, including
providing and fixing 6 pin 5/6 & 15/16
A modular socket outlet and 15/16 A
modular switch, connections etc. as
required.
13- Supplying and fixing suitable size GI 480 Each 685.00 328800.00
box with modular plate and cover in
front on surface or in recess, including
providing and fixing 25 A mini SP
MCB protected 25 Amp AC Modular
socket outlet and suitable rating plug
top combopack on surface or in recess
including connections, painting etc as
required.
14- Supplying and fixing DP sheet steel 8 Each 848.00 6784.00
enclosure on surface/ recess along with
25/32 A 240 V "C" curve DP MCB
complete with connections, testing and
commissioning etc. as required.
15- Supplying and fixing call bell/ buzzer 120 Each 92.00 11040.00
suitable for single phase, 230 V,
complete as required.
16- Supplying and fixing PVC batten/ 328 Each 90.00 29520.00
angle holder including connections etc.
as required.
17- Supply, Installation, testing &
commissioning of surface type batten
LED fitting minimum length 1150mm
with extruded aluminium housing
having following technical
specifications with all accessories
directly on ceiling/wall including
connection with 1.5 sq.mm FRLS PVC
insulated copper conductor single core
cable and earthing etc. as required.
(i) Minimum lumen output 2000 lumen
(ii) System lumen efficacy ≥ 100
Im/Watt
(iii) CCT ≥ 5700, CRI > 80, PF ≥
C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 111

0.95, THD < 10%

(iv) L 70 rated life of 50 K hours
(v) in built surge protection device of 480 Each 828.00 397440.00
minimum 2.5 KV
(vi) LED Make use in fitting :
Osram/Philips/lumiled
/Cree/Nichia/Citizen /Everlight/
Edison)
(Note:-Fitting should be 5 years
Warranty/ Guarantee)
18- Supply, Installation, testing &
commissioning of LED Mirror light
fitting with extruded aluminium
housing having following technical
specifications with all accessories
including connection with 1.5 sq.mm
FRLS PVC insulated copper conductor
single core cable and earthing as
required.
(i) Minimum lumen output 900 lumen
(ii) Luminaires lumen efficacy ≥ 100
Im/Watt
(iii) CCT ≤ 5700, CRI > 80, PF ≥
0.95, THD < 10%
(iv) L 70 rated life of 25 K hours 240 Each 506.00 121440.00
(vi) LED Make use in fitting :
Osram/Philips/lumiled
/Cree/Nichia/Citizen /Everlight/
Edison)
(Note:-Fitting should be 5 years
Warranty/ Guarantee)
19- Supply, Installation, testing &
commissioning of bulk head LED
fitting with extruded aluminium
Body/PDC having following technical
specifications with all accessories
including connection with 1.5 sq.mm
FRLS PVC insulated copper conductor
single core cable and earthing as
required.
(i) Minimum lumen output 600 lumen
(ii) System lumen efficacy ≥ 100
Im/Watt
(iii) CCT ≥ 5700, CRI > 80, PF ≥
0.95, THD < 10%
(iv) L 70 rated life of 50 K hours 232 Each 1532.00 355424.00
C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 112

(v) in built surge protection device of

minimum 2.5 KV.
(vi) LED use in fitting Make:
Osram/Philips/lumiled /Cree/Nichia)
(Note:-Fitting should be 5 years
Warranty/Guarantee)
20- Supply, Installation, testing &
commissioning of surface/recess type
down lighter LED fitting with with
extruded aluminium Body having
following technical specifications with
all accessories including connection
with 1.5 sq.mm FRLS PVC insulated
copper conductor single core cable and
earthing as required.
(i) Minimum lumen output 1200 lumen
(ii) System lumen efficacy ≥ 110
Im/Watt
(iv) CCT ≥ 5700, CRI > 80, PF ≥
0.95, THD < 10%
(v) L 70 rated life of 50 K hours 168 Each 1427.00 239736.00
(vi) in built surge protection device of
minimum 2.5 KV.
(vii) LED use in fitting Make:
Osram/Philips/lumiled /Cree/Nichia)
(Note:-Fitting should be 5 years
Warranty/Guarantee)
21- Supplying & fixing of wall bracket 392 Each 1289.00 505288.00
fittings i/c poly carbonate globe of
150mm dia, of all sizes and shapes but
without lamps complete with all
accessories including connections etc.
as required.

C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 113

22- Supply, Installation, Testing and 392 Each 2688.00 1053696.00

Commissioning of 1200 mm sweep,
BEE 5 star rated, ceiling fan with
Brush Less Direct Current (BLDC)
Motor, class of insulation: B, 3 nos.
blades, 30 cm long down rod, 2 nos.
canopies, shackle kit, safety rope,
copper winding, Power Factor not less
than 0.9, Service Value (CMM/W)
minimum 6.85, Air delivery minimum
215 CMM, 350 RPM (tolerance as per
IS : 374-2019), THD less than 10%,
remote or electronic regulator unit for
speed control and all remaining
accessories including safety pin, nut
bolts, washers, temperature rise=75
degree C (max.), insulation resistance
more than 2 mega ohm, suitable for
230 V, 50 Hz, single phase AC Supply,
earthing etc. complete as required.
23- Supplying, Installation, Testing and 360 Each 3490.00 1256400.00
Commissioning of single phase
300mm Sweep, 1400/1440 RPM heavy
duty propeller type exhaust fan for
operation on 220-240 V, 50Hz, AC
electricity, in the existing opening
including making good the damages
and connection with 1.5 sqmm FRLS
PVC insulated copper wire including
providing & fixing of louver shutter
complete as required.
24- Supplying and fixing following way,
single pole and neutral, sheet steel,
MCB distribution board, 240 V, on
surface/ recess, complete with tinned
copper bus bar, neutral bus bar, earth
bar, din bar, interconnections, powder
painted including earthing etc. as
required. (But without
MCB/RCCB/Isolator)
(a) 16 way, Double door 120 Each 2453.00 294360.00
25- Supplying and fixing 5 Amps to 32
Amps rating 240 volts 'B' Series
miniature circuit breaker for lighting
and other loads of following poles in
the existing MCB DB complete with
connections, testing and
commissioning etc as reqd.

C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 114

(a) Single pole 1680 Each 199.00 334320.00

(b) Double pole 120 Each 556.00 66720.00
26- Providing, laying and fixing following
dia G.I. pipe (medium class) in ground
complete with G.I. fittings including
trenching (75 cm deep) and re-filling
etc. as required
(a) 150 mm dia 48 Mtr 1687.00 80976.00
27- Supplying and laying of following size
DWC HDPE pipe ISI marked along
with all accessories like socket, bend,
couplers etc. conforming to IS 14930,
Part II complete with fitting and
cutting, jointing etc. direct in ground
(75 cm below ground level) including
excavation and refilling the trench but
excluding sand cushioning and
protective covering etc., complete as
required.
a) 90 mm dia (OD-90 mm & ID-76 mm 300.00 Mtr. 249.00 74700.00
nominal)
b) 200 mm dia (OD-200 mm & ID-175 4000.00 Mtr. 598.00 2392000.00
mm nominal)
28- Earthing with G.I. earth pipe 4.5 metre 20 Each 5308.00 106160.00
long, 40 mm dia including accessories,
and providing masonry enclosure with
cover plate having locking
arrangement and watering pipe etc.
with charcoal/ coke and salt as
required.
29- Earthing with G.I. earth plate 600 mm 12 Set 6216.00 74592.00
X 600 mm X 6 mm thick including
accessories, and providing masonry
enclosure with cover plate having
locking arrangement and watering pipe
of 2.7 metre long etc. with charcoal/
coke and salt as required.
30- Providing and fixing 25 mm X 5 mm 20 Mtr. 483.00 9660.00
G.I. strip in 40 mm dia G.I. pipe from
earth electrode including connection
with G.I. nut, bolt, spring, washer
excavation and re-filling etc. as
required.
31- Providing and fixing 6 SWG dia G.I 240 Mtr. 37.00 8880.00
wire on surface or in recess for loop
earthing along with existing
surface/recessed conduit/ cables etc. as

C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 115

required.
32- Providing and fixing G.I. tape 20 mm 1400 Mtr. 104.00 145600.00
X 3 mm thick on parapet or surface of
wall for lightning conductor complete
as required.(For horizontal run)
33- Providing and fixing G.I. tape 20 mm 500 Mtr. 163.00 81500.00
X 3 mm thick on parapet or surface of
wall for lightning conductor complete
as required.(For vertical run)
34- Providing and fixing of lightning 16 Each 448.00 7168.00
conductor finial, made of 25 mm dia
300 mm long, G.I. tube, having single
prong at top, with 85 mm dia 6 mm
thick G.I. base plate including holes
etc. complete as required.
35- Jointing copper / G.I. tape (with 32 Each 93.00 2976.00
another copper/ G I tape, base of the
finial or any other metallic object) by
riveting / nut bolting/ sweating and
soldering etc as required.
36- Providing and fixing testing joint, 16 Each 102.00 1632.00
made of 20 mm X 3 mm thick G.I.
strip, 125 mm long, with 4 nos. of G.I.
bolts, nuts, chuck nuts and spring
washers etc. complete as required.
37- Providing and laying G.I. tape 32 mm 120 Mtr. 176.00 21120.00
X 6 mm from earth electrode directly
in ground as required.
38- Fabrication, supply, installation testing
& commissioning of compartment
based cubical outdoor feeder pilar
double panel double door fabricated
with 2 mm thick (14 gauge)
CRCA/MS Sheet having 4 strip
vertical Aluminium busbar of suitable
length, cable alley on both side with
gland plate at bottom with rain shade,
complete on angle iron (Size 50mm x
50mm x 6mm) framed structure ,
suitable size to accommodate the
following switch Gears, MCCBs with
Rotary handles, danger notice plate,
Connections/ interconnections,
earthing, numbering, painting etc. as
required with digital voltmeter,
Ammeter with selector switch, LED
pilot lamps with toggle switch, making
C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 116

foundation for errection, complete as

reqd. (Face area not less than 1.25
Sq.Mtr. & Depth not less than 450
mm). As per drawing approved by
Engineer-In-Charge.
A- Feeder Pillar
(i) 400 Amp FP MCCB 36 KA - 1 No.
(ii) Bus Bar- Al. Bus bar 4-strip 1000 Amp
each
(iii) RYB LED phase indicator - 3 Nos.
Outgoing:-
(i) 100 Amps. 3 Pole MCCB 16 KA - 2
Nos.
(ii) 63 Amps. 3 Pole MCCB 16 KA - 8
Nos.
(iii) 63 Amps. TP MCB 10 KA 'C' Curve -
3 Nos.
(iv) 32 Amps. SP MCB 10 KA 'C' Curve - 2 Set 133044.00 266088.00
6 Nos.
(Note:- All the MCCBs shall be of
Ics=100%Icu & Thermal magnetic
type)
39- Fabrication, supply, installation testing
& commissioning of compartment
based cubical outdoor busbar feeder
pilar double panel double door
fabricated with 2 mm thick (14 gauge)
CRCA/MS Sheet having 4 strip
Aluminium busbar of suitable length,
gland plate at bottom / side with rain
shade, complete on angle iron (Size
50mm x 50mm x 6mm) framed
structure , suitable size to accomodate
the busbar of size 1000 Amp. and
making foundation for errection,
complete as reqd. (Face area not less
than 0.45 Sq.Mtr. & Depth not less
than 450 mm). As per drawing
approved by Engineer-In-Charge
A- Busbar Feeder Pillar
(i) Bus Bar- Al. Bus bar 4-strip 1000 Amp 6 Set 7240.00 43440.00
each

C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 117

40- Supplying Installation, testing and

commissioning of totally enclosed
compartmentalised front operated
cubical type wall/floor mounted meter
board fabricated from 2mm thick M.S.
sheet for mounting of following
mounting / switch gears, and with
suitable window cover with 2 mm
thick clear acrylic sheet for meter
reading including interconnections
with suitable size of copper wire
complete with locking arrangement,
earthing studs, painting, connections,
interconnections with suitable size
FRLS wire including supplying and
fixing following accessories etc as
reqd. but bus bar chambers and meter
compartment shall be lockable
independently. ((Face area not less
than 1.30 Sq.Mtr. & Depth Not less
than 300 mm depth) As per drawing
approved by Engineer-In-Charge
(a) 125 Amps.16 KA 4 pole MCCB -
1 No.
(b) 63 Amps. 10 KA DP MCB 'C'
curve-8 Nos.
(c) 4 strip 150 A.PVC sleeved
Aluminium bus bar-1 set.
(d) 6 Amps. SP MCB 10 KA 'C' Curve
-1 No.
(e) 12 way 100 Amp neutral link-1
No.
(f) 12 way 100 Amp earth link-1 No.
(g) Electronic type energy meter (5A. 16 Set 51291.00 820656.00
To 30 A.) single phase with mounting
arrangment by providing 6 mm
Bakelite sheet i/c clear acrylic sheet
2mm thick in front of meter and each
compartment should be lockable- 8
Nos.
(Note:- All the MCCBs shall be of
Ics=100%Icu & Thermal magnetic
type)

C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 118

41- Supplying and Erection of 6 mtrs. 15 Nos. 21829.00 327435.00

Long GI Octagonal Pole with top dia
130mm, bottom dia 70mm, company
fabricated with 3mm thick GI sheet
and base plate of size 200mm x200mm
x12mm G.I. sheet i/c 4 nos. foundation
bolts of size 20mm dia of suitable
length, RCC foundation of size as per
standard drawing of manufacturer, 2
nos. 750mm long 50mm dia B class GI
protection pipe in each foundation to
accomodate connection cable, bakelite
sheet with 1 no. 6 amp SP MCB inbuilt
within pole, Galvanised iron Single
arm bracket 1 mtr. long one side
provided at top i/c wiring of pole with
3x2.5 Sqmm FRLS PVC insulated
copper conductor wire, testing etc as
required.
42- Suplying & fixing of LED street light 15 Nos. 8812.00 132180.00
fitting in pressure die cast aluminium
body with glass/PC cover, minimum
5500lm., colour temperature-
5700/6500K, IP66 protection, System
Efficacy (lm/W)- 100, operating
voltage 140-270 Volts, PF>0.95, Life
50000hrs(at L70) complete with
inbuilt driver, accessories fixing on
existing GI pole i/c making connection
with 1.5 sq mm FRLS PVC insulated
copper conductor single core cable and
earthing, testing etc as reqd.
43- Constructing brick masonry chamber 50 Each 8206.00 410300.00
120x120x100 cm (inside) with bricks
in cement mortar 1:4 (1 cement : 4
coarse sand) including cement plaster
1:4 with floating coat neat cement
punning and angle iron frame made out
of 40 x 40 x 6mm thick including
cover made out of angle iron of size 35
x 35 x 5mm.

C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 119

44- Supplying and laying of following

sizes one number Aluminium XLPE
insulated, PVC outer sheathed,
armoured with galvanized round steel
wire or steel strip cables with stranded
aluminium conductor suitable for rated
voltage 1.1 KV grade, ISI marked
conferming to IS:7098 / (Pt.I) / 1988
with ammendment no. 1, in the
existing masonry open
duct/loose/connection etc. as required.
a) 3½ X 240 sq. mm 50.00 Mtr. 1030.00 51500.00
b) 3½ X 35 sq. mm 60.00 Mtr. 216.00 12960.00
c) 4 X 16 sq. mm 150.00 Mtr. 167.00 25050.00
45- Supplying and laying of following
sizes one number Aluminium XLPE
insulated, PVC outer sheathed,
armoured with galvanized round steel
wire or steel strip cables with stranded
aluminium conductor suitable for rated
voltage 1.1 KV grade, ISI marked
conferming to IS:7098 / (Pt.I) / 1988
with ammendment no. 1, On wall
surface etc. as required.
a) 3½ X 50 sq. mm 60.00 Mtr. 353.00 21180.00
46- Supplying and laying of following
sizes one number Aluminium XLPE
insulated, PVC outer sheathed,
armoured with galvanized round steel
wire or steel strip cables with stranded
aluminium conductor suitable for rated
voltage 1.1 KV grade, ISI marked
conferming to IS:7098 / (Pt.I) / 1988
with ammendment no. 1, in the
existing RCC/ HUME/ METAL pipe
as required.
a) 3½ X 50 sq. mm 250.00 Mtr. 296.00 74000.00
b) 3½ X 240 sq. mm 3850.00 Mtr. 1046.00 4027100.00
c) 4 X 16 sq. mm 300.00 Mtr. 175.00 52500.00
47- Supplying and making end termination
with brass compression gland and
aluminium lugs for following size of
PVC insulated and PVC sheathed /
XLPE aluminium conductor cable of
1.1 KV grade as required.
a) 4 X 16 sq. mm (28mm) 4.00 Each 250.00 1000.00
b) 3½ X 50 sq. mm (35mm) 16.00 Each 329.00 5264.00
C
I NIL
O AE(E)(P) EE(E)(P)
PROFORMA OF SCHEDULES 120

c) 3½ X 35 sq. mm (32mm) 16.00 Each 300.00 4800.00

d) 3½ X 240 sq. mm (62mm) 16.00 Each 809.00 12944.00
Total Rs. 25336621.00

C
I NIL
O AE(E)(P) EE(E)(P)
