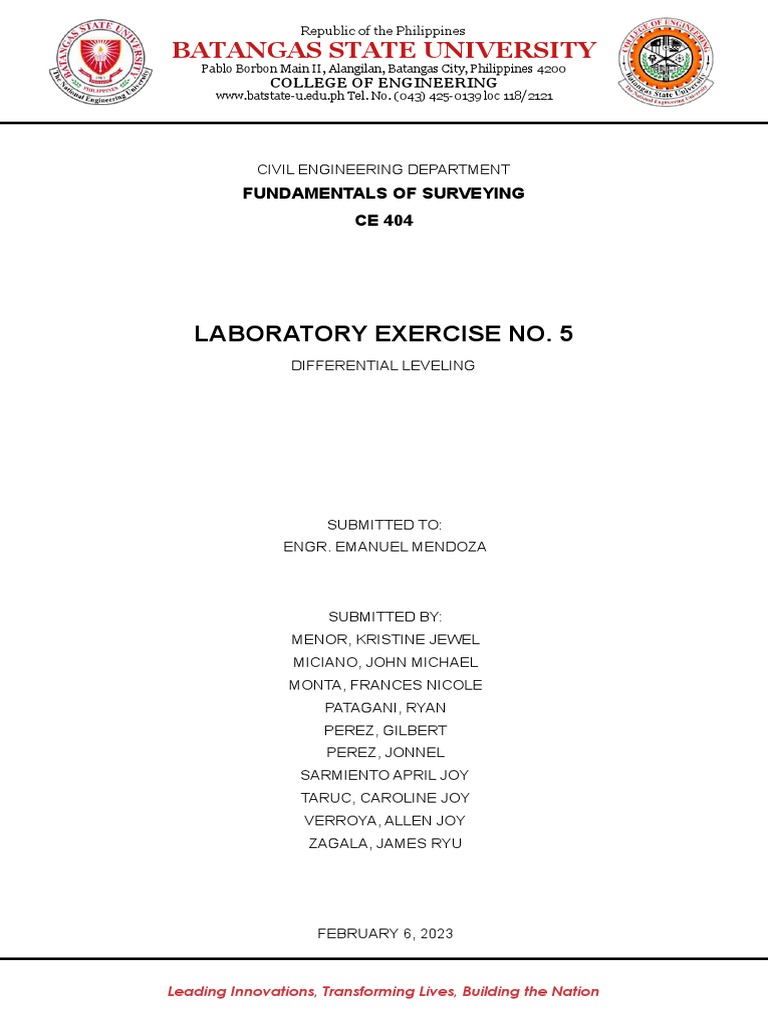

Republic of the Philippines

BATANGAS STATE UNIVERSITY

Pablo Borbon Main II, Alangilan, Batangas City, Philippines 4200
COLLEGE OF ENGINEERING
www.batstate-u.edu.ph Tel. No. (043) 425-0139 loc 118/2121

CIVIL ENGINEERING DEPARTMENT

FUNDAMENTALS OF SURVEYING
CE 404

LABORATORY EXERCISE NO. 5

DIFFERENTIAL LEVELING

SUBMITTED TO:
ENGR. EMANUEL MENDOZA

SUBMITTED BY:
MENOR, KRISTINE JEWEL
MICIANO, JOHN MICHAEL
MONTA, FRANCES NICOLE
PATAGANI, RYAN
PEREZ, GILBERT
PEREZ, JONNEL
SARMIENTO APRIL JOY
TARUC, CAROLINE JOY
VERROYA, ALLEN JOY
ZAGALA, JAMES RYU

FEBRUARY 6, 2023

Leading Innovations, Transforming Lives, Building the Nation

 Republic of the Philippines
BATANGAS STATE UNIVERSITY
Pablo Borbon Main II, Alangilan, Batangas City, Philippines 4200
COLLEGE OF ENGINEERING
www.batstate-u.edu.ph Tel. No. (043) 425-0139 loc 118/2121

NAME: SR-CODE: SECTION:

CE-2203
DATE TIME: WEATHER: GROUP NO:

02 - 27 - 2023 7:00 AM - 1:00 PM WINDY / 28°C GROUP 4

LABORATORY EXERCISE NO. 5

DIFFERENTIAL LEVELING

Leading Innovations, Transforming Lives, Building the Nation

 Republic of the Philippines
BATANGAS STATE UNIVERSITY
Pablo Borbon Main II, Alangilan, Batangas City, Philippines 4200
COLLEGE OF ENGINEERING
www.batstate-u.edu.ph Tel. No. (043) 425-0139 loc 118/2121

Leading Innovations, Transforming Lives, Building the Nation

 Republic of the Philippines
BATANGAS STATE UNIVERSITY
Pablo Borbon Main II, Alangilan, Batangas City, Philippines 4200
COLLEGE OF ENGINEERING
www.batstate-u.edu.ph Tel. No. (043) 425-0139 loc 118/2121

Leading Innovations, Transforming Lives, Building the Nation

 Republic of the Philippines
BATANGAS STATE UNIVERSITY
Pablo Borbon Main II, Alangilan, Batangas City, Philippines 4200
COLLEGE OF ENGINEERING
www.batstate-u.edu.ph Tel. No. (043) 425-0139 loc 118/2121

DOCUMENTATION

Leading Innovations, Transforming Lives, Building the Nation

 Republic of the Philippines
BATANGAS STATE UNIVERSITY
Pablo Borbon Main II, Alangilan, Batangas City, Philippines 4200
COLLEGE OF ENGINEERING
www.batstate-u.edu.ph Tel. No. (043) 425-0139 loc 118/2121

OBJECTIVES:
TO DETERMINE THE ELEVATION OF POINTS BY DIFFERENTIAL LEVELING.

A. INSTRUMENT/ACCESSORIES
● DUMPY OR WYE LEVEL
● LEVELING ROD
● HUBS OR PEGS
● RANGE POLES
● HAMMER OR MALLET
● CHALK

B. DATA
STA BS HI FS ELEV REMARKS
BM1 1.205 100 near flag pole
101.205
TP1 0.32 1.465 99.74 left most side of CEAFA
100.06
TP2 1.2 1.83 98.23 front of FIC
99.43
TP3 1.225 1.66 97.77 right side of RGR
98.995
TP4 1.59 1.02 97.975 front of KIST
99.565
BM2 1.73 97.835 inside KIST
100
CLOSURE ERROR 2.165
ARITHMETIC CHECK
BS FS DIFFERENCE
SUM 5.54 7.705 2.165

C. COMPUTATION
𝐻𝐼 = 𝐸𝑙𝑒𝑣 + 𝐵𝑆 𝐸𝑙𝑒𝑣 = 𝐻𝐼 − 𝐹𝑆
100 + 1. 205 = 101. 205 101. 205 − 1. 465 = 99. 74
99. 74 + 0. 32 = 100. 06 100. 06 − 1. 83 = 98. 23
98. 23 + 1. 2 = 99. 43 99. 43 − 1. 66 = 97. 77
97. 77 + 1. 225 = 98. 995 98. 995 − 1. 02 = 97. 975
97. 975 + 1. 59 = 99. 565 99. 565 − 1. 73 = 97. 835

ARITHMETIC CHECK

𝐶. 𝐸𝑅𝑅𝑂𝑅 = 𝐸𝐿𝐸𝑉𝐵𝑀1 − 𝐸𝐿𝐸𝑉𝐵𝑀2 𝐷𝐼𝐹𝐹𝐸𝑅𝐸𝑁𝐶𝐸 = Σ𝐹𝑆 − Σ𝐵𝑆

100 − 97. 835 = 2. 165 7. 705 − 5. 54 = 2. 165

Leading Innovations, Transforming Lives, Building the Nation

 Republic of the Philippines
BATANGAS STATE UNIVERSITY
Pablo Borbon Main II, Alangilan, Batangas City, Philippines 4200
COLLEGE OF ENGINEERING
www.batstate-u.edu.ph Tel. No. (043) 425-0139 loc 118/2121

D. SKETCH

E. RESULTS (DISCUSSION AND CONCLUSION)

In this laboratory activity, we have realized the use of different instruments

to be able to distinguish different levels of a given specific field. To start this
activity, we plotted 6 stations where we put leveling rods to each of it. In between
2 stations, we measure the level of the ground by using the automatic level
equipment as the eye piece in order to witness the measurement of the elevation
of both the foresight and backsight. With those measurements we had, we have
solved for different values like the height of the instrument and its exact
elevation. On its height, we use the initial value of elevation which is 100 since
elevation values were still unknown. After computing both, we also calculated the
error we might have had in terms of exact measurements. With the resulting
errors, we conclude that the measurements and processes we had were reliable
since the error was exactly the same as the difference of the summations of
foresight and backsight levels.

Leading Innovations, Transforming Lives, Building the Nation
