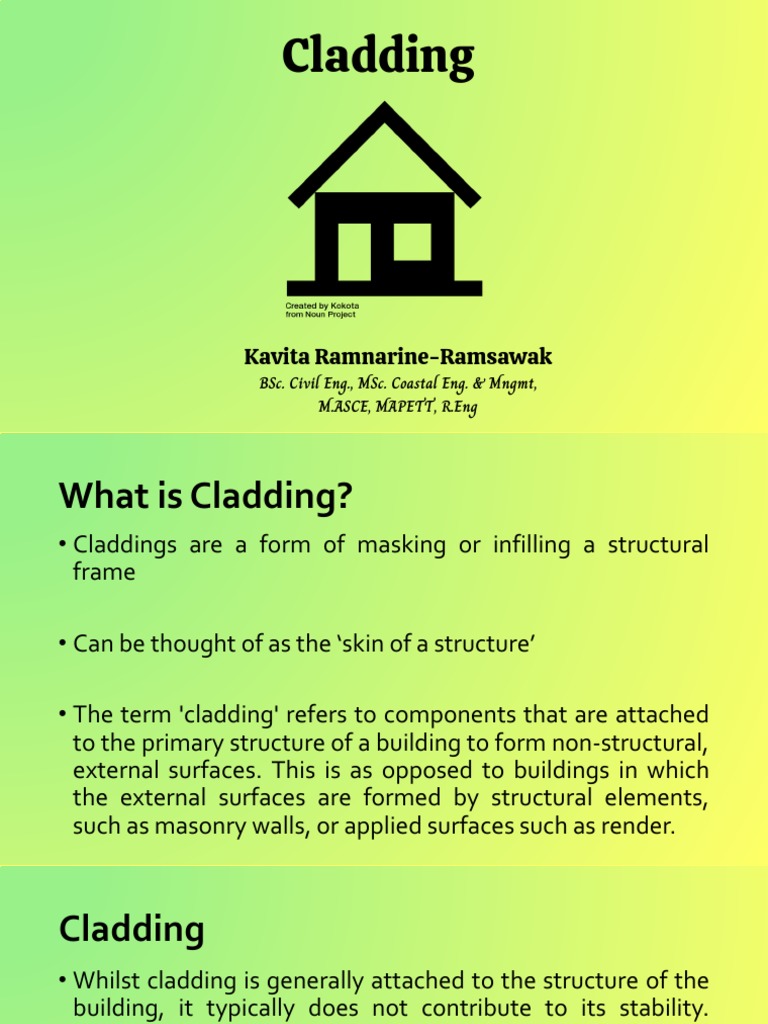

Kavita Ramnarine-Ramsawak BSc. Civil Eng., MSc. Coastal Eng. & Mngmt, M.ASCE, MAPETT, R.Eng What is Cladding? • Claddings are a form of masking or infilling a structural frame
• Can be thought of as the ‘skin of a structure’
• The term 'cladding' refers to components that are attached
to the primary structure of a building to form non-structural, external surfaces. This is as opposed to buildings in which the external surfaces are formed by structural elements, such as masonry walls, or applied surfaces such as render. Cladding • Whilst cladding is generally attached to the structure of the building, it typically does not contribute to its stability. However, cladding does play a structural role, transferring wind loads, impact loads, snow loads and its own self- weight back to the structural framework.
• In particular, wind causes positive and negative pressure on
the surface of buildings and cladding must have sufficient strength and stiffness to resist this load, both in terms of the type of cladding selected and its connections back to the structure. All forms of cladding must fulfill the following functions: • Be self supporting between the framing members • Provide the necessary resistance to rain penetration • Be capable of resisting both positive and negative Functions wind pressures • Provide the necessary resistance to wind of Cladding penetration • Give the required degree of thermal resistance • Provide the required degree of sound insulation to suit the building type • Give the required degree of fire resistance • Provide sufficient openings for the admittance of natural daylight and ventilation • Be constructed to a suitable size Typical Schematic of Cladding Classifications of Cladding • Claddings fixed to a structural backing • Claddings to framed structures Claddings fixed to a structural backing Materials used in this form of cladding are generally considered to be small unit claddings and are applied for one of two reasons: 1. If the structural wall is unable to provide an adequate barrier to the elements, a covering of small unit claddings will generally raise the wall’s resistance to an acceptable level 2. Small unit claddings can be used solely as a decorative feature, possibly to break up the monotony of a large plain area composed of a single material Examples of Materials used • Tiles • Slates • Shingles • Timber boarding • Plastic Boarding • Stone Facings The general method of fixing these small units is to secure them to timber battens fixed to the structure backing Shingles Timber Cladding Stone Facings Claddings to frame structures • The methods available to clad a frame structure are extensive and include panels of masonry constructed between the columns and the beams, light infill panels of metal or timber, precast concrete panels and curtain walling which completely encloses the structure. Curtain Walling Concrete Cladding Panels Typical Details Typical Details Storey Height Cladding Panels Curtain Walling References • Chudley, Roy and Greeno, Roger. (2016) Building Construction Handbook. 11th Edition Routledge
