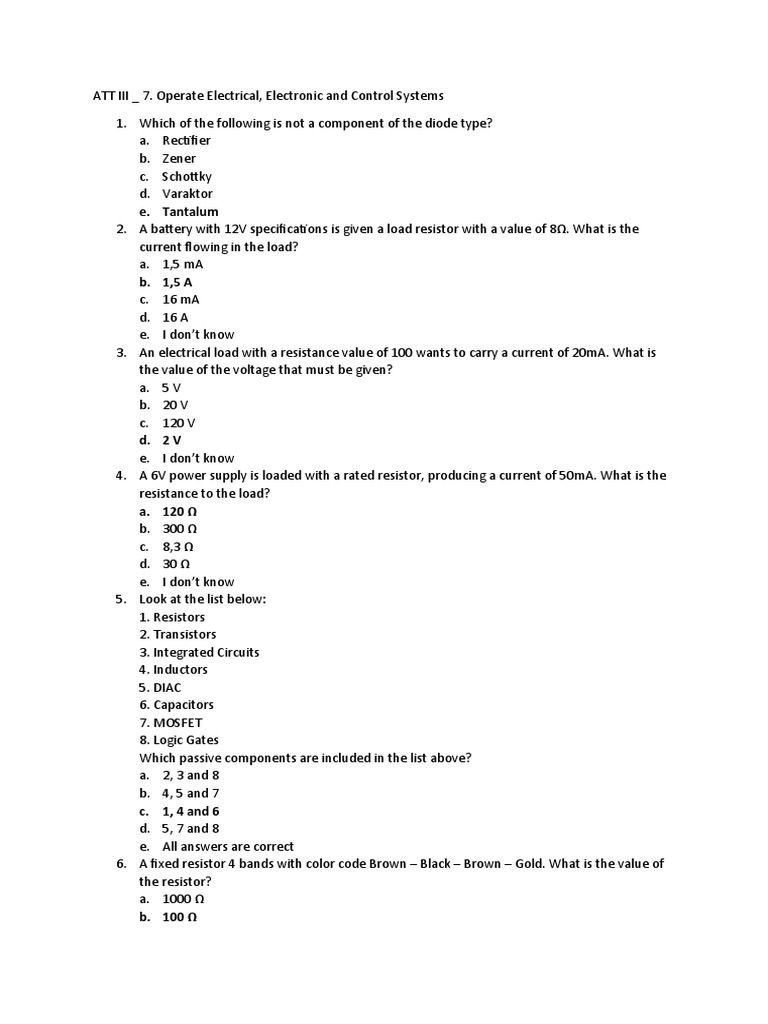

ATT III _ 7.

Operate Electrical, Electronic and Control Systems

1. Which of the following is not a component of the diode type?

a. Rectifier
b. Zener
c. Schottky
d. Varaktor
e. Tantalum
2. A battery with 12V specifications is given a load resistor with a value of 8Ω. What is the
current flowing in the load?
a. 1,5 mA
b. 1,5 A
c. 16 mA
d. 16 A
e. I don’t know
3. An electrical load with a resistance value of 100 wants to carry a current of 20mA. What is
the value of the voltage that must be given?
a. 5 V
b. 20 V
c. 120 V
d. 2 V
e. I don’t know
4. A 6V power supply is loaded with a rated resistor, producing a current of 50mA. What is the
resistance to the load?
a. 120 Ω
b. 300 Ω
c. 8,3 Ω
d. 30 Ω
e. I don’t know
5. Look at the list below:
1. Resistors
2. Transistors
3. Integrated Circuits
4. Inductors
5. DIAC
6. Capacitors
7. MOSFET
8. Logic Gates
Which passive components are included in the list above?
a. 2, 3 and 8
b. 4, 5 and 7
c. 1, 4 and 6
d. 5, 7 and 8
e. All answers are correct
6. A fixed resistor 4 bands with color code Brown – Black – Brown – Gold. What is the value of
the resistor?
a. 1000 Ω
b. 100 Ω
 c. 10 Ω
d. 20 Ω
e. I don’t know
7. A resistor with a value of 1000 has a tolerance of 5%. Then the lowest and highest value of
the resistor is?
a. 0 – 1000 Ω
b. 100 - 1000 Ω
c. 900 – 950 Ω
d. 950 – 1050 Ω
e. I don’t know
8. If there are 2 batteries, with a voltage of 15V connected in series, the total voltage at both
ends of the battery circuit is?
a. 2 V
b. 6 V
c. 8 V
d. 15 V
e. 30 V

9.
The correct arrangement of Gate – Drain – Source terminal pins is indicated by the number ..
a. 1
b. 2
c. 3
d. 4
e. 5
10. What is MOSFET?
a. Metal Oxygen Semiconductor Field Effect Transistor
b. Material Offset Semiconductor Field Effect Transformator
c. Material Of System Field Effect Transistor
d. Magnetic Offset System Factor Of External Transistor
e. Metal Oxide Semiconductor Field Effect Transistor
11. Look at the NPN Transistor Symbol below !

The correct arrangement of the Base-Collector-Emitter terminal pins is shown in the

number?
a. 1
b. 2
 c. 3
d. 4
e. I don’t know
12. Transistor has 3 pin terminals, namely?
a. Base, Collector and Emitter
b. Drain, Source and Gate
c. Gate, Collector and Emitter
d. Base, Drain and Source
e. I don’t know
13. 1. The rate of change of magnetic flux
2. The number of coils
3. The voltage amount
4. The strength of the magnetic field
From the data above, which affects the magnitude of the induced emf is …
a. 1 , 2 and 3
b. 1 and 2 only
c. 2 only
d. 1, 2 and 4
e. I don’t know
14. Because the formula W=V.I.t then P= V.I, and V= I.R, then P =….
a. V x I x t
b. I x R x t
c. I x R
d. V2 x I
e. I2 x R
15. The following are included in the types of capacitors, except ….
a. Copper capacitor
b. Paper capacitor
c. Ceramic capacitor
d. Mica capacitor
e. Polyester capacitor
16. 35. What is the percentage tolerance of the resistor component if it is silver....
a. 20%
b. 15%
c. 10%
d. 5%
e. 1%
17. The resistance value of a capacitor with sequential colors brown, black, green, and gold is ....
a. 10 x 104 Ω 5%
b. 10 x 103 Ω 20%
c. 20 x 104 Ω 10%
d. 20 x 103 Ω 5%
e. 15 x 103 Ω 20%
18. Which of the following is not a statement of an open loop control system?
a. Impossible to obtain on an open loop system
b. More difficult to make
c. Stability is not the main problem
 d. Relatively little power requirements
e. Less stable and less accurate
19. The advantages of the Electric System are, except....
a. Does not require a large space
b. Requires little power
c. Very few moving parts, so wear can be suppressed
d. Slow response
e. I don't know
20. What is meant by Positive Feed Back in the control system is …
a. A system where the regulatory action (input) itself does not depend on the output
(output) of the process.
b. A system where the regulatory action depends on the output
c. An operating activity that tends to increase the difference in the asking price
d. An operating activity that tends to minimize the difference in the asking price
e. I don't know
21. Open Loop Control System has the following characteristics, except ....
a. There is no measurement process
b. The controlled variable does not affect the controlling action
c. More accurate, more stable, expensive
d. Many are based on time or sequence of processes
e. I don't know
22. It is known that there are three capacitors in series-parallel as shown in the figure below. If
C1 = 5 F, C2 = 4 F, C5 = 4 F, then the replacement capacity is …

a. 10/13 μF

b. 20/13 μF

c. 30/13 μF

d. 40/13 μF

e. 50/13 μF

23. Look at the picture below, three identical capacitors, namely P, K and S which are initially
uncharged are connected to a battery. When compared with the magnitude of the electric
 voltage on the capacitors K and S, then the magnitude of the electric voltage on the
capacitor P is...

a. 1/8 time
b. 1/4 time
c. The same size

d. Twice
e. Four times
24. The capacitance of a capacitor is the ratio of the amount of electric charge to the...
a. Capacitor power
b. Capacitor reactance
c. Capacitor current
d. Capacitor capacitance
e. Capacitor voltage
25. Three capacitors are each worth 50 pF, 100 pF and 150 pF, determine the replacement
capacitor if the three capacitors are connected in series and parallel!
a. 27.27 pF and 300 pF
b. 37.27 pF and 300 pF
c. 47.27 pF and 300 pF
d. 57.27 pF and 300 pF
e. 17.27 pF and 300 pF
26. In the electric tool there is a capacitor measuring 300 UF in a damaged state. In order for the
power tool to be good again, the capacitor is replaced with 5 new capacitors which are
arranged in parallel. The five capacitors are the same size. What is the capacity of each of
the new capacitors?
a. 20 UF
b. 40 UF
c. 60 UF
d. 80 UF
e. 100UF
27. Three capacitors have the same capacity, namely C. The three capacitors are installed in
parallel, so the replacement capacitor is...
a. 3C
b. 4C
c. 5C
d. 6C
e. 1/3 C
28. Two capacitors having the same capacity are connected in parallel, what is the capacity of
the circuit?
a. Half the capacitance of each capacitor
 b. 2 and a half times each capacitor
c. 2 times the capacitance of each capacitor
d. Same as 1 capacitor
e. 1 and a half times each capacitor
29. A 450 uf capacitor is charged up to 295 Volts. When a wire is connected to a capacitor, how
much energy is stored by the capacitor?
a. 19.6 Joule
b. 18.6 Joule
c. 17.6 Joule
d. 15.6 Joule
e. 16.6 Joule
30. A capacitor connected to a 2 V battery can store 5 mC of charge. Capacitor capacity is…
a. 2.1×10⁻³ F
b. 2.2×10⁻³ F
c. 2,3×10⁻³ F
d. 2.4×10⁻³ F
e. 2.5×10⁻³ F
31. Look at the Capasitor symbol below !

What type of capacitor is it?

a. Fixed Capasitor
b. Polaroid Capasitor
c. Variable Capasitor
d. Electrolythic Capasitor
e. I don’t know
32. Look at the Capasitor symbol below !

What type of capasitor is it?

a. Fixed Capasitor
b. Polaroid Capasitor
c. Variable Capasitor
d. Electhrolythic Capasitor
e. I don’t know
33. Look at the Capasitor symbol below !

What type of capasitor is it?

a. Fixed Capasitor
b. Polaroid Capasitor
c. Variable Capasitor
d. Electhrolythic Capasitor
e. I don’t know
34. Which electronic component or system of components is this graphical symbol illustrating :

a. Operational Amplifier
b. Electronic Counter
c. Flip flop
d. Cathode ray tube
e. I don’t know
35. Which electronic component or system of components is this graphical symbol illustrating :

a. Operational Amplifier
b. Electronic Counter
c. Flip flop
d. Cathode ray tube
e. I don’t know
36. Which electronic component or system of components is this graphical symbol illustrating :

a. Operational Amplifier
b. Electronic Counter
c. Flip flop
 d. Cathode ray tube
e. I don’t know
37. What type of component does this symbol illustrate?

a. Pressure Transducer
b. Pressure Switch
c. Flow Transducer
d. Linear Transducer
e. I don’t know
38. What type of component does this symbol illustrate?

a. Pressure Transducer
b. Pressure Switch
c. Flow Transducer
d. Linear Transducer
e. I don’t know
39. What type of component does this symbol illustrate?

a. Pressure Transducer
b. Pressure Switch
c. Flow Transducer
d. Linear Transducer
e. I don’t know
40. What type of component does this symbol illustrate?
 a. Pressure Transducer
b. Pressure Switch
c. Flow Transducer
d. Linear Transducer
e. I don’t know
41. Which electronic component is this graphical symbol illustrating :

a. Zener diode
b. Triac
c. Transistor
d. Silicon Controlled Rectifier
e. I don’t know
42. Which electronic component is this graphical symbol illustrating :

a. Zener diode
b. Triac
c. Transistor
d. Silicon Controlled Rectifier
e. I don’t know
43. Which electronic component is this graphical symbol illustrating :

a. Zener diode
b. Triac
c. Transistor
d. Silicon Controlled Rectifier
e. I don’t know
44. Which electronic component is this graphical symbol illustrating :
 a. Zener diode
b. Triac
c. Transistor
d. Silicon Controlled Rectifier
e. I don’t know
45. Electronic components that have a function to amplify direct current (DC) and alternating
current (AC) signal is …
a. Flow Transducer
b. Operational Amplifier
c. Triac
d. Rectifier
e. I don’t know
