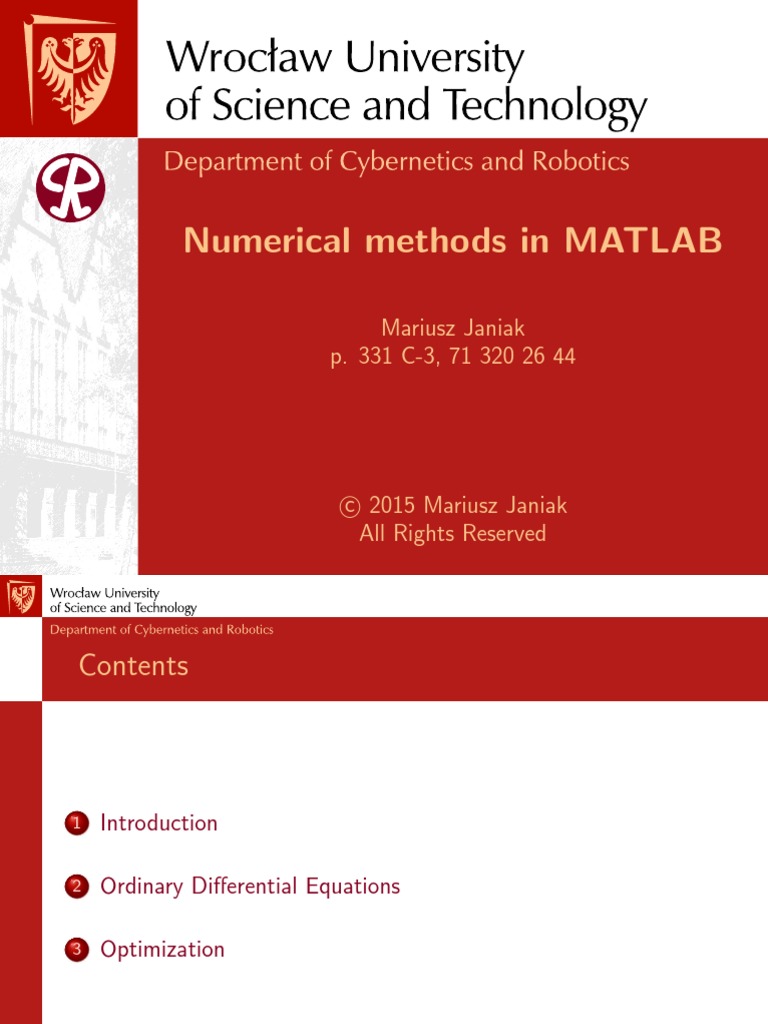

Numerical methods in MATLAB

Mariusz Janiak
p. 331 C-3, 71 320 26 44

c 2015 Mariusz Janiak



All Rights Reserved
Contents

1 Introduction

2 Ordinary Differential Equations

3 Optimization
Introduction

Using numeric approximations to solve continuous problems

Numerical analysis is a branch of mathematics that solves continuous


problems using numeric approximation. It involves designing methods
that give approximate but accurate numeric solutions, which is useful
in cases where the exact solution is impossible or prohibitively
expensive to calculate. Numerical analysis also involves
characterizing the convergence, accuracy, stability, and
computational complexity of these methods.a
a
The MathWorks, Inc.
Introduction

Numerical methods in Matlab


Interpolation, extrapolation, and regression
Differentiation and integration
Linear systems of equations
Eigenvalues and singular values
Ordinary differential equations (ODEs)
Partial differential equations (PDEs)
Optimization
...
Introduction

Numerical Integration and Differential Equations


Ordinary Differential Equations – ordinary differential equation
initial value problem solvers
Boundary Value Problems – boundary value problem solvers for
ordinary differential equations
Delay Differential Equations – delay differential equation initial
value problem solvers
Partial Differential Equations – 1-D Parabolic-elliptic PDEs,
initial-boundary value problem solver
Numerical Integration and Differentiation – quadratures, double
and triple integrals, and multidimensional derivatives
Ordinary Differential Equations

An ordinary differential equation (ODE) contains one or more


derivatives of a dependent variable y with respect to a single
independent variable t, usually referred to as time. The notation
used here for representing derivatives of y with respect to t is y 0
for a first derivative, y 00 for a second derivative, and so on. The
order of the ODE is equal to the highest-order derivative of y
that appears in the equation.
Example
y 00 = 2y
Ordinary Differential Equations

In an Initial Value Problem, the ODE is solved by starting from


an initial state. Using the initial condition y0 as well as a period
of time over which the answer is to be obtained (t0 , tf ), the
solution is obtained iteratively. At each step the solver applies a
particular algorithm to the results of previous steps. At the first
such step, the initial condition provides the necessary
information that allows the integration to proceed. The final
result is that the ODE solver returns a vector of time steps
t=[t0,t1,t2,...,tf] as well as the corresponding solution at
each step y=[y0,y1,y2,...,yf].
Ordinary Differential Equations

Solvers in Matlab solve these types of first-order ODEs (1)


Explicit ODEs of the form

y 0 = f (t, y )

Linearly implicit ODEs of the form

M(t, y )y 0 = f (t, y ),

where M(t, y ) is a nonsingular mass matrix. The mass matrix


can be time- or state-dependent, or it can be a constant matrix.
Linearly implicit ODEs can always be transformed to an explicit
form
y 0 = M −1 (t, y )f (t, y )
Ordinary Differential Equations

Solvers in Matlab solve these types of first-order ODEs (2)


If some components of y 0 are missing, then the equations are
called Differential Algebraic Equations (DAE)

y 0 = f (t, y , z),
0 = g (t, y , z),

and the system of DAEs contains some algebraic variables.


Algebraic variables are dependent variables whose derivatives do
not appear in the equations. The number of derivatives needed
to rewrite a DAE as an ODE is called the differential index
Ordinary Differential Equations

Solvers in Matlab solve these types of first-order ODEs (3)


Fully implicit ODEs of the form

f (t, y , y 0 ) = 0

Fully implicit ODEs cannot be rewritten in an explicit form, and


might also contain some algebraic variables
Systems of ODEs

y10
   
f1 (t, y1 , y2 , . . . , yn )
 0 
y2  f2 (t, y1 , y2 , . . . , yn )

.= .. 
. 
.  .


yn0 fn (t, y1 , y2 , . . . , yn )
Ordinary Differential Equations

Higher-Order ODEs (1)


The Matlab ODE solvers only solve first-order equations
The higher-order ODEs have to be rewritten as an equivalent
system of first-order equations using the generic substitutions
 


y1 = y 

 y10 = y2
y = y0 y 0 = y3

 

 2
 
 2

 

y3 = y 00 =⇒ y 0 = y4
3

.. 
 ..
. .

 


 

 
y = y (n−1)
 y 0 = f (t, y , y , y , . . . , y )

n n 1 2 3 n
Ordinary Differential Equations

Higher-Order ODEs (2)


Example: y 000 − y 00 y + 1 = 0
 
0
y1 = y y1 = y2

 

y = y0
2 =⇒ y0 = y
2 3
 
y = y 00
 y 0 = y y − 1

3 3 1 3
Ordinary Differential Equations

Stiffness
Lack of a precise definition
In general, stiffness occurs when there is a difference in scaling
somewhere in the problem, eg. two solution components that
vary on drastically different time scales
The step size taken by the solver is forced down to an
unreasonably small level in comparison to the interval of
integration, even in a region where the solution curve is smooth.
Nonstiff solvers are unable to solve the problem or are extremely
slow
Stiff solvers reliability and efficiency can be improved by
supplying the Jacobian matrix or its sparsity pattern
Ordinary Differential Equations

Basic Solver Selection


Solver Problem Type Accuracy When to use
ode45 Nonstiff Medium Should be the first solver you try
ode23 Nonstiff Low Can be more efficient than ode45 at problems with crude
tolerances, or in the presence of moderate stiffness
ode113 Nonstiff Low to High Can be more efficient than ode45 at problems with stringent
error tolerances, or when the ODE function is expensive to
evaluate
ode15s Stiff Low to Medium Use when ode45 fails or is inefficient and you suspect that
the problem is stiff. Also use ode15s when solving differential
algebraic equations (DAEs).
ode23s Stiff Low Can be more efficient than ode15s at problems with crude
error tolerances. It can solve some stiff problems for which
ode15s is not effective.
ode23t Stiff Low Use if the problem is only moderately stiff and you need
a solution without numerical damping. Can solve differential
algebraic equations (DAEs)
ode23tb Stiff Low Solver might be more efficient than ode15s at problems with
crude error tolerances
ode15i Fully implicit Low Use for fully implicit problems f (t, y , y 0 ) = 0 and for diffe-
rential algebraic equations (DAEs) of index 1.
Ordinary Differential Equations

Solver ode45 (1)


[ t , y ] = ode45 ( o d e f u n , t s p a n , y0 )
[ t , y ] = ode45 ( o d e f u n , t s p a n , y0 , o p t i o n s )
[ t , y , t e , ye , i e ] = ode45 ( o d e f u n , t s p a n , y0 , o p t i o n s )
s o l = ode45 ( )

Integrates the system of differential equations y 0 = f (t, y ) on


time horizon tspan with initial conditions y0
odefun — Functions to solve, specified as a function handle
which defines the functions to be integrated. The function dydt
= odefun(t,y), for a scalar t and a column vector y, must
return a column vector dydt of data type single or double that
corresponds to f (t, y ). odefun must accept both input
arguments, t and y, even if one of the arguments is not used in
the function
Ordinary Differential Equations

Solver ode45 (2)


tspan – Interval of integration, specified as a vector. At
minimum, tspan must be a two element vector [t0 tf]
specifying the initial and final times. To obtain solutions at
specific times between t0 and tf, use a longer vector of the
form [t0,t1,t2,...,tf]. The elements in tspan must be all
increasing or all decreasing. The solver imposes the initial
conditions, y0, at tspan(1), then integrates from tspan(1) to
tspan(end)
y0 – Initial conditions, specified as a vector. y0 must be the
same length as the vector output of odefun, so that y0
contains an initial condition for each equation defined in odefun
Ordinary Differential Equations

Solver ode45 (3)


options – Option structure, specified as a structure array. Use
the odeset function to create or modify the options structure
t – Evaluation points, returned as a column vector
y – Solutions, returned as an array. Each row in y corresponds to
the solution at the value returned in the corresponding row of t.
te – Time of events, returned as a column vector
ye – Solution at time of events (te), returned as an array
ie – Index of vanishing event function, returned as a column
vector
sol – Structure for evaluation, returned as a structure array.
Use this structure with the deval function to evaluate the
solution at any point in the interval [t0 tf]
Ordinary Differential Equations

ODE Event Location (1)


Use event functions to detect when certain events occur during
the solution of an ODE
Event functions take an expression that user specify, and detect
an event when that expression is equal to zero
They can also signal the ODE solver to halt integration when
they detect an event
Use the ’Events’ option of the odeset function to specify an
event function
Ordinary Differential Equations

ODE Event Location (2)


The event function must have the general form
[ v a l u e , i s t e r m i n a l , d i r e c t i o n ] = myEventsFcn ( t , y )

The output arguments are vectors whose ith element


corresponds to the ith event
value(i) is a mathematical expression describing the ith event.
An event occurs when value(i) is equal to zero
isterminal(i) = 1 if the integration is to terminate when the
ith event occurs. Otherwise, it is 0.
direction(i) = 0 if all zeros are to be located (the default). A
value of +1 locates only zeros where the event function is
increasing, and -1 locates only zeros where the event function is
decreasing. Specify direction = [] to use the default value of 0
for all events.
Ordinary Differential Equations

Unicycle example (1)

Z (q 1 ,q2 )
Y

q3
X


q̇1 = u1 cos q3 ,


q̇ = u sin q3 ,
2 1 t = [0, 2π], q(0) = (0, 0, 0).

q̇ = u ,

3 2

Assuming control u1 = 1, u2 = 0.1 sin t, we are looking for solution

q(t) = ϕq0 ,t (u).


Ordinary Differential Equations

Unicycle example (2)


File unicycle.m
f u n c t i o n Dq = u n i c y c l e ( t , q , u )
% u n i c y c l e ( t , q , u ) −− s y s t e m d e f i n i t i o n
%
% t −− t i m e
% q −− s t a t e v e c t o r
% u −− c o n t r o l

Dq = z e r o s (3 , 1) ;
Dq ( 1 ) = u (1) * cos (q (3) ) ;
Dq ( 2 ) = u (1) * sin (q (3) ) ;
Dq ( 3 ) = u (2) ;
Ordinary Differential Equations

Unicycle example (3)


File sym1.m
% Set symulaiton parameters
q0 = [0 ; 0; 0];
t s p a n = [ 0 2* p i ] ;
u = [1; 0.1];
% Define odefun ans s o l v e
f u n = @( t , y ) ( u n i c y c l e ( t , y , [ 1 , 0 . 1 * s i n ( t ) ] ) ) ;
[ t , q ] = ode45 ( fun , t s p a n , q0 ) ;
% Plot r e z u l t s
f i g u r e ; ax1 = s u b p l o t ( 1 , 2 , 1 ) ; ax2 = s u b p l o t ( 1 , 2 , 2 ) ;
p l o t ( ax1 , q ( : , 1 ) , q ( : , 2 ) )
xlabel ( 'q 1 ') ; ylabel ( 'q 2 ') ;
t i t l e ( ax1 , ' Path ' )
p l o t ( ax2 , t , q )
xlabel ( ' t ' ) ; ylabel ( 'q ' ) ;
t i t l e ( ax2 , ' T r a j e c t o r y ' )
legend ( ' q 1 ' , ' q 2 ' , ' q 3 ' ,2)
Ordinary Differential Equations
Unicycle example (4)
Path Trajectory
0.7 7
q1
q2
q3
0.6 6

0.5 5

0.4 4
q2

q
0.3 3

0.2 2

0.1 1

0 0
0 2 4 6 8 0 2 4 6 8
q1 t
Optimization

Optimization techniques are used to find a set of design parameters,


x = x1 , x2 , ..., xn , that can in some way be defined as optimal. In a
simple case this might be the minimization or maximization of some
system characteristic that is dependent on x. In a more advanced
formulation the objective function, f (x), to be minimized or
maximized, might be subject to constraints in the form of equality
constraints, Gi (x) = 0, (i = 1, ..., me ); inequality constraints,
Gi (x) ¬ 0, (i = me + 1, ..., m); and/or parameter bounds, xl , xu .1

1
MathWorks Inc.
Optimization

A General Problem (GP) description is stated as

min f (x)
x

subject to

Gi (x) = 0 i = 1, . . . , me
Gi (x) ¬ 0 i = me + 1, . . . , m

where x is the vector of length n design parameters, f (x) is the


objective function, which returns a scalar value, and the vector
function G (x) returns a vector of length m containing the values of
the equality and inequality constraints evaluated at x.
Optimization

Optimization Toolbox
Solvers
linear programming (LP)
mixed-integer linear programming (MILP)
quadratic programming (QP)
nonlinear programming (NLP)
constrained linear least squares
nonlinear least squares
nonlinear equations
optimtool – Select solver and optimization options, run
problems
Optimization

Optimization Decision Table


Objective Type
Constraint Type
Linear Quadratic Last Squares Smooth Nonlinear Nonsmooth
mldivide,
n/a (f = const, fminsearch,
None quadprog lsqcurvefit, fminsearch, *
or min = −∞) fminunc
lsqnonlin
lsqcurvefit,
lsqlin, fminbnd,
Bound linprog quadprog fminbnd, *
lsqnonlin, fmincon, fseminf
lsqnonneg
Linear linprog quadprog lsqlin fmincon, fseminf *
General Smooth fmincon fmincon fmincon fmincon, fseminf *
Discrete, with
intlinprog * * * *
Bound or Linear

* means relevant solvers are found in Global Optimization Toolbox


Optimization

fmincon – Nonlinear programming solver (1)


Find minimum of constrained nonlinear multivariable function
Finds the minimum of a problem specified by

min f (x)
x

subject to

c(x) ¬ 0
ceq (x) = 0
A·x ¬b
Aeq · x = beq
lb ¬ x ¬ ub
Optimization

fmincon – Nonlinear programming solver (2)


x = f m i n c o n ( fun , x0 , A , b )
x = f m i n c o n ( fun , x0 , A , b , Aeq , beq )
x = f m i n c o n ( fun , x0 , A , b , Aeq , beq , l b , ub )
x = f m i n c o n ( fun , x0 , A , b , Aeq , beq , l b , ub , n o n l c o n )
x = f m i n c o n ( fun , x0 , A , b , Aeq , beq , l b , ub , n o n l c o n , o p t i o n s )
x = fmincon ( problem )
[ x , f v a l ] = fmincon ( )
[ x , f v a l , e x i t f l a g , output ] = fmincon ( )
[ x , f v a l , e x i t f l a g , o u t p u t , lambda , g ra d , h e s s i a n ] = f m i n c o n ( )

fun – Function to minimize


f u n c t i o n f = myfun ( x )
f = ... % Compute f u n c t i o n v a l u e a t x

x0 – Initial point, specified as a real vector or real array


Optimization

fmincon – Nonlinear programming solver (3)


A – Linear inequality constraints, matrix
b – Linear inequality constraints, vector
Aeq – Linear quality constraints, matrix
beq – Linear equality constraints, vector
lb – Lower bounds, specified as a real vector or real array
ub – Upper bounds, specified as a real vector or real array
nonlcon – Nonlinear constraints, a function handle or name
f u n c t i o n [ c , c e q ] = mycon ( x )
c = ... % Compute n o n l i n e a r i n e q u a l i t i e s at x .
c e q = ... % Compute n o n l i n e a r e q u a l i t i e s at x .

...
Optimization

Example (1)
Find the point where Rosenbrock’s function

f (x) = 100 ∗ (x2 − x1 )2 + (1 − x1 )2

is minimized within a circle centered at [ 13 , 31 ] with radius 1


3
2 2  2
1 1 1

c(x) = x1 − + x2 − −
3 3 3
subject to bound constraints 0 ¬ x1 ¬ 0.5, 0.2 ¬ x2 ¬ 0.8.
File circlecon.m
f u n c t i o n [ c , ceq ] = c i r c l e c o n ( x )
c = ( x ( 1 ) −1/3) ˆ2 + ( x ( 2 ) −1/3) ˆ2 − ( 1 / 3 ) ˆ 2 ;
ceq = [ ] ;
Optimization
Example (2)
File sym2.m
% Define problem
fun = @( x ) 1 0 0 * ( x ( 2 )−x ( 1 ) ˆ 2 ) ˆ2 + (1− x ( 1 ) ) ˆ 2 ;
A = [];
b = [];
Aeq = [];
beq = [];
lb = [0 , 0 . 2 ] ;
ub = [0.5 , 0.8];
x0 = [1/4 , 1/4];
nonlcon = @c i r c l e c o n ;
% Solve
x = f m i n c o n ( fun , x0 , A , b , Aeq , beq , l b , ub , n o n l c o n )

Solution
x =
0.5000 0.2500
The End

Thank you for your kind attention.

You might also like
