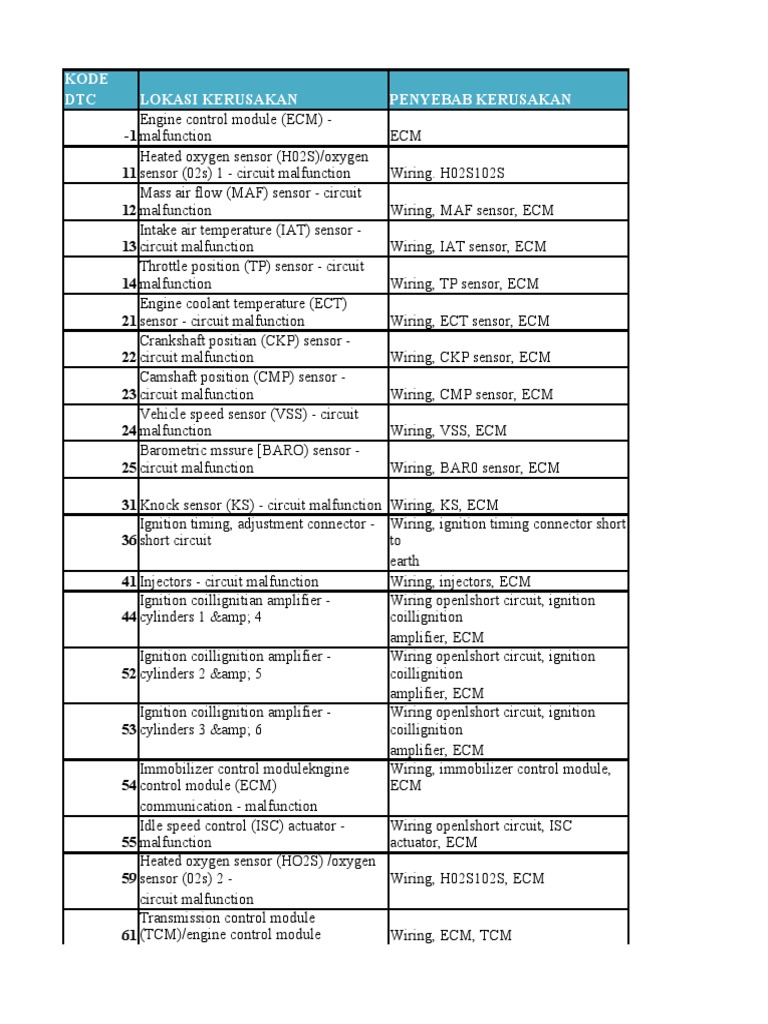

    KODE

    DTC LOKASI KERUSAKAN PENYEBAB KERUSAKAN


    Engine control module (ECM) -
    -1 malfunction ECM
    Heated oxygen sensor (H02S)/oxygen
    11 sensor (02s) 1 - circuit malfunction Wiring. H02S102S
    Mass air flow (MAF) sensor - circuit
    12 malfunction Wiring, MAF sensor, ECM
    Intake air temperature (IAT) sensor -
    13 circuit malfunction Wiring, IAT sensor, ECM
    Throttle position (TP) sensor - circuit
    14 malfunction Wiring, TP sensor, ECM
    Engine coolant temperature (ECT)
    21 sensor - circuit malfunction Wiring, ECT sensor, ECM
    Crankshaft positian (CKP) sensor -
    22 circuit malfunction Wiring, CKP sensor, ECM
    Camshaft position (CMP) sensor -
    23 circuit malfunction Wiring, CMP sensor, ECM
    Vehicle speed sensor (VSS) - circuit
    24 malfunction Wiring, VSS, ECM
    Barometric mssure [BARO) sensor -
    25 circuit malfunction Wiring, BAR0 sensor, ECM

    31 Knock sensor (KS) - circuit malfunction Wiring, KS, ECM


    Ignition timing, adjustment connector - Wiring, ignition timing connector short
    36 short circuit to
    earth
    41 Injectors - circuit malfunction Wiring, injectors, ECM
    Ignition coillignitian amplifier - Wiring openlshort circuit, ignition
    44 cylinders 1 & 4 coillignition
    amplifier, ECM
    Ignition coillignition amplifier - Wiring openlshort circuit, ignition
    52 cylinders 2 & 5 coillignition
    amplifier, ECM
    Ignition coillignition amplifier - Wiring openlshort circuit, ignition
    53 cylinders 3 & 6 coillignition
    amplifier, ECM
    Immobilizer control modulekngine Wiring, immobilizer control module,
    54 control module (ECM) ECM
    communication - malfunction
    Idle speed control (ISC) actuator - Wiring openlshort circuit, ISC
    55 malfunction actuator, ECM
    Heated oxygen sensor (HO2S) /oxygen
    59 sensor (02s) 2 - Wiring, H02S102S, ECM
    circuit malfunction
    Transmission control module
    61 (TCM)/engine control module Wiring, ECM, TCM
    (ECM), torque rtaduction signal
    Intake manifold air control actuator / Wiring, intake manifold air control
    62 position sensor -malfunction actuator / position sensor, ECM
    64 Alternator - circuit malfunction Wiring, alternator, ECM
    Traction control, vacuum solenoid -
    71 malfunction Wiring, vacuum solenoid, ECM
    Traction control, vent wlenoid -
    72 malfucntion Wiring, vent solenoid, ECM
