Economic Geology
Vol. 66, 1971, pp. 43-47

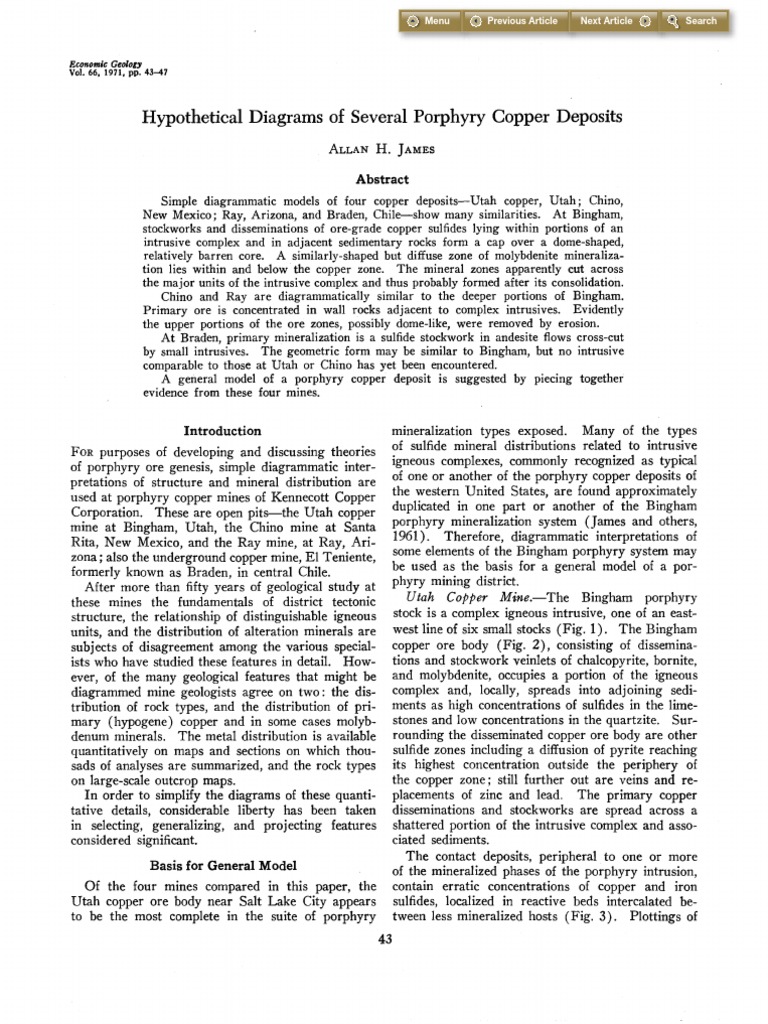

Hypothetical Diagrams of Several Porphyry Copper Deposits

ALLAN H. JAMES

Abstract
Simple diagrammatic models of four copper deposits-Utah copper, Utah; Chino,
New Mexico; Ray, Arizona, and Braden, Chile-show many similarities. At Bingham,
stockworks and disseminations of ore-grade copper sulfides lying within portions of an
intrusive complex and in adjacent sedimentary rocks form a cap over a dome-shaped,
relatively barren core. A similarly-shaped but diffuse zone of molybdenite mineraliza-
tion lies within and below the copper zone. The mineral zones apparently cut across
the major units of the intrusive complex and thus probably formed after its consolidation.
Chino and Ray are diagrammatically similar to the deeper portions of Bingham.
Primary ore is concentrated in wall rocks adjacent to complex intrusives. Evidently
the upper portions of the ore zones, possibly dome-like, were removed by erosion.
At Braden, primary mineralization is a sulfide stockwork in andesite flows cross-cut
by small intrusives. The geometric form may be similar to Bingham, but no intrusive
comparable to those at Utah or Chino has yet been encountered.
A general model of a porphyry copper deposit is suggested by piecing together
evidence from these four mines.

Introduction mineralization types exposed. Many of the types

FOR purposes of developing and discussing theories
of porphyry ore genesis, simple diagrammatic inter-
pretations of structure and mineral distribution are
used at porphyry copper mines of Kennecott Copper
Corporation. These are open pits-the Utah copper
mine at Bingham, Utah, the Chino mine at Santa
Rita, New Mexico, and the Ray mine, at Ray, Ari-
zona; also the underground copper mine, EI Teniente,
formerly known as Braden, in central Chile.
After more than fifty years of geological study at
these mines the fundamentals of district tectonic
structure, the relationship of distinguishable igneous
units, and the distribution of alteration minerals are
subjects of disagreement among the various special-
ists who have studied these features in detail. How-
ever, of the many geological features that might be
diagrammed mine geologists agree on two: the dis-
tribution of rock types, and the distribution of pri-
mary (hypogene) copper and in some cases molyb-
denum minerals. The metal distribution is available
quantitatively on maps and sections on which thou-
sads of analyses are summarized, and the rock types
on large-scale outcrop maps.
In order to simplify the diagrams of these quanti-
tative details, considerable liberty has been taken
in selecting, generalizing, and projecting features
considered significant.
Basis for General Model
Of the four mines compared in this paper, the
Utah copper ore body near Salt Lake City appears
to be the most complete in the suite of porphyry
43
of sulfide mineral distributions related to intrusive
igneous complexes, commonly recognized as typical
of one or another of the porphyry copper deposits of
the western United States, are found approximately
duplicated in one part or another of the Bingham
porphyry mineralization system (James and others,
1961). Therefore, diagrammatic interpretations of
some elements of the Bingham porphyry system may
be used as the basis for a general model of a por-
phyry mining district.
Utah Copper Mine.-The Bingham porphyry
stock is a complex igneous intrusive, one of an east-
west line of six small stocks (Fig. 1). The Bingham
copper ore body (Fig. 2), consisting of dissemina-
tions and stockwork veinlets of chalcopyrite, bornite,
and molybdenite, occupies a portion of the igneous
complex and, locally, spreads into adjoining sedi-
ments as high concentrations of sulfides in the lime-
stones and low concentrations in the quartzite. Sur-
rounding the disseminated copper ore body are other
sulfide zones including a diffusion of pyrite reaching
its highest concentration outside the periphery of
the copper zone; still further out are veins and re-
placements of zinc and lead. The primary copper
disseminations and stockworks are spread across a
shattered portion of the intrusive complex and asso-
ciated sediments.
The contact deposits, peripheral to one or more
of the mineralized phases of the porphyry intrusion,
contain erratic concentrations of copper and iron
sulfides, localized in reactive beds intercalated be-
tween less mineralized hosts (Fig. 3). Plottings of
44 ALLAN H. JAMES

Coexistent with part of the copper mineralization

.,0
is diffuse molybdenite mineralization (Fig. 4) made
~prilla'JCOflPl'
up of disseminations and stockworks similar in form
to the copper zone but less definite in outline. The
center of concentration of the molybdenum zone is
below the center of the copper zone at Bingham, and
SALT LAKE
the base of significant molybdenum mineralization

~
is erratic, gradational and difficult to define, but is
placed lower than the base of copper mineralization.

Referring to the distribution of copper, two fea-

tures are emphasized:
(I)-The copper occurs as an inverted cup-
shaped outline of disseminated and stockwork miner-
alization doming over a core zone low in copper. and
low in sulfides. This geometric form defined by
BINGHAM - PARK CITY AREA
UTAH
-'-------OPEN PIT MINE - - - - - - _

FIG. 1

:~qUOrlzlotil.

~9rilnileporphY"
8TIg ronile
PRIMARY COPPER Blimestone
DIAGRAMMATIC INTERPRETATION C=quortzi1e
BINGHAM, UTAH

FIG. 3

~pri_r~
I + . - - - - - - O P E N PIT M I N E - - - - - -.....
~i""'IC"""
_.eN-zioc

DIAGRAMM ATIC INTERPRETATION

BINGHAM, UTAH
."'..,........
o I ""M

FIG. 2

metal values on geologic maps clearly show the rela-

tive reactivity-the varying effectiveness with which
different rock types removed sulfides from pregnant
primary (hydrothermal) ore fluids. Thus relative re-
~quarrZlillite
activity may be simply compared without recourse Ggronireporphyry
to physical-chemical-genetic arguments. Carbonate 8TIgronit.
sediments are clearly the most reactive, while in Blimtslont

some cases certain igneous types, e.g., granite at MOLYBDE N ITE

CdqUOrlli'e

Utah, diabase at Ray, are readily identified on the DIAGRAM M AT IC INTER PRETATION
BINGHAM, UTAH
metal maps as more reactive than other associated
host rock types. FIG. 4
 HYPOTHETICAL DIAGRAMS OF SEVERAL PORPHYRY COPPER DEPOSITS
diamond drilling at Bingham about fifteen years ago
appears to be similar to the form found in many
molybdenum deposits (Wallace and others, 1968)
and recently described in some other copper deposits
(Lowell, 1968).
(2)-The copper zone in its inverted cup-like form
cuts across the vertically continuous intrusive com-
plex and the enclosing sedimentary host. The ore
zone as presently interpreted at Bingham, unlike the
molybdenum mineralization described by Wallace
and others at Climax, does not form a cap above a
cupola at the top of one unit of the igneous complex,
but crosscuts and is superimposed upon various units
of the igneous complex and sedimentary host. How-
ever, diamond drilling is not sufficient at present to
prove the vertical continuity of the igneous units.
The metal zones may be related to the top of an
igneous unit that did not reach the elevation now
known by drilling, or that has not yet been dis-
tinguished petrographically.
If the interpretation of cross-cutting relationships
of mineralizaton to igneous complex is correct, the
inverted cup-shape of the primary copper sulfide, and
the diffuse cup-shape found in molybdenum distribu-
tion, were formed after consolidation of the exposed
portions of the granite, granite porphyry, and quartz
latite.
At Bingham the bottom of the inverted copper
mineralization cup ( the top of the barren zone)
seems to be a rather well-defined plateau warped
downward at its edges into ragged "skirts" of min-
eralization extending to considerable depth-as sug-
gested in Figure 3. The pressure-temperature-
reactivity conditions controlling the elevation of the
plateau may have been related to the highest point
reached by a cooling column of magma, one phase of
the igneous complex (this is the interpretation of
Wallace and others (1968) at Climax). They may
have been controlled by pressure and temperature
levels related to the earth's surface or to ground
water circulation at the time of mineralization. How-
ever, because the form of this plateau and skirt is
superimposed across all recognized phases of the
igneous complex and the enclosing sediments, its
conformity cannot be due solely to direct crystal-
lization in situ of sulfides at the time of crystalliza-
tion of the complex. The concentration of sulfides
cross-cutting solidified porphyry was derived from
some deeper sources, probably from deeper portions
of the igneous complex we see at the surface.
Chino mine.-Most of the copper produced at the
Chino mine, Santa Rita District, New Mexico, has
come from a supergene chalcocite blanket which caps
an eroded porphyry and sedimentary complex (Rose
and Baltosser, 1966); this chalcocite blanket is now
45
~i:r.~iICGCil"IO.'"
~ prilllary copper
..
~i, o•• co.,pI"
DIAGRAMMATIC INTERPRETATION
CHINO, NEW MEXICO
FIG. 5
mostly mined away. Referring to the diagram (Fig.
S), it occupied most of the volume removed by
mining above the present benches in the open pit.
The complex intrusive is, in most exposures, bar-
ren of economic primary mineralization. Primary
copper grades in most of the porphyry complex
a verage a few hundredths percent of copper or less
(Nielsen, 1968). However, economic primary cop-
per mineralization is widespread in the most reactive
horizons-limestones and dolomites-interspersed
with poorly mineralized shales, quartzites, and quartz
diorite sills in the Paleozoic and Mesozoic sediments
in contact with or near the contact with the Santa
Rita stock. Molybdenite is present, but a geometric
zone of molybdenite cannot be outlined.
I t is customary at Chino to interpret the chalco-
cite ore as a supergene derivative of high grade pri-
mary copper mineralization in carbonate beds in-
ferred to have existed in contact with the top of the
intrusive igneous complex, a carbonate-roofed cupola,
with the copper minerals concentrated in the car-
bonate. This inferred ore-bearing structure was re-
moved by erosion, and the contained copper leached,
descending to be fixed as a chalcocite blanket now
largely removed by mining. A popular alternative
theory is that of derivation of the supergene ore from
a diffuse low grade porphyry protore now largely
removed by erosion.
By analogy with the Bingham model, I would
speculate that only a part of this secondary copper
was derived from primary mineralization in reactive
carbonate beds and little of it from a low-grade
(0.03% Cu) protore. It was principally derived
from a rich inverted cup of primary disseminated and
stockwork chalcopyrite and bornite, in porphyry, and
from mineralized carbonate of the Bingham type.
The portions of this presumed cup above the base
plateau are now removed by erosion and the only
remaining primary mineralization is found in erratic
skirts of sulfide around the barren porphyry core, and
in extensive replacements in reactive ( carbonate)
beds in Paleozoic sediments at an elevation too deep
46 ALLAN H. JAMES

1- O~EN ~IT MINE -I could have developed at the time of mineralization

similar to the inverted cup at Bingham.
"
, ''-'",..... , El T eniente (Braden) .-In Chile the primary
Braden ore body is largely a stockwork of copper
sulfides in andesite flows (Howell and Molloy,
1960). Dikes and small plugs of quartz diorite,
.. dacite and latite are present, but a central intrusive
:::: ~: :: ~: :~: ::::: ::: :::: :.. :. ;: : . :: ::.................... .
.:: : : : porphyry within the ore zone on the scale of the

;.=~~~lllillllllllllllllll!!111 "
Utah or Chino mines is lacking. The geometric
form of the ore body is reminiscent of Bingham, and
~i"-COIIIpIn
PIIECA.SRIAI the relationship to multiple small intrusives may be
_diaN..
similar to Ray.
c:JlChitl
DIAGRAMMATIC INTERPRETATION Drilling has not yet outlined the base of the copper
RAY. ARIZONA zone, but it may be tentatively suggested that the
FIG. 6 primary copper mineralization surrounds a low-grade
core. No intrusive complex with cross-sectional di-
for extensive disseminated mineralization to be fixed mensions similar to the dimension of the ore body
in the intrusive complex. has been encountered below the ore body, but one
may be inferred to exist below the depth presently
If this is true, the elevation of the base of the
exposed by drilling.
inferred cup, i.e., the top of the barren core, was not
principally related to the structure of a reactive roof General Model of a Porphyry Copper Deposit
completely capping an intrusive cupola. It resulted
from pressure-temperature-reactivity conditions of By assembling these diagrammatic sketches we
may prepare a hypothetical model of a metal-bearing
the fluids and the reactivity of the host rocks (both
intrusive complex ('Fig. 7). The general relation-
solidified igneous rocks and carbonate sediments) in
ship shown, based largely on the known relationship
stockwork and structural conduits. These conduits at the Utah copper mine, is an inverted cup of min-
formed a general path interconnecting the parts of eralization spreading over a barren core generally
the igneous complex still consolidating at depth with centered on the porphyry complex, but cross-cutting
the zone of primary mineralization and the earth's all igneous porphyry and sedimentary host rocks,
surface. together with widespread mineralization in the reac-
Ray.-The Ray mine is similar to the Chino de- tive horizons (carbonate sediments, early intrusives,
posit in that the intrusive complex, as it is exposed diabase sills, etc.) intercalated with or intruded into
today, is composed of irregular monzonite bodies of the quartzite series, shales, or schists in situations
primary mineralization. These are intrusive into contacted by pregnant hydrothermal fluids. The
Precambrian schist and diabase sills (Fig. 6), (Metz vertical scale of this diagram is exaggerated to per-
and Rose, 1966). In the early days of mining at mit visual separation of the mineralization types.
Ray the economic mineralization was a supergene The petrology of the hypothetical intrusive complex
chalcocite blanket spreading alike across porphyry,
schist and diabase (Ransome, 1919). The secondary
mineralization in porphyry has now been largely re-
moved by mining. Primary mineralization exposed
today is largely confined within the diabase sills;
the diabase is the reactive host rock equivalent to the
reactive limestone beds at Chino or Bingham. The
Pinal Schist is barren like the quartzite at Bingham.
The primary or hypogene mineralization in the dia-
base is generally strong near contact with the intru-
sives, and does not extend more than a few thousand
feet from these igneous contacts. The rich chalcocite
ores mined near the surface must have been derived
from a higher primary source now eroded. This
may have been a thick low-grade porphyry protore, or
there may have been a rich capping of reactive dia- DIAGRAMMATIC MODEL OF PORPHYRY COPPER IGNEOUS COMPLEX
base. However, a surface-related primary copper SHOWING HYPOTHIETICAL POSITIONS OF SOM!: DEPOSITS

zone cutting across the higher parts of the complex FIG. 7

 HYPOTHETICAL DIAGRAMS OF SEVERAL -PORPHYRY COPPER DEPOSITS 47

might be that of the igneous complex at Bingham or inferred that a primary hypogene concentration of
Chino. The hypothetical district structure would be mineralization, possibly of inverted cup-shape form,
a sequence consisting of the Precambrian, Paleozoic occurred not only at Bingham but, now removed by
and Mesozoic sediments (and early intrusives) all erosion, it was once present also at .Chino and Ray.
overlain by volcanics. An appropriate host may be A similar geometric form is now suspected at Braden.
found on the model for each of the mines dia- Elevation control was probably host rock and fluid
grammed. reactivity and pressure-temperature conditions. The
At a central area in the model we may select a source of the copper was probably closely related to
situation which diagrammatically presents a mineral the cooling igneous complex, but the elevation of the
distribution relative to the intrusive complex similar base~ plateau does not appear to be fixed by the top
to that at Bingham. of a cupola of one of the units of the source igneous
Dropping relatively lower in the copper configura- complex. lin each case mineralization appears to
tion, we may outline a situation that presents the cross-cut the regional host and the upper consoli-
primary occurrence seen at Chino. Here we see an dated portions of the complex melt from which it was
economically barren primary zone in the igneous probably derived.
complex, erratic skirts of primary mineralization in Deeper primary copper concentrations are found
or at the borders of the igneous complex, and rich in "skirts" of mineralization extending downward,
primary copper mineralization spreading into reac- controlled possibly by contact, by pressure-tempera-
tive carbonate sediments. The inferred higher por- ture relationships laterally outward from the intru-
tions of the igneous complex, including the base of sive complex, or by induction of ground water and
the inverted mineralization cup, have' been removed by reactive beds or sills in contact with deep, miner-
by erosion. This Chino model presents a plausible alized, or poorly mineralized portions of the por J

source for the known supergene copper. phyry complex.

Again, we find a situation which is similar to that
KENNECOTT COPPER CORPORATION,
found at Ray-barren core of Tertiary igneous rock, SALT LAKE CITY, UTAH,
Precambrian metamorphics and diabase complex sur- February 13 1970J

rounded by primary copper mineralization in diabase

sills, which are more reactive than the schists. A REFERENCES
rich primary cup lying across igneous complex, dia- Howell, F. H., and Molloy, J. 5., 1960, Geology of the
base and schist, all now eroded, may be suggested as Braden orebody, Chile, S. A.: EeoN. GEOL., v. 55, p.
the source for the supergene copper ores of the 863-905.
A. H., Smith, W. H., and Bray, R. E., 1961, The
secondary enrichment blanket recently removed by James, Bingham district-a zoned porphyry ore deposit: Utah
mining. Geol. Soc. Guidebook 16, p. 82-100.
It is emphasized that absolute depth of mineraliza- Lowell, J. D., 1968, Geology of the Kalamazoo ore body,
San Manuel district, Ariz.: ECON. GEOL., v. 63, p. 645-654.
tion below the surface at the time the mineralization Metz, R. A., and Rose, A. W., 1966, Geology of the Ray
was taking place is not known, nor is the relative copper deposit, Ray, Arizona, p. 177-188, in Titley, S. R,
depth of mineralization known at Ray or Chino. and Hicks, C. L., eds., Geology of the Porphyry Copper
Ray is shown lower in the model than Chino because Deposits, Southwestern North America: Univ. Arizona
Press, Tucson, Ariz., 287 p.
the Ray host-the Precambrian Pinal Schist, is Nielsen, R L., 1968, Hypogene texture and mineral zoning
older than the Paleozoic-Mesozoic sedimentary host in a copper-bearing granodiorite porphyry stock, Santa
at Chino. Rita, New Mexico: EeoN. GEOL., v. 63, p. 37-50.
Peters, W. c., James, A. H., and· Field, C. W., 1966, Ge-
Less is known of the ore body at Braden but, as ology of the Bingham Canyon porphyry copper depOSit, p.
noted above, it may be similar in geometric form to 165-176, in Titley, S. R, and Hicks, C. L., eds., Geology
the disseminated and stockwork zone at Bingham. of the Porphyry Copper Deposits, Southwestern North
America: Univ. Ariz. Press, Tucson, Ariz., 287 p.
At Braden an inverted cup-shaped primary zone Ransome, F. L., 1919, The copper deposits of Ray and
may be inferred to exist at the elevation of the vol- Miami, Arizona: U. S. Geo!. Surv. Prof. Paper No. 115,
canic flows. The copper zone outlined on the model 192 p.
Rose, A. W., and Baltosser, W. W., 1966, The porphyry
has been moved upward, relative to the top of the copper deposit at Santa Rita, New Mexico, p. 205-220, in
main mass of the inferred intrusive complex in order Titley, S. R, and Hicks, C. L., eds., Geology of the Por-
to represent the copper which is found largely in the phyry Copper Deposits, Southwestern North America:
Univ. Arizona Press, Tucson, Ariz., 287 p.
andesite. Wallace, S. R, Muncaster, N. K., Jonson, D. c., Mackenzie,
W. B., Bookstrom, A. A., and Surface, V. E., 1968,
Conclusion from General Model Multiple intrusion and mineralization at Climax, Colo.,
p. 605--640: in Ridge, J. D., ed., Vol. 1, Ore deposits in the
From the geometry of these several ore bodies and United States 1933/1937, Am lnst. Min. Metall. Pet. Eng.,
their relationships to the igneous complexes, it is New York, 991 p.
