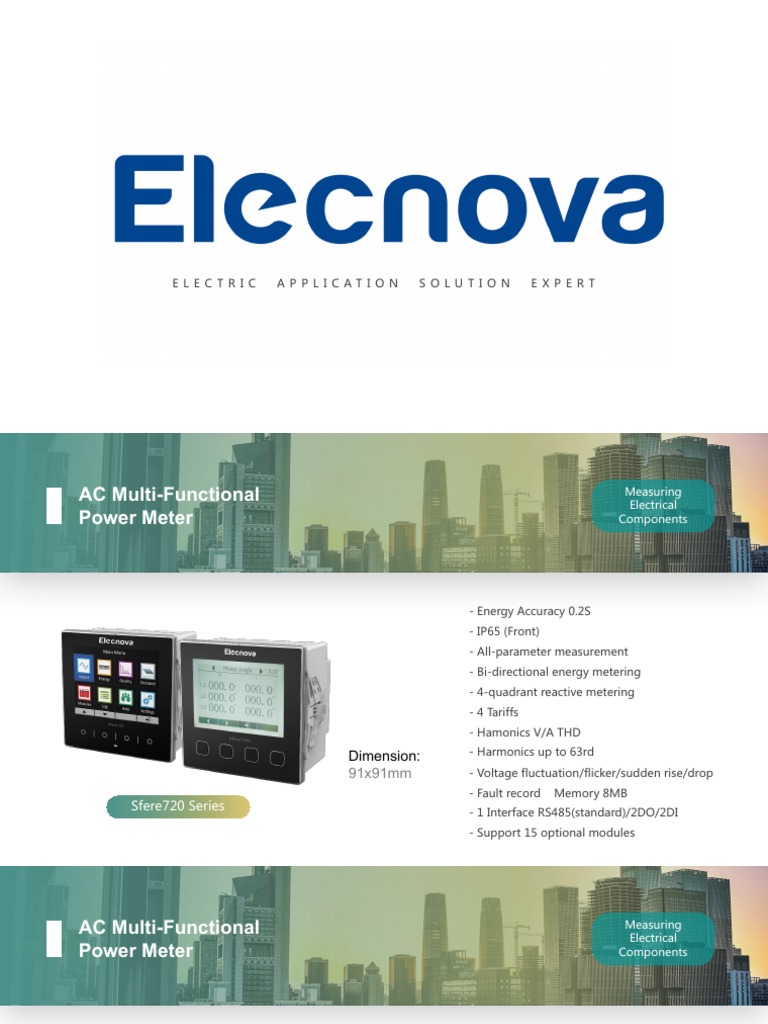

E L E C T R I C A P P L I C AT I O N S O L U T I O N E X P E RT

AC Multi-Functional Measuring
Electrical
Power Meter Components

- Energy Accuracy 0.2S

- IP65 (Front)
- All-parameter measurement
- Bi-directional energy metering
- 4-quadrant reactive metering
- 4 Tariffs
- Hamonics V/A THD

Dimension: - Harmonics up to 63rd

91x91mm - Voltage fluctuation/flicker/sudden rise/drop
- Fault record Memory 8MB
Sfere720 Series - 1 Interface RS485(standard)/2DO/2DI
- Support 15 optional modules
AC Multi-Functional Measuring
Electrical
Power Meter Components

- FM1(2 AC digital inputs) - FM11(RS485,Modbus-RTU)

- FM2(4 dry digital inputs)
- FM3(2 relay outputs)
- FM4(2 analog inputs)
- FM5(2 temperature inputs )
- FM6(2 analog outputs)
- FM7(Modbus-TCP)
- FM8(Profibus-DP V0)
- FM9(WIFI)
Sfere720 Series - FM10(GPRS)
- FM12(M-Bus)
- FM13(BACnet/MSTP)
- FM14(BACnet/IP)
- FM15(RS232,Modbus-RTU)
- FM16(Lora)
- FM17(DNP3.0)
Project reference

The National Stadium (Bird's Nest)

2008-10-19

The National Stadium (Bird's Nest), located in the

south of the central area of Beijing Olympic Park, is the
main stadium for the 2008 Beijing Olympic Games.

There are 8 substations in the Bird's Nest Stadium.

The installation capacity of its electrical equipment is large,
and it contains a large number of particularly important
loads in the first-level load, which requires high reliability
and continuity of power supply.

The project selects more than 1000 power quality

monitoring instruments(Sfere720) and intelligent electrical
parameter measuring instruments from Jiangsu Sifel
Electric Co., Ltd., which perfectly meets all kinds of
demands in the project and provides a strong guarantee
for the power safety of the stadium.
http://sfere-elec.com/case/info/220.html
Project reference

The Shanghai World Expo 2010 (EXPO 2010) Beijing Capital International Airport
2010-12-19 2008-12-04

http://sfere-elec.com/case/info/221.html
http://sfere-elec.com/case/info/233.html

The project uses nearly 1400 electric power quality

monitoring instruments(Sfere720) and intelligent electric In the construction of Terminal T3, more than 1000 power
quality monitoring instruments(Sfere720) and intelligent
parameter measuring instruments manufactured by
electrical parameter measuring instruments of Jiangsu Sfere
Jiangsu Sfere Electric Co., Ltd., which are selected in
Electric Co., Ltd. have been used, to achieve accurate
many venues such as the United States Pavilion and the
monitoring of various electrical parameters in the project, and
World Expo Center, and accurately and intuitively report
the relevant data of various electric power monitoring, data records can be uploaded through various communication
methods, providing security for the efficient operation of the
providing a strong guarantee for the safety work of many
Capital International Airport.
venues of the World Expo.
AC Multi-Functional Measuring
Electrical
Power Meter Components

- Energy Accuracy 0.5S

- IP64 (Front)
- All-parameter measurement
- Bi-directional energy metering
- 2 Tariffs
- Hamonics V/A THD
Dimension: - Hamonics up to 31st
91x91mm
- 1 Interface RS485/4DI/3DO/1AO

PD194Z Series
Project reference

Dongfeng Honda Auto Parts-New Plant in Daya Bay 2021-06-22

Dongfeng Honda Auto Parts Co., Ltd. invested 4.5
billion yuan in the construction of the key project
"Dongfeng Integration" in Daya Bay District, Huizhou, with
a construction of 1.5 million to 2 million complete vehicle
supporting parts products.

In this project, the intelligent electric power monitoring

system and electric fire monitoring system of Sfere Electric
are adopted. According to design drawing, for each
position on the distribution cabinet that need to install the
power monitoring instrument, PD194Z-9HY and integrated
protector are equipped, to monitor the current and voltage
in real time, and then connected to the communication
management machine in respective distribution room
which finally transmit all monitoring data to the power
monitoring system background. http://sfere-elec.com/case/info/29.html
Project reference
Shenzhen CITIC Bank Building
2021-06-18
http://sfere-elec.com/case/info/18.html
The distribution cabinet at the low voltage side adopts
PD194Z-9HY series multi-functional instruments, which
can realize the accurate measurement of the power grid
parameters and helps users realize the data acquisition of
the power monitoring system and energy management
system.
Fenglin Campus of Fudan University
http://sfere-elec.com/case/info/26.html
In Fenglin Campus, there is one 35kV user station, one
10kV switch station and three 400V distribution rooms in
the east area; one 10kV switch station, 4 four 400V
distribution rooms and more than 400 distribution boxes
on the floor in the west area. In this project, PD194Z-9HY
series multi-functional instruments are used to monitor the
400+ distribution boxes.
Project reference

Dongfeng Honda Auto Parts-New Plant in Daya Bay 2021-06-22

Dongfeng Honda Auto Parts Co., Ltd. invested 4.5

billion yuan in the construction of the key project
"Dongfeng Integration" in Daya Bay District, Huizhou, with
a construction of 1.5 million to 2 million complete vehicle
supporting parts products.

In this project, the intelligent electric power monitoring

system and electric fire monitoring system of Sfere Electric
are adopted. According to design drawing, for each
position on the distribution cabinet that need to install the
power monitoring instrument, PD194Z-9HY and integrated
protector are equipped, to monitor the current and voltage
in real time, and then connected to the communication
management machine in respective distribution room
which finally transmit all monitoring data to the power
monitoring system background. http://sfere-elec.com/case/info/29.html
AC Multi-Functional Measuring
Electrical
Power Meter Components

- Energy Accuracy 0.5S

- IP54 (Front)
- All-parameter measurement I/U/P/Q/S/F/PF
- Bi-directional energy metering
- Tariffs optional
- Hamonics V/A THD
- Hamonics up to 15th
Dimension: - 1 Interface RS485
91x91mm
- 2DI/4DI/2DO/1AO optional

LNF96EY Series
AC Multi-Functional Measuring
Electrical
Power Meter Components

- LED display
- Real-time measurement I/U/P/Q/S/F/PF
- Bi-directional energy metering
- 4-quadrant reactive metering
- THD，Harmonics up to 15th
- 1 Energy pulse output
- 1 Interface RS485

Dimension - Support optional digital input

91x91mm - Support optional relay output
LNF96E series - Support optional analog output
Project reference

Duty Free-King Power MahaNakhon-Electrical Component Project in Thailand 2021-06-22

Mahanakhon, 314 meters high and 77 floors in

total, is the tallest building in Bangkok. It is developed
by Pace Development Group, a high-end real estate in
Thailand, and is located in the bustling Sathon-Silom
district of Bangkok.

King Power Duty Free, which is on 1-4 floors

of the building, uses the power quality monitoring
instrument Sfere200. The product has the
functions of accurate power parameter
measurement, complete power metering and
power quality analysis; Modular I/O modules are
configured for status monitoring and control of
field equipment, which can be easily integrated
with various intelligent power distribution systems
and energy management systems to share rich
power parameter monitoring data.

http://sfere-elec.com/case/info/31.html
 Measuring
AC DIN-rail Mounted Electrical
Energy Meter Components

- Monitoring AC single-phase/three-phase circuit

- Real-time measurement I/U/P/PF/THD
- Bi-directional energy metering
- Energy Accuracy 0.5S Class1
- 1 Interface RS485
- 1 Energy pulse output
- Support 63A direct access
- Up in Down out
- MID certification(2M,4M)
DTS1946-4P DTS1946-2P
DTS1946-4M DTS1946-2M
 Project reference
Nanyang Technological University
2017-08-30
http://sfere-elec.com/case/info/202.html
The project selects the DIN-rail energy meter(DDS1946 series)
of Jiangsu Sfere Electric Co., Ltd., which supports CT access or
direct access. It has electric energy pulse and RS485
communication interface, supports Modbus-RTU or DL/T645
communication protocol, and the active electric energy accuracy
level can reach 0.5S, providing the underlying guarantee for the
college to collect electric energy data and conduct energy
consumption analysis and management.
Anhui Tongling Conch Cement Co., Ltd
2017-12-25
http://sfere-elec.com/case/info/202.html
Anhui Tongling Conch Cement Co., Ltd., located in the southern suburb of Tongling
City, Anhui Province, is one of the largest clinker production bases in the world with a
single factory controlled by Conch Group, and has formed a production capacity of 10
million tons of clinker and 5.8 million tons of cement annually.
The project uses many products from Sfere, such as smart energy
meters(DDS1946 series), power transmitters, protection devices, etc. Among them, the
direct access of intelligent electric energy meter can reach 100A, with electric energy
pulse and RS485 communication interface, and the guideway installation is convenient
and fast.
 Communication
Communication Gateway components

- IoT
- Wireless network
- Intelligent configuration and debugging
- Device management
- Multi communication protocols
including MQTT
- Dual network port exchanging function
- Uplink Ethernet/WIFI/4G/NB-IoT
options
- Downlink RS485/LoRa options
S15
Application

S15 application in power quality solution S15 application in power monitoring solution
Power
Quality
AHF
Power
Quality
SVG
Project reference

Central Grand Mirage Resort-Power Quality Project in Thailand 2021-06-22

Central Grand Mirage Resort is the largest theme

hotel in Pattaya, with 555 guest rooms, numerous
equipment, large power consumption and high
requirements for power quality.

The hotel has four transformers with a capacity of

2000kVA, the natural power factor is about 0.8, the load
rate of the four transformers is basically the same, and
the capacity of nonlinear equipment is small.

Based on the above situation, the hotel has equipped

each transformer with a compensation unit integrated by
Sfere SFR-L series intelligent capacitors-600 kvar. Our
equipment responds to the load reactive power demand
quickly after operation, ensuring that the monthly average
power factor of the hotel is ≥ 0.95, reducing the flow of
reactive power in the power supply system, reducing the
cost of electricity charges and improving the stability of
voltage.
http://sfere-elec.com/case/info/31.html
 Effective
200+ Patents
R&D Team
National standarddraft
participation
200+
10+
Software copyrights
100+
Patents

10+
Sales network

SFERE boasts a project reference of more than

100,000 installations and applications in landmark
projects across nearly 600 domestic cities and 50
overseas countries, and has established a network
consisting of more than 2,000 dealers.

The seamless connection between online e-

commerce and offline service team enables every
customer to enjoy SFERE's high-quality products and
efficient services.

Distributor with large orders

Thailand 2
Vietnam 3
Malaysia 1
Indonesia 3
Singapore 1
Philippiness 2
