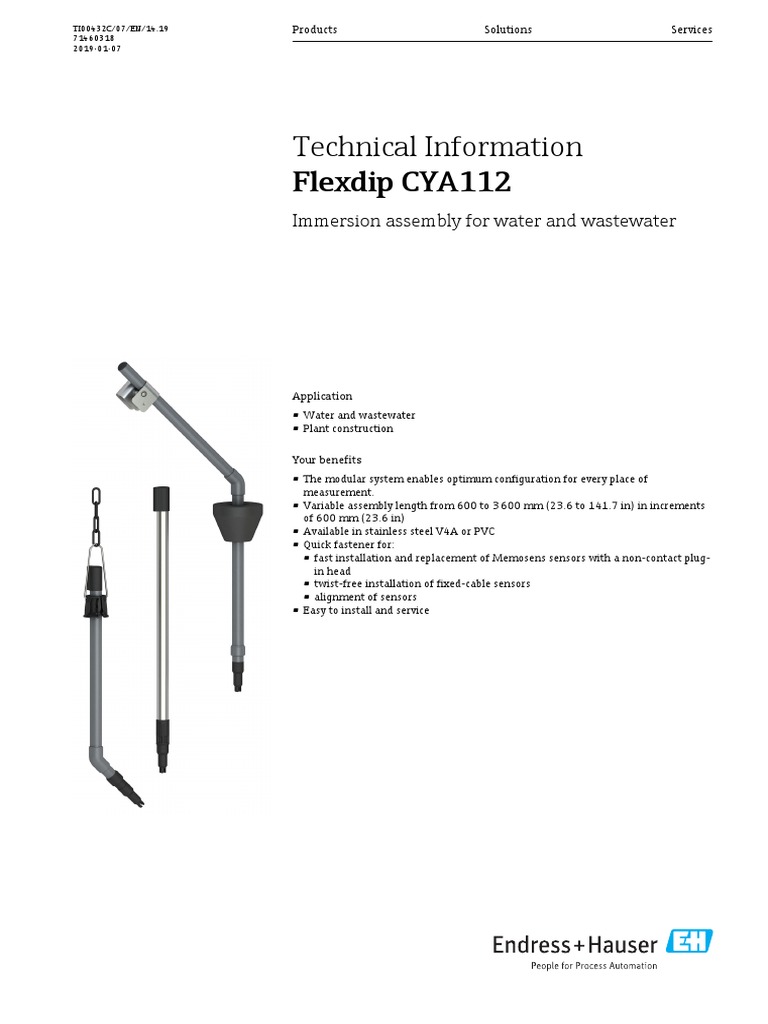

Technical Information
Flexdip CYA112
Immersion assembly for water and wastewater

Application
• Water and wastewater
• Plant construction

Your benefits
• The modular system enables optimum configuration for every place of
measurement.
• Variable assembly length from 600 to 3 600 mm (23.6 to 141.7 in) in increments
of 600 mm (23.6 in)
• Available in stainless steel V4A or PVC
• Quick fastener for:
• fast installation and replacement of Memosens sensors with a non-contact plug-
in head
• twist-free installation of fixed-cable sensors
• alignment of sensors
• Easy to install and service
 Flexdip CYA112

Function and system design

Measuring system A complete measuring system consists of:
• CYA112 assembly
• CYH112 holder
• Transmitter, e.g. Liquiline CM44
• Sensor, e.g. CUS71D

4 5
3

6
1

A0010959

1 Measuring system with CYA112 assembly

1 Main pipe of CYH112 holder
2 Transmitter
3 Protective cover
4 Transverse pipe of CYH112 holder
5 Cable ties
6 CYA112 assembly

Versions
The assembly consists of the following components:
• Immersion tube
• Connecting pipe (for the sensor)
• Sensor adapter
• Quick fastener
• Accessories

2 Endress+Hauser
Flexdip CYA112

The assembly can be fitted and mounted depending on the ambient conditions. Please note the
following:
• Standard version
The immersion tube has an outer diameter of 40 mm (1.6 in). It is used for fixed installation or
with a pendulum holder. (The pendulum holder is part of the CYH112 holder system)
• With chain retainer
The immersion tube is suspended from a chain at the top by hooking it into a multifunctional
clamp ring and a stainless steel bracket. (The chain is part of the CYH112 holder system)
• With float
The immersion tube (PVC) is fitted with a float. Combined with a pendulum holder, the float is
used for varying water levels. (The pendulum holder is part of the CYH112 holder system)
The CYH112 holder system is particularly suitable for use with the assembly, and has been
specially designed for this assembly.

Stainless steel version

Available lengths From 600 mm (23.6 in), are delivered in pieces measuring 600 mm (23.6 in) and
1 200 mm (47.2 in)

Maximum length 3 600 mm (141.7)

Thread M36 male thread

G1" female thread

Type of installation Primarily for fixed installation, the assembly can also be used with a chain retainer up to
1 200 mm (47.2 in)

The threaded joints are sealed with an O-ring.

Connecting pipes have a G1" thread for the sensors. Various sensor adapters are available (NPT ¾", G
¾", Pg 13.5) for sensors with other threads.
Sensor adapter →  16

M36

G 1"
A0010876

2 Connecting pipe 0°, 45° and 90° (from left to right)

A connecting pipe is screwed onto the end of the immersion tube. An O-ring seals the pipes against
the medium.

Endress+Hauser 3
 Flexdip CYA112

G 1"

M36 M36
A0037925

3 Example of immersion tube with screw-in connecting pipe

PVC version

Available lengths From 600 mm (23.6 in), are delivered in pieces measuring 600 mm (23.6 in) and
1 200 mm (47.2 in)

Maximum length 2 400 mm (94.5)

Immersion tubes measuring up to 1 200 mm (47.2 in), straight or with 45° connecting pipe, are
ready to install on delivery. Tubes longer than 1 200 mm (47.2 in) must be glued by the client on
site. The necessary materials (glue (depending on the version), cleaning cloths, adhesive fitting) are
included in the delivery.

In the case of the chain retainer, the PVC assemblies are fitted with stainless steel weights for
stabilization purposes (prevent buoyancy).
‣ Use 1 weight for an immersion tube measuring 600 mm (23.6 in), use 2 weights for an
immersion tube measuring 1 200 mm (47.2 in).

6
5
1 2 3 4
A0010874

4 PVC pipe connection 1 800 mm (70.9 in), 45°

1 Immersion tube
2 Adhesive fitting
3 Immersion tube
4 Adhesive fitting 45°
6 Sensor adapter G 1"

4 Endress+Hauser
Flexdip CYA112

1 2 3 4
A0037927

5 PVC pipe connection 1 800 mm (70.9 in), straight

1 Immersion tube
2 Adhesive fitting
3 Immersion tube
4 Sensor adapter G 1"

Version with float

The assembly with a float is only available as a PVC version. The immersion depth of the sensors
(depending on the sensor) is 600 mm (23.6 in). The assembly is preferably operated with the
CYH112 pendulum holder. The installation is performed on site at the customer's premises. The float
version does not contain any weights. This version is designed to compensate for varying water/
wastewater levels.

1 2

4
A0037928

7 Float with pendulum holder

5
1 Pendulum holder
2 Cross clamp
A0010875
3 Assembly with float
6 Version with float
1 Immersion tube PVC
2 Adhesive fitting 45°
3 Float
4 Immersion tube
5 Sensor adapter G 1"

Immersion tube length (item 1) Maximum stroke (difference in level)

600 mm (23.6 in) 400 mm (15.8 in)

1 200 mm (47.2 in) 1 000 mm (39.4 in)

1 800 mm (70.9 in) 1 600 mm (63 in)

2 400 mm (94.5 in) 2 200 mm (86.6 in)

Endress+Hauser 5
 Flexdip CYA112

Quick fastener (optional)

The quick fastener enables:
• Quick and easy installation and replacement of Memosens sensors with an inductive plug-in
connection. When using sensors with a fixed cable connection, it is not necessary to untwist the
connecting cables.
• The alignment of the installed sensors
The quick fastener is installed between the sensor and the assembly.

1 2 3 4
A0037930

8 Quick fastener
1 Immersion tube
2 Sensor adapter G 1"
3 Quick fastener
4 Sensor adapter Pg 13.5

Examples

Immersion tube, standard

3 2

A0010873
A0037941
9 CYA112, angled with sensor adapter G 1"
 10 CYA112, straight with sensor adapter G 1"
1 Stainless steel immersion tube 600 mm (23.6 in)
1 PVC immersion tube 600 mm (23.6 in)
2 Stainless steel 45° connecting pipe
2 Sensor adapter G 1"
3 Sensor adapter G 1"

6 Endress+Hauser
Flexdip CYA112

Immersion tube, float

1 1

2
2
3
3

4
4

5
5
6 A0010875

 12 CYA112 with float

A0011021

 11 CYA112 with float 1 PVC immersion tube

2 Adhesive fitting 45°
1 Immersion tube 3 Float
2 Adhesive fitting 45° 4 Immersion tube
3 Float 5 Sensor adapter G 1"
4 Immersion tube
5 Adhesive fitting 45°
6 Sensor adapter G 1"

Endress+Hauser 7
 Flexdip CYA112

Immersion tube, chain

1 1

2 2

3
3

4
A0010871

 14 CYA112, straight with chain retainer

1 Multifunctional clamp ring with bracket
A0011020 2 PVC immersion tube 1 200 mm (47.2 in)
 13 CYA112, angled with chain retainer 3 Sensor adapter G 1"

1 Multifunctional clamp ring with bracket

2 PVC immersion tube 1 200 mm (47.2 in)
3 Adhesive fitting 45°
4 Sensor adapter G 1"

Power supply
Potential equalization Potential equalization must be implemented at the place of installation. All electrically conductive
parts must be interconnected.
For use in hazardous areas:
• There must be an electrically conductive connection between the immersion tube side of the
assembly and the holder/fastener.
• If the assembly is secured using a chain and retaining bracket, a separate conductor for potential
matching must be routed alongside the measuring cable.
• If sensors have accessible metal surfaces, these sensors must be included in the potential
equalization system as indicated in the Operating Instructions for the sensor in question.

8 Endress+Hauser
Flexdip CYA112

Installation
Mounting location • Select the mounting location so that a sufficient distance from fixed installations is maintained,
and the sensor cannot be damaged even when the medium is moving.
• For fixed installation, the retaining point must be selected in a way that guarantees the proper
operation and maintenance of the assembly.
• The immersion tube must protrude over the retaining point by at least 100 mm (3.94 in).

Installation instructions • Potential equalization must be implemented at the place of installation.

• All electrically conductive parts must be interconnected.

(3.94)
100

A0011037

 15 Retaining point (shown without splash protection cap). Dimensions: mm (in)

Mounting the sensor Preparation:

1. Screw or glue the connecting pipe onto the immersion tube.
2. Where necessary, screw the sensor adapter onto the connection pipe.

Endress+Hauser 9
 Flexdip CYA112

A0011111

 16 Cable routing
1 Splash protection cap
2 Sensor cable
3 Rubber plug
4 Immersion tube

Mounting Memosens sensors

1. Route the sensor cable through the immersion tube.
2. Connect the sensor cable to the sensor.
3. Screw the sensor into the adapter or the connecting pipe.
4. Shorten the tip of the rubber plug to match the cable diameter.
5. Fit the rubber plug onto the sensor cable.
6. Press the rubber plug onto the immersion tube.
7. Route the sensor cable downwards in a loop (do not bend).
8. Fit the splash protection cap.
 The splash protection cap is fixed in place by the lip of the rubber plug.

Mounting sensors with a fixed cable

1. Route the sensor cable through the immersion tube.
2. Screw the sensor into the adapter or the connecting pipe.
3. In doing so, turn the assembly and not the sensor to ensure that the sensor cable is not
twisted.
4. Shorten the tip of the rubber plug to match the cable diameter.
5. Fit the rubber plug onto the sensor cable.
6. Press the rubber plug onto the immersion tube.
7. Route the sensor cable downwards in a loop (do not bend).
8. Fit the splash protection cap.
 The splash protection cap is fixed in place by the lip of the rubber plug.

Environment
Ambient temperature range -20 to 60 °C (-4 to 140 °F)

10 Endress+Hauser
Flexdip CYA112

Process
Process temperature range 0 to 60 °C (32 to 140 °F)

Process pressure range Unpressurized installation

Mechanical construction
Design, dimensions
35 35
(1.38) x (1.38)

(1.57)
Ø 40
M36

A0011042

 17 Immersion tube, stainless steel version

x Variable length

102 (4)
203 (8)

A0037931

 18 Dimensions of mounted quick fastener with sensor adapter Pg 13.5. Engineering unit: mm (in)

Dimensions Immersion tube (PVC) Ø 40 mm (1.6 in), lengths: 600 mm (23.6 in), 1 200 mm (47.2 in),
1 800 mm (70.9 in), 2 400 mm (94.5)

Immersion tube (stainless Ø 40 mm (1.6 in), lengths: 600 mm (23.6 in), 1 200 mm (47.2 in),
steel) 1 800 mm (70.9 in), 2 400 mm (94.5), 3 600 mm (141.7 in)

Weight • Immersion tube (PVC)

• Length 600 mm (23.6 in): 0.3 kg (0.7 lb)
• Length 1 200 mm (47.2 in): 0.6 kg (1.3 lb)
• Length 1 800 mm (70.9 in): 0.95 kg (2.1 lb)
• Length 2 400 mm (94.5): 1.3 kg (2.8 lb)
• Immersion tube (stainless steel)
• Length 600 mm (23.6 in): 0.6 kg (1.3 lb)
• Length 1 200 mm (47.2 in): 1.2 kg (2.6 lb)
• Length 1 800 mm (70.9 in): 1.8 kg (4.0 lb)
• Length 2 400 mm (94.5): 2.4 kg (5.3 lb)
• Length 3 600 mm (141.7 in): 3.5 kg (7.7 lb)
• Multifunctional clamp ring: 0.15 kg (0.33 lb)
• Weight for PVC immersion tube: 0.32 kg (0.71 lb)

Materials Immersion tube: Stainless steel 1.4404 (AISI 316 L) or PVC

Connecting pipe: Stainless steel 1.4404 (AISI 316 L) or PVC
Weld-on threads: Stainless steel 1.4571 (AISI 316 Ti) or PVC
Sensor adapter: POM - GF
Quick fastener: POM - GF

Endress+Hauser 11
 Flexdip CYA112

Multifunctional clamp ring: PA 6

Cap for pipe end: PE
Chain bracket: Stainless steel 1.4571 (AISI 316 Ti) or 1.4404 (AISI 316 L)
O-rings: EPDM
Float, yellow: EVA (until mid-2012 approximately)
Float, black: EPP (from mid-2012 approximately)

Certificates and approvals

Ex approval The stainless steel version of the CYA112 assembly (CYA112-**21*2**) may also be used in the
hazardous area in Zone 1 and 2.
It does not have special Ex identification labeling, as the assembly does not have a potential ignition
source of its own and ATEX Directive 2014/34/EU therefore does not apply.
If sensors have accessible metal surfaces, these sensors must be included in the potential
equalization system as indicated in the Operating Instructions for the sensor in question.

Ordering information
Scope of delivery The scope of delivery comprises:
• Ordered version of assembly
• Operating Instructions
‣ If you have any queries:
Please contact your supplier or local sales center.

Product page www.endress.com/cya112

Product Configurator On the product page there is a Configure button to the right of the product image.
1. Click this button.
 The Configurator opens in a separate window.
2. Select all the options to configure the device in line with your requirements.
 In this way, you receive a valid and complete order code for the device.
3. Export the order code as a PDF or Excel file. To do so, click the appropriate button on the right
above the selection window.

For many products you also have the option of downloading CAD or 2D drawings of the
selected product version. Click the CAD tab for this and select the desired file type using
picklists.

12 Endress+Hauser
Flexdip CYA112

Accessories
The following are the most important accessories available at the time this documentation was
issued.
‣ For accessories not listed here, please contact your Service or Sales Center.
Flexdip CYH112
• Modular holder system for sensors and assemblies in open basins, channels and tanks
• For Flexdip CYA112 water and wastewater assemblies
• Can be affixed anywhere: on the ground, on the coping stone, on the wall or directly onto railings.
• Stainless steel version
• Product Configurator on the product page: www.endress.com/cyh112
Technical Information TI00430C

Multifunctional clamp ring

• In the case of a chain retainer, the rear multifunctional clamp ring keeps the chain fixed in place.
• In the case of the main pipe and transverse pipe, adjust the working height on the main pipe with
the multifunctional clamp ring.
• The multifunctional clamp ring acts as an anti-slip lock on transverse pipes, main pipes and on
assemblies.
• Material: PA 6
• Order number: 71092049

Ø 86 (3.39)
Ø 80 (3.15)
100°
B-B

76.8 (3.02)
Ø 8 (031)
8 (0.31)
60 (2.36)

60 (2.36) Ø 71.45(2.81)
7)
.9

35 )
(1

(1.83) 9
3.3
50

8 6(
Ø
(1.63)

Ø
41.5

(1.16)
29.5

B Ø B
40
(1
.5
7)
15 (0.59)
5 (0.2)
(1.65)
42
(0.95)
24.1

11.2 (0.44)
25
(0.98)
A0035699

 19 Multifunctional clamp ring. Dimensions: mm (in)

Immersion pipe tray

• Is used to hold the immersion pipe during maintenance work
• Material: stainless steel 1.4404 (AISI 316L)
• Order number: 71092054

Endress+Hauser 13
 Flexdip CYA112

A A-A

47 (1.85)
73.5 (2.89)
100 (3.94)
3
(0.12)

(1.22 )
31
93.5 (3.68) 65 (2.56)
A 10 (0.39)
48 (1.89)
9.1 (0.36)

23 (0.91)
89.5 (3.52)

9 (0.35)
M
8
B B

55 (2.17)
(0.35)
6 (0.24)

9
15 79.9 (3.15)
(0.59)
16 (0.63)
B-B 12
(0.47)

(0.28)
66.4 (2.61) 7
A0035703

 20 Immersion pipe tray. Dimensions: mm (in)

Wall holder set

• 2 pipe clamps D 40
• Material: PE
• 1 worm drive hose clip for height adjustment
• Order number: 71132469

14 Endress+Hauser
Flexdip CYA112

25 (0.98)
58 (2.28)
A A

40.6 (1.6) A
20
(0.79) 90°

(1.02)
55 (2.17)

Ø4

26
0.
(0.55)

6
14

(1
10.7 (0.42)

.6
)
A-A 56 (2.2)
Ø14 (0.55)
7.5 (0.3)

Ø6.6 (0.26) A
A-A
A0035704

 21 Pipe clamp. Dimensions: mm (in)

Triangular carabiner
• Is used to secure the chain
• Material: stainless steel, quality V4A
• Order number: 71092052

Ø6 )
4
(0.2
(0.43)

58 (2.28)
10.9

46 (1.81)

A0035705

 22 Triangular carabiner. Dimensions: mm (in)

Hook-and-loop cable ties (set of 4)

• Is used to secure the cables
• Material: PE/PA (polyethylene/polyamide)
• Order number: 71092051
Mounting tool
• Tool to remove the quick fastener
• Material: stainless steel V4A
• Order number: 71093438

Endress+Hauser 15
 Flexdip CYA112

Ø 7 (0.28)
52 (2.05)

Ø 21 (0.83)
Ø 25 (0.98)
46 (1.81)

A0035706

 23 Mounting tool. Dimensions: mm (in)

Quick fastener
• For quick and easy installation and replacement of sensors
• Material: POM - GF
• Including mounting tool 71093438
• Order number: 71093377

G 1"
128 (5.04)
90 (3.54)

44.5 (1.75)

A0035707

 24 Quick fastener. Dimensions: mm (in)

Sensor adapter NPT ¾"

• Sensor adapter from G 1" to NPT ¾"
• Material: POM - GF
• Order number: 71093382

16 Endress+Hauser
Flexdip CYA112

G 1”

5 (0.20)
26.5 (1.04)
Ø 22.5 (0.89)

53 (2.09)
23 (0.91)
22 (0.87)
NPT ¾”
Ø 33.7 (1.33)
Ø 40 (1.57)
A0035732

 25 Sensor adapter G 1" to NTP ¾". Dimensions: mm (in)

Sensor adapter G ¾"

• Sensor adapter from G 1" to G ¾"
• Material: POM - GF
• Order number: 71093383

G 1"
5 (0.20)

26.5 (1.04)
24.1 (0.95)
68 (2.68)

37 (1.46)
35 (1.38)
3 (0.12)

G ¾“
Ø 27 (1.06)
Ø 40 (1.57)

A0035733

 26 Sensor adapter G 1" to G ¾". Dimensions: mm (in)

Sensor adapter Pg 13.5

• Sensor adapter from G 1" to Pg 13.5
• Material: POM - GF
• Order number: 71093384

Endress+Hauser 17
 Flexdip CYA112

Ø 26.5 (1.04)
Pg 13.5

31 (1.22)
G 1"

71.6 (2.82)
62.2 (2.45)
Ø 40
(1.57)

137.5 (5.41)
Ø 30.3
(1.19)

Ø 22 (0.87)

A0035736

 27 Sensor adapter G 1" to Pg 13.5. Engineering unit: mm (in)

Immersion tube
• Connection thread: M36
• Material: stainless steel
• Length x = 600 mm (23.6 in) order number: 71073767
• Length x = 1 200 mm (47.3 in) order number: 71073706

35 35
(1.38) x (1.38)

(1.57)
Ø 40
M36

A0011042

 28 Immersion tube. Dimensions: mm (in)

Straight connecting pipe for immersion tube

• M36 to G 1"
• Material: stainless steel
• Order number: 71073768

18 Endress+Hauser
Flexdip CYA112

150 (5.91)
35 (1.38)
12
(0.47)

M36 x 1.5
30 (1.18)
G1"

(1.57)
40
22
(0.87)
A0035737

 29 Straight connecting pipe. Dimensions: mm (in)

45° connecting pipe for immersion tube

• M36 to G 1"
• Material: stainless steel
• Order number: 71073769
5
1.
x

Ø 40 (1.57)
36
M
90 (3.54)

10 9)
(0
.3

G1"
45°
75 (2.95)
216 (8.5)

A0035738

 30 45 ° connecting pipe. Dimensions: mm (in)

90° connecting pipe for immersion tube

• M36 to G 1"
• Material: stainless steel
• Order number: 71073770

Endress+Hauser 19
 Flexdip CYA112

M36 x 1.5

10 (0.39)

150 (5.91)
Ø 40 (1.57)
90
°

G1"
75 (2.95)

220 (8.66)
A0035739

 31 90 ° connecting pipe. Dimensions: mm (in)

Spray cleaning for CYA112 for mounting on immersion tube

• Version in 600 mm (23.6) and 1 200 mm (47.2 in)
• For CYA112 assembly version: 600 to 2 400 mm, straight
• Material:
• Pipe: PVC-U
• Spacer: PA
• Worm drive hose clips: stainless steel 1.4401 (AISI 316)
• Order number for 600 mm (23.6) version: 71158245
• Order number for 1 200 mm (47.2 in) version: 71158246
16 (0.63)
D 16

75 (2.95)
~ 1130 (44.5)
16 (0.63)

D 16
76 (3.0)

~ 550 (21.6)
~ 580 (22.8)

A0035742

 32 Spray cleaning for CYA112. Dimensions: mm (in)

A Version: 1 200 mm (47.4 in)
B Version: 600 mm (23.6 in)

20 Endress+Hauser
Flexdip CYA112

A0035835

 33 Example of mounted spray cleaning

Endress+Hauser 21
www.addresses.endress.com
