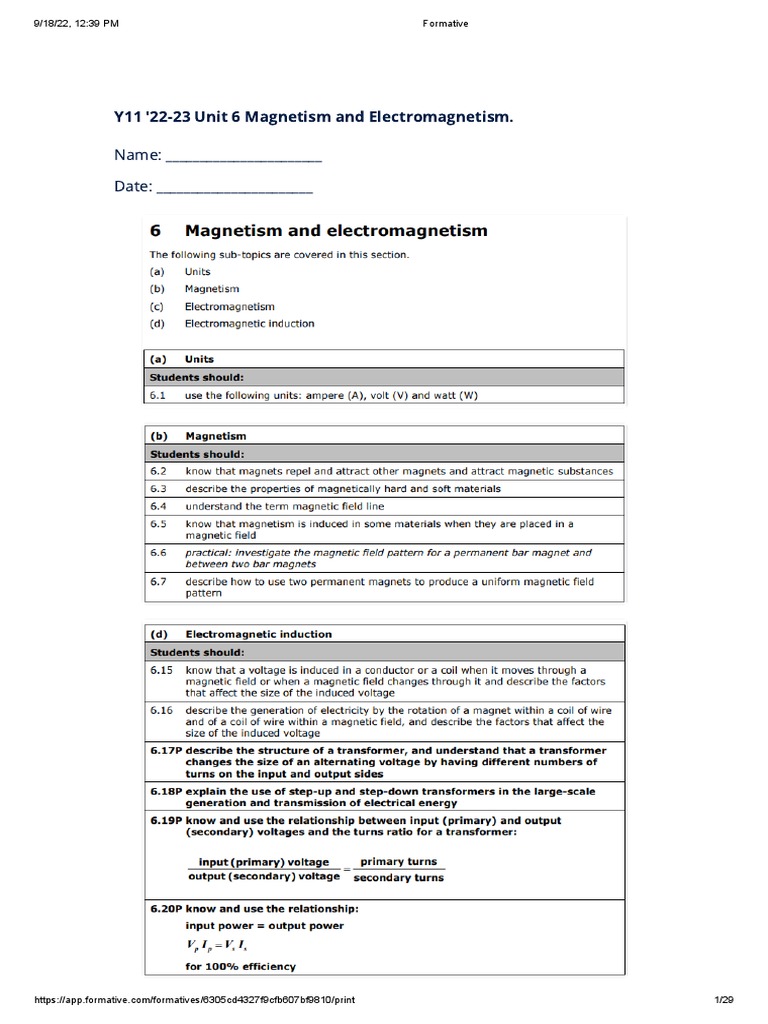

Y11 '22-23 Unit 6 Magnetism and Electromagnetism.
Name: _______________________
Date: _______________________
https://app.formative.com/formatives/6305cd4327f9cfb607bf9810/print 1/29
Defitinitions
https://pmt.physicsandmathstutor.com/d
ownload/Physics/GCSE/Notes/Edexcel-
IGCSE/6-Magnetism-and-
Electromagnetism/Definitions%20-
%20Topic%206%20-
%20Magnetism%20and%20Electromagneti
sm%20-
%20Edexcel%20Physics%20IGCSE.pdf
Flashcards
https://www.physicsandmathstutor.com/p
hysics-revision/igcse-edexcel/magnetism-
and-electromagnetism/flashcards/
Summary notes
https://pmt.physicsandmathstutor.com/d
ownload/Physics/GCSE/Notes/Edexcel-
IGCSE/6-Magnetism-and-
Electromagnetism/Summary%20Notes%2
0-
%20Topic%206%20Magnetism%20and%20
Electromagnetism%20-
%20Edexcel%20Physics%20IGCSE.pdf
Past examination style questions and

mark schemes.
https://www.physicsandmathstutor.com/p
hysics-revision/igcse-edexcel/magnetism-
and-electromagnetism/
Video URL: https://youtu.be/oEEYMhPY5tY
https://spark.iop.org/electromagnets-
everyday-use#gref
Investigate how changing the number of

coils of wire / loops and changing the
current/voltage and reversing the voltage
affects the magnetic field.
https://phet.colorado.edu/sims/cheerpj/fa
raday/latest/faraday.html?
simulation=magnets-and-electromagnets
1. Describe 3 ways of increasing the

strength of an electromagnet
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
This simulation show the shape of the

magnetic field due to a current in a
straight wire
https://nationalmaglab.org/education/ma
gnet-academy/watch-
play/interactive/magnetic-field-around-a-
wire-i
this simulation show how iron filings can

be used to show the magnetic field.
gnet-academy/watch-
play/interactive/magnetic-field-around-a-
wire-i
Video URL: https://youtu.be/V1cTPQxN4K0
2. answer the past examination question
3. answer the past examination question
Video URL: https://youtu.be/pkzY7QfTowM
simulation=faraday
https://www.footprints-
science.co.uk/index.php?
type=Electromagnetic%20induction
gnet-academy/watch-
play/interactive/electromagnetic-
induction
4. What needs to be done to the magnet

to induce a current in the solenoid (coil
of wire)
https://nationalmaglab.org/education/
magnet-academy/watch-
play/interactive/electromagnetic-
induction
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
You need to be able to describe how to

demonstrate induced emf.
In order to demonstrate induced emf.
Connect either end of a solenoid to a
voltmeter.
Use a magnet.
Move the magnet in and out of the
solenoid.
The voltmeter reading moves when the
magnet moves into the solenoid and
moves out of the solenoid.
You need to know 3 factors that will

increase the magnitude of the induced
emf (voltage)
https://www.bbc.co.uk/bitesize/guides/zm
m39j6/revision/2
5. What is the effect of increasing the

number of coils of wire on the solenoid?
There is no effect on the induced emf
The induced emf increases
The induced emf decreases
6. What is the effect of increasing the

magnetic field strength?
7. What is the effect of moving the

magnet faster?
Flemings left hand rule simulation

https://www.walter-
fendt.de/html5/phen/lorentzforce_en.htm
Video URL: https://youtu.be/qvB1mmfo7MQ
Video URL: https://youtu.be/GNLhSKZh-jM
8. The force is directly proportional to the

length of wire in the magnetic field.
What would happen to the size of the
force if the length of wire in the field is
doubled
The force is halved
The force is in the opposite direction
The force remains the same
The force doubles
9. Draw an arrow to indicate the direction

of the force on each wire.
Draw an arrow to indicate the direction of the force on each wire.
Video URL: https://youtu.be/u0B5kSHO1lo
Video URL: https://youtu.be/CWulQ1ZSE3c
10. In what direction will the coil of wire in

the image above rotate?
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
11. In the diagram above, in what direction

would the coil spin if the current is
reversed
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
12. In the diagram above, in what direction

would the coil spin if both the current is
reversed, and the North and South
poles of the magnet were switched
around.
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
https://www.walter-
fendt.de/html5/phen/electricmotor_en.ht
m
13. State 3 ways of increasing the speed of

a motor.
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
14. State two changes that can be made to

a motor to change the direction a
motor spins
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
15. What part of a DC motor ensures the

current always flows in the same
direction around the coil? (Hint s____
r____ c______)
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
16. Highlight / circle in green items that use

a motor
Video URL: https://youtu.be/-9QGEzSKF30
Investigate transformers using the

simulation from the link below.
simulation=faraday
17. What type of electricity do tranformers

use?
Direct current
Alternating current
18. Transform means change. What do

transformers change (select two
Speed
Voltage
Resistance
Current
heat
19. What name is given to a transformer

that increases voltage?
step up transformer
step down transformer
20. What name is given to a transformer

that decreases voltage?
step up transformer
21. What type of transformer is used near a

power station to ensure the power lines
do not overheat?
step up transformer
22. What type of transformer is used near

homes to reduce the risk of
electrocution?
step up transformer
23. Describe why the core of an

electromagnet is made from soft iron
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
Video URL: https://youtu.be/_16o6j6YlXY
24. A transformer has a primary coil of 100

turns and a secondary coil of 300 turns.
What will be the voltage out of the
secondary coil if we apply 20 V to the
primary?
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
25. If we need to change 240 V down to 12

V, and our transformer to has 2000
turns on its primary coil, how many
turns should it have on its secondary
coil?
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
26. A transformer has a primary coil with

200 turns, and a secondary coil with
2000 turns. The input voltage is 120
VAC, and runs at 1800 Watts. What is
the output voltage?
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
A transformer has a primary coil with 200 turns, and a secondary coil with 2000 turns.
The input voltage is 120 VAC, and runs at 1800 Watts. What is the output voltage?

Primary Secndary
200turns 2000turns
1:10 so step up transformer
120: V V = 120 x 10 = 1200V

The power can be used to calculate the current
Power = current x voltage

P=IxV
so input current
P=IxV
1800 = 120 x i....... 1800/120 = 15A
We could also calculate output current
1800 = 1200 x i ........ i = 1800/1200 = 1.5Amps
27. A transformer has a primary coil with

100 coils and 35 amps, and the
secondary has 150 turns. The power in
the secondary is 1.4 kW. Calculate the
output voltage and current
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
A transformer has a primary coil with 100 coils and 35 amps,

and the secondary has 150 turns. The power in the secondary is 1.4 kW
Calculate output voltage and current.

primary secondary
100 150 so step up - voltage increases and
current decreases

Ratio Voltage 2:3
Ratio current 3:2
35Amps ? Amps
3:2 = 35: ? The current in the secondary is 2/3 of 35A
Currrent in secondary = 23.3A
To calculate
output voltage we need to know the input voltage.
To find input voltage we use the power equation P = I x V
P = 1.4kW I = 35A Vin = ? 1400 = 35 x V V = 1400/35 = 40V
Ratio of voltage is 2:3
2:3 = 40:? Output voltage = (40/2) x 3 = 60V
28.
100/200 = 0.5 Complete the table by

what divided
÷ = 5 ÷
calculating the missing value
by 10 = 0.5? in each row.
5/10 = 0.5
Answer 5.
29.
Calculate the missing values in the table. Highlight/circle step up transformer in green and step
down transformers in red.
30. A primary coil has a voltage of 240v and

500 turns. What is the voltage on the
secondary coil if the number of turns
on the secondary coil is 25.
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
31. A secondary coil on a transformer has a

5v and 300 turns. On the primary
transformer the voltage is 13v. Find the
number of turns on the primary coil.
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
Video URL: https://youtu.be/A4E35Akk7kM
In the National Grid, a step-up

transformer is used to increase the
voltage and reduce the current. The
voltage is increased from about 25,000
Volts (V) to 400,000 V causing the current
to decrease. Less current means less
energy is lost through heating the wire.
To keep people safe from these high
voltage wires, pylons are used to support
transmission lines above the ground.
Before reaching the end user, a step-
down transformer, reduces the voltage
from the transmission voltage to the safer
voltage of 230 V for home use.
32. Why are step up transformers used

before electricity is passed through the
national grid cable.
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
33. Why are step down transformers used

before electricity passes to homes.
________________________________________________________
________________________________________________________
________________________________________________________
________________________________
Alternating Current & Oscilliscope.
The oscilloscope can be used to calculate

the voltage and frequency of an unknown
alternating current.
Video URL: https://youtu.be/MzZmgk1Hjs8
https://phet.colorado.edu/sims/html/circu
it-construction-kit-ac/latest/circuit-
construction-kit-ac_en.html
34.
35.

Formative

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Formative

Uploaded by

Copyright:

Available Formats

9/18/22, 12:39 PM Formative

Y11 '22-23 Unit 6 Magnetism and Electromagnetism.

Past examination style questions and

Video URL: https://youtu.be/oEEYMhPY5tY

Investigate how changing the number of

1. Describe 3 ways of increasing the

This simulation show the shape of the

this simulation show how iron filings can

Video URL: https://youtu.be/V1cTPQxN4K0

2. answer the past examination question

3. answer the past examination question

Video URL: https://youtu.be/pkzY7QfTowM

4. What needs to be done to the magnet

You need to be able to describe how to

You need to know 3 factors that will

5. What is the effect of increasing the

There is no effect on the induced emf

The induced emf increases

The induced emf decreases

6. What is the effect of increasing the

There is no effect on the induced emf

The induced emf increases

The induced emf decreases

7. What is the effect of moving the

There is no effect on the induced emf

The induced emf increases

The induced emf decreases

Flemings left hand rule simulation

Video URL: https://youtu.be/qvB1mmfo7MQ

Video URL: https://youtu.be/GNLhSKZh-jM

8. The force is directly proportional to the

The force is halved

The force is in the opposite direction

The force remains the same

The force doubles

9. Draw an arrow to indicate the direction

Draw an arrow to indicate the direction of the force on each wire.

Video URL: https://youtu.be/u0B5kSHO1lo

Video URL: https://youtu.be/CWulQ1ZSE3c

10. In what direction will the coil of wire in

11. In the diagram above, in what direction

12. In the diagram above, in what direction

13. State 3 ways of increasing the speed of

14. State two changes that can be made to

15. What part of a DC motor ensures the

16. Highlight / circle in green items that use

Video URL: https://youtu.be/-9QGEzSKF30

Investigate transformers using the

17. What type of electricity do tranformers

18. Transform means change. What do

19. What name is given to a transformer

step down transformer

20. What name is given to a transformer

step down transformer

21. What type of transformer is used near a

step down transformer

22. What type of transformer is used near

step down transformer

23. Describe why the core of an

Video URL: https://youtu.be/_16o6j6YlXY

24. A transformer has a primary coil of 100

25. If we need to change 240 V down to 12

26. A transformer has a primary coil with

27. A transformer has a primary coil with
