Service Information

Document Title: Function Group: Information Type: Date:

Digital input and output 387 Service Information 27/05/2023
signals
Profile:
A40E Volvo

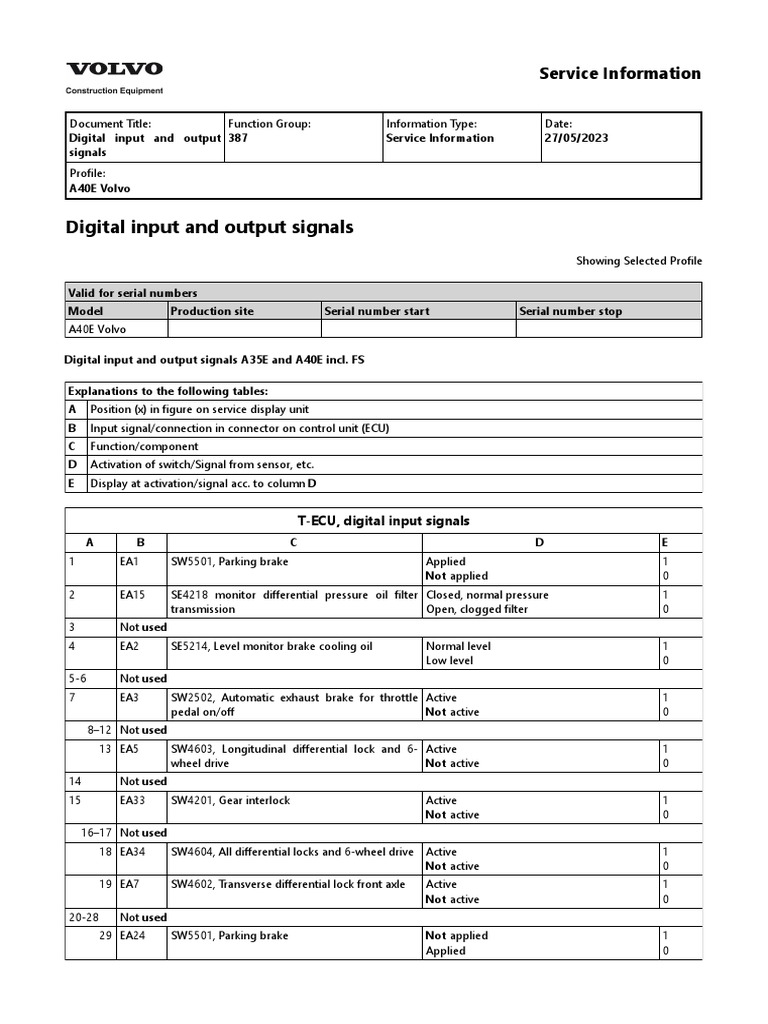

Digital input and output signals

Showing Selected Profile

Valid for serial numbers

Model Production site Serial number start Serial number stop
A40E Volvo

Digital input and output signals A35E and A40E incl. FS

Explanations to the following tables:

A Position (x) in figure on service display unit
B Input signal/connection in connector on control unit (ECU)
C Function/component
D Activation of switch/Signal from sensor, etc.
E Display at activation/signal acc. to column D

T-ECU, digital input signals

A B C D E
1 EA1 SW5501, Parking brake Applied 1
Not applied 0
2 EA15 SE4218 monitor differential pressure oil filter Closed, normal pressure 1
transmission Open, clogged filter 0
3 Not used
4 EA2 SE5214, Level monitor brake cooling oil Normal level 1
Low level 0
5-6 Not used
7 EA3 SW2502, Automatic exhaust brake for throttle Active 1
pedal on/off Not active 0
8–12 Not used
13 EA5 SW4603, Longitudinal differential lock and 6- Active 1
wheel drive Not active 0
14 Not used
15 EA33 SW4201, Gear interlock Active 1
Not active 0
16–17 Not used
18 EA34 SW4604, All differential locks and 6-wheel drive Active 1
Not active 0
19 EA7 SW4602, Transverse differential lock front axle Active 1
Not active 0
20-28 Not used
29 EA24 SW5501, Parking brake Not applied 1
Applied 0
30-34 Not used
35 EA39 SW2707, Delayed stop Active 1
Not active 0
36-38 Not used
39 EA13 SE4214, Pressure monitor oil transmission Machine started 1
Machine off 0
40-41 Not used

V-ECU, digital input signals

A B C D E
1 EA1 External indication exceeded speed on/off Active 1
Notactive 0
2 EA15 SW3301, Ignition connection DR Key position 1, 2, 3 1
Key position 0, R 0
3 Not used
4 EA2 SW3301, Ignition connection 50 Key position 3 1
Key position 0, R, 1 , 2 0
5 EA16 SW3301, Ignition connection R Key position R, 1 1
Key position 0, 2, 3 0
6 EA30 SW3301, Ignition connection 15 Key position 1, 2 1
Key position 0, R, 3 0
7 EA3 SW3301, Ignition connection P Key position 0, R 1
Key position 1, 2, 3 0
8 EA17 SW3305, Safety stop engine Active 1
Notactive 0
9 EA32 SE8501, Position monitor seatbelt Buckled 1
Not buckled 0
10 EA4 SE8701, Pressure monitor AC Active 1
Notactive 0
11 Not used
12 EA31 SE8501, Position monitor seatbelt Not buckled 1
Buckled 0
13 EA5 SW3301, Ignition connection 19 Key position 2 1
Key position 0, R, 1, 3 0
14 EA19 SW3501, Headlights Active 1
Notactive 0
15 EA33 SE9104, Monitor hydraulic oil level Normal level 1
Low level 0
16 EA6 SE3201, Charging monitoring Alternator charging 1
Alternator does notcharge 0
17 EA20 SW2701, Increased engine speed Active 1
Notactive 0
18 EA34 SE4607, Position monitor longitudinal Active, diff. lock engaged 1
differential lock Not active, diff. lock disengaged 0
19 Not used
20 EA21 SW5501, Parking brake Applied 1
Not applied 0
21 EA35 SW5901, Load and dump brake Active 1
Not active 0
22 EA8 Extra input request red central warning Not active 1
Active 0
23 EA22 SW3608, Windshield washer Active 1
Not active 0
 24 EA36 SW3602, Windshield wiper, interval Active 1
Not active 0
25 EA9 Extra input request orange central warning Not active 1
Active 0
26 EA23 SW9102, Hold position dump lever Active 1
Not active 0
27 Not used
28 EA10 Extra input request red central warning and Not active 1
buzzer Active 0
29 EA24 SW5501, Parking brake Not applied 1
Applied 0
30 Not used
31 EB12 EOL (End of Line) enable Not active 1
Active 0
32–36 Not used
37 EA26 SE8301, Position monitor door (open/closed) Open 1
Closed 0
38 EA40 SE8502, Position monitor seat cushion Loaded 1
Not loaded 0
39 EA13 SE9501, Position monitor load body Body up 1
Body down 0
40-41 Not used

V2-ECU, digital input signals

A B C D E
1-3 Not used
4 EA2 SW7601, FS normal/bottom position Normal position 1
Bottom position 0
5–6 Not used
7 EA3 SW7601, FS normal/bottom position Bottom position 1
Normal position 0
8–41 Not used

I-ECU, digital output signals

A B C D E
1–4 Not used
5 LX8 LC9101, Primary steering system, pressure Active 1
Not active 0
6 LX16 LC4202, Oil temperature, transmission Active 1
Not active 0
7 LX17 LC4201, Malfunction, transmission Active 1
Not active 0
8 LX18 LC2503, Not used Active 1
(Exhaust cleaning) Not active 0
9 LY10 LC5202, Wheel brakes Active 1
Not active 0
10 LX19 LC2601, Coolant temperature, engine Active 1
Not active 0
11 LX20 LC2201, Oil pressure, engine Active 1
Not active 0
12 LX7 LC3804, Red central warning (right panel) Active 1
Not active 0
 13 LY26 IA service socket pin 1 Contronic, clock –
14 LY27 IA service socket pin 2 Contronic, data –
15 LY28 IA service socket pin 3 Contronic, enable –
16 LY11 LC3801, Central warning, orange (middle panel) Active 1
Not active 0
17 LY12 LC4601, transverse differential, front axle Active 1
Not active 0
18 LY13 LC4602–4603, longitudinal differential and 6x6 Active 1
drive Not active 0
19 LY8 LC5201, Brake servo pressure Active 1
Not active 0
20 LY9 LC5501, Parking brake Active 1
Not active 0
21 LY18 LC4604–4605, Transverse differential front and Active 1
rear bogie axle Not active 0
22 LY19 LC9501, Body up Active 1
Not active 0
23 LY20 LC8501, Seatbelt, not buckled Active 1
Not active 0
24 LY21 LC8301, Open door Active 1
Not active 0
25 LY22 LC5902, Load and dump brake Active 1
Not active 0
26 LY23 LC9901, spare Active 1
Not active 0
27 LY24 LC9902, spare Active 1
Not active 0
28 LY25 LC9903, spare Active 1
Not active 0
29 Internal Light test Active 1
signal Not active 0
30 LY16 LC9102, Secondary steering system, pressure Active 1
Not active 0
31 LY17 LC2501, Air filter clogged Active 1
Not active 0
32 Internal LC2502, Preheating Active 1
signal Not active 0
33 Internal LC3802, Central warning orange Active 1
signal Not active 0
34 Internal LC3803, Central warning red Active 1
signal Not active 0
35 Internal LC3201, Battery charging Active 1
signal Not active 0
36-41 Not used.

T-ECU, digital output signals

A B C D E
1–8 Not used
9 EC9 MA5502, Solenoid valve engagement parking Active 1
brake 2 Not active 0
10–13 Not used
14 EC14 RE3704, Relay delayed stop Active 1
Not active 0
15–36 Not used

V-ECU, digital output signals

A B C D E
1 EC1 RE3301, Relay starter motor Active 1
Not active 0
2 Not used
3 EC3 MA5501, Solenoid valve engagement parking Parking brake not applied 1
brake 1 Parking brake applied 0
4 Not used
5 EC5 RE3601, Relay interval wiper Active 1
Not active 0
6 EC6 RE3602, Relay windshield washer Active 1
Not active 0
7 Not used
8 EC8 MA9101, hold solenoid float position dump Active 1
lever Not active 0
9 EC9 RE3603, Relay buzzer central warning Active 1
Not active 0
10 EC10 Extra output activation red central warning Active 1
Not active 0
11 EC11 SW2705, Position throttle pedal, signal to E-ECU Active, Applied pedal 1
Not active 0
12 EC12 Relay 4201, Relay back-up light/ back-up alarm/ Active 1
back-up camera Not active 0
13 EC13 RE5201, Relay brake lights Active 1
Not active 0
14 EC14 RE3702, Voltage feed V-/ T-/ E-ECU Not active 1
Active 0
15–28 Not used
29 EC35 Exceeded speed, external warning Active 1
Not active 0
30-36 Not used

V2-ECU, digital output signals

A B C D E
1–14 Not used
15 EC18 MA7601, Solenoid valve fill front axle left Active 1
Not active 0
16 Not used
17 EC20 MA7603, Solenoid valve fill front axle right Active 1
Not active 0
18 Not used
19 EC22 MA7605, Solenoid valve Active 1
Not active 0
20 Not used
21 EC24 MA7607, Solenoid valve fill bogie axles right Active 1
Not active 0
22 Not used
23 EC26 MA7602, Solenoid valve drain front axle left Active 1
Not active 0
24 Not used
25 EC28 MA7604, Solenoid valve drain front axle right Active 1
Not active 0
26 Not used
27 EC33 MA7606, Solenoid valve drain bogie axles left Active 1
Not active 0
28 Not used
29 EC35 MA76068, Solenoid valve drain bogie axles right Active 1
Not active 0
30–36 Not used
